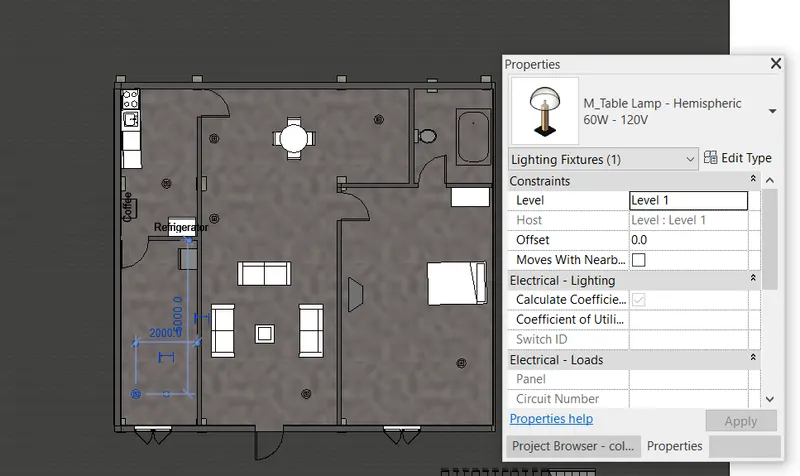

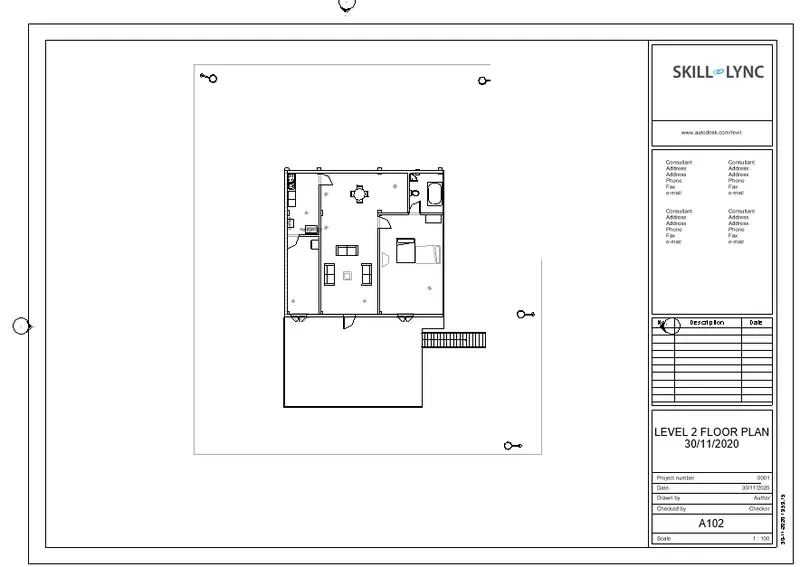

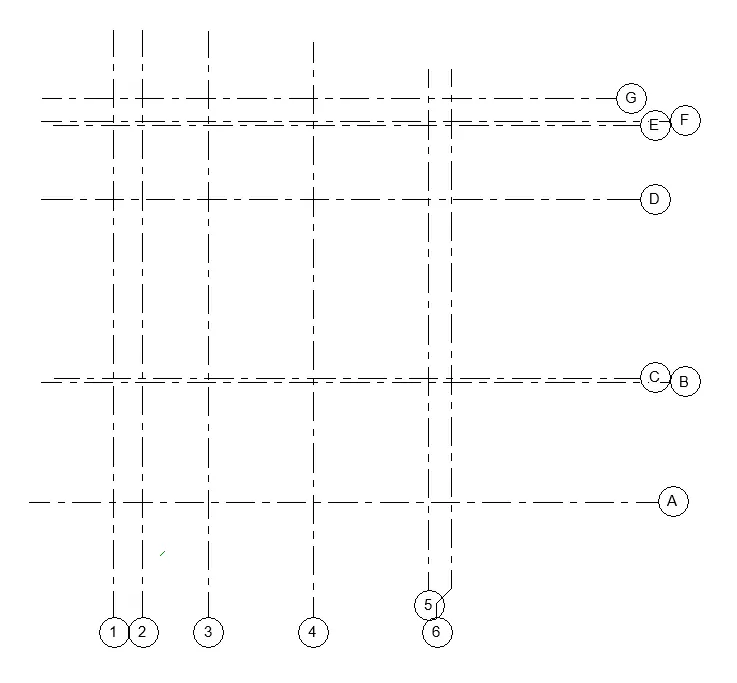

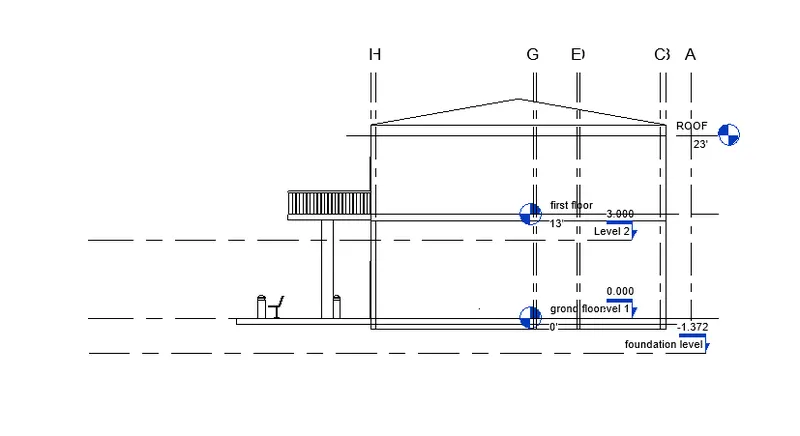

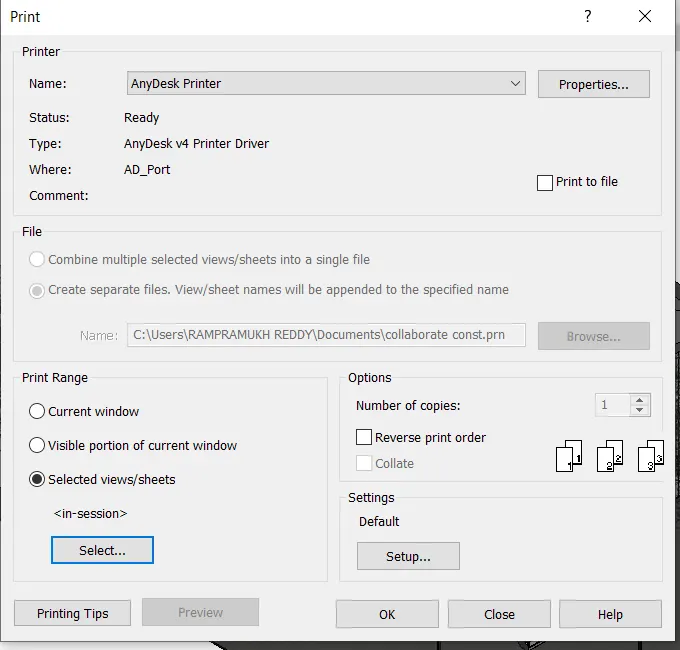

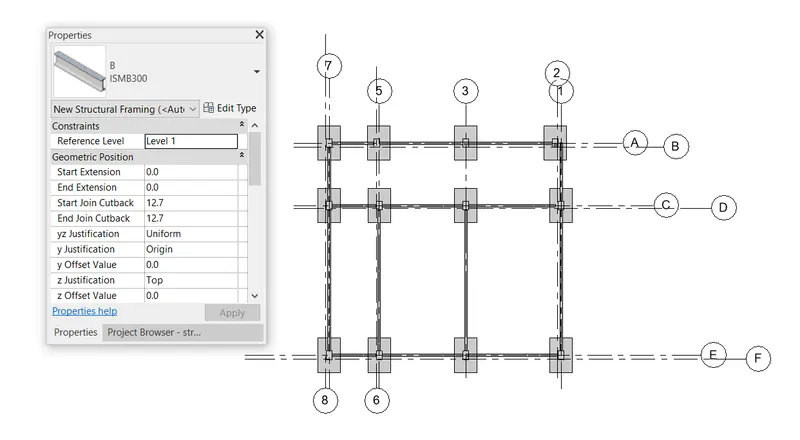

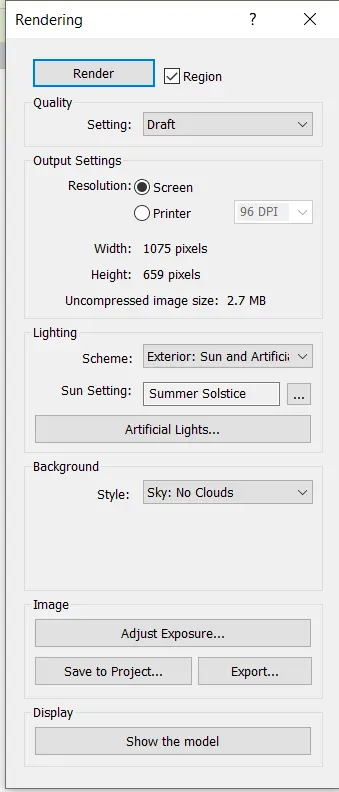

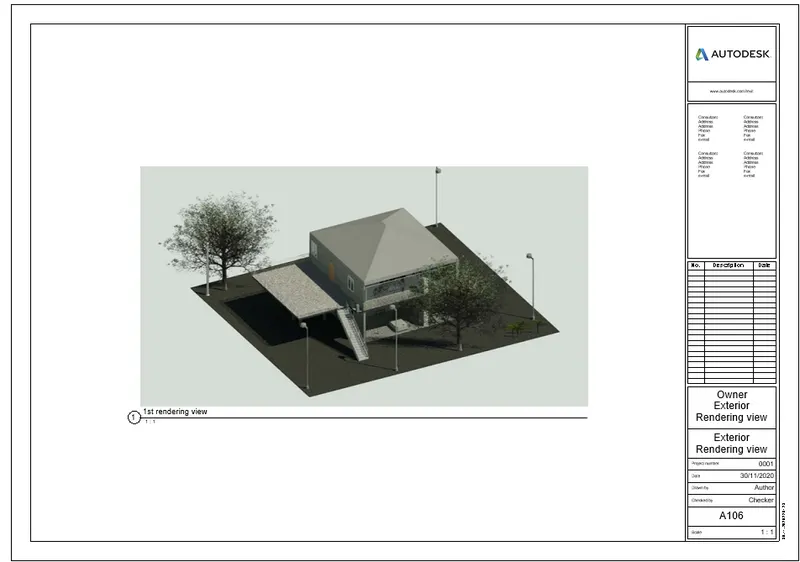

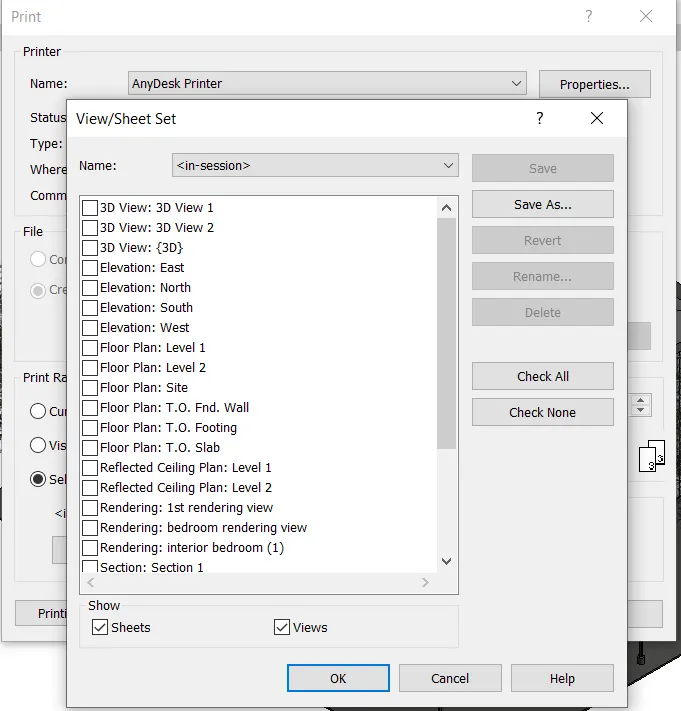

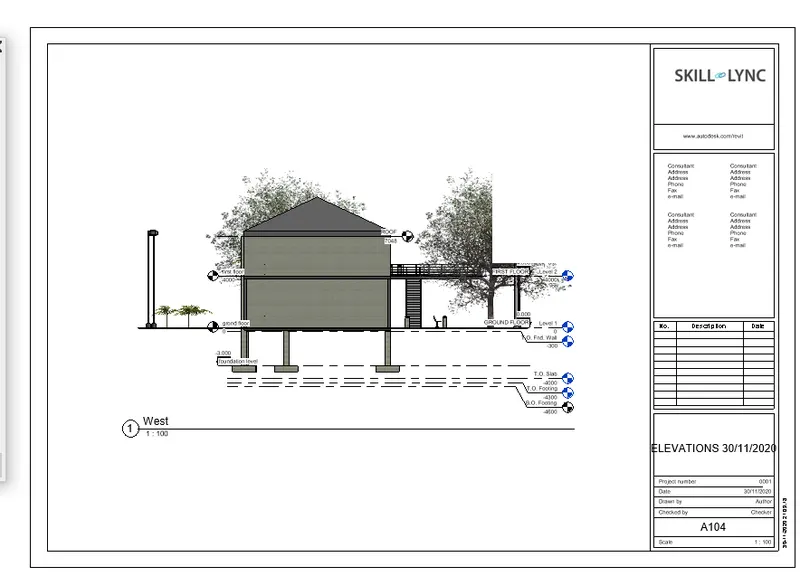

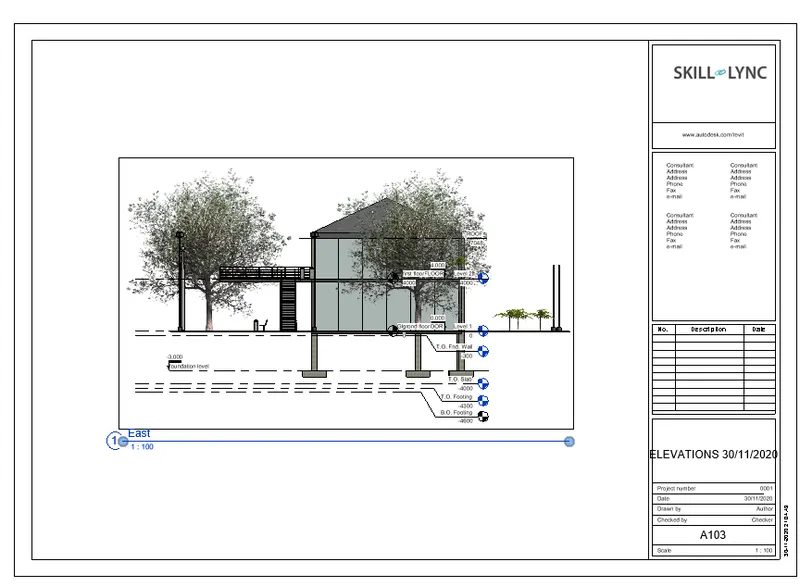

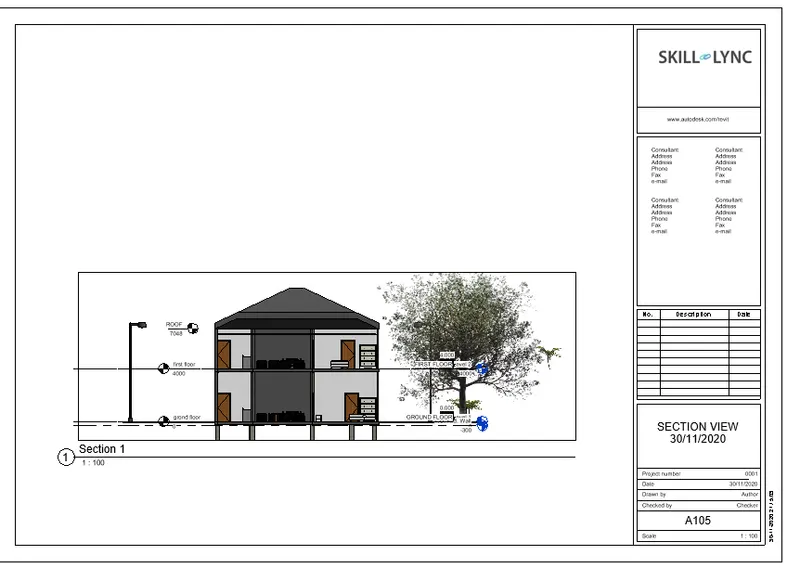

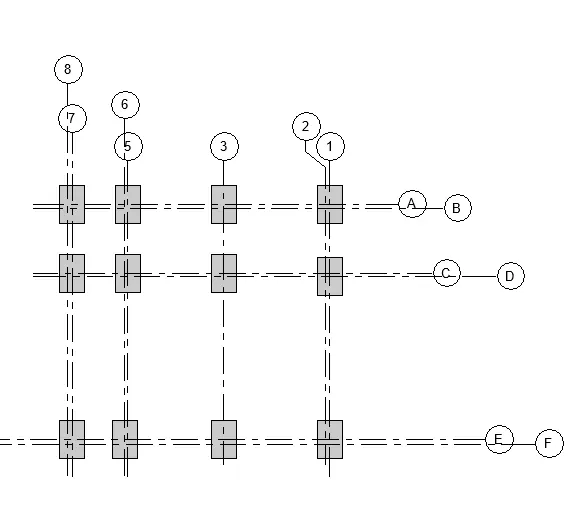

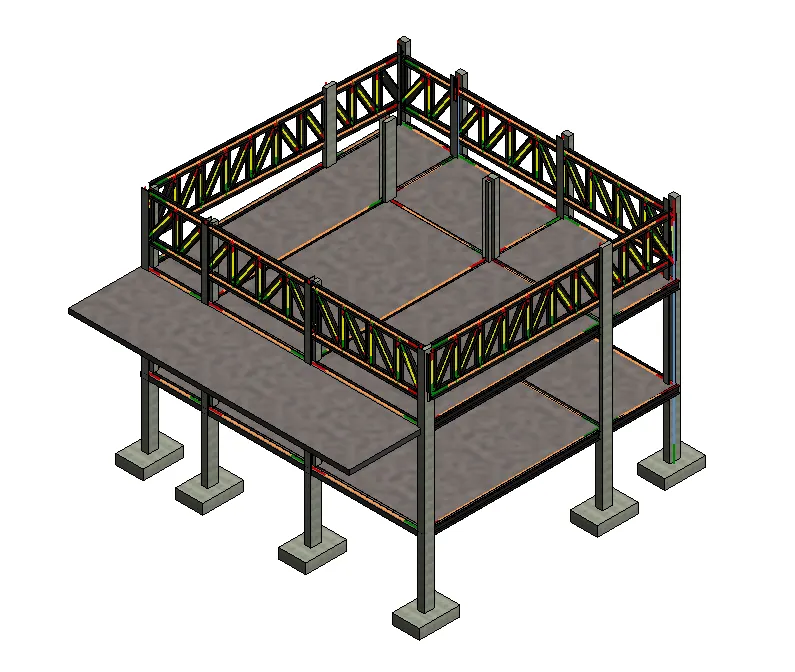

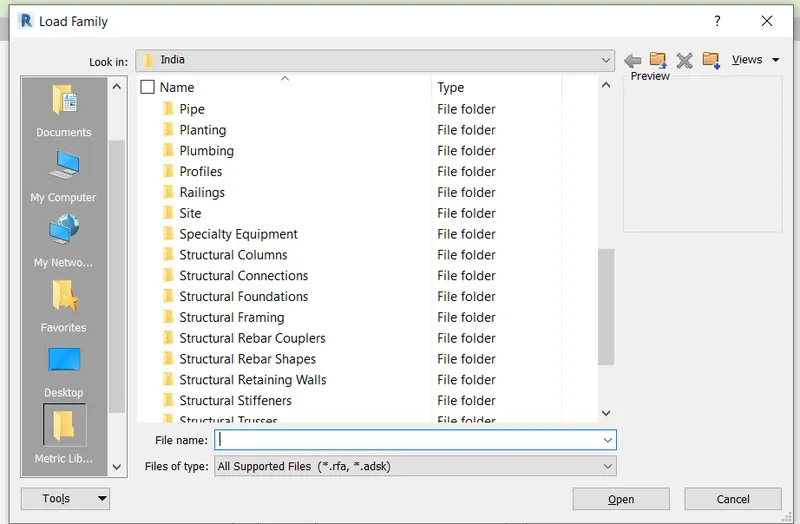

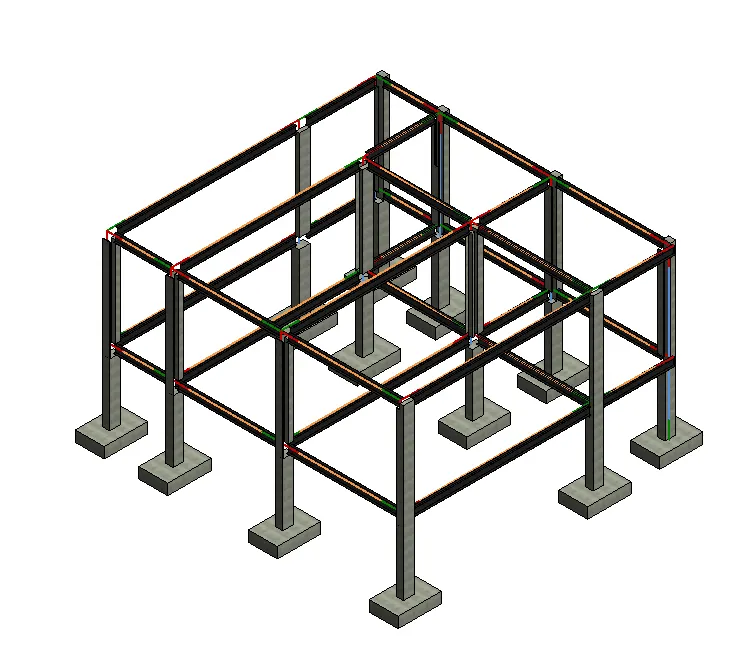

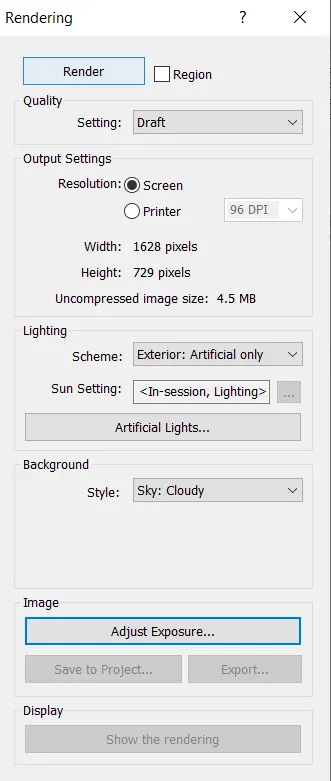

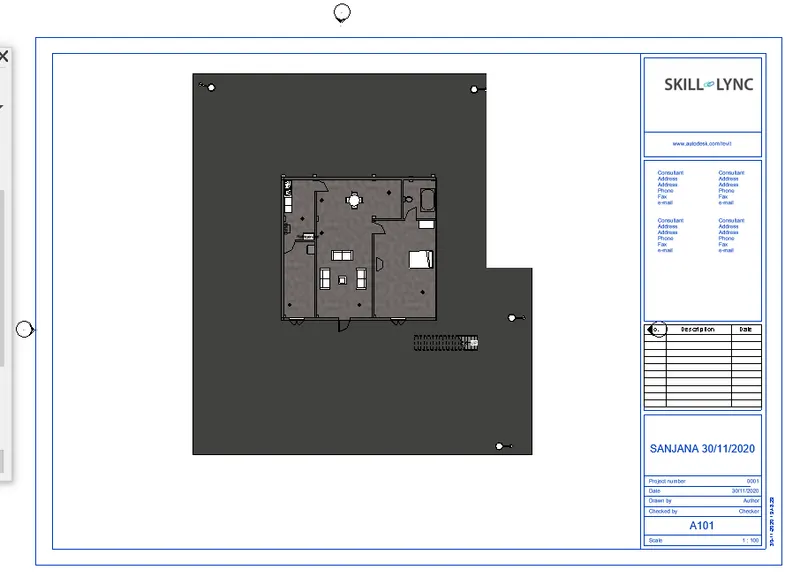

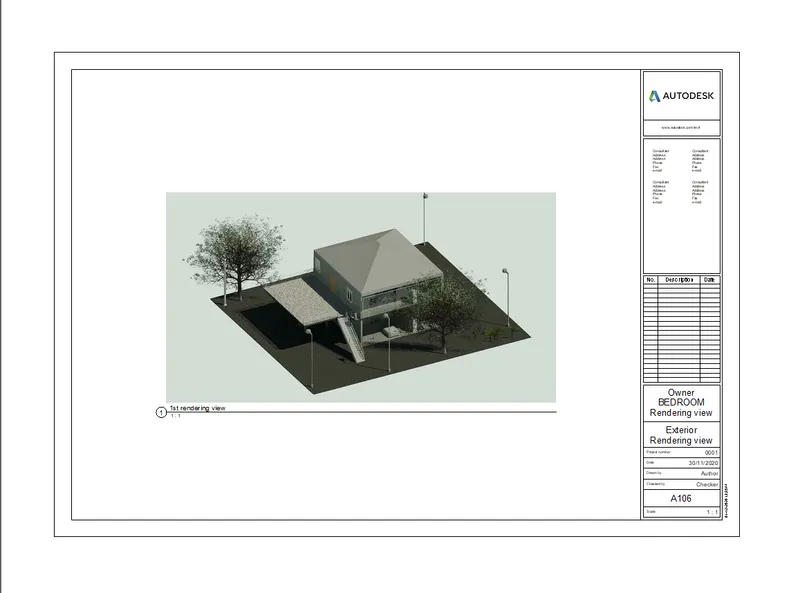

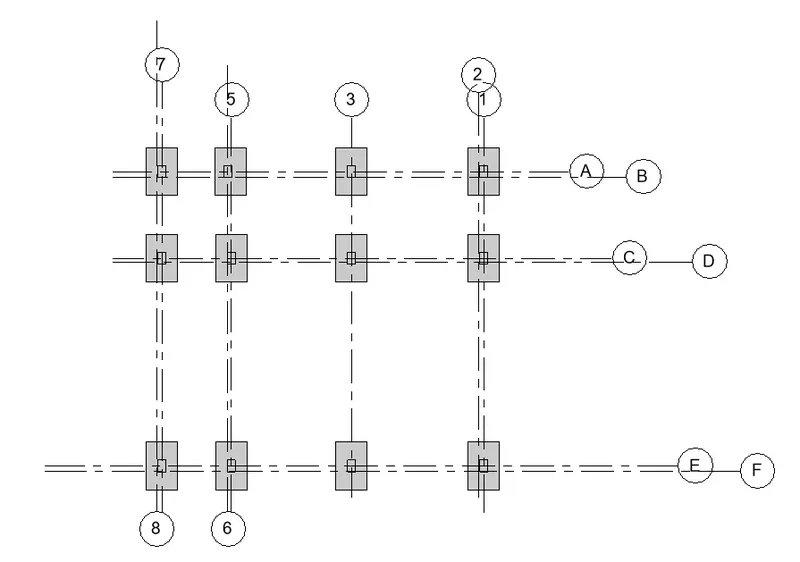

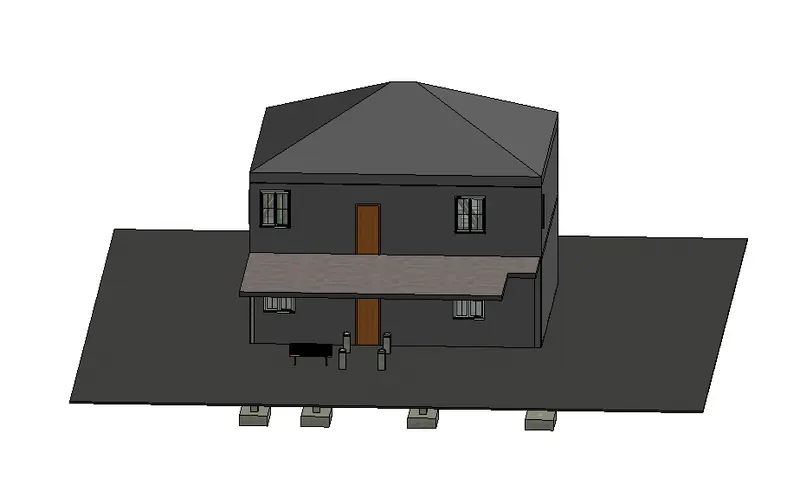

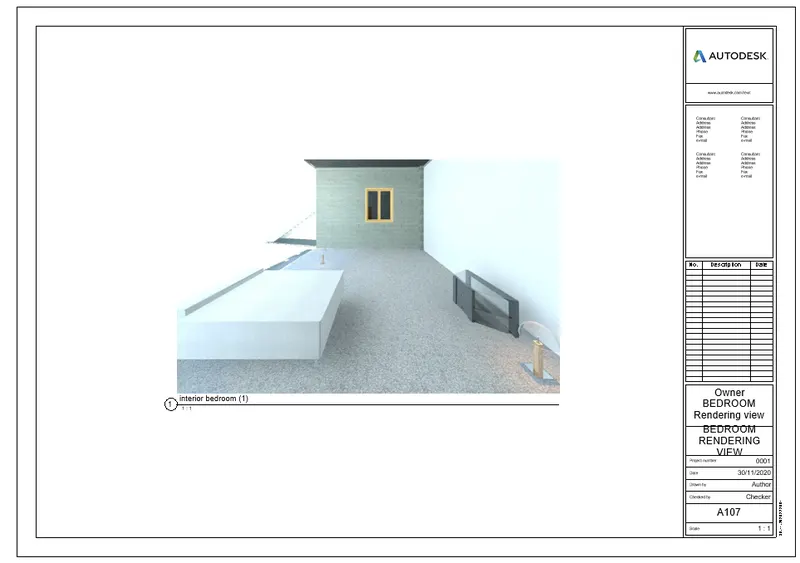

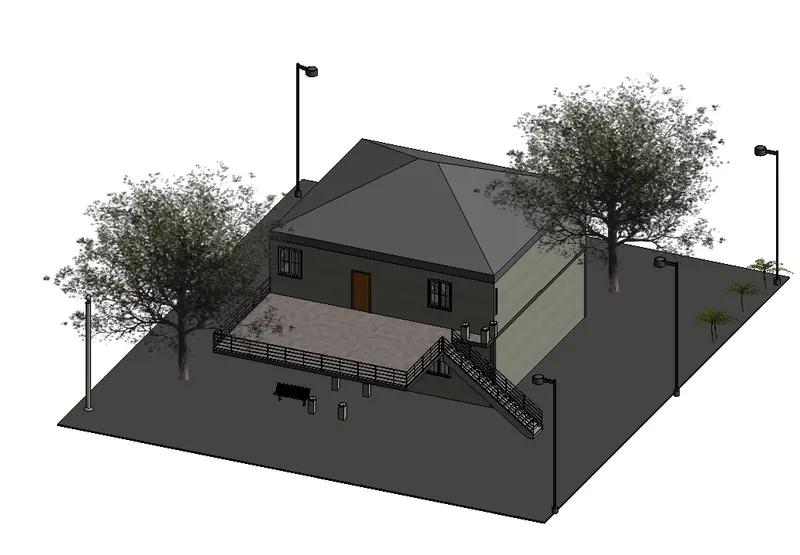

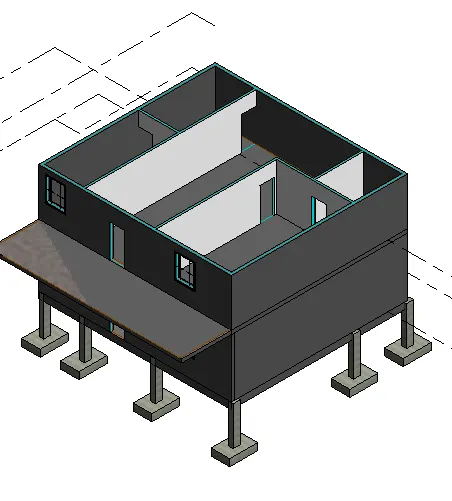

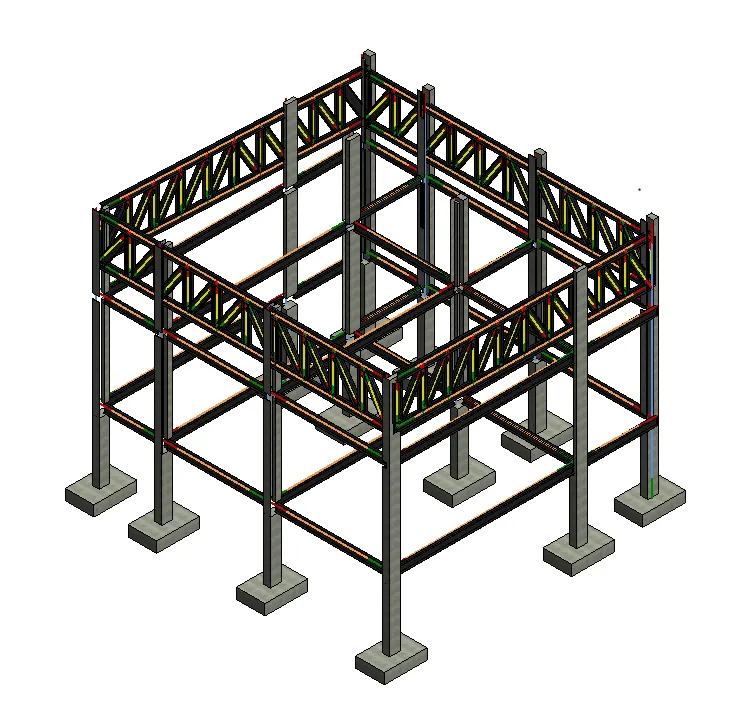

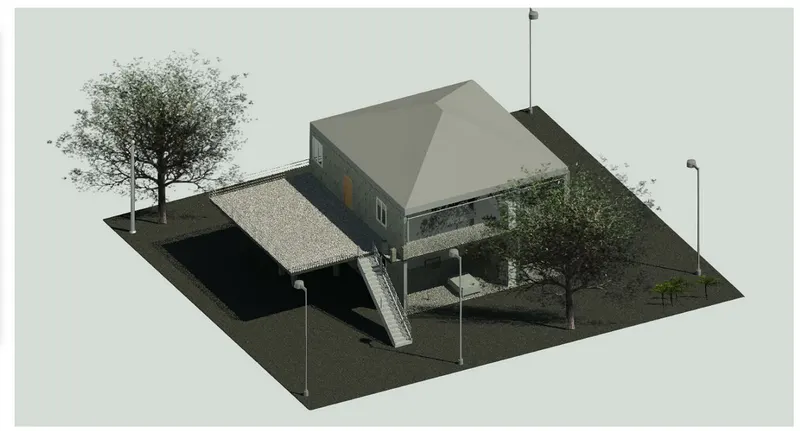

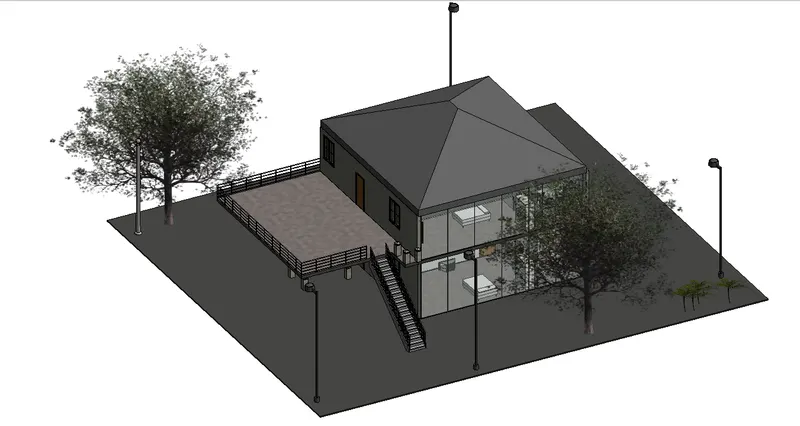

REVIT_ Plan, 3D View & Structural Drawings_Project 2

AIM: A 100 m WBM road needs to be constructed inside the Skill Lync Education center premises to allow access to the center for students and faculties.Create the following Project (under same EPS/OBS as project-1) and Resource :Project Name - Education Centre RoadAssume - Calendar as 6 x 24 and start date on 22nd Feb 2021…

AIM: Skill-Lync wants to construct a school as a part of its corporate social objective. You are the project manager. Develop a realistic schedule to construct the main school building (G+2). It will have a parking facility with internal roads and the main building complete with architectural, furniture, and electrical…

AIM : To create a dynamo script of multi-storeyed complex structure  Procedure : *Open a new file  *family generic model  *In reference plan select model line  *Open dynamo,  *select elements models >(Select from the Revit ) *curve element  *Curve by sweep >connect the element curve and arc        Result : *We have successfully…

Aim: To Model an apartment with 4 units on each floor (2- 3 BHK) of 7 stories with a stilt parking facility. Design and model the structural elements as required. 1. Print BOQ and estimates from the model for different trades2. Print layouts for floor plans trade wise and one including all trades3. Print 3D views from…

Aim: Etabs model for the two blocks on either side of the expansion gap Foundation details illustrating the pile & pile cap reinforcement Tie beam details connecting the pile caps Column reinforcement Framing plan for typical floor Beam reinforcements for ground floor Procedure :  *To model the plan in etabs software …

Q1) Model the isolated footing provided in the week 11 challenge on SAFE. Analyze and design it to verify the size, depth, and steel provided as per calculations. Aim: To Model the isolated footing in week 11 challenge on safe and also to Analyze and design it to verify the size, depth, and steel provided as per calculations …

Aim: TO Design a square footing for a column size of 400x400. The compression axial load for the load combination of (1.5 DL + 1.5 LL) is 2000 KN. The safe soil bearing capacity is 150 KN/m2 at a depth of 2 meters below E.G.L. Participants are free to go for either a tapered or stepped footing. Besides the total axial…

Aim: The architectural drawings for a G+7 residential building in zone 5 have been provided. The floor plan is the same for all 7-floor levels. Possible column positions have also been provided. Conceptualize a framing plan layout and then model the building in Etab. Given : Typical floor plan – The location and…

AIM: The etabs file for a G+6 building is provided. Run the analysis and design of the RCC shear walls (shown in the etabs model). The following challenge deals specifically with the shear wall of size 300x1500 at grid A-11 in the structural model. Procedure :  Download the given file and open it in etabs software …

AIM: The ETABS file for a G+4 building is provided. Run the analysis and design of the RCC Moment Resisting Frame. The following challenge deals specifically with two columns at the following grid intersections. Introduction : *The minimum dimensions of the member shall not be less than 200 mm. However, in frames that…

Aim: Detail design of beams in Etabs 2018.The ETABS file for a G+4 building is provided. Run the analysis and design of the RCC Moment ResistingFrame. The following challenge deals specifically with two continuous beams on the 1st floor. 1 ) 3 span continuous beam along grid A 2) 7 span continuous beam along…

AIM: To do a comparative study o different story buildings for seismic forces Procedure : Building A: Two-story building beam : 300mm x 400 mm  column : 400mm X 400 mm  grade M30, Fe 415,  Brick wall load = 10 Kn/m Live load 3 KN/m^2     Analysis  Model participating mass ratio …

Q1) AIM: Model a 25 storey building on ETABS 2018 with structural properties as specified below. Ground floor or plinth floor level can be taken at a height of 1.5 metres from the base. Each of the successive 25 storeys has a storey height of 3 metres. Given details : Structural Element Sizes  Beams: 300 × 400…

Q1): Answer : Among 3 alternatives a, b,c, all with the same total cross-sectional area of the shear walls. b  can be considered as into account the restraint of floor shrinkage, the lateral stiffness and the torsional one with respect to the vertical axis, the vertical reinforcement required for the…

Question 1: Comment on the layout of the framing plan concerning earthquake resistance in the two horizontal directions X or Y (dots are columns, lines depict beams). Look into aspects of symmetry, redundancy, and bi-directional stiffness and ductility. Answer: It is symmetrical well distributed in the plan layout of structural…

Q1): A five-story structure with 5 translational DOF is shown here. Each story has mass ‘m’. The eigenvalue problem has been solved and the 5 periods of vibration Tn and their corresponding mode shapes, φn has been derived. `Q_1 = ((0.334 ), (0.641),(0.895),(1.078),(1.173))` `Q_2 = ((-0.895),(-1.173),(-0.641),(0.334),(1.078))`…

1) AIM: Compute lateral stiffness of the one-story frame with an intermediate realistic stiffness of the beam. The system has 3 DOFs as shown. Assume L = 2h and Elb = Elc   Solution : if `U_1` = 1  `U_1` =  24 `(EI_c) /h^3` `'U_2'`= 6 `(EI_C)/h^2` `U_3` = 6 `(EI_C)/h^2`  …

1) What is the mode of failure or damage of the beams in the figure above? Would you characterize the case as damage or as a failure? Are the damages repairable? Elaborate  a) b)  c) Answer:  Beam column Connection faliure : Formation of Plastic hinge at undersirable locations .The joint is…

Develop general arrangement for the RC office building. Analyze and design the building as per IS standard code in TEKLA STRUCTURAL DESIGNER. Refer the attached plan and elevation. The building to be designed for dead, live, wind and seismic loading. Report of each member to be generated and extract drawings for structural…

Analyze and design a steel building to 10T CRANE as per IS standard code in TEKLA STRUCTURAL DESIGNER. Refer the attached plan and elevation. Provide bracings and moment connection for lateral stability.  Consider dead, live, equipment and wind loading. Consider the brick wall loading for 150mm thick and 1.5 KN per…

Aim:To Create a 3d imensinal model of the residential building with a rendered view  Procedure : In the command prompt type units >0'-0" > engineering > inches  In the command prompt type limmax > 100',100, In the command prompt type limits >0',0' In the command prompt type z>a  In the…

1. Create a 3D Isometric View of the building with plan and elevation given. AIM: To Create a 3D isometric view of the the building with plan and elevation using Autocad  PROCEDURE: In the command prompt type units >engineering>0'-0" In the command prompt type limmax>100',100' In the command prompt type limits…

1. Create a 3D Furniture element as shown in the Figure. Assume dimensions which are missing. AIM: To Create a 3D furniture elements using AutoCAD software  PROCEDURE: Open autocad >3D modelling  In the command prompt units >engineering>inches>0'-0" In the command prompt type limax>100',100' In…

1) Create a layout of the Plan and Section A of the project in Challenges 7, using the template Tutorial-mArch.dwt in a scale as given in the Figure. Use the MV command to create the viewport of the size as shown in Figure. Also, use ATTEDIT command to edit the information in the title block. Use A1 size forthe layout.…

1) Create the layouts of the Kitchen and provide hatches pattern as shown. Also, use blocks whereverrequired. Provide appropriate dimensions in the plan. Assume the size of doors, appliances and othersas per the standards. Aim: To Create the Kitchen Layout and to  Also, use proper dimension techniques to dimension…

1. Create the templates as shown in Figures. Take the size of the title block as per industry standards oryou can assume it as per the size of the paper. Use text and attributes wherever required. After creatingthe title block you need to save it as a block with names: Custom1_titleblock and Custom2_titleblock,respectively.…

Design and Draft a layout of a residential building with the following details: a. Plot Size: 60’x20’(18.3m x6m)  b. Orientation- Facing East  c. Develop the following: 1. Architectural Drawing (Floor Plan, Elevations, and Sections) 2. Structural Drawing (Column, Bean, Footing Plan) AIM: To Design…

1) Create the Plan and Sections as shown in the Figures. Use proper dimension techniques anddimension styles to document the project. Assume the sizes of the doors and windows as perconstruction standards. Refer to sections for stair details if required. Aim: To Create the Plan and Sections as shown in the Figures.…

1) Draw the elevation and details of a wardrobe as shown in the Figure below. After sketching, you need to provide the dimensions and text with the use of layers. AIM :  To Draw the elevation and details of a wardrobe as shown in the Figure below. After sketching, you need to provide the dimensions and text with the…

1) Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class. AIM: Export the Revit architecture and structure model to Navisworks Cache file. PROCEDURE: Open autodesk website…

1) Using Dynamo create a set of sinusoidal points and create a curve and create a surface out of the curve.   AIM: To create a set of sinusoidal points and create a curve and create a surface out of the curve using Dynamo .  PROCEDURE : step 1: Open revit > architectural template >manage tab .  click…

1) Use the shortcut keys in Revit discussed in class to complete the following tasks and list them below           a. Using 3D model create a section box           b. To create similar doors and windows in a floor plan layout         …

1)What are HVAC systems ? Why are they essential in modeling of buildings              Heating, ventilation, and air conditioning (HVAC) system is designed to achieve the environmental requirements of the comfort of occupants and a process.The basic components or equipment of an HVAC…

1)Select the type of structure you want to build from one of the three below        a. Multi Unit Residential Apartment        b. Office Buildings        c. School ANSWER:  My model represents a Multi Unit Residential Apartment .    2) Assume reasonable…

AIM: To calculate the Concrete Mix Design for M35 grade Concrete with fly ash EQUATIONS: Target mean strength : f’ck= fck +1.65 s                                                 …

1. AIM:  To Create a column schedule as shown in the figure below using AutoCAD software :-   PROCEDURE : STEP1 In the command prompt type line to create tables  In the command prompt type ST (text style ) > romans.shx (font name ) > 8" (height ) > left (justify ) In the command prompt type…

                                                                                 CHALLENGE 1  AIM:  To  Sketch…

 AIM:   To draw the given drawing using AutoCAD software  PROCEDUE :   STEP 1:  In the command prompt type Units and select decimal unit    STEP 2 :  In the command prompt type PL ( Polyline )  In the command prompt specify start point 1,1   In the command prompt type …

AIM : To sketch a G+1 floor residential plan , according to vastu shastra and to list down the names of the structural drawing required to be provided to the site for construction . To assume the sizes of the structural elements ( column , beam , slab ) and to accordingly   calculate the individual corresponding…

AIM:    To draw C.S of load bearing wall over spread footing using AutoCAD Software  PROCEDURE: Open AutoCAD  In the command prompt type QNEW click on imperical template , advaced setup , decimal  In the command prompt type units  Type= decimal, precision = 0.00 , angle = decimal…

AIM: To  Create the geometries from P1 to P2 using all the coordinates system methods. APPARATUS: Autocad software  COORDINATES SYSTEMS : Absolute coordinates relative rectangular  coordinates  relative polar coordinates  direct distance entry PROCEDURE: 1)    open autocad QNEW command …

1) AIM:  To create a new project ( Structural/ Architectural/Construction template ) and name the project appropriately   PROCEDURE: Step 1 : (OPEN A FILE ) Open Revit software  After this click on New  Then click on ARCHITECTURE TEMPLETE > PROJECT> OKAY  STEP 2 : (SAVE A FILE ) Once…

1) what is BIM? Summarize the features of BIM and benefits of using BIM over 2D CAD tools . ans:-      BIM : Building Information Modeling (BIM) is an intelligent 3D model-based process that gives architecture, engineering, and construction (AEC) professionals the insight and tools to more efficiently…

1)Use the project file created from Week 2. Use it for this assignment. Based on your layout from week 2, using floor tool under architecture tab and select the floor with appropriate material and thickness using the property browser create a layout in the Ground floor Level. Align the floor plan with grids created from…

1)Based on the project saved from Week 3, proceed from First Floor Level .Model a Ceiling from architecture tab above the walls at first floor level AIM: To model a celling from architecture tab above the walls at first floor level TOOLS: Celling  boundary lines > rectangle PROCEDURE : STEP 1 (Celling for first…

1) Open an architectural template. Using the Manage tab set project base point and project shared coordinates for the project.   AIM: To set project base point and project shared coordinates for the project .   PROCEDURE : STEP 1 (To create project shared coordinates ) open architectural template  open…

  1) Why are building codes or standards essential for the modeling/ efficiency of drawings in Revit ? Answer:- A model building code organization is a set of building codes that are developed and maintained by a standards organization. This standards organization operates independently of the jurisdiction or area…
