AutoCAD _ Footing Detailing ,Floor Plan and Isometric View_ week 2

AIM:    To draw C.S of load bearing wall over spread footing using AutoCAD Software  PROCEDURE: Open AutoCAD  In the command prompt type QNEW click on imperical template , advaced setup , decimal  In the command prompt type units  Type= decimal, precision = 0.00 , angle = decimal…

    • Sanjana Reddy Pandillapalli

      updated on 27 Nov 2020

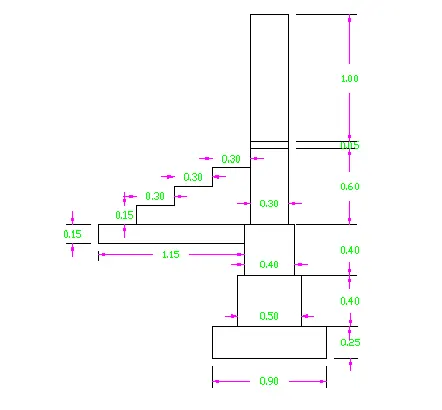

    AIM:

       To draw C.S of load bearing wall over spread footing using AutoCAD Software

    PROCEDURE:

    • Open AutoCAD
    • In the command prompt type QNEW
    • click on imperical template , advaced setup , decimal
    • In the command prompt type units
    • Type= decimal, precision = 0.00 , angle = decimal degree
    • In the command prompt type ds
    • snap spacing ( x and y spacing = 0.5 )
    • grid spacing (x and y spacing = 0.5 )
    • In the command prompt type REC ( RECTANGLE )
    • specify first corner point 1,1
    • In command prompt click dimensions
    • specify length of the rectangle 0.90
    • specify width of the rectangle 0.25
    • In the command prompt type REC ( RECTANGLE )
    • specify first corner point 1.2 , 1.25
    • In command prompt click dimensions
    • specify length of the rectangle 0.50
    • specify width of the rectangle 0.40
    • In the command prompt type REC ( RECTANGLE )
    • specify first corner point 1.25 , 1.65
    • In command prompt click dimensions
    • specify length of the rectangle 0.40
    • specify width of the rectangle 0.40
    • In the command prompt type REC ( RECTANGLE )
    • specify first corner point 1.30 , 2.05
    • In command prompt click dimensions
    • specify length of the rectangle 0.30
    • specify width of the rectangle 0.60
    • In the command prompt type REC ( RECTANGLE )
    • specify first corner point 1.30 , 2.65
    • In command prompt click dimensions
    • specify length of the rectangle 0.30
    • specify width of the rectangle 0.05
    • In the command prompt type REC ( RECTANGLE )
    • specify first corner point 1.30 , 2.7
    • In command prompt click dimensions
    • specify length of the rectangle 0.30
    • specify width of the rectangle 1.0
    • In the command prompt type REC ( RECTANGLE )
    • specify first corner point 1.25,2.05
    • In command prompt click dimensions
    • specify length of the rectangle 1.15
    • specify width of the rectangle 0.15
    • In the command prompt type line
    • specify starting point 0.40 ,2.05
    • In the command prompt type @0.15<90
    • In the command prompt type @ 0.3<0
    • In the command prompt type @0.15<90
    • In the command prompt type @ 0.3<0
    • In the command prompt type @0.15<90
    • In the command prompt type @ 0.3<0

    RESULT :

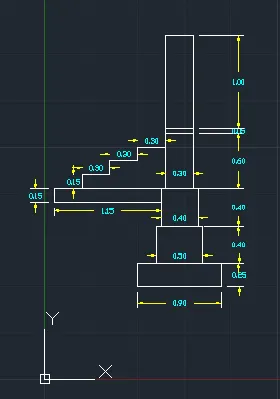

    C.S of load bearing wall over spread footing

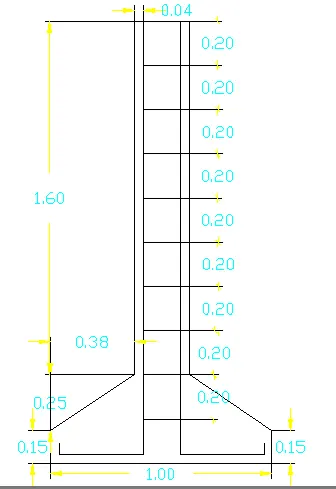

    AIM:

    To draw C.S Isolated  footing using AutoCAD Software

     PROCEDURE :

    • Open AutoCAD
    • In the command prompt type QNEW
    • click on imperical template , advaced setup , decimal
    • In the command prompt type units
    • Type= decimal, precision = 0.00 , angle = decimal degree
    • In the command prompt type ds
    • snap spacing ( x and y spacing = 0.5 )
    • grid spacing (x and y spacing = 0.5 )
    • In the command prompt type line
    • In the command promt specify start point 1,1
    • In the command prompt type @1<0
    • In the command prompt type @0.15<90
    • In the command prompt type line
    • In the command prompt type 1.04 ,1.04
    • In the command prompt type @0.38<0
    • In the command prompt type @1.96<90
    • In the command prompt type @0.17<0
    • In the command prompt type @1.96<270
    • In the command prompt type @0.38<0
    • In the command prompt type @0.05<90
    • In the command prompt type line
    • In the command prompt type 1.04 ,1.04
    • In the command prompt type @0.05<90
    • In the command prompt type line
    • In the command prompt specify start point 1.42,3.00
    • In the command prompt type @0.04<180
    • In the command prompt type @1.60<270
    • join coordinate points ( 1.38 ,1.40 ) and (1, 1.15 ) using line command
    • In the command promtp specify start point 1.59,3.00
    • In the command prompt type @0.04<0
    • In the command prompt type @1.60<270
    • join coordinate points ( 1.63 ,1.40 ) and (2 ,1.15 ) using line command
    • click on the line in which coordinate points are (1.42 ,3.00 ) and ( 1.59 ,3.00 )
    • In the command promt type offset
    • In the command prompt type distance 0.20
    • In the command prompt click multiple  ( click on the objects till you get the number of desired segments )

    RESULT :

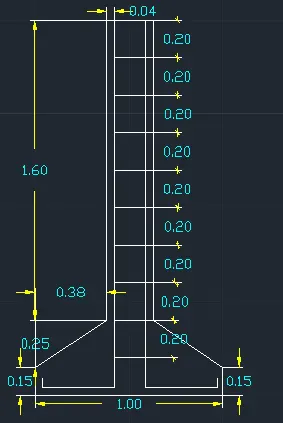

    C.S Isolated  footing

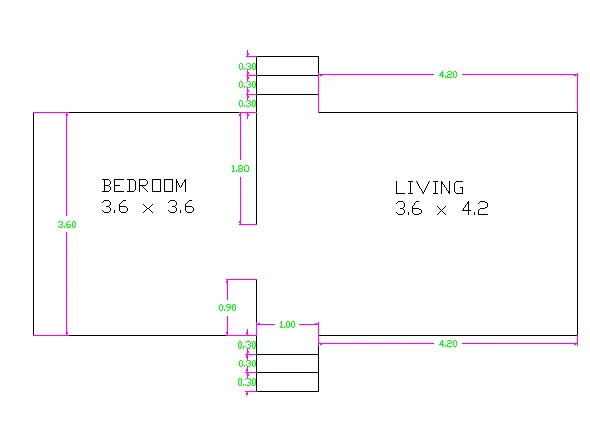

    AIM:

    To draw a line diagram of a two bedroom building

    PROCEDURE:

    • Open AutoCAD
    • In the command prompt type QNEW
    • click on imperical template , advaced setup , decimal
    • In the command prompt type units
    • Type= decimal, precision = 0.00 , angle = decimal degree
    • In the command prompt type ds
    • snap spacing ( x and y spacing = 0.5 )
    • grid spacing (x and y spacing = 0.5 )
    • In the command prompt type line
    • In the command prompt specify start point 1,1
    • In the command prompt type @3.60<0
    • In the command prompt type @0.90<270
    • In the command prompt type @1<0
    • In the command prompt type @0.90<90
    • In the command prompt type @4.20<0
    • In the command prompt type @3.60<90
    • In the command prompt type @4.20<180
    • In the command prompt type @0.90<90
    • In the command prompt type @1<180
    • In the command prompt type @0.90<270
    • In the command prompt type @3.60<180
    • In the command prompt click close
    • In the command prompt type line
    • In the command prompt specify start point 4.60 ,1
    • In the command prompt type @0.90<90
    • In the command prompt type line
    • In the command prompt specify start point 4.60 ,4.60
    • In the command prompt type @1.80<270
    • In the command prompt type offset
    • In the command prompt type 0.30
    • click on the line in which coordinate points are (4.60, 0.10) and (5.60,0.10 )
    • click on the previous line to get segments
    • click on the line in which coordinate points are ( 4.60 , 5.50) and (5.60 ,5.50 )
    • click on the previous line to get segements

    RESULTS :

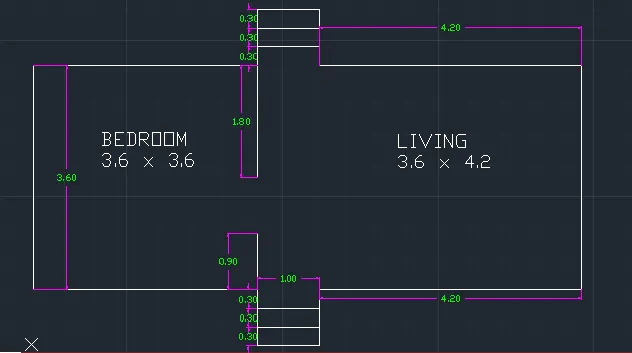

    line diagram of a two bedroom building





     AIM:

    To draw c.s of load bearing wall showing foundation details

    PROCEDURE :

    • Open AutoCAD
    • In the command prompt type QNEW
    • click on imperical template , advaced setup , decimal
    • In the command prompt type units
    • Type= decimal, precision = 0.00 , angle = decimal degree
    • In the command prompt type ds
    • snap spacing ( x and y spacing = 0.5 )
    • grid spacing (x and y spacing = 0.5 )
    • In the command prompt type REC ( RECTANGLE )
    • specify first corner point 1,1
    • In command prompt click dimensions
    • specify length of the rectangle 0.90
    • specify width of the rectangle 0.45
    • In the command prompt type REC ( RECTANGLE )
    • specify first corner point 1.15,1.45
    • In command prompt click dimensions
    • specify length of the rectangle 0.60
    • specify width of the rectangle 0.40
    • In the command prompt type REC ( RECTANGLE )
    • specify first corner point 1.20,1.85
    • In command prompt click dimensions
    • specify length of the rectangle 0.50
    • specify width of the rectangle 0.30
    • In the command prompt type REC ( RECTANGLE )
    • specify first corner point 1.25, 2.15
    • In command prompt click dimensions
    • specify length of the rectangle 0.40
    • specify width of the rectangle 0.60
    • In the command prompt type REC ( RECTANGLE )
    • specify first corner point 1.30, 2.75
    • In command prompt click dimensions
    • specify length of the rectangle 0.30
    • specify width of the rectangle 1.00

    RESULT:

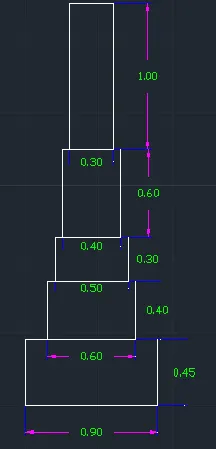

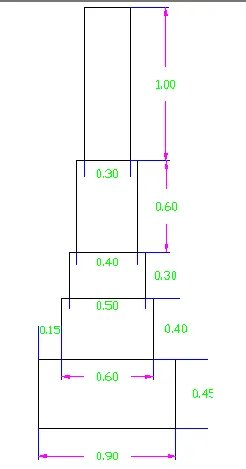

    c.s of load bearing wall showing foundation details







    AIM:

    To draw Isometric view of steps using Autocad

    PROCEDURE :

    • Open AutoCAD
    • In the command prompt type QNEW
    • click on imperical template , advaced setup , decimal
    • In the command prompt type units
    • Type= decimal, precision = 0.00 , angle = decimal degree
    • In the command prompt type ds
    • In drafting settings (ds) off "snap on" and off "grid on"
    • select on isometric snap
    • keep ortho (f8) on
    • In the command prompt type line
    • Specify the point or select a point
    • In the command prompt type 1 (distance )
    • press f5 (isodraft) to get the line in desired directon
    • In the command prompt type 0.15 (distance )
    • press f5 (isodraft) to get the line in desired directon
    • In the command prompt type 0.30 (distance )
    • press f5 (isodraft) to get the line in desired directon
    • This process is done till the steps are formed

    RESULT:

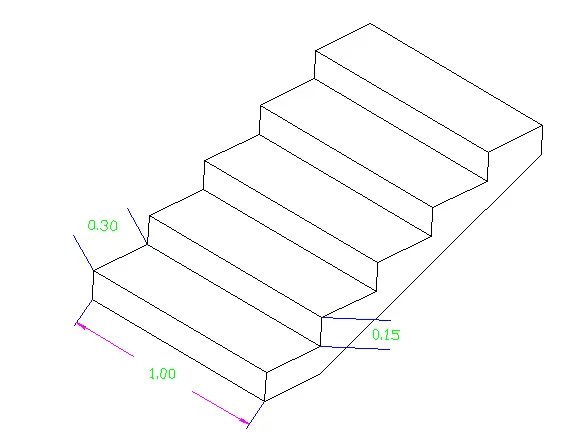

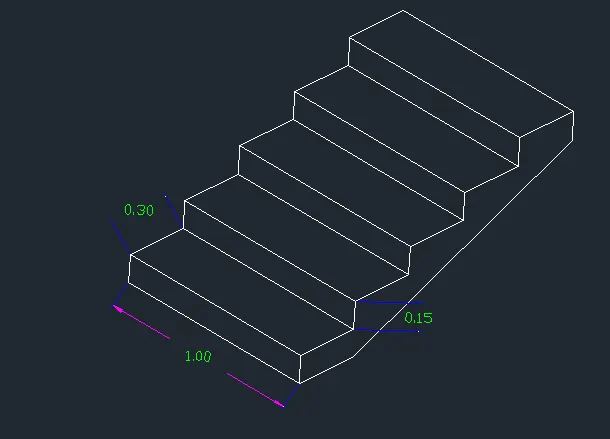

    Isometric view of steps

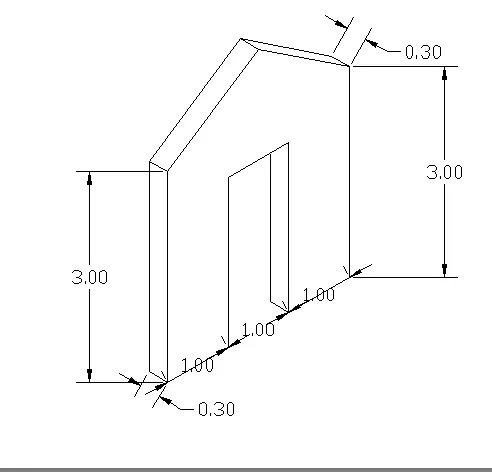

    AIM:

    To draw isometric view of gable wall

    PROCEDURE :

    • Open AutoCAD
    • In the command prompt type QNEW
    • click on imperical template , advaced setup , decimal
    • In the command prompt type units
    • Type= decimal, precision = 0.00 , angle = decimal degree
    • In the command prompt type ds
    • In drafting settings (ds) off "snap on" and off "grid on"
    • select on isometric snap
    • keep ortho (f8) on
    • In the command prompt type line
    • Specify the point or select a point
    • press f5 (isodraft) to get the line in desired directon
    • In the command prompt type the required distance

    RESULTS :

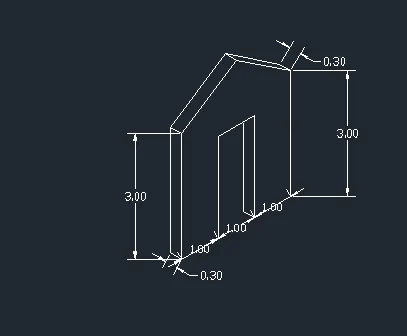

    isometric view of gable wall











    Leave a comment

    Thanks for choosing to leave a comment. Please keep in mind that all the comments are moderated as per our comment policy, and your email will not be published for privacy reasons. Please leave a personal & meaningful conversation.

    Please  login to add a comment

    Other comments...

    No comments yet!
    Be the first to add a comment

    Read more Projects by Sanjana Reddy Pandillapalli (47)

    Project 2

    Objective:

    AIM: A 100 m WBM road needs to be constructed inside the Skill Lync Education center premises to allow access to the center for students and faculties.Create the following Project (under same EPS/OBS as project-1) and Resource :Project Name - Education Centre RoadAssume - Calendar as 6 x 24 and start date on 22nd Feb 2021…

    calendar

    22 Jun 2022 07:15 AM IST

      Read more

      Project 1

      Objective:

      AIM: Skill-Lync wants to construct a school as a part of its corporate social objective. You are the project manager. Develop a realistic schedule to construct the main school building (G+2). It will have a parking facility with internal roads and the main building complete with architectural, furniture, and electrical…

      calendar

      29 Jan 2022 07:00 PM IST

        Read more

        Project 2

        Objective:

        AIM : To create a dynamo script of multi-storeyed complex structure  Procedure : *Open a new file  *family generic model  *In reference plan select model line  *Open dynamo,  *select elements models >(Select from the Revit ) *curve element  *Curve by sweep >connect the element curve and arc        Result : *We have successfully…

        calendar

        29 Dec 2021 07:45 PM IST

        • BIM
        Read more

        Project 1

        Objective:

        Aim: To Model an apartment with 4 units on each floor (2- 3 BHK) of 7 stories with a stilt parking facility. Design and model the structural elements as required. 1. Print BOQ and estimates from the model for different trades2. Print layouts for floor plans trade wise and one including all trades3. Print 3D views from…

        calendar

        21 Dec 2021 06:15 PM IST

          Read more

          Schedule a counselling session

          Please enter your name
          Please enter a valid email
          Please enter a valid number

          Related Courses

          coursecard

          Design loads considered on bridges

          Recently launched

          10 Hours of Content

          coursecard

          Design of Steel Superstructure in Bridges

          Recently launched

          16 Hours of Content

          coursecard

          Design for Manufacturability (DFM)

          Recently launched

          11 Hours of Content

          coursecard

          CATIA for Medical Product Design

          Recently launched

          5 Hours of Content

          coursecardcoursetype

          Accelerated Career Program in Embedded Systems (On-Campus) Courseware Partner: IT-ITes SSC nasscom

          Recently launched

          0 Hours of Content

          Schedule a counselling session

          Please enter your name
          Please enter a valid email
          Please enter a valid number

          logo

          Skill-Lync offers industry relevant advanced engineering courses for engineering students by partnering with industry experts.

          https://d27yxarlh48w6q.cloudfront.net/web/v1/images/facebook.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/insta.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/twitter.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/youtube.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/linkedin.svg

          Our Company

          News & EventsBlogCareersGrievance RedressalSkill-Lync ReviewsTermsPrivacy PolicyBecome an Affiliate
          map
          EpowerX Learning Technologies Pvt Ltd.
          4th Floor, BLOCK-B, Velachery - Tambaram Main Rd, Ram Nagar South, Madipakkam, Chennai, Tamil Nadu 600042.
          mail
          info@skill-lync.com
          mail
          ITgrievance@skill-lync.com

          Top Individual Courses

          Computational Combustion Using Python and CanteraIntroduction to Physical Modeling using SimscapeIntroduction to Structural Analysis using ANSYS WorkbenchIntroduction to Structural Analysis using ANSYS Workbench

          Top PG Programs

          Post Graduate Program in Hybrid Electric Vehicle Design and AnalysisPost Graduate Program in Computational Fluid DynamicsPost Graduate Program in CADPost Graduate Program in Electric Vehicle Design & Development

          Skill-Lync Plus

          Executive Program in Electric Vehicle Embedded SoftwareExecutive Program in Electric Vehicle DesignExecutive Program in Cybersecurity

          Trending Blogs

          Heat Transfer Principles in Energy-Efficient Refrigerators and Air Conditioners Advanced Modeling and Result Visualization in Simscape Exploring Simulink and Library Browser in Simscape Advanced Simulink Tools and Libraries in SimscapeExploring Simulink Basics in Simscape

          © 2025 Skill-Lync Inc. All Rights Reserved.

                      Do You Want To Showcase Your Technical Skills?
                      Sign-Up for our projects.
