AutoCAD _Residence Floor Plan, seating plan ,toilet and Utility room plan _week 4

CHALLENGE 1

AIM:

To Sketch the layout of a residence as shown in the Figure 1.

PROCEDURE:

STEP1:

• In the command prompt type QNEW > IMPERIAL TEMPLATE
• In the command prompt type UNITS > ENGINEERING > PRECISION > 0'-0"
• In the command pompt type LIMMAX > 100' ,100 '
• In the command prompt type LIMITS > 0',0' > UPPER RIGHT CORNER > 70',70'
• In the command prompt type ZOOM> A

STEP 2 :

EXTERIOR AND INTERIOR WALLS

• In the command prompt type XL > horizontal
• In the command prompt type XL > vertical

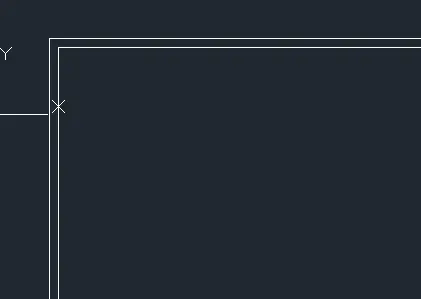

• In the command prompt type TRIM to trim the excess line and to get the corner of the building
• In the command prompt type offset > distance 9.0 " and offset the horizontal and vertical lines ( to get the thickness of the wall )
• In the command prompt type TRIM to trim the excess lines

• In the command prompt type offset > type distance ( 11'-7.5" , 0 ) > offset
• In the command prompt type offset > type distance ( 4.5", 0 ) > offset
• In the command prompt type offset > type distance ( 12'-3", 0 ) > offset
• In the command prompt type offset > type distance ( 9.0", 0 ) > offset
• In the command prompt type TRIM to trim the excess line

• In the command prompt type offset > type distance ( 0,9.0") > offset
• In the command prompt type offset > type distance (0,12' ) > offset
• In the command prompt type offset > type distance ( 0,4.5" ) > offset
• In the command prompt type offset > type distance ( 0,4'-6" ) > offset
• In the command prompt type offset > type distance ( 0,4.5" ) > offset
• In the command prompt type offset > type distance ( 0,18'-0.5') > offset
• In the command prompt type offset > type distance ( 9.0", 0 ) > offset
• In the command prompt type offset > type distance ( 0, 6' ) > offset
• In the command prompt type offset > type distance ( 9.0", 0 ) > offset
• In the command prompt type TRIM to trim the excess line

• In the command prompt type offset > type distance ( 12'-6",0) > offset
• In the command prompt type offset > type distance (11'-9" ,0 ) > offset
• In the command prompt type TRIM to trim the excess line

• In the command prompt type offset > type distance ( 0,9.0") > offset
• In the command prompt type offset > type distance (0,12' ) > offset
• In the command prompt type offset > type distance ( 0,4.5" ) > offset
• In the command prompt type offset > type distance ( 0,4'-6" ) > offset
• In the command prompt type offset > type distance ( 0,4.5" ) > offset
• In the command prompt type offset > type distance ( 0,11') > offset
• In the command prompt type offset > type distance ( 0,9.0") > offset
• In the command prompt type offset > type distance ( 0, 13'-9.5" ) > offset
• In the command prompt type offset > type distance ( 0,0.9" ) > offset
• In the command prompt type TRIM to trim the excess line

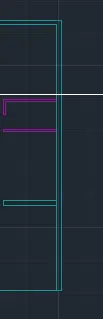

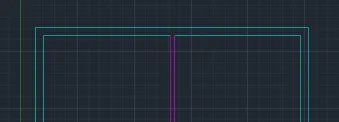

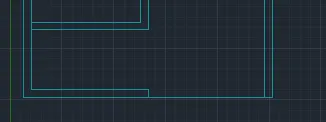

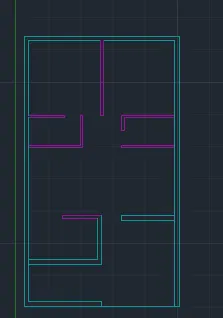

RESULT :

STEP 2 :

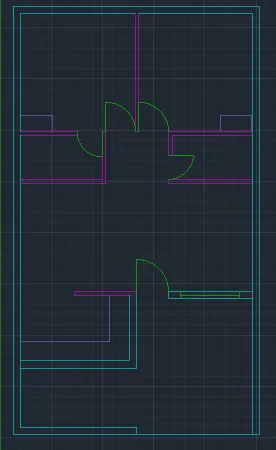

DOORS , WINDOW , SLABS

• For doors offset the required distance and draw doors using ARC COMMAND > START , CENTRE , LENGTH
• For doors offset the required distance and trim the extras

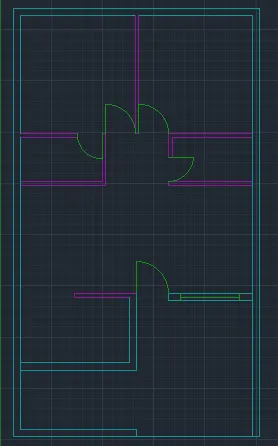

RESULT:

STEP 3:

SLABS AND CUPBOARDS

• for slabs the offset comand is used of distance (0,2') and (2',0)
• for cupboards rectangular (REC ) command is used of distance 2' and 1' .

RESULT :

STEP 4:

STAIRCASE

• In the command prompt type offset of distance (0,3') and offset
• In the command prompt type offset of distance ( 7", 0) and offset ( its for showing riser ) ( approx of 12 steps )
• To get dotted lines go to linetype > load > dotted line > current > close > then type line command in command prompt .

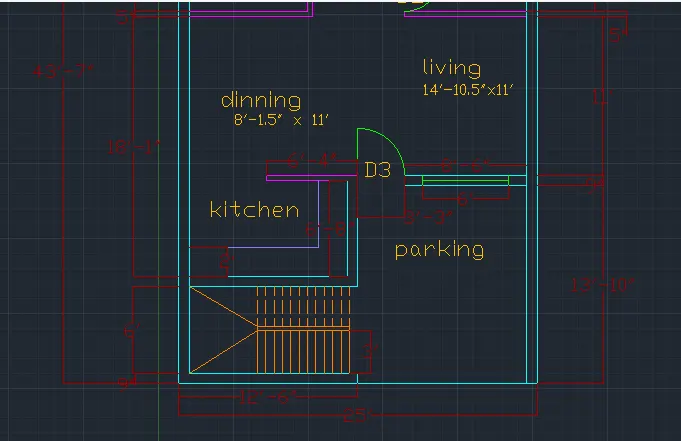

RESULT:

STEP 4 :

DIMENSIONS AND TEXT

• Dimensions and text are done using DIM AND TEXT COMMAND .

RESULT :

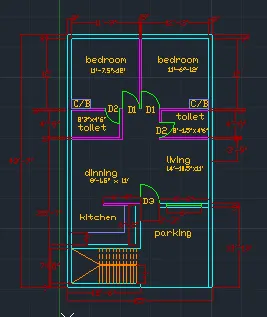

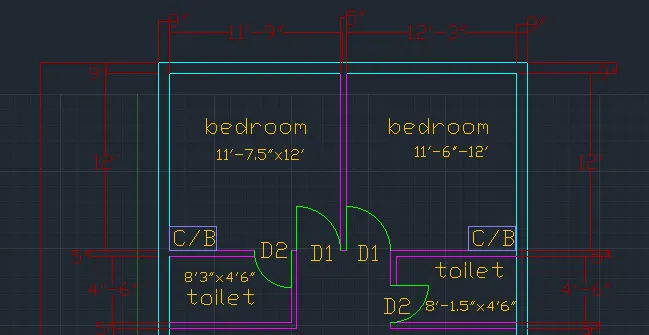

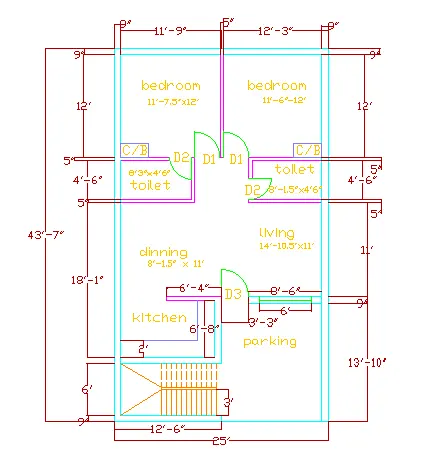

FINAL RESULT OF CHALLENGE 1 :

CHALLENGE 2

AIM:

To Sketch the seating plan for an outdoor canopy.

PROCEDURE:

STEP1 :

• In the command prompt type QNEW > METRIC>Acad.dwt>decimal>0.0
• In the command prompt type UNITS >mm > PRECISION >0.0
• In the command pompt type LIMMAX > 100 ,100
• In the command prompt type LIMITS > 0,0> UPPER RIGHT CORNER > 70,70
• In the command prompt type ZOOM> A

STEP 2 :

CIRCLES:

• In the menu bar click on circle > centre , radius
• specify the centre point as 10,10 and radius 452
• In the meu bar click on circle > centre , radius
• specify the centre point same as the previous circle (10,10) and radius 1398

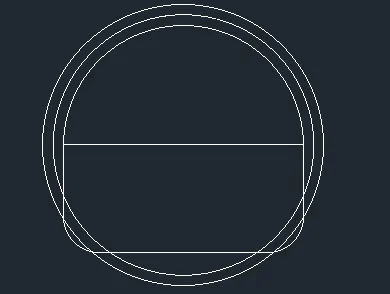

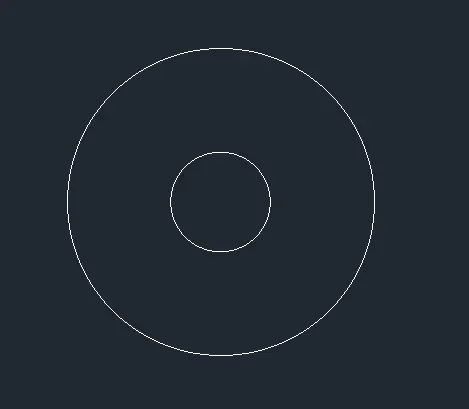

RESULT:

STEP 3 :

SEATS:

• In the menu bar click on rectangular or In the command prompt type rec
• specify the length of the rectangle as 662.3
• specify the width of the rectangle as 298 .0

• In the command prompt type FILLET > RADIUS > 100 .00 (to get curve egdes in the corner)

• In the menu bar > circle > 2-point ( 2 points ar the end points of the top line )

NOW , trim the extra's

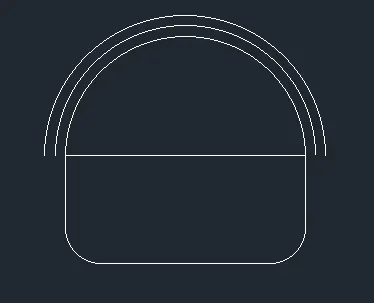

• In the men bar > circle > centre ,diameter
• centre is the mid point of the line , diameter is 719 .0
• In the menu bar > circle > centre,diameter
• centre is the midpoint of the line , diameter is 777.2

• now, extend the centre line and trim the extra's

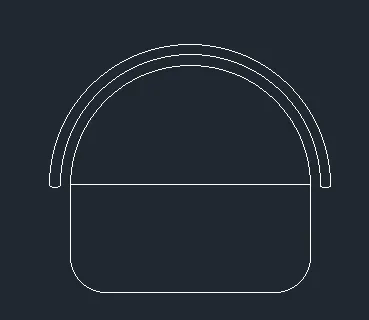

• In the menu bar click fillet> blend curves > and select the arc

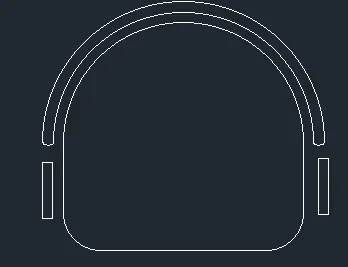

• In the menu bar click on rectangular or In the command prompt type rec
• specify the length of the rectangle as 155.2
• specify the width of the rectangle as 27.3

STEP 4:

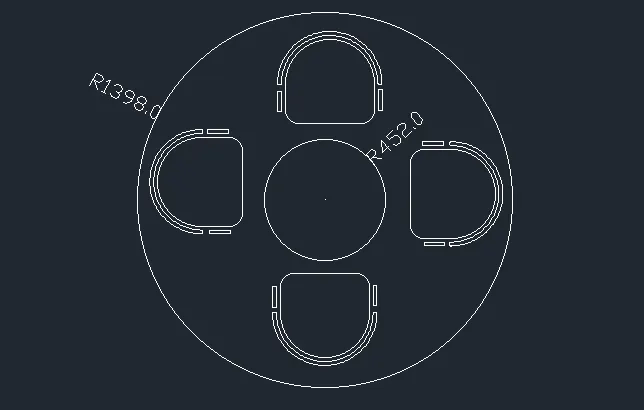

• With the help of copy and rotate command place and align the seats inside the circle.

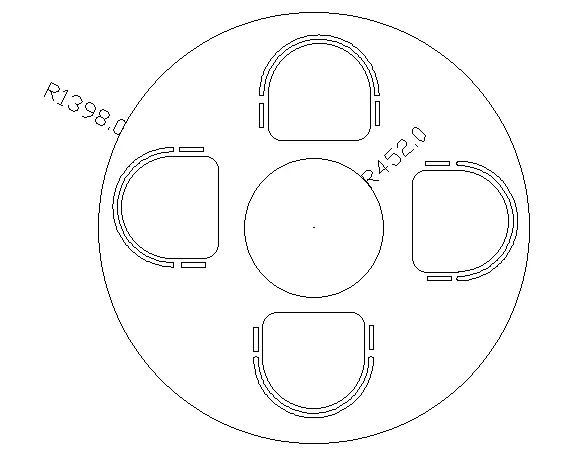

RESULT :

CHALENGE 3

AIM:

To Sketch the part plan for the toilers and utilities room.

PROCEDURE

STEP 1:

• In the command prompt type QNEW > METRIC>Acad.dwt>decimal>0.0
• In the command prompt type UNITS >mm > PRECISION >0.0
• In the command pompt type LIMMAX > 100 ,100
• In the command prompt type LIMITS > 0,0> UPPER RIGHT CORNER > 70,70
• In the command prompt type ZOOM> A

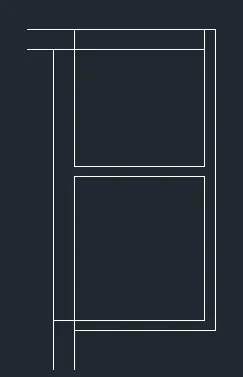

STEP 2:

• In the command prompt type XL > HORIZONTAL
• In the command prompt type XL > VERTICAL
• In the command prompt type offset > 300 (distance )
• In the command prompt type TRIM ( to trim the excess lines )

• In the command prompt type offset > distance is ( 1900,0 )
• In the command prompt type offset > distance is (150,0 )
• trim the extra line
• In the command prompt type offset > distance is ( 0,1700 )
• In the command prompt type offset > distance is (0,150)
• trim the extra line using trim command

• In the command prompt type offset > distance is ( 0,2100)
• In the command prompt type offset > distance is (0,150)
• trim the extra line using trim command

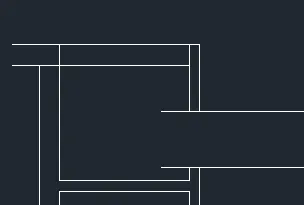

STEP 3:

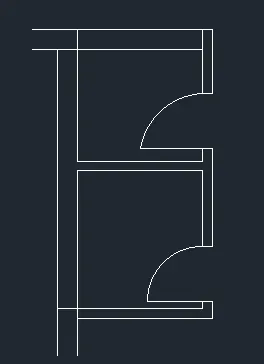

DOORS

• for doors give offset command of distance 823 and trim the extra line

• In the menu bar click arc> start, end , length ( to gt the door symbol )
• trim the unwanted lines using trim command

• for doors give offset command of distance 828 and trim the extra line
• In the menu bar click arc> start, end , length ( to gt the door symbol )
• trim the unwanted lines using trim command

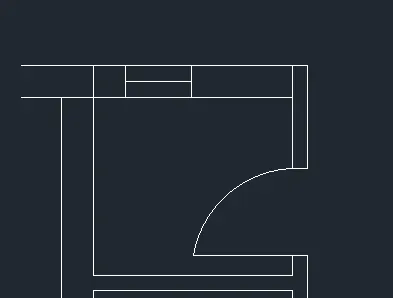

STEP 4:

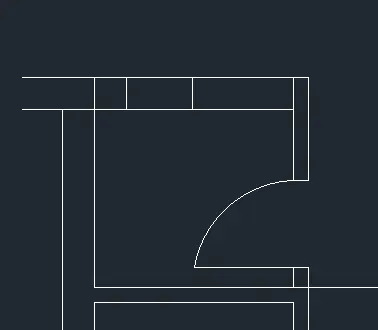

WINDOWS

• for window give offset command of distance 631 and trim the extra line

• Using line command draw a line in the centre

• for window give offset command of distance 728 and trim the extra line
• Using line command draw a line in the centre

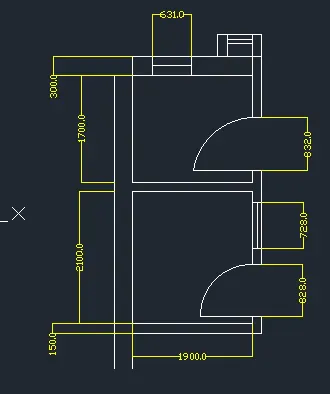

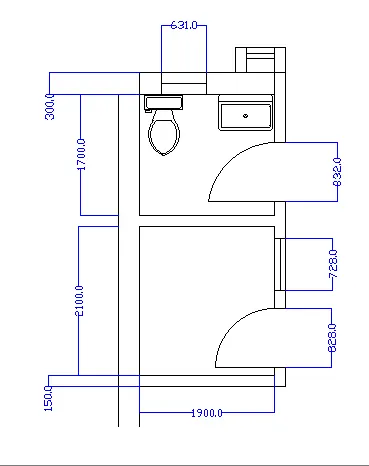

FINAL RESULT:
