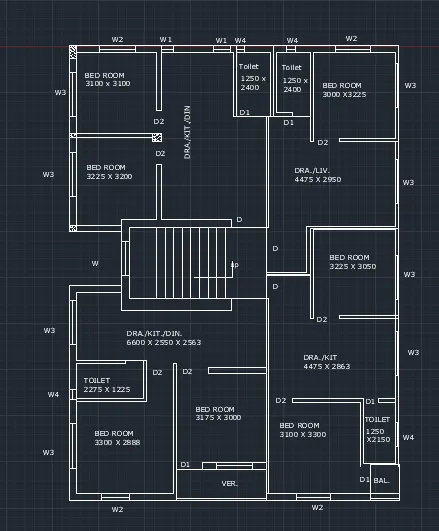

Creating a Layout, Section and Elevation with dimensions using AutoCad

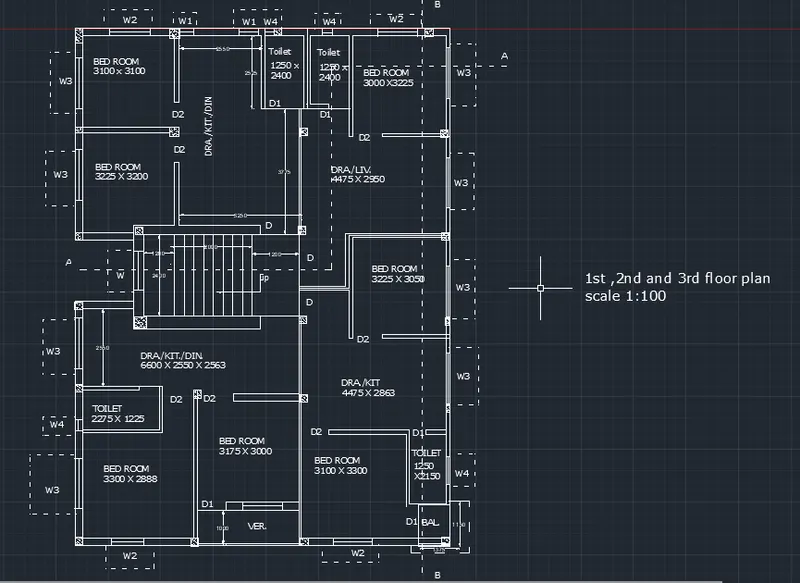

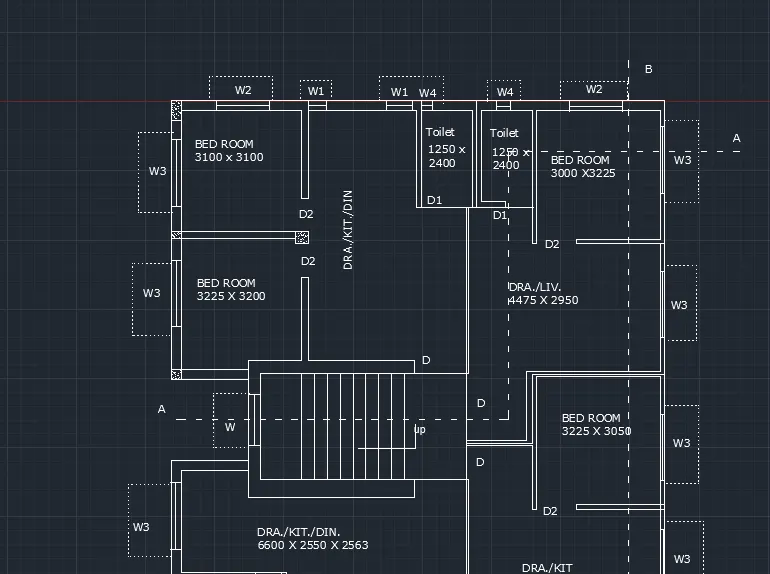

1) Create the Plan and Sections as shown in the Figures. Use proper dimension techniques and
dimension styles to document the project. Assume the sizes of the doors and windows as per
construction standards. Refer to sections for stair details if required.

Aim:

To Create the Plan and Sections as shown in the Figures. Use proper dimension techniques and
dimension styles to document the project using AutoCAD .

Procedure:

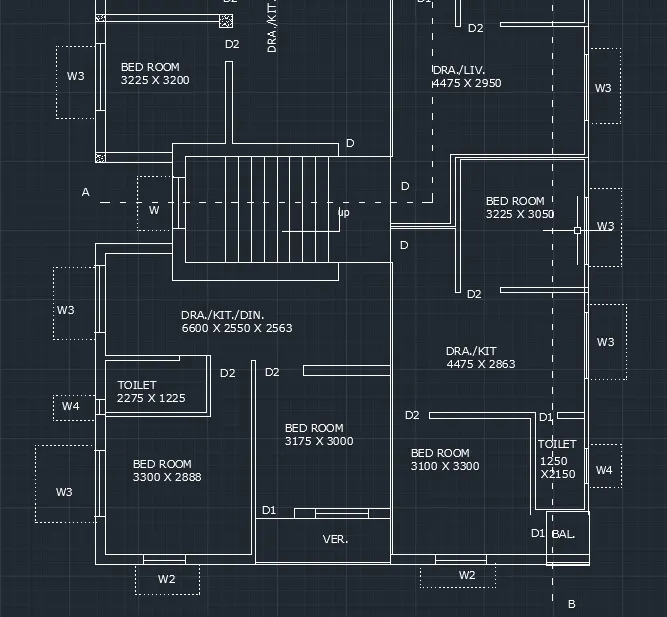

Step 1:

• In the command prompt type units > mm.
• In the command prompt type limmax > 100,100
• In the command prompt type limits > 0,0
• In the command prompt type zoom > a

Step 2 :

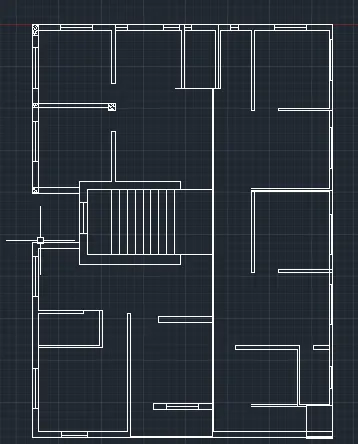

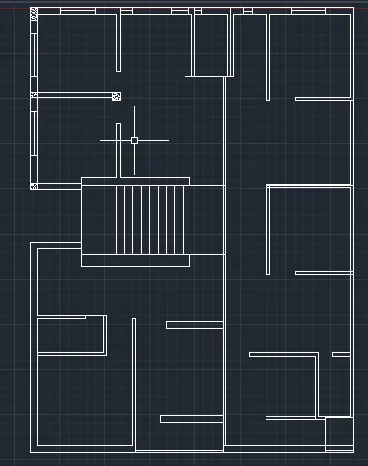

• In the command prompt type XL to draft the infinite line
• In the command prompt type offset to offset it to the disired distance

• With the command lines , offset and trim windows are drawn

• In the ribbon tab > annotate > mtext ( to text the annotations )

• In the command prompt type LN ( linetype) to get dotted lines

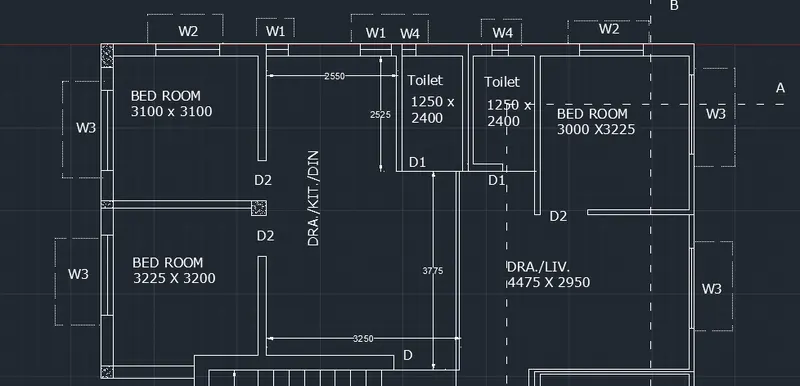

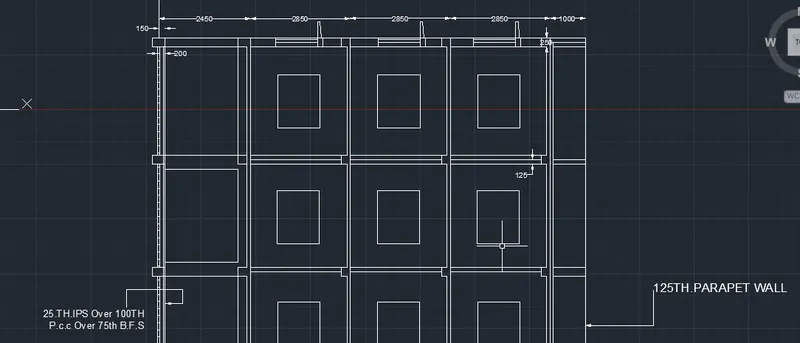

• In the ribbon bar > dimensions > to give the dimensions to the plan
• In the ribbon bar > hatch > sand

Final Result :

1 ) b. Create the Plan and Sections as shown in the Figures. Use proper dimension techniques and
dimension styles to document the project. Assume the sizes of the doors and windows as per
construction standards. Refer to sections for stair details if required.

AIM:

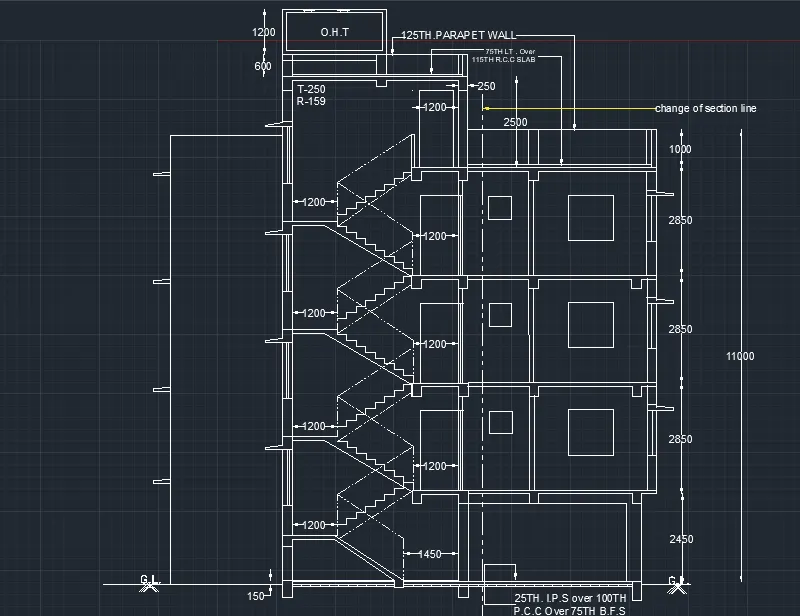

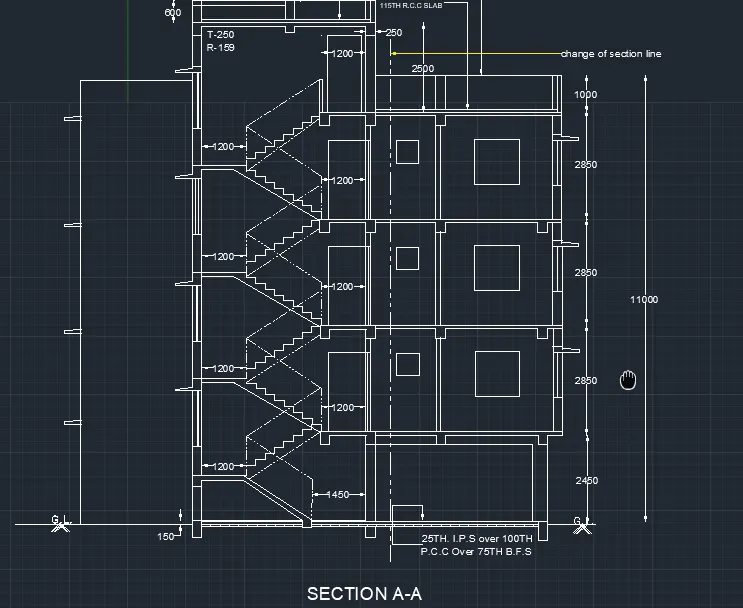

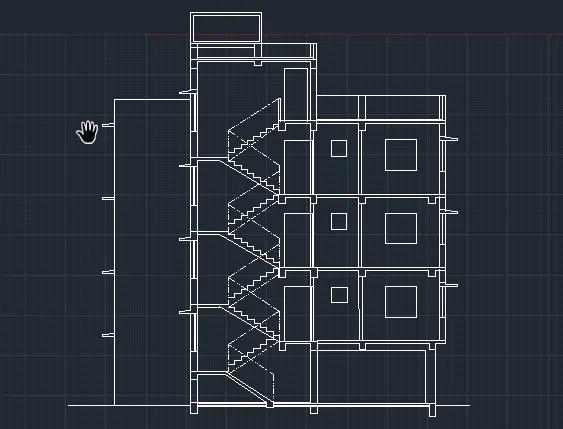

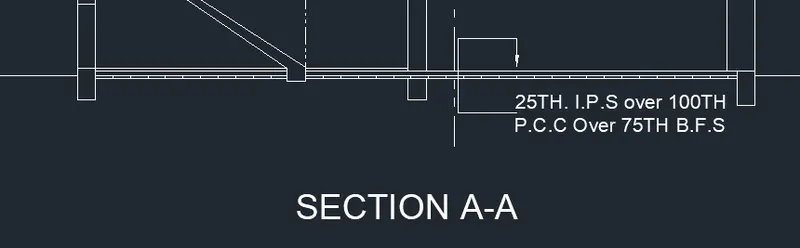

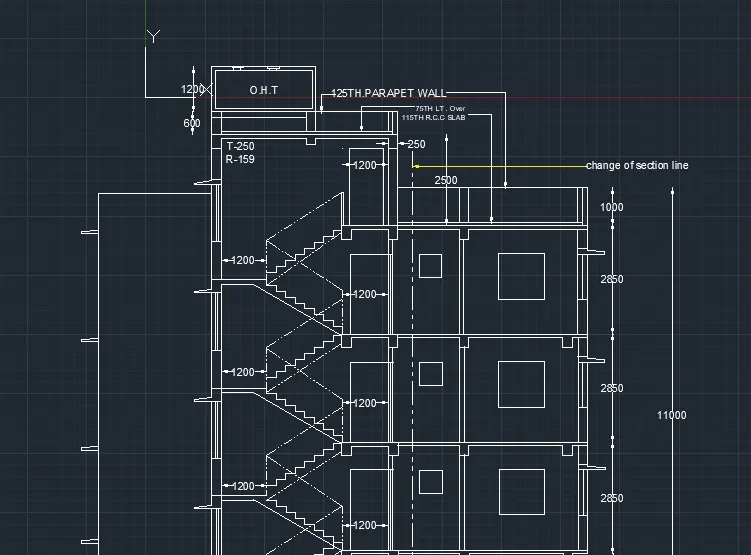

To create section A-A of the previous plan

Procedure :

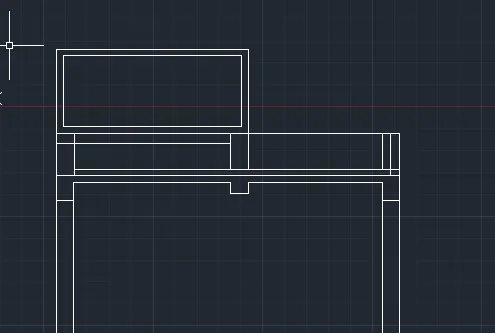

• In the command prompt type rec to draft the rectangle of dimensions 2745 x 1200
• In the commnd prompt type offset and offset it to the required distance
• In the command prompt type l to draft the required lines

• In the command prompt type LT( to get the dotted lines )

• In the ribbon tab > annotate > to text the plan
• In the ribbon tab > Dimensions > to give the dimensions to the plan

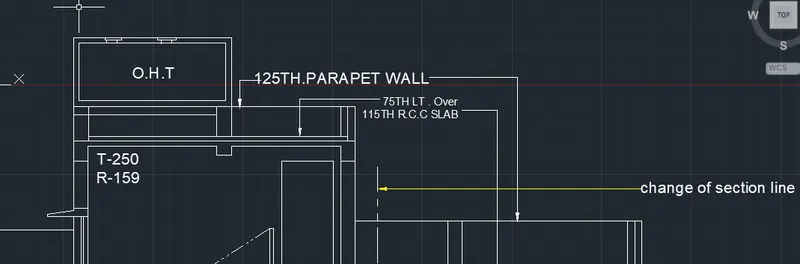

• In the command prompt type leader to type the given text and dimensions

final result:

1)c. Create the Plan and Sections as shown in the Figures. Use proper dimension techniques and
dimension styles to document the project. Assume the sizes of the doors and windows as per
construction standards. Refer to sections for stair details if required.

AIM:

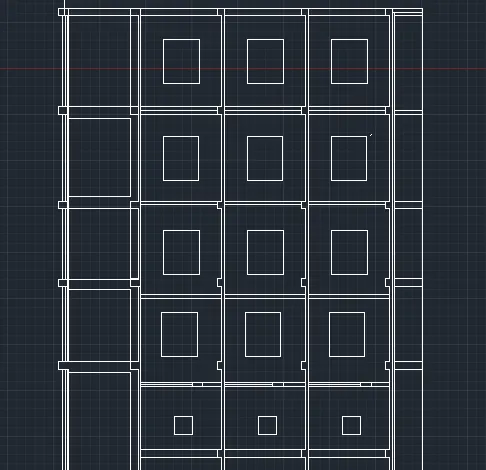

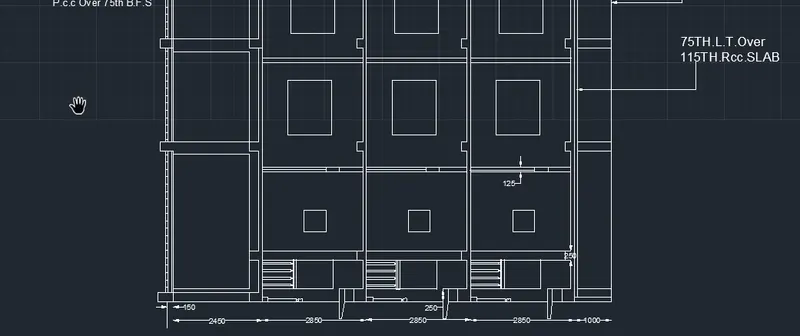

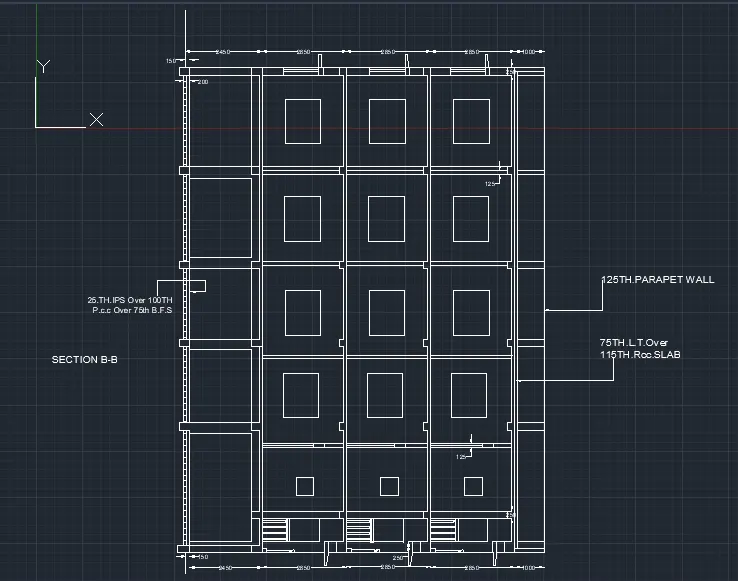

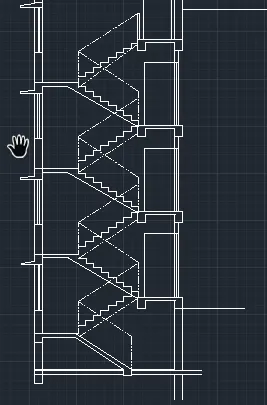

To create section B-b of the previous plan

PROCEDURE:

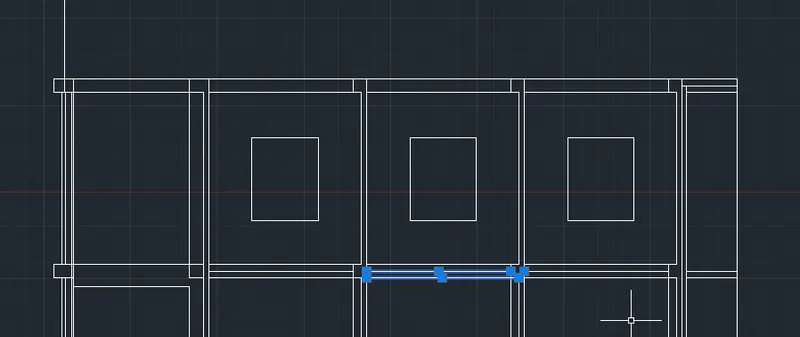

• In the command prompt type XL to draw the infinite lines
• In the command prompt type offset to offset the infinite lines for the desired distance
• In the command prompt type rec to draw the rectangles

• In the command prompt type line to draft the desired lines

• In the command prompt type dimensions to give the dimensions
• In the command prompt type leader to give the annotations for the plan

final result :
