Project 2_Design & Analysis of a Hostel building at Guwahati, Assam
Aim:
- Etabs model for the two blocks on either side of the expansion gap
- Foundation details illustrating the pile & pile cap reinforcement
- Tie beam details connecting the pile caps
- Column reinforcement
- Framing plan for typical floor
- Beam reinforcements for ground floor
Procedure :
*To model the plan in etabs software

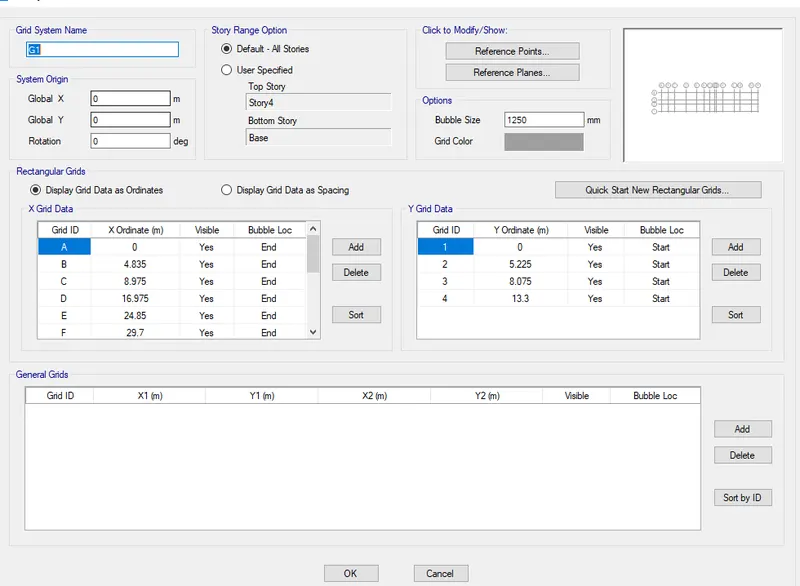

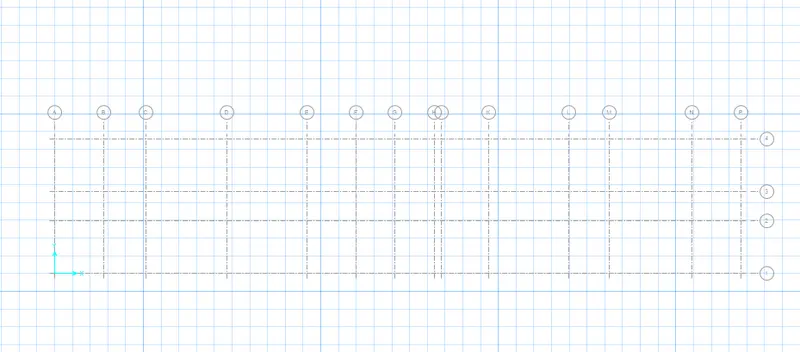

*The first step is to add the grids

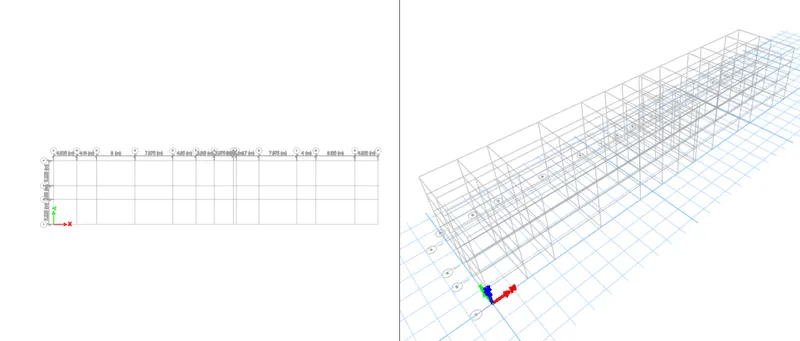

*According to the plan the grids are added

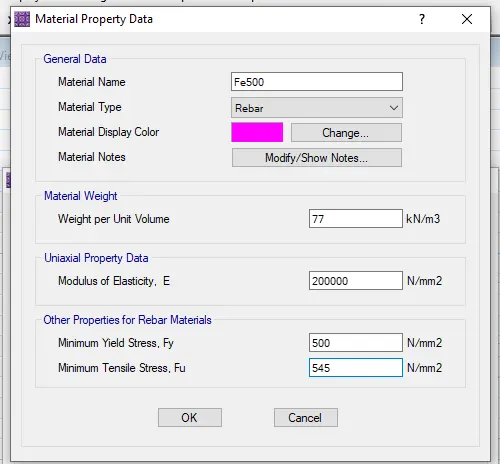

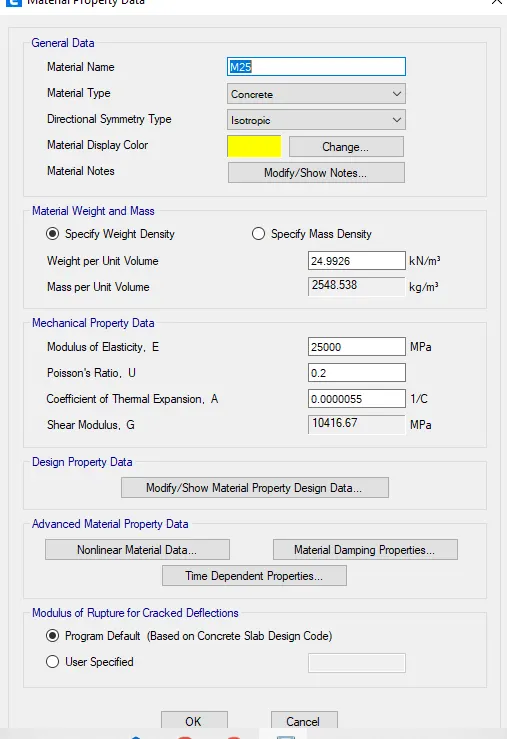

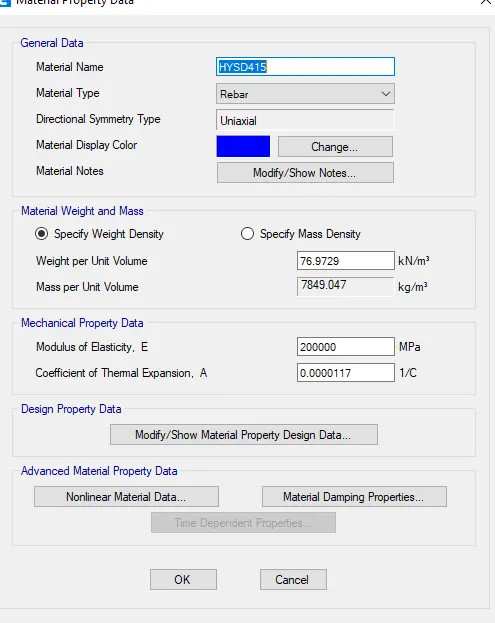

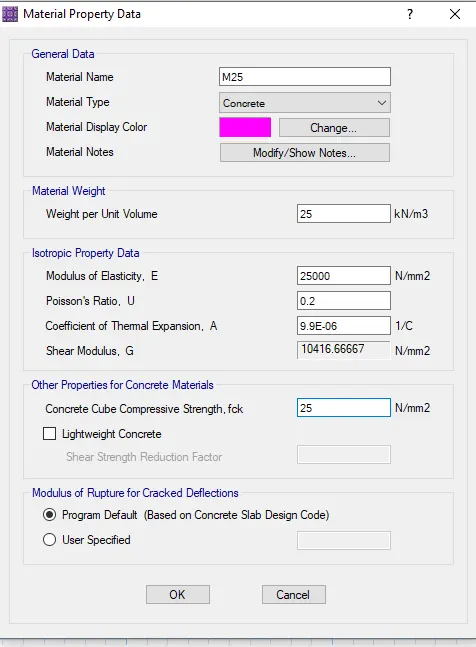

*Then the materials are added to the model
*define > materials
*Concrete , steel
*

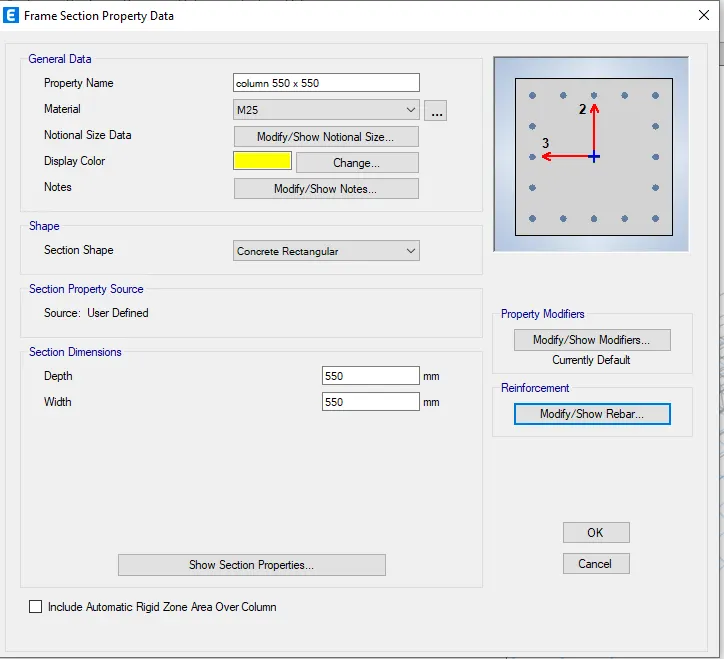

*Now the beam, column sizes, and slab properties are added

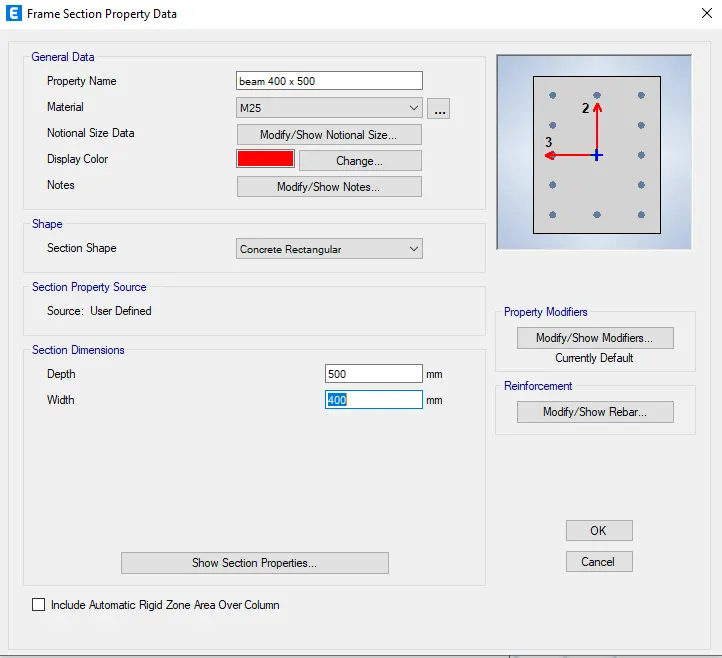

*Section properties >frame sections

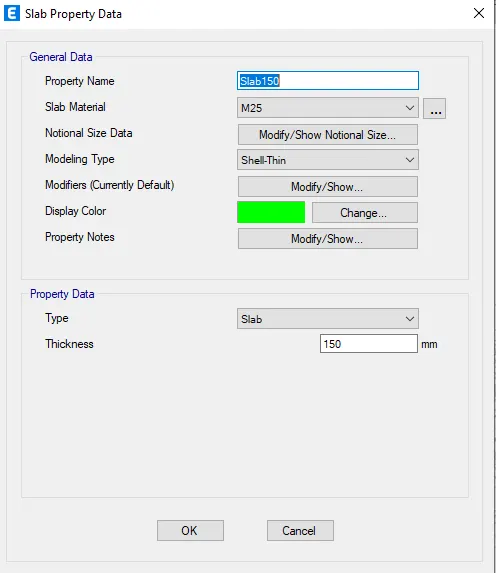

*define section properties > slab sections

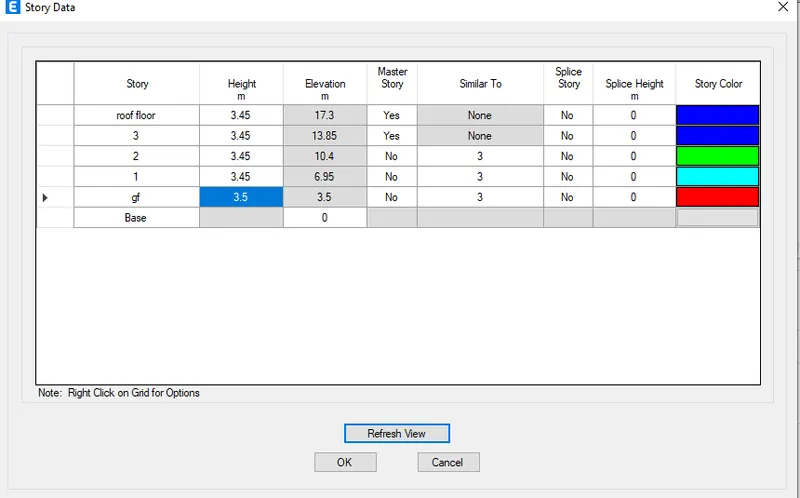

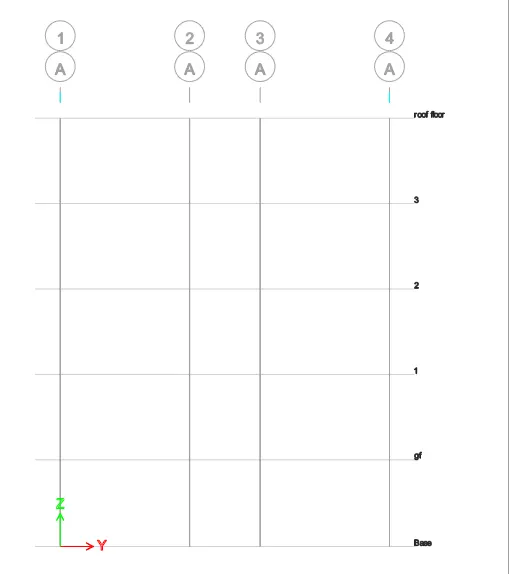

*edit the storey height

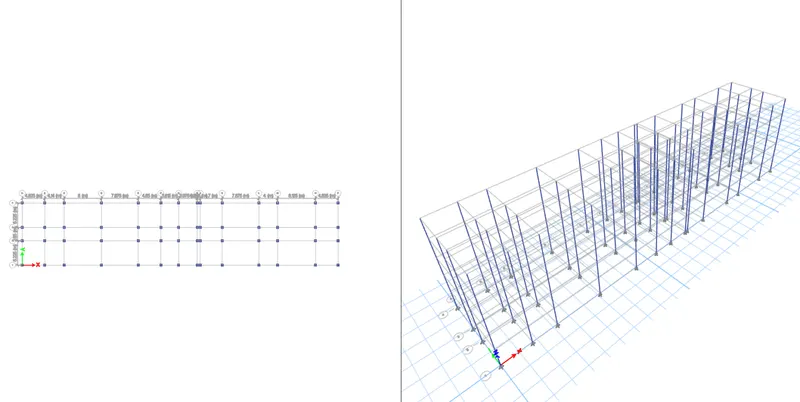

*Now the columns need to be added
*Quick column draw > all stories

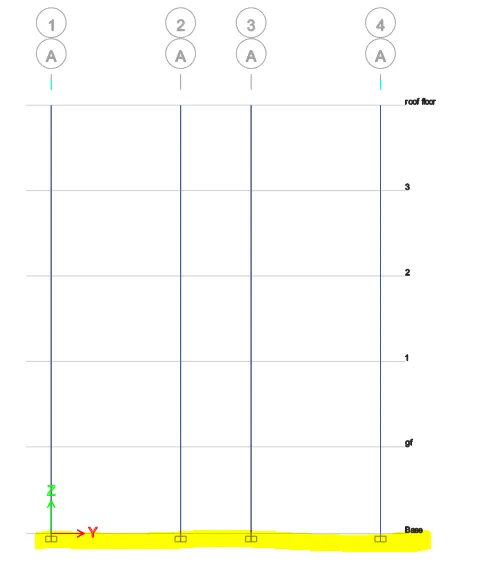

*Add the restrain joints
*Assign > joints > fixed support

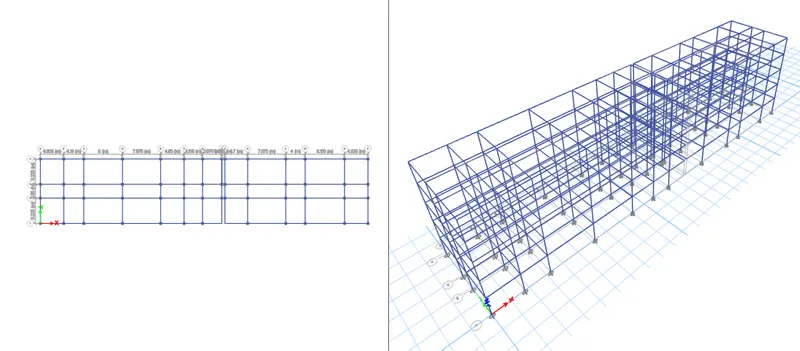

*Beams are added to the model
*all stories > quick draw beams

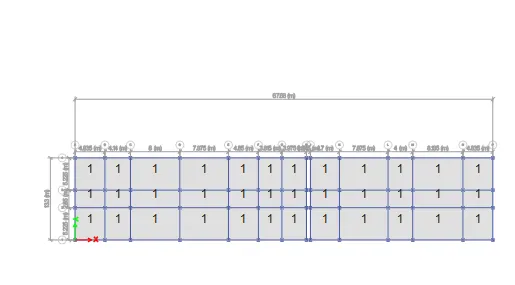

*Similar stories >slab

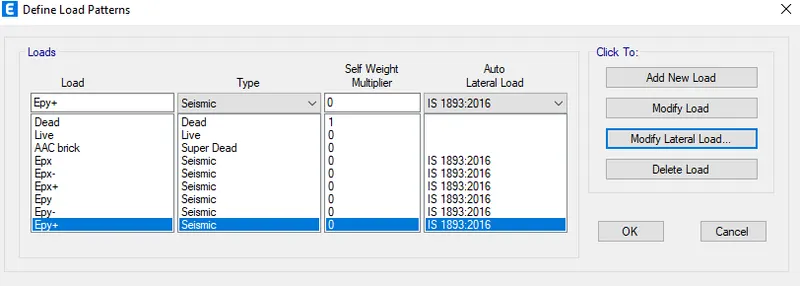

Define load cases > load pattern .

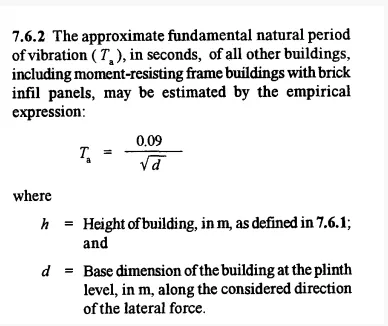

According to the code
dx=67.68m
H=17.3m
Tx=0.18 = 0.2 seconds
Dy= 13.3m
H=17.3m
Ty=0.42
*Now the dead load is added to the model
*Floor finish = 1 Kn/m^2

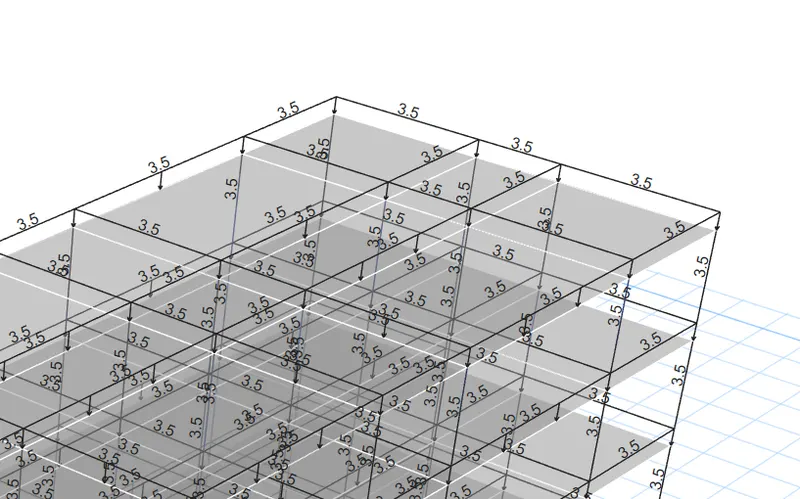

AAc wall loading = 3.5 Kn/m^2

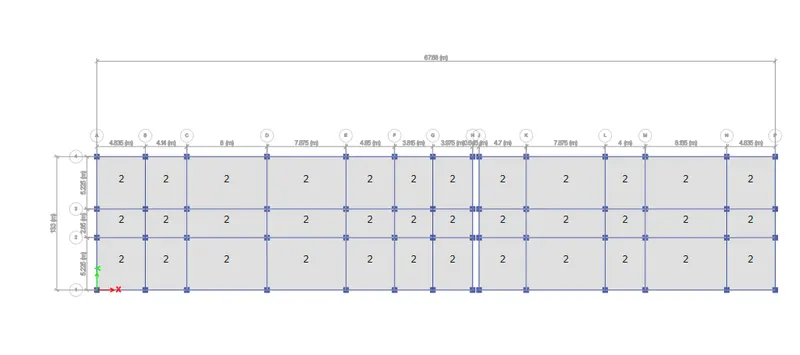

Live load according to the code is taken as 2KN/m^2

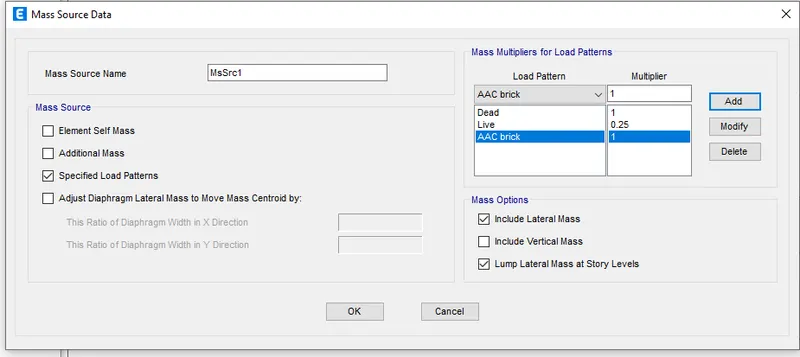

*Now define the mass spectrum :

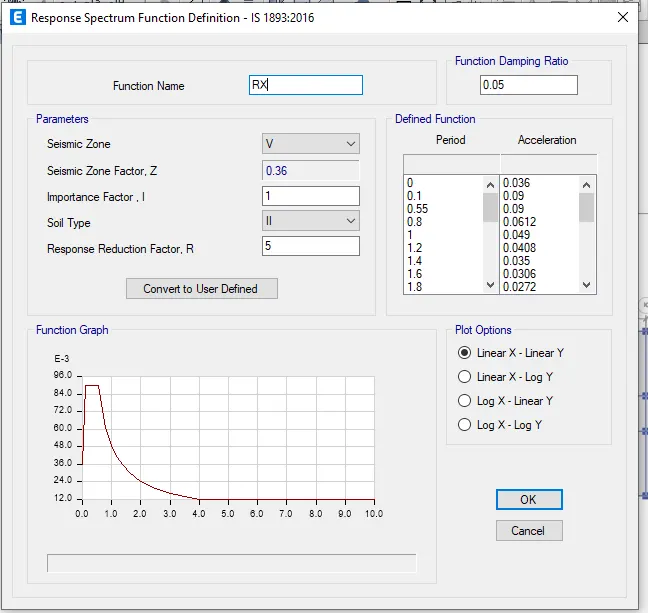

Response spectrum :

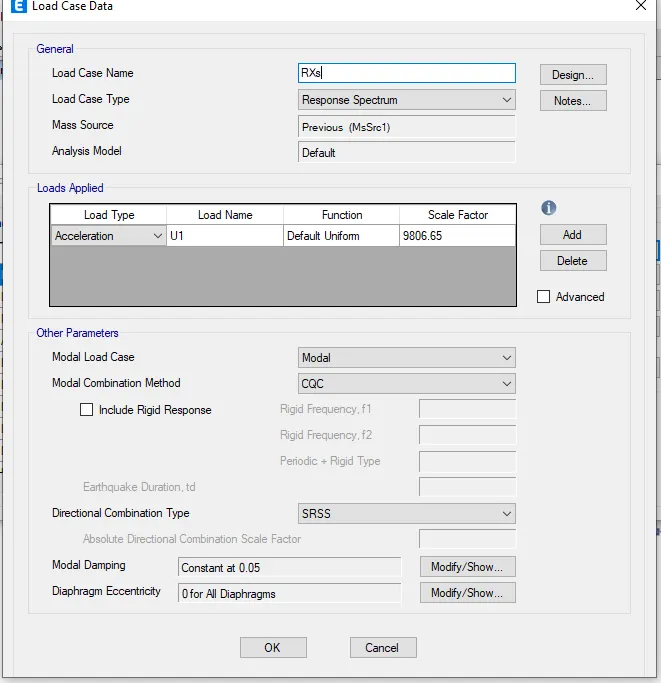

Load cases:

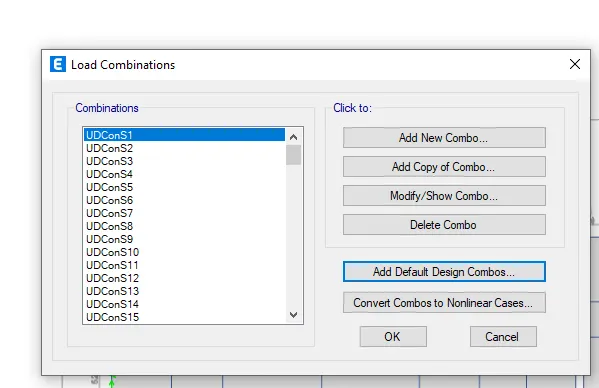

Load combination:

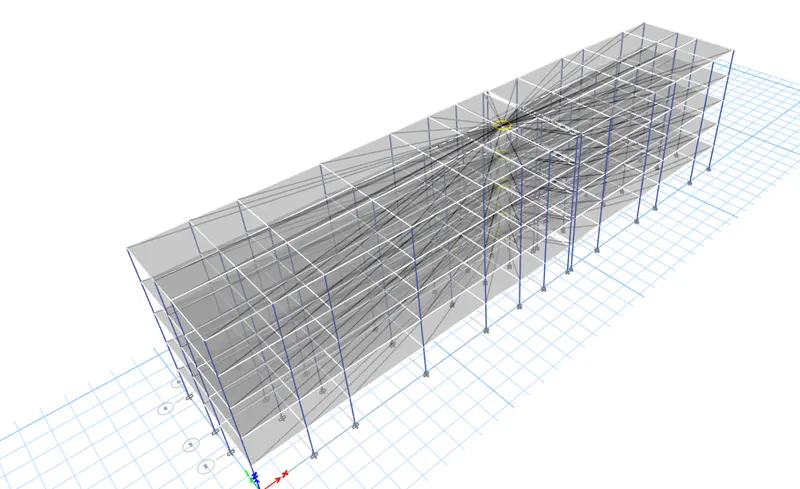

*Diaphram is added
*Now we need to run the analysis :

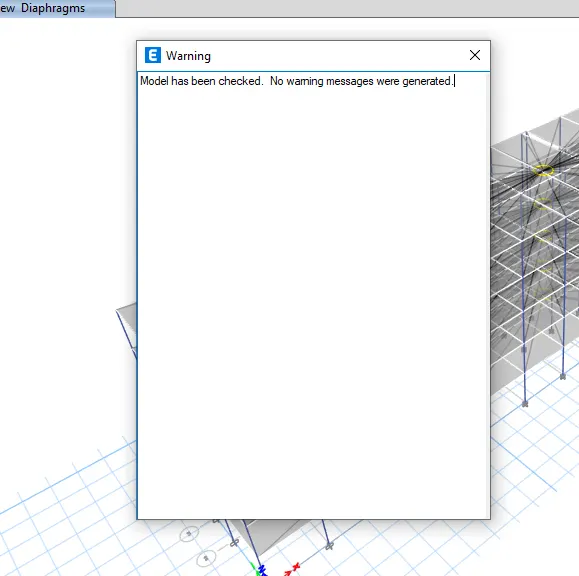

*Before runing lets check the analysis

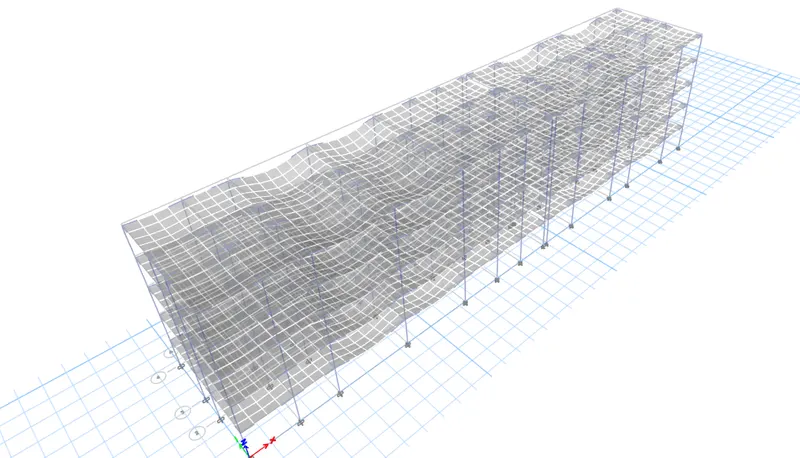

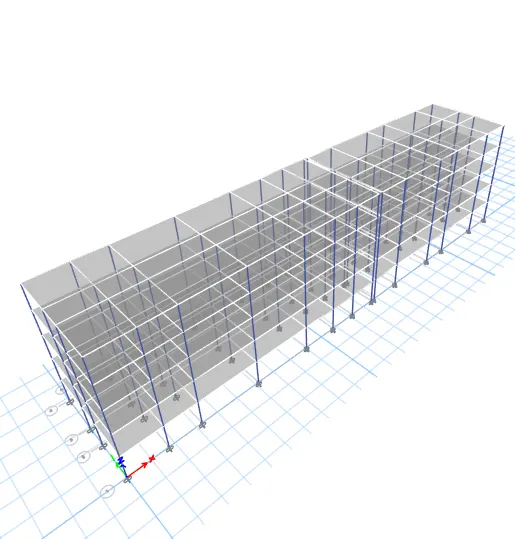

After the analysis of the model

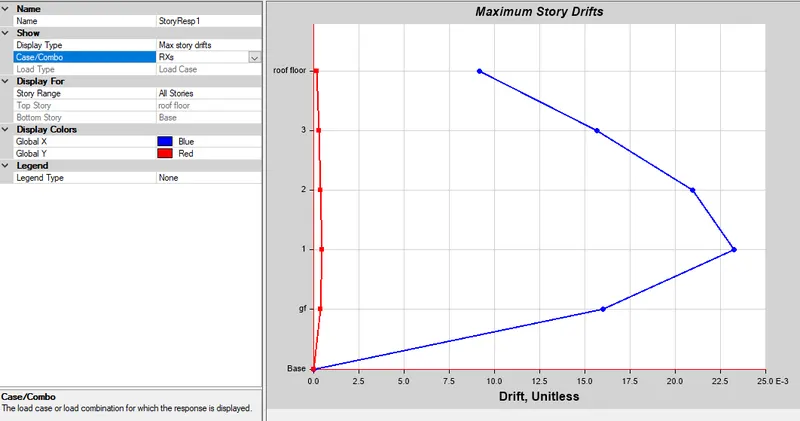

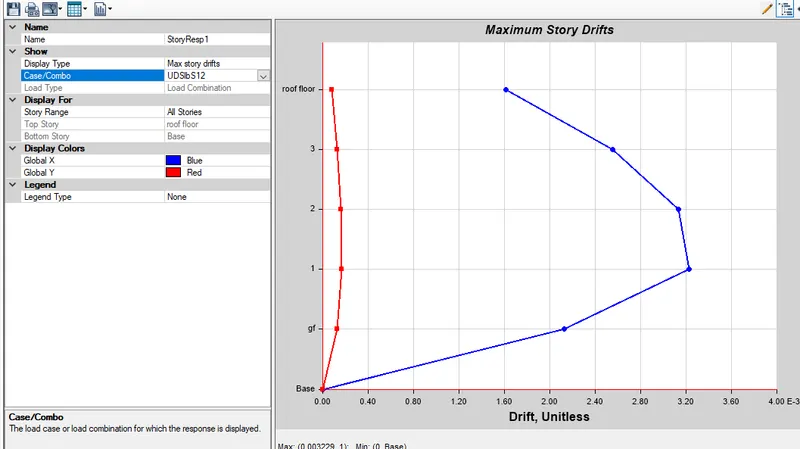

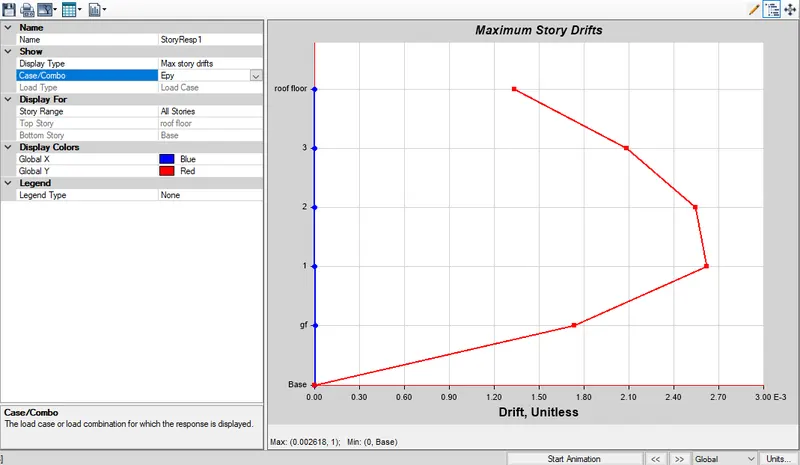

*Now we need to check the storey drift

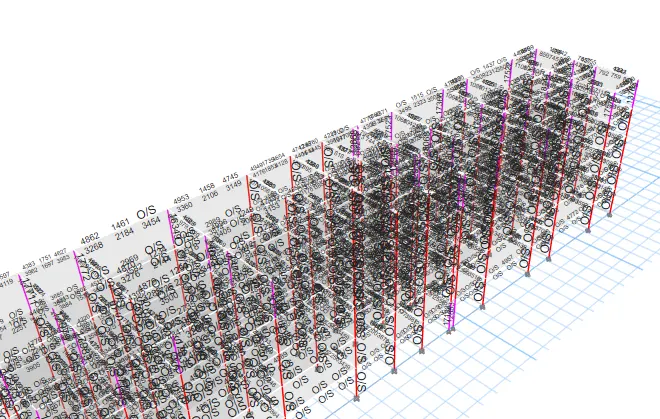

*Now we need to create reinforcement detailing for beams and columns

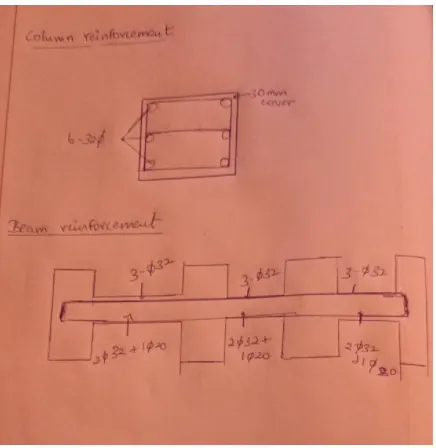

Column reinforcement :
Beam Reinforcement :
_________________________________________________________________________________
*Design of foundation using safe software :
*Export the etabs files to safe software

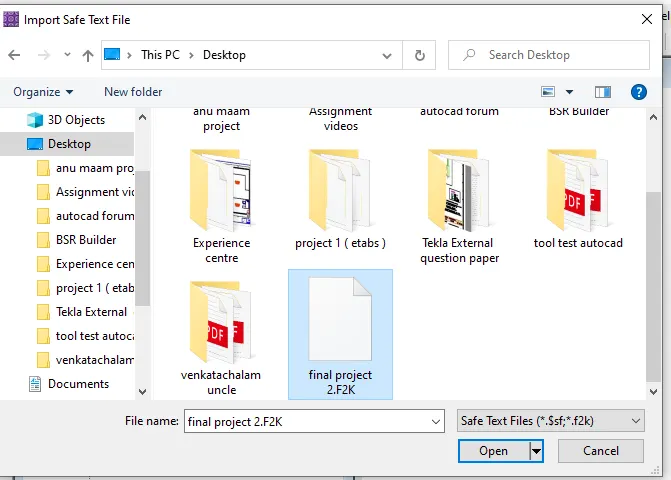

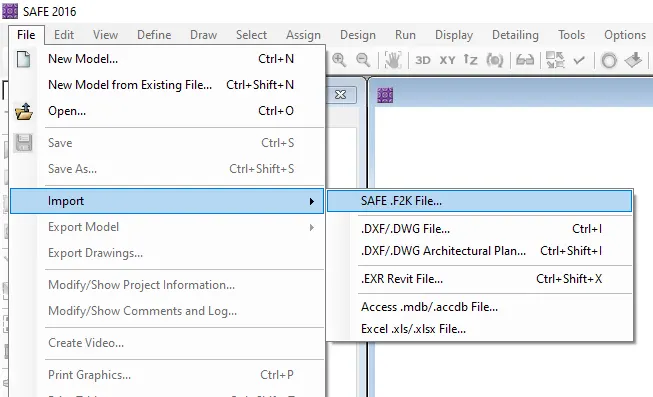

*Next step is to import the safe file to the software

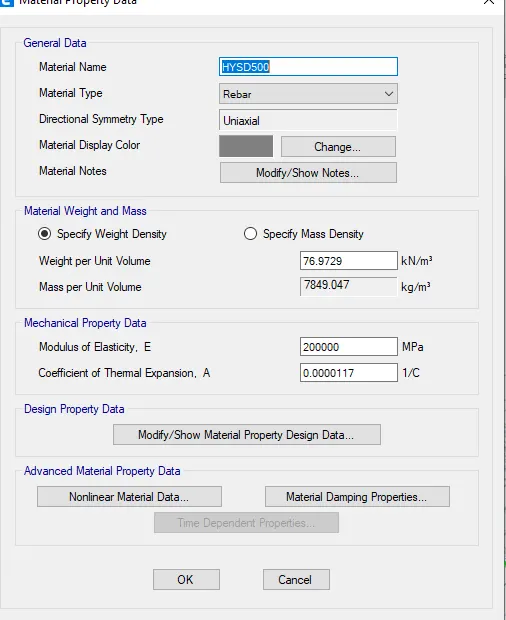

*Materials like concrete and steel needs to be defined

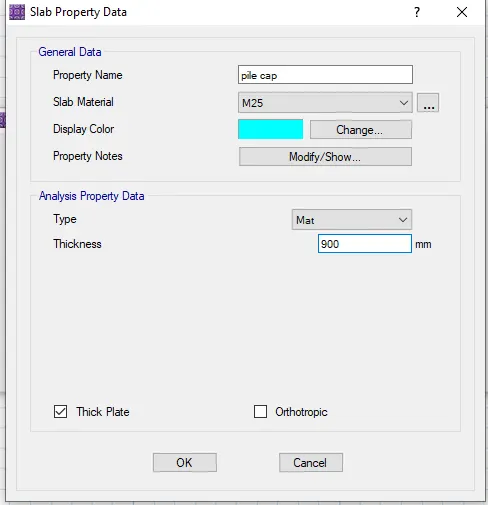

*Define column ,pile and pile cap properties

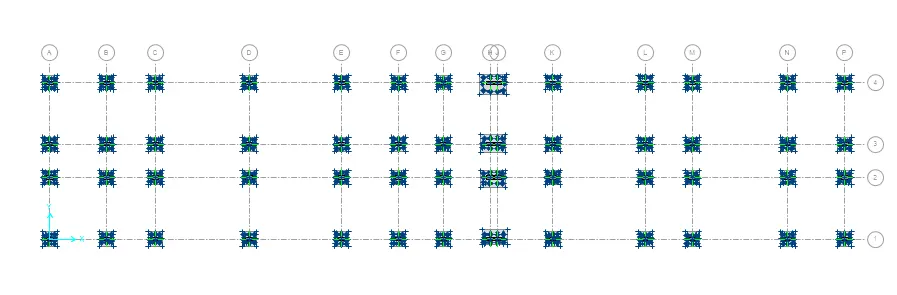

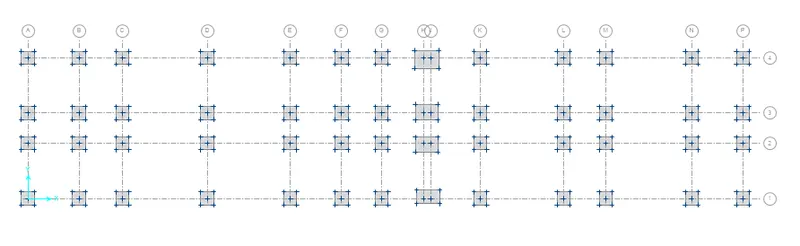

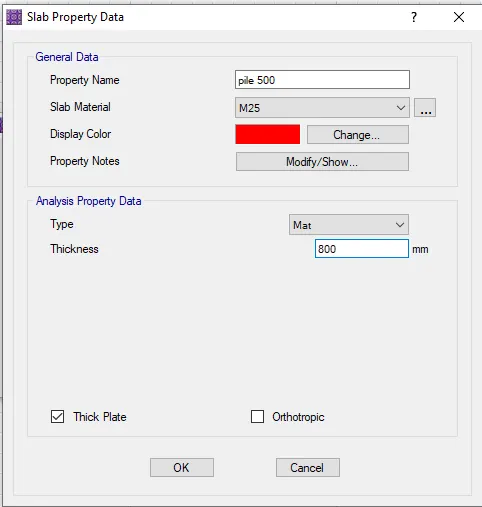

The pile is added

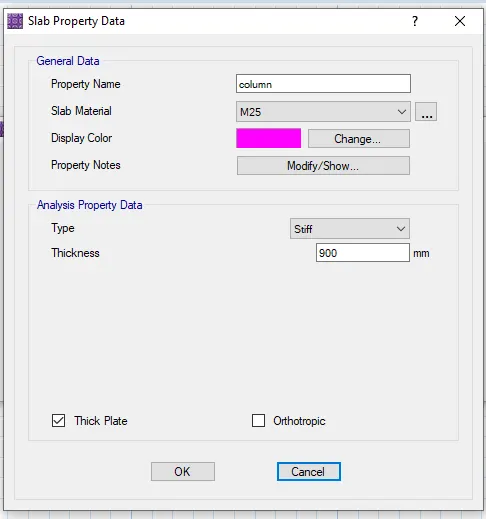

Columns are added :

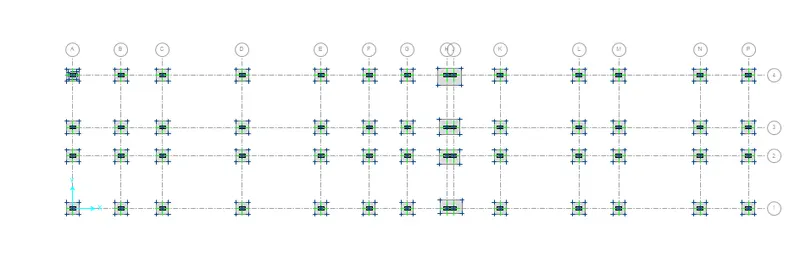

PIle cap are added
**After the strips are added

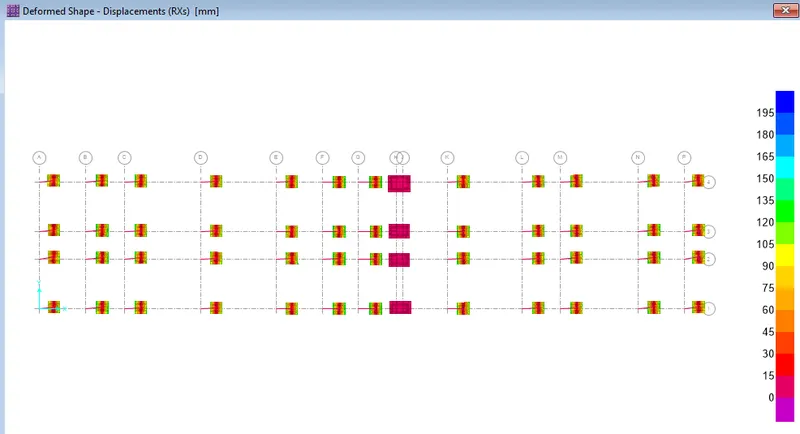

*Now the analysis are done
Slab designs are checked

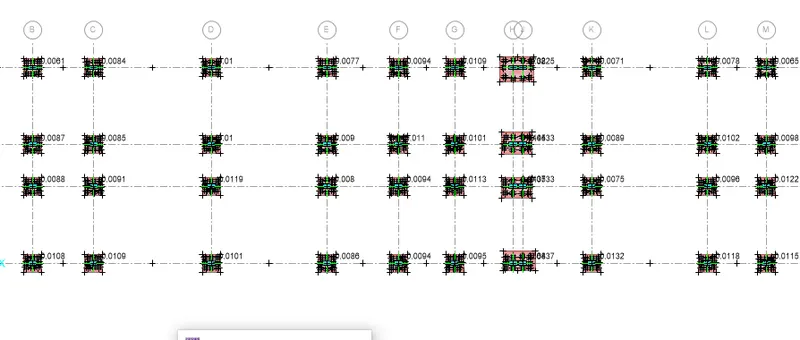

Punching shear :
Everything is less than 1 so safe
Result :
The project is succesfully completed
