REVIT _ Creation of basic Drawing _Week 2

1) what is BIM? Summarize the features of BIM and benefits of using BIM over 2D CAD tools .

ans:-

BIM : Building Information Modeling (BIM) is an intelligent 3D model-based process that gives architecture, engineering, and construction (AEC) professionals the insight and tools to more efficiently plan, design, construct, and manage buildings and infrastructure.It is a process supported by various tools, technologies and contracts involving the generation and management of digital representations of physical and functional characteristics of places. Building information models (BIMs) are computer files which can be extracted, exchanged or networked to support decision-making regarding a built asset. BIM software is used by individuals, businesses and government agencies who plan, design, construct, operate and maintain buildings and diverse physical infrastructure such as water, refuse, electricity, gas, communication utilities, roads, railways, bridges, ports and tunnels.

features of BIM :

1. Improved visualization
2. Improved productivity due to easy retrieval of information
3. Increased coordination of construction documents
4. Embedding and linking of vital information such as vendors for specific materials, location of details and quantities required for estimation and tendering
5. Increased speed of delivery
6. Reduced costs
7. It contains most of the data needed for building performance analysis.

2) Understand the concept of Categories, Families, Elements, Instances in Revit. Go to Insert Tab, choose a category. Pick a family and element. Understand the instances and insert it to Revit model.

AIM:

To understand the concept of categories , families , elements , Instances in Revit

PROCEDURE :

STEP 1:

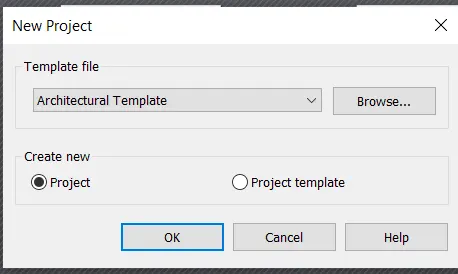

• Open revit > new> architectural templete > project
• save the file using save tab

STEP 2:

• Click on architectural tab > componet tool > place a component

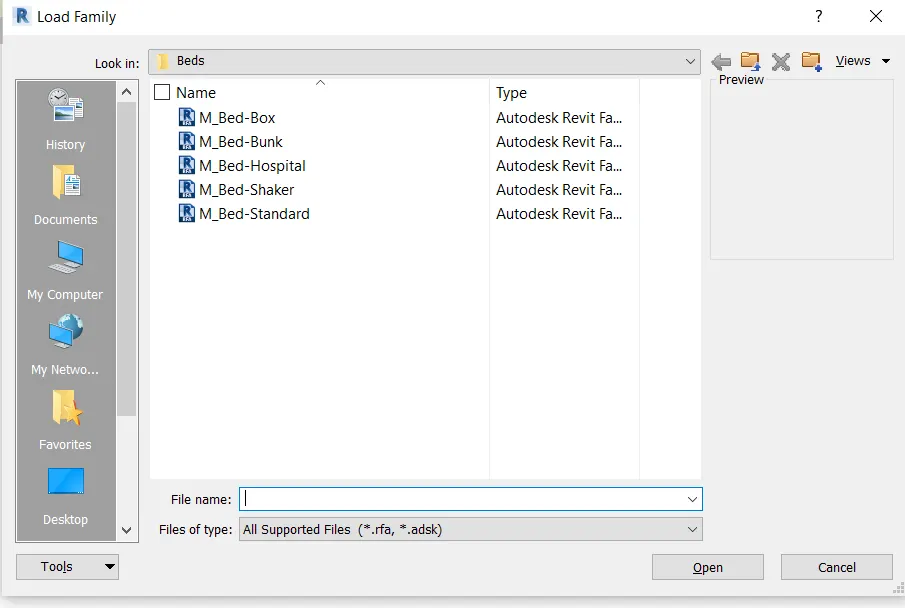

• Then click on load family
•
• click open and place the bed in the required position .

RESULT:

Understood the concept of categories ,families and elements

3)Setting up a Project – Open a project file with architectural template. Save the file with appropriate name. Set up the project units to Imperial / Metric based on your convenience of modelling. Complete the project information under Manage tab. Set up the maximum backups for project file to 3

AIM:

To set up a project :

PROCEDURE :

STEP 1 :

• OPEN REVIT >NEW > ARCHITECTURAL TEMPLATE .
•

STEP 2 :

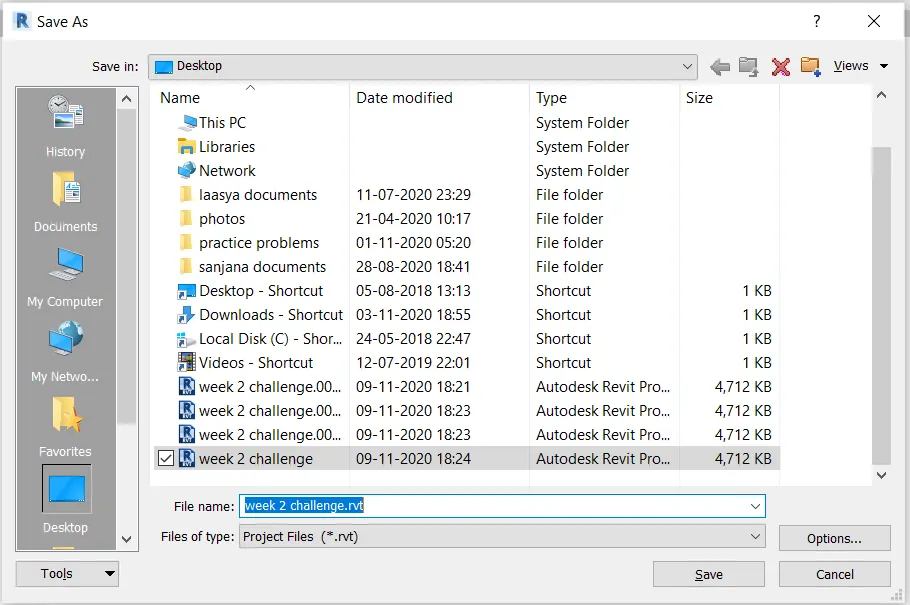

• Save the file with appropriate name
•

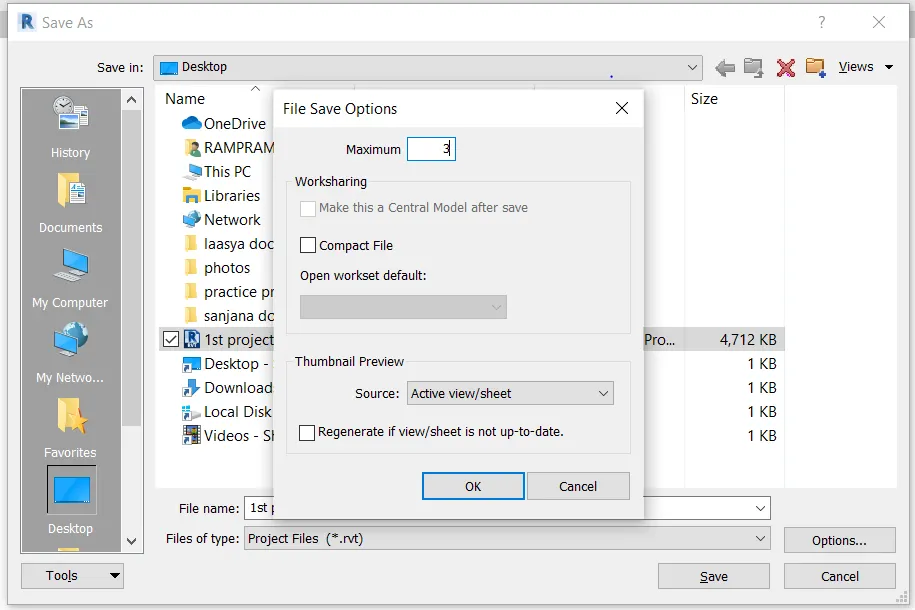

• click options >number the maxiumum projects needed

STEP 3 :

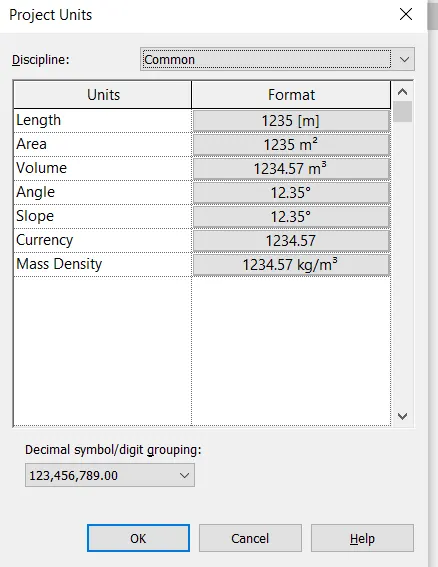

• Type UN for units and change it to metres .

STEP 4:

• Go to manage tool > project information
•

RESULT :

Basic setting of the project is done .

4) Understand the concept of Levels and Grids. Follow the naming and conventions. Create the following Levels: ( Convert to metric equivalents if metric is your units)
Ground Floor @ 0’
First Floor @ 10’
Second Floor @ 20’
Roof @ 30’

STEP 1 : (LEVELS )

• Go to elevation view

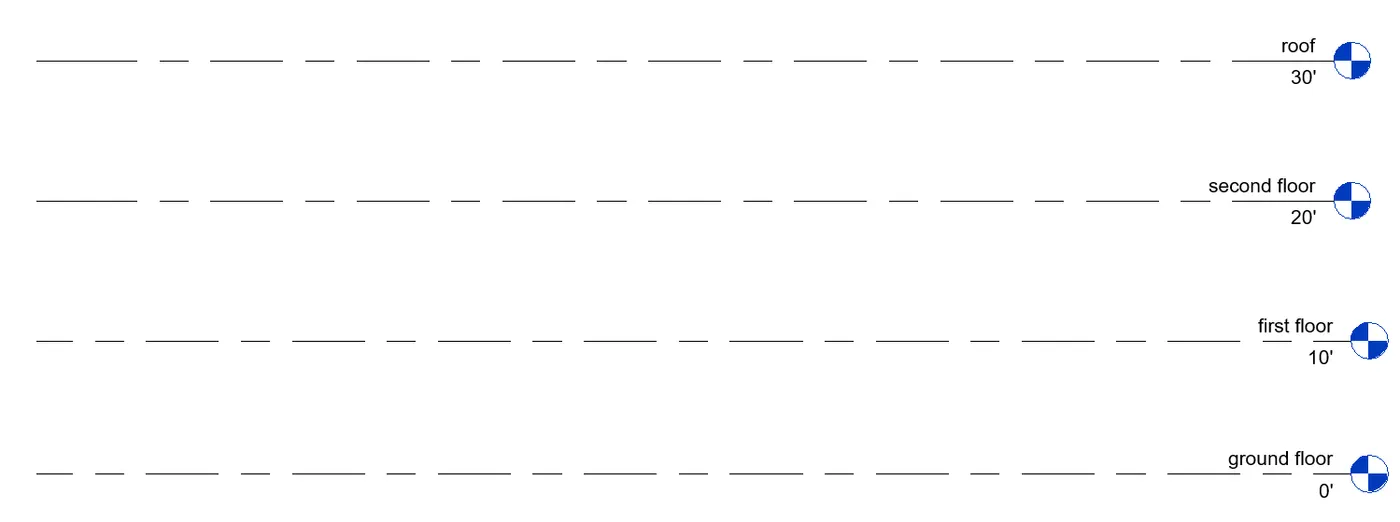

• click on levels and create ground floor , first floor , second floor , roof

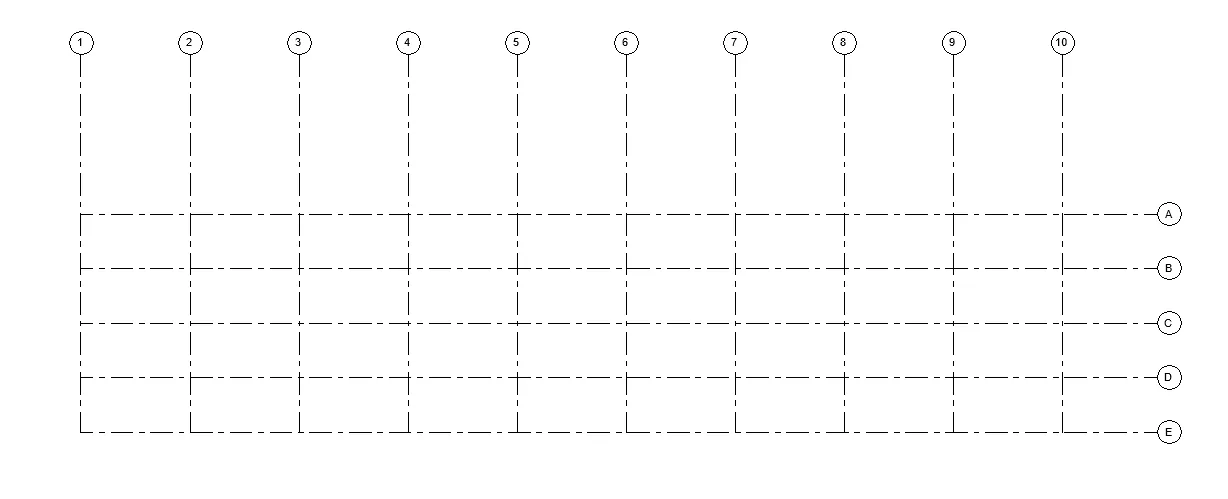

STEP 2: (GRIDS )

• Go to architectural tab > datum > grids

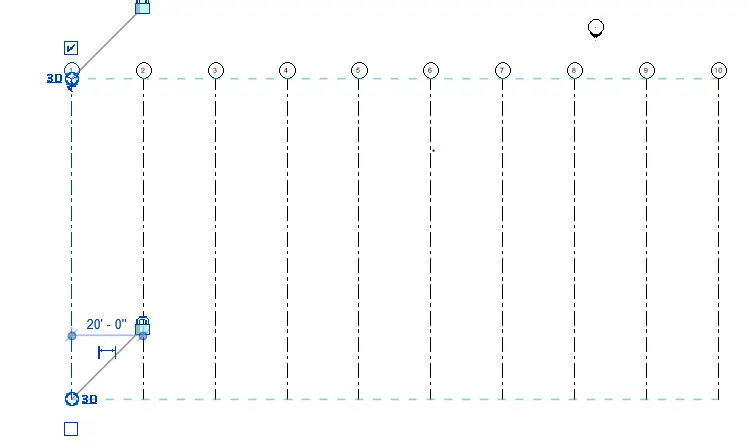

• draw longitudinal grids 1 to 10 for 20' spacing

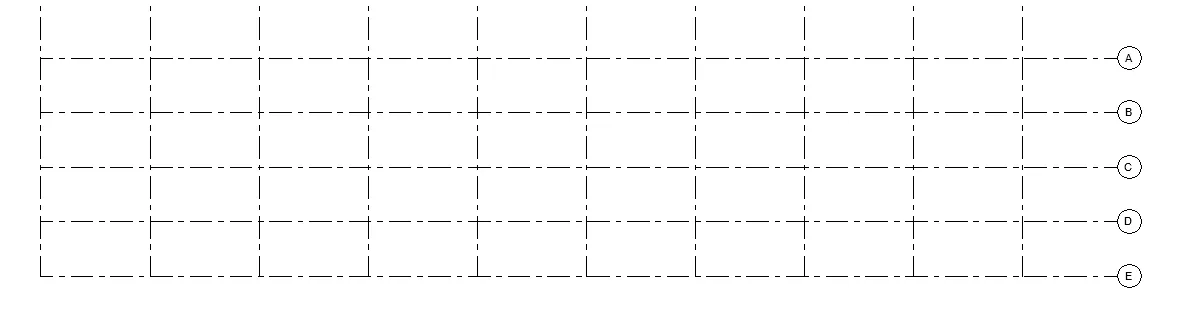

• Draw transverse grids A to E FOR 10' Spacing

RESULT:

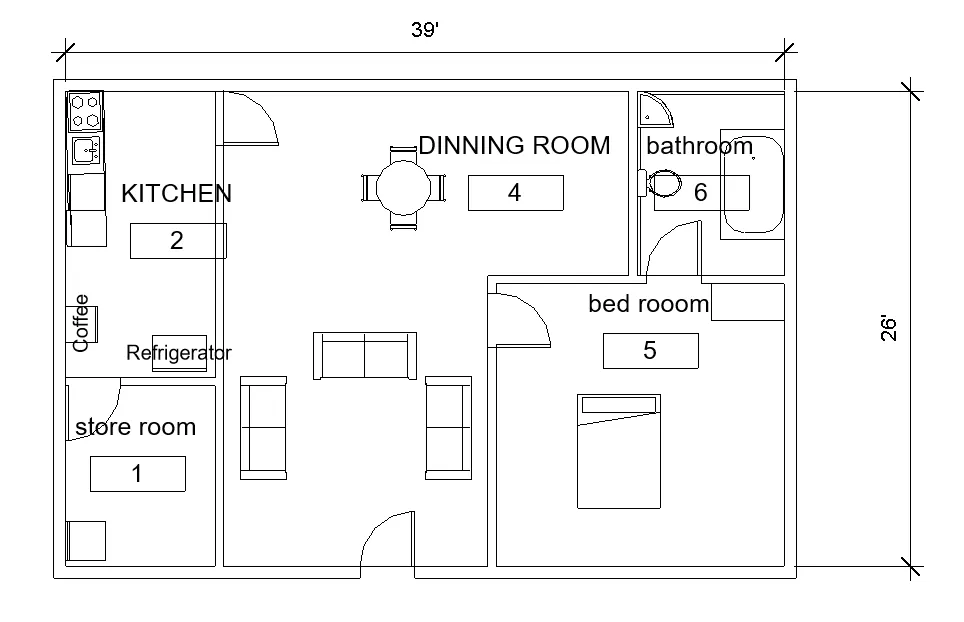

5)3D modelling of residential unit – From looking at your house / or a place you aspire. Create a conceptual layout of the residential unit. You can measure using a tape or
you can access your residential plan to create a similar layout.

AIM:

To create 3d modelling of residential unit O

STEP 1:

• Open revit >New > Architectural template
• save the file and give the appropriate name

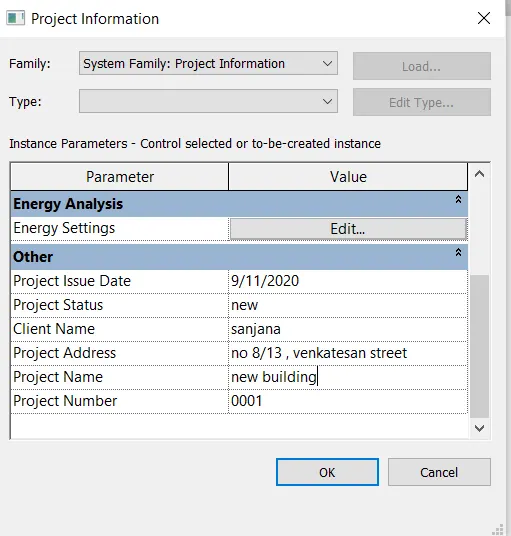

• manage > project information > fill project information

STEP 2:

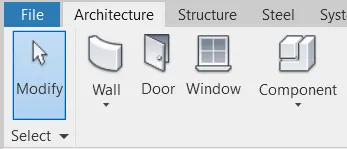

• In the architectural tab > walls> draw the walls
• In the architectural tab > doors > draw the doors
• In the architectural tab > Components > furnitures

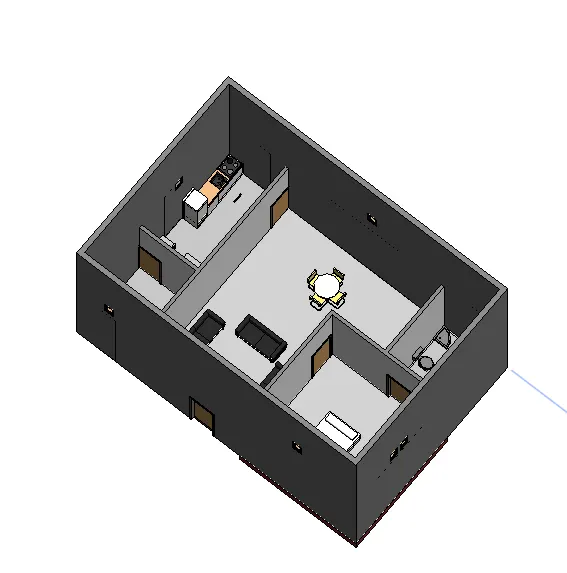

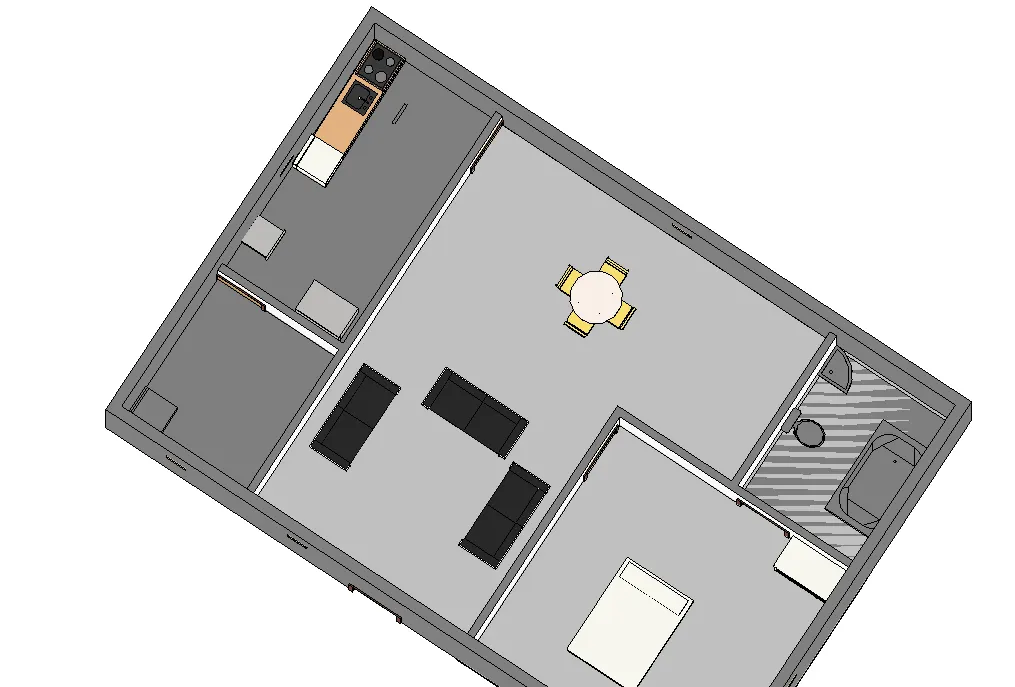

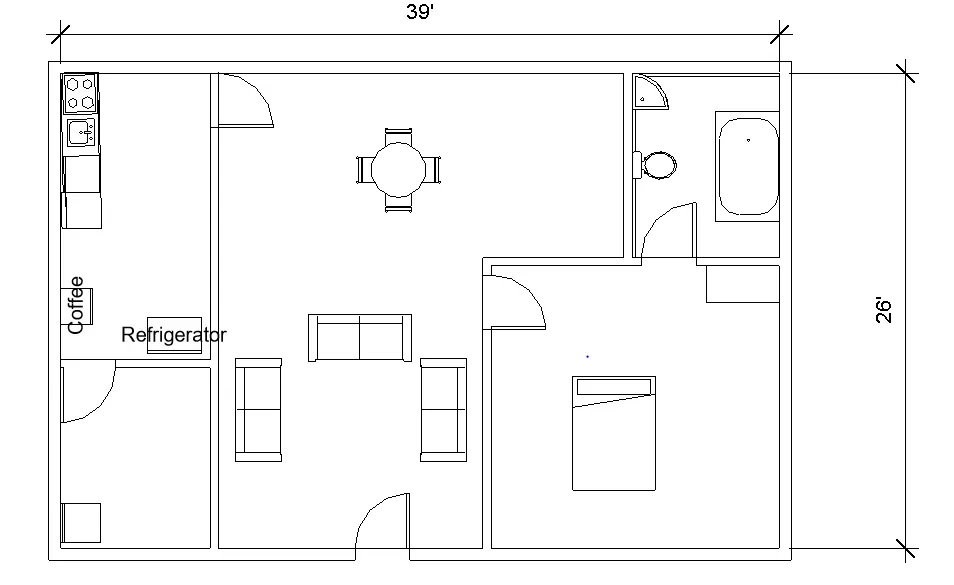

3D VIEW :

6) In the layout created draft the level of details you are planning to include – Dimensions of room, components you plan to add in the residential unit.

AIM :

To create dimensions of the layout

PROCEDURE :

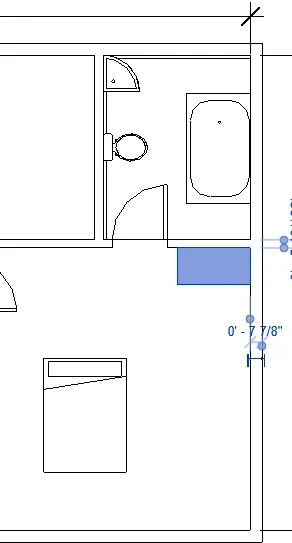

• Go to annotate tool bar > linear dimensions

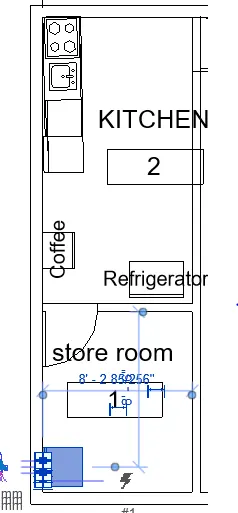

• Go to architecture tab > room > tag room (RT)

RESULT :

7)Identify the residential model elements such as Door, Windows, Tables, Chair, Couch, Bed, Lamps from the library and insert them to the model . Save the project for use
for Assignment 3

AIM:

To identify residential model elements

PROCEDURE:

• In architectural tab click > components > place components > load family > libraries > india
• Then select the required component and place it in the desired location
• Save the project

RESULT:

final result :
