REVIT_3D Rendering of a house plan _Project 1

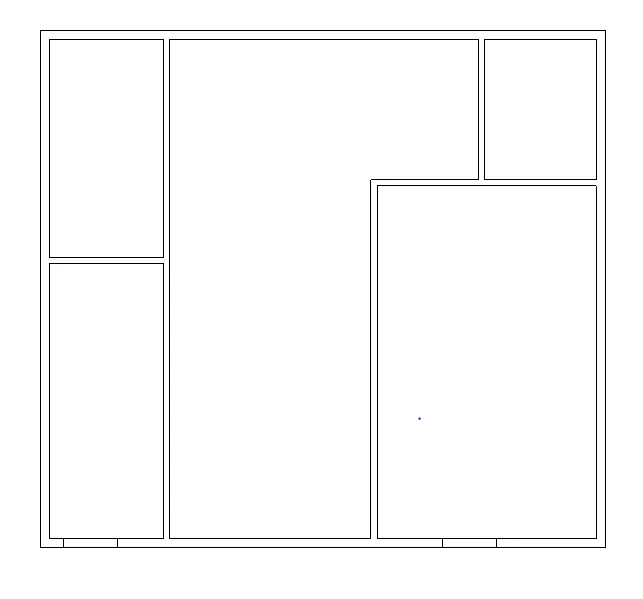

1)Based on the project saved from Week 3, proceed from First Floor Level .Model a Ceiling from architecture tab above the walls at first floor level

AIM:

To model a celling from architecture tab above the walls at first floor level

TOOLS:

1. Celling
2. boundary lines > rectangle

PROCEDURE :

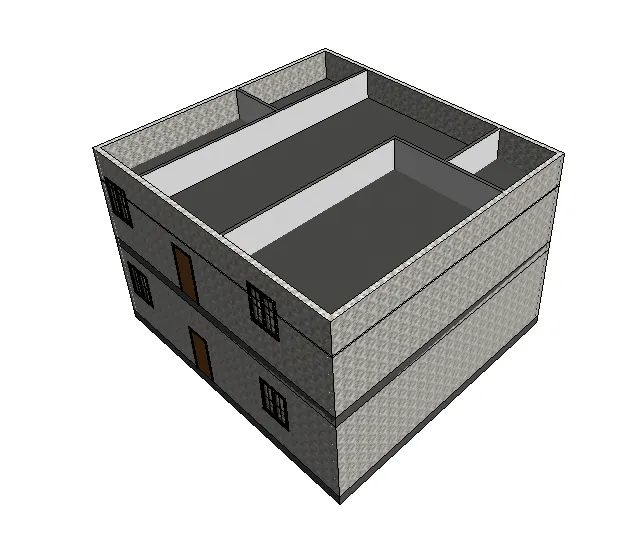

STEP 1 (Celling for first floor )

• open week 3 project

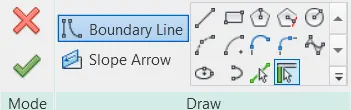

• go to architectural tab > celling > boundary > rectangle .

>> select the desired lines

RESULT :

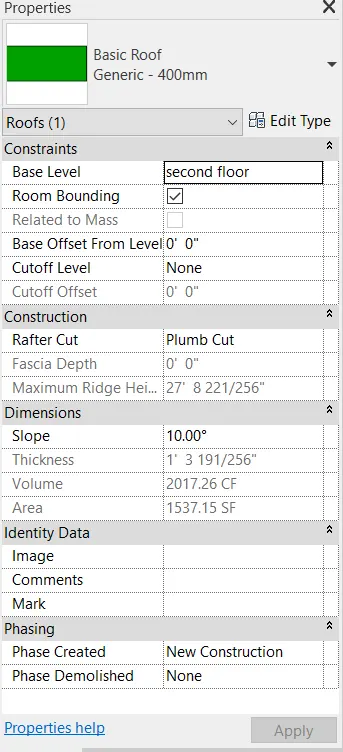

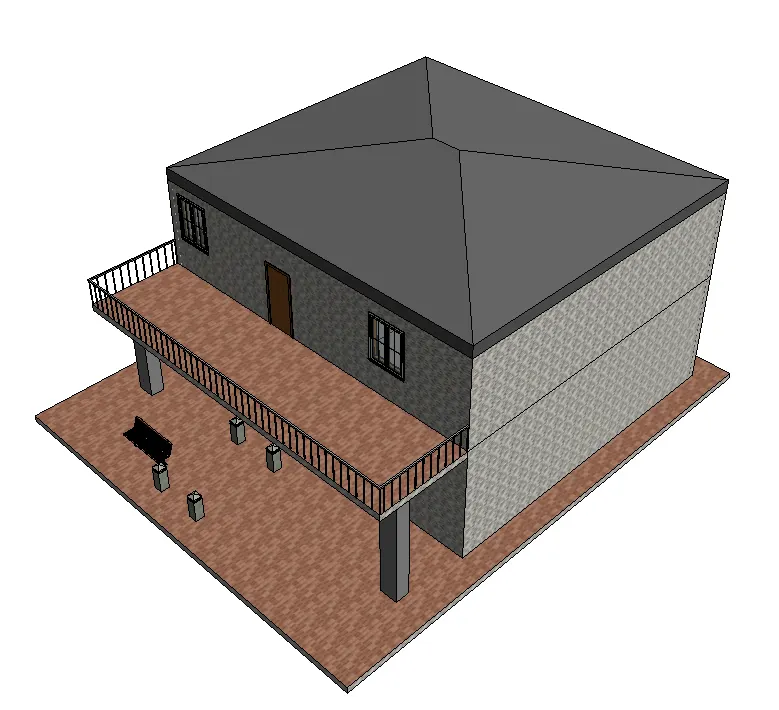

2)Model a roof above the ceiling by selecting the footprints of ceiling. Using the adjustment tool bars appearing on screen adjust the roof slope to 10 degrees

AIM:

To model a roof

TOOLS :

1. Roof
2. boundary lines > rectangle /pick lines

PROCEDURE :

STEP 1 :

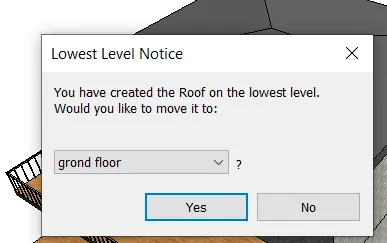

• Go to architecture tab > roof > boundary lines > pick lines >select the desired lines

>ROOF BY FOOT PRINT > > FIRST LEVEL >

> SELECT THE DESIRED LINE .

RESULT:

3) Using the file saved from week 2 to 4, create plan views for ground floor level and first floor level including all the walls , floors and components. Separate them to architecture and structural plans

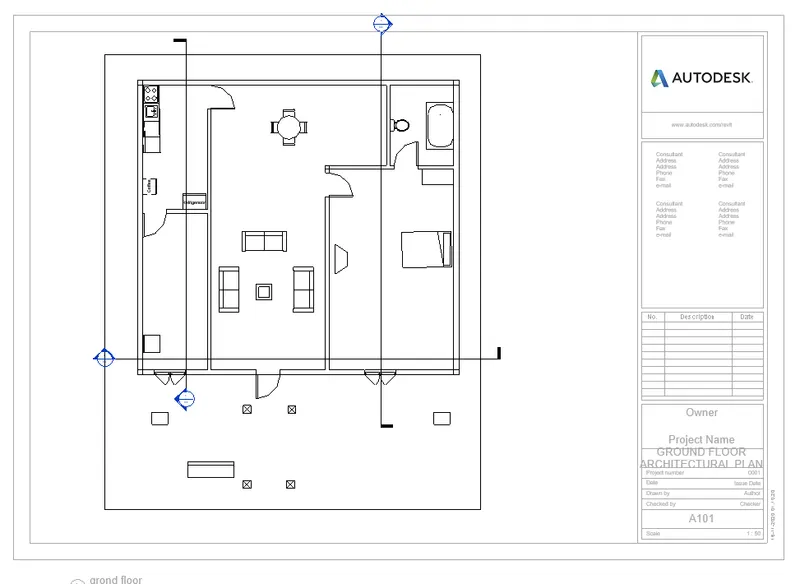

a. Architecture plan must have walls , floors and all the components placed within the building

AIM:

To create architecture plan that has walls ,floors and all the components placed within the building

PROCEDURE :

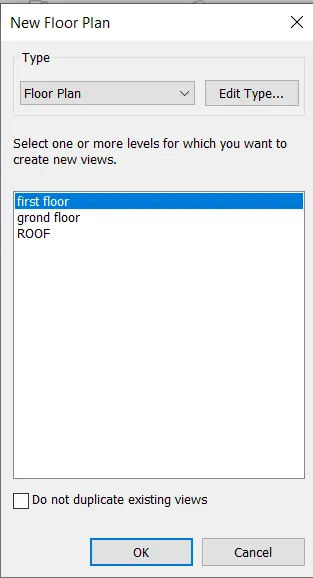

• Go to plan views in view tab >

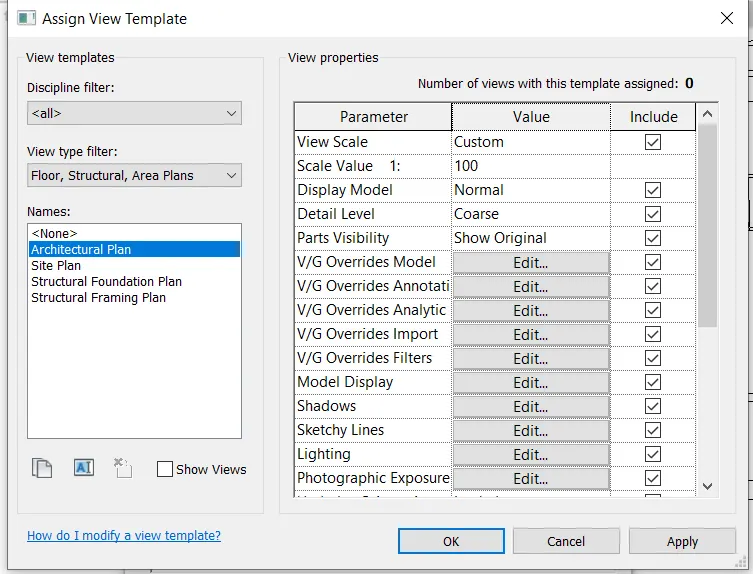

• Then go to edit type and click architectural plan
•
• click apply same for ground floor , first floor and roof

RESULT :

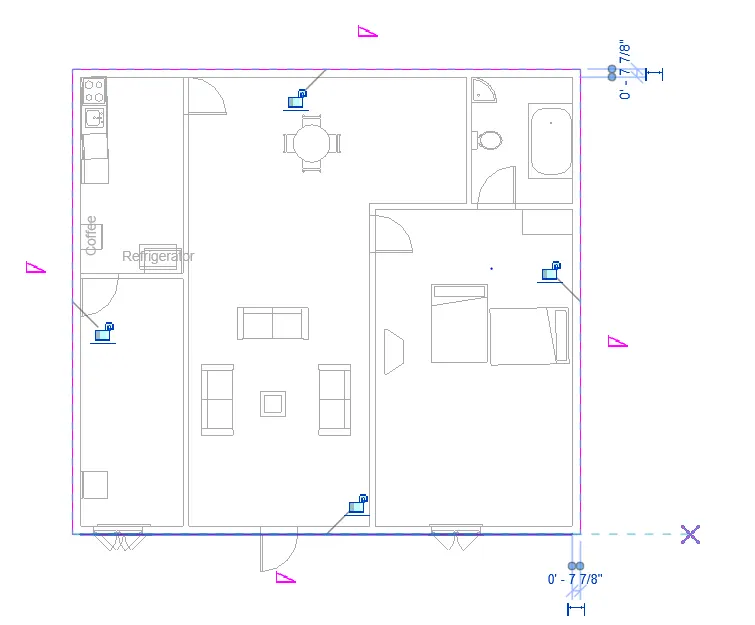

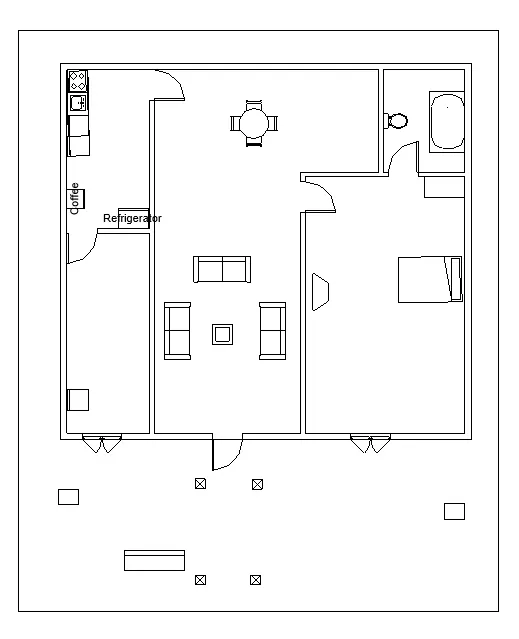

GROUND FLOOR :

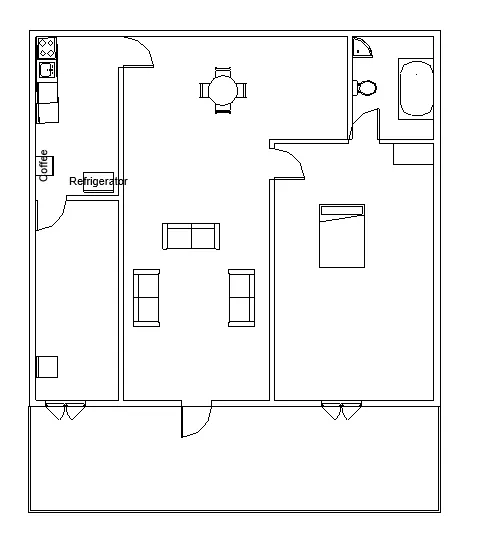

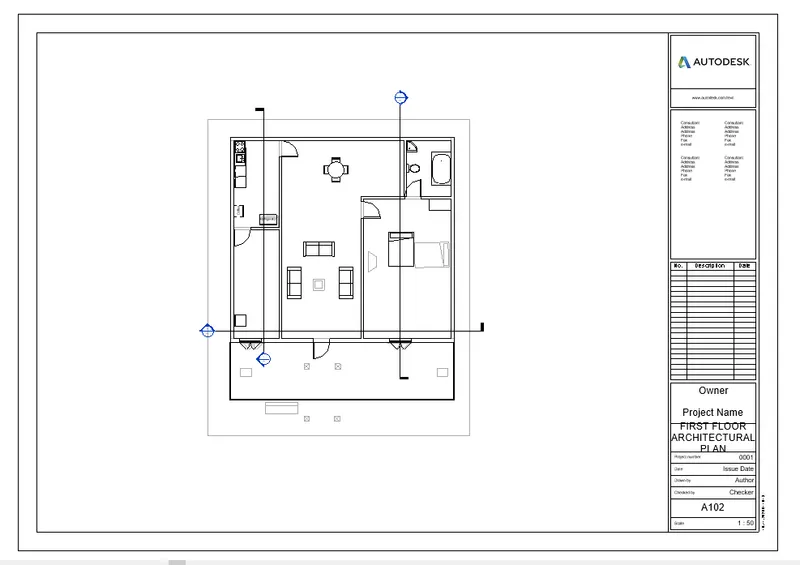

FIRST FLOOR :

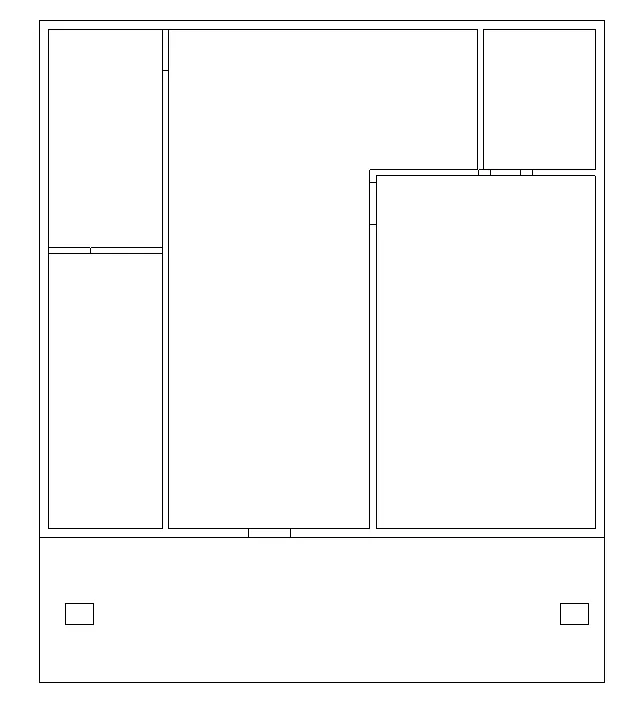

b. Structure plan must have details of only walls, floors and columns

AIM:

To create a structural plan

PROCEDURE:

• Go to view tab > view plan > structural plan
• Same procedure is followed for first floor

RESULTS:

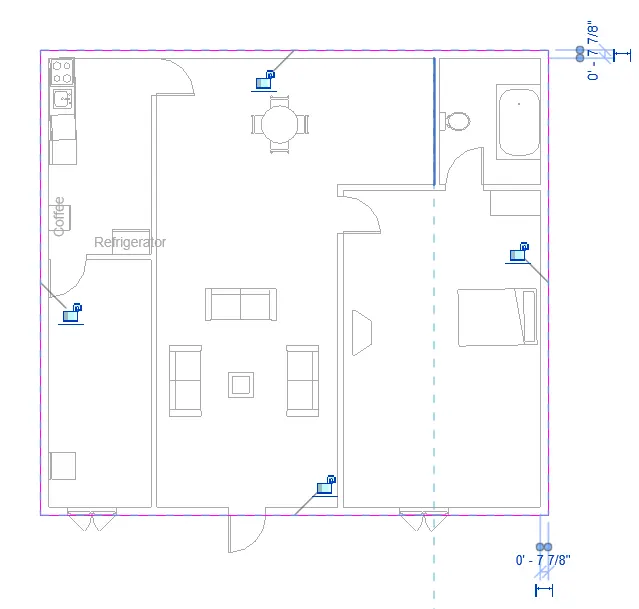

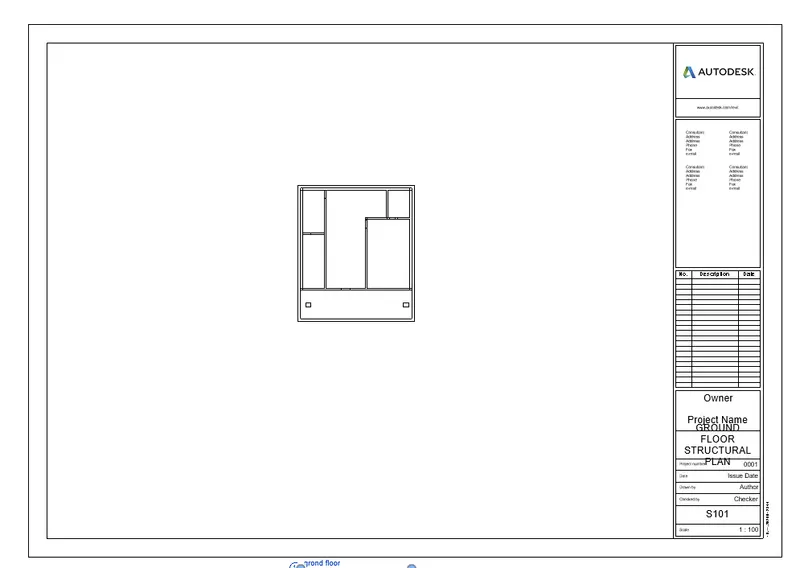

Ground floor:

FIRST FLOOR :

4) Using annotate tool bar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

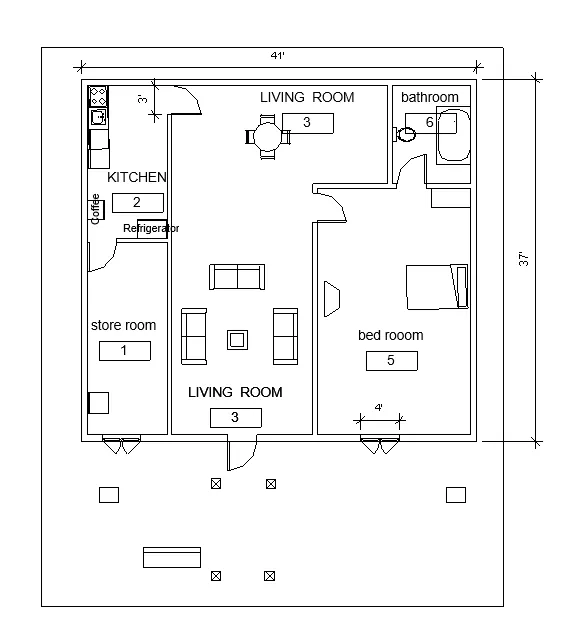

a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans

AIM:

To give dimensions and grid lines to the project

PROCEDURE:

STEP 1 :

• Go to annotate tool bar> linear dimenisions
• Go to architectural tab > tag rooms

RESULT :

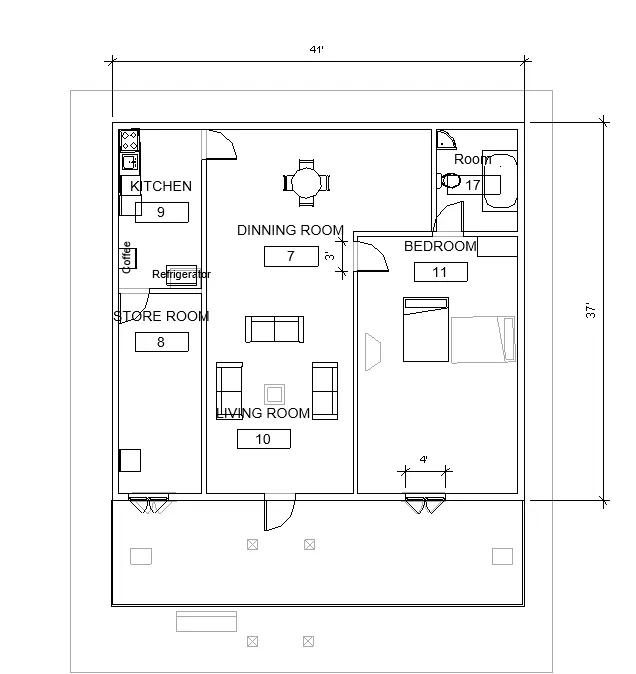

GROUND FLOOR :

FIRST FLOOR:

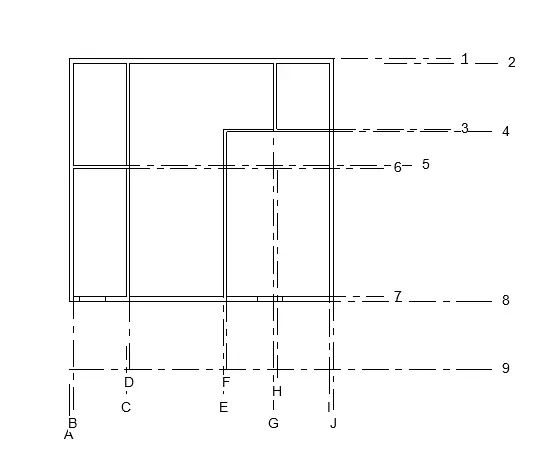

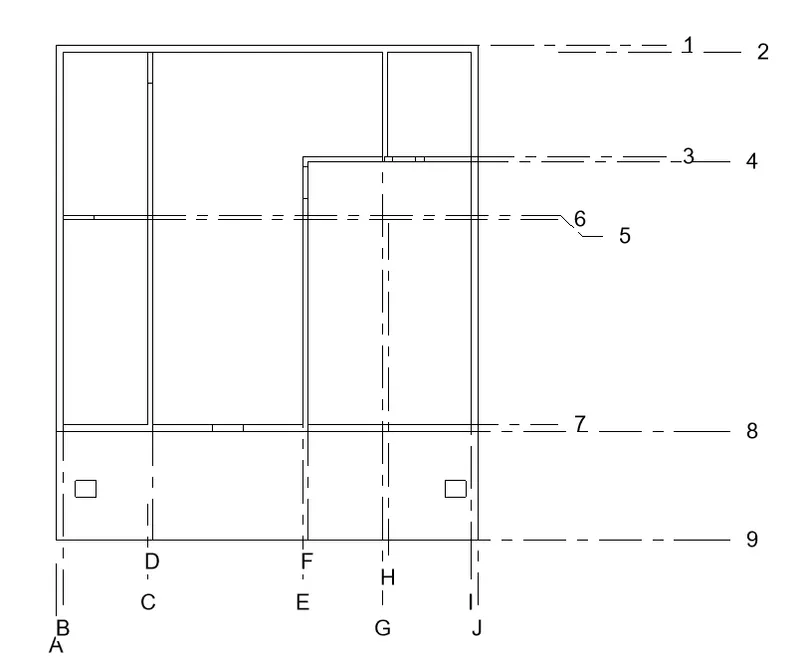

b. The Structure plan dimensions must include details on position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans

AIM:

To give dimensions and grid lines to the project

PROCEDURE:

• Go to structural plan
• Then go to architectural tab > grids > draw grids along the walls

RESULT :

GROUND FLOOR :

FIRST FLOOR :

5) Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views

AIM:

To create a sheet template from the view tab and to adjust the parameters on the sheet to add appropriate views

PROCEDURE :

• go to view tab > sheet template >add view

RESULT :

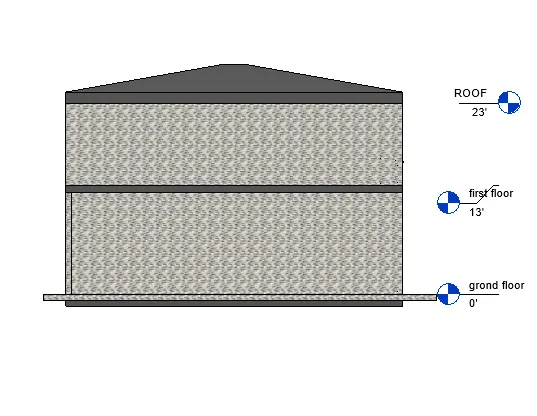

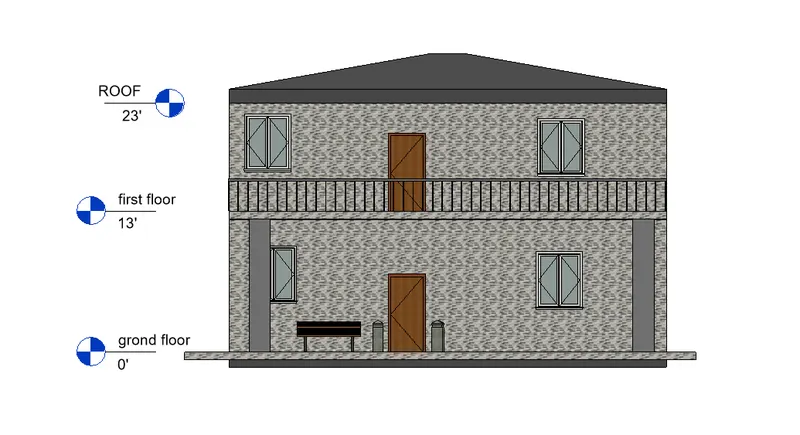

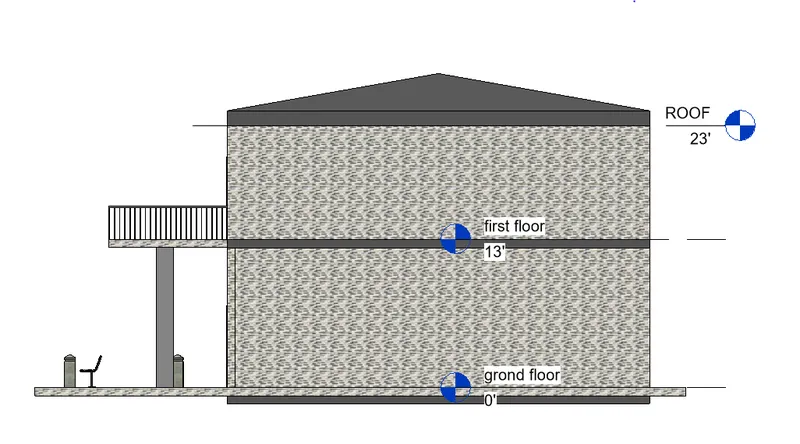

6) Using the elevation tab create the elevation views, looking at your building from East, North, South and West

AIM:

To create elevation tab

PROCEDURE :

• go to elavation view > north> south>east >west

RESULT:

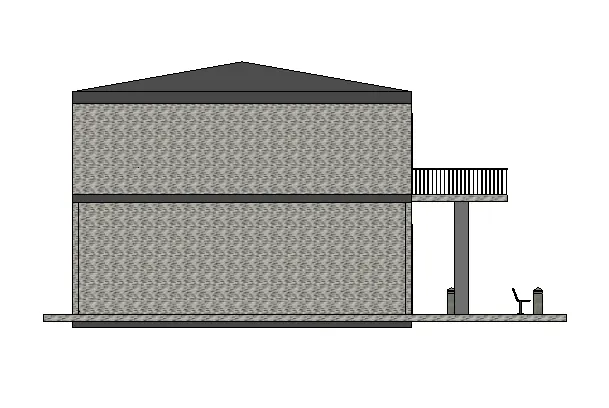

NORTH:

SOUTH:

EAST:

WEST:

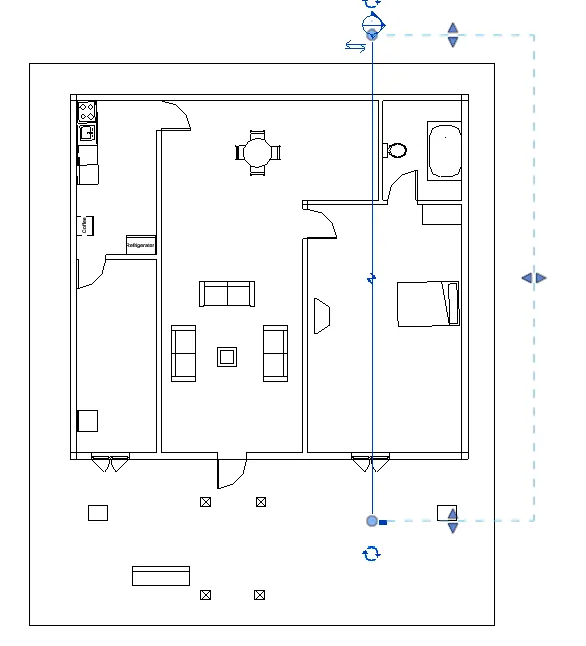

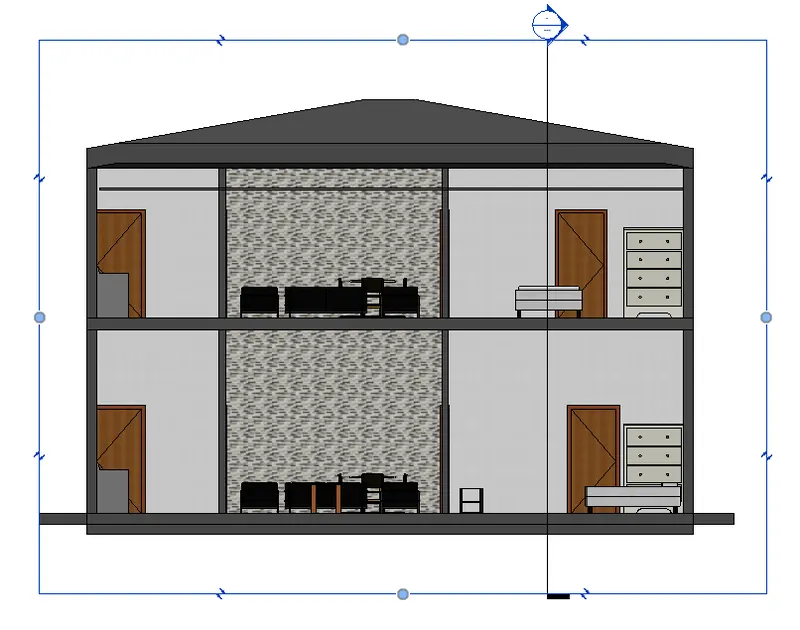

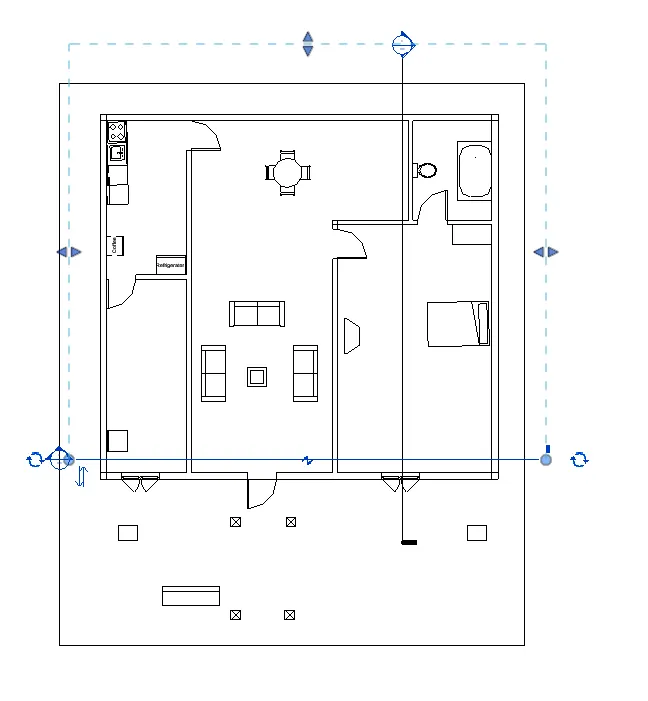

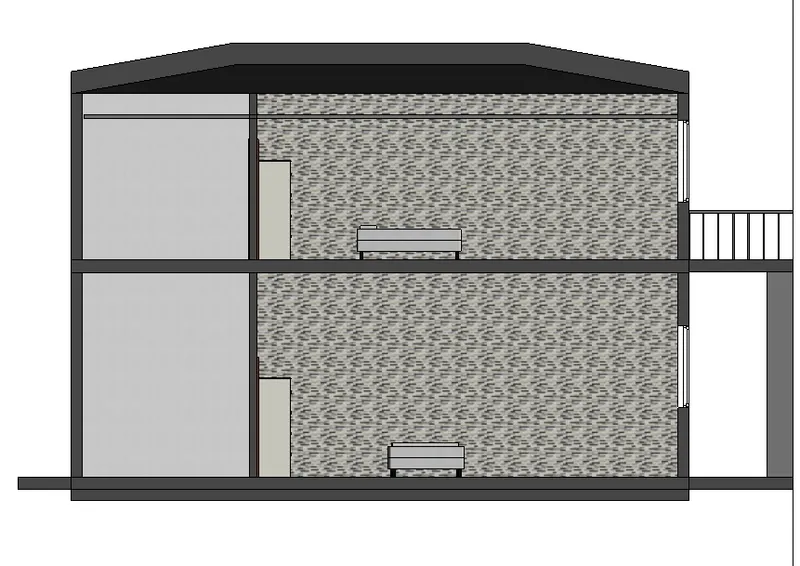

7) Produce section cut through each room either cutting across longitudinally or in a transverse direction

AIM:

To produce section cut through each room

PROCEDURE:

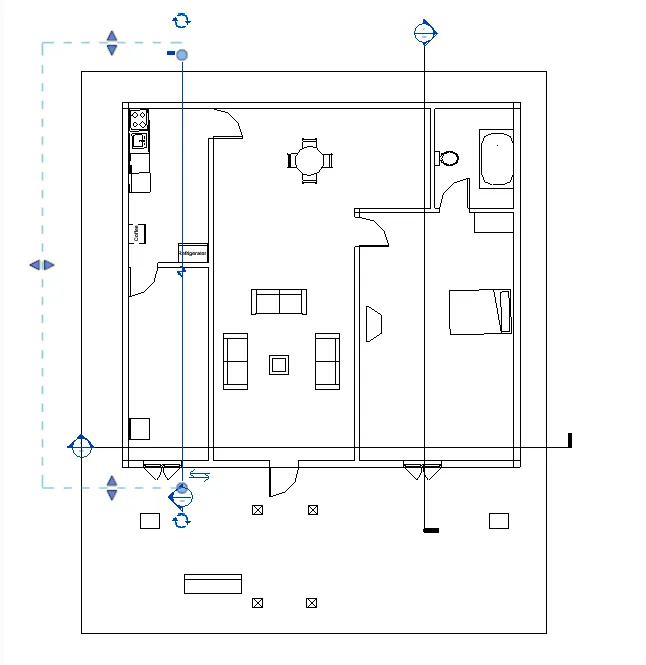

• Go to view tab > section view > section the required view

RESULT:

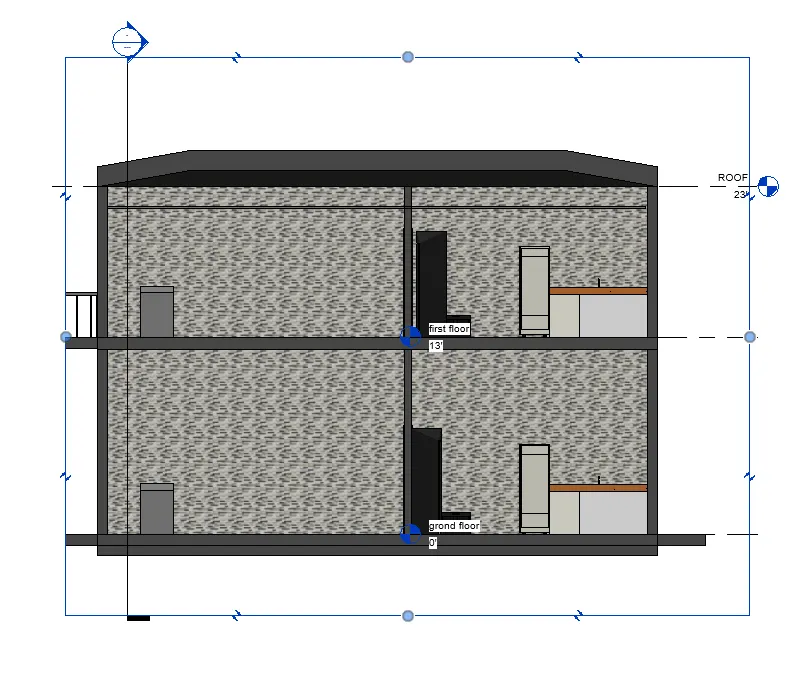

SECTION 1:

SECTION 2

SECTION 3:

8)Classify the views , Plan Views, Section Views and Elevation views to either Design or Documentation category using Properties browser

AIM:

To Classify the views , Plan Views, Section Views and Elevation views

PROCEDURE :

• Go to view tab > property browser .

RESULT :

PLAN VIEWS

SECTION VIEWS

ELEVATION VIEW

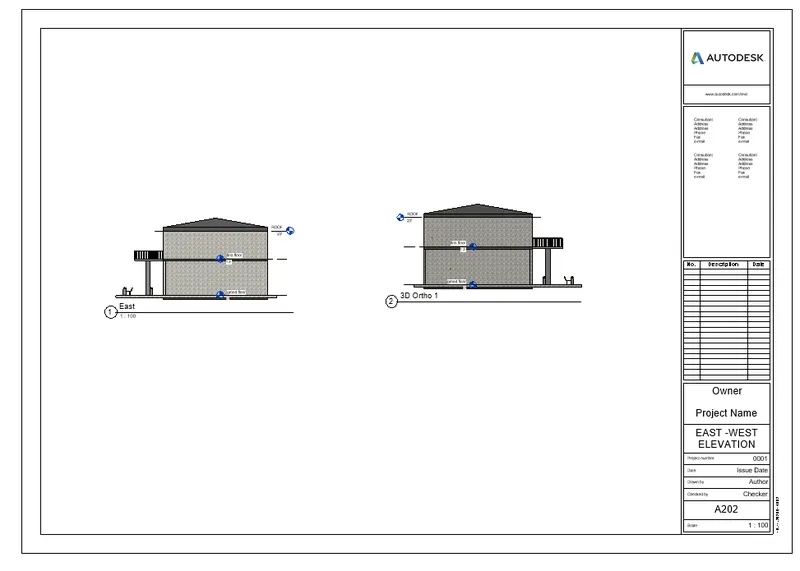

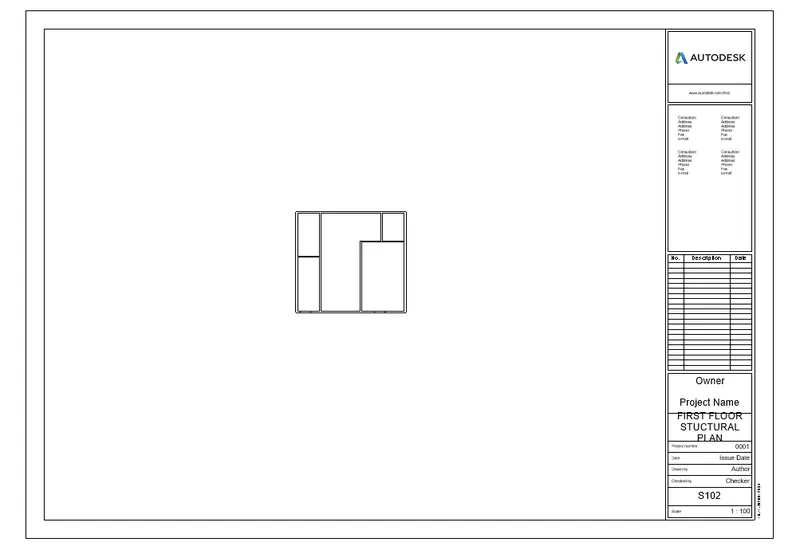

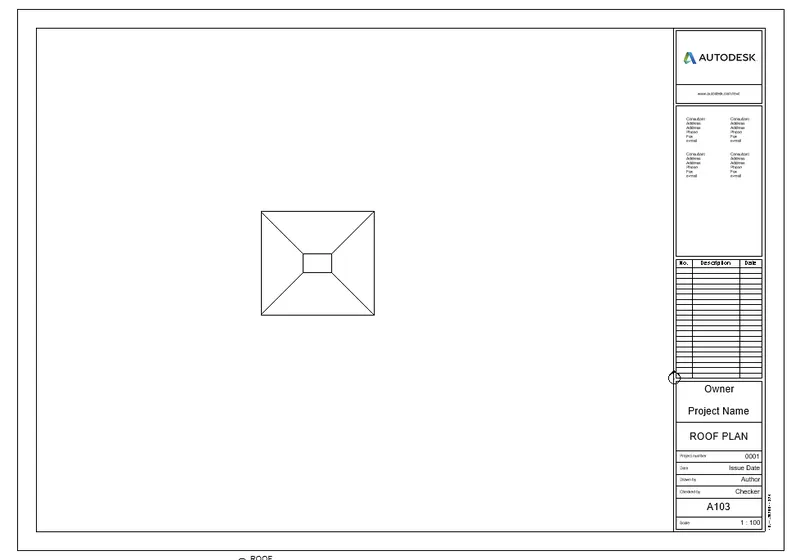

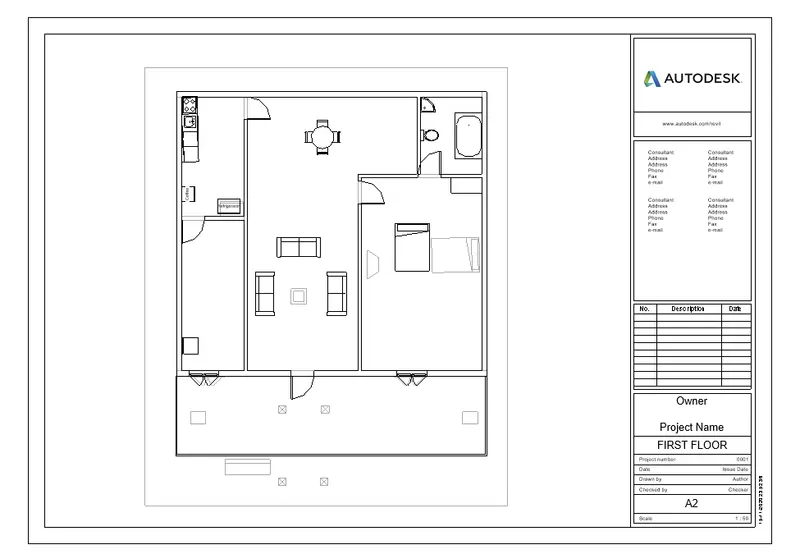

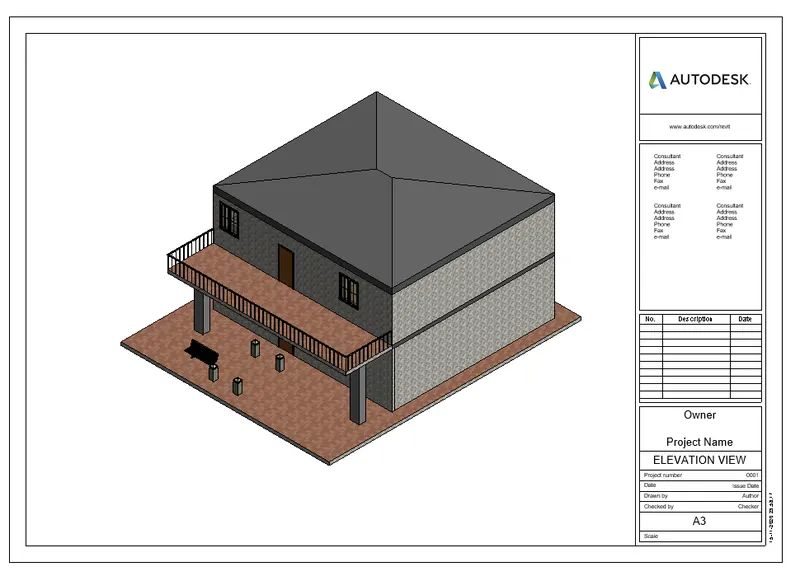

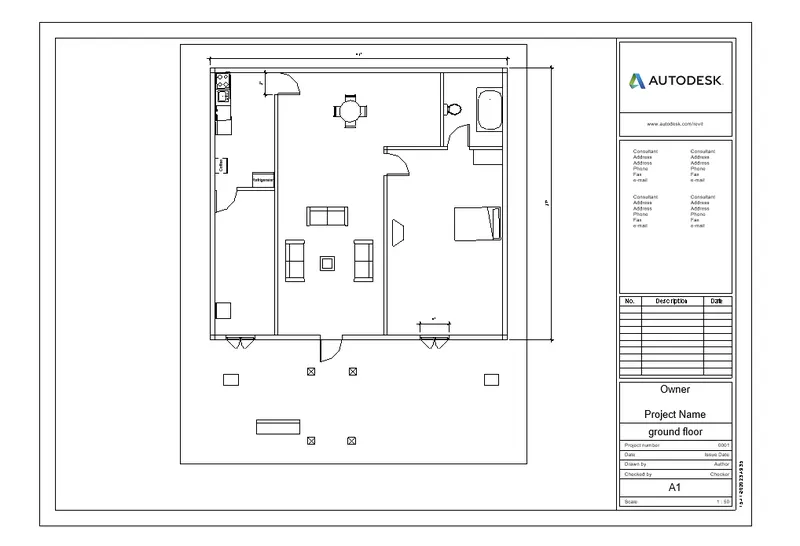

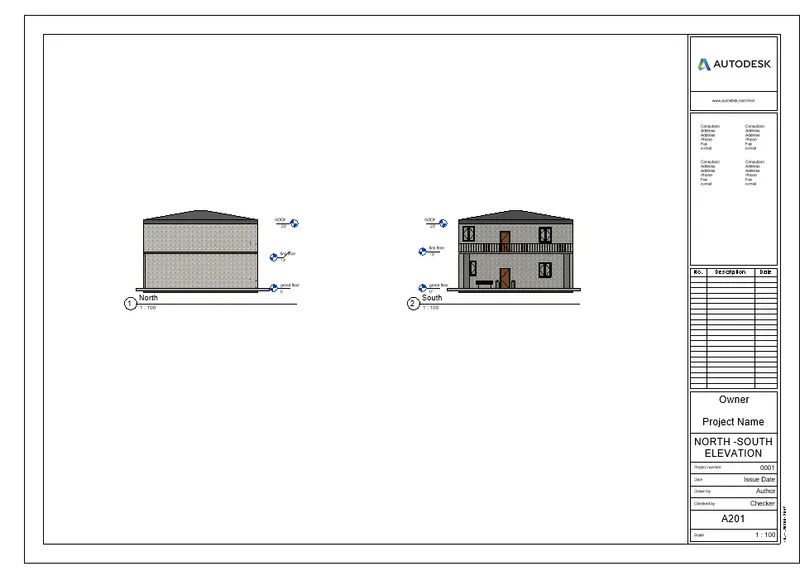

9) Using the sheet template produced create multiple sheets as follows

AIM:

To create sheet template

PROCEDURE :

• Go to view tab > sheet templete > add view

RESULT:

A)

B)

C)

D)

E)

G)

H)

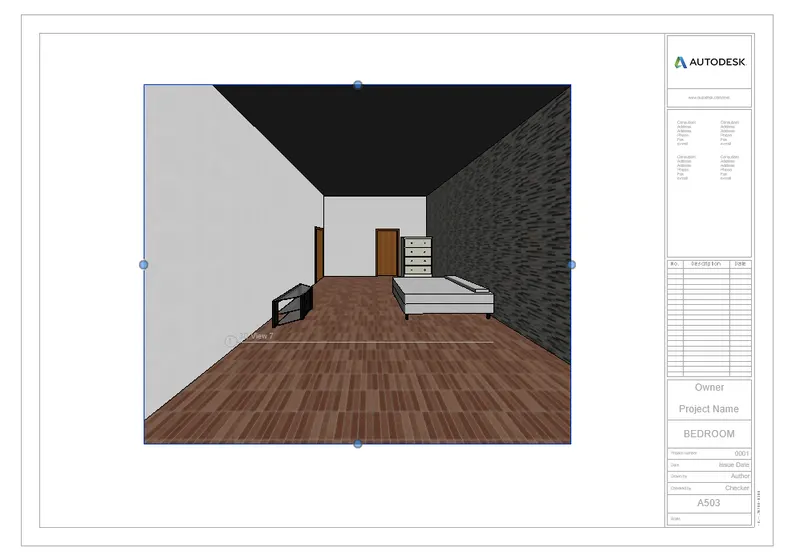

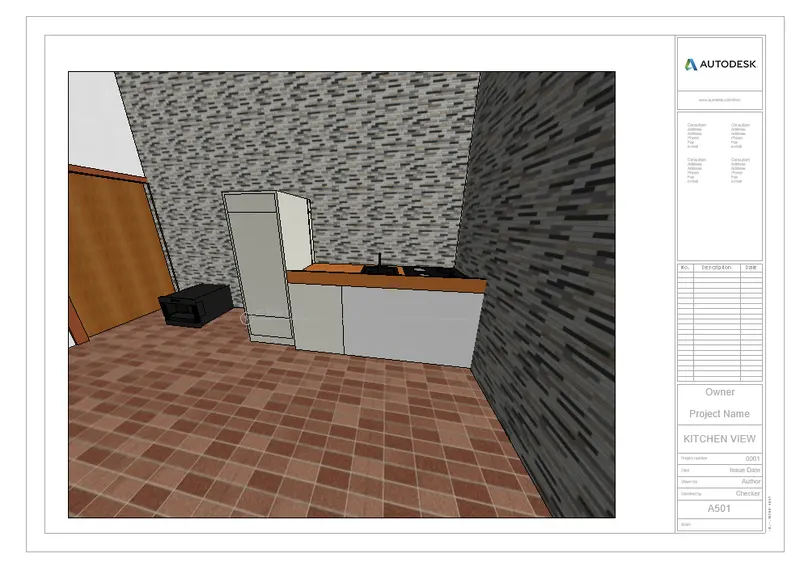

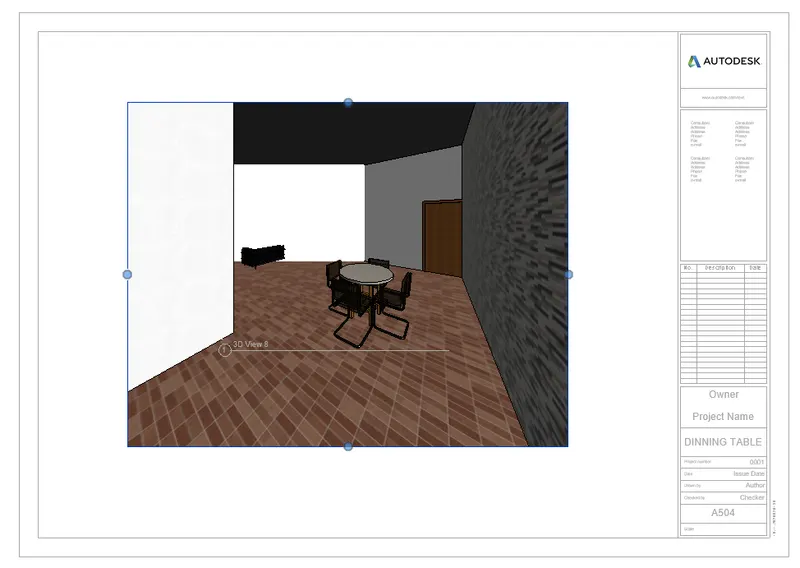

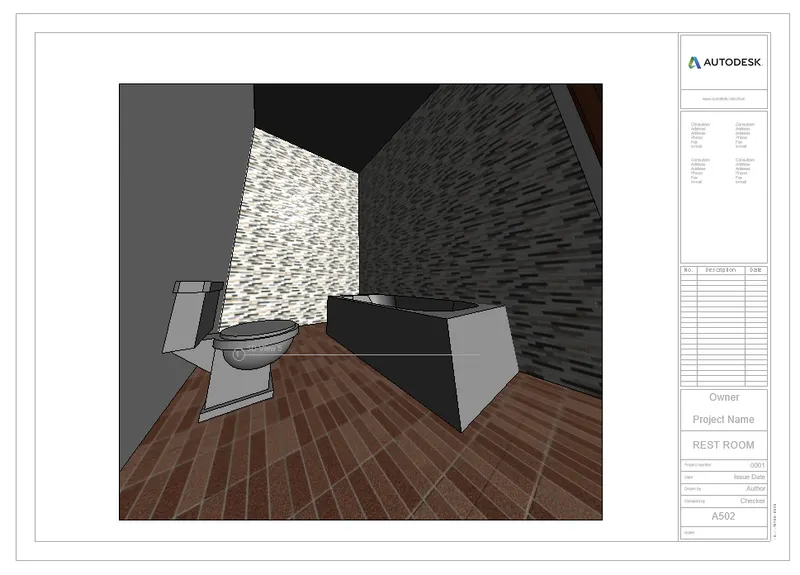

10)Create a camera specific view or a 3D view in each room ( living, dining, bed room ) . Based on the views create new shet of sheets starting A-501 (you can add as many sheets after , 502, 503.. n)to place the 3D view images.Produce the sheets as a part of project drafting.

AIM:

To Create a camera specific view or a 3D view in each room

PROCEDURE:

• go to view tab > camera > place the camera in the desired view

RESULTS:
