Creation of Column Schedule and Drawing Template using AutoCad
1. AIM:- To create a column schedule of figure 1 with the use of AutoCAD 2022 INTRODUCTION:- The various commands that are used for the creation of column schedule are line,offset,trim,dtext etc PROCEDURE:- Open the AutoCAD 2022 application Type a command QNEW to save the application Select architecture in type,0'-0"…
Sandeep Ghosh
updated on 16 Sep 2021

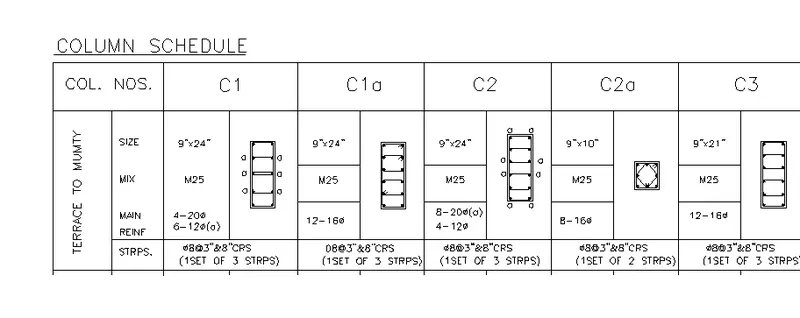

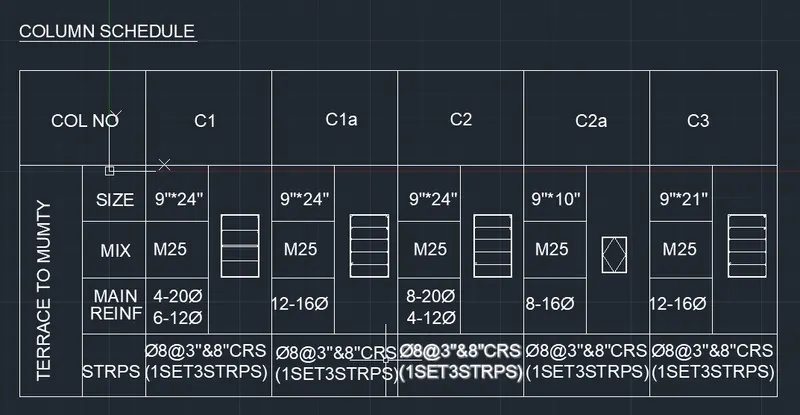

1. AIM:- To create a column schedule of figure 1 with the use of AutoCAD 2022
INTRODUCTION:- The various commands that are used for the creation of column schedule are line,offset,trim,dtext etc
PROCEDURE:-
- Open the AutoCAD 2022 application
- Type a command QNEW to save the application

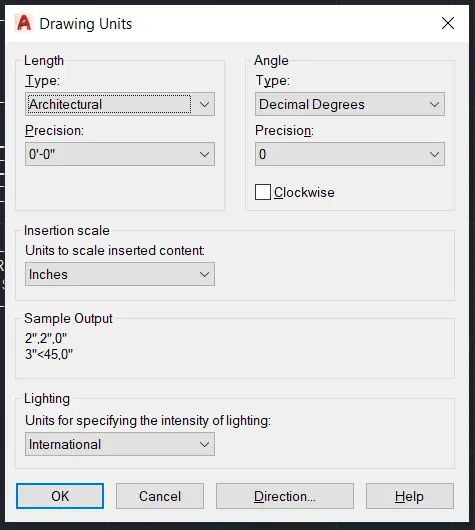

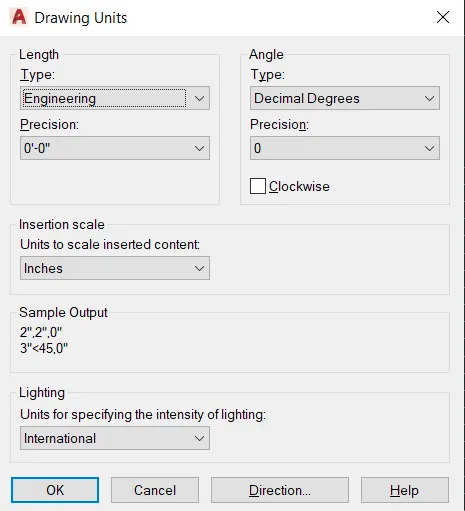

- Select architecture in type,0'-0" in precision,insertion scale in inches,decimal in angle type and precision in zero.Press OK
- Limits and limmax command is used
- Zoom command is also used
- Type a command line
- Specify the point:- @604'4",0
- Specify next point:-@0,259'11"
- Specify next point:-@-604',4",0
- Specify next point:-Close

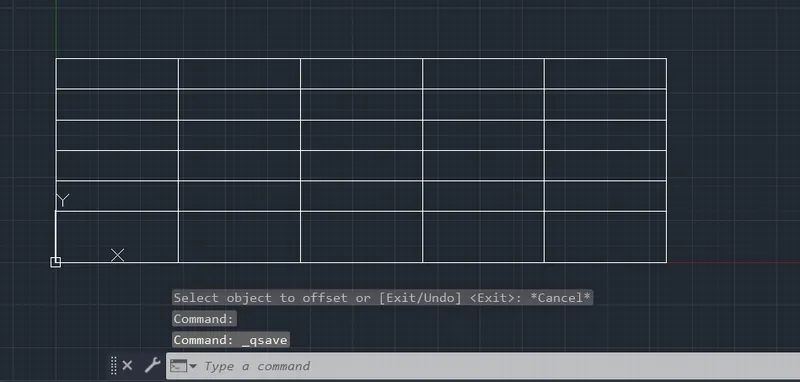

- Type a command offset
- Specify offset distance:-75' horizontally from the line @-604'4",0
- Type a command:-Offset
- Specify offset distance:- 100'7" vertically in six consecutive steps from the line @0,-259'11"
- Type a command trim
- Trimmed the unwanted lines
- Type a command offset
- Specify offset distance:- 50' vertically in six consecutive steps from the line @0,-259'11"
- Type a command trim.Trimmed the unwanted lines
- Type a command offset
- Specify offset distance:- 45' horizontally from the offset line 75' in three consecutive steps
- Type a command offset
- Specify offset distance:-50' horizontally from the offset line 75' in one consecutive step
- Type a command trim.Trimmed the unwanted lines

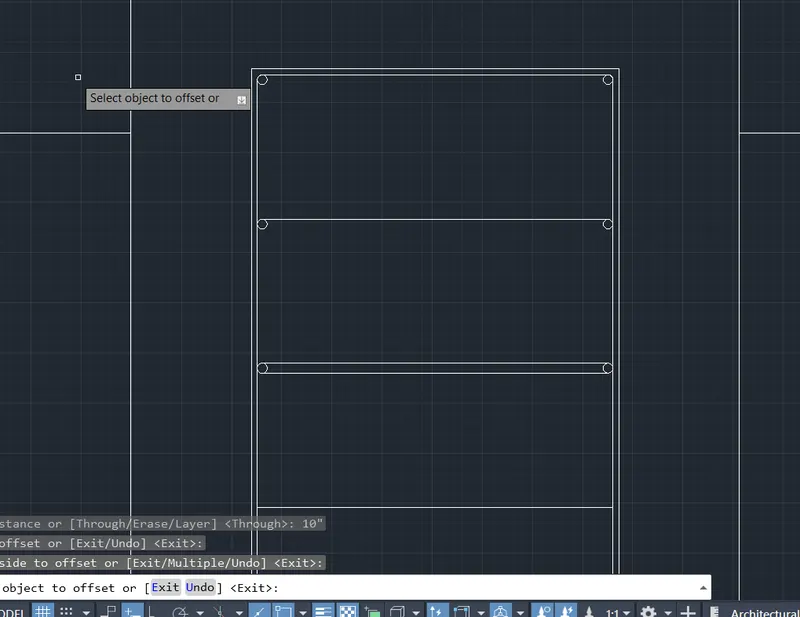

- For drawing a column,type a command rectangle
- Specify length and width of the rectangle for three different types:-9"*24",9"*10" and 9"*21"
- Type a command offset
- Specify offset distance:-2"
- Type a command trim.Trimmed the unwanted lines
- Type a command fillet
- Specify fillet radius:-1
- Select the first and second line to get the fillet radius
- Type a command circle and draw a circle of radius 5"
- Type a command dtext
- Specify text height:-8"
- Specify rotation angle:-0 degree
- For terrace to mutiny,Specify rotation angle:-90 degree
- For text style type a command:-ST
- Select font name in Arial and font style in regular
RESULT:-Column schedulle for figure 1 has been drawn

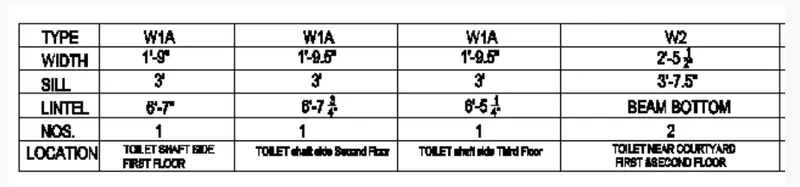

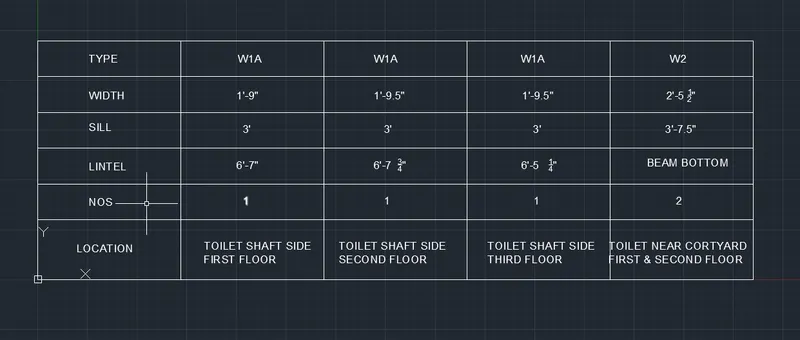

2. AIM:- To create a window schedule of figure 2 with the use of AutoCAD 2022
INTRODUCTION:-The various commands that are used for the creation of window schedule are line,offset,trim,dtext etc
PROCEDURE:-
- Open the AutoCAD 2022 application
- Type a command QNEW to save the application

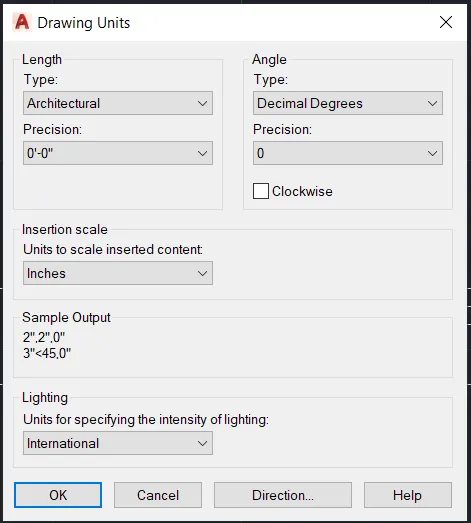

- Select architecture in type,0'-0" in precision,insertion scale in inches,decimal in angle type and precision in zero.Press OK
- Limits and limmax command is used
- Zoom command is also used
- Type a command line
- Specify the point:-@60',0
- Specify next point:-@0,20'
- Specify next point:-@-60',0
- Specify next point:-close
- Type a command offset
- Specify offset distance:- 3' horizontally from the line @-60',0 in five consecutive steps
- Type a command offset
- Specify offset distance:-5' horizontally from the offset line 3'
- Type a command offset
- Specify offset distance:- 12" vertically from the line @0,-20' in five consecutive steps
- Type a command dtext
- Specify text height:-8"
- Specify rotation angle:-0 degree
- For text style type a command:-ST
- Select font name in Arial and font style in regular
RESULT:-Window schedule for figure 2 has been drawn

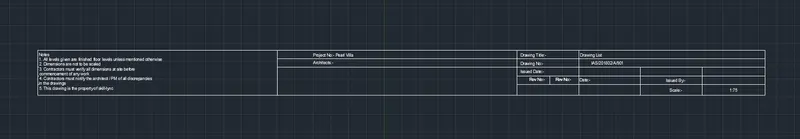

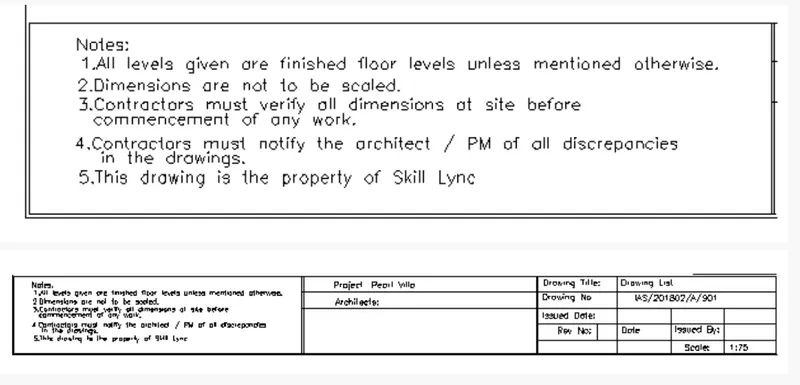

3. AIM:- To create a drawing template of figure 3 with the use of AutoCAD 2022
INTRODUCTION:-The various commands that are used for the creation of drawing template are line,offset,trim,dtext,multiline text etc
PROCEDURE:-
- Open the AutoCAD 2022 application
- Type a command QNEW to save the application
- Select architecture in type,0'-0" in precision,insertion scale in inches,decimal in angle type and precision in zero.Press OK
- Limits and limmax command is used
- Zoom command is also used

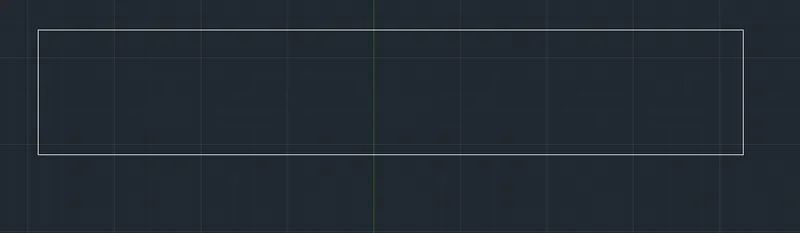

- Type a command line
- Specify the point:-@170',0
- Specify next point:-@0,30'
- Specify next point:-@-170',0
- Specify next point:-Close

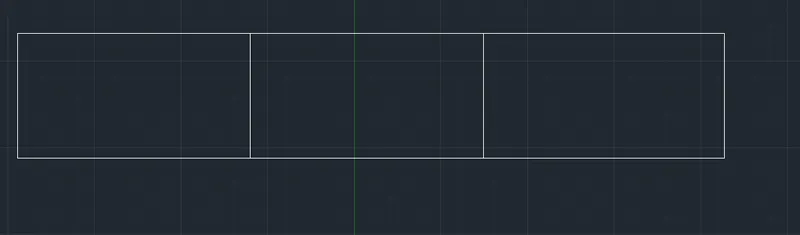

- Type a command offset
- Specify offset distance:-56' vertically from the line @0,-30' in two consecutive steps
- Type a command offset
- Specify offset distance:-58' from the last offset vertical line 56'
- Type a command offset
- Specify offset distance:-2' horizontally from the line @-170',0 in four consecutive steps
- Type a command offset
- Specify offset distance:-2'6.42" from the last offset horizontal line 2'
- Type a command trim.Trimmed the unwanted lines

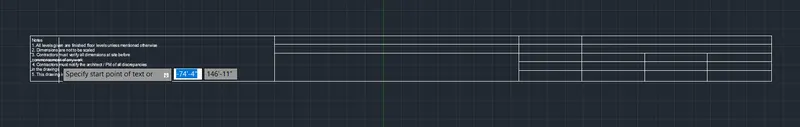

- Select multiline text
- Specify text height:-8"
- Type a command dtext
- Specify text height:-8"
- Specify rotation angle:-0 degree
- Justify left
- For text style type a command:-ST
- Select font name in Arial and font style in regular
RESULT:- Drawing template for figure 3 has been drawn

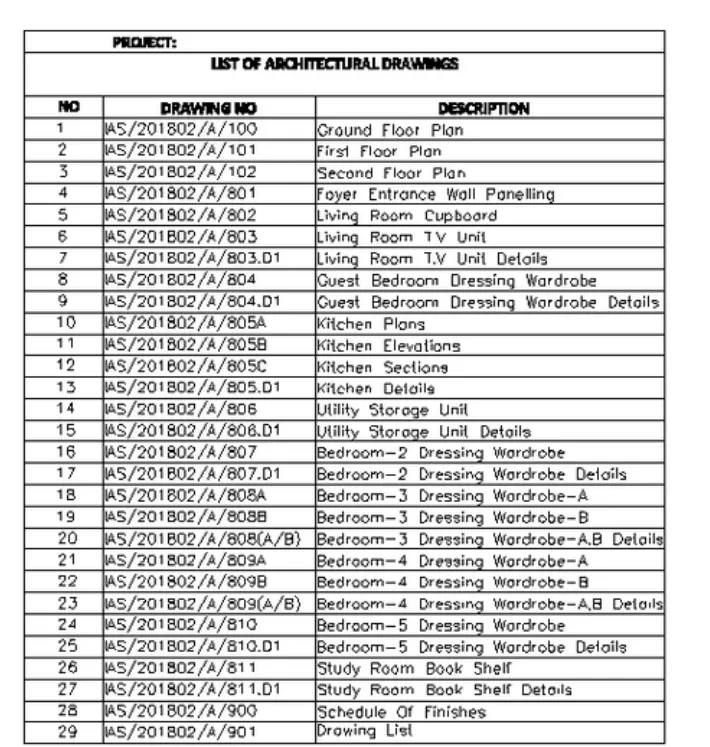

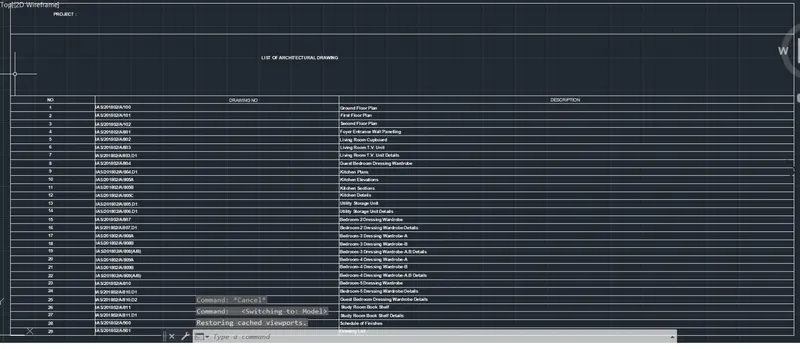

4. AIM:- To create a list of drawing schedules of figure 4 with the use of AutoCAD 2022
INTRODUCTION:- The various commands that are used for the creation of drawing schedules are line,offset,trim,dtext etc
PROCEDURE:-
- Open the AutoCAD 2022 application
- Type a command QNEW to save the application
- Select Engineering in type,0'-0" in precision,insertion scale in inches,decimal in angle type and precision in zero.Press OK
- Limits and limmax command is used
- Zoom command is also used
- Type a command line
- Specify the point:-@2548'4",0
- Specify next point:-@0,1080'
- Specify next point:-@-2548'4",0
- Specify next point:-close
- Type a command offset
- Specify offset distance:-100' horizontally from the line @-200',0
- Type a command offset
- Specify offset distance:-200' horizontally from the last offset line 100'
- Type a command offset
- Specify offset distance:-26' horizontally from the last offset line 200' in thirty consecutive steps
- Type a command offset
- Specify offset distance:-274'9" vertically from the line @0,-1080'
- Type a command offset
- Specify offset distance:-793'7" vertically from the last offset line 274'9"
- Type a command offset
- Specify offset distance:- 1480' vertically from the last offset line 793'7"
- Type a command trim
- Trimmed the unwanted lines
- Type a command dtext
- Specify text height:-8"
- Specify rotation angle:-0 degree
- Justify left
- For text style type a command:-ST
- Select font name in Arial and font style in regular
RESULT:- Drawing schedule for figure 4 has been drawn

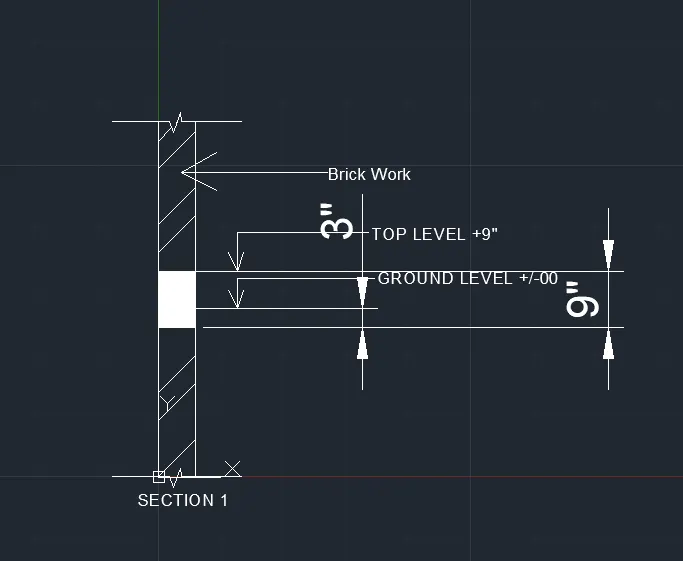

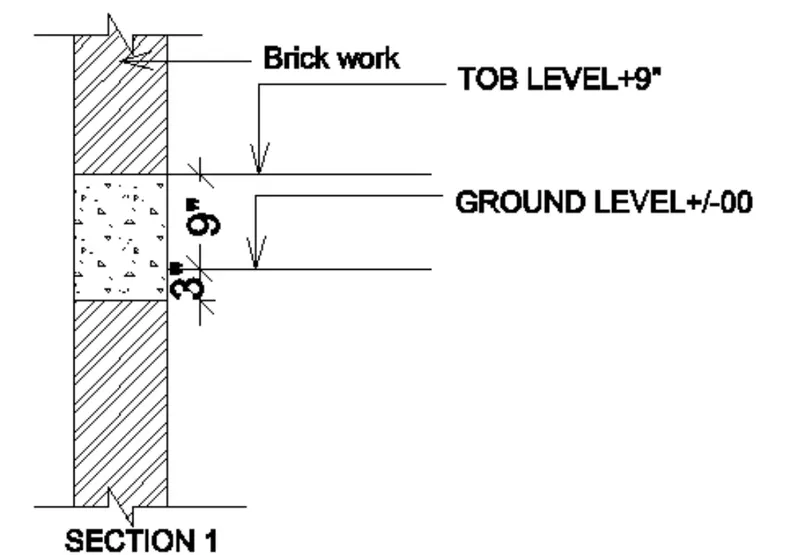

5. AIM:- To create a beam detail of figure 4 with the use of AutoCAD 2022
INTRODUCTION:-The various commands that are used for the creation of beam details are line,hatch,dtext,line etc
PROCEDURE:-
- Open the AutoCAD 2022 application
- Type a command QNEW to save the application
- Select Engineering in type,0'-0" in precision,insertion scale in inches,decimal in angle type and precision in zero.Press OK
- Limits and limmax command is used
- Zoom command is also used

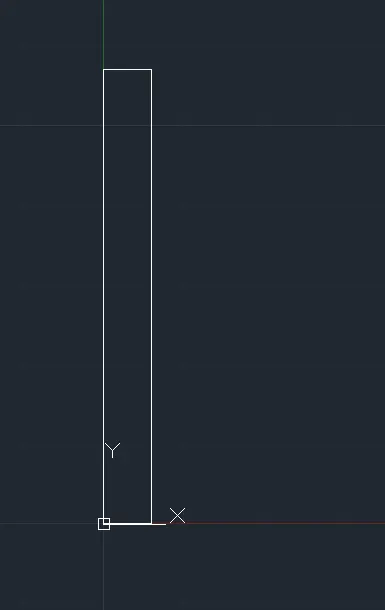

- Type a command line
- Specify first point:- 0,0
- Specify next point:-@0,4'9"
- Specify next point:-@6",0
- Specify next point:-@0,-4'9"
- Specify next point:-close
- Type a command offset
- Soecify offset distance:-2' horizontally from the line @6",0
- Type a command offset
- Specify offset distance:-3" horizontally from the last offset line 2'
- Type a command offset
- Specify offset distance:-6" horizontally from the last offset line 3"
- Type a command trim
- Trim the unwanted lines
- Type a command dtext
- Specify text height:-8"
- Specify rotation angle:-0 degree
- Justify left
- For text style type a command:-ST
- Select font name in Arial and font style in regular
- Type a command hatch
- Pick the internal points
- For brick wall type pattern has been choosen as ANSI32
- Type a command break
- Break the first and second points
- Type a command hatch
- Pick the internal points
- For concrete type it has been choosen as AR-CONC
- Dimensions have been marked by using the command DIMLINEAR
RESULT:- Beam details for figure 5 has been drawn
