Creating a Floor plan, Footing detail and Isometric view using AutoCad

AIM:- To create a floor plan,footing detail and isometric view using AutoCAD

PROCEDURE:-

Step 1:- Units are set to metre (m)

limits and limax are used

Zoom command is also used

Snap and grid spacing of 0.5 unit is used

Grid snap is rectangular and isometric snap

Step 2:-

Command:- Line

Specify first point:-1,1

Specify next point:[email protected],0

Specify next point:-@0,9.47

Specify next point:[email protected],0

Specify next point:-close

Command:-Offset

Specify offset distance:-0.23

Select point on side to offset:-Select 4 corner of the side of the object

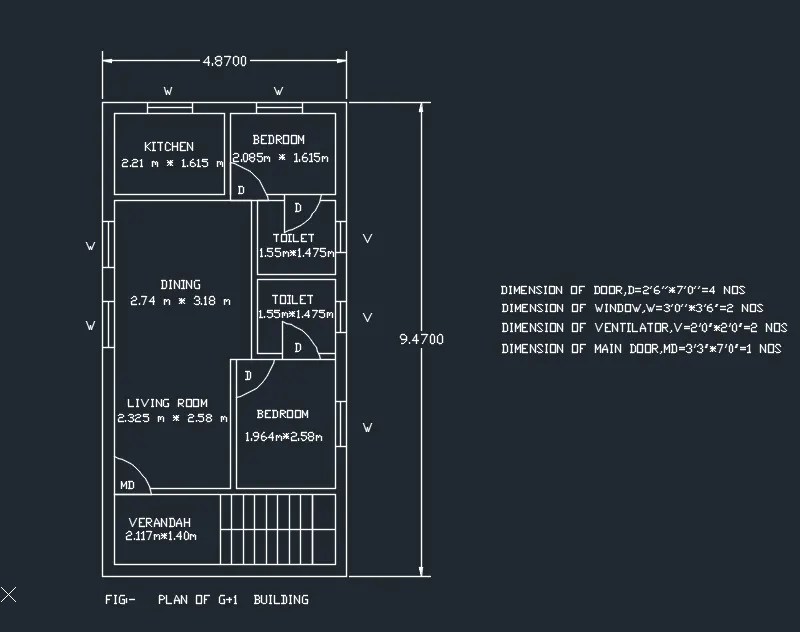

Draw bedroom,kitchen,dining,toilet,living room etc are used by using command offset,line,trim and arc

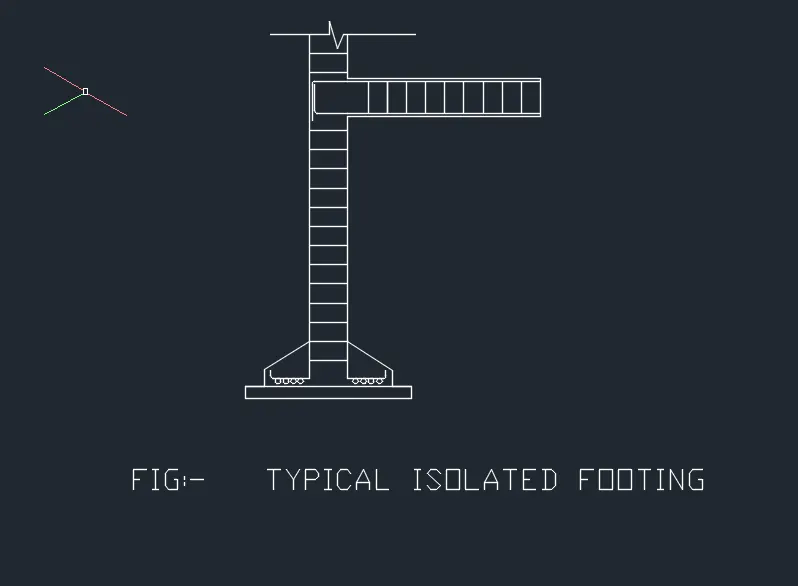

Typical isolated footing are shown by using command line,trim,offset,fillet etc

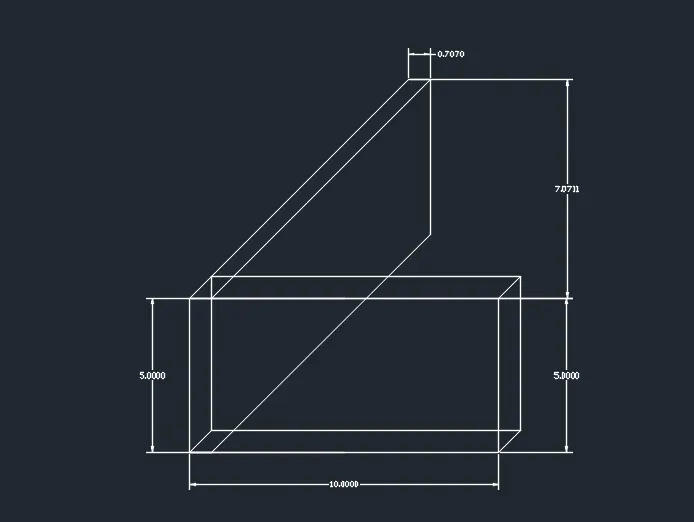

Typical isometric plan of wall are as given below
