Creating Kitchen layout, Hatching of Architectural elements and sectional view of an Industrial Building in AutoCad

1.AIM:-To create the layout of the kitchen and to provide hatch pattern with the use of AutoCAD 2022

NTRODUCTION:- Details of kitchen layout are created by using the commands such as line,offset etc

PROCEDURE:-

• Open the AutoCAD 2022 software
• Type a command QNEW to save the file
• Enter units in command box

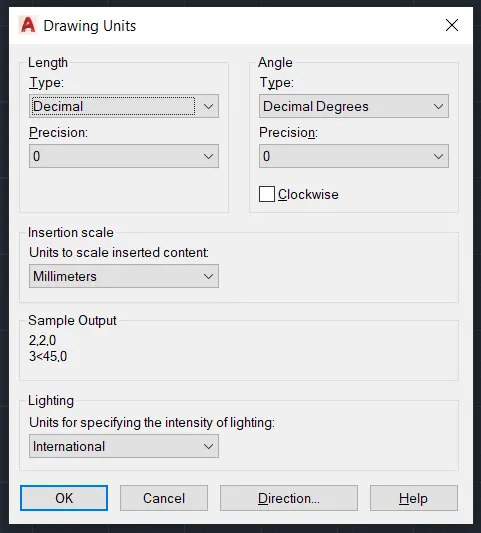

• Select decimal in type,0 in precision and millimetres in units to scale inserted content.Press OK

• Limits and limmax command is used'
• Zoom command is also used
• Type a command line
• Specify first point:-0,0
• Specify next point:-@4690,0
• Specify next point:-@0,3660
• Specify next point:@-4690,0
• Specify next point:-@0,-3660
• Type a command offset
• Specify offset distance:-230 on both the corners of the rectangle

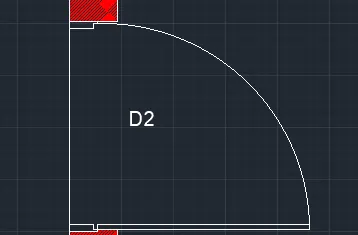

• Doors are been created with the use of commands such as trim, extend,offset,line and circle

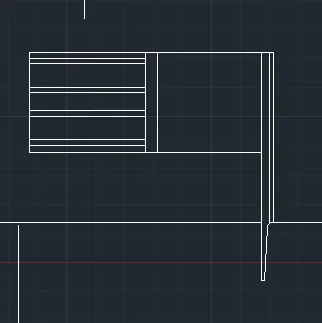

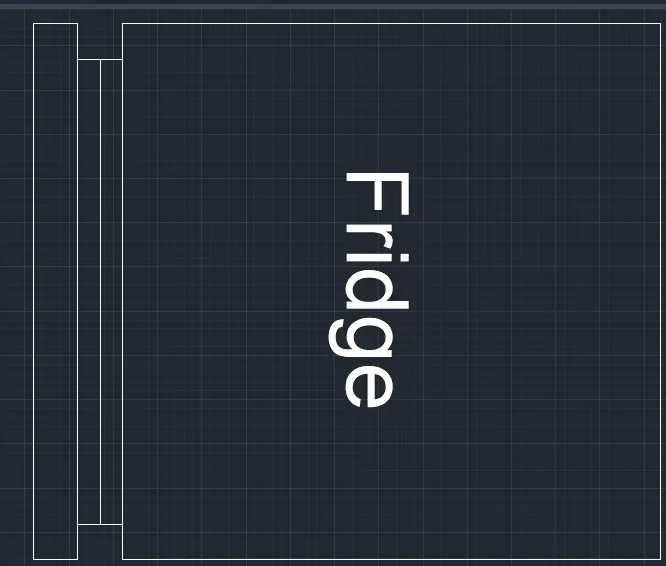

• Draw a fridge, microoven etc has to be drawn with the given specified dimensions and with the set of commands such as line.offset,trim etc

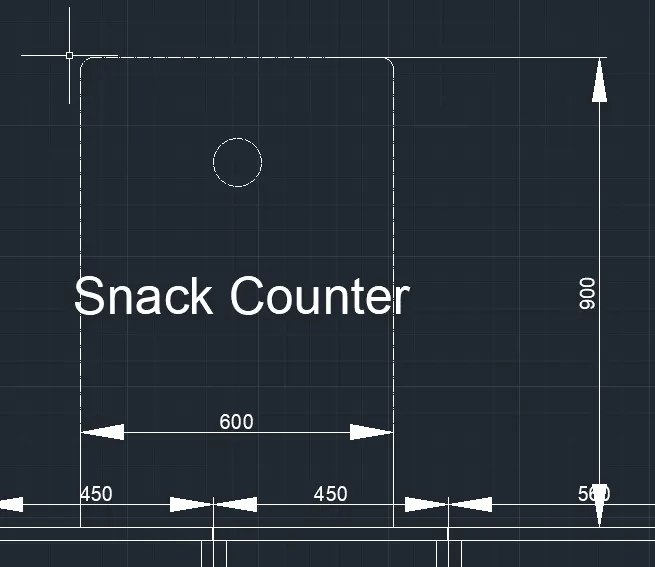

• Snack counter can be created with the use of commands such as fillet,line,trim etc

• Dimensions are marked by typing the command DIMLINEAR.
• Select on the grip line.Move the dimension with text only
• Type a command dtext
• Specify text height:-70
• Specify rotation angle:-0

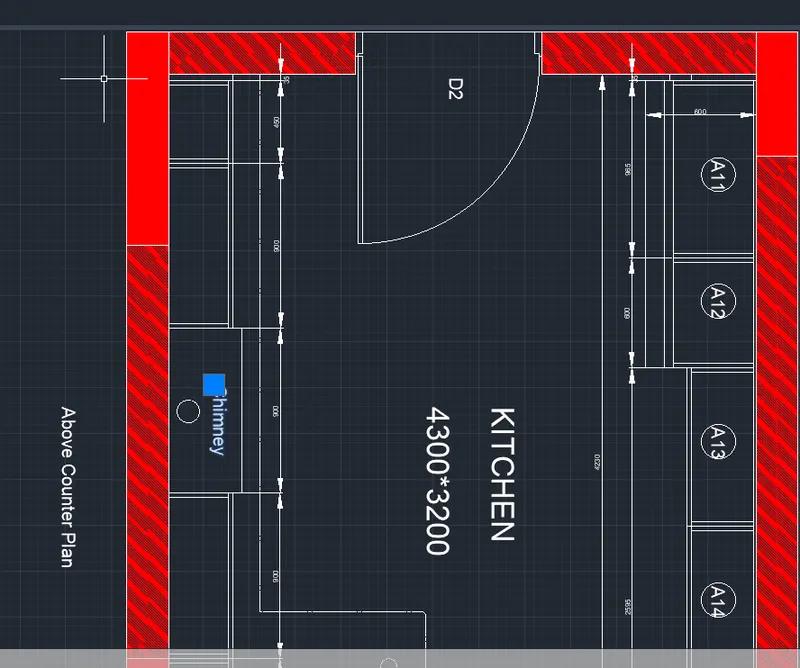

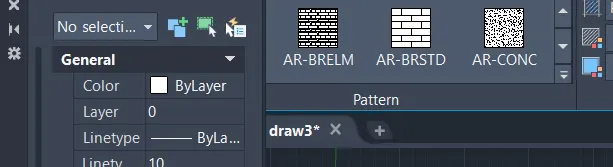

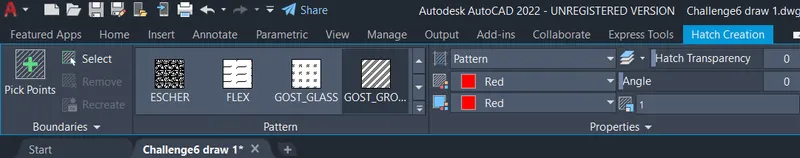

• Type a command hatch
• Select hatch pattern of Gost Ground

• Type a command breakpoint
• Select the lines for first and last point of the line
• Pick the internal points and then select the pattern

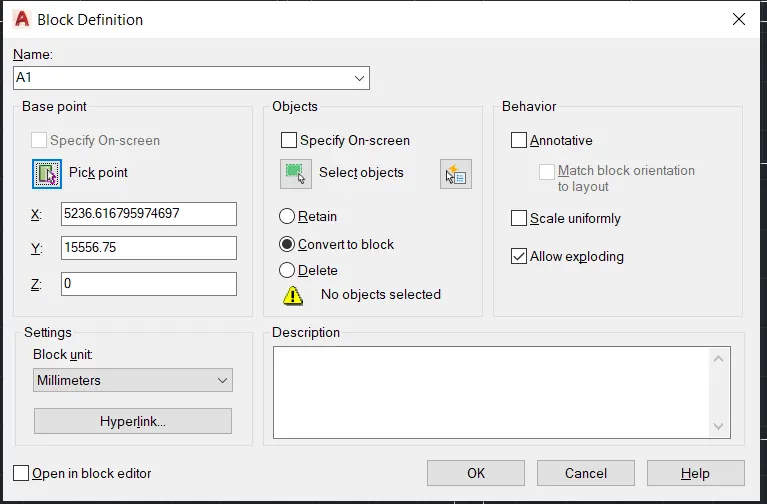

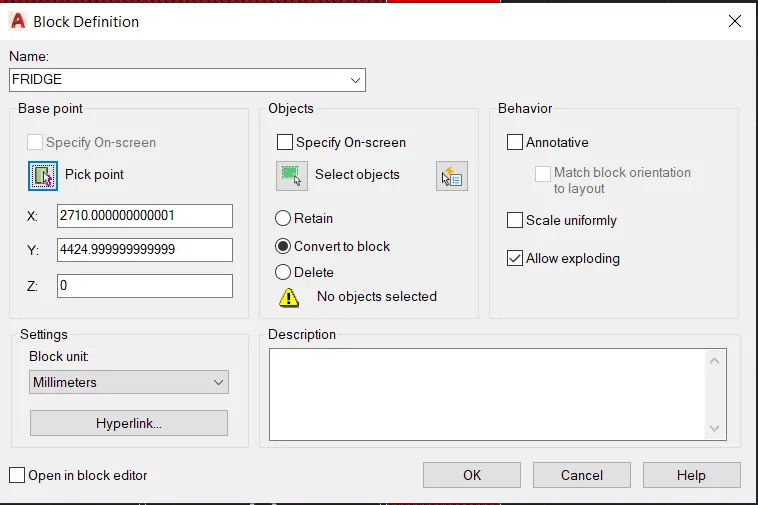

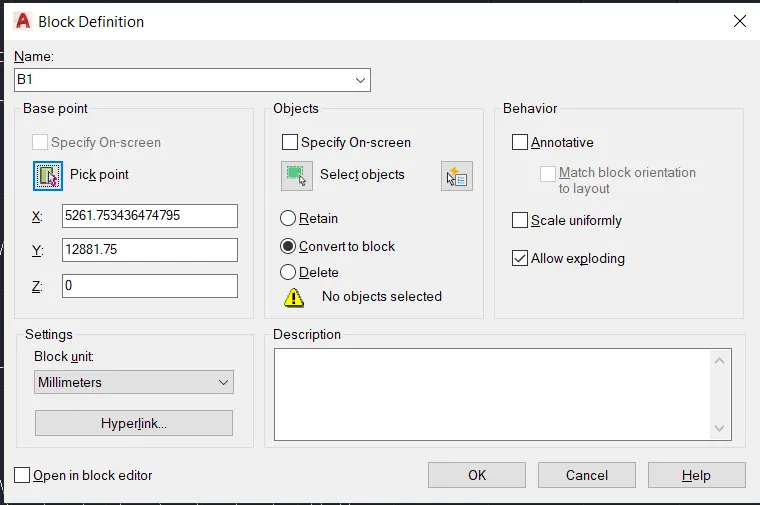

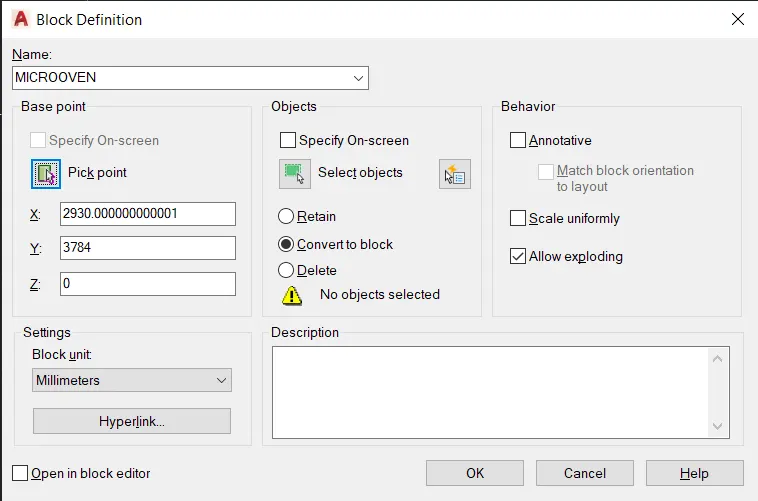

• Type a command block
• Write down the block definition and select the points

• Select the objects and then define it
• Type a command insert and insert it into given location

• Dimensions have been marked by typing a command DIMLIN
• Type a command DTEXT
• Specify text height:-70
• Specify rotation:-270
• Type a command rotate and select the drawings and rotate it in 270

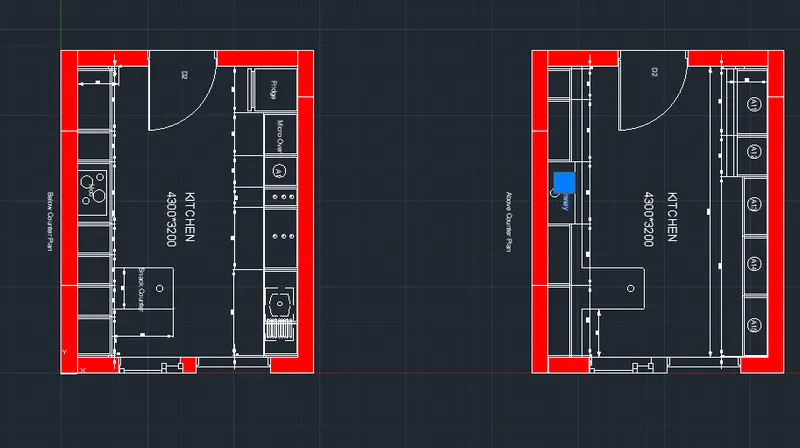

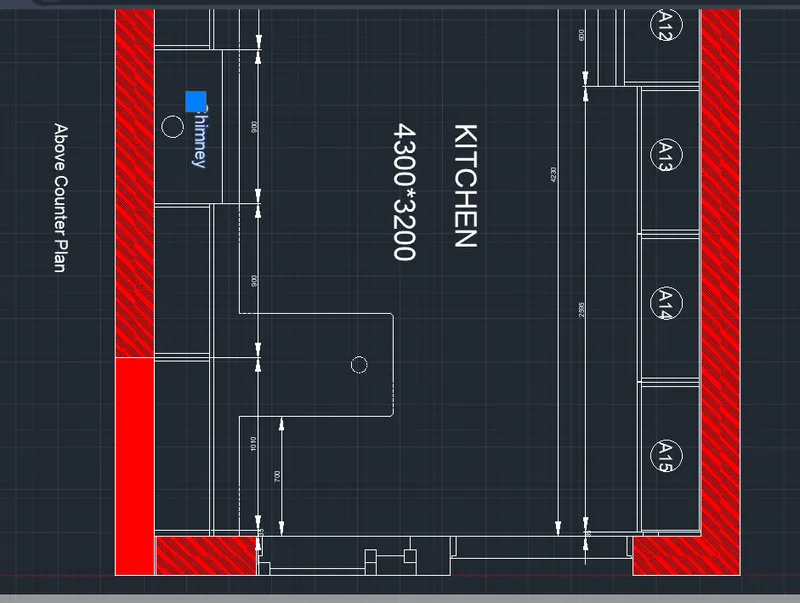

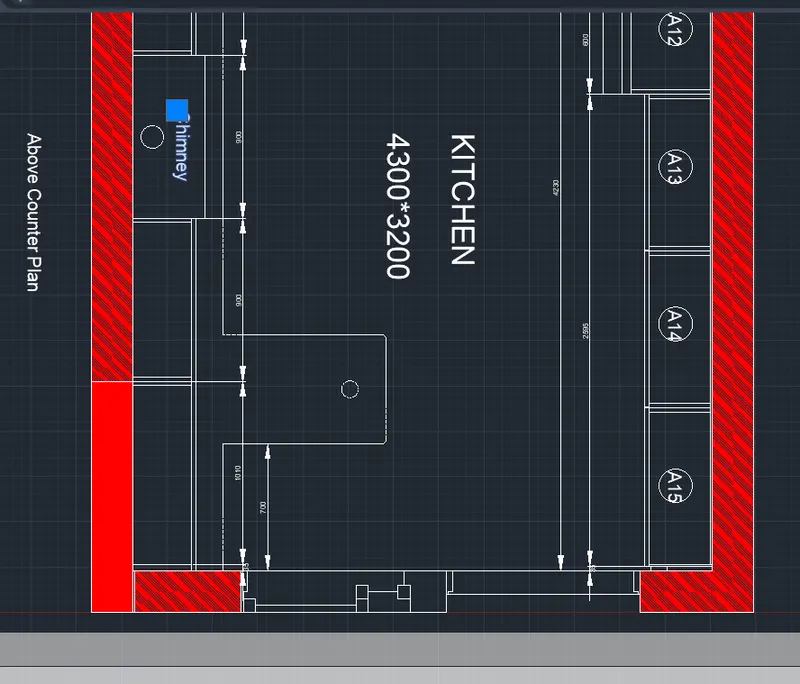

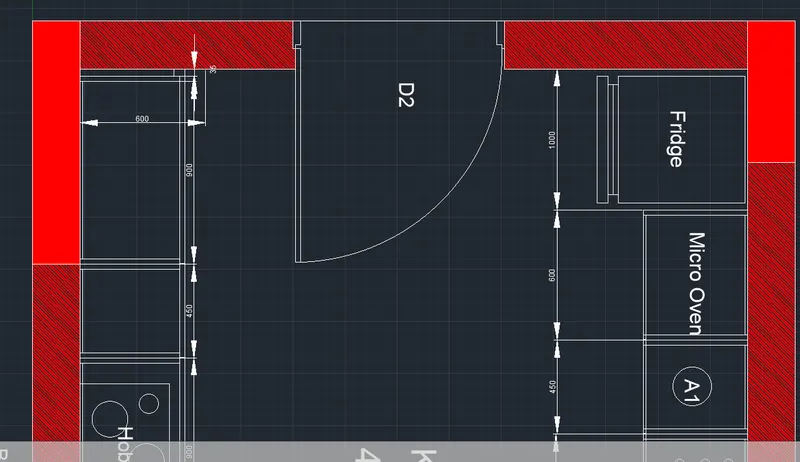

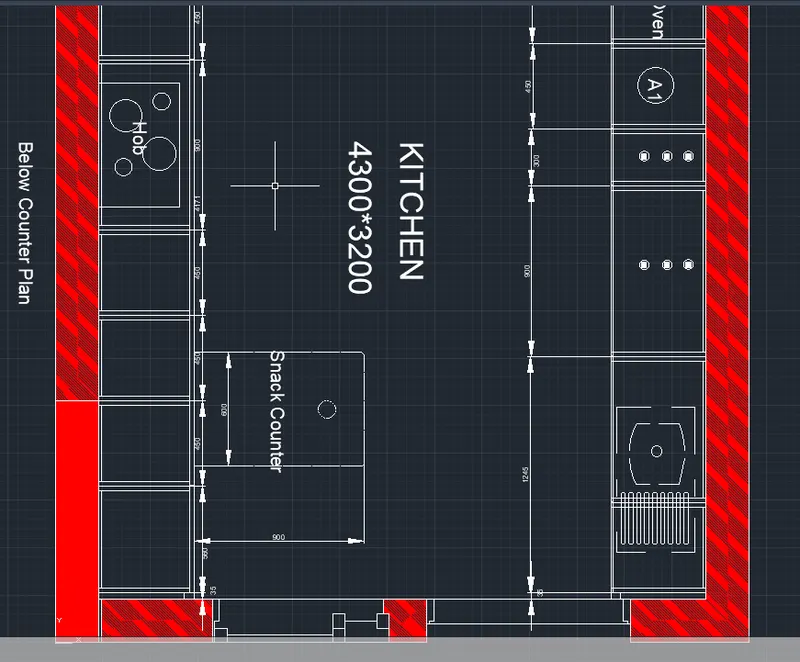

RESULT:-The given kitchen wardrobe has been drawn with the use of AutoCAD 2022

2.AIM:-To create the elevation of the plan and to apply hatches in the walls,door,windows and wall and other architectural elements with the use of AutoCAD 2022

INTRODUCTION:-Elevation of the give plan are created by using set of commands such as line,offset,trim,hatch etc

PROCEDURE:-

• Open the AutoCAD 2022 software
• Type a command QNEW to save the file
• Type a command UNITS
• Select decimal in type,0 in precision and millimetres in units to scale inserted content.Press OK

• Limits and limmax command is used
• Zoom command is also used
• Type a command line
• Specify first point:-2037,344
• Specify next point:-@11000,0
• Specify next point:-@0,16213
• Sppecify next point:-@-11000,0
• Specify next point:-@0,-16213
• Press Escape
• Type a command offset
• Specify offset distance:-150 vertically left from the line @0,-16213
• Specify offset distance:-2050 vertically left from the previous offset line 150
• Press Escape
• Type a command offset
• Specify offset distance:-250 horizontally down from the line @-11000,0
• Specify offset distance:-2850 horizontally down from the previous offset line 250
• Specify offset distance:-600 horizontally down from the previous offset line 2850
• Specify offset distance:-7613 horizontally down from the previous offset line 600
• Type a command TR. Trimmed the unwanted lines
• Type a command offset
• Specify offset distance:-1862 horizontally down from the line @-11000,0
• Specify offset distance:-5382 horizontally down from the previous offset line 1862
• Specify offset distance:-250 horizontally down from the previous offset line 5382
• Press Escape
• Type a command offset
• Specify offset distance:-2217 vertically left from the line @0,16213
• Specify offset distance:-1675 vertically left from the previous offset line 2217
• Type a command TR.Trimmed the unwanted lines

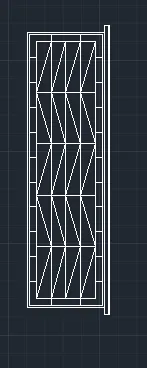

• Architectural elements of windows,door etc have drawn with the set of commands such as offset,circle,trim etc

• Type a command BH
• Pick the internal points
• Select the objects within the required boundary
• Type a command Block
• Write down the block in title description
• Specify the points

• Select the objects and click OK for it
• Type a command INSERT
• Select the object into the required destination
• Type a command DTEXT
• Specify text height:-200
• Specify rotation angle:-270
• Dimensions are been marked by typing a command such as DIMLIN

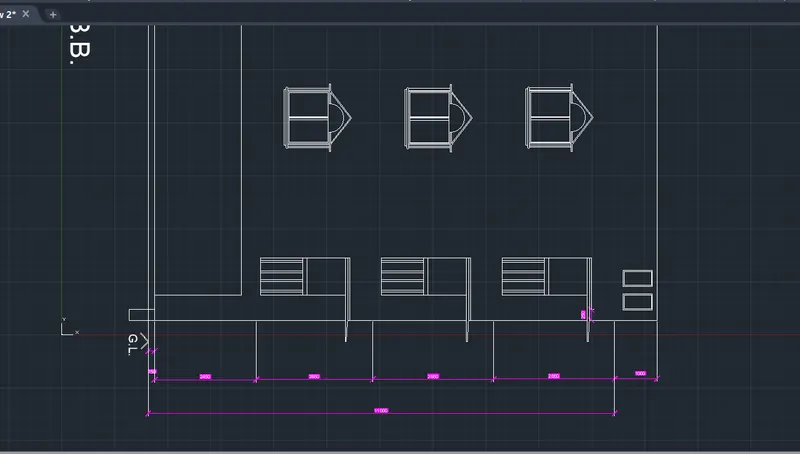

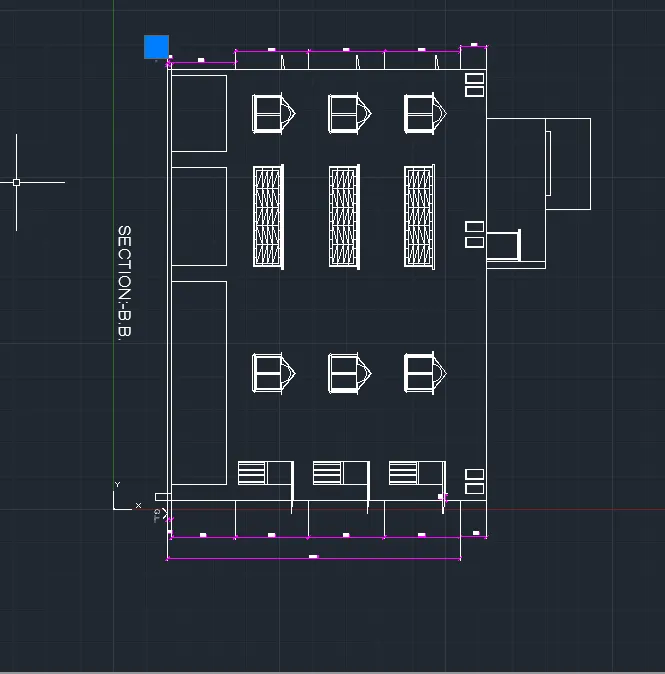

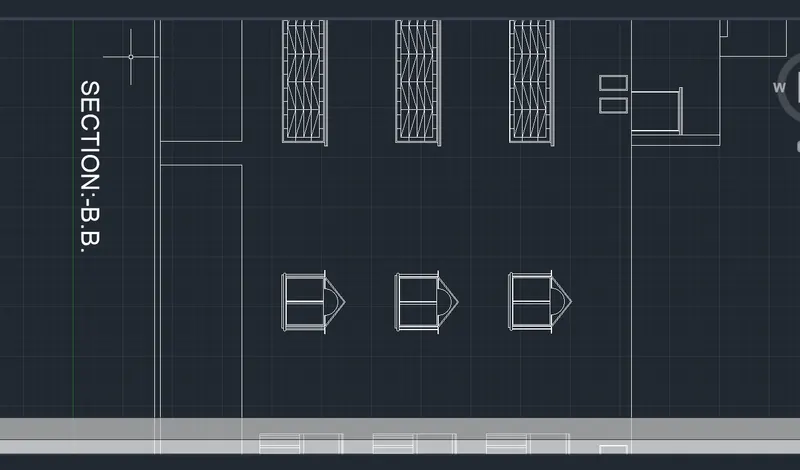

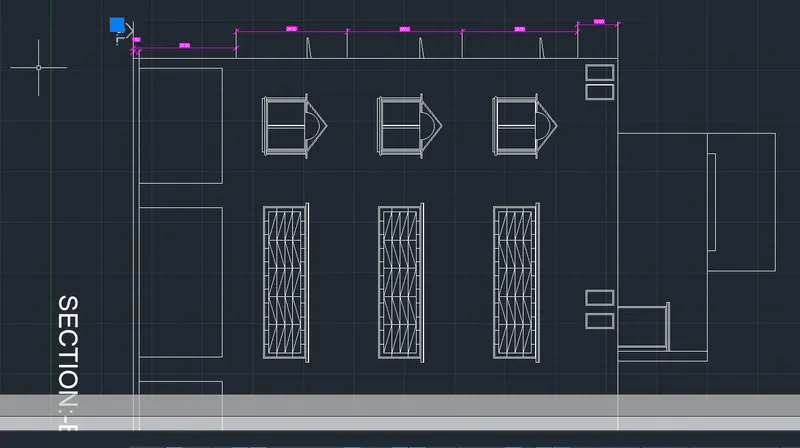

• The required elevation have been drawn which is given below:-

RESULT:- The given elevation of building have been drawn with the use of AutoCAD 2022

3.AIM:-To create a sectional elevation of an industrial building and to provide appropriate hatches with the use of AutoCAD 2022

INTRODUCTION:-Elevation of of an industrail building are created by using set of commands such as line,offset,trim,hatch etc

PROCEDURE:-

• Open the AutoCAD 2022 software
• Type a command QNEW to save the file
• Type a command UNITS
• Select decimal in type,0 in precision and millimetres in units to scale inserted content.Press OK

• Limits and limmax command is used
• Zoom command is also used
• Type a command line
• Specify first point:-0,0
• Specify next point:-@25900,0
• Specify next point:-@0,6150
• Specify next point:-@-25900,0
• Specify next point:-@0,-6150
• Press Escape
• Type a command offset
• Specify offset distance;-600 vertically left from the line @0,-6450
• Press Escape
• Type a command offset
• Specify offset distance:-600 vertically right from the line @0,6450
• Specify offset distance:-200 vertically right from the previous offset line 600
• Press Escape
• Type a command offset
• Specify offset distance:-300 horizontally down from the previous offset line 600
• Type a command TR. Trimmed the unwanted lines
• Type a command line
• Specify first point:- -1000,0
• Specify next point:-@0,-600
• Specify next point:-@2600,0
• Specify next point:-@0,600
• Specify next point:-@-2600,0
• Press Escape
• Type a command line
• Specify first point:- -1000,-600
• Specify next point:- @-1000,0
• Specify next point:-@2600,0
• Specify next point:-@0,300
• Specify next point:-@19900,0
• Specify next point:-@0,-300
• Specify next point:-@5100,0
• Specify next point:-@0,900
• Specify next point:-@-1000,0
• Press Escape
• Type a command TR.Trimmed the unwanted lines
• Draw a pump room by using set of commands such as line,offset,trim etc
• Type a command BREAKATPOINT
• Select the first and last end point of the line
• Type a command BH ot Hatch
• Pick an internal point
• Selct the closed boundary to get the required hatch

• Type a command DTEXT or MTEXT
• Specify text height:-200
• Specify rotation angle:-0
• For SECTION VIEW specify text height:-500
• Dimensions are been marked by typing a command such as DIMLIN

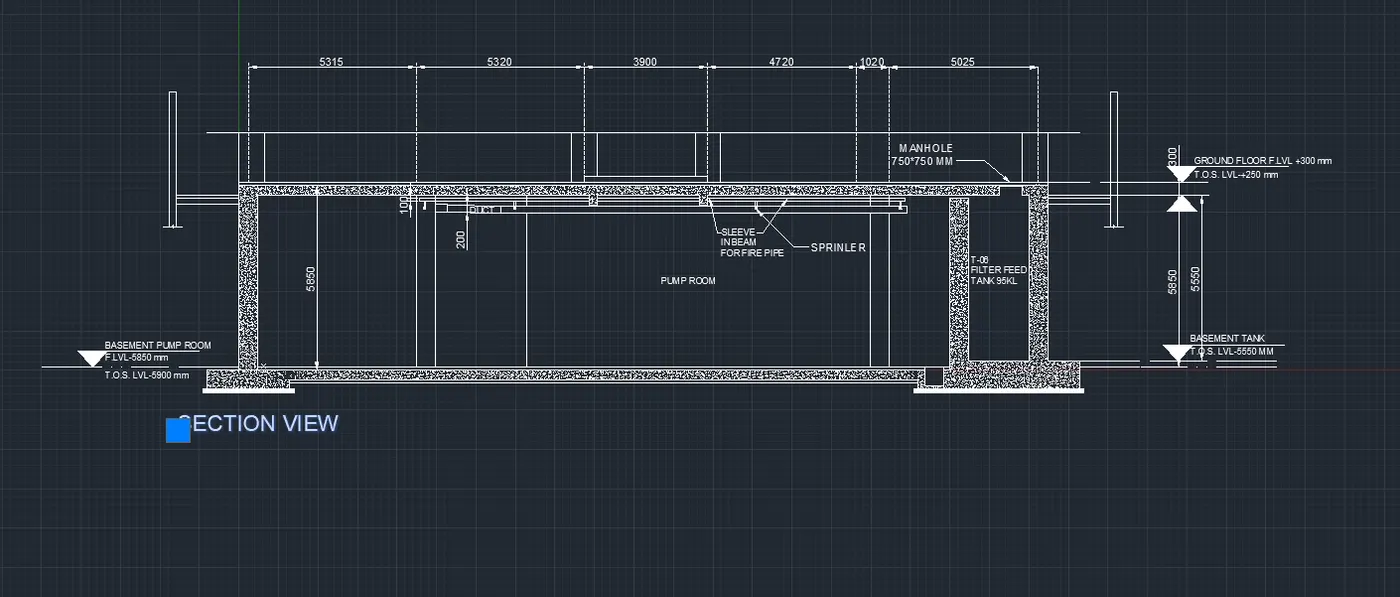

• The required sectional elevation have been drawn which is given below

RESULT:-The required sectional elevation of industrial building are drawn with the use of AutoCAD 2022
