Core & Cavity Design

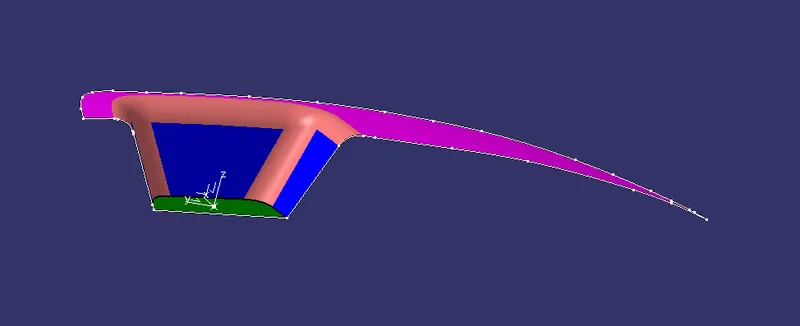

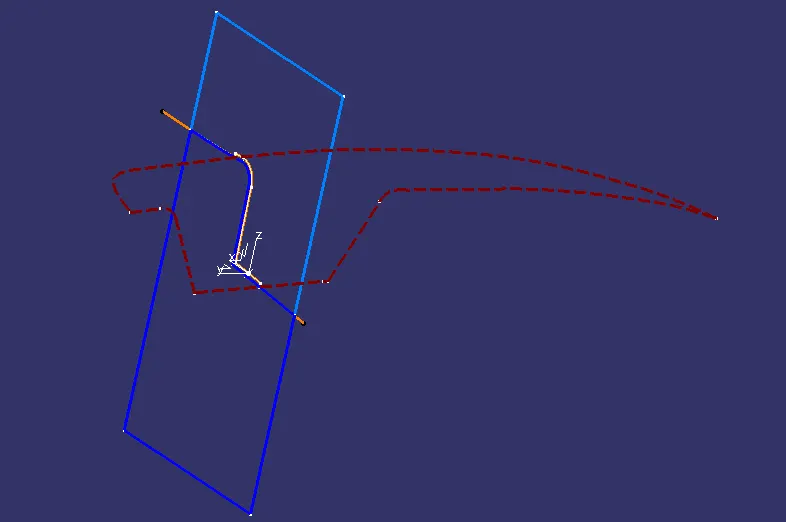

Take the boundry from class A surface

extrapolate the boundry

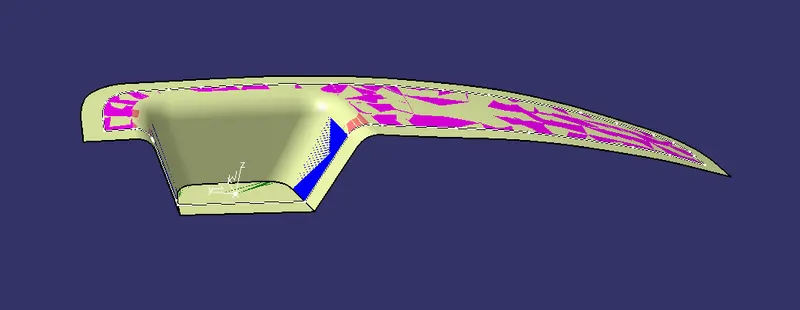

trim with class C surface

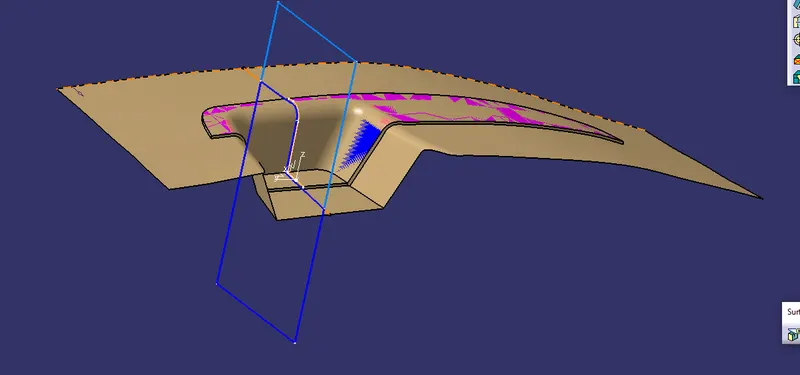

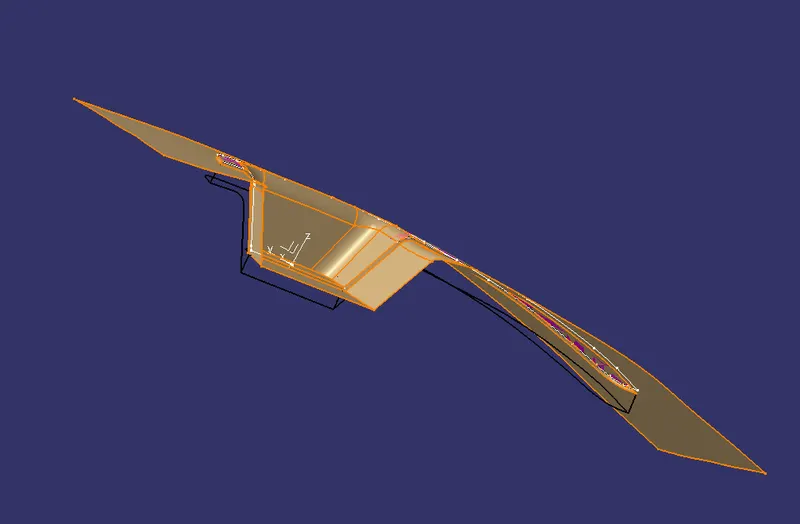

then trim class C surface with class B surface we will get parting surface

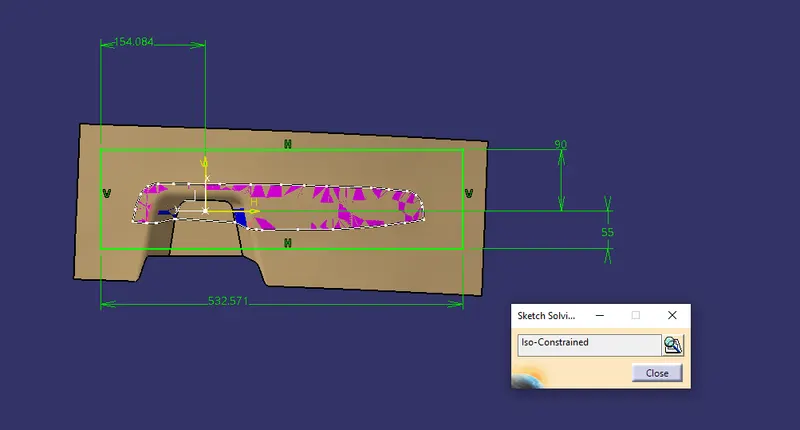

take a sketch and extrude then cut the parting surface in a proper dimensions

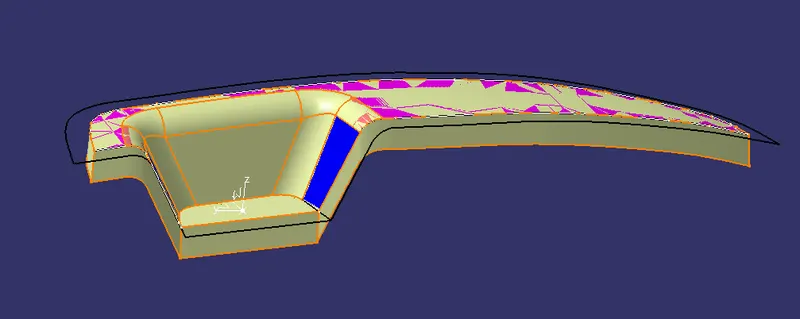

fill top surface and join the part then give close surface

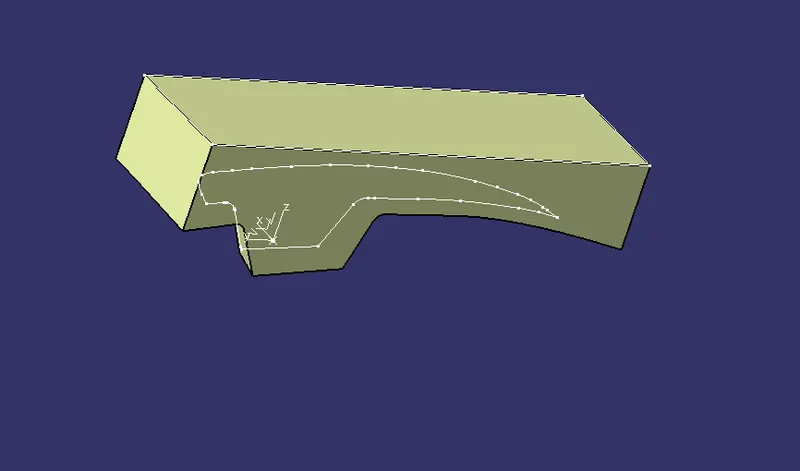

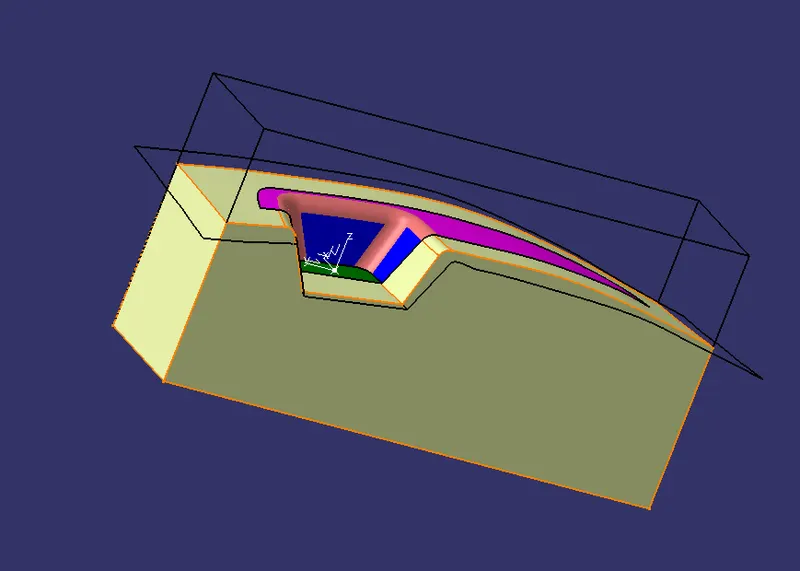

doing same procedure for the cavity block by using extrude and trim

do parting surface

Parting line

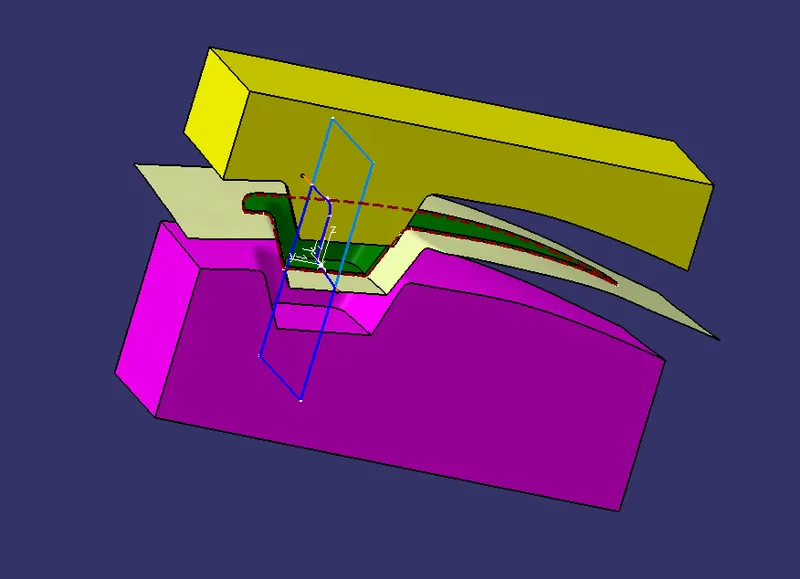

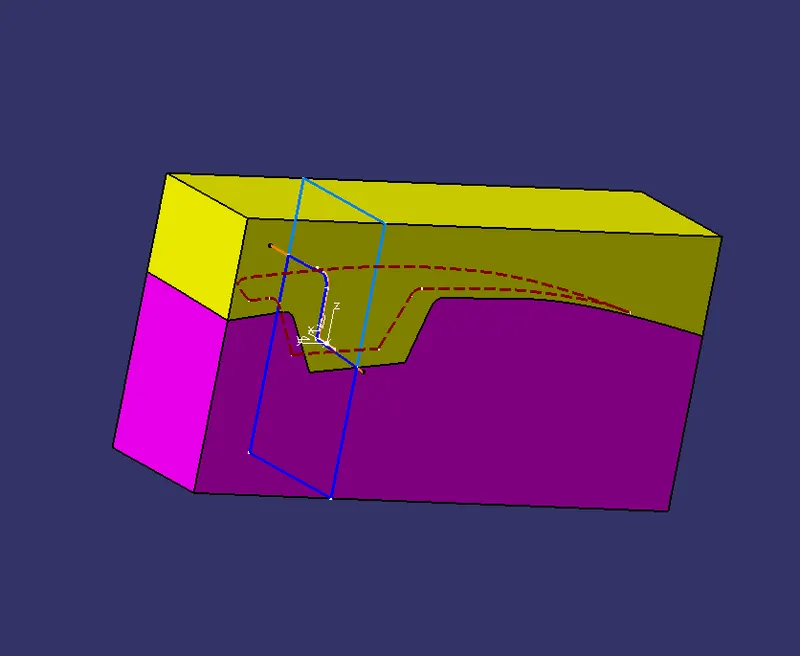

we get the core and cavity blocks

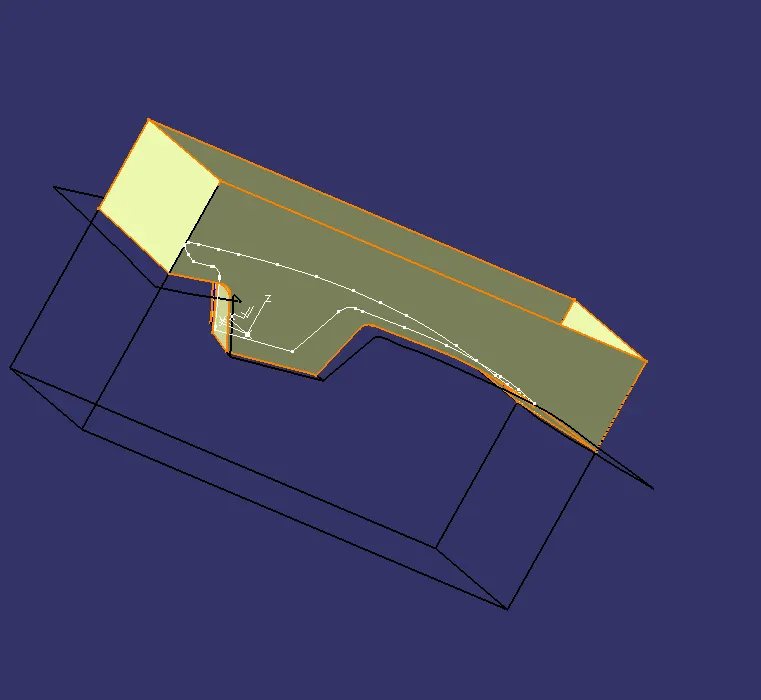

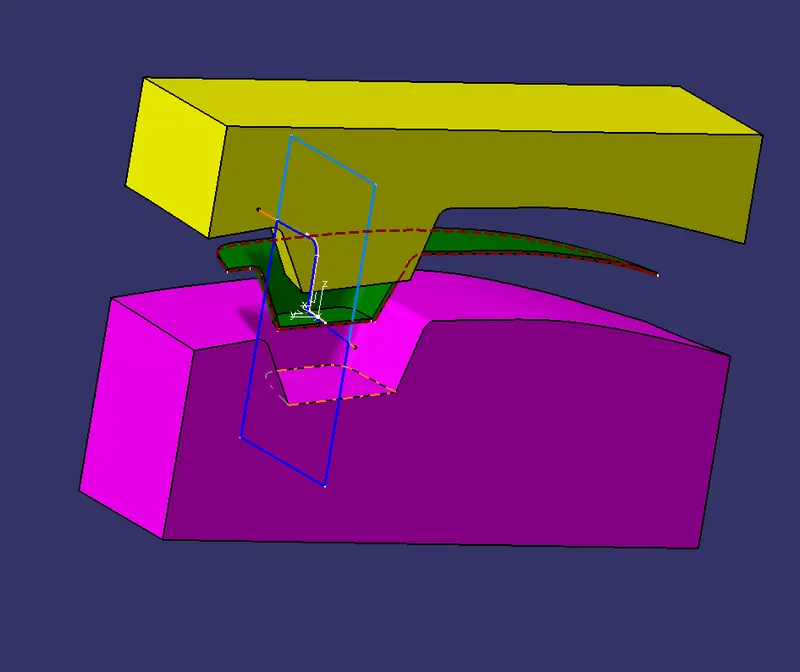

translate the core and cavity blocks by using tooling axis direction

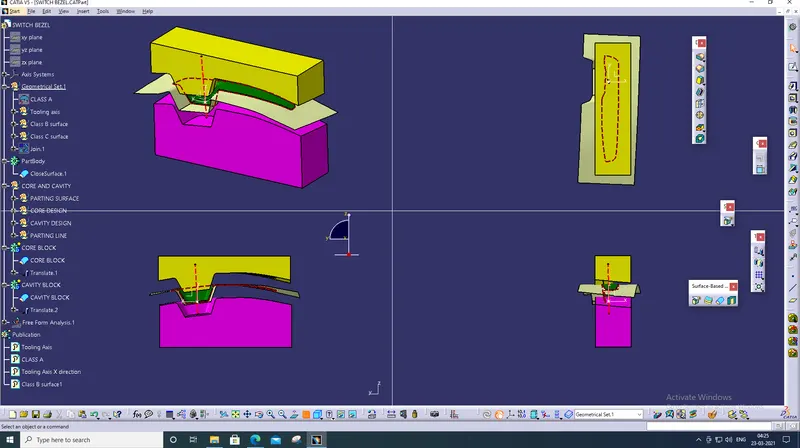

multi views
