Coin Holder Design

Extract faces from class A surface

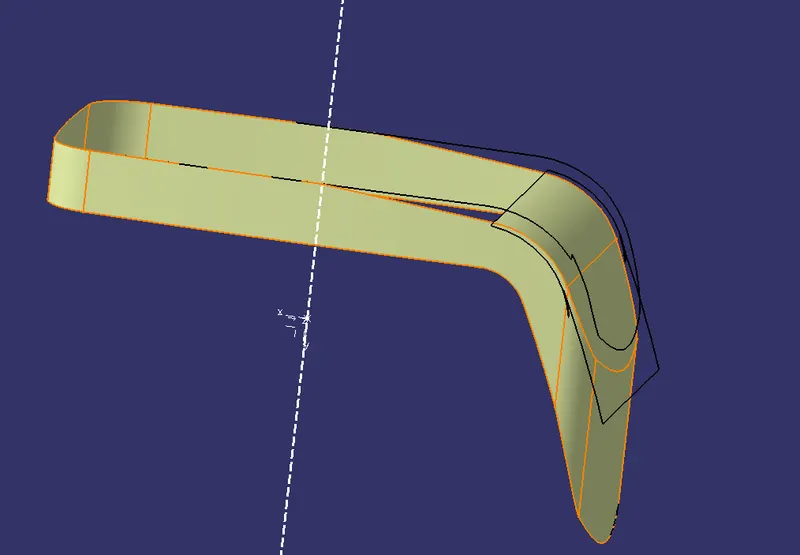

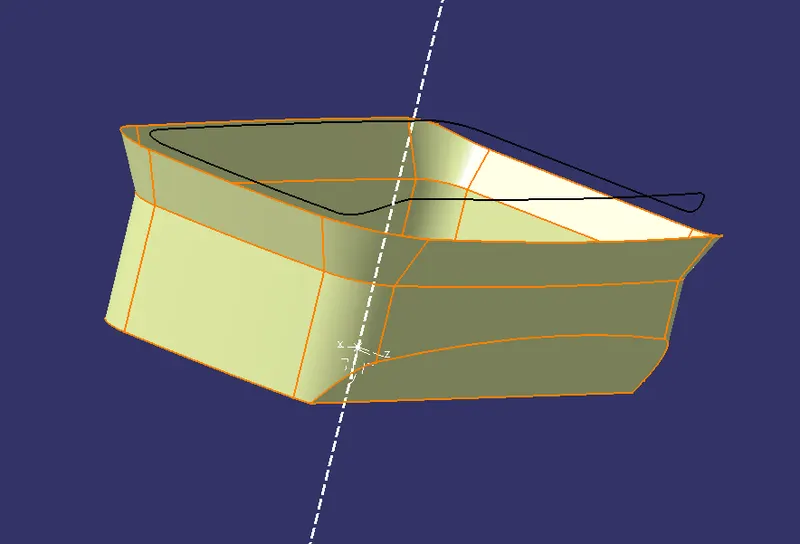

untrim and extrapolate the extracted surface

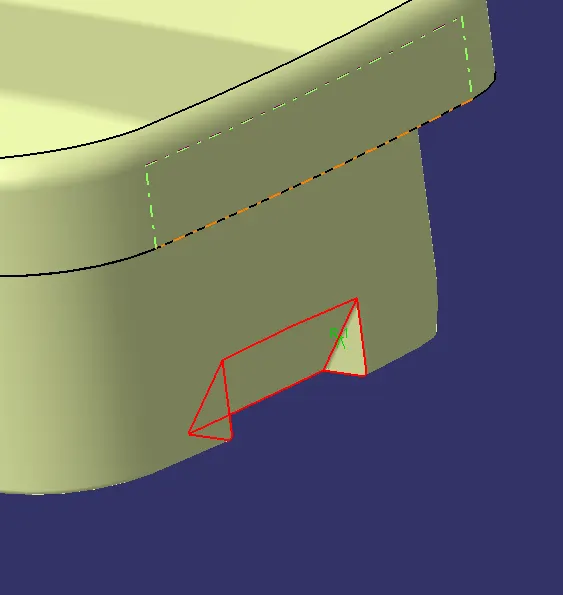

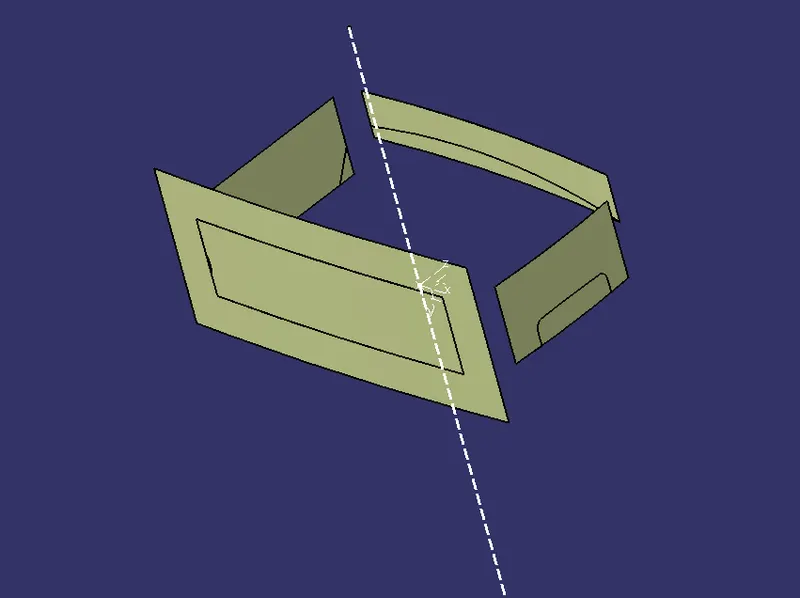

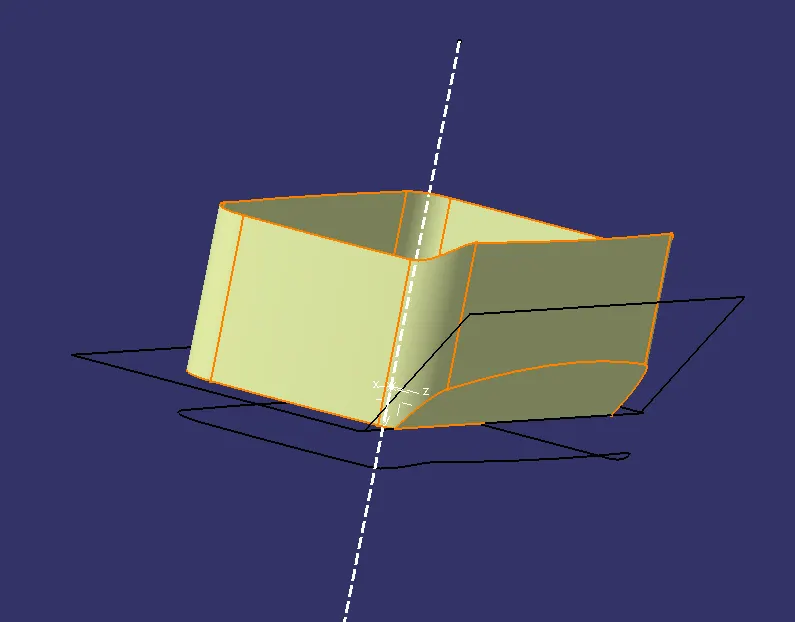

Trim the unwanted faces

doing same for all sides of faces

trim the unwanted faces

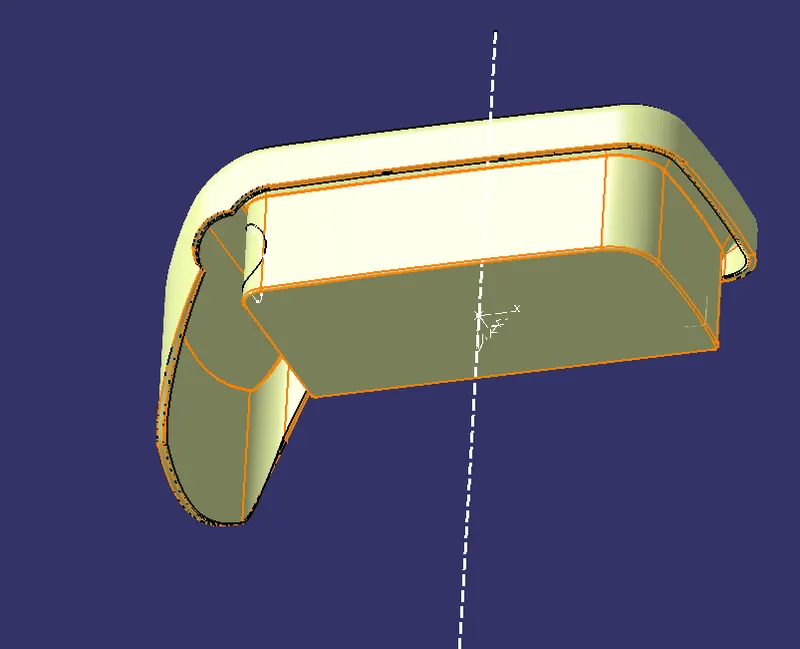

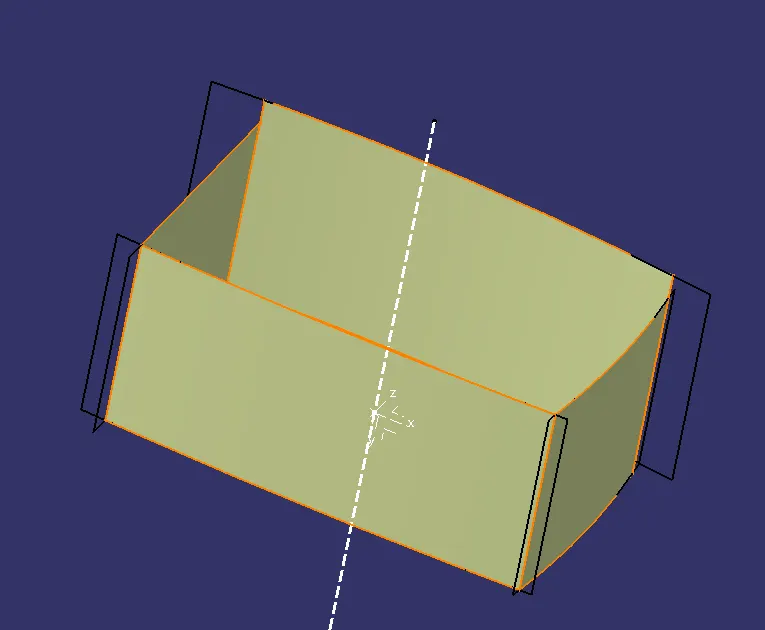

offset all the faces 2.5mm from the class A surface outside

offset the outer wall 2.5mm inside from class A

take boundry for A surface

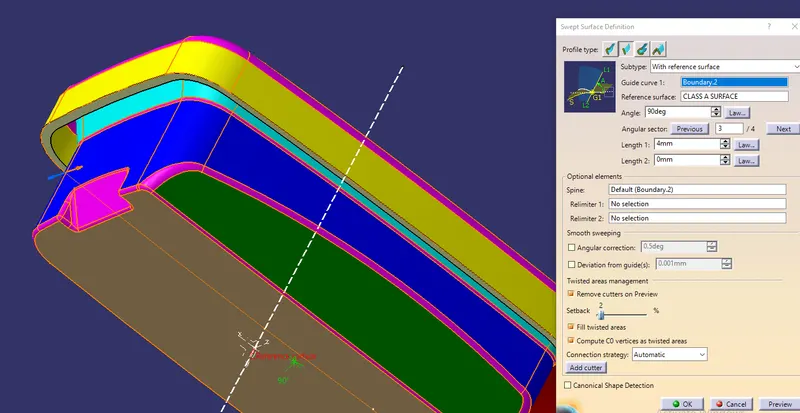

sweep inside with reference surface of 90 deg

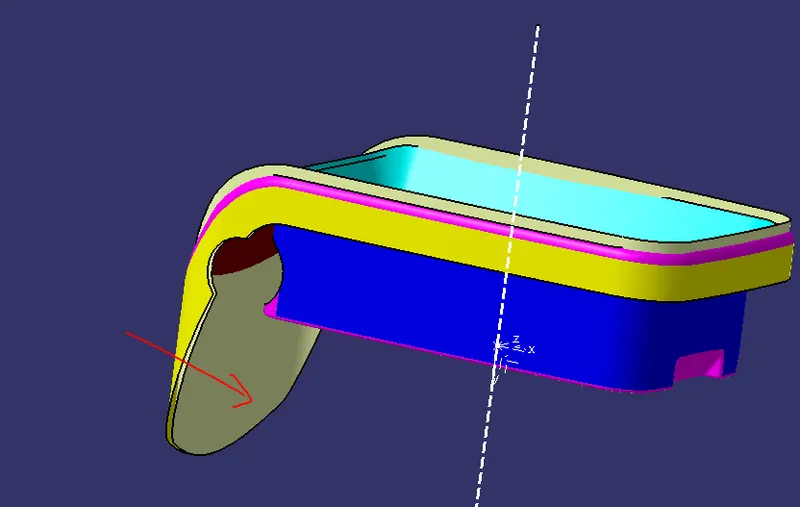

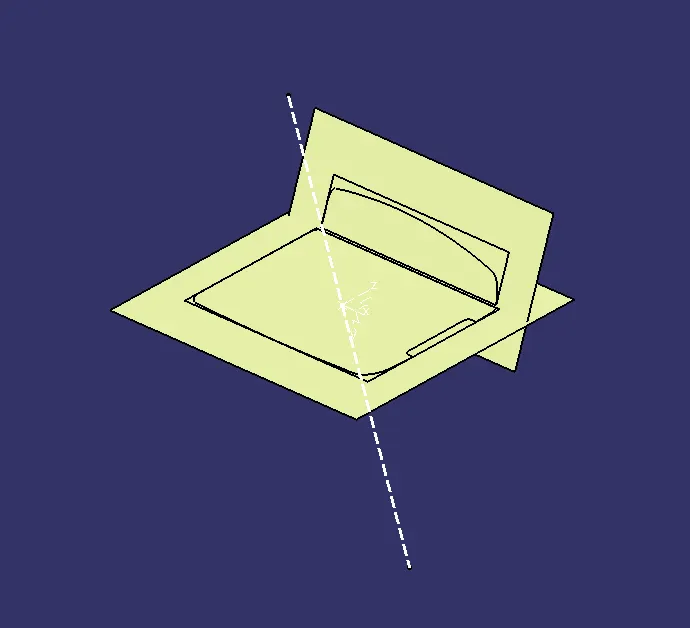

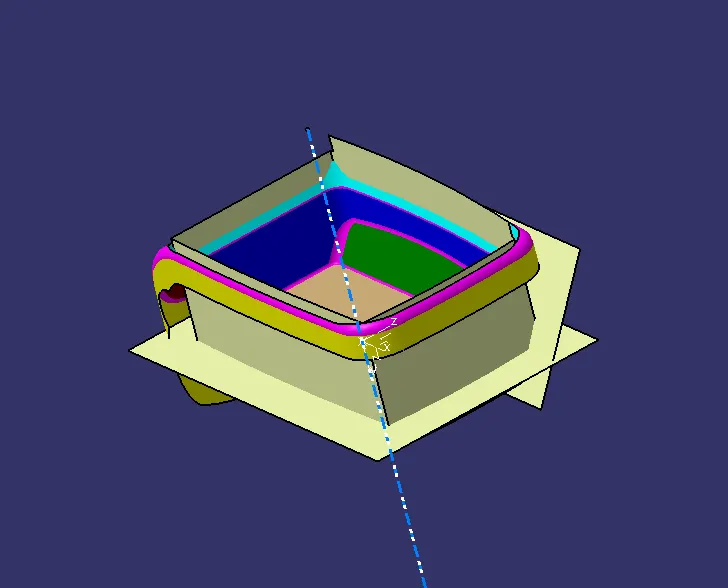

trim class A, B, C surfaces

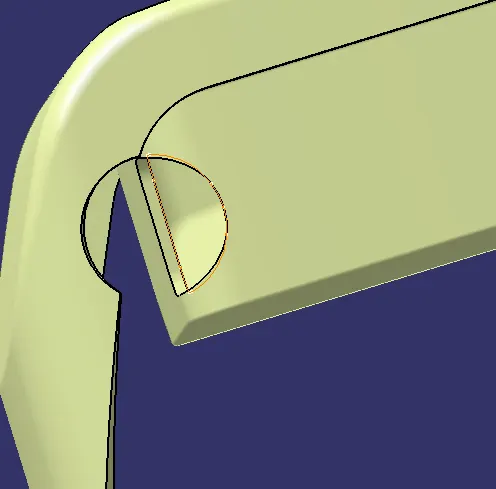

take boundry for the hole

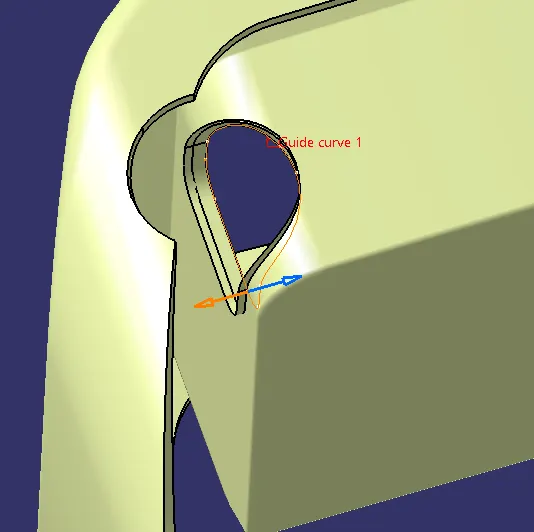

sweep the boundry and trim with the class B surface

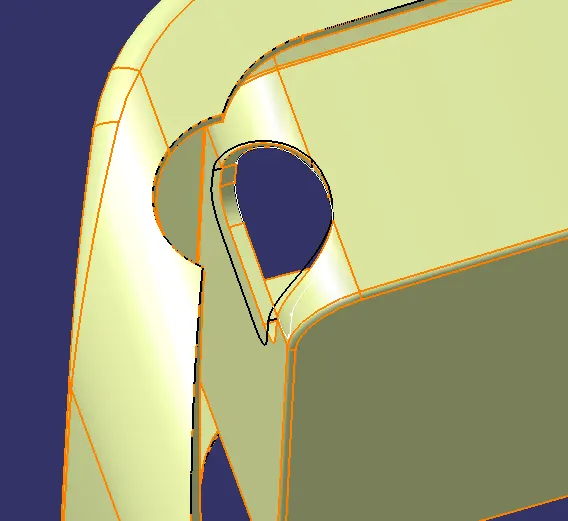

giving edge fillets

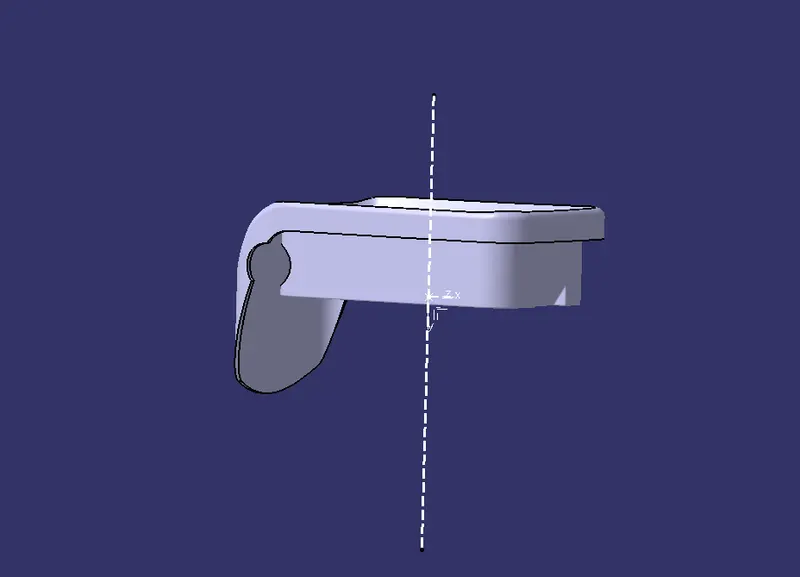

create close surface

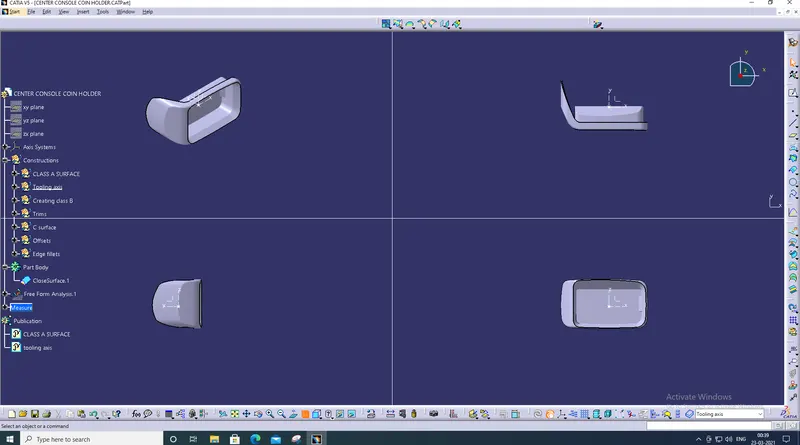

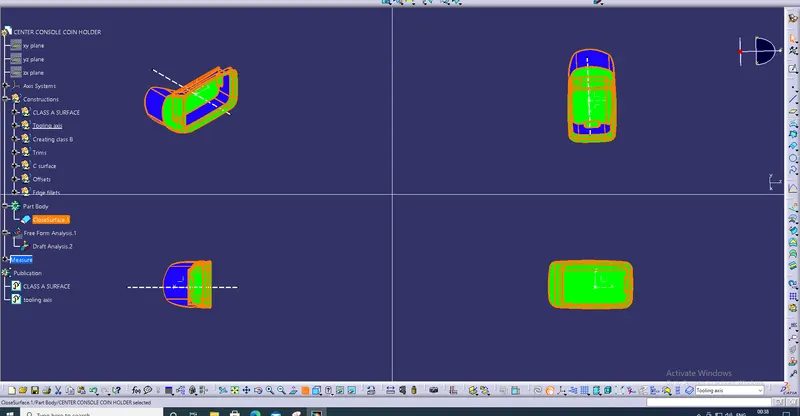

multi views

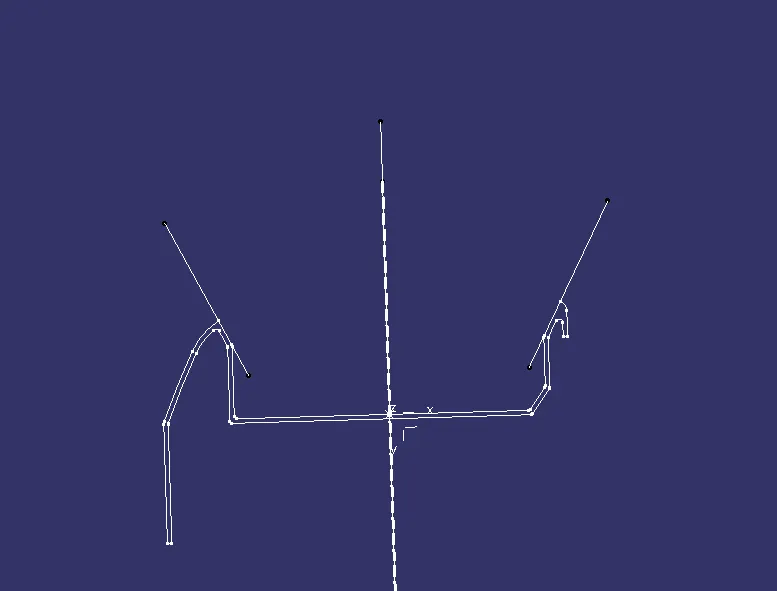

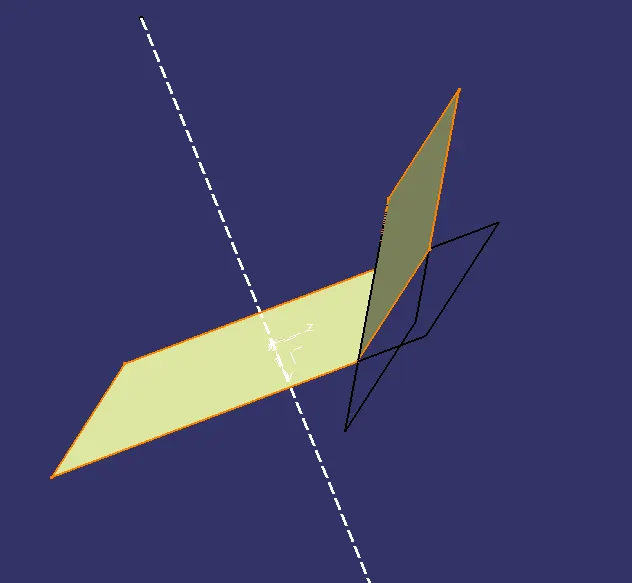

bisect the line and give tooling axis

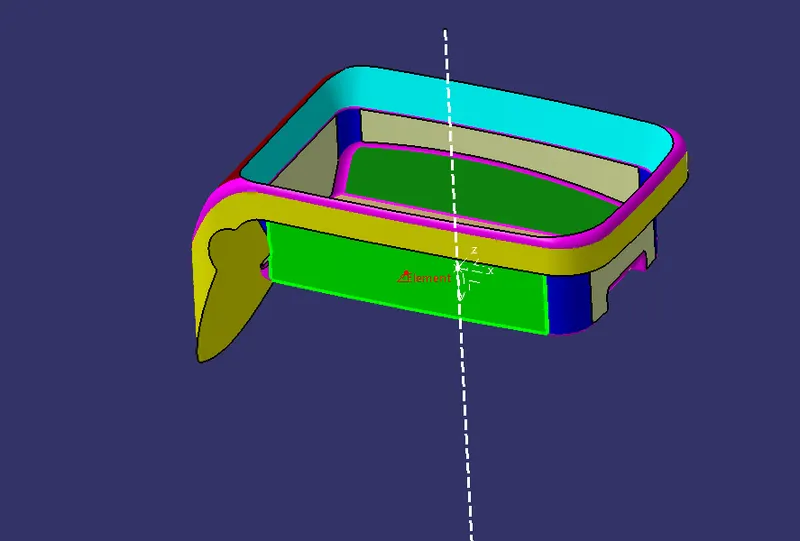

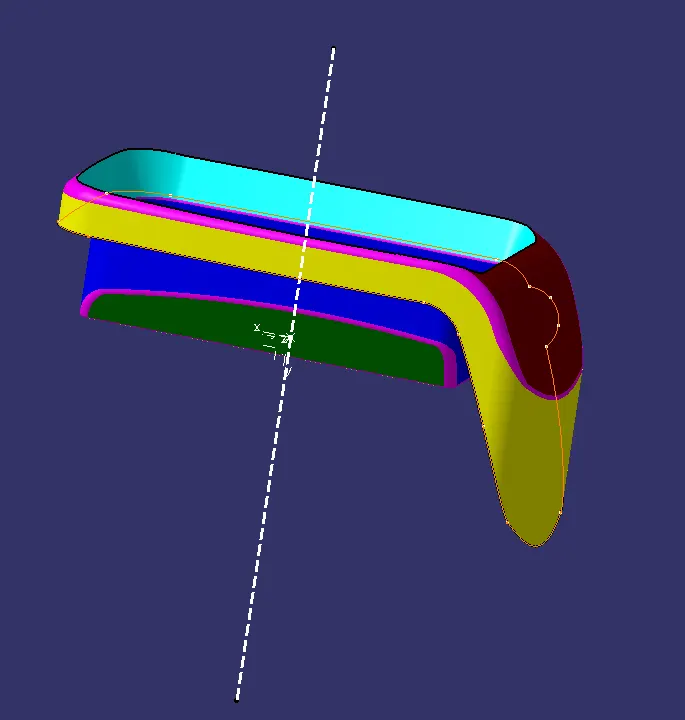

giving draft analysis
