Design of backdoor

Aim: To design car back door along with reinforcement and embosses by following master section with the design parametres for the given class A surface.

Introduction:

Tailgates are the rear gates that are attached to the back side of the vehicle and are used to provide security to the passengers sitting at the back of the vehicle or to accumulate luggage. Tailgates used in a vehicle are of different types such as manually operated tailgates or the automatic tailgates and this depends on the level of autonomy of the vehicle. The increased production and sales of the vehicle along with the technological upgradation in vehicles, manufacturers across the globe have introduced various products in tailgates, which supplements the vehicle tailgate market growth across the globe.

Tailgates used in an automobile are made stronger enough to bear all kinds of impact on the vehicle and are also indulged in providing safety to the vehicle. Tailgates have a wider application in passenger as well as commercial vehicles to ensure the safety and security of the goods kept on the rear side of the vehicle. Various developments have been carried out by top companies operating in the automotive tailgate industry, which fuels the market growth. The automotive tailgate market forecast witnesses a rapid adoption of the hydraulic/manual operated tailgates in passenger vehicles, which positively affects the vehicle tailgate market trend across the globe.

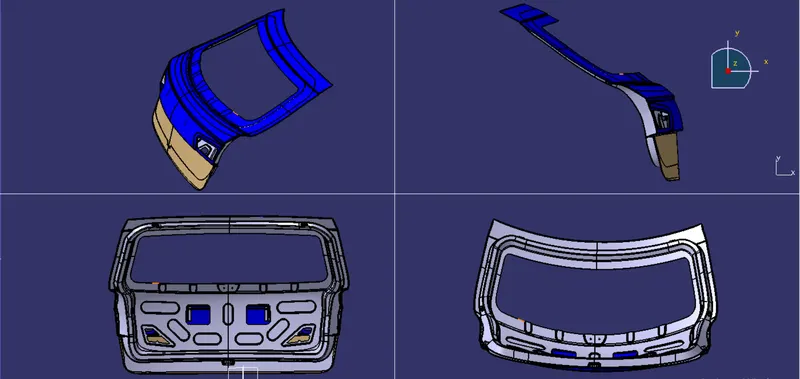

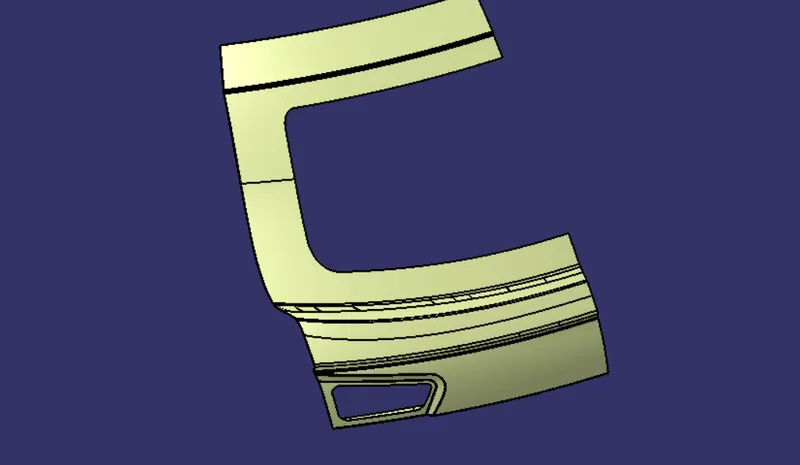

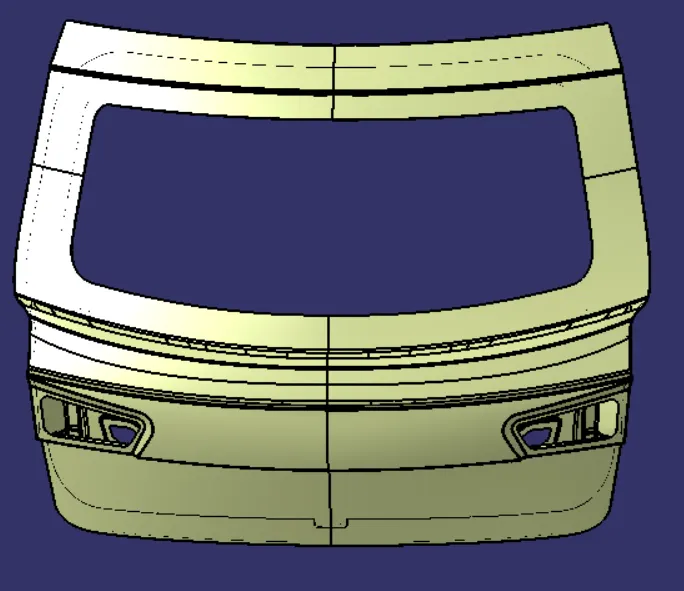

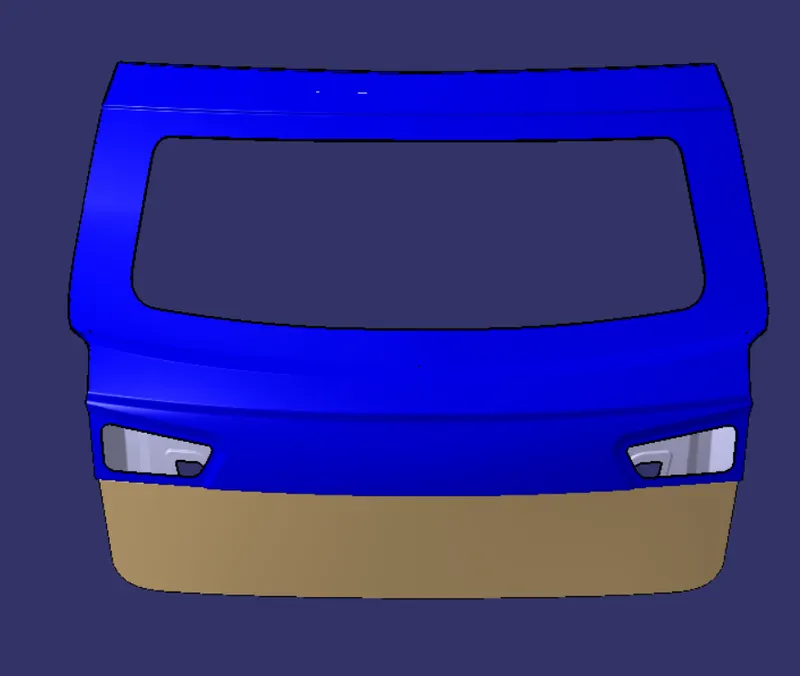

given model

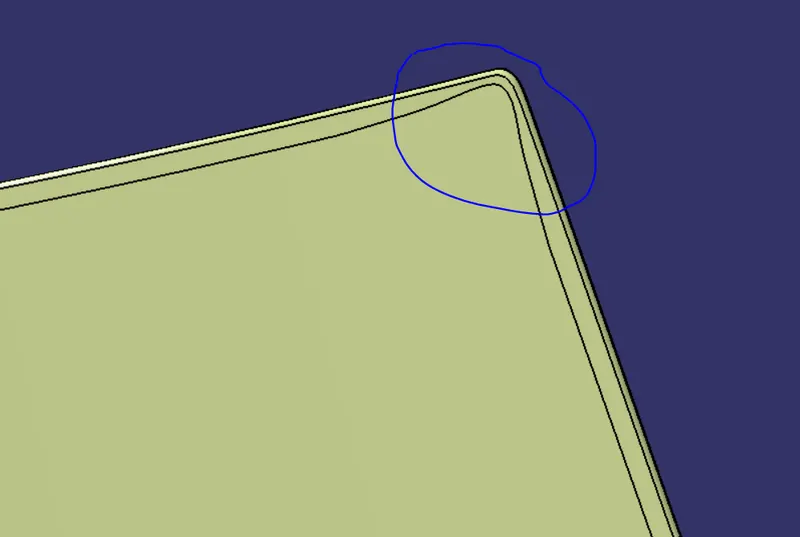

solving errors and joining the part

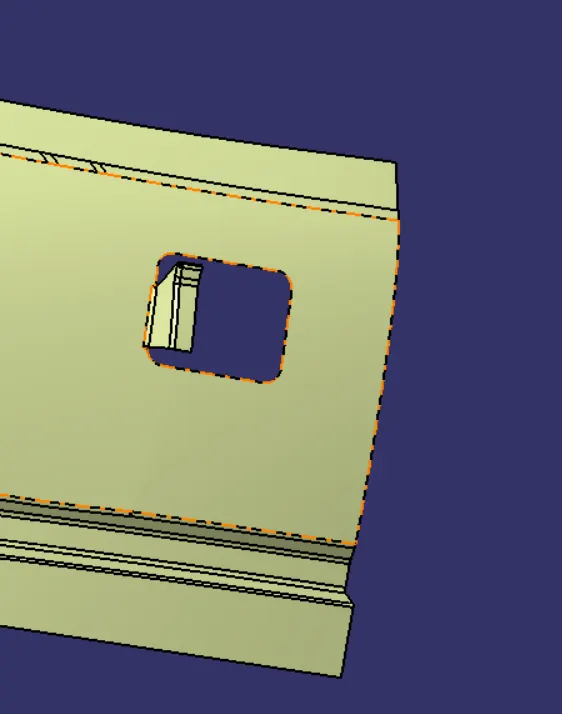

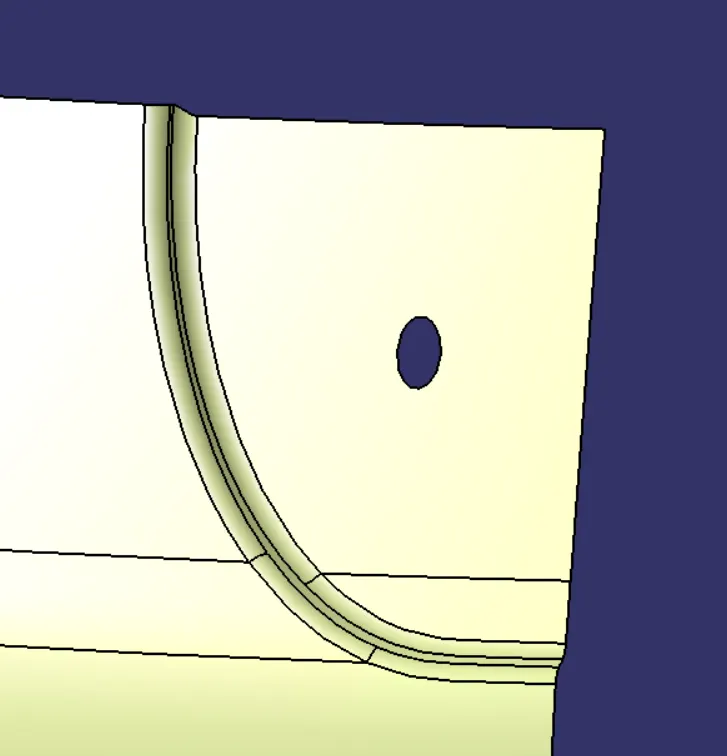

creating sealing surface

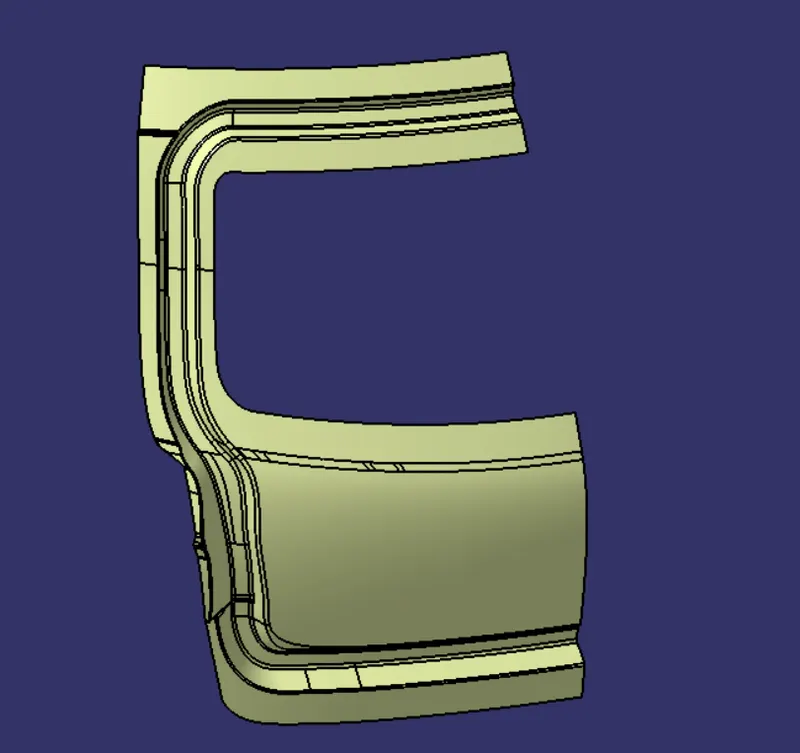

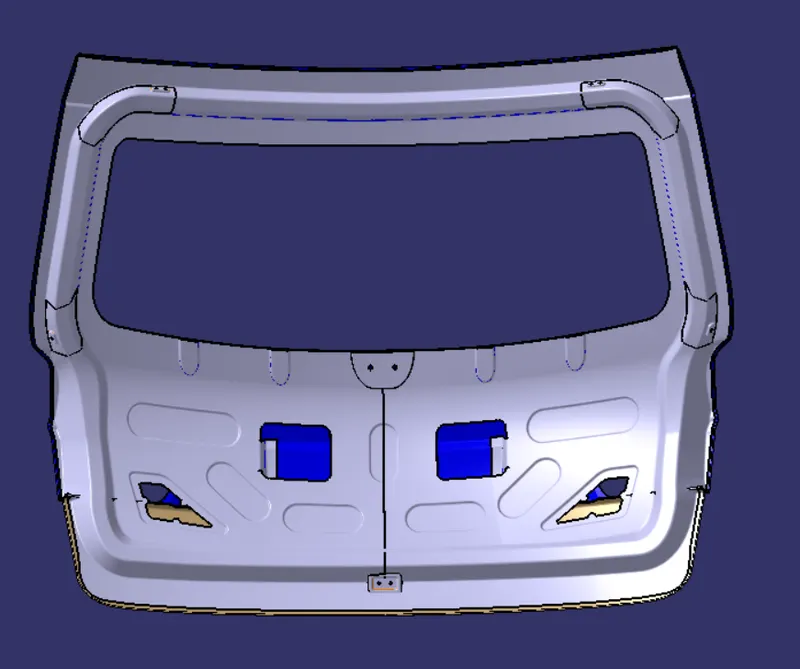

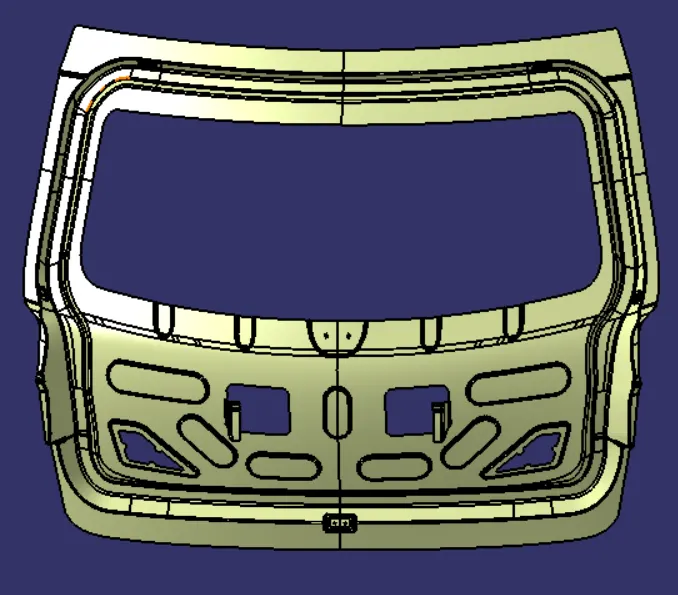

inside sheet

creating mastic

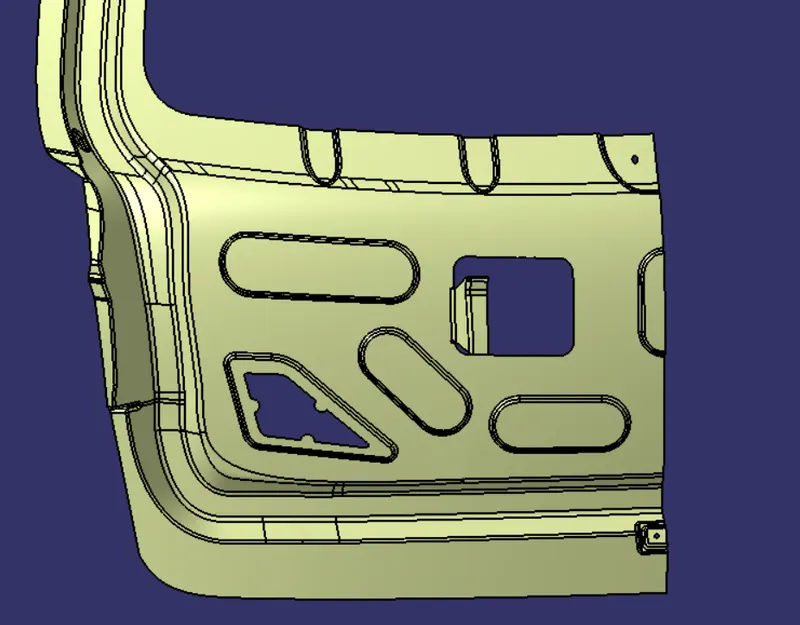

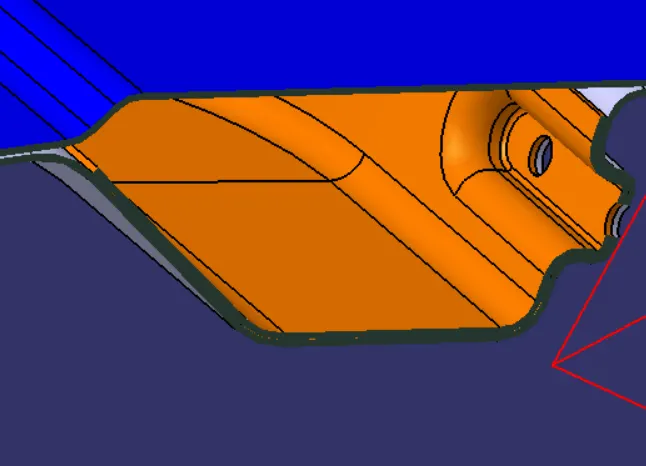

creating embosses:

embosses are provided all over the walls of parts because this helps in dissipates the force during collision.

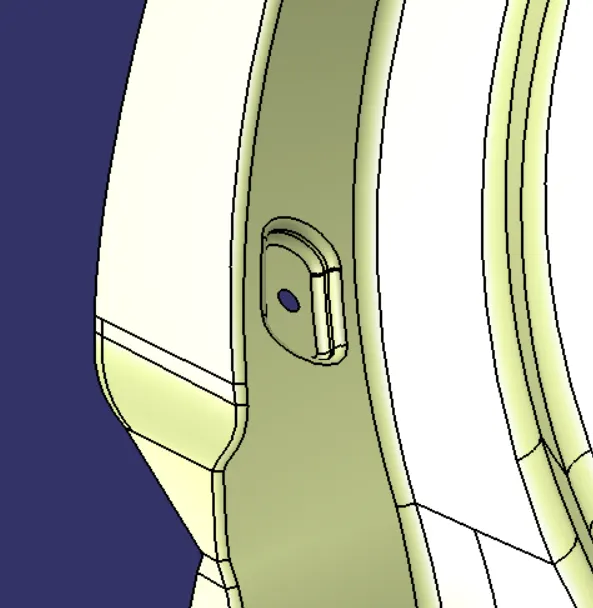

hinge emboss gas stay emboss

wiper motor emboss striker emboss

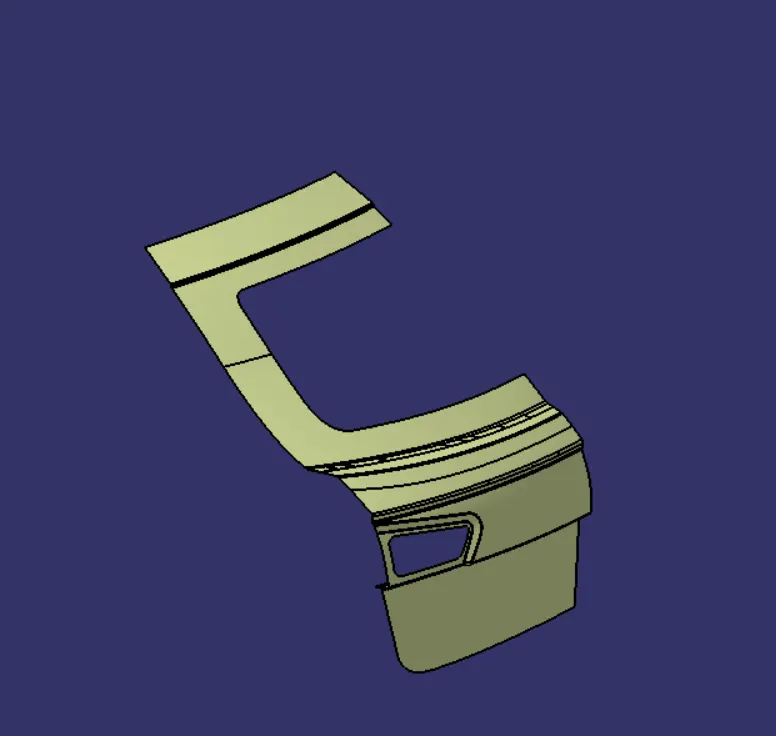

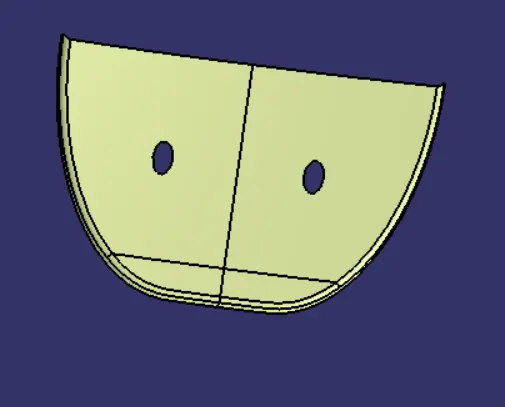

bottom pannel

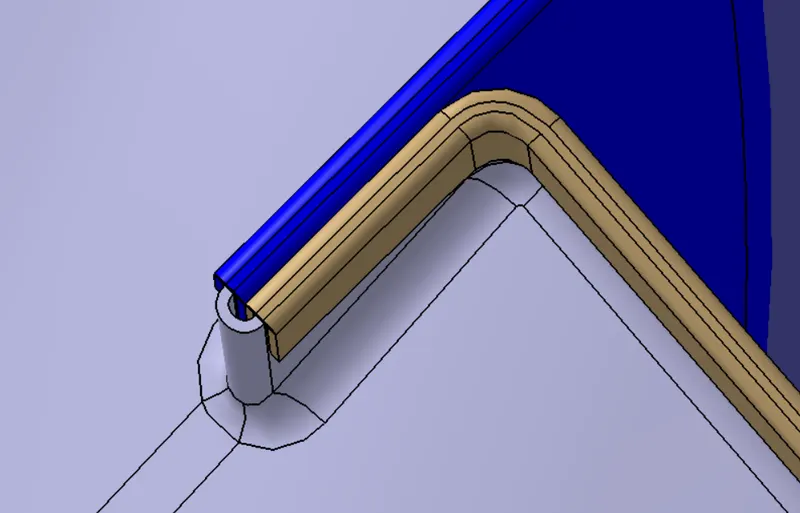

Hemming:

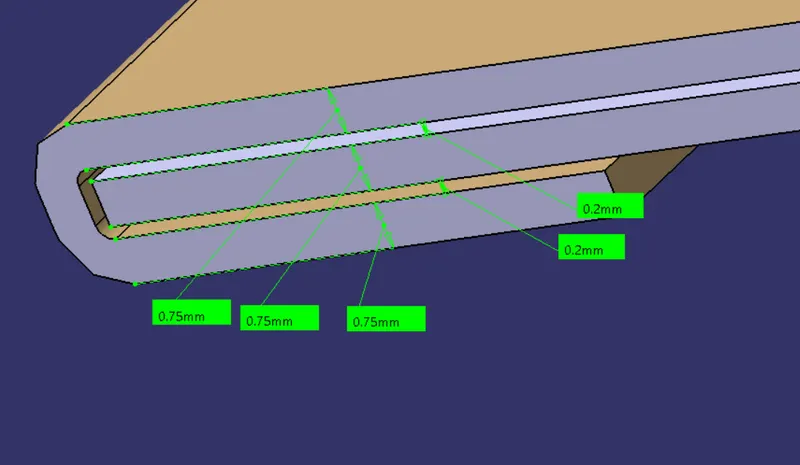

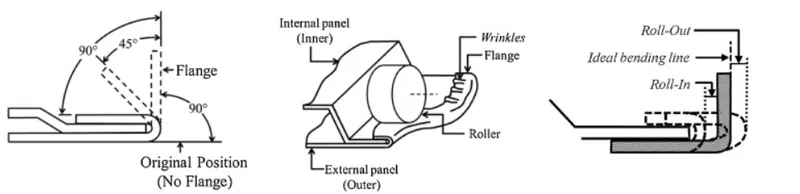

hemming is a forming operation in which the edges of the sheet are folded over another part in order to achieve atight fit. normally hemming operations are used to connect parts together to improve the appearence of apart and to reinforce part edges.

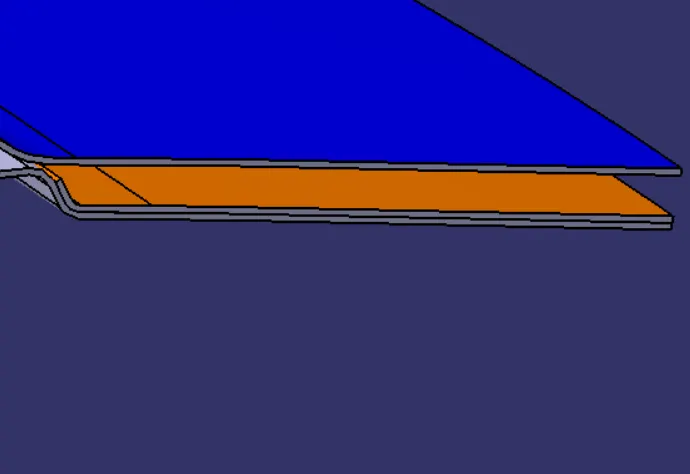

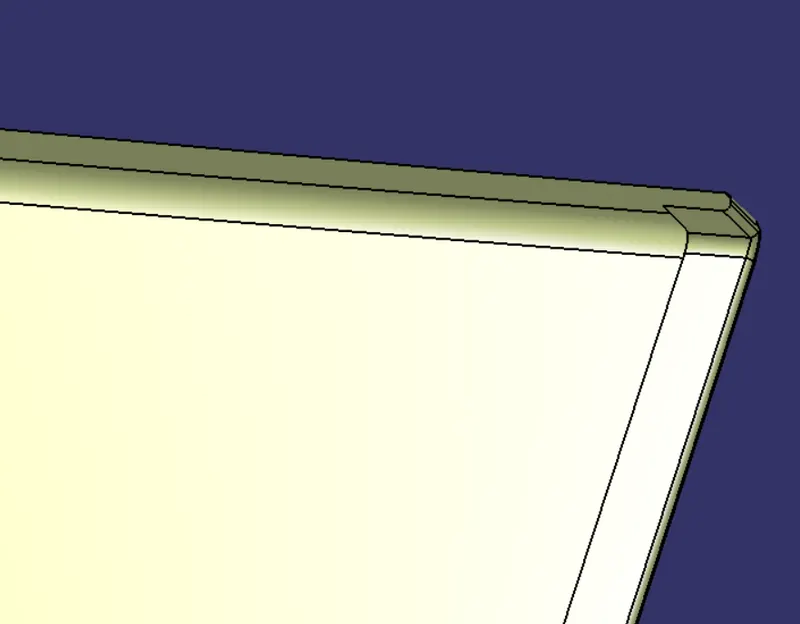

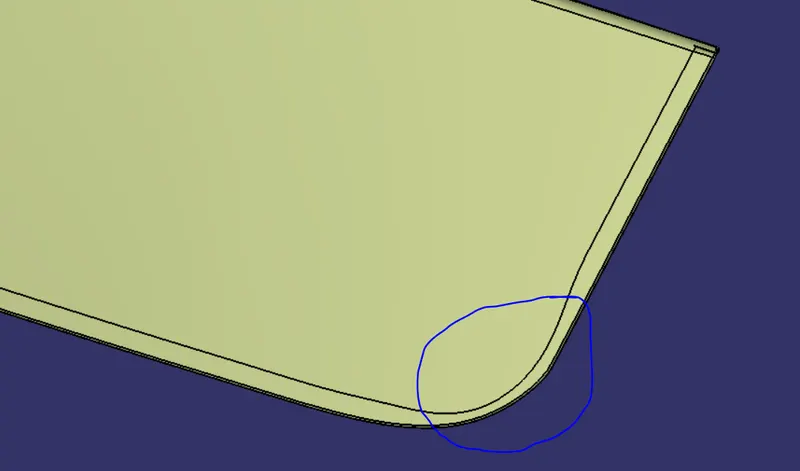

hemming for bottom pannel

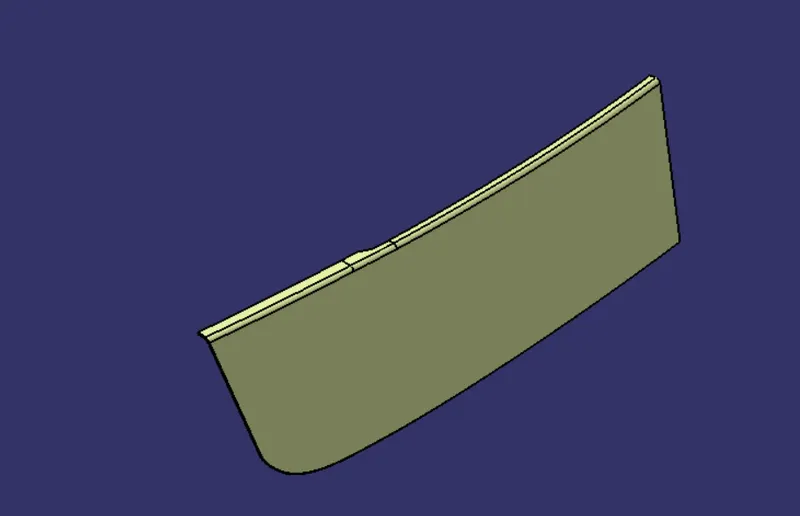

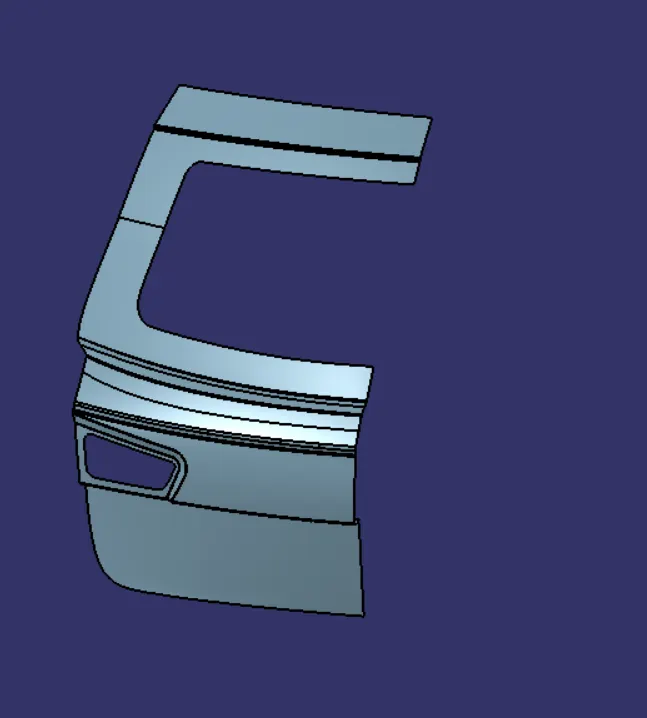

upper pannel

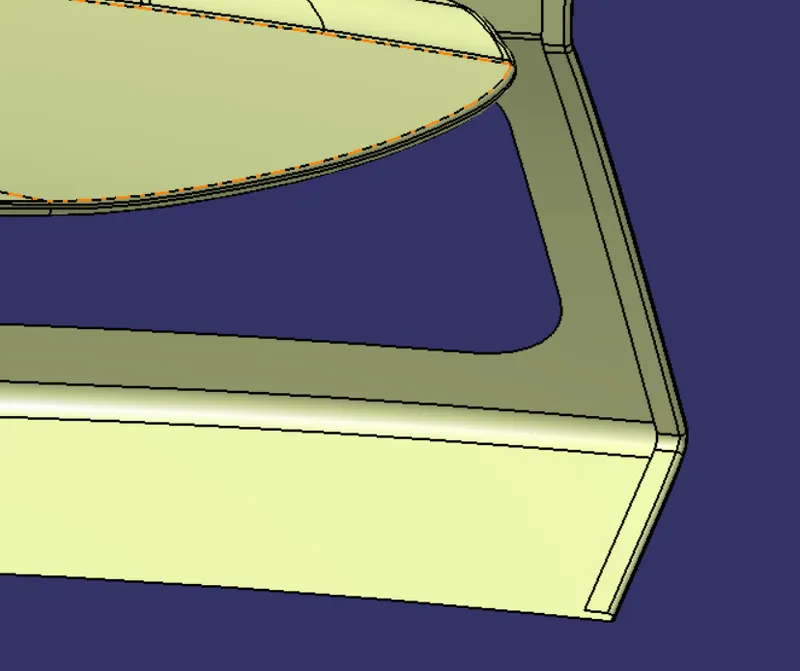

hemming for upper pannel

Reinforcements

we have been building tailgate reinforcements with premier design and quality in mind. Our tail gate reinforcement plates are CNC cut and then precision formed on a CNC press brake for a tight factory-like fit with just a little room where necessary. The end result is a more solid feeling and slightly heavier tail gate that is much stronger, and leaves the user with little worry of bending it under the most common loads.
The tailgate reinforcement easily mounts with factory screws.

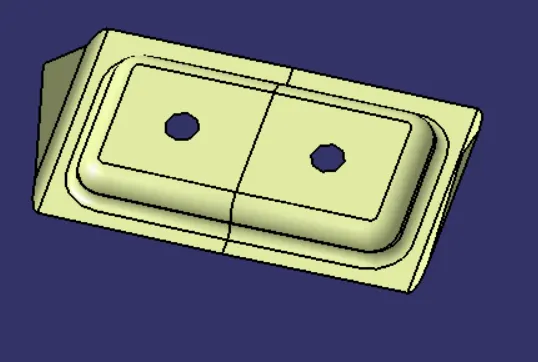

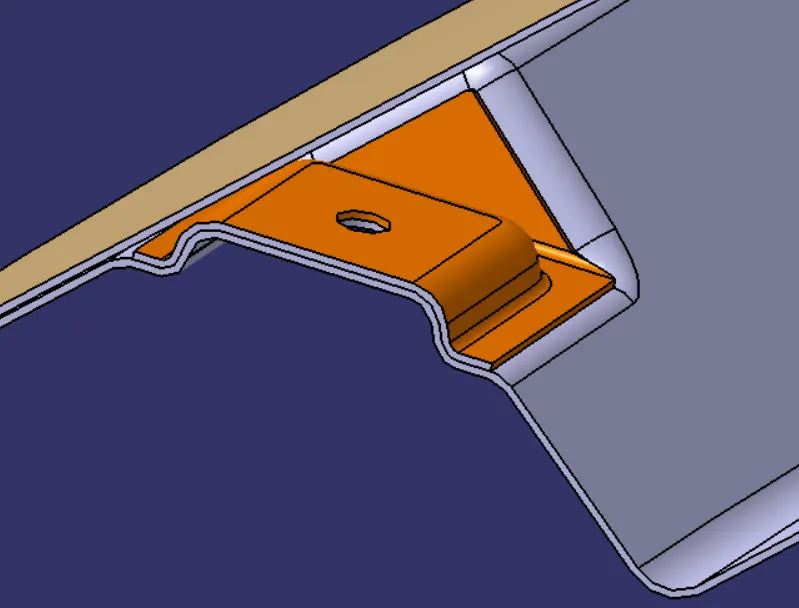

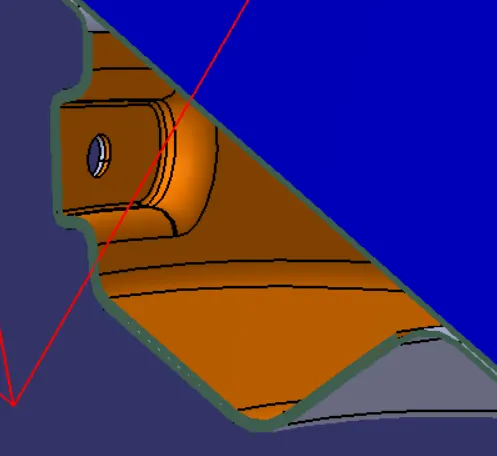

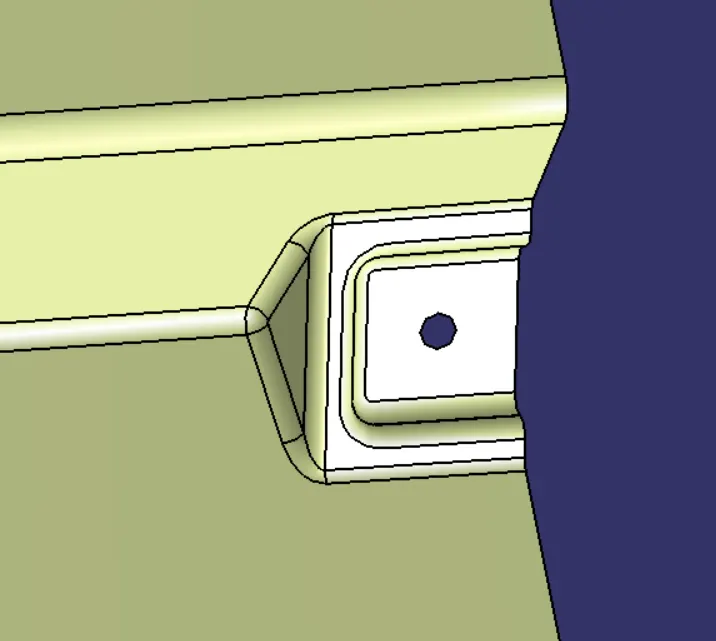

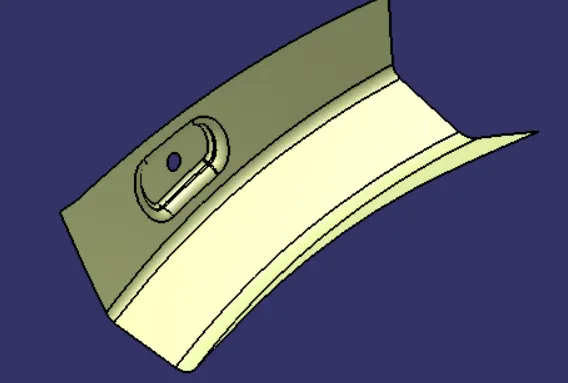

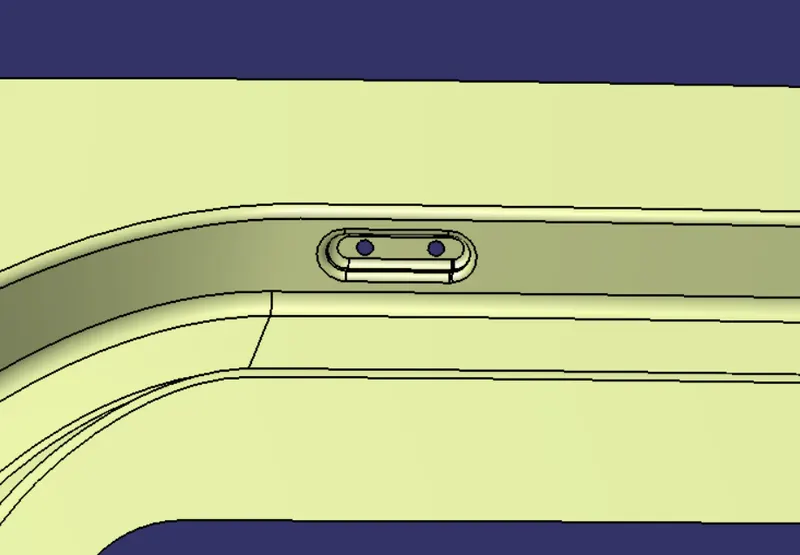

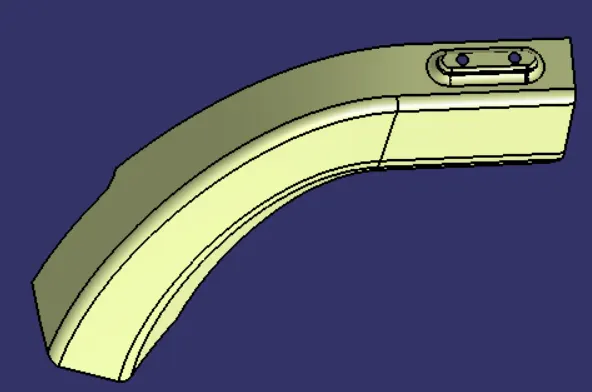

hinge Reinforcement gas stay Reinforcement wiper motor Reinforcement striker Reinforcement

creating symmetry to other side

creating thickness

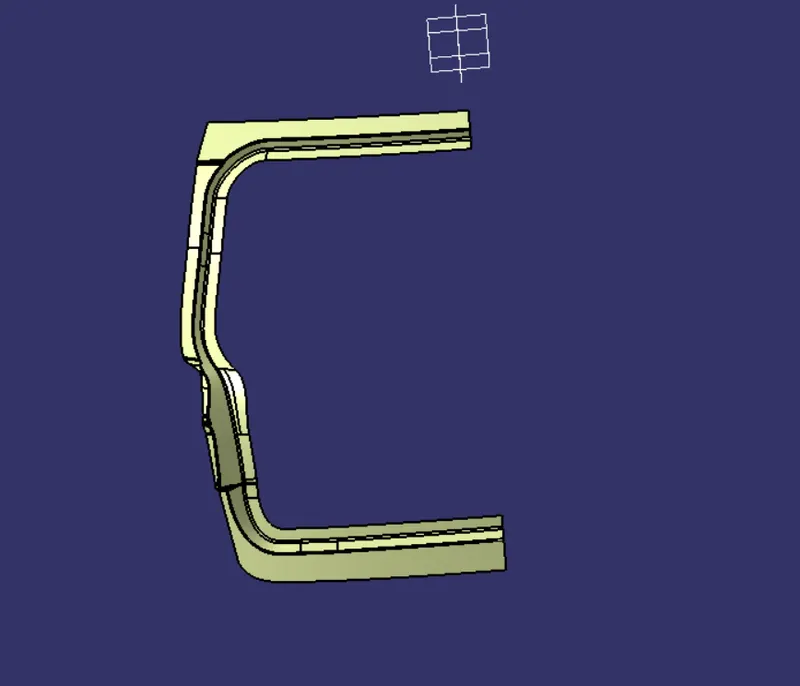

reinforcements

hinge gas stay wiper motor striker

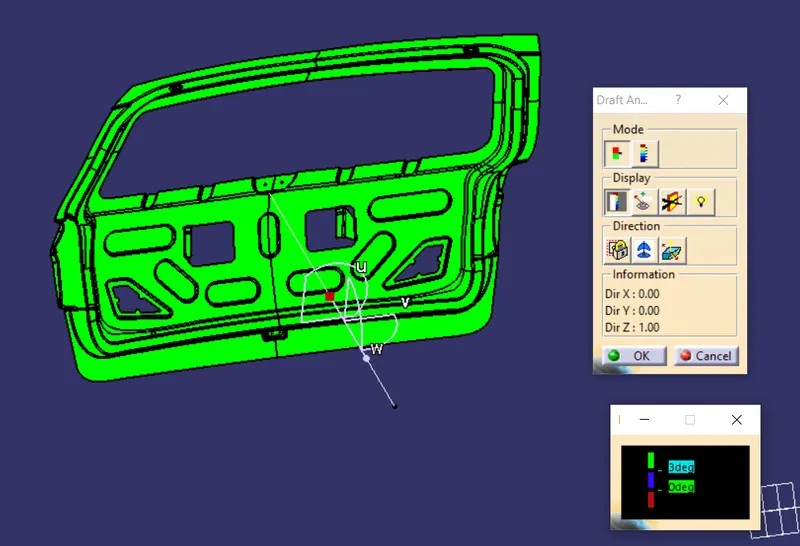

draft analysis

opening angle

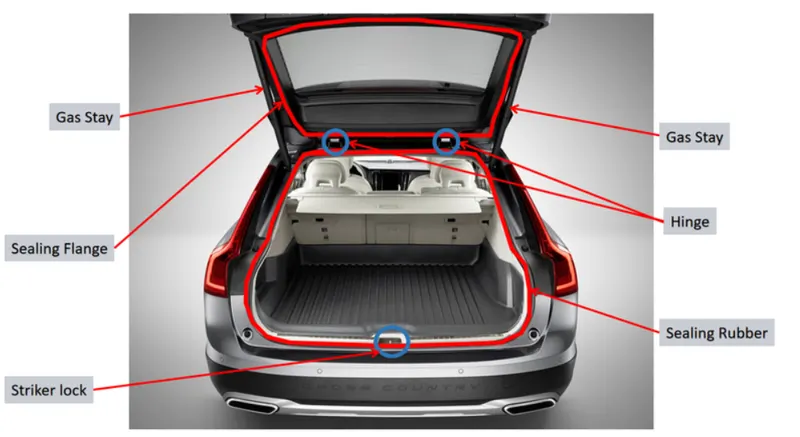

Striker position:

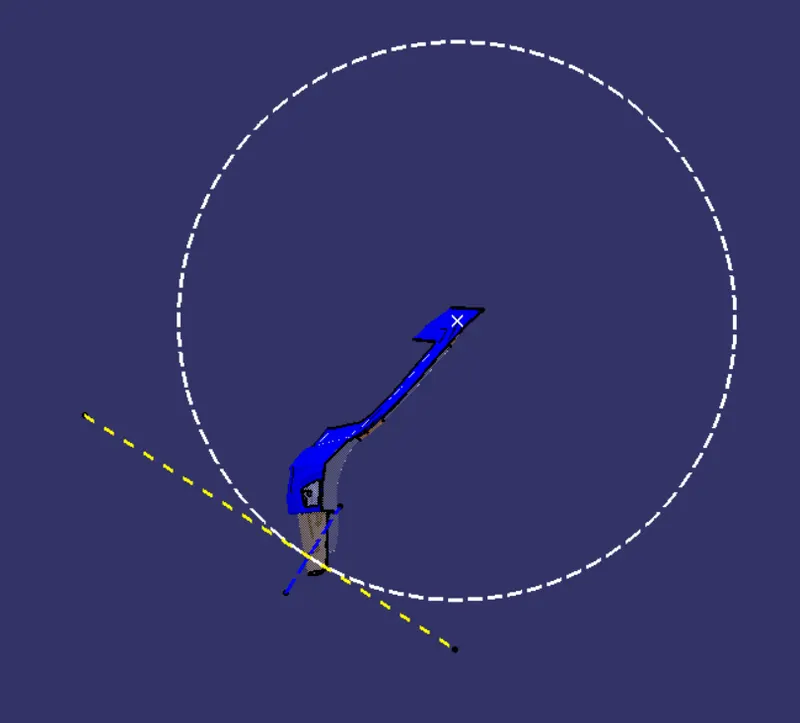

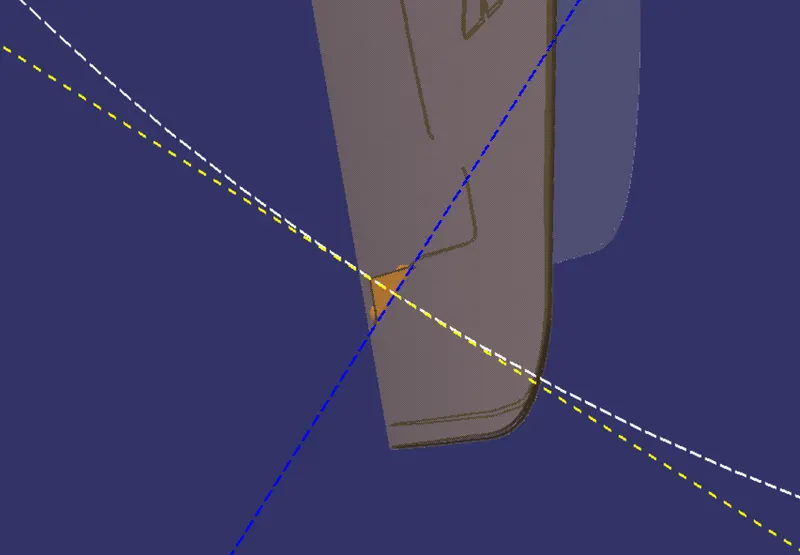

the position of the hinge should be perpendicular to the latch when the latch and striker meets. for that, a circle is drawn from the centre of the hinge axis to find the path of the striker and positioned it perpendicular to the path.
