Week 10:- 2D Detailing Challenge

AIM:

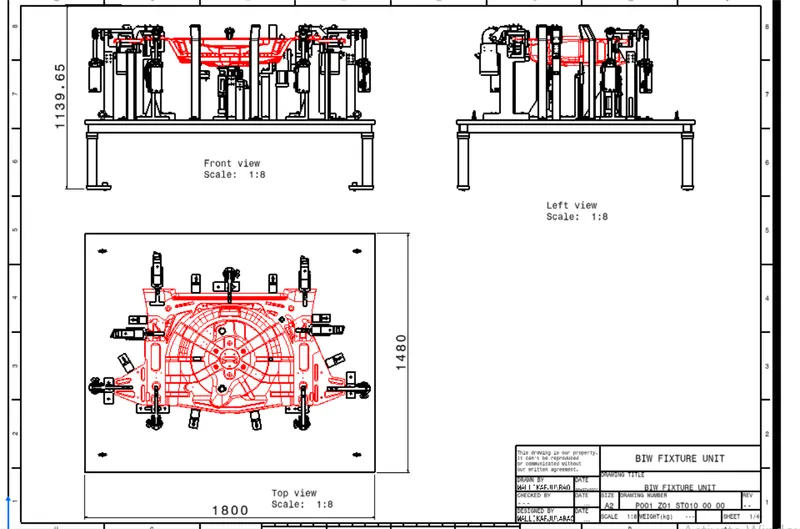

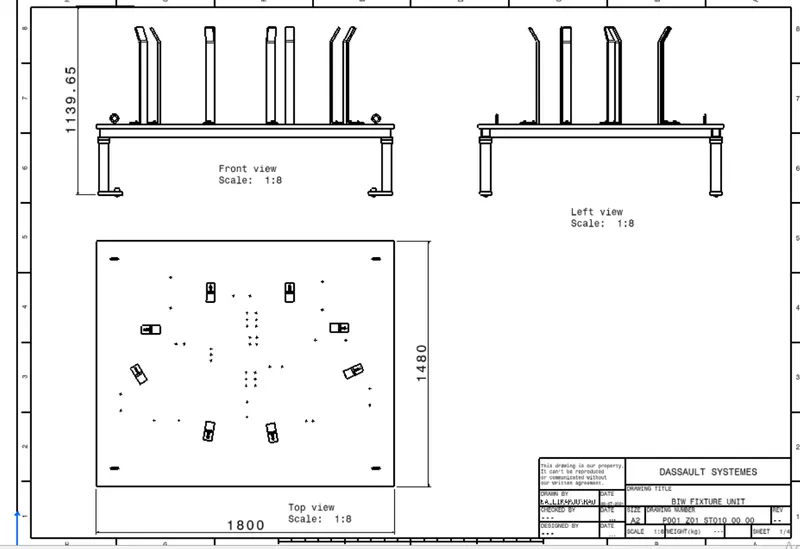

1)Draft a Key Sheet for the Complete Fixture assembly created in challenge 8.
2)Draft a Base Unit and the Fix Pin Unit drawings with all child parts for the complete Fixture assembly from challenge 8.

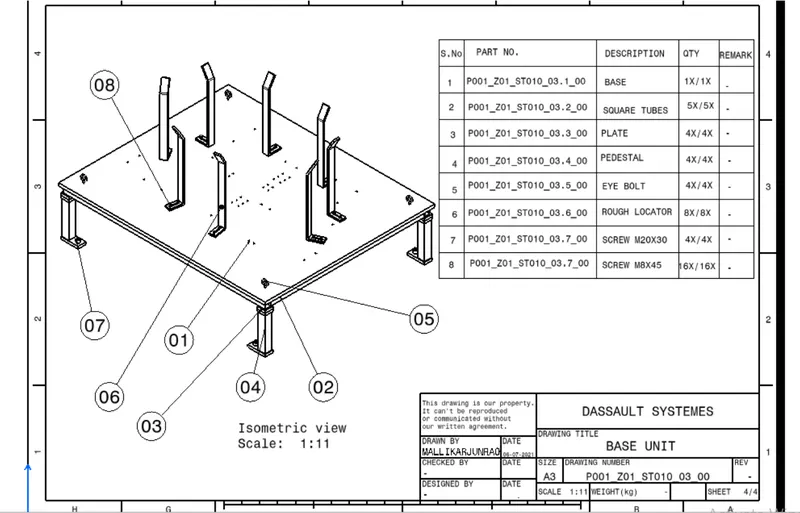

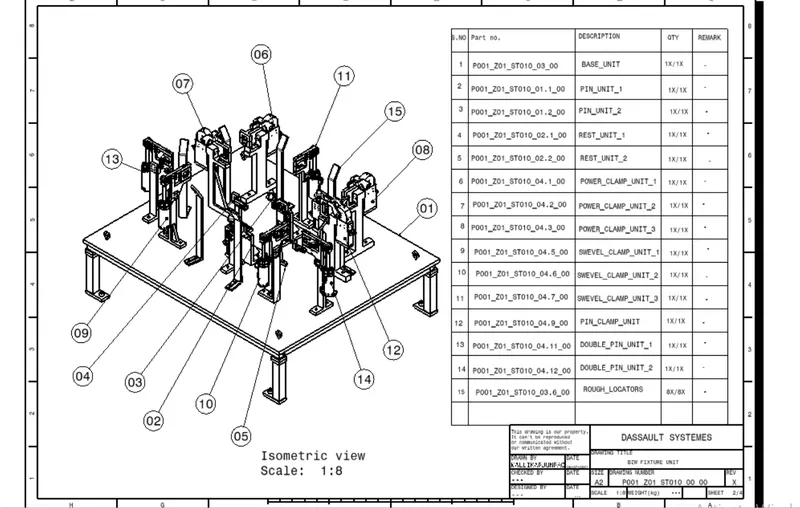

Key Sheet For Complete Fixture Assembly:

BASE UNIT:

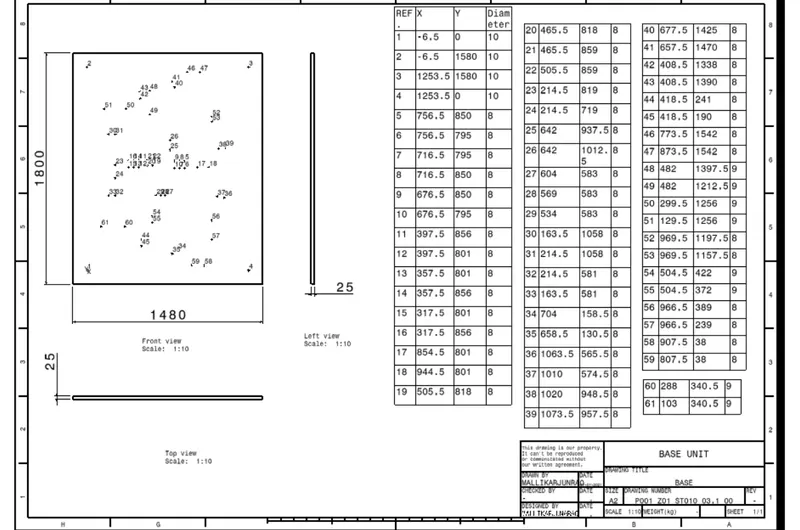

Base:

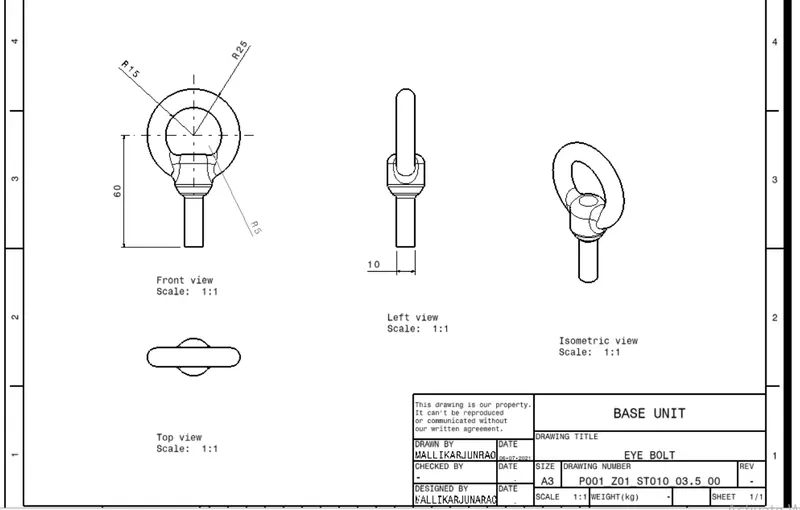

Eye bolt:

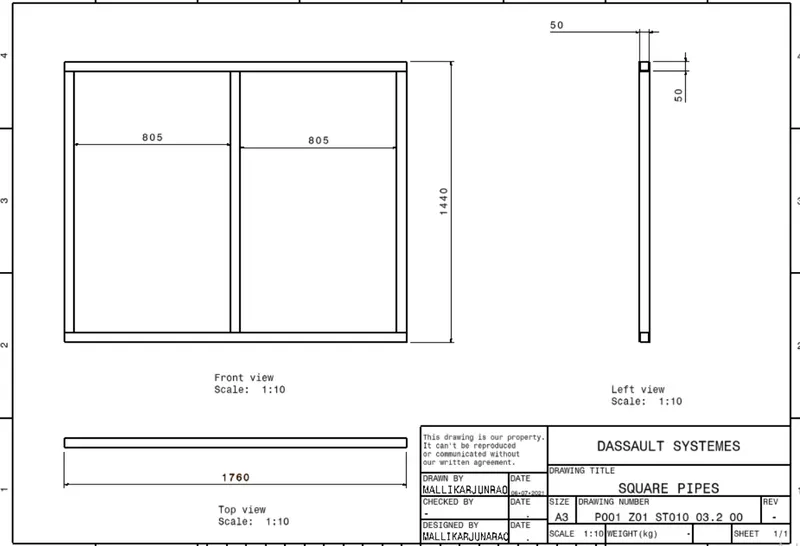

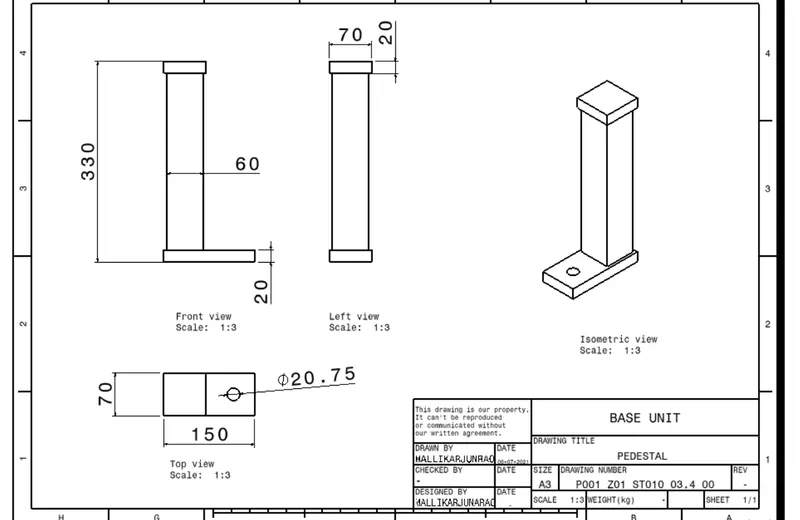

Square pipes:

Pedestal:

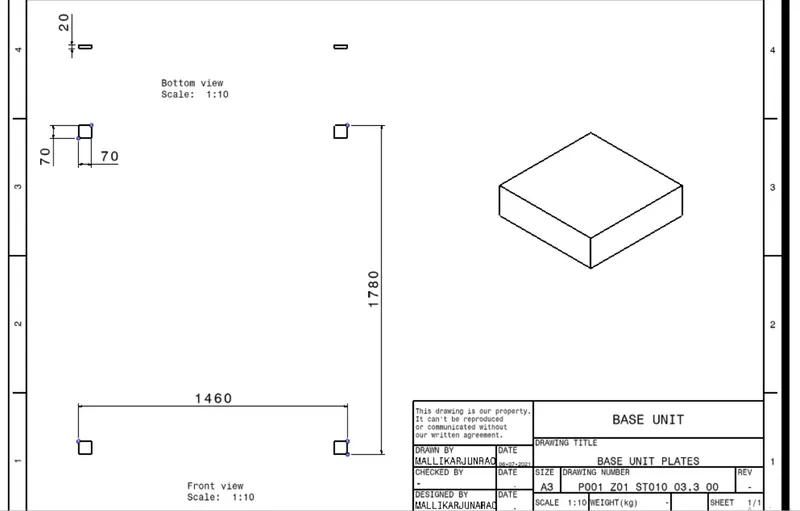

Plate:

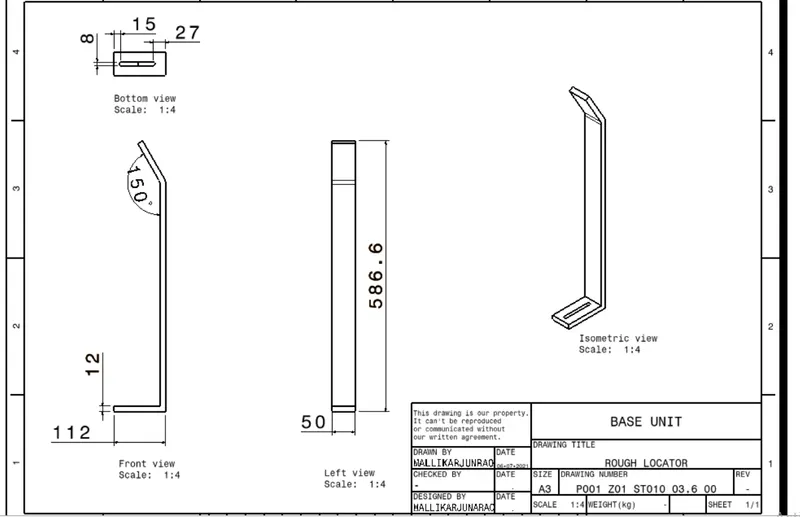

Rough locator:

FIX PIN UNIT:

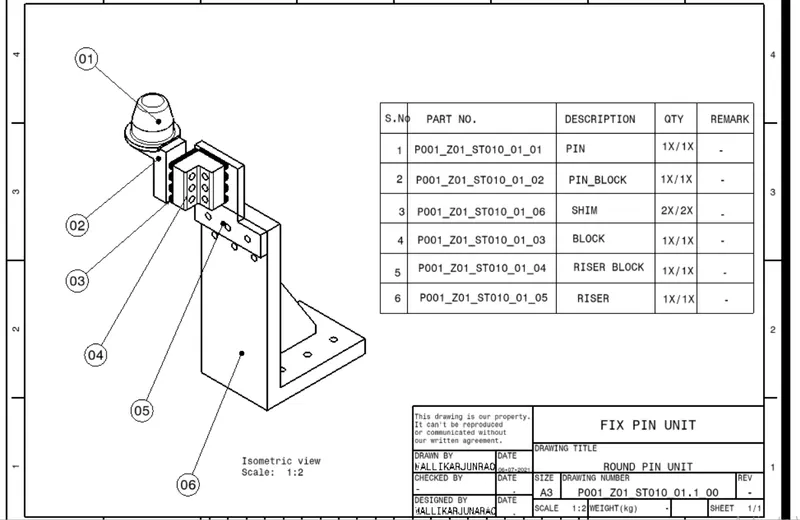

1. ROUND PIN UNIT:

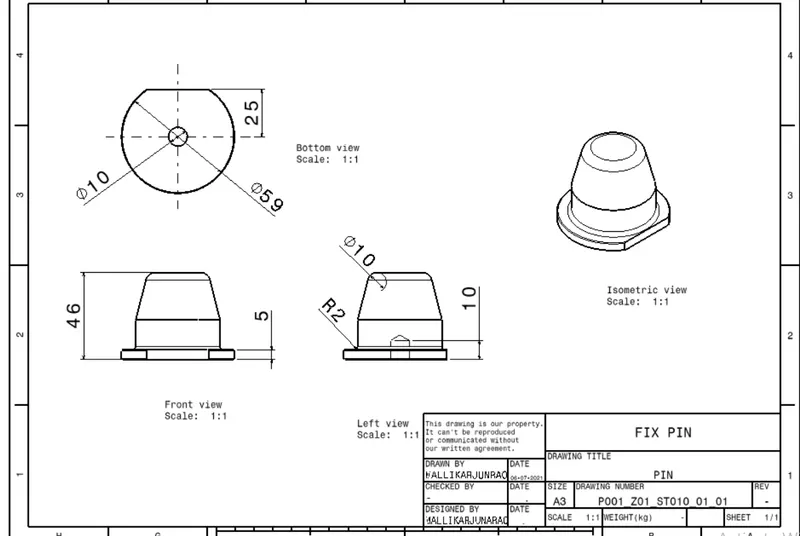

Pin:

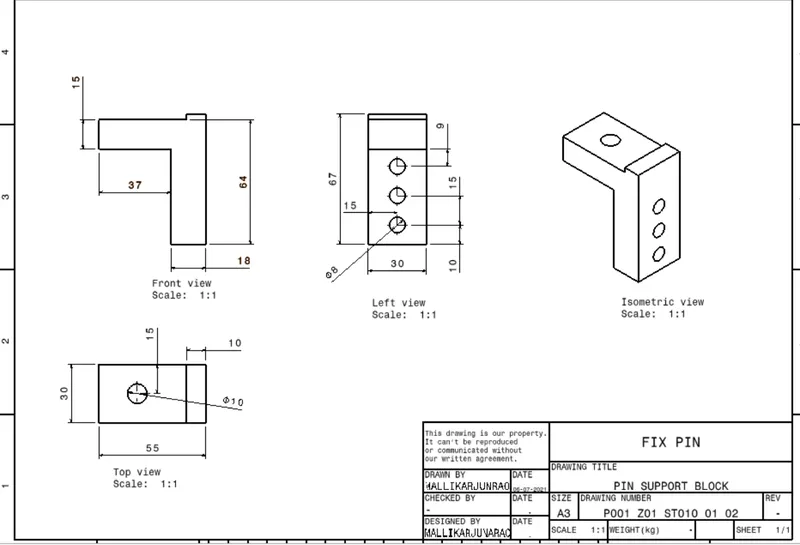

Pin support block:

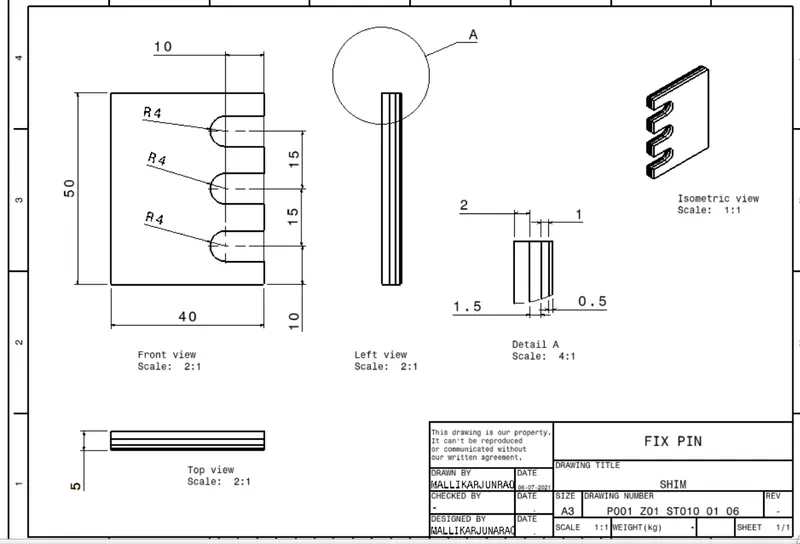

shim:

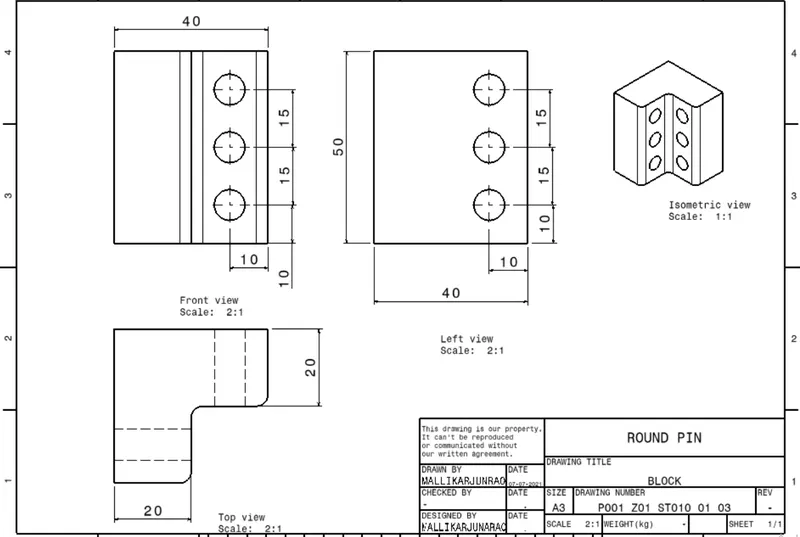

Block:

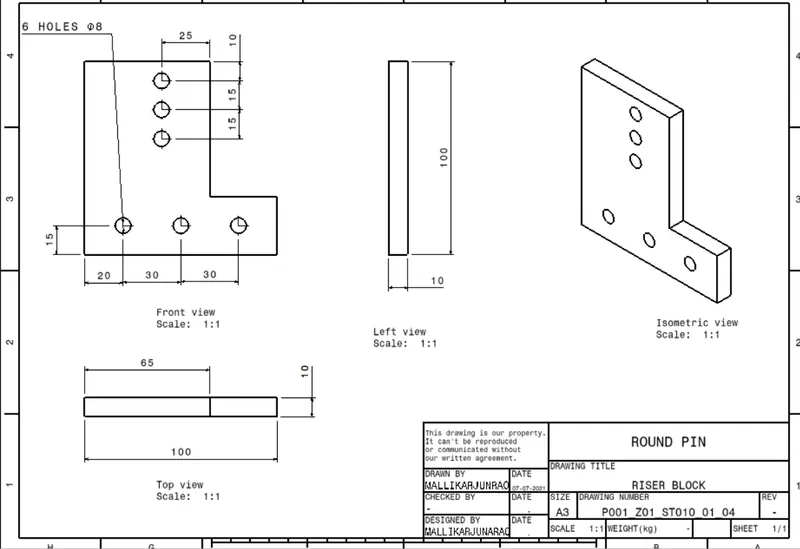

Riser block:

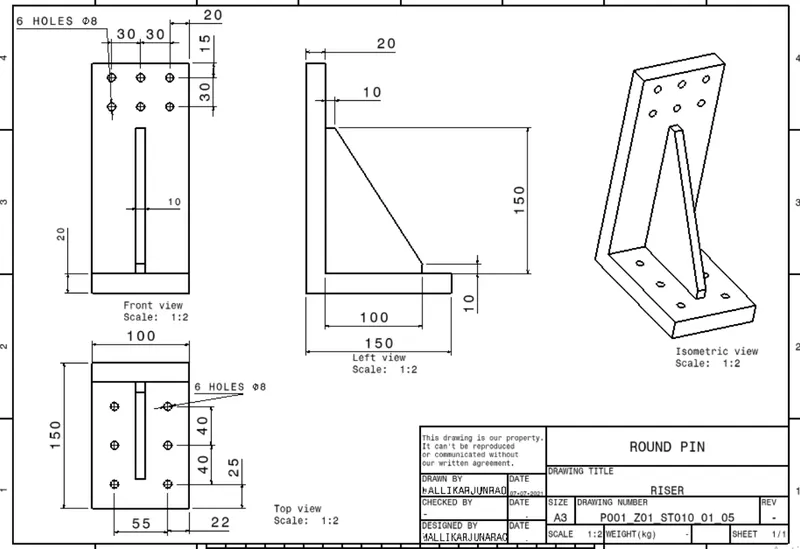

RISER:

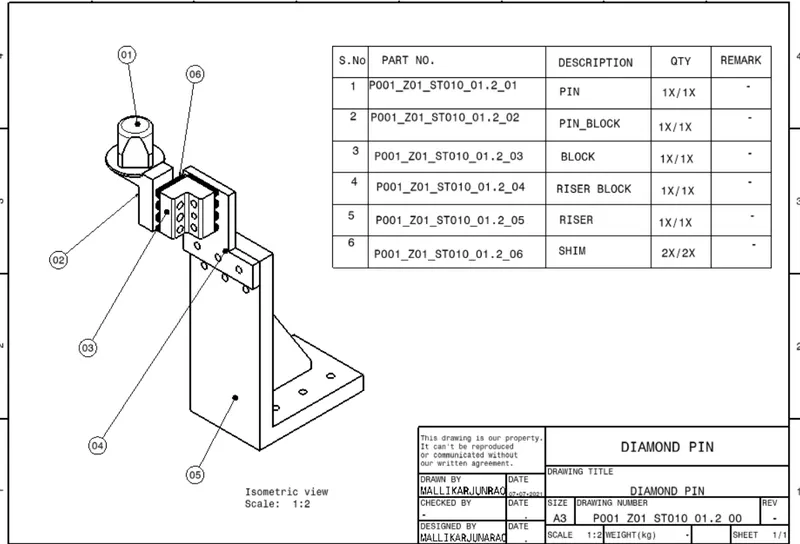

2. DIAMOND PIN UNIT:

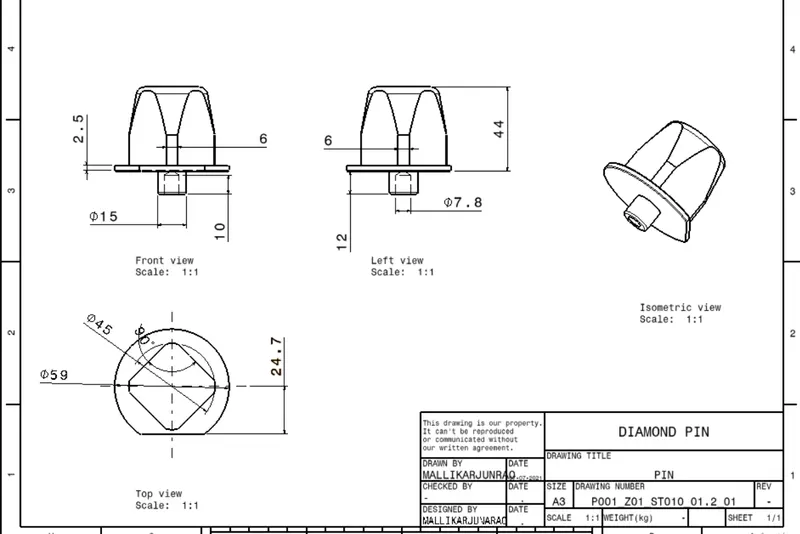

Pin:

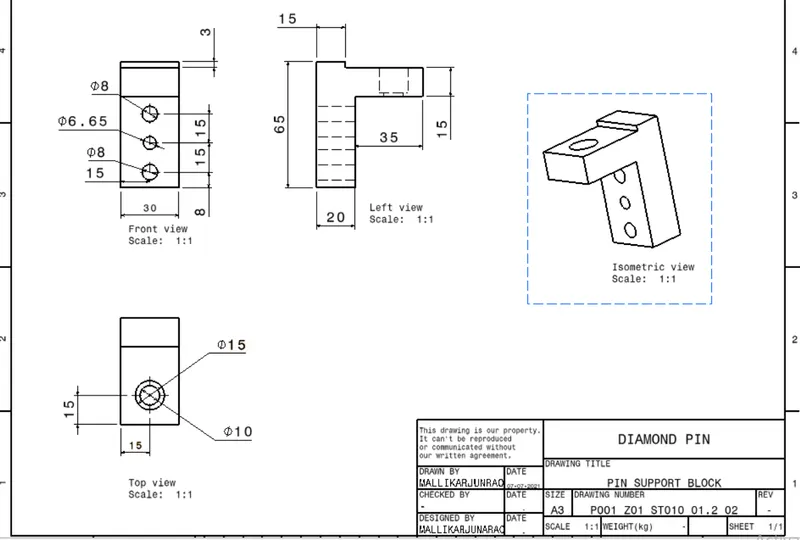

Pin support block:

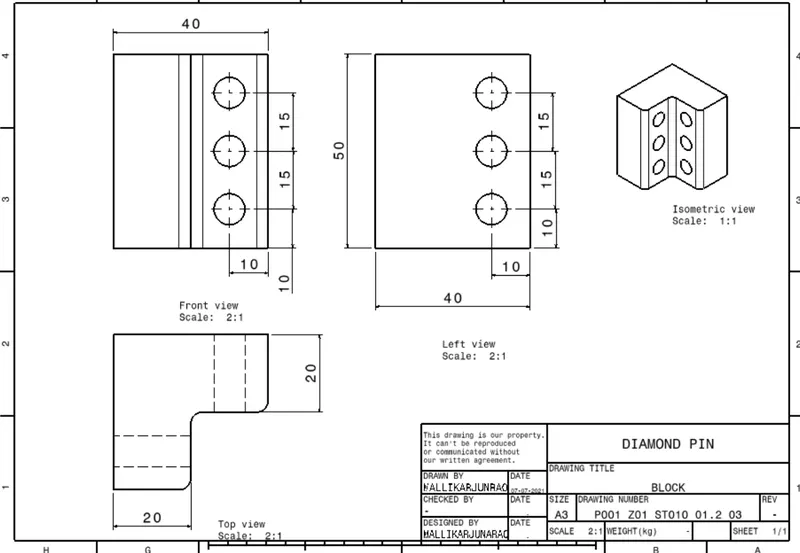

Block:

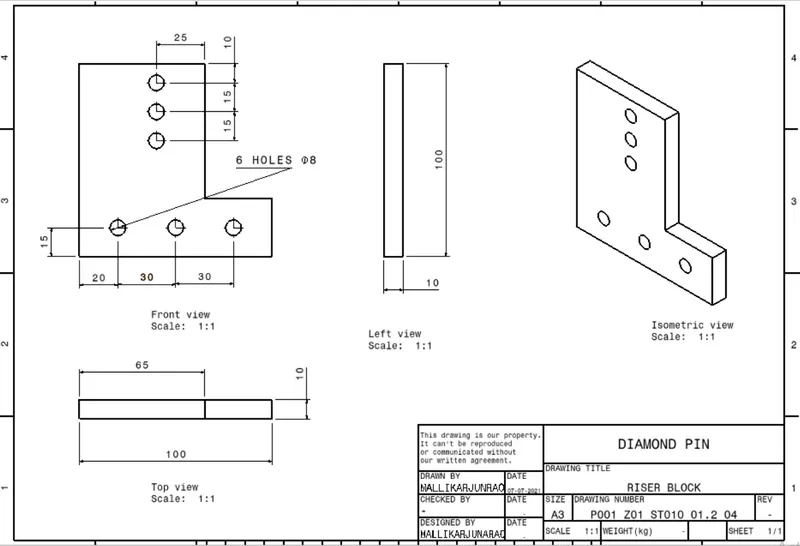

Riser block:

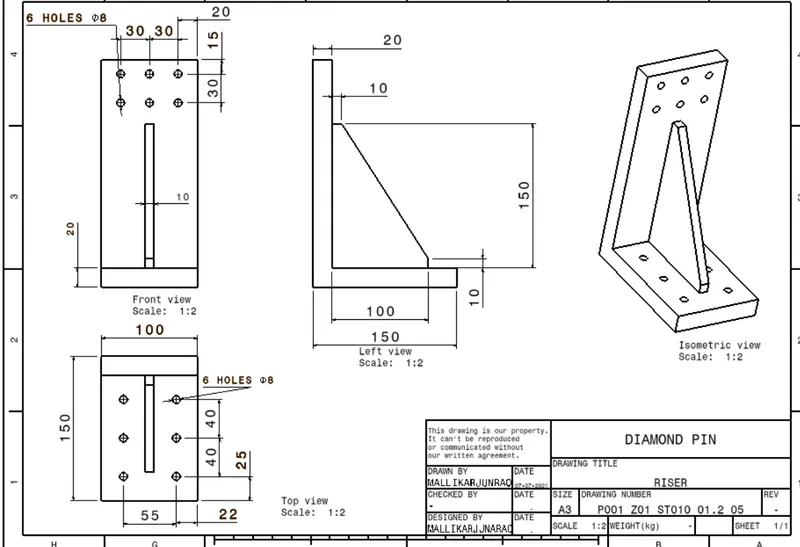

Riser:

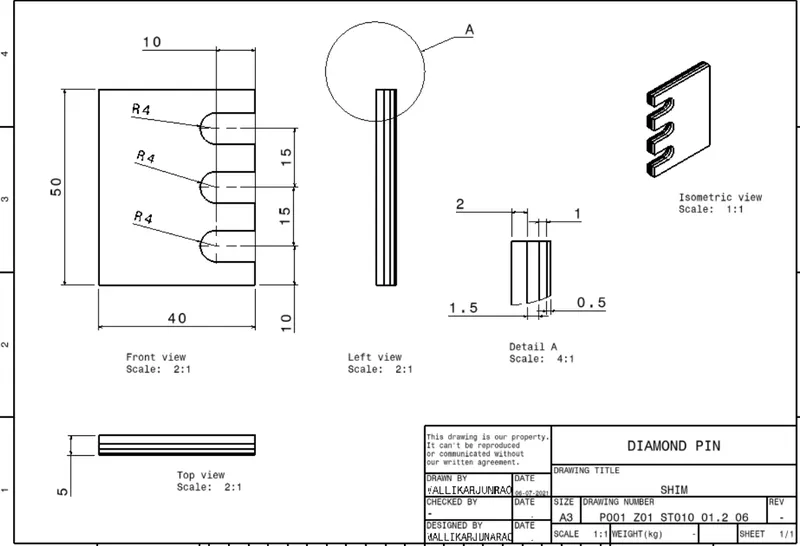

Shim:
