Attachment Feature Creation

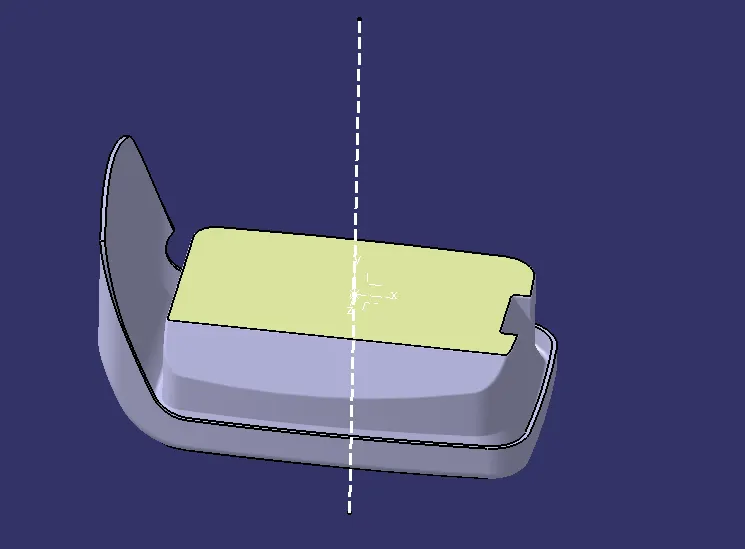

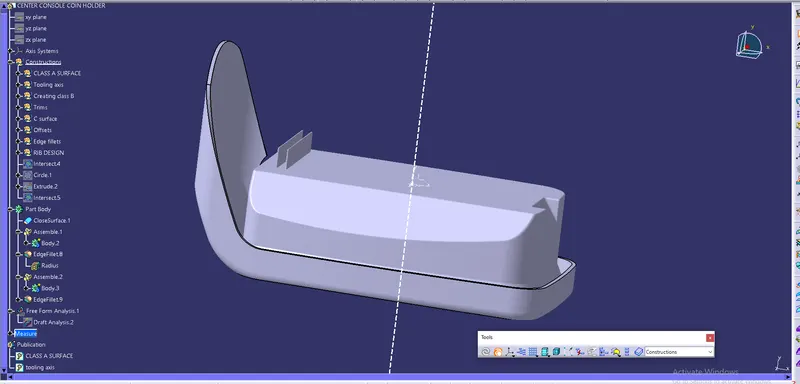

From given part extract the surface

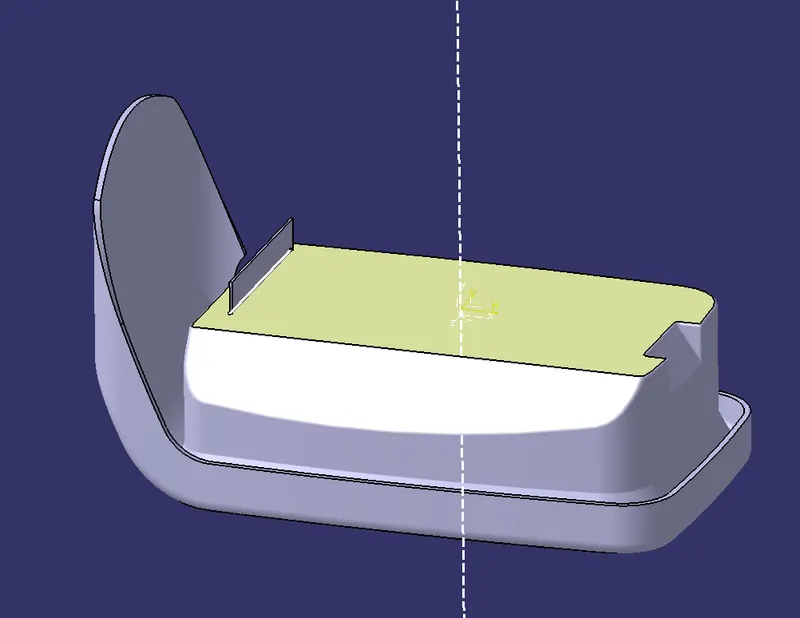

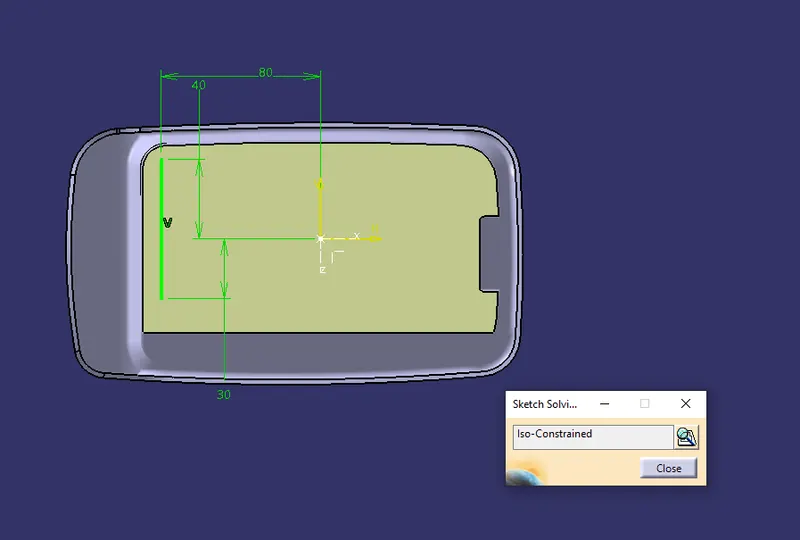

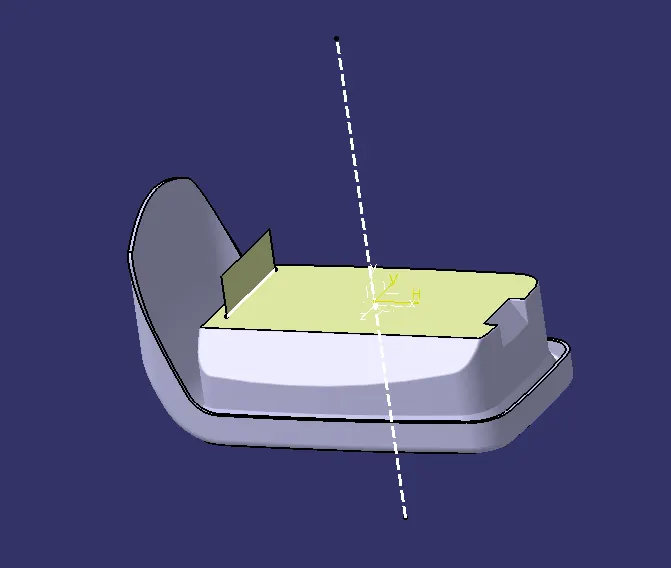

draw the sketch on the extracted face and extrude

giving thickness for the profile that is thickness of the component multiplied into 0.4 times

the thickness is 1mm.

height of the rib is 5 times the thickness

the height is 12.5mm.

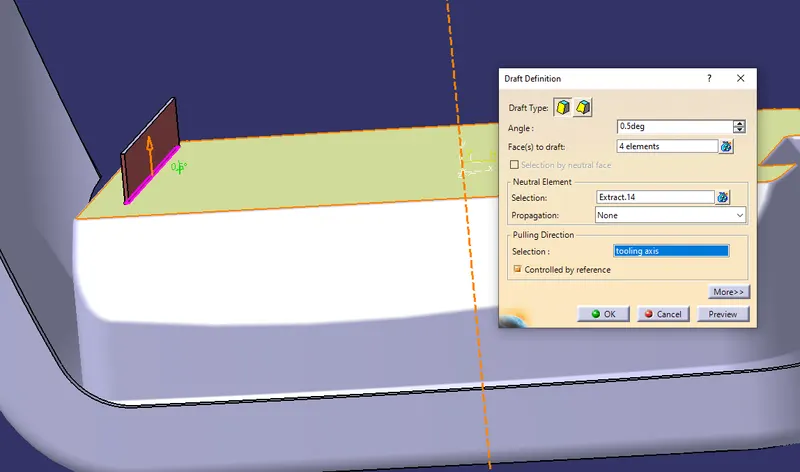

giving draft for the rib

minimum draft is 0.5deg for each face

the top of the rib should be more than 0.75 mm thick

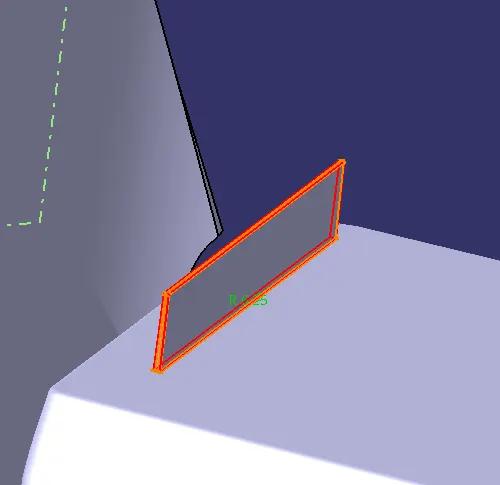

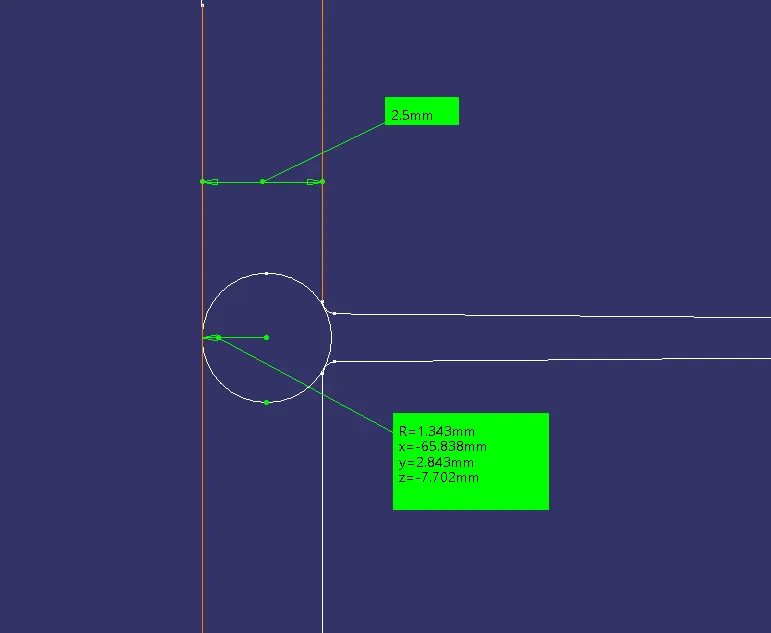

minimum edge fillet is 0.25mm

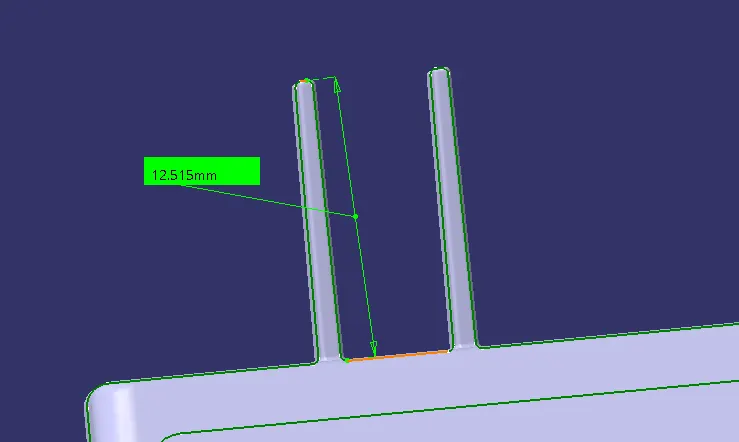

height of the rib

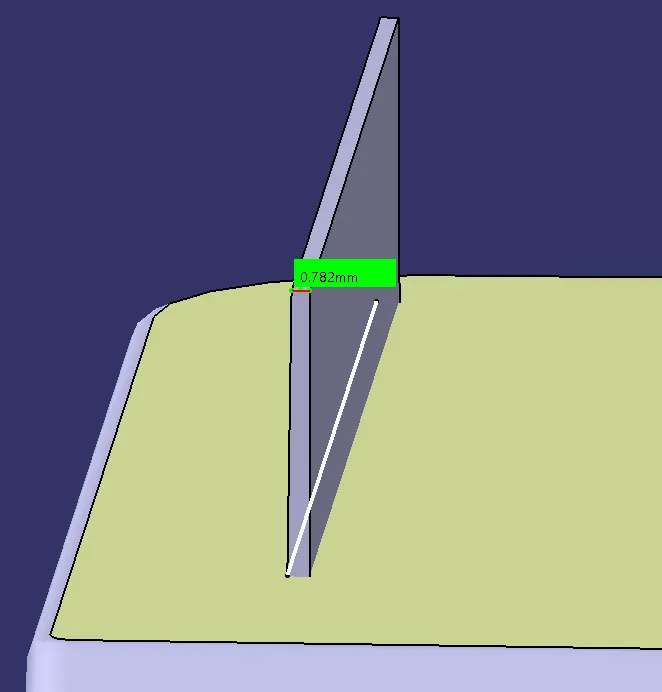

checking rib root thickness

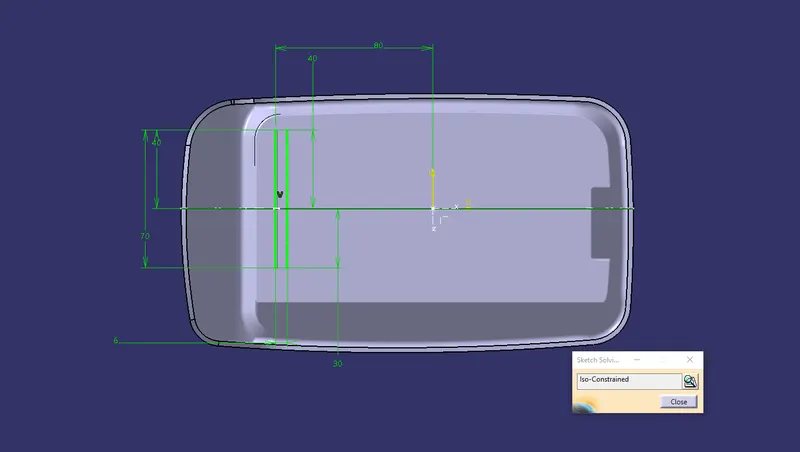

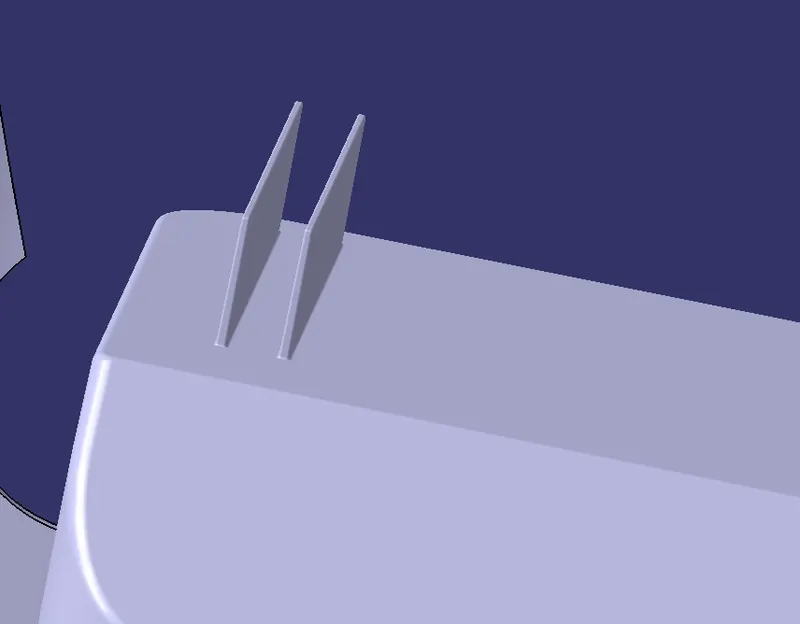

creating another rib

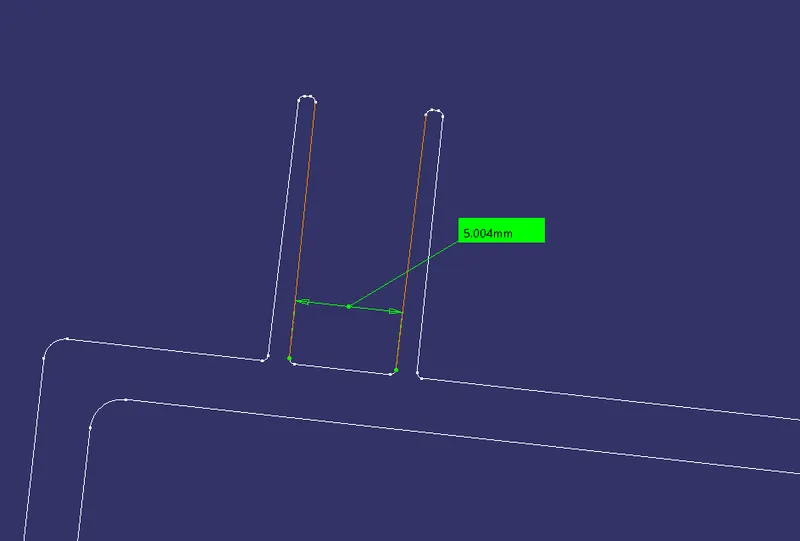

spacing between the rib is height of the rib devided by width ratio

we get maximum 5mm space between the rib.

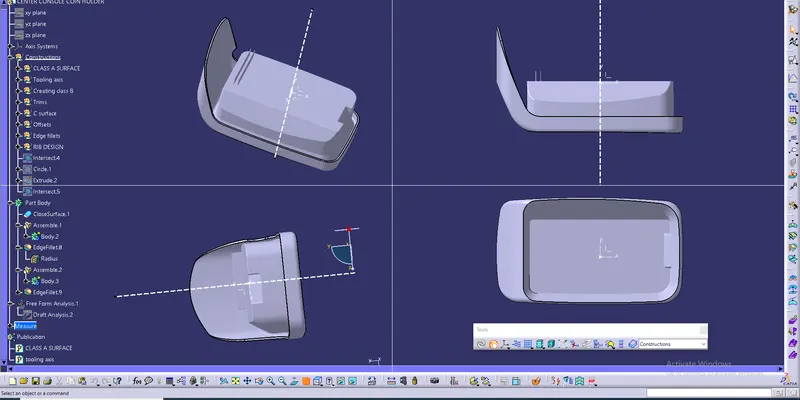

multi views
