Door Arm Rest

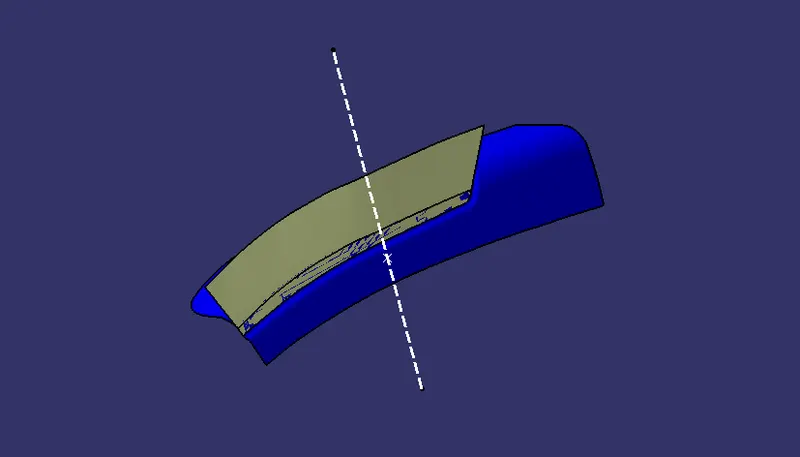

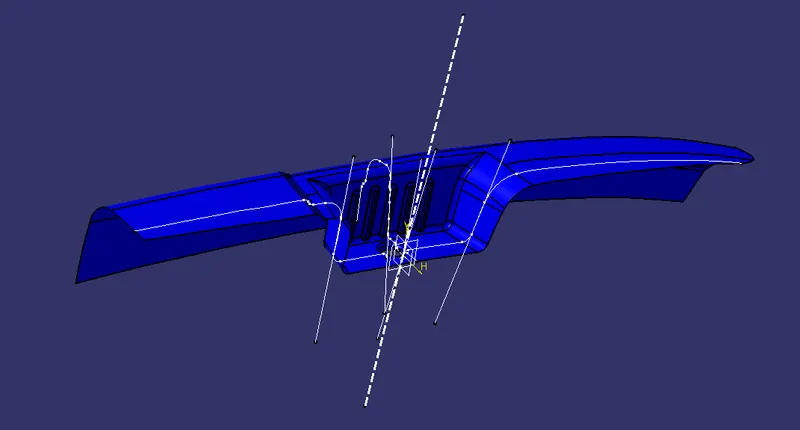

creating tooling axis by bisecting the lines

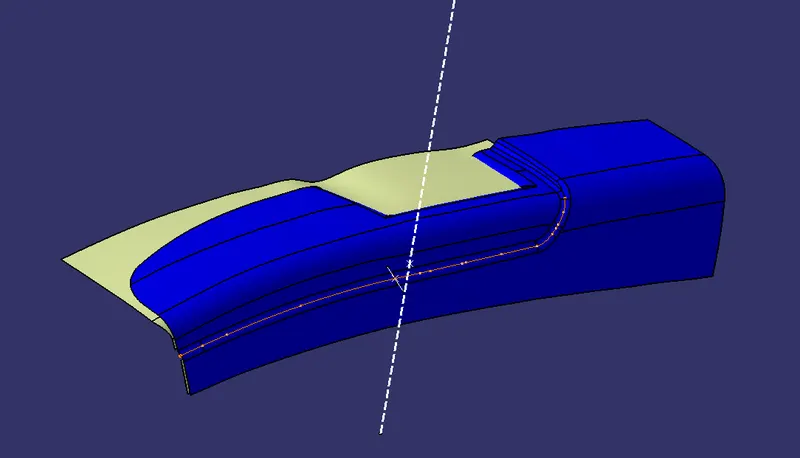

extract the face from class A

untrim and extrapolate the extract face

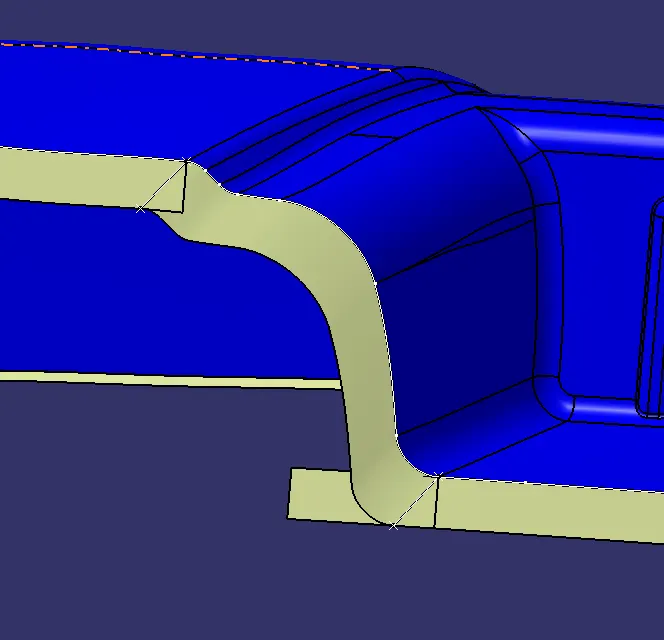

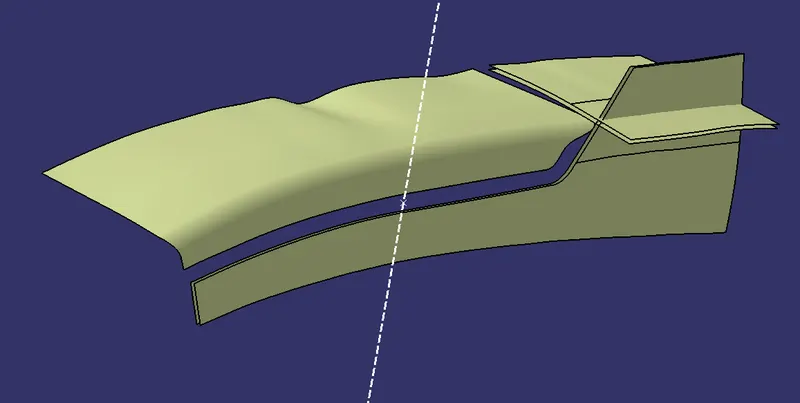

offset both faces 2.5mm

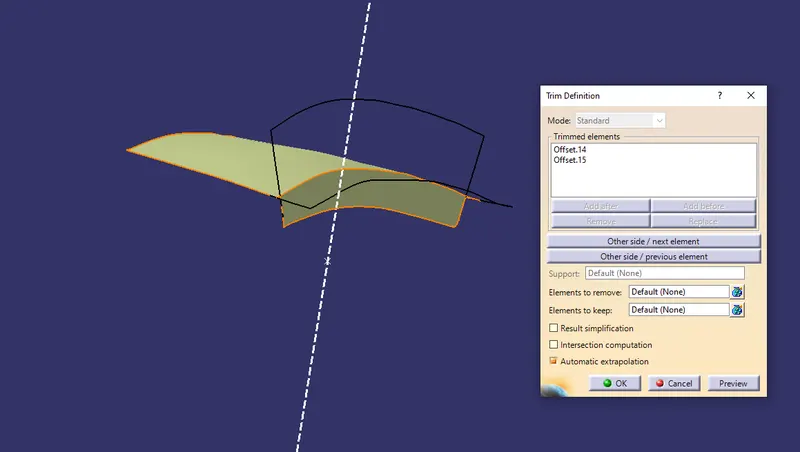

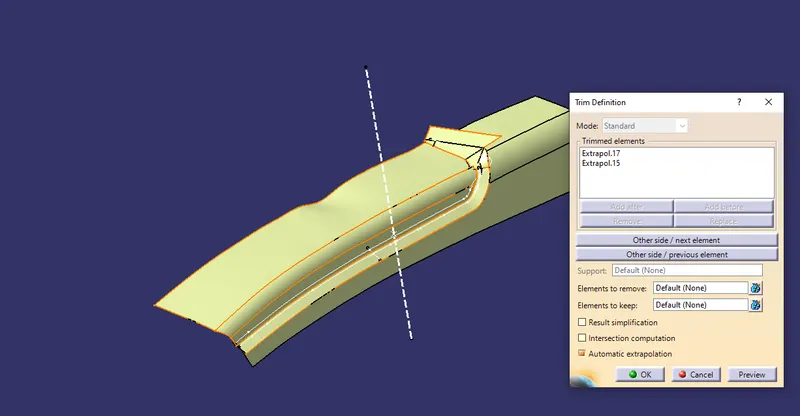

trim the outer faces

extract other faces

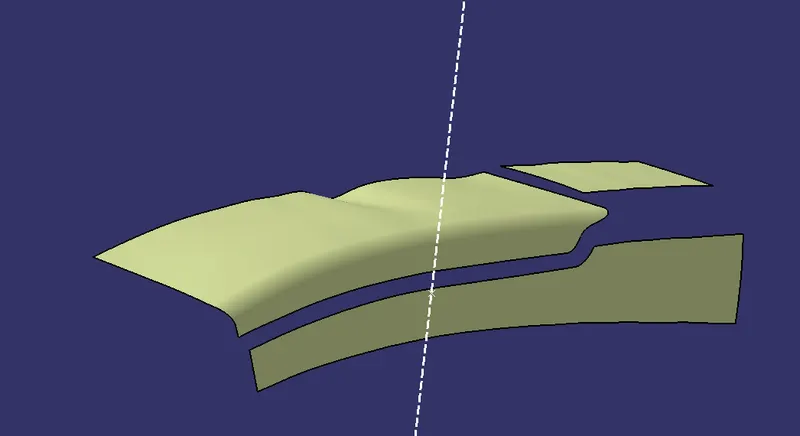

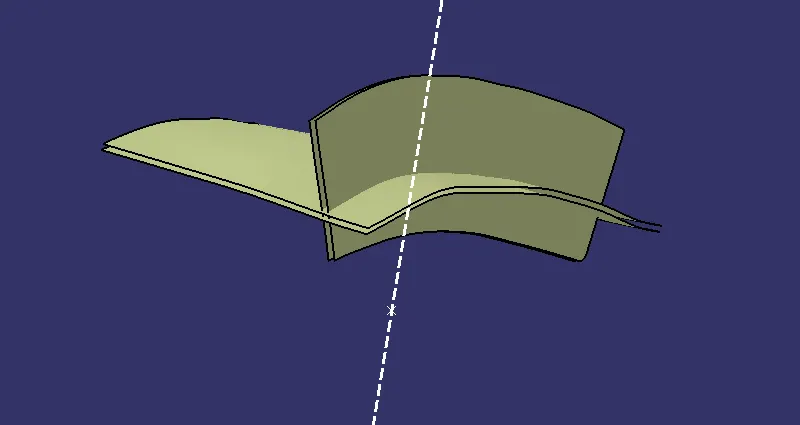

extrapolate and offset

hide the extrapolated faces and trim the outer faces

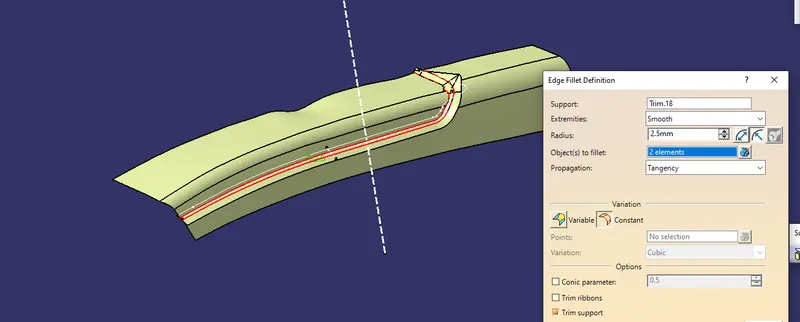

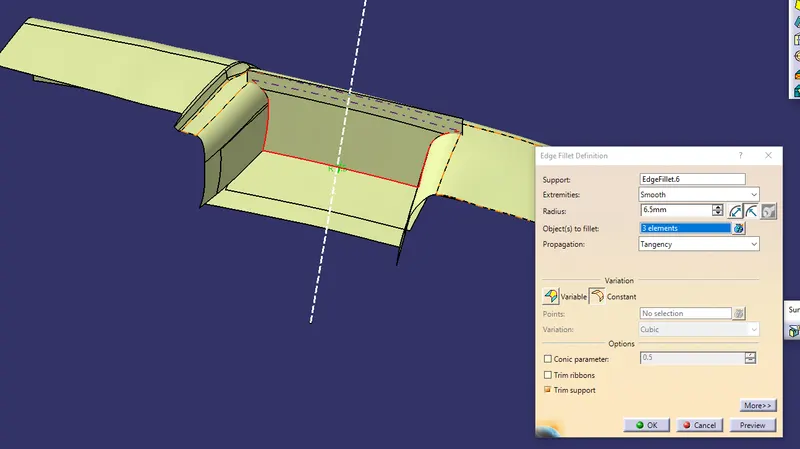

edge fillets

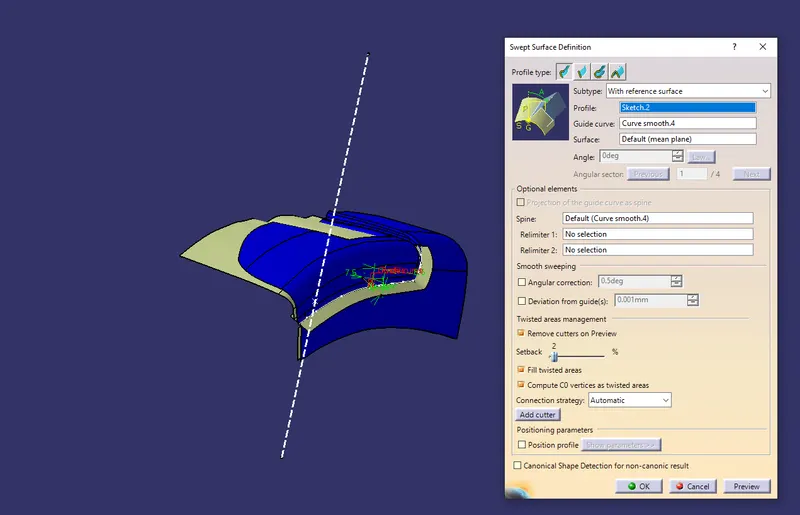

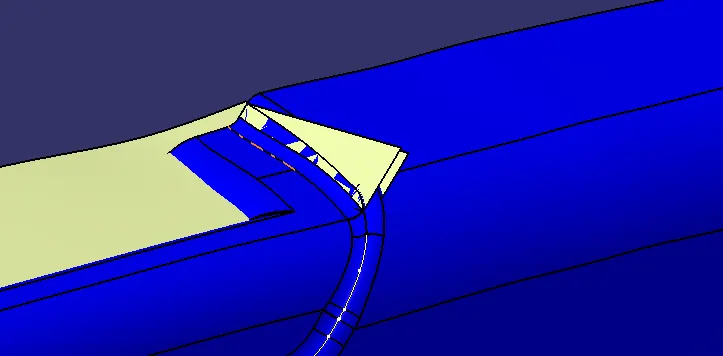

extract the edge and sweep

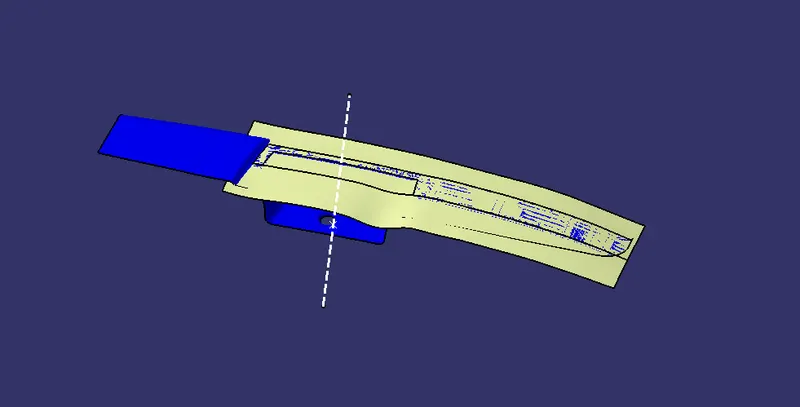

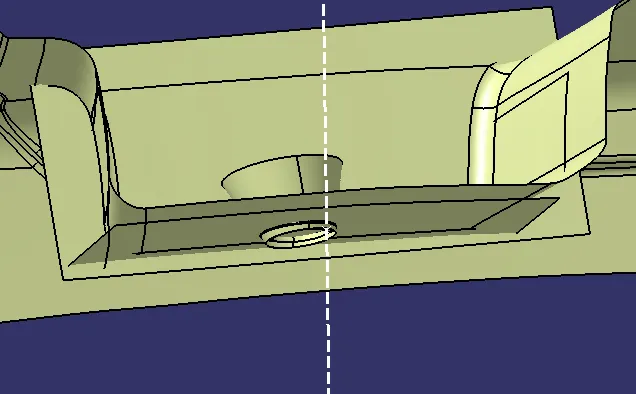

extract and untrim the the top face and offset 2.5mm

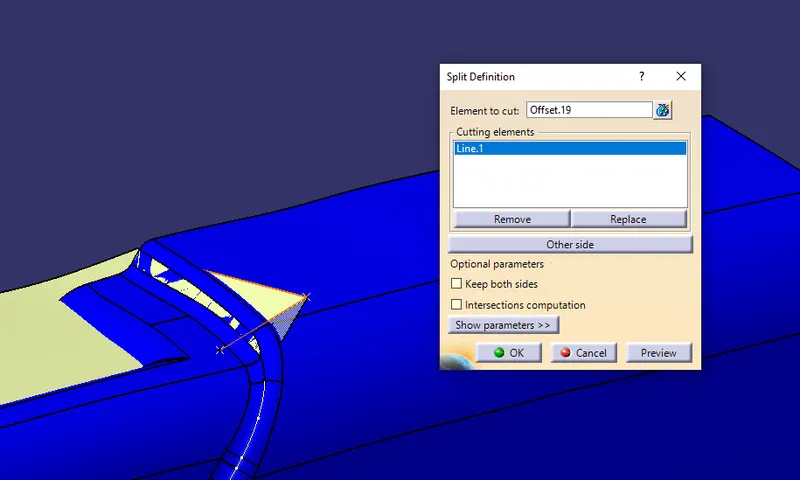

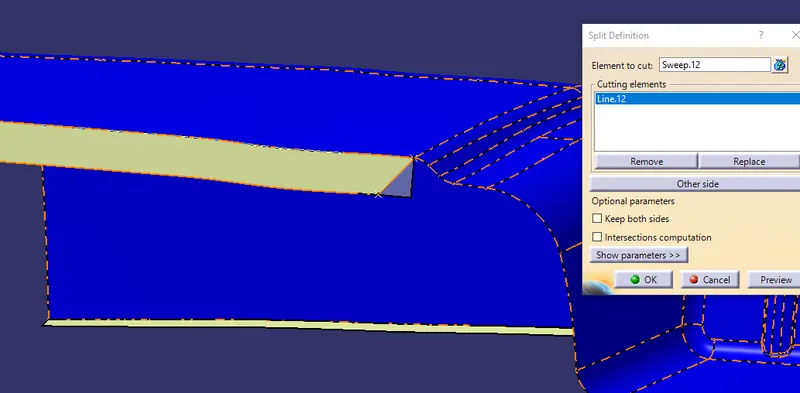

create point and line then split

using blend operation and join the both faces

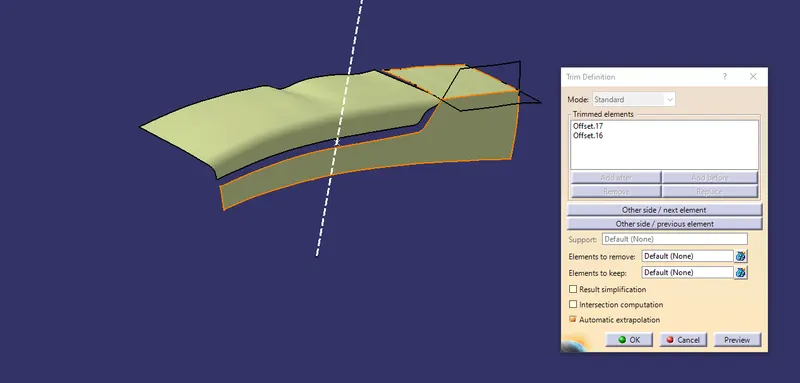

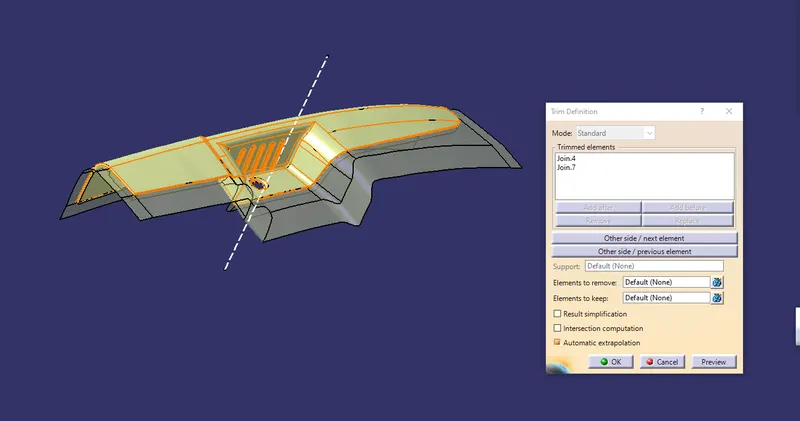

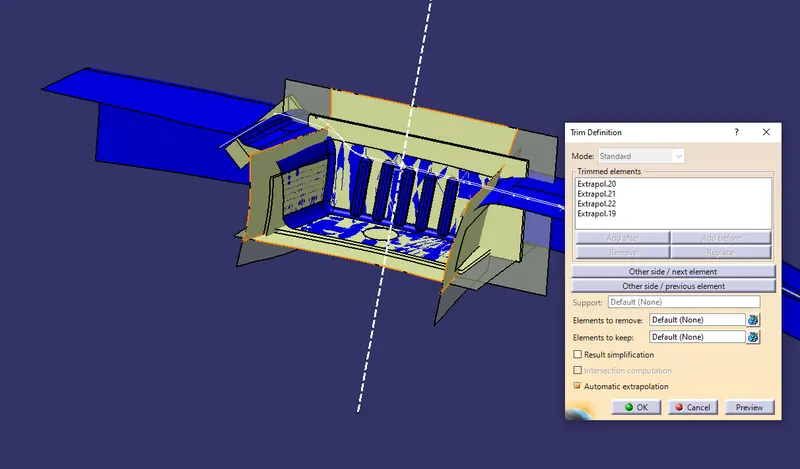

trim the parts

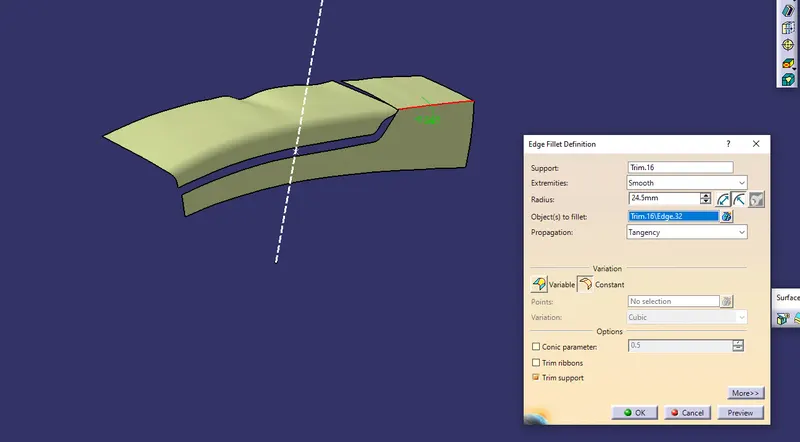

edge fillets

extract and untrim the part then extrapolate and offset

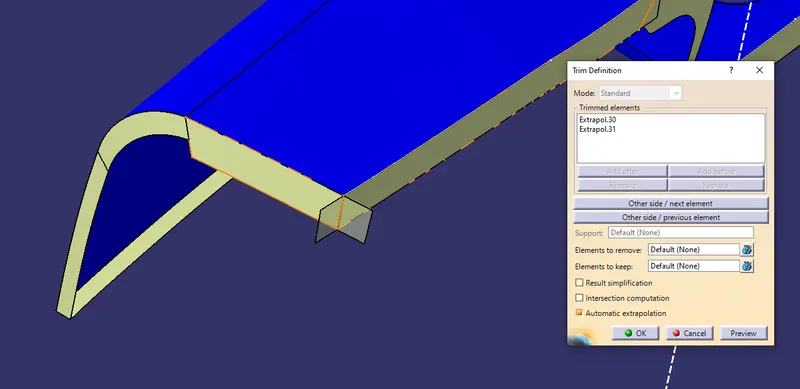

trim the faces

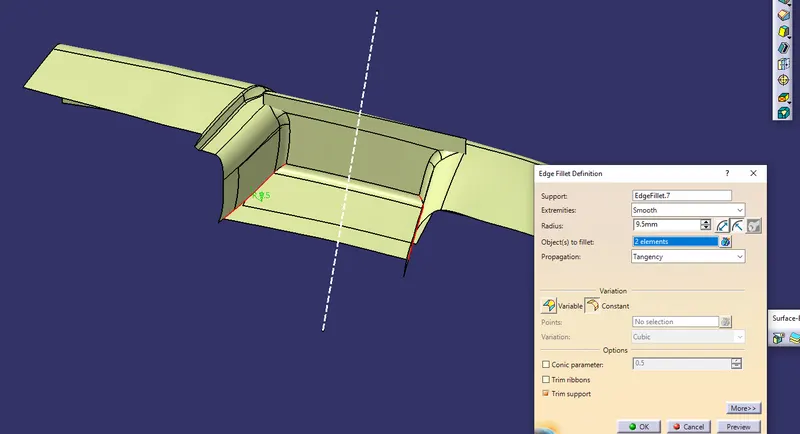

edge fillets

extract and offset

for creating C surface take the edges of class A and sweep

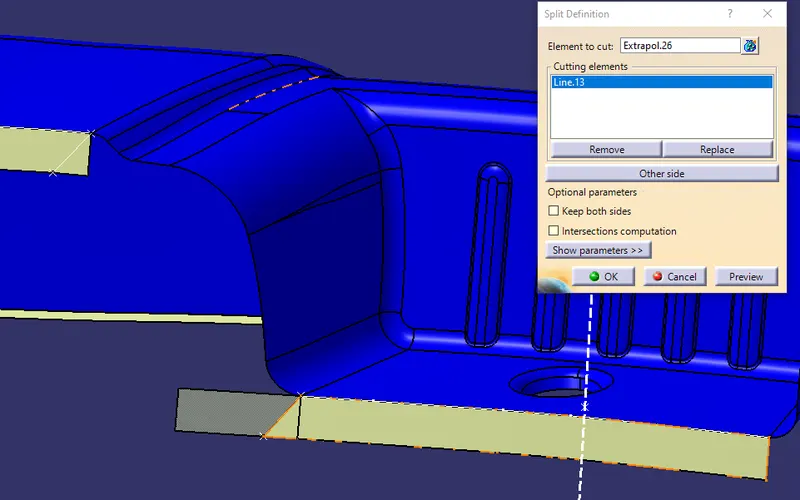

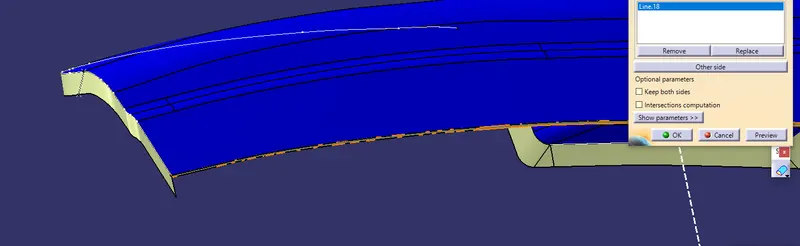

create point and line then split

take boundry and create multisection

and same for other side

trim the un eanted parts

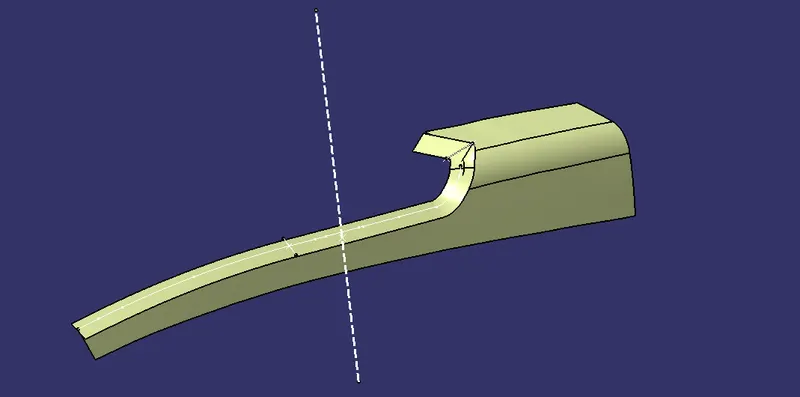

join with A surface

trim with B surface

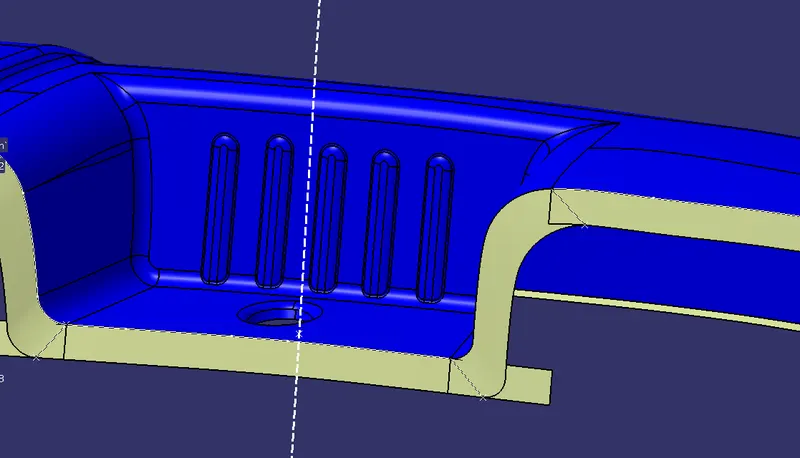

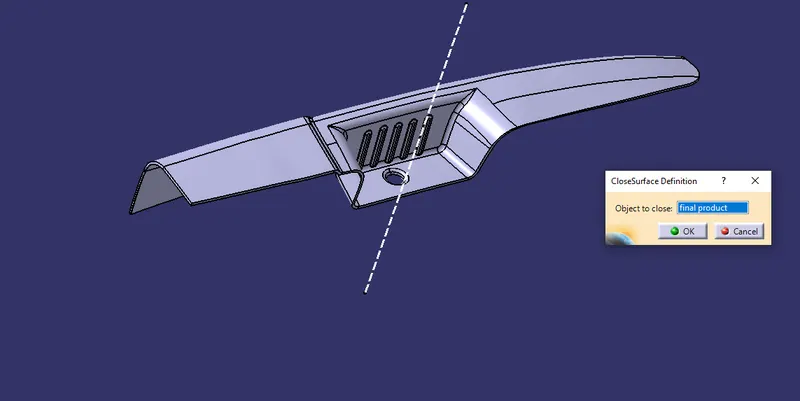

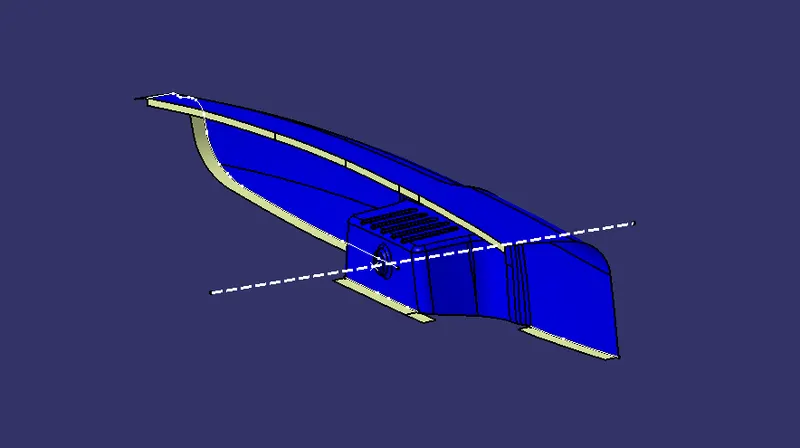

giving close surface

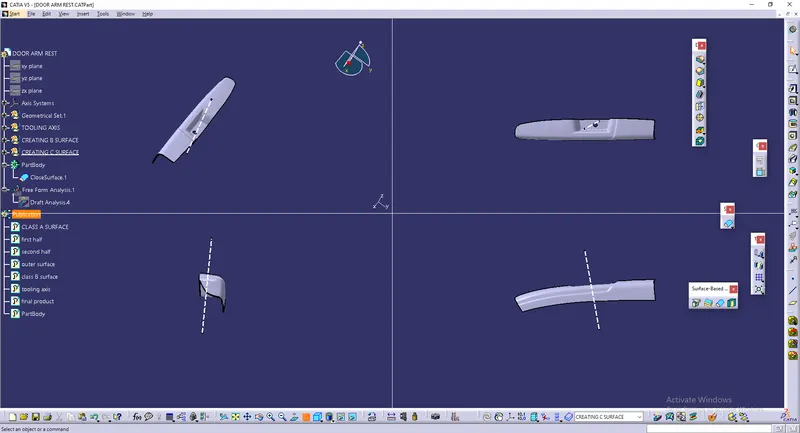

multi views

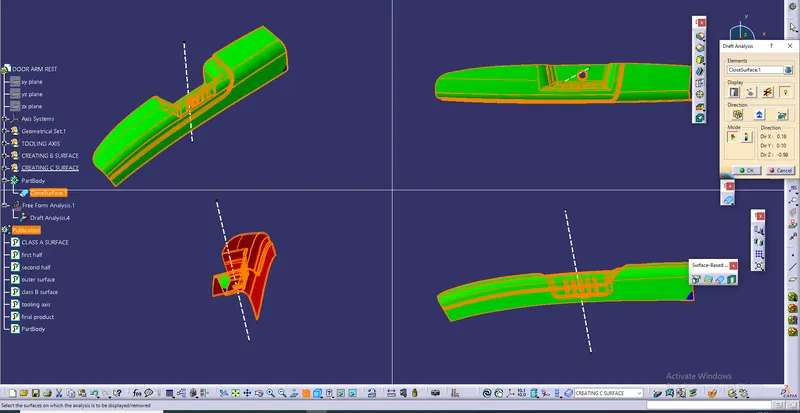

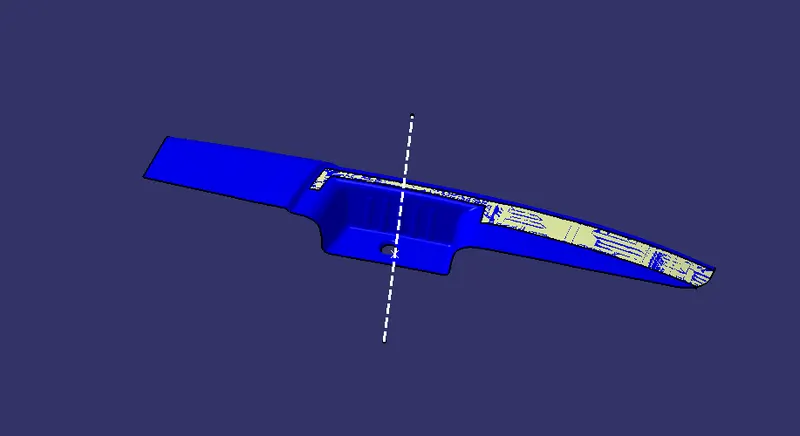

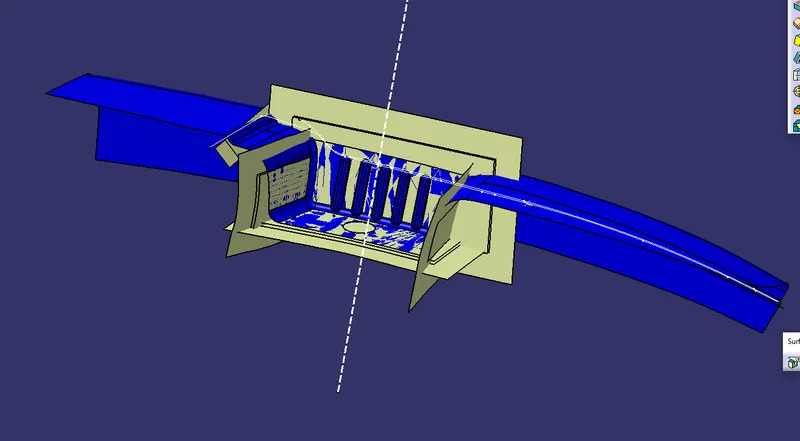

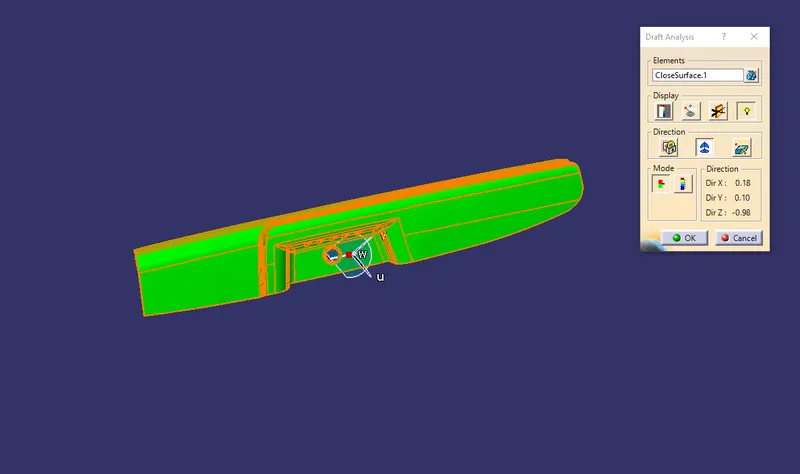

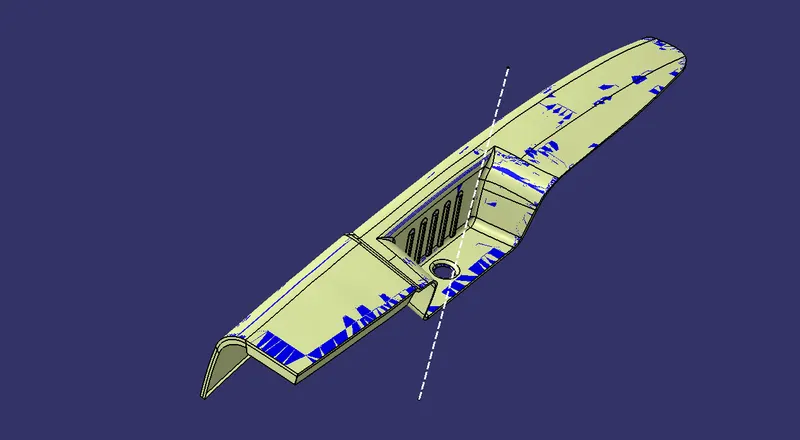

draft analysis

multi views
