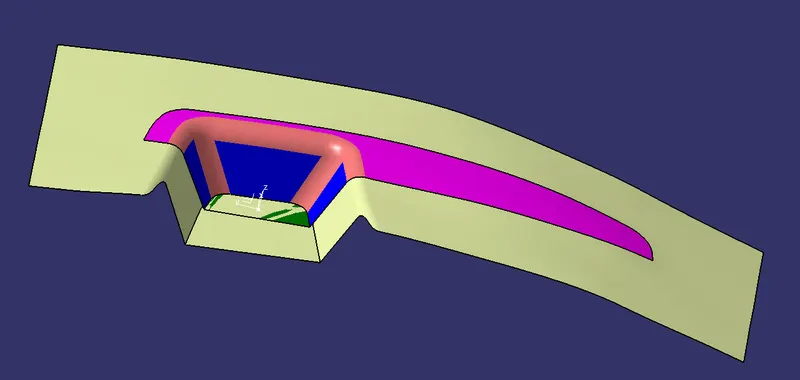

Switch Bezel Design

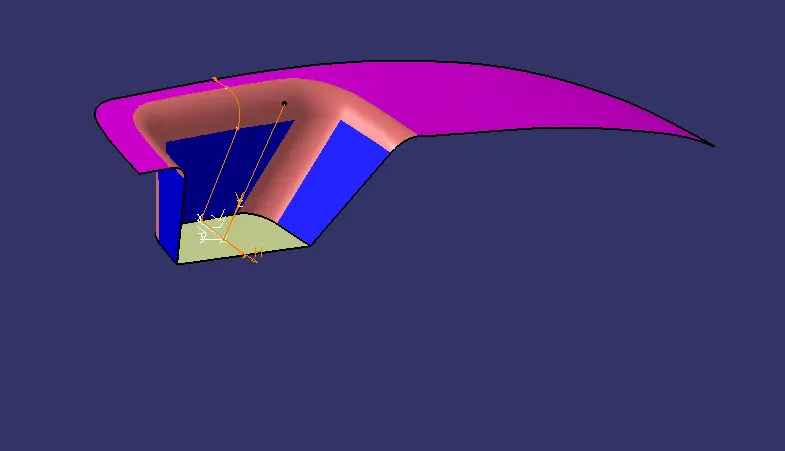

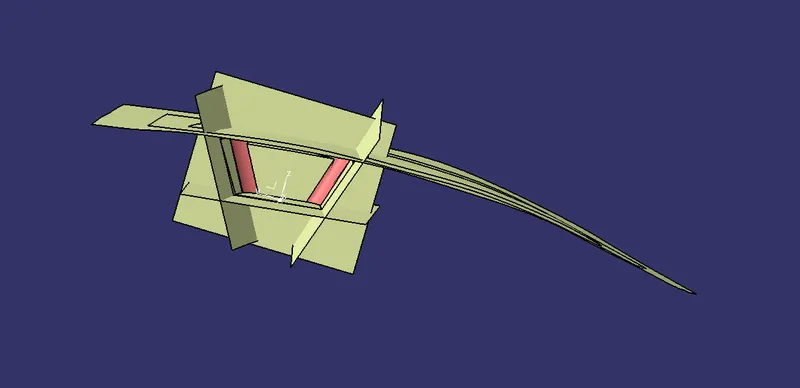

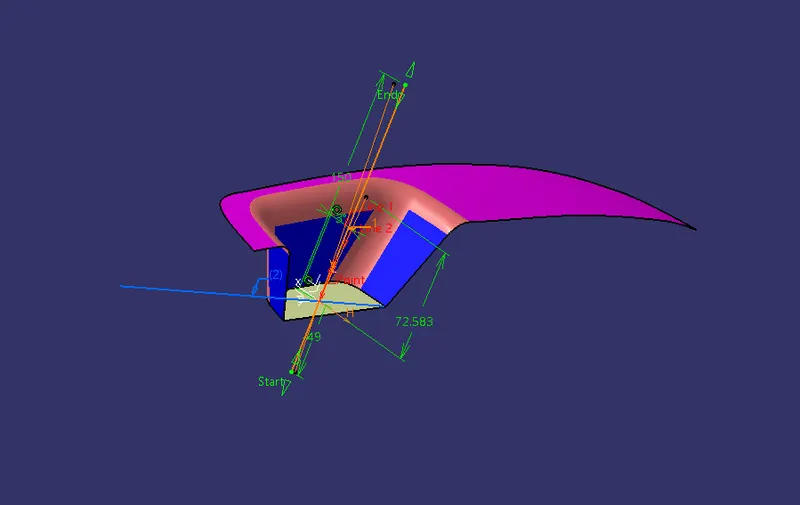

Creating point and axis system on bottom party for creating tooling axis

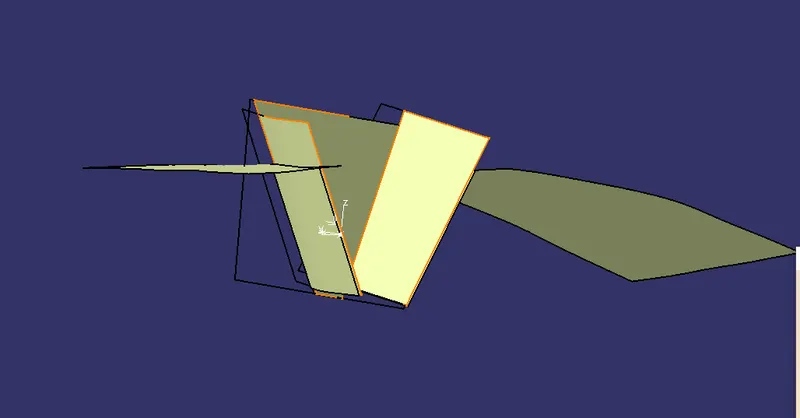

intersect the part on Y direction and create side lines for walls

Bisect the line using two side lines and point

intersect on X direction and create bisecting line

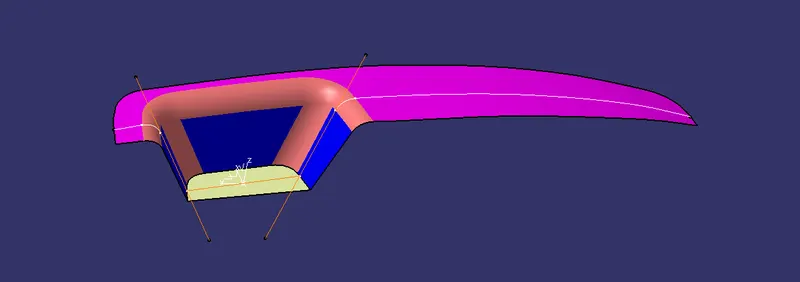

Now create final tooling axis by bisecting the two X and Y direction tooling axis

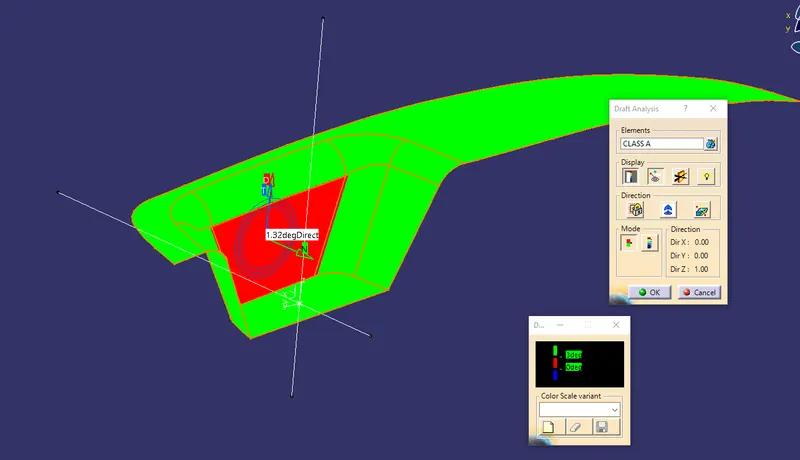

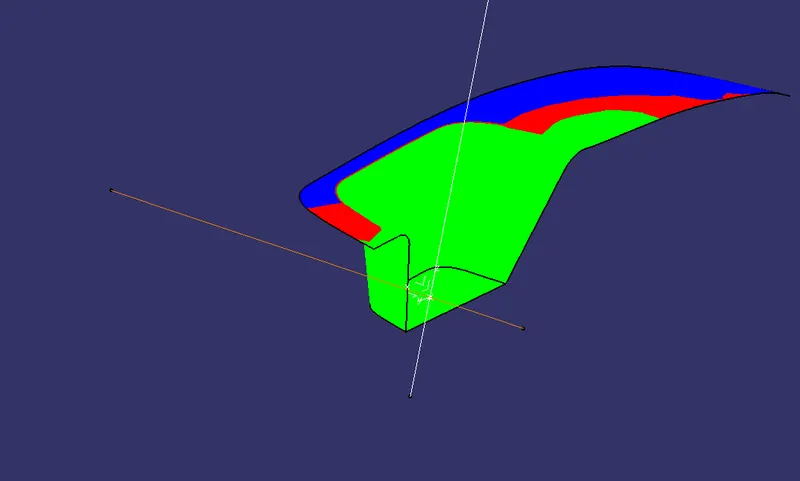

Draft analysys

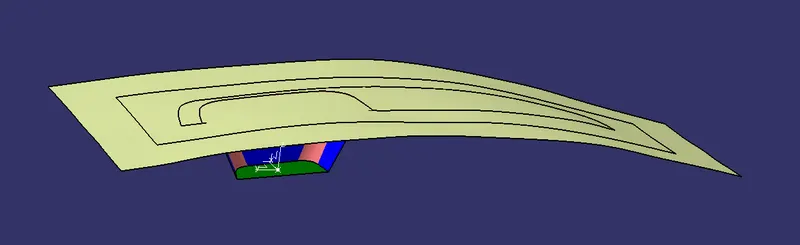

we have to make side core for this component

for that we have to make tooling axis on X direction

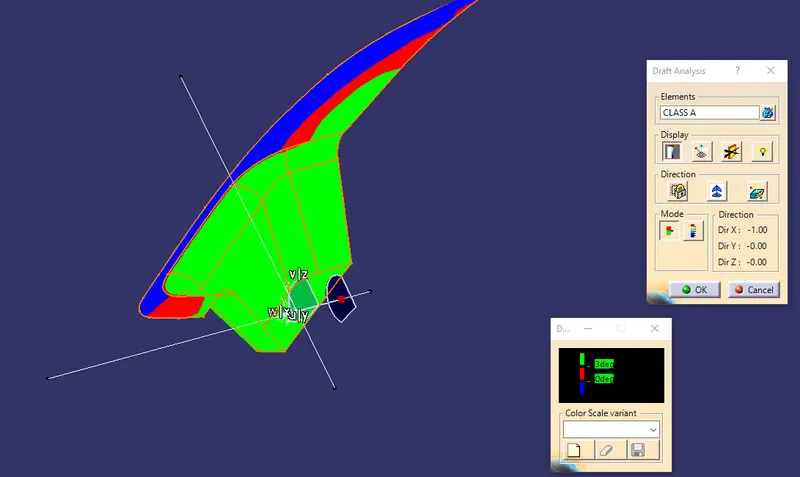

do draft analysis on X direction

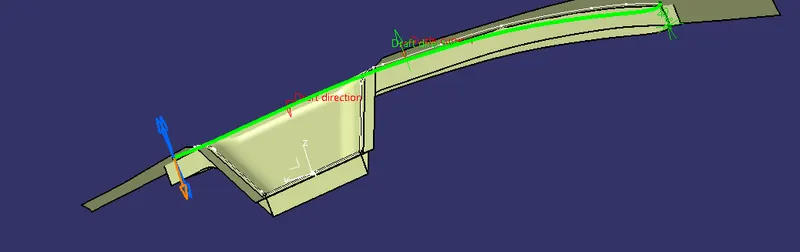

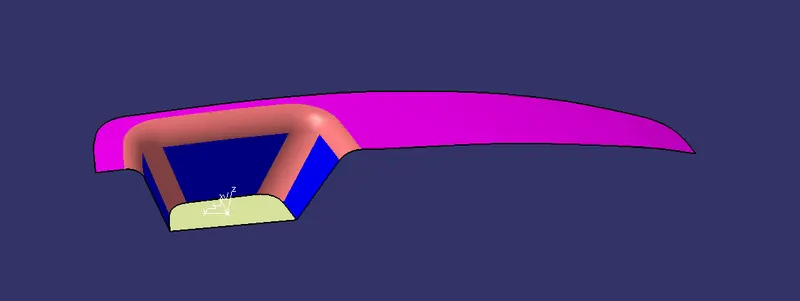

extract and untrim the top surface from class A and do extrapolate

same for side walls and bottom part

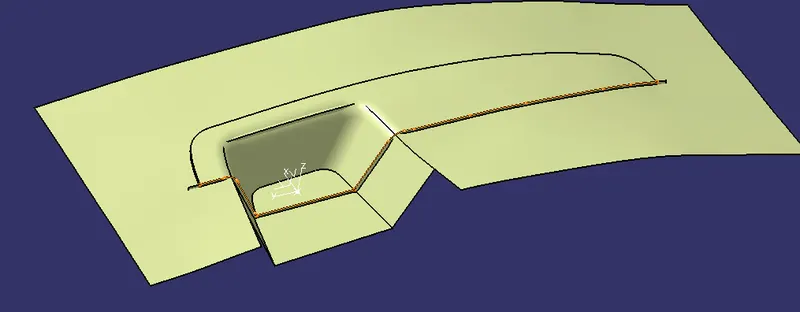

Offset 2.5mm and trim the faces

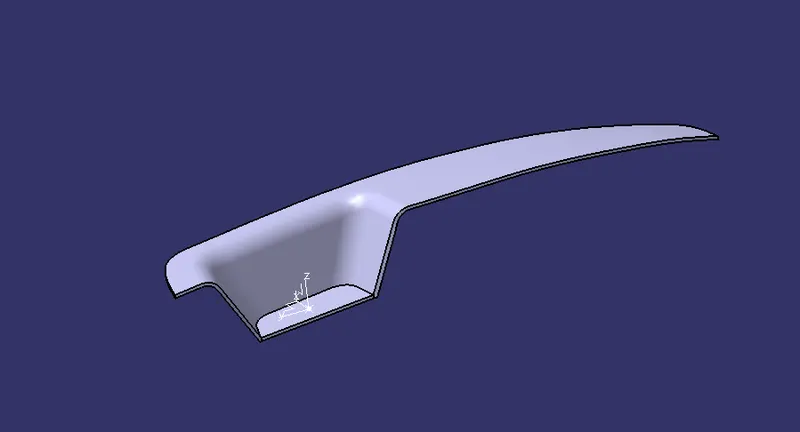

we get class B surface

give edge fillets for class B surface

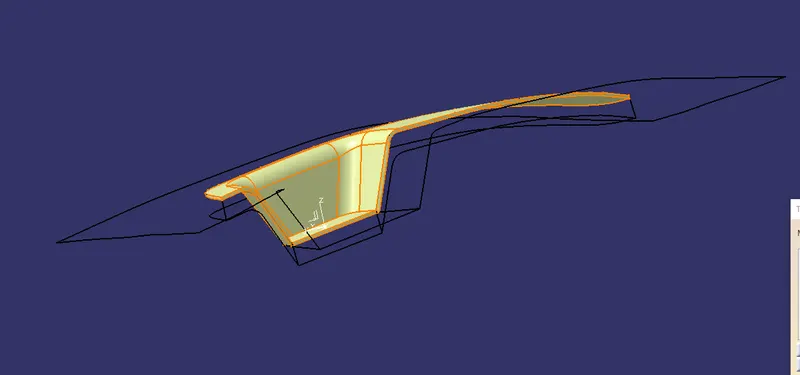

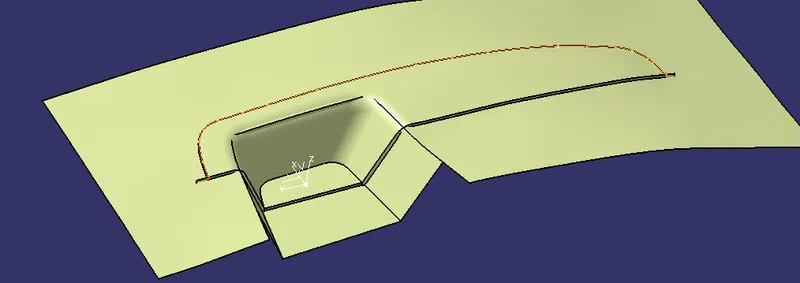

taking extract of class A surface

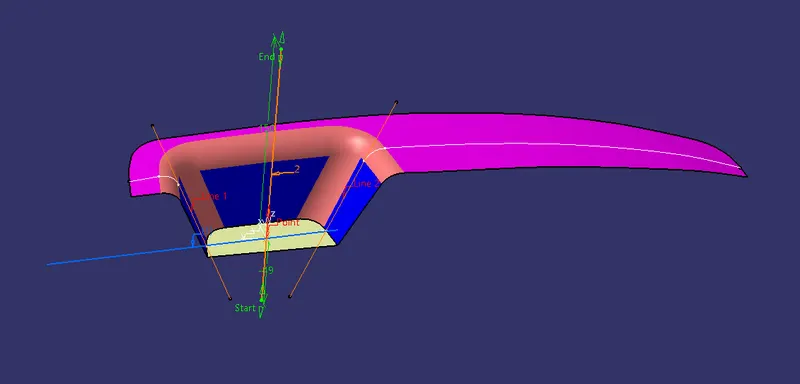

do sweep by giving 3 deg draft angle with tooling axis

extrapolate all edges

trim unwanted material

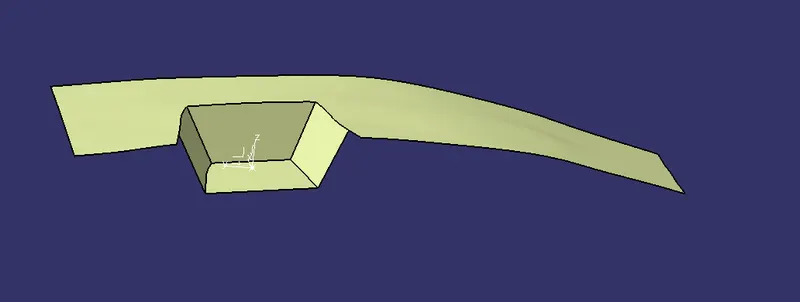

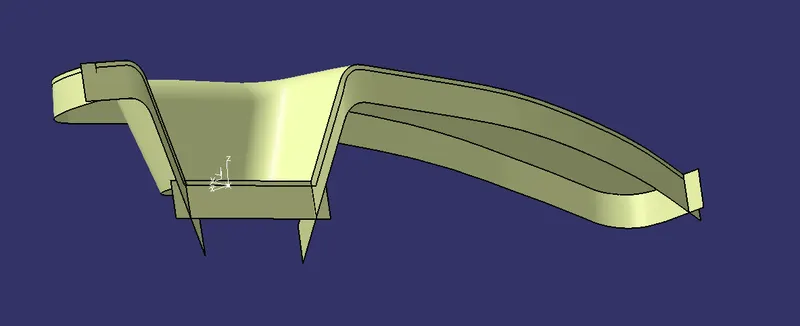

give close surface

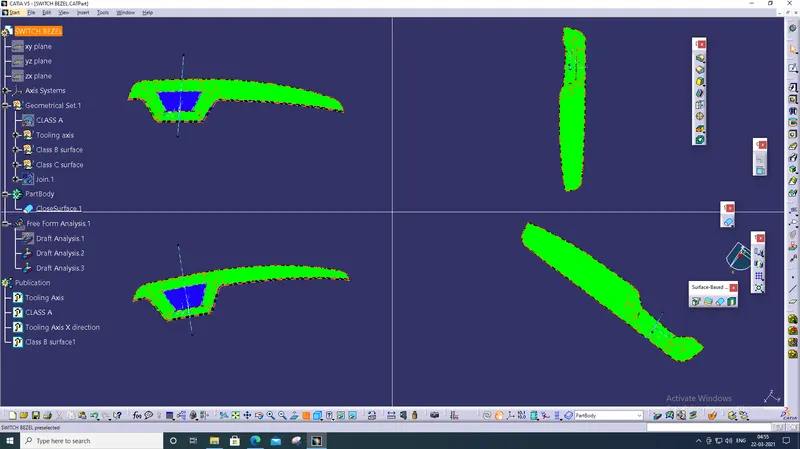

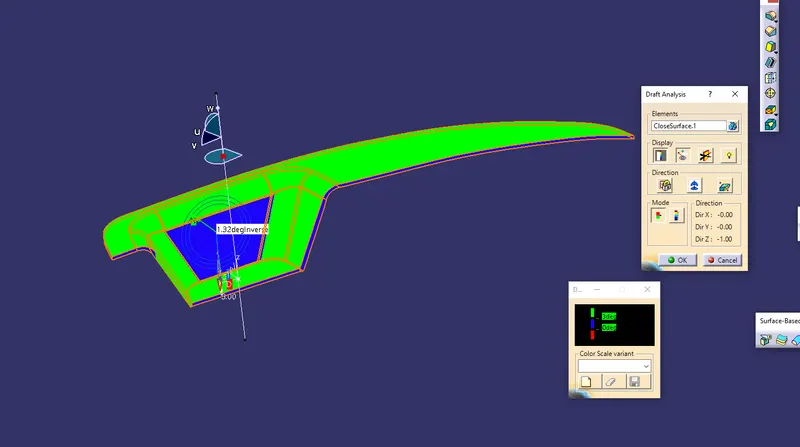

Draft analysis

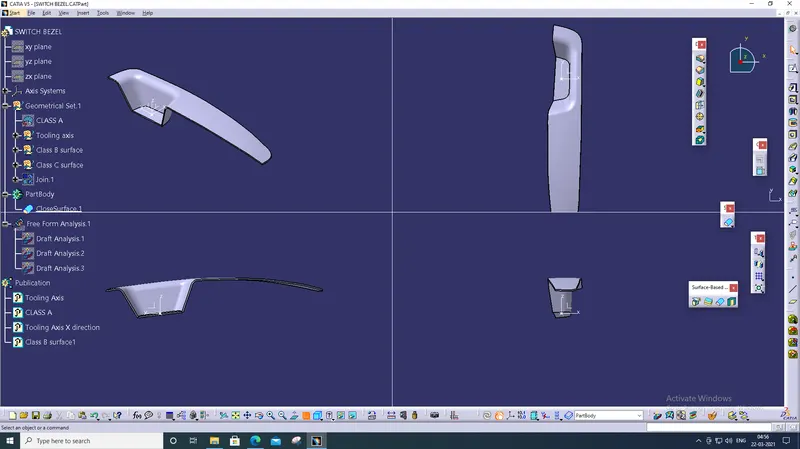

Multi views
