Week 9 Challenge

CPU Fan Case:

Commands used in this model

• Line
• Rectangle
• Circle
• Polygon
• Convert entities
• Extrude
• Ectrude cut
• Hole wizard
• Mirror entities
• Linear sketch pattern
• Move face
• Move/Copy bodies
• Split
• New part

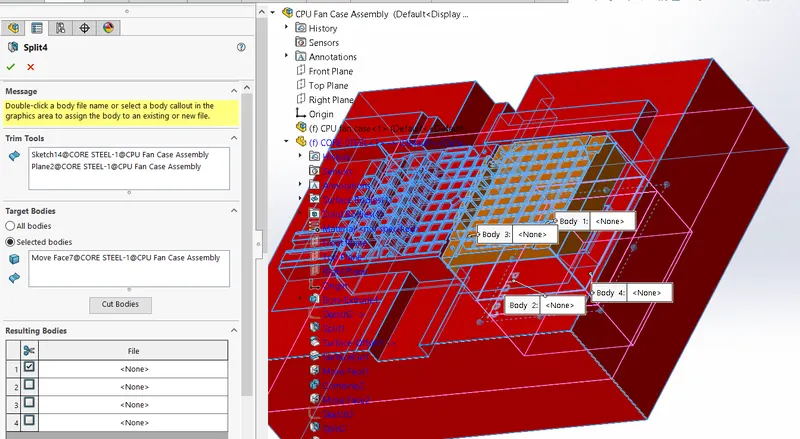

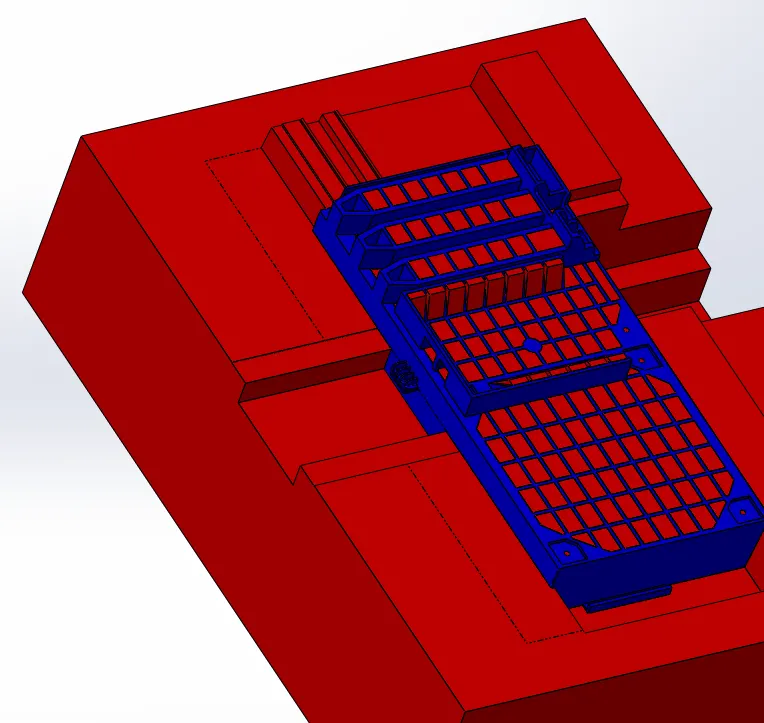

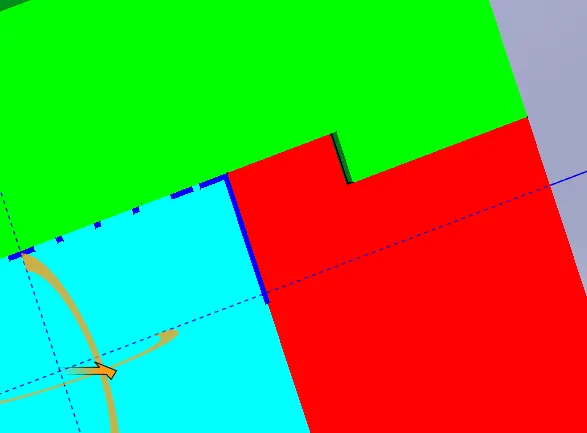

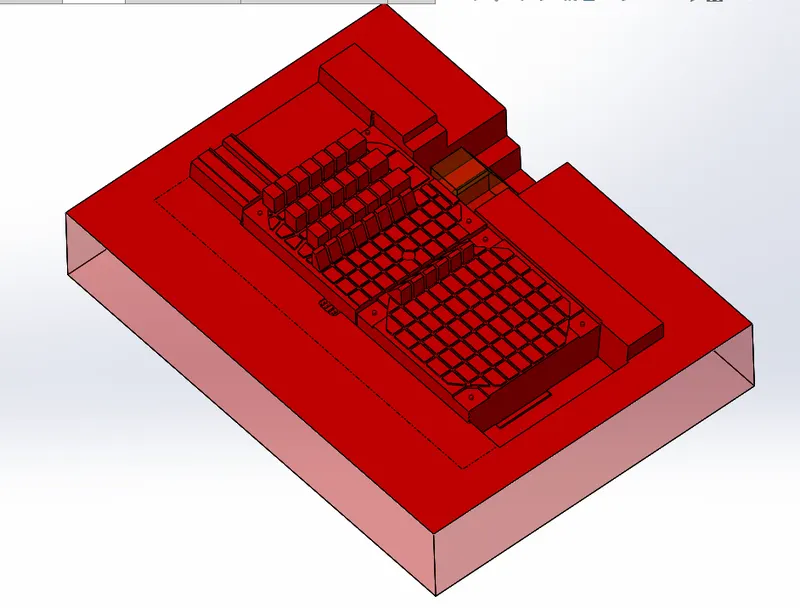

Drawing sketch and splitting core part

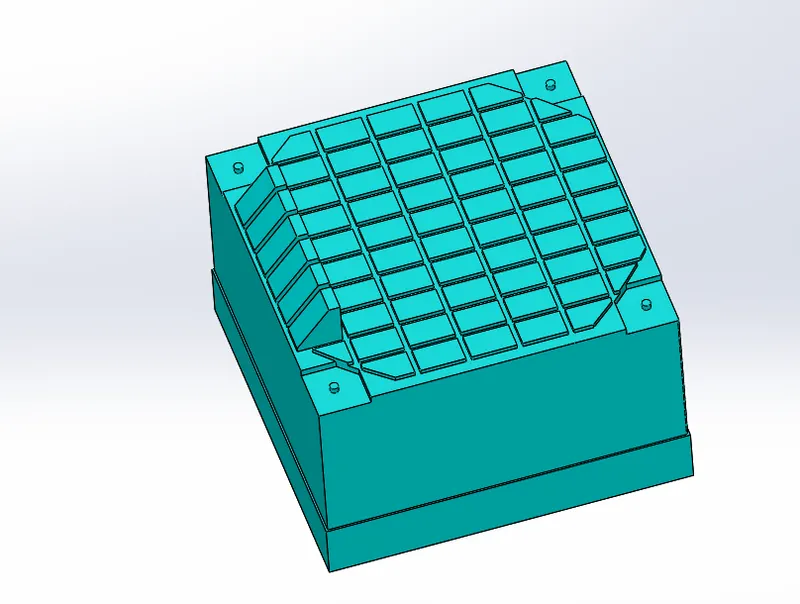

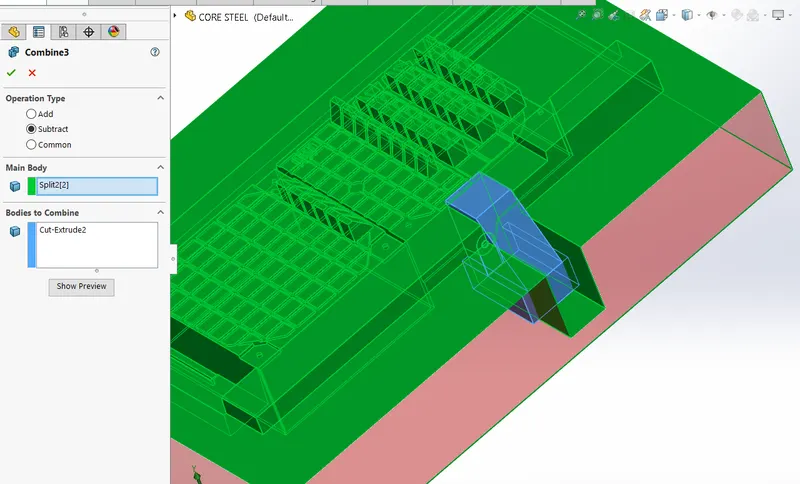

Using combine option removing the slider from core part

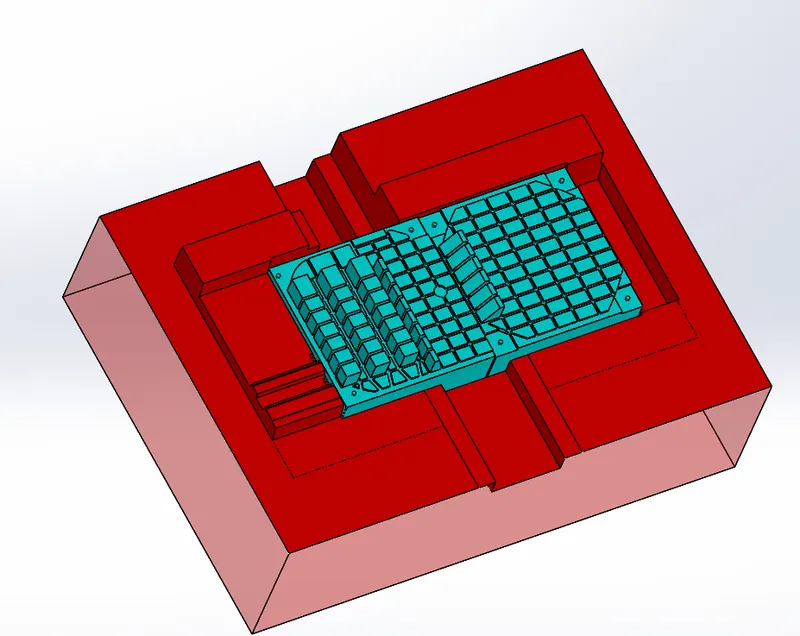

created space for the slider

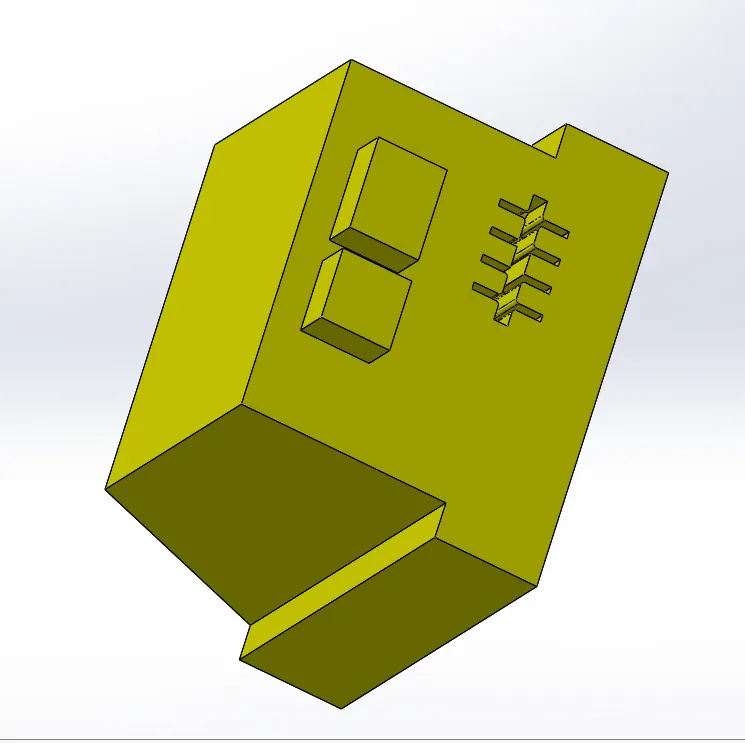

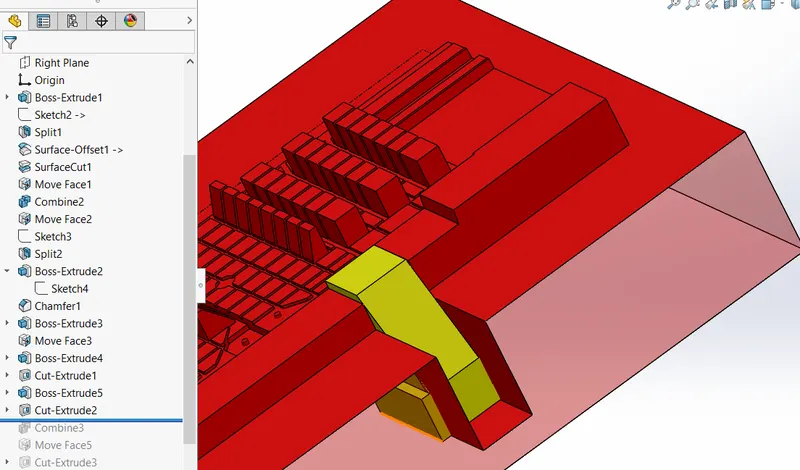

Slider

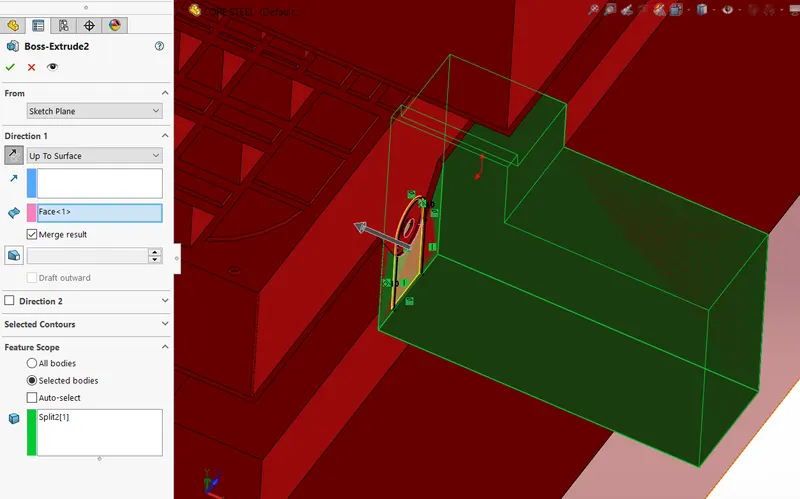

created slider for other side feature

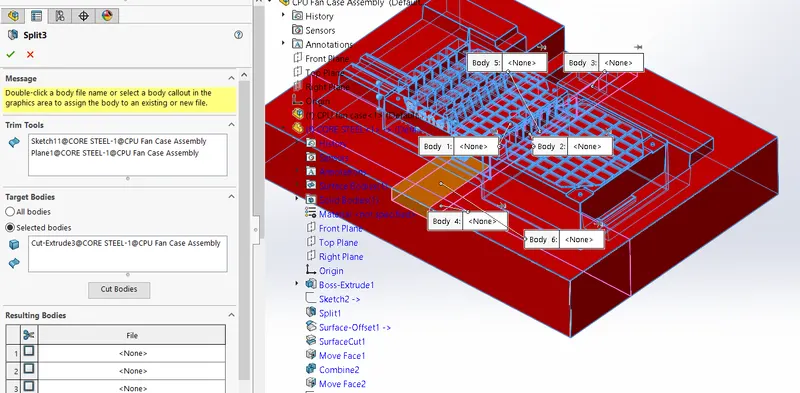

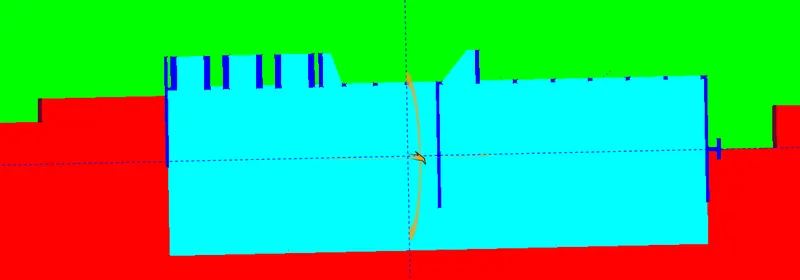

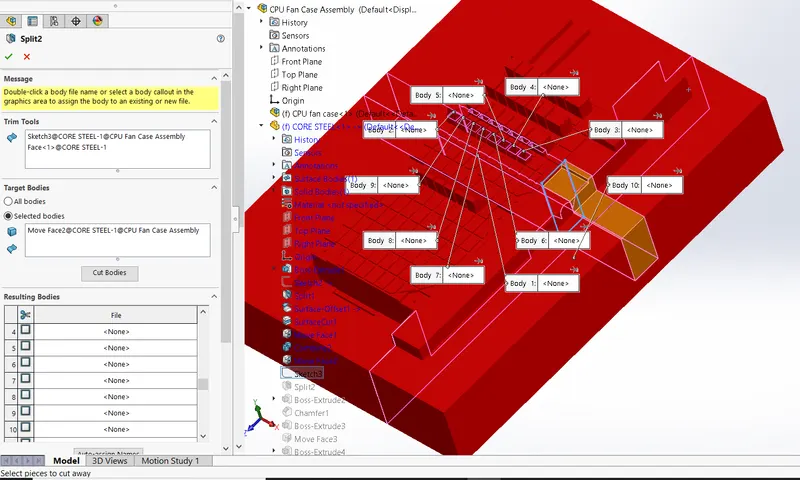

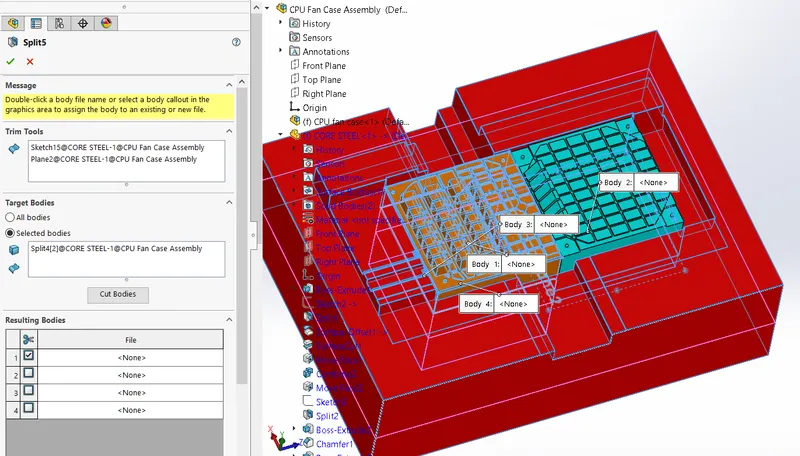

spliting the part

created space for slider

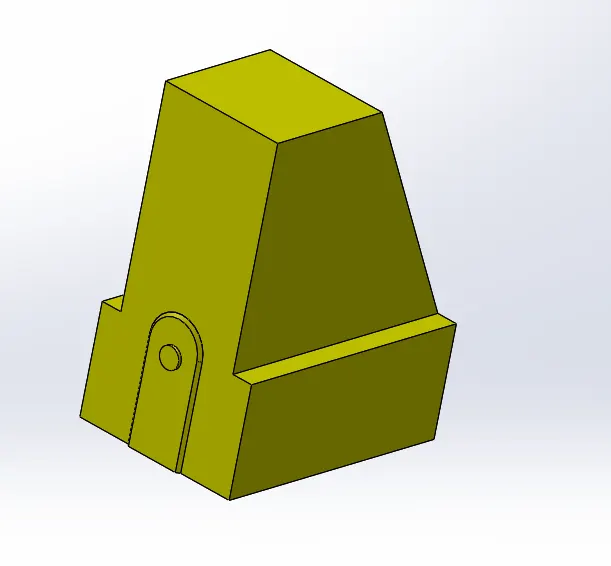

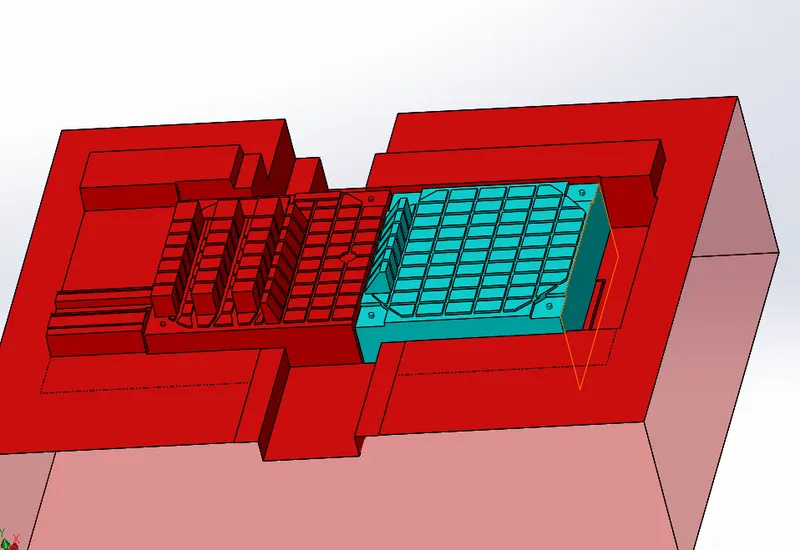

slider

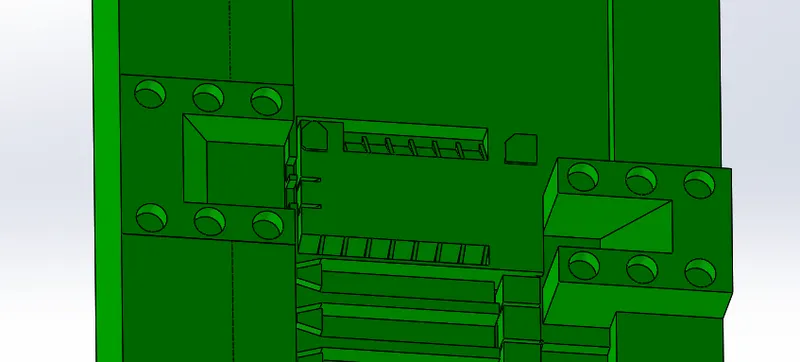

Depth of the side walls are big so that created inserts for easy machining

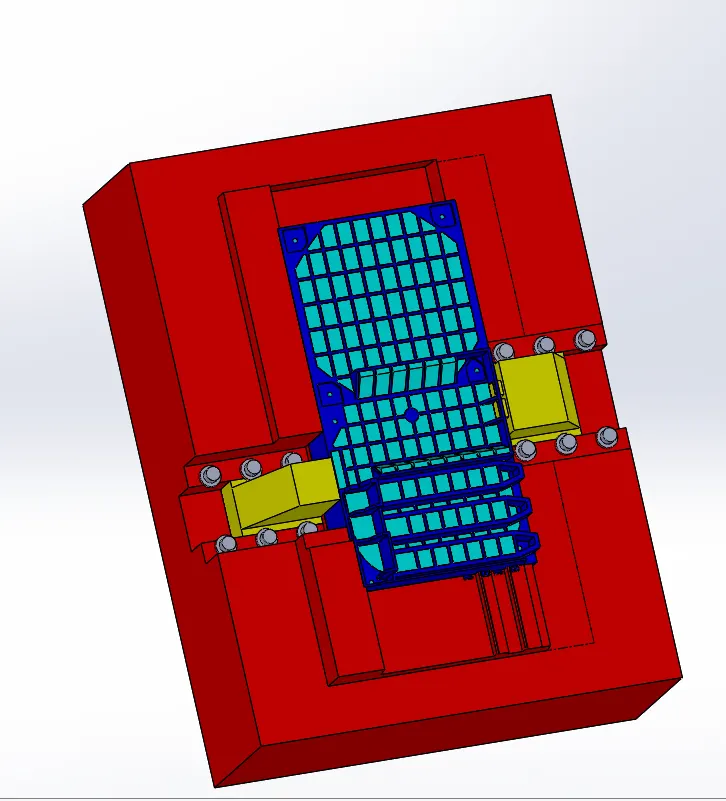

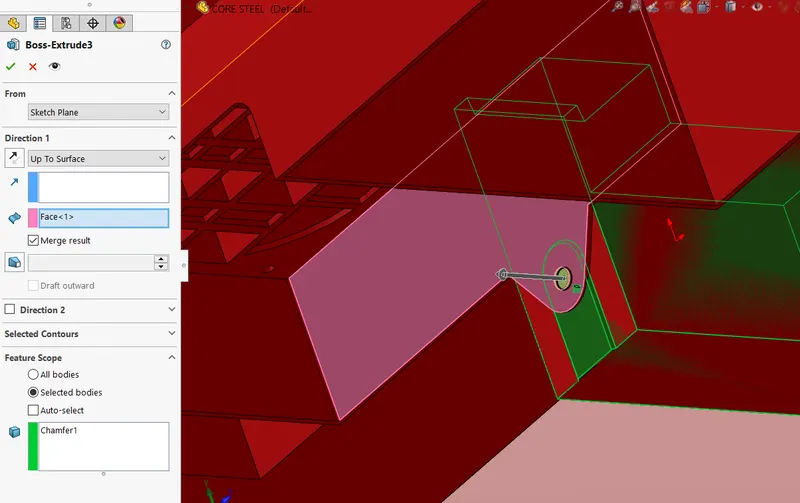

created bolts and washers for slider guideways

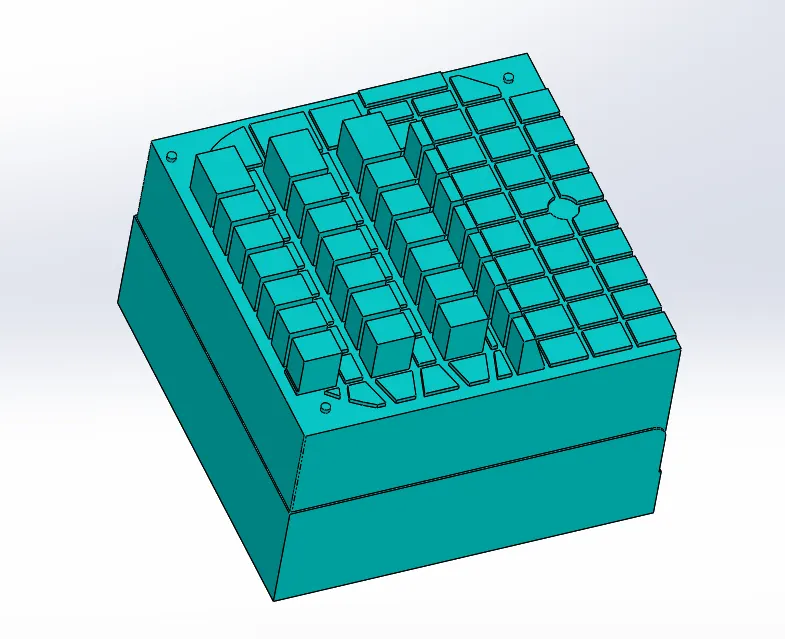

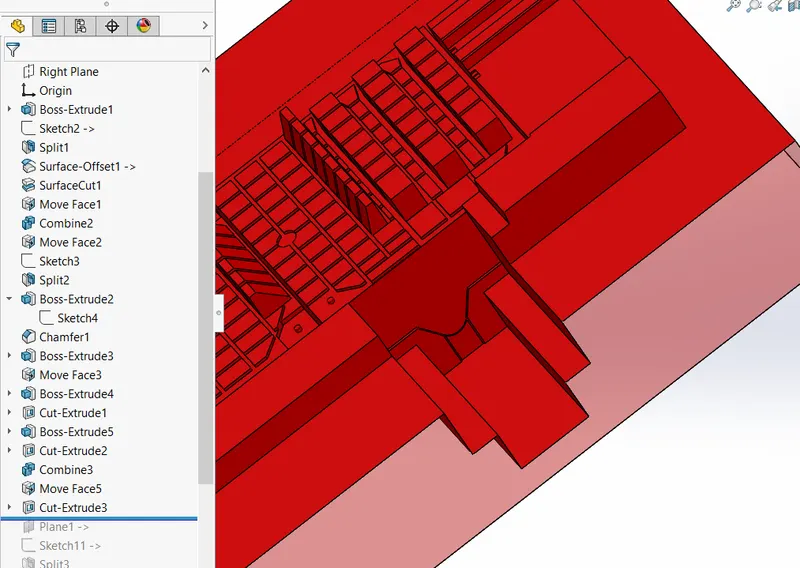

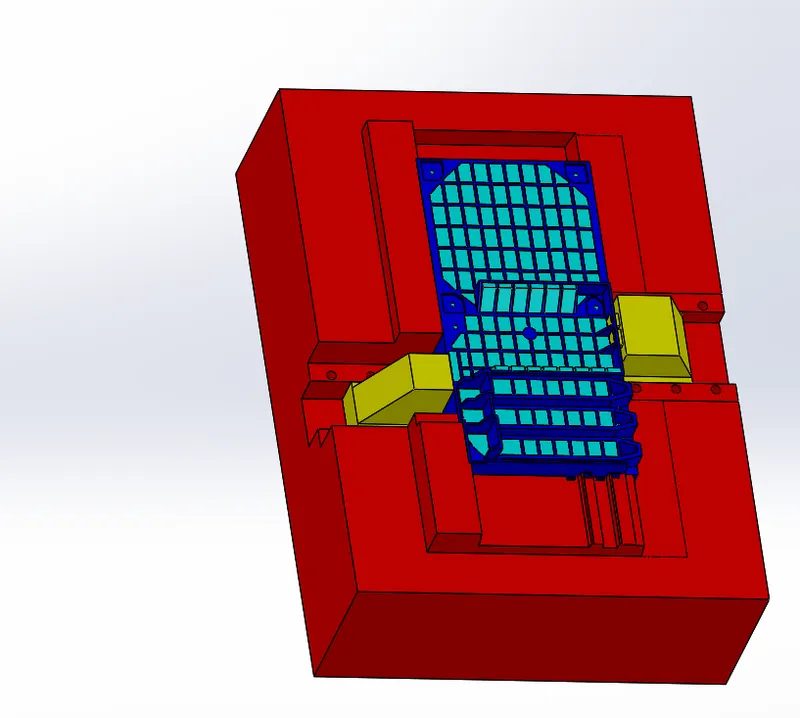

removed excess material from core and cavity blocks

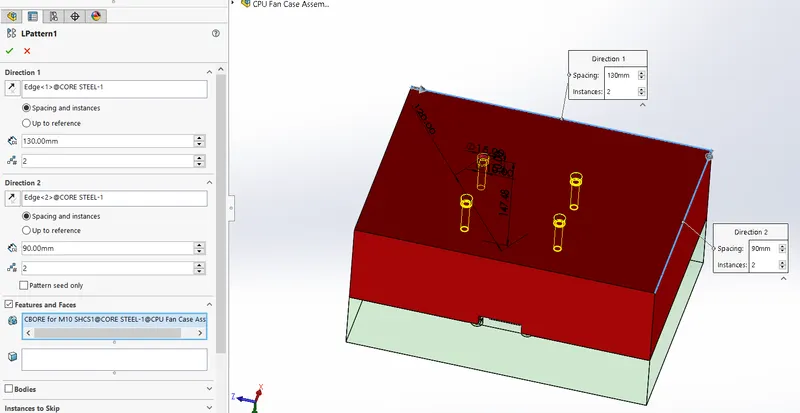

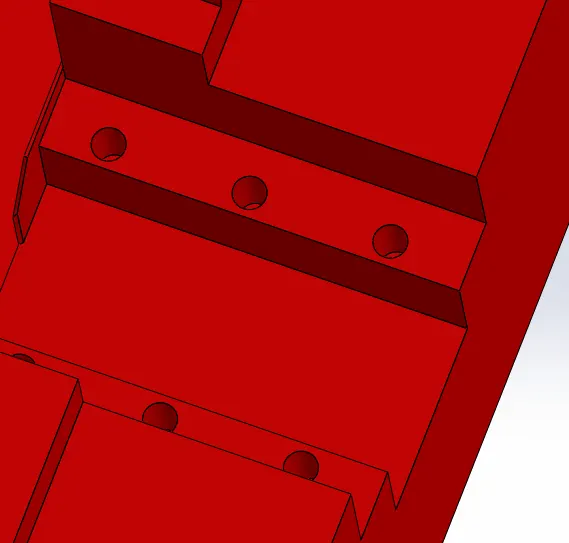

Created insert bolt holes

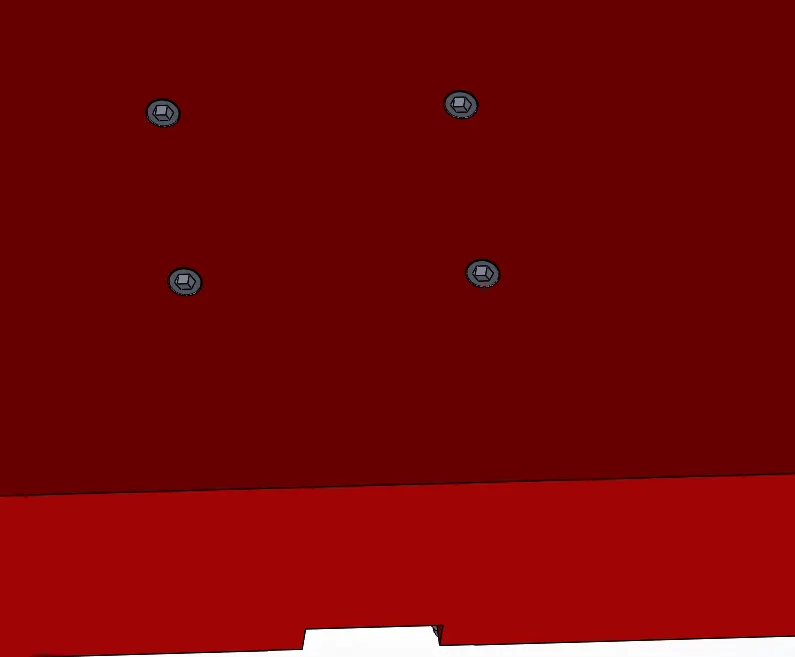

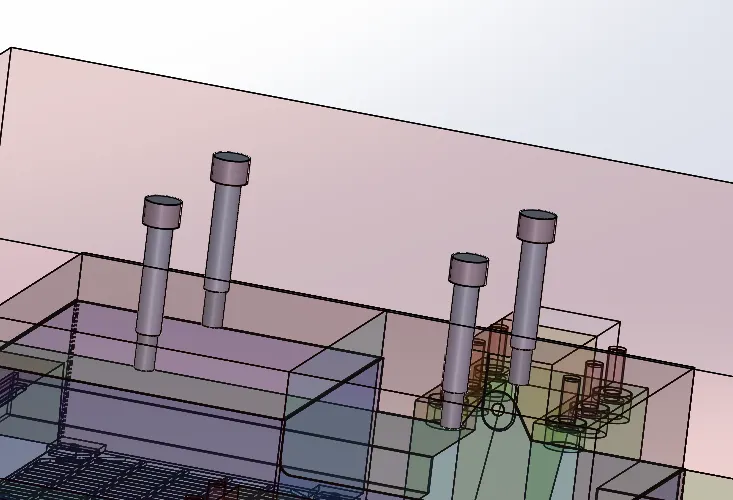

insert bolts

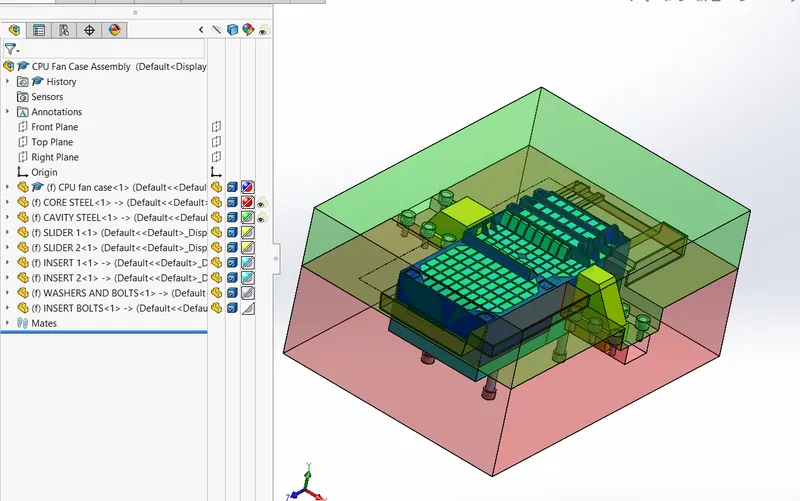

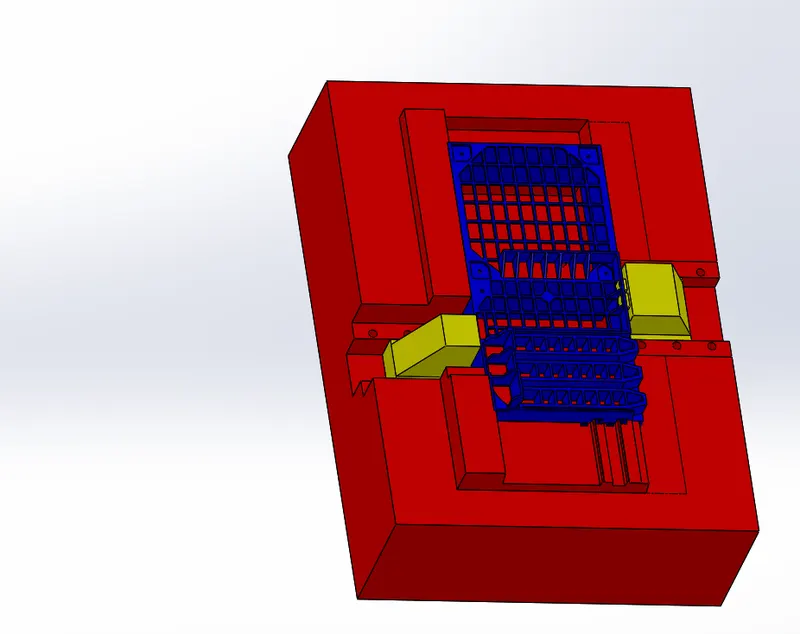

Two sliders

Two inserts

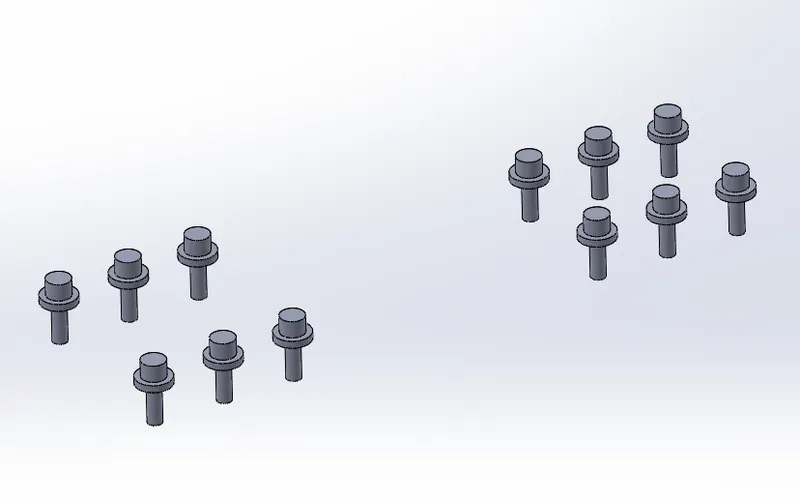

Washers and Bolts

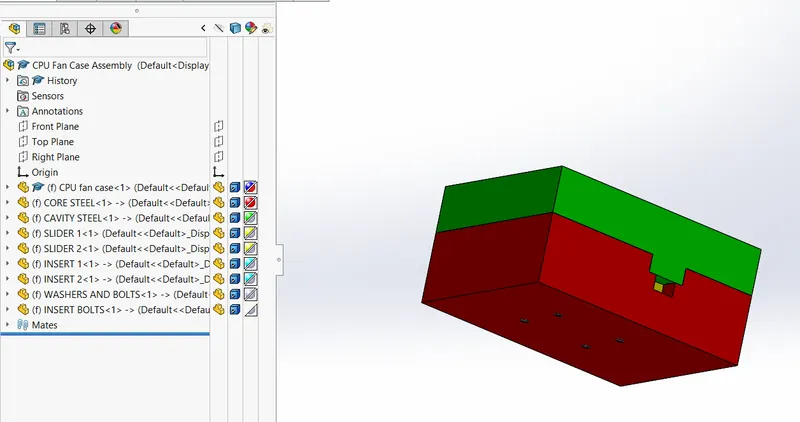

Avoided rubbing surface
