DOOR BAZEL:

Commands used in this part:

• Line
• Rectangle
• Circle
• Point
• Convert entities
• Extrude boss/base
• Extrude cut
• Fillet
• Linear pattern
• Mirrir
• Sketch driven pattern
• Move face
• Move/copy bodies
• Delete/keep body
• Split
• Combine

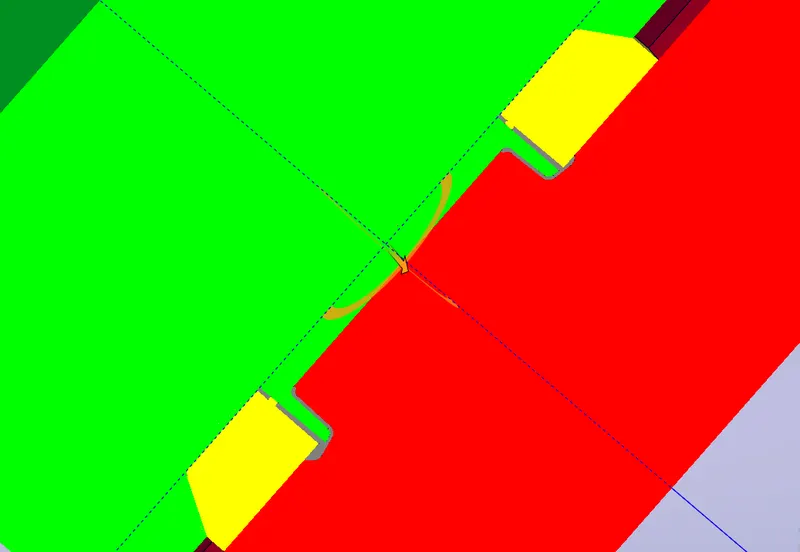

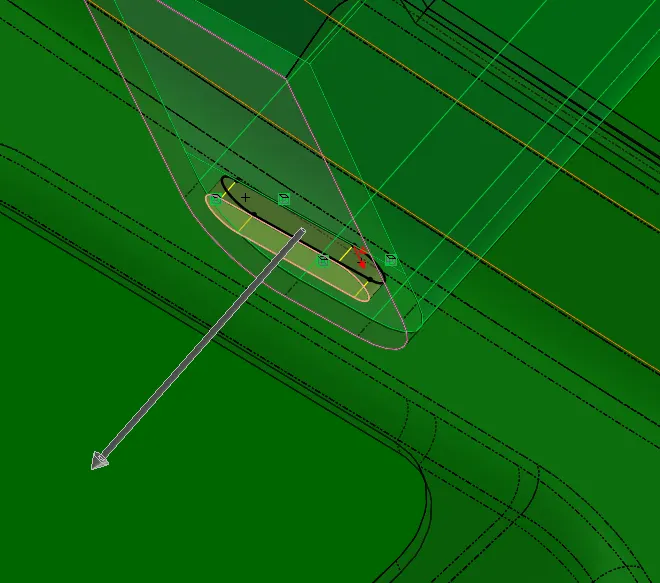

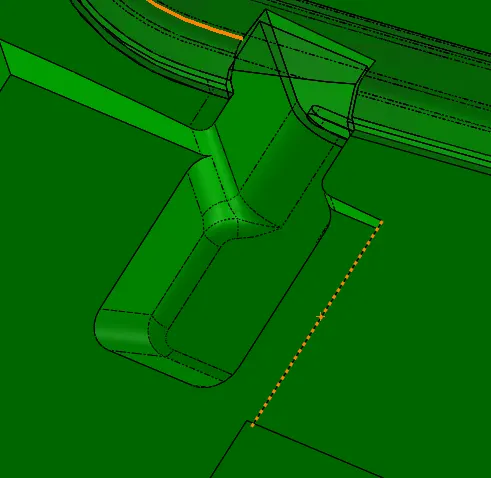

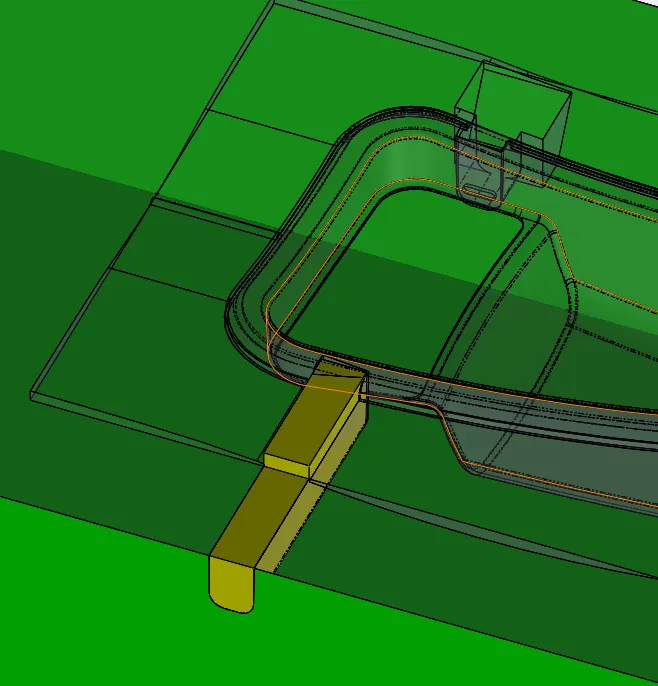

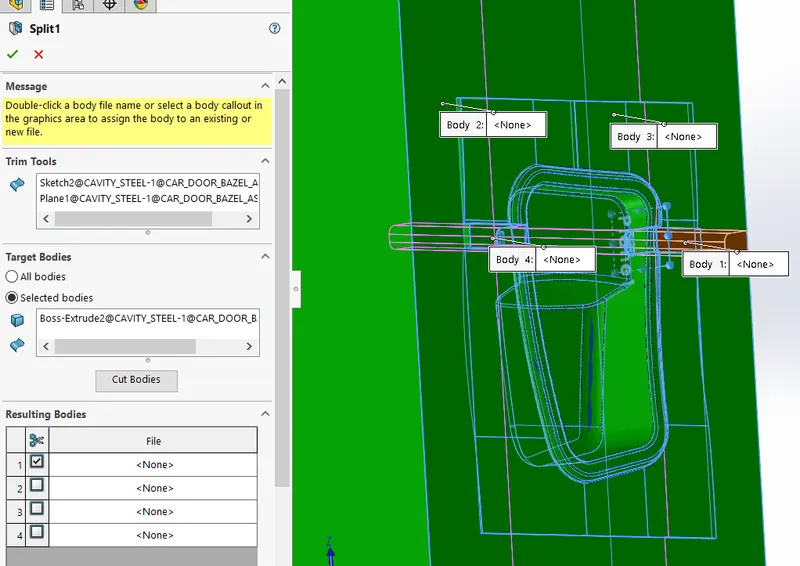

Spliting the surface by taking reference as side under cuts

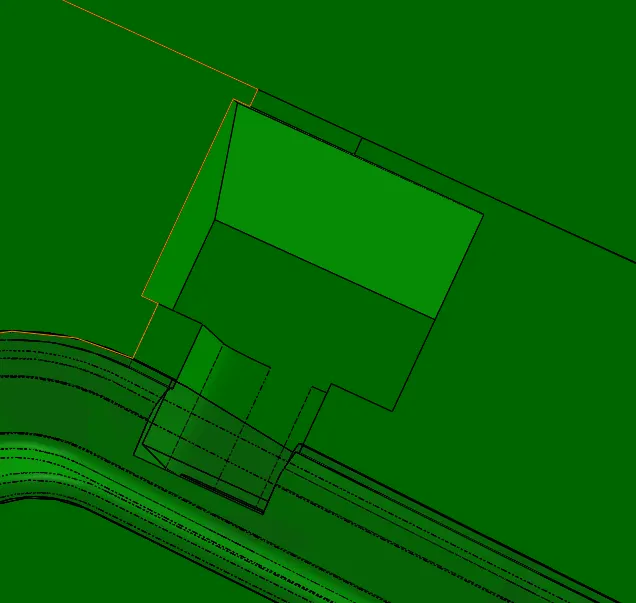

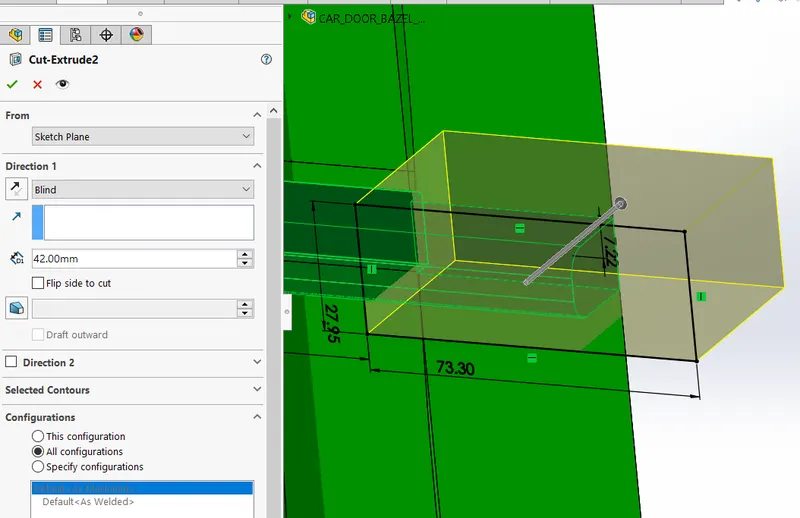

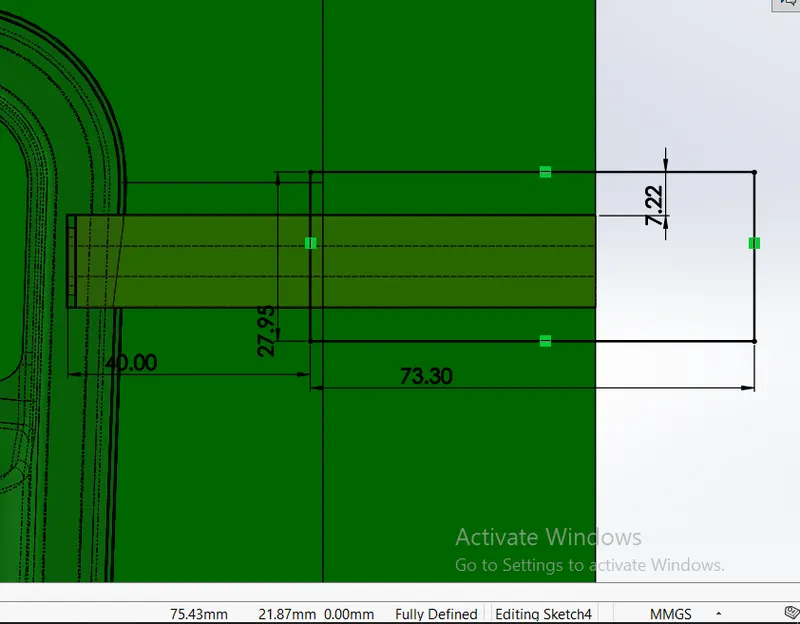

Reduced the length of slider

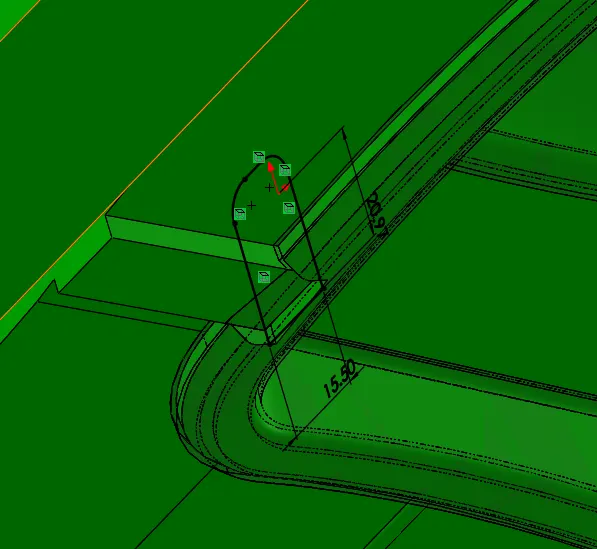

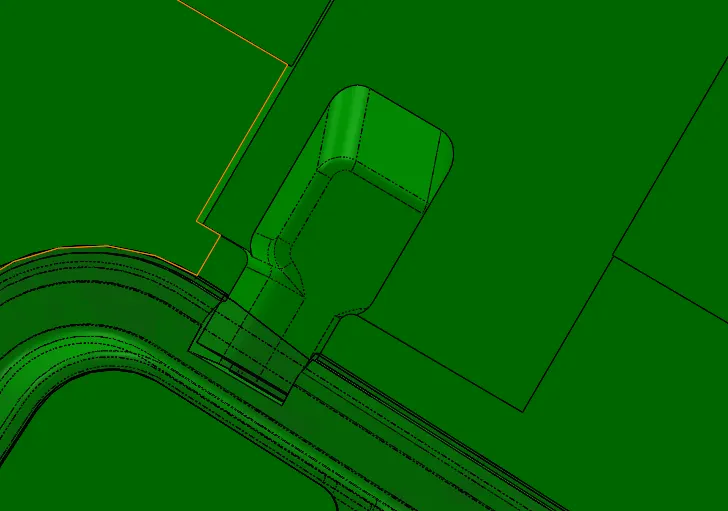

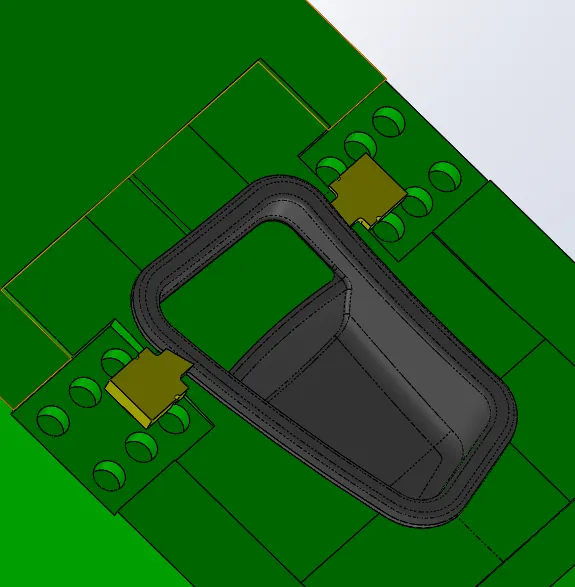

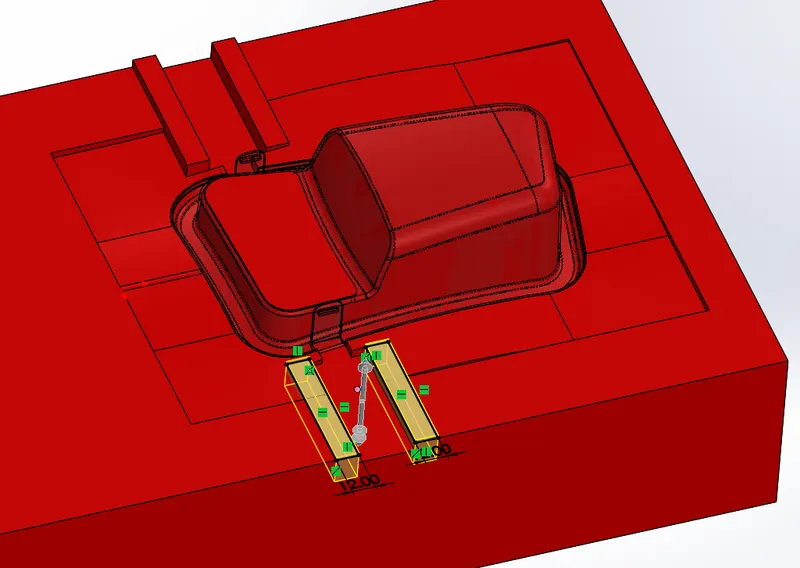

providing guide for slider

providing fillets

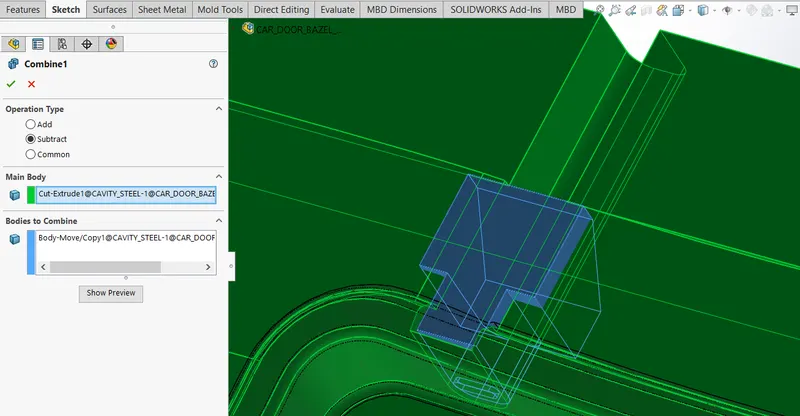

using combine option subtracting the slider block from cavity block

same procedure for other side for slider 2

provided fillets to cavity block

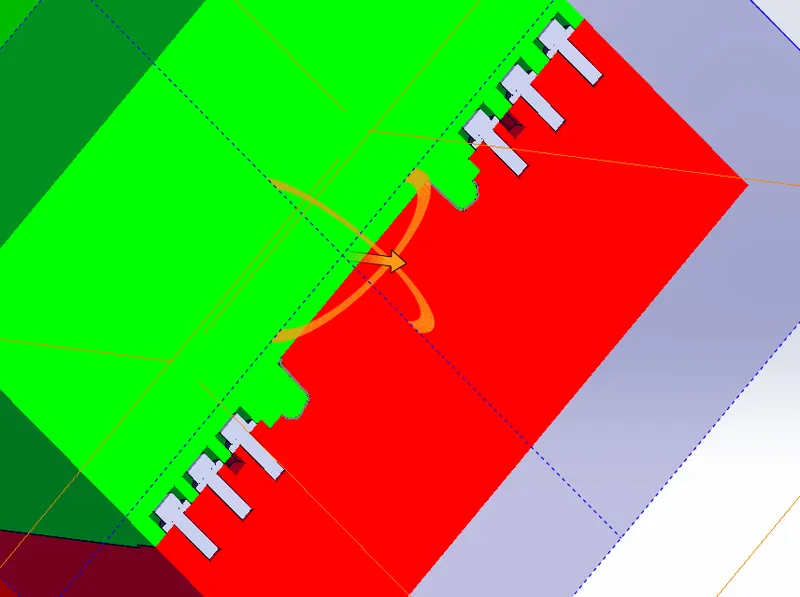

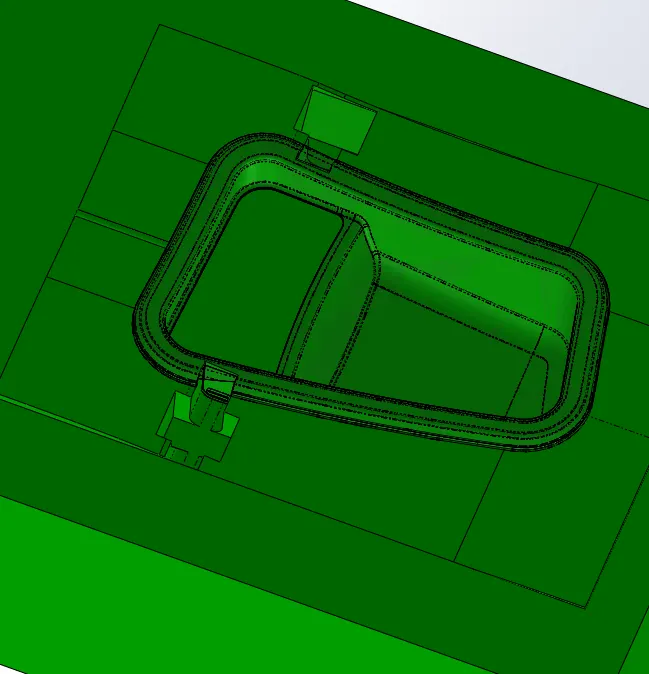

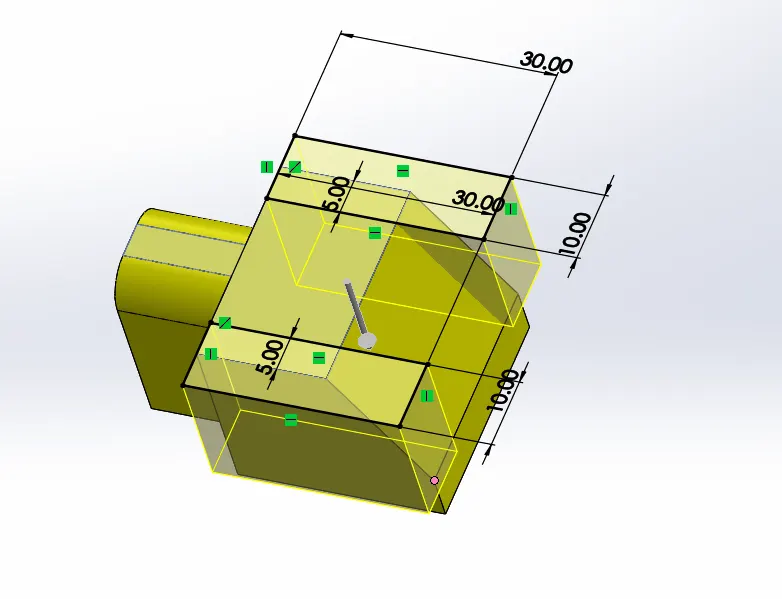

provided gides to core block so that the slider will move along its path

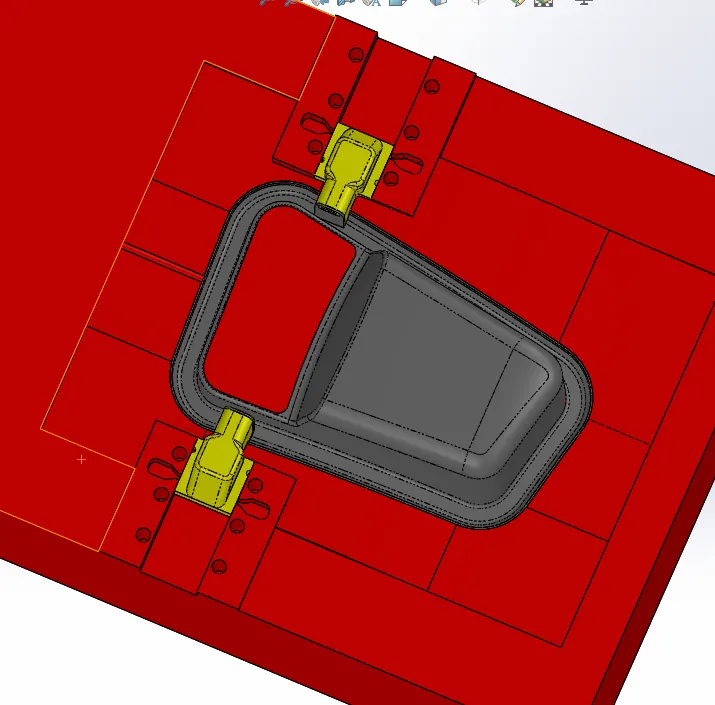

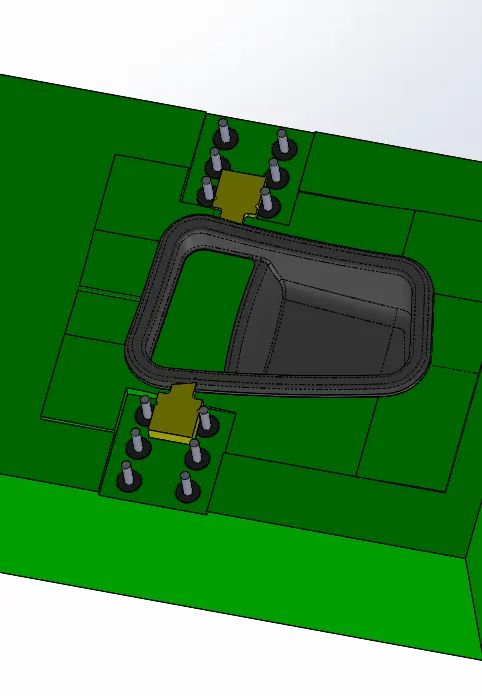

provided M6 bolts to Guide ways

provided space for bolts in cavity block

and also in core block

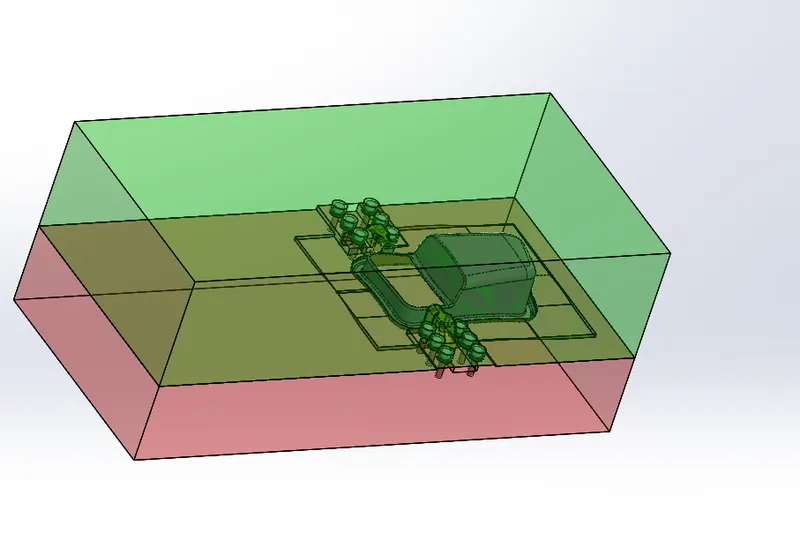

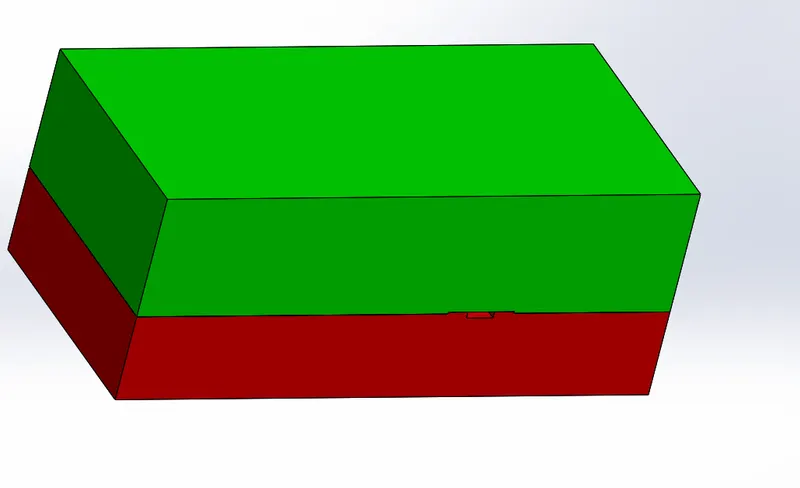

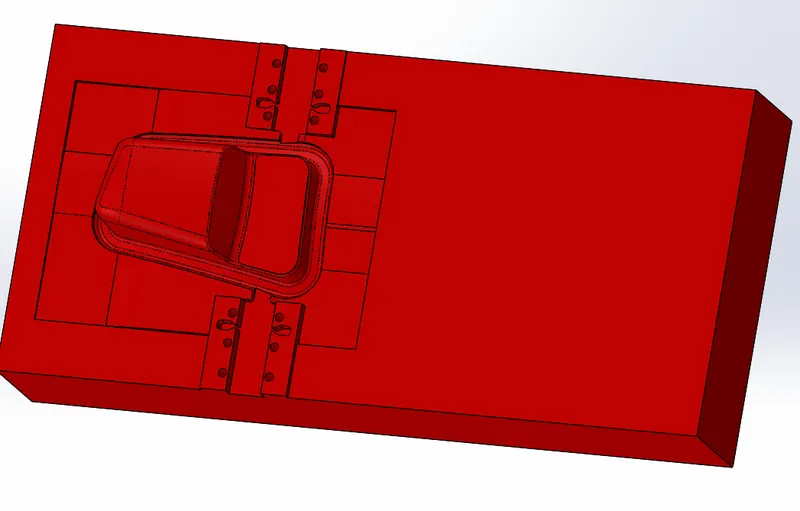

Cavity block

Core block

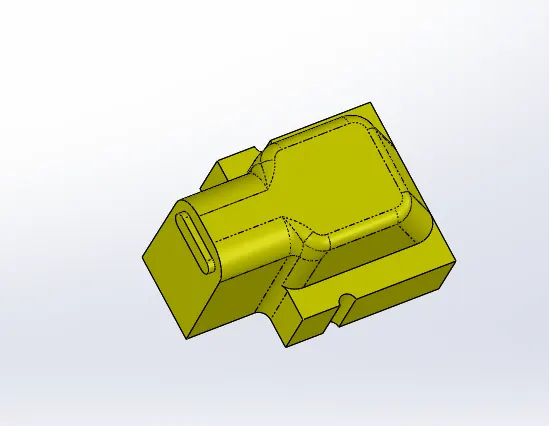

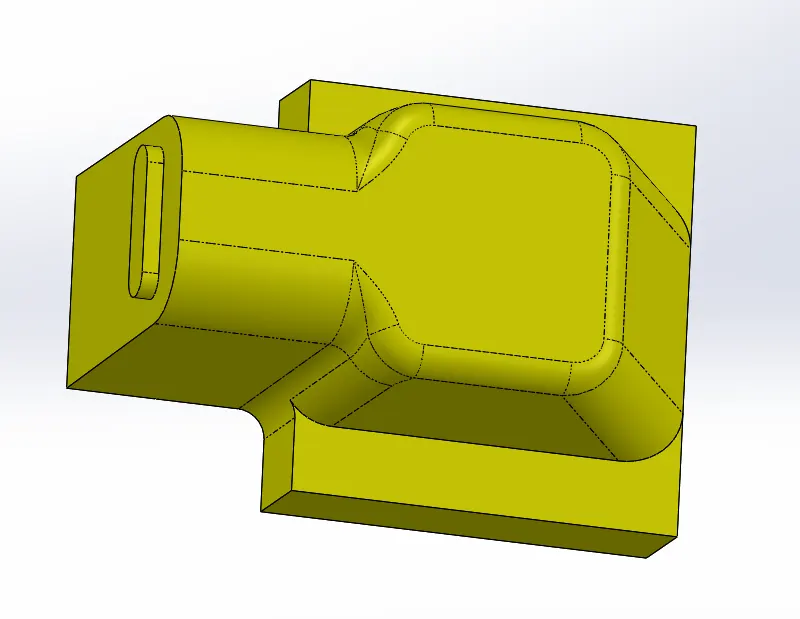

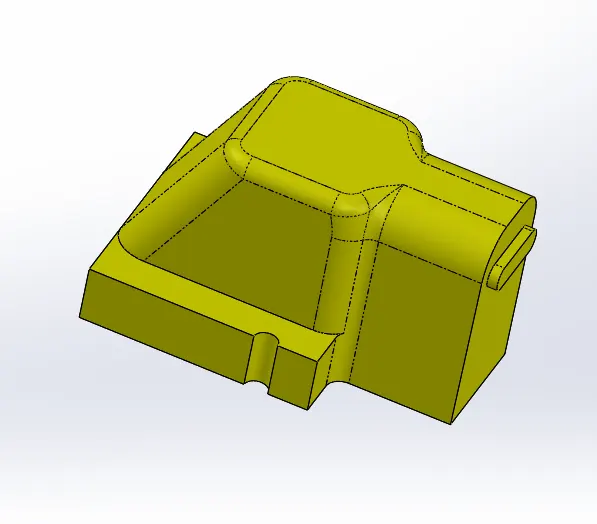

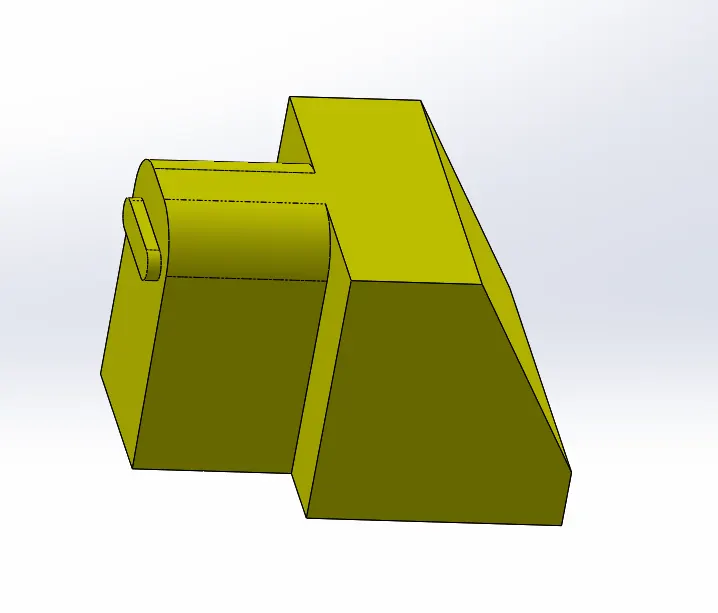

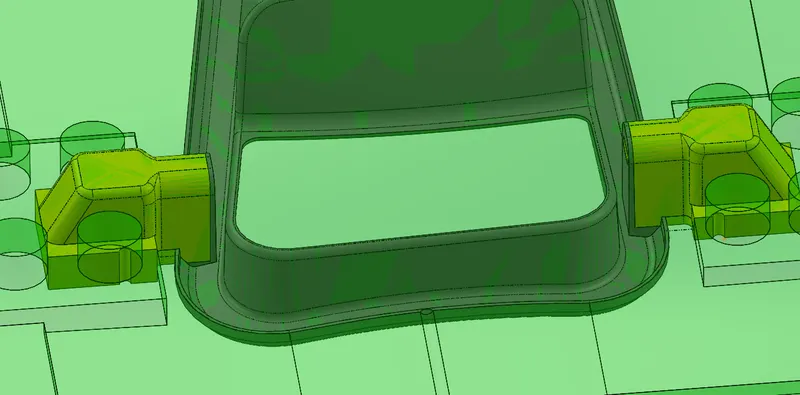

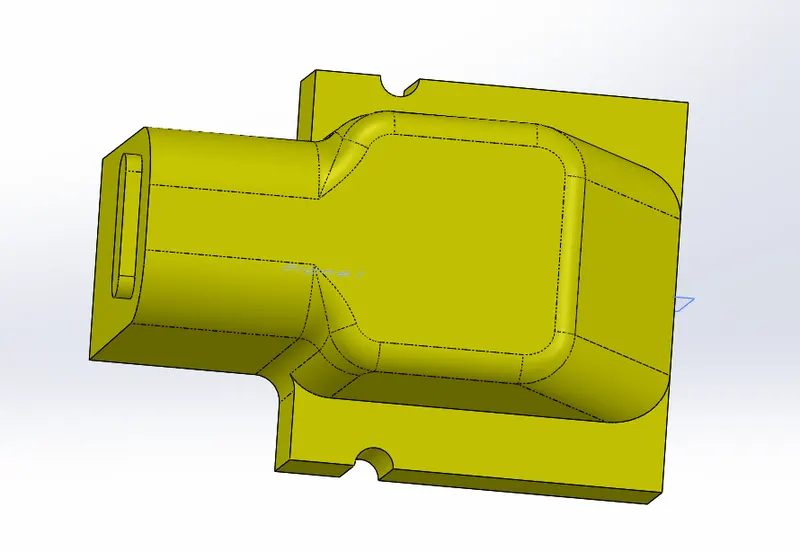

Sliders

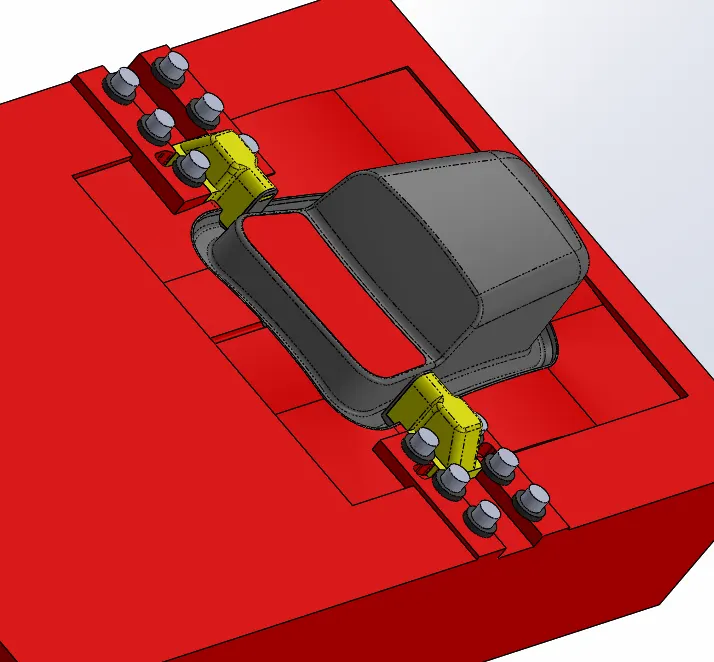

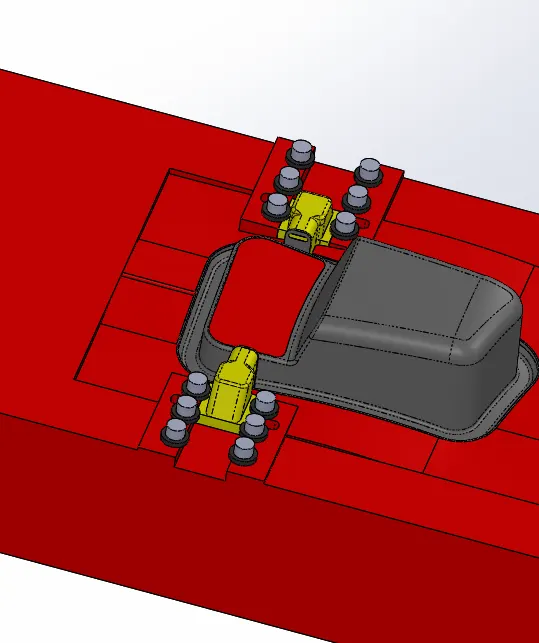

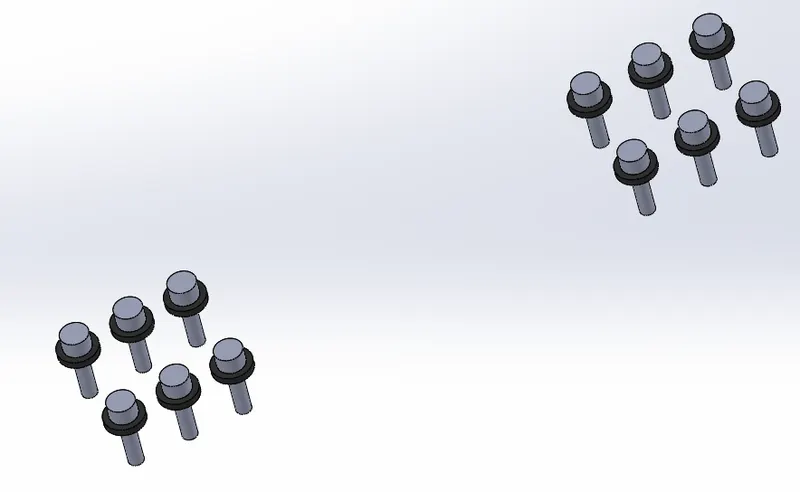

Bolts and Washers
