Attachment Feature Creation

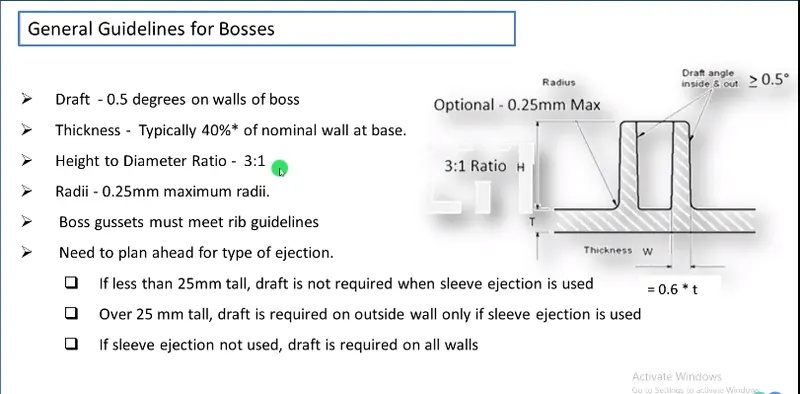

SCREW BOSS

guide lines

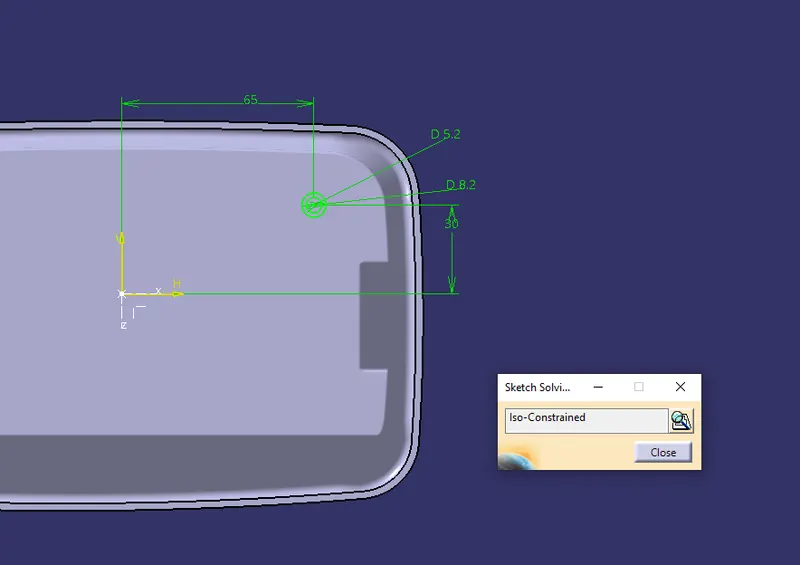

Give pad for the profile of 12mm and also give draft 0.5 deg

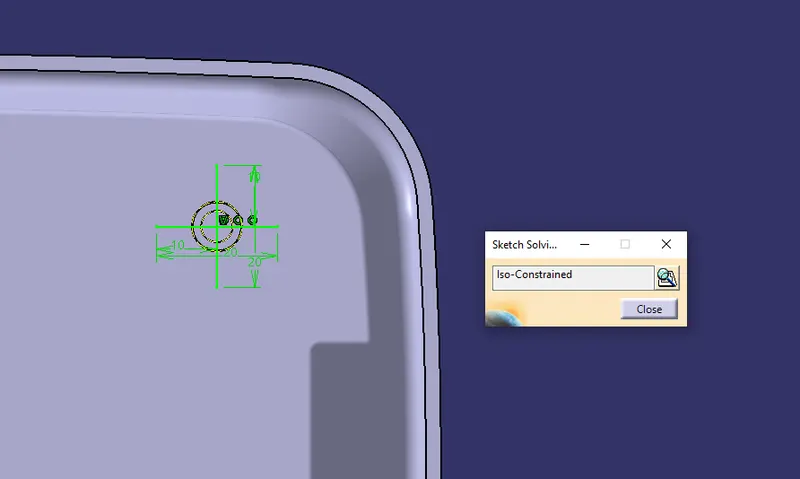

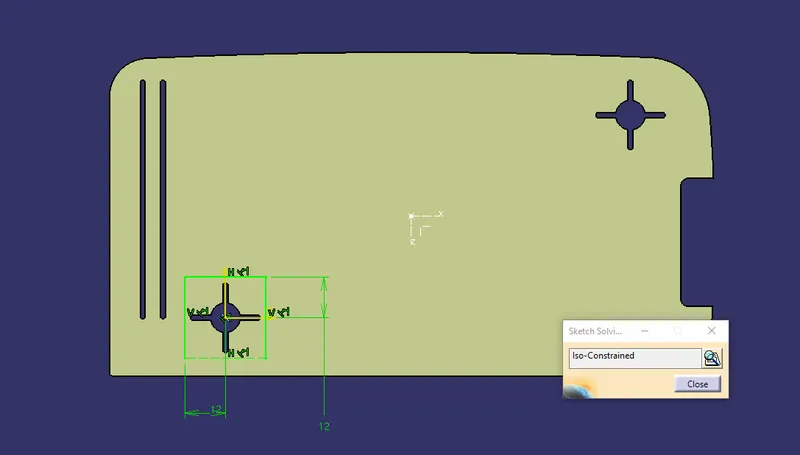

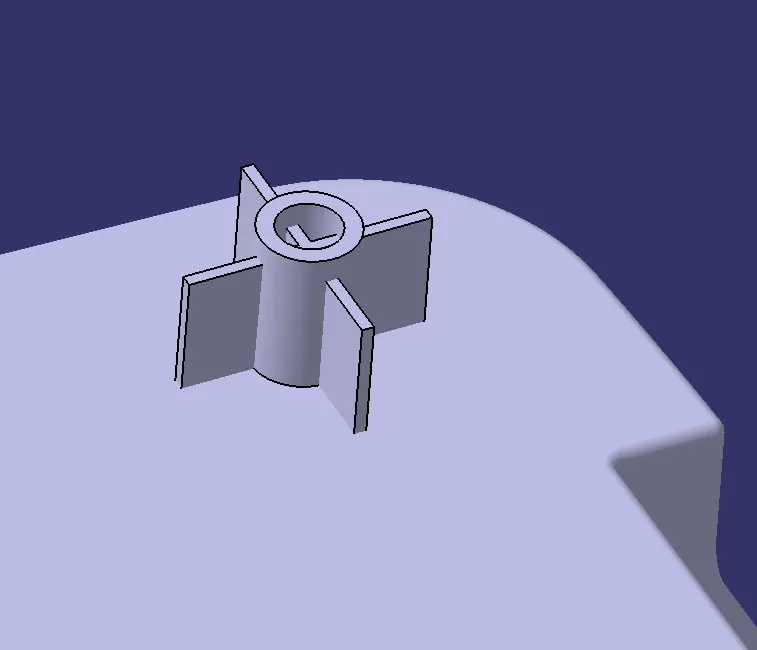

create a rib for the screw boss

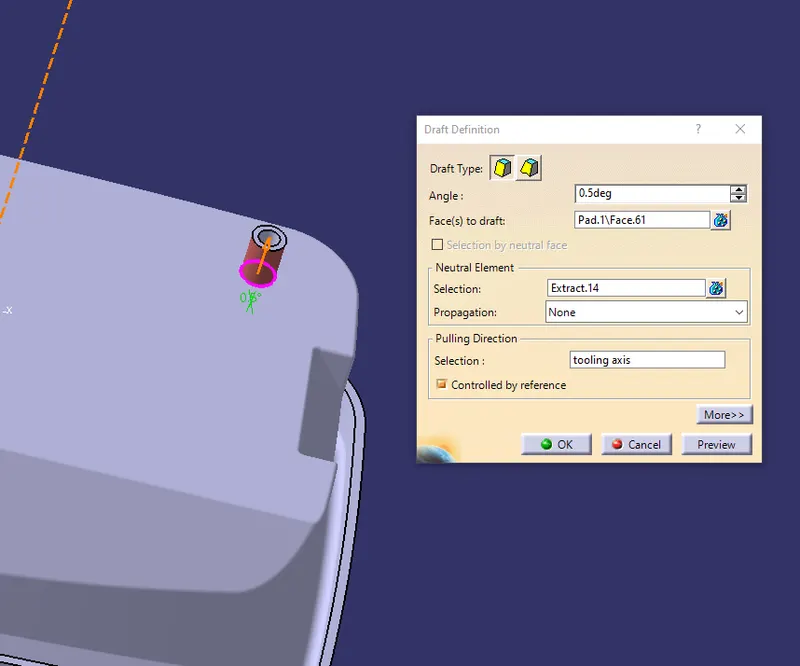

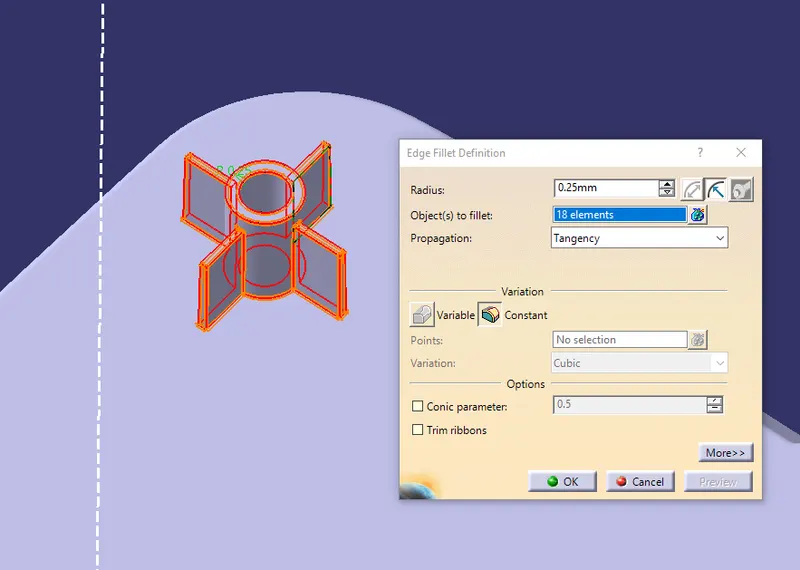

draft the ribs of0.5deg and giving edge fillets of all sides0.25mm

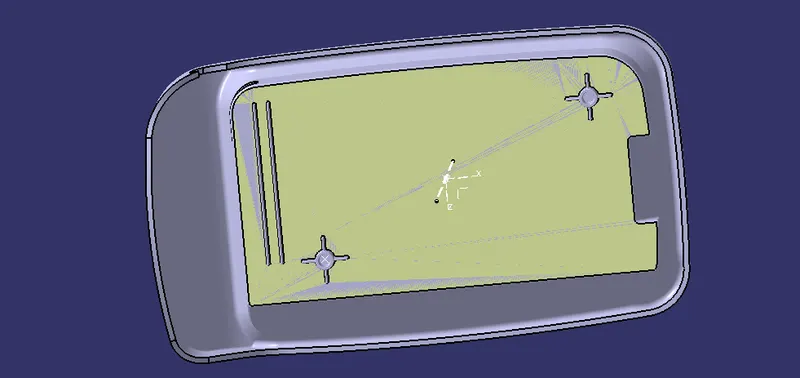

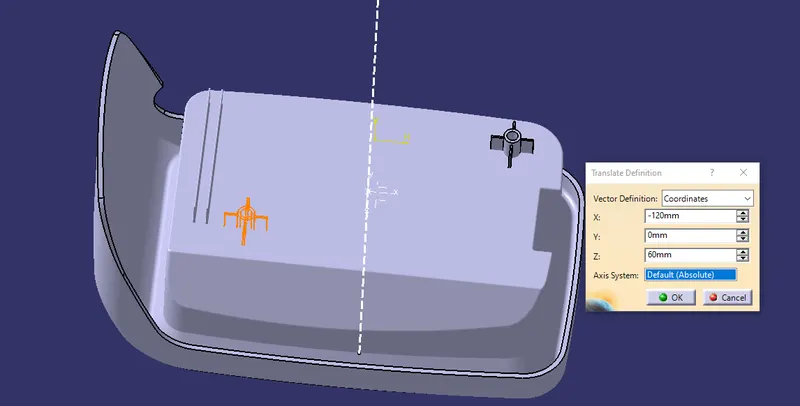

translate the screw boss

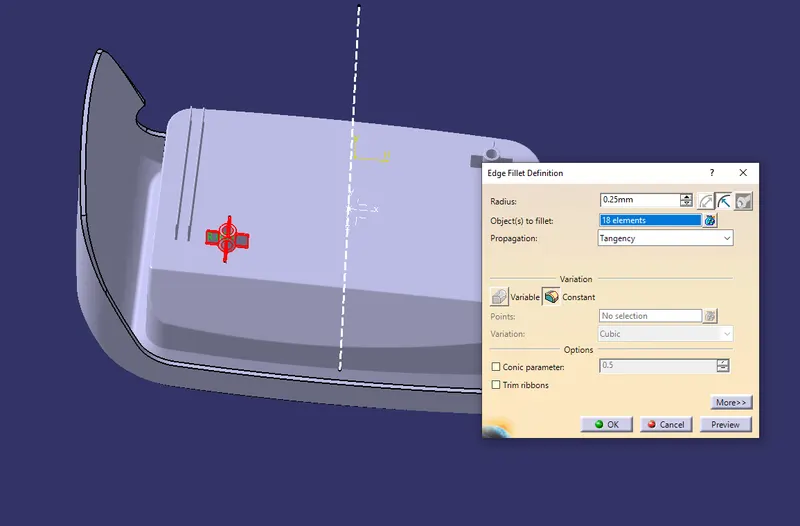

edge fillets for the translated part

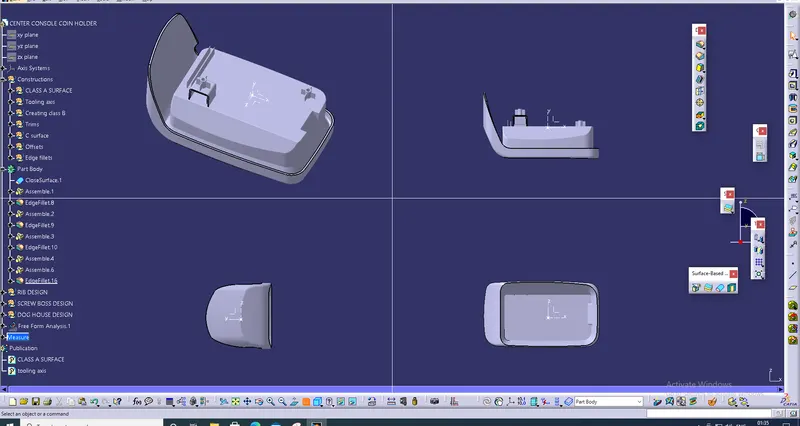

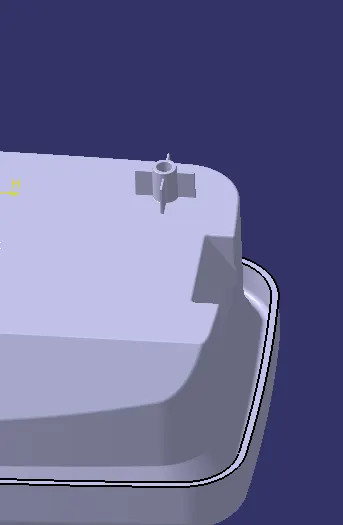

multi views

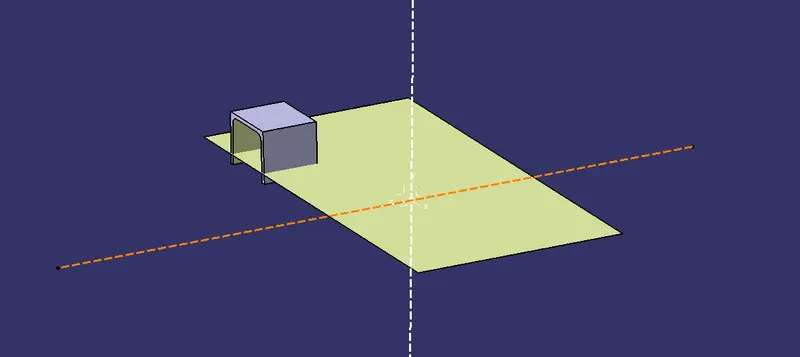

DOGHOUSE DESIGN

Extract the face

make a sketch on extracted face

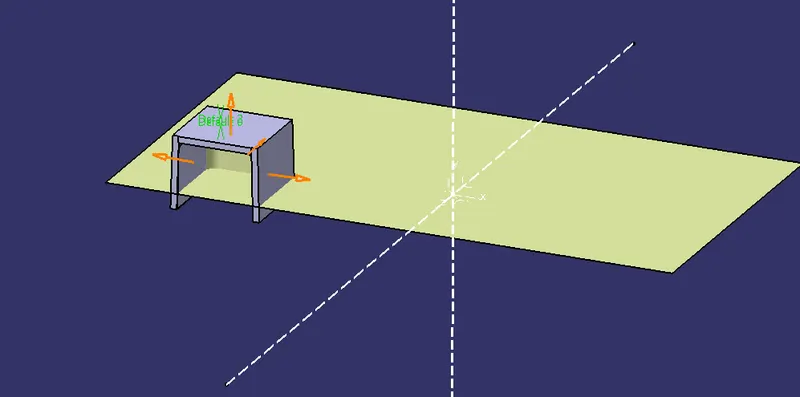

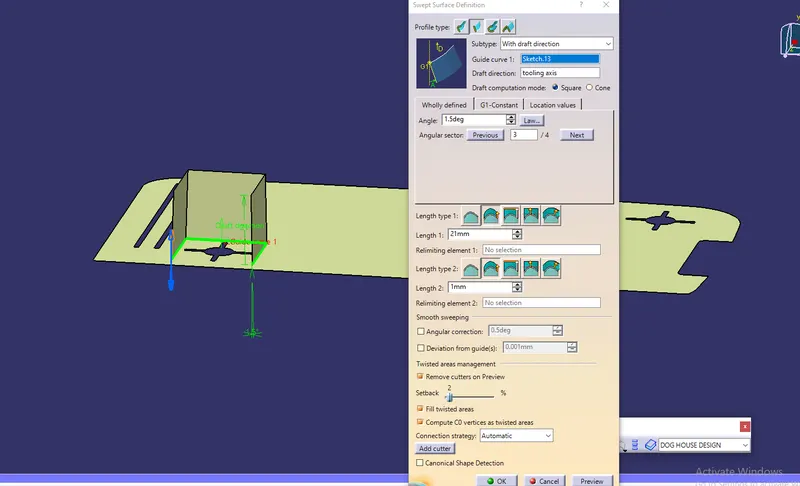

sweep the sketch using draft direction use 1.5mm draft and height 20mm

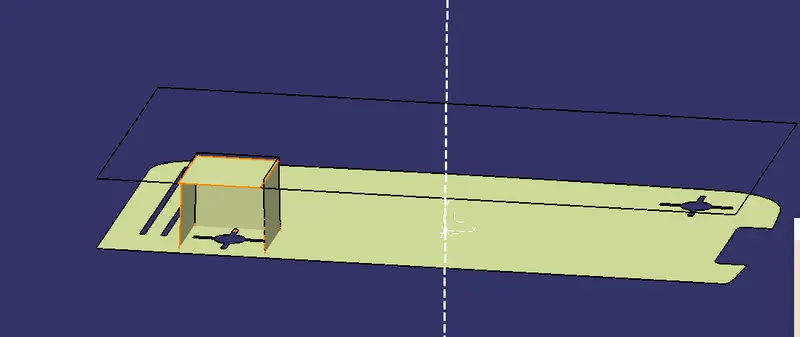

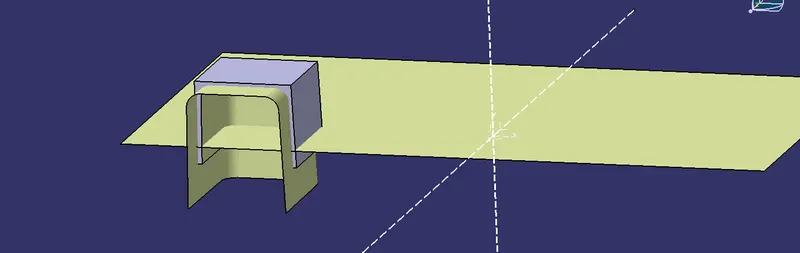

untrim the extracted part and offset 20 mm

trim the part

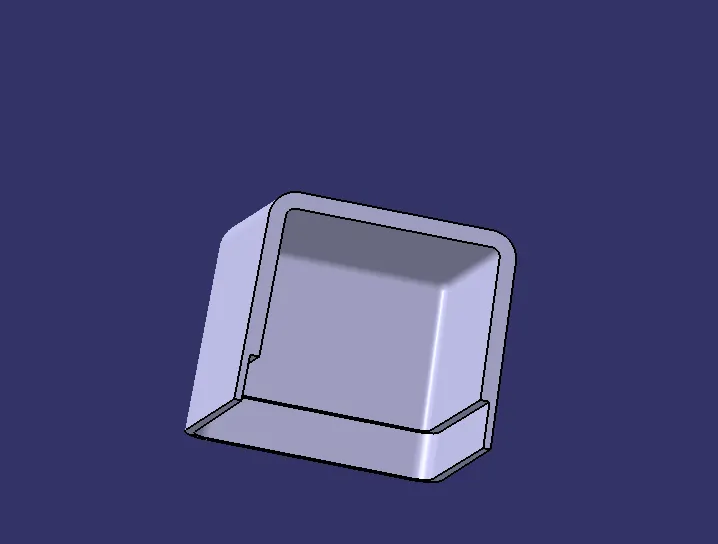

givbing thickness 2mm

create another tooling axis

give draft inside the part

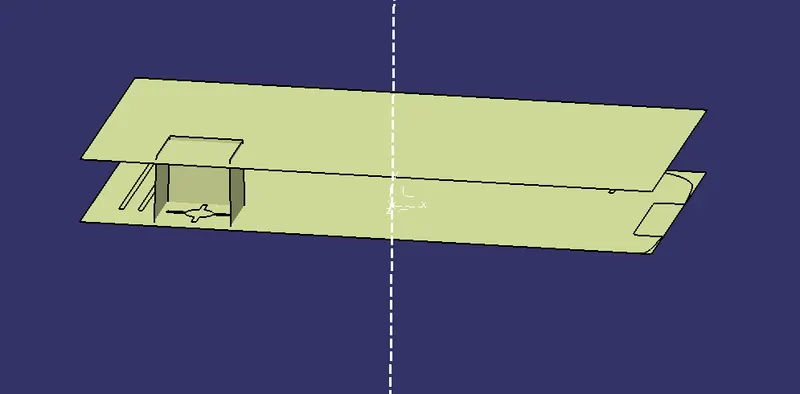

offset the bottom surface 4mm and 1mm for inside the thick surface

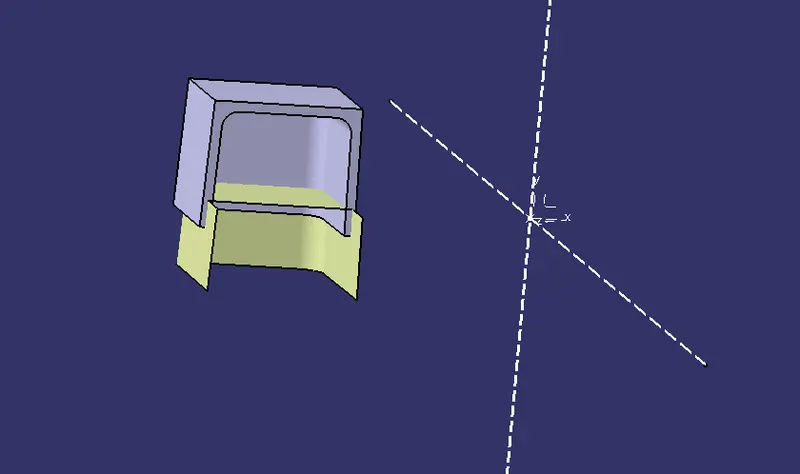

trim the parts

split the part

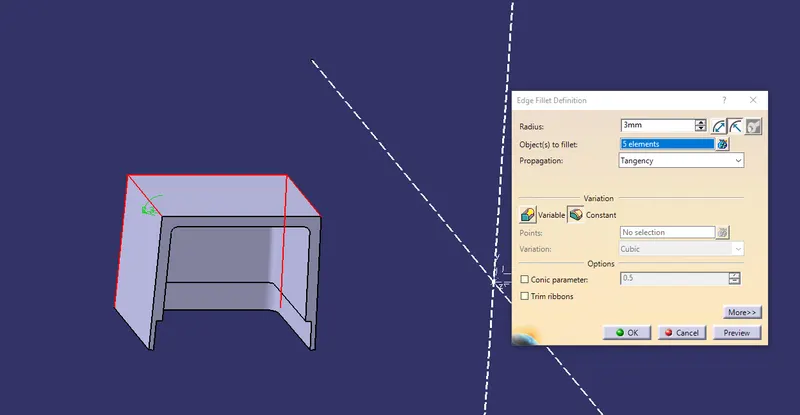

out side edge fillet 3mm

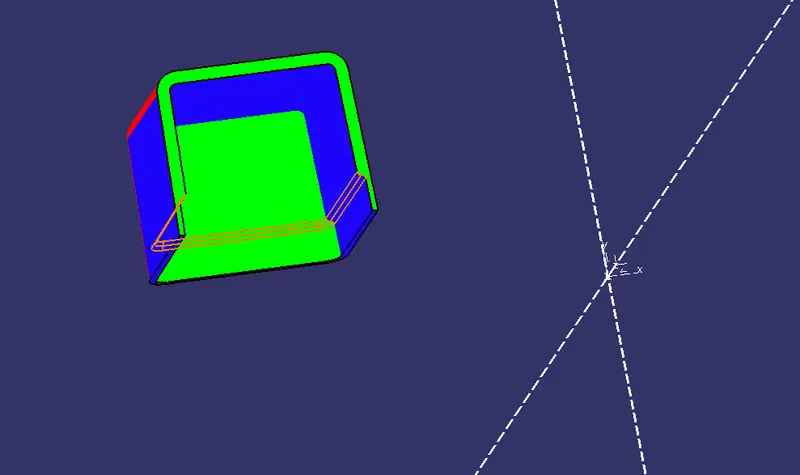

draft analysis on Y direction

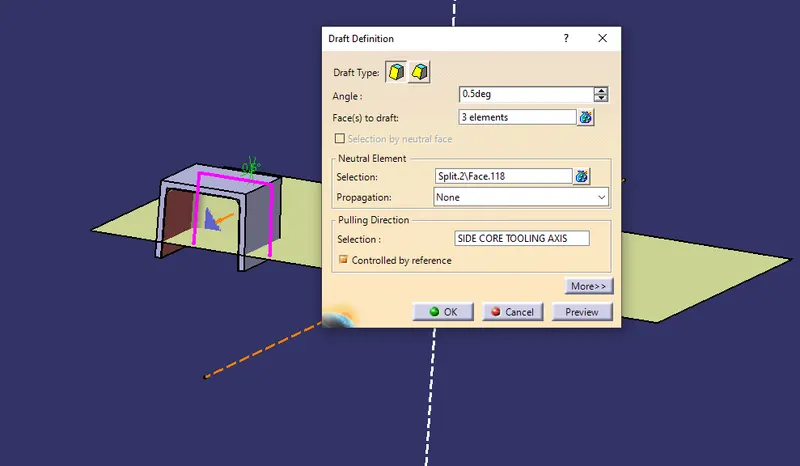

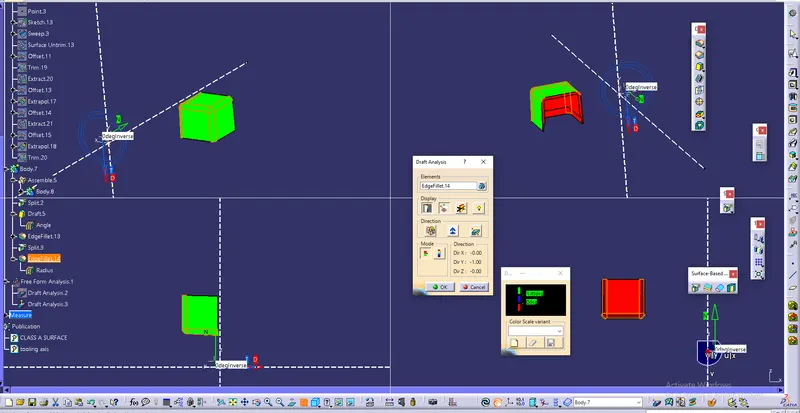

for side core draft analysis

Translate screw boss to the top of doghouse

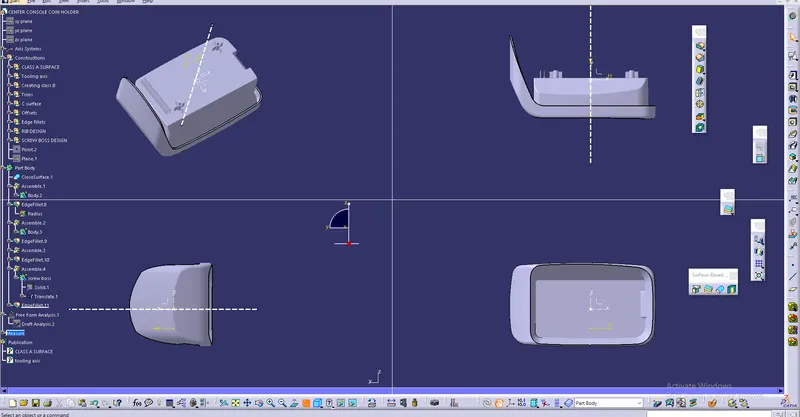

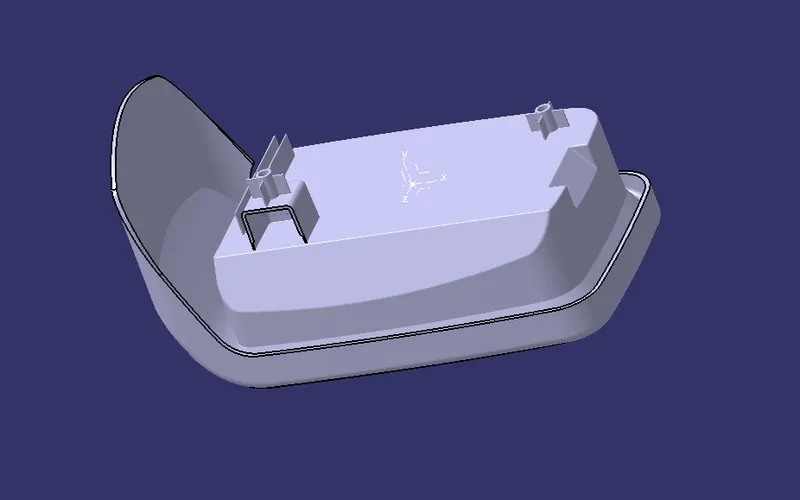

multi views
