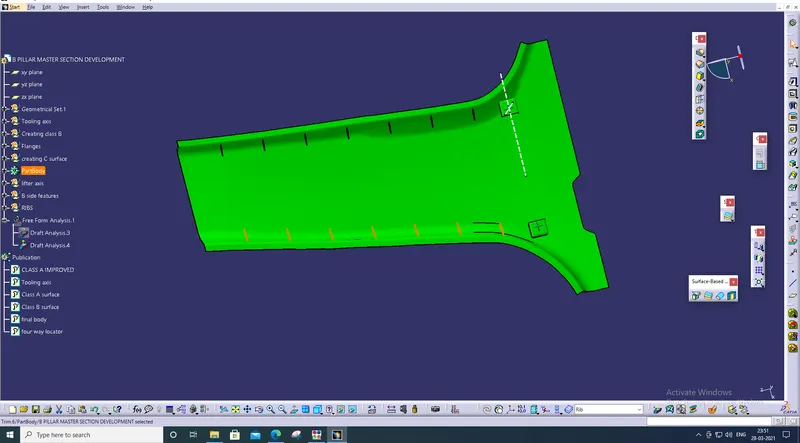

Master Section Development

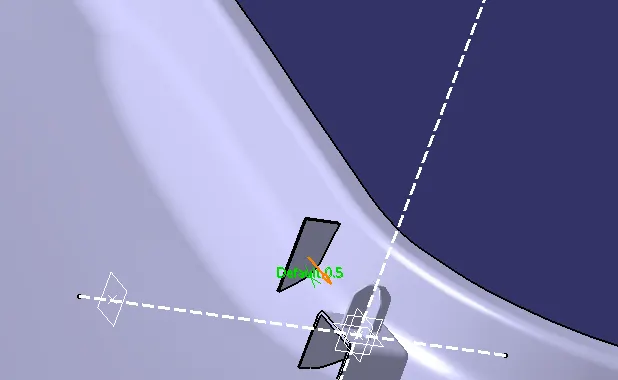

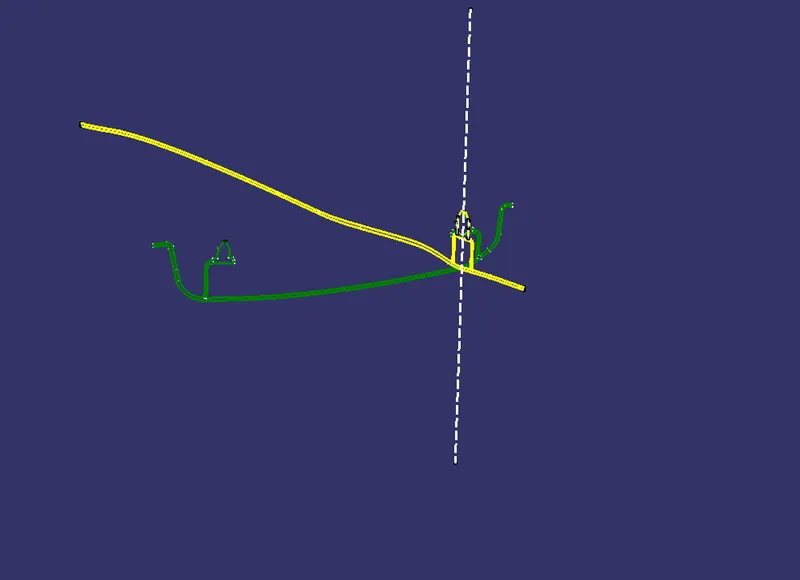

creating tooling axis

offset class A surface

working on errors

creating splines on edges and giving multisection

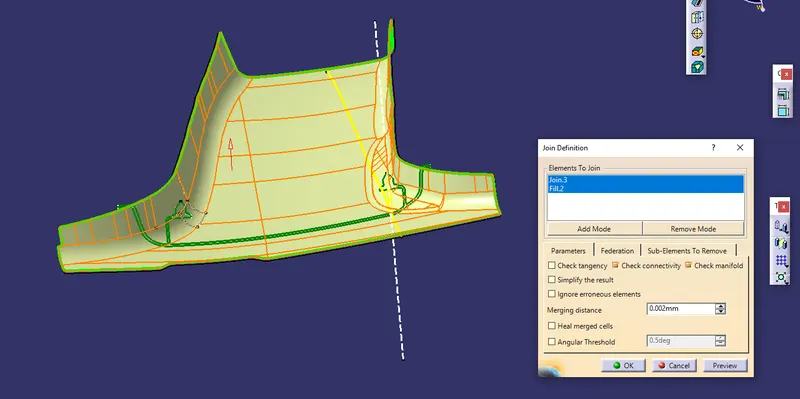

join with offset surface

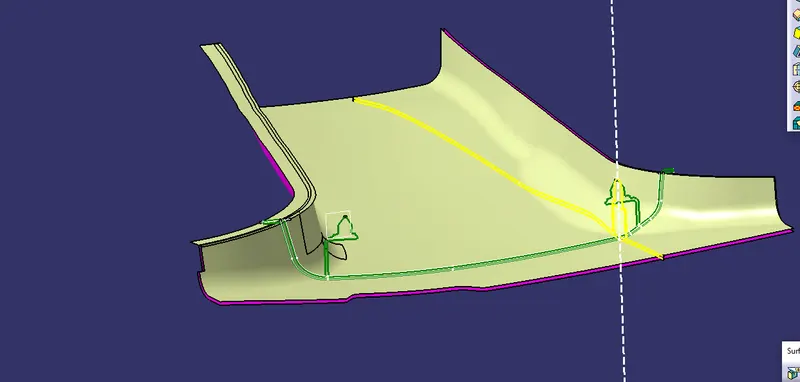

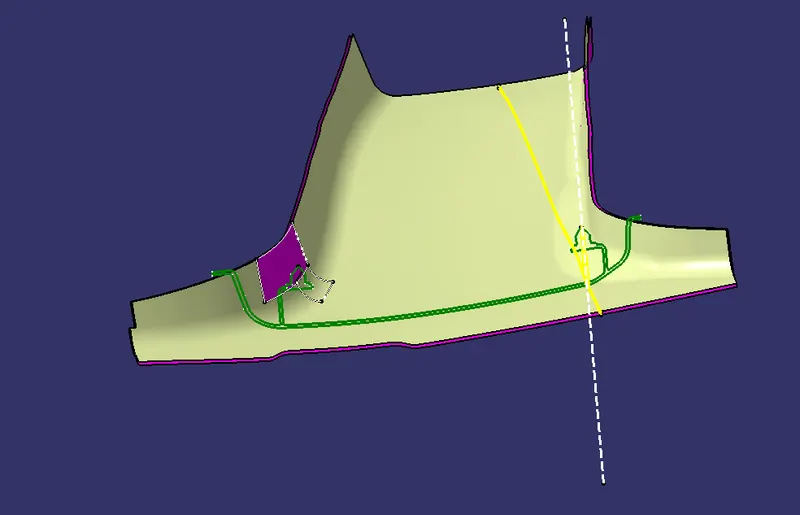

extracting the edge of class A surface and making sweep

offset 2mm

same for other sode

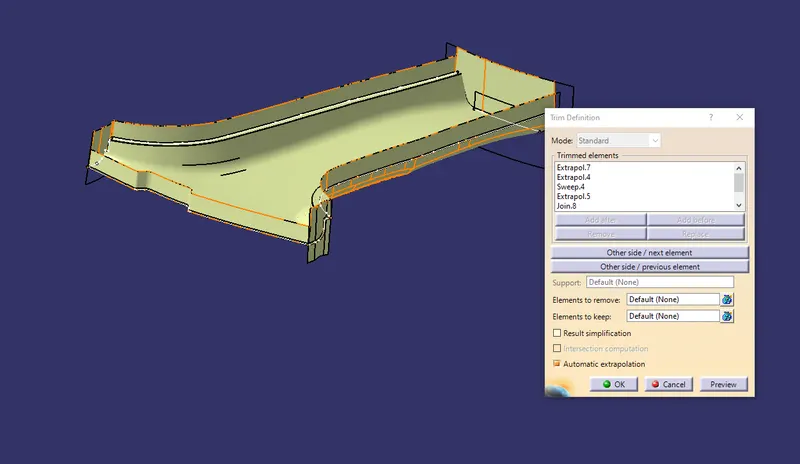

trim the outer faces

for creating of C surface

extract the edges of class A and use sweep and multisection

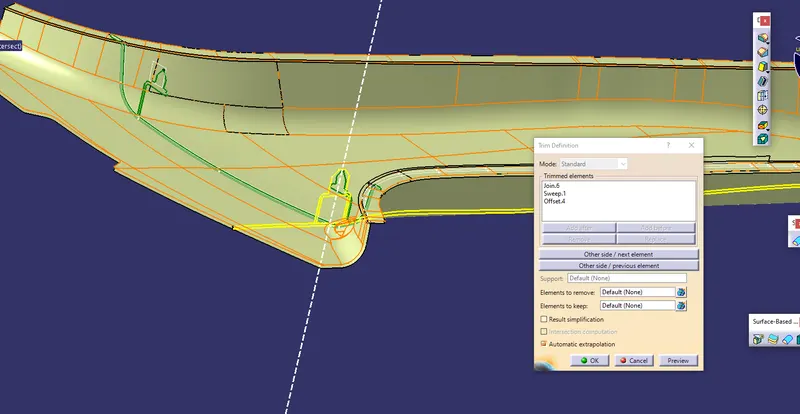

trim the unwanted faces

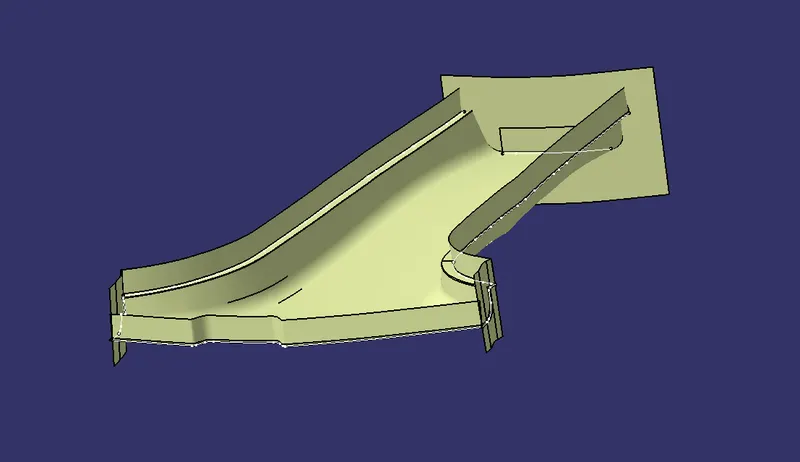

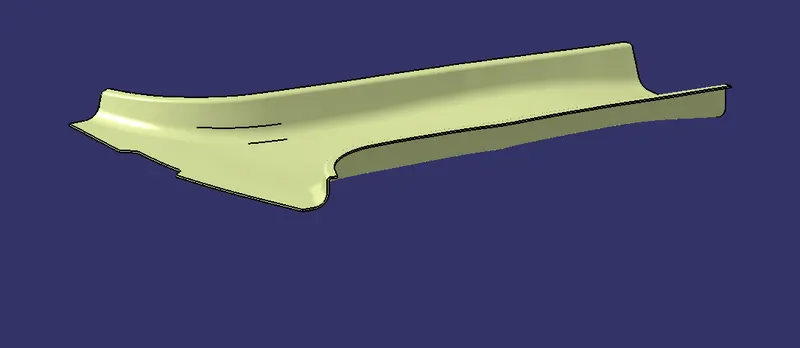

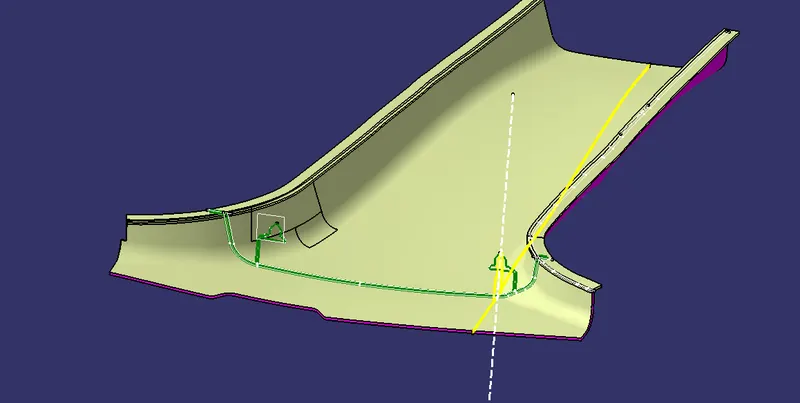

final part

giving close surface

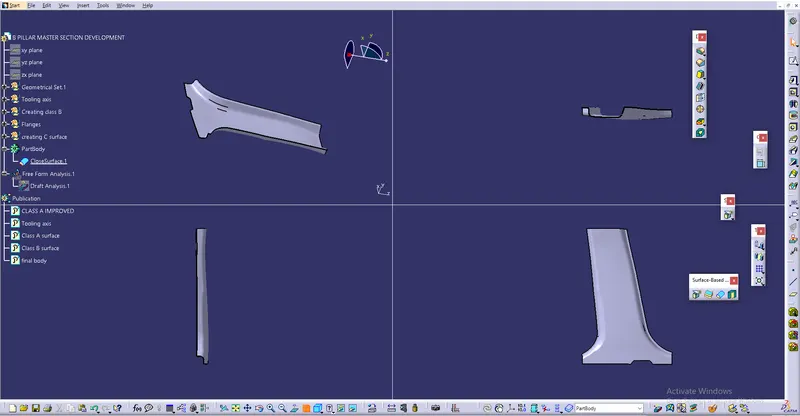

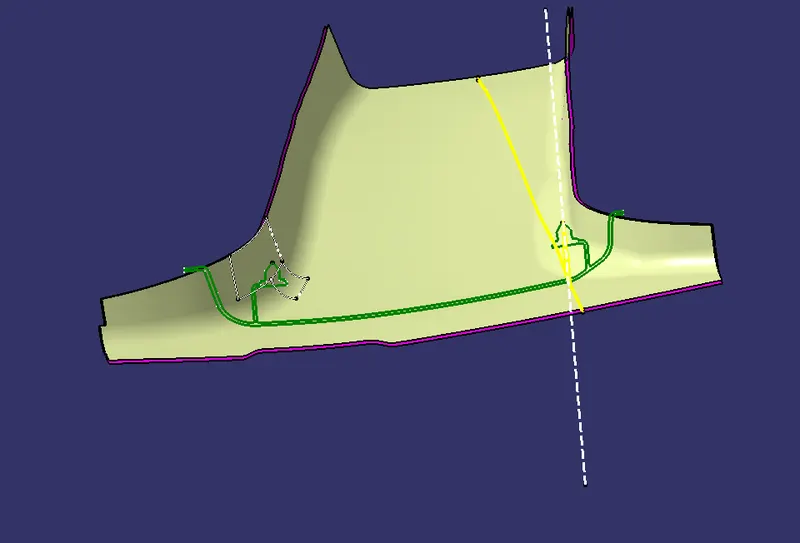

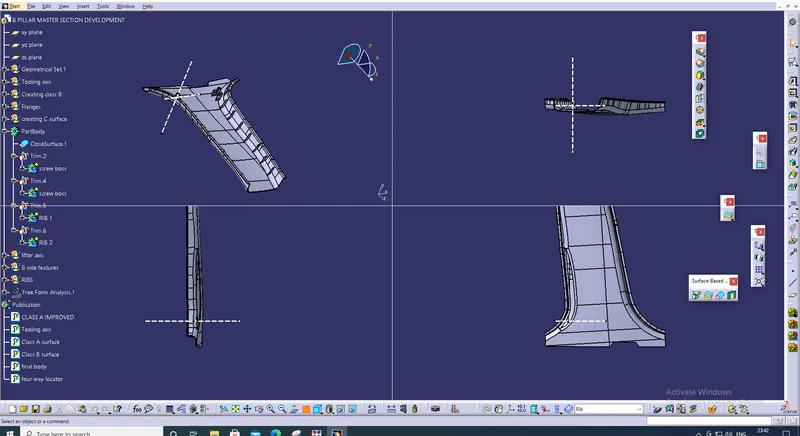

multi views

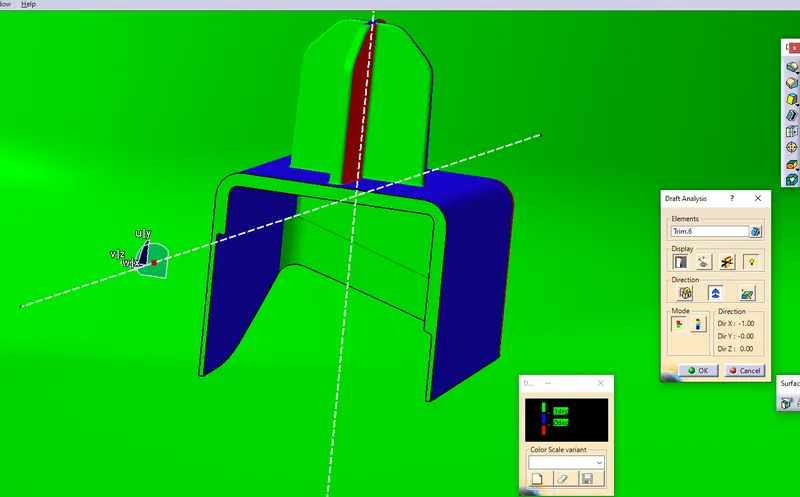

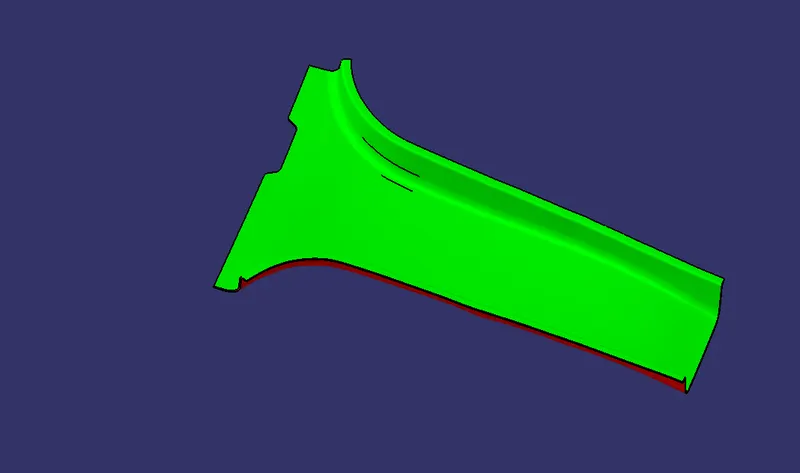

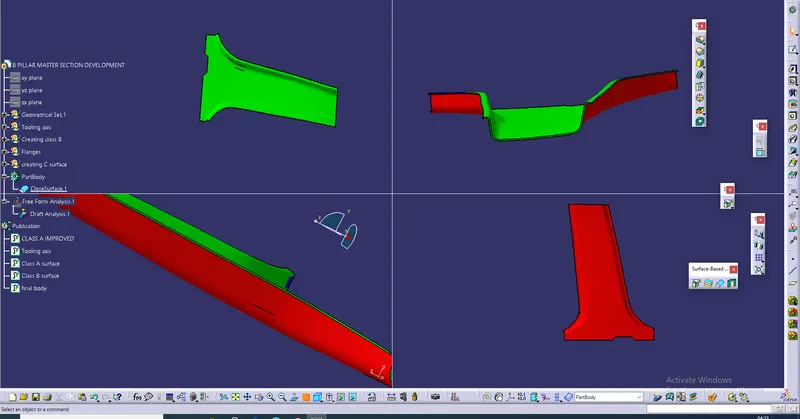

draft analysis

multi views

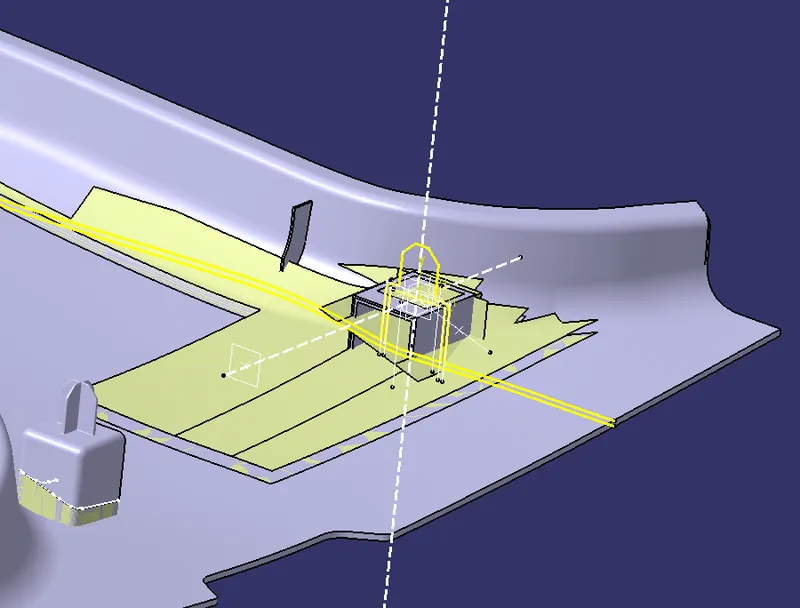

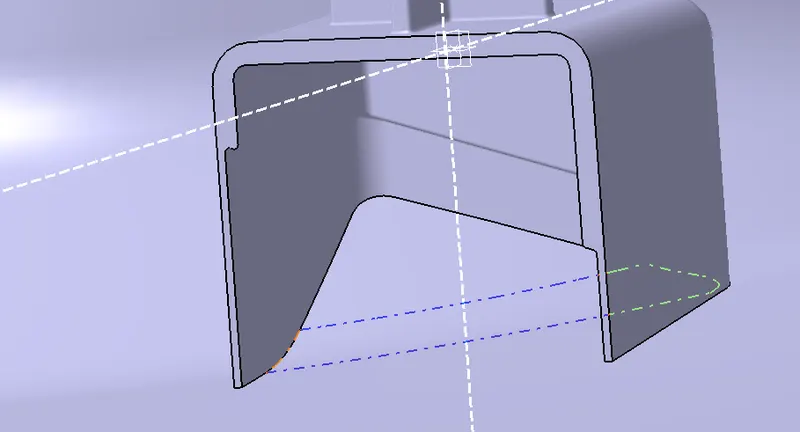

creating doghouse

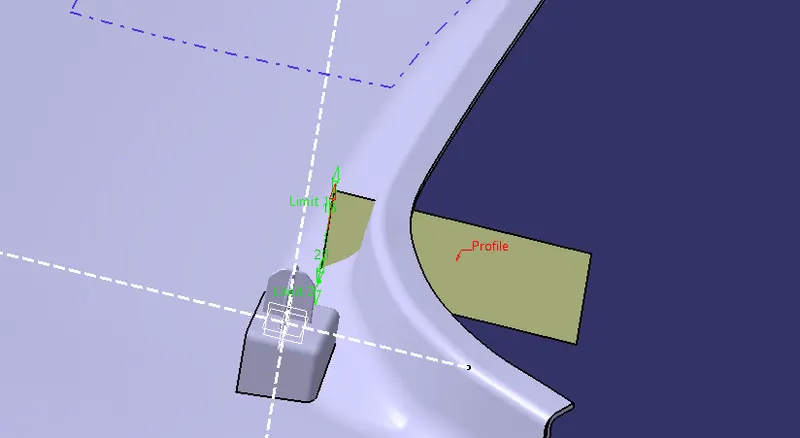

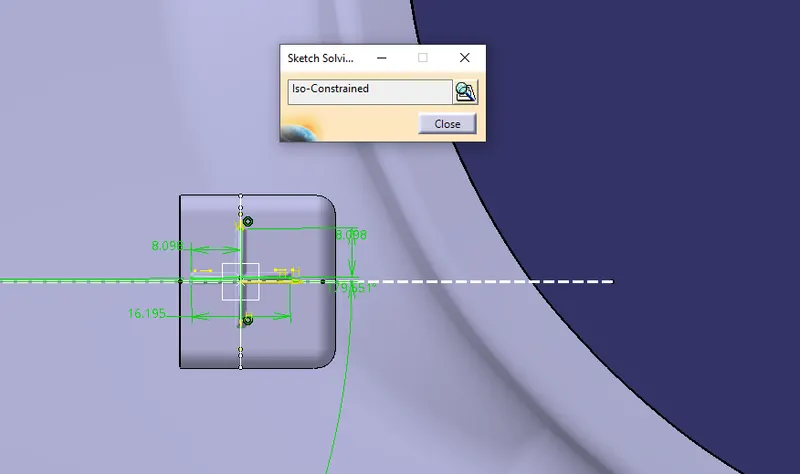

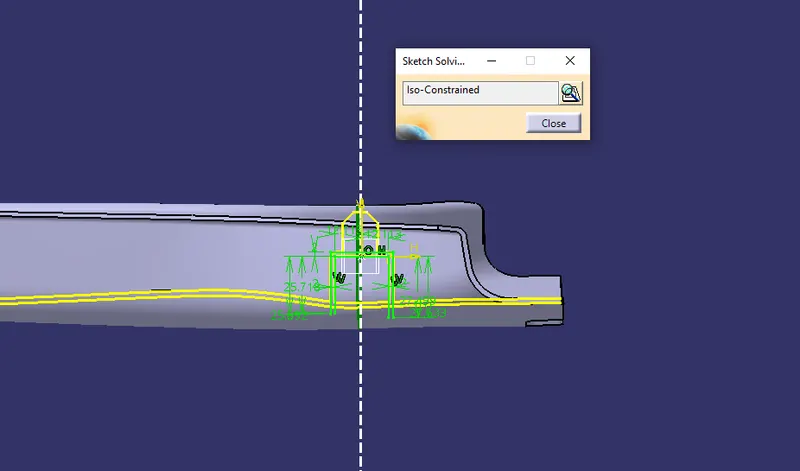

draw a sketch and extrude

same way for side

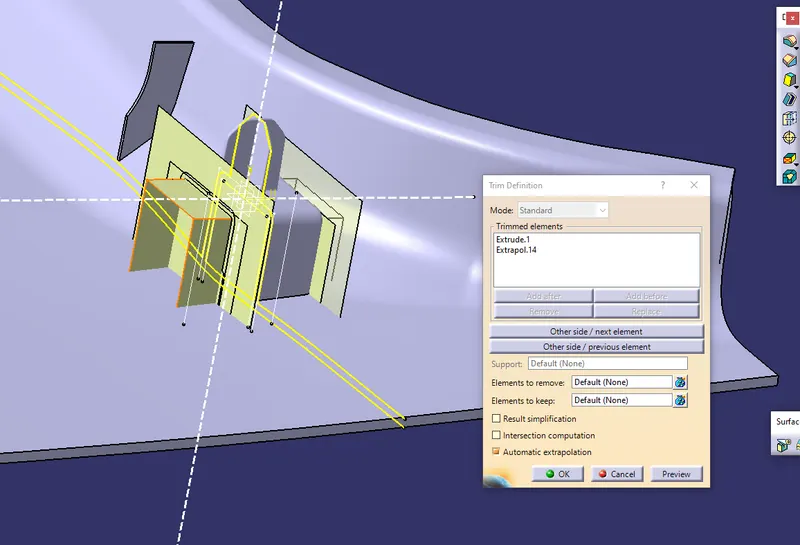

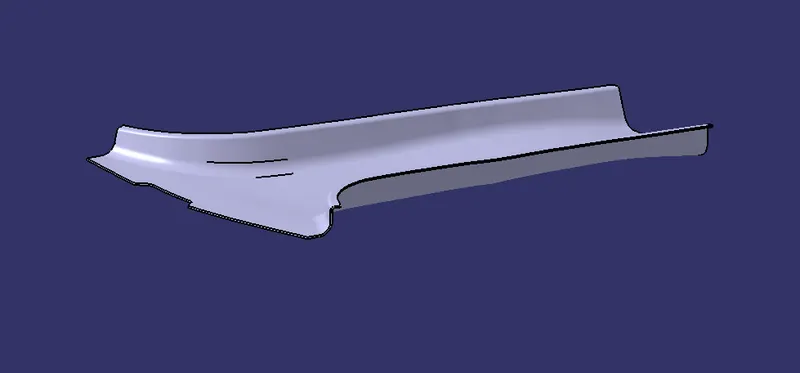

trim the outer part

giving thickness

extract the class A and trim the part projecting outside

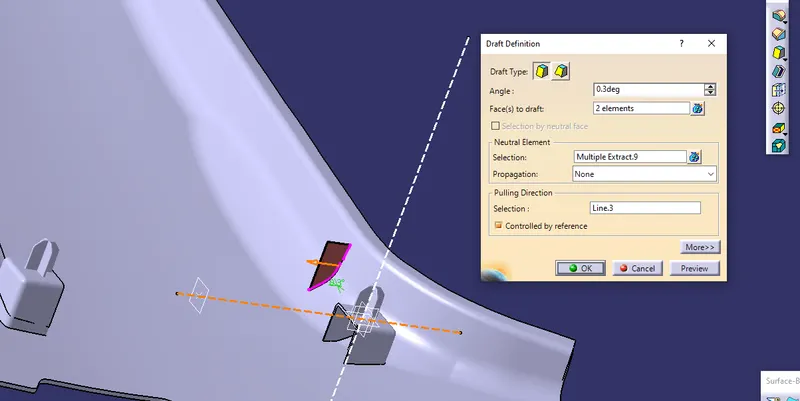

trim the faces and give draft and edge fillets

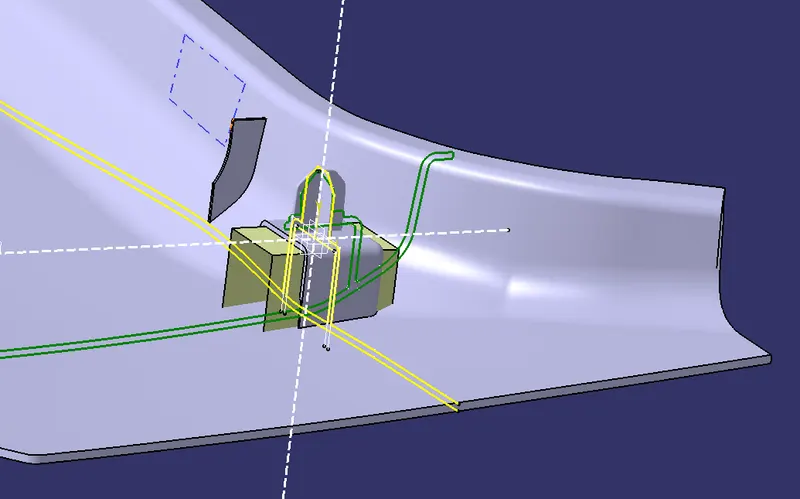

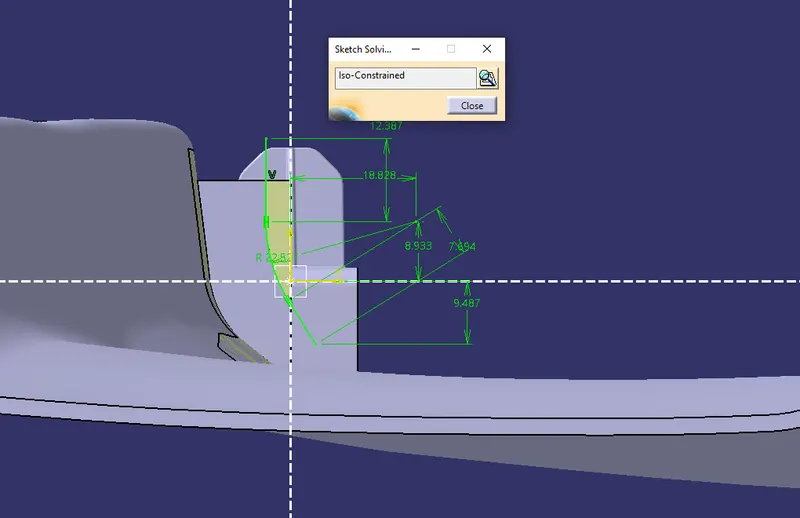

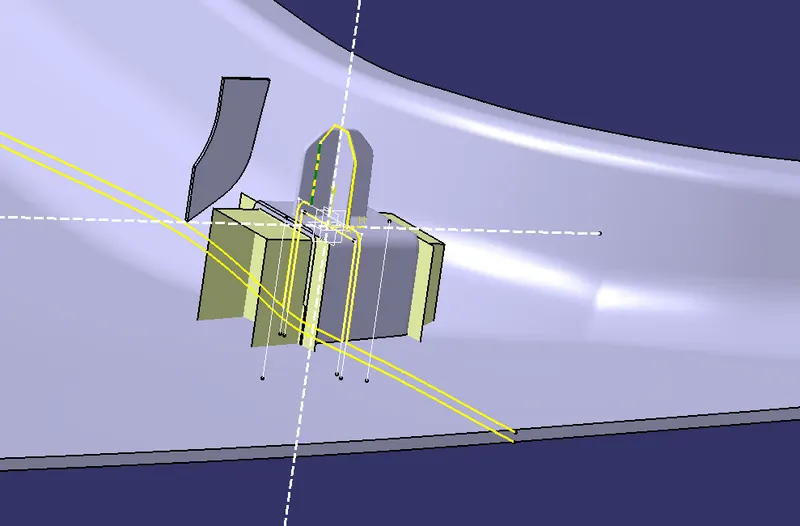

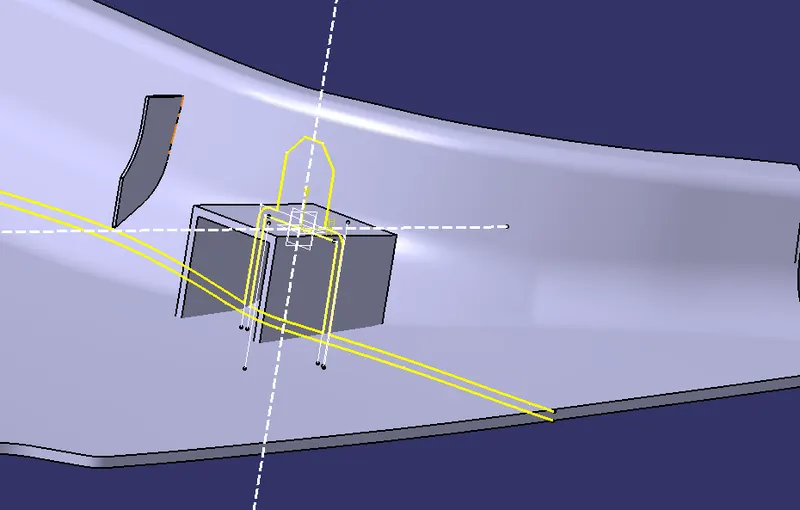

creating four way locator

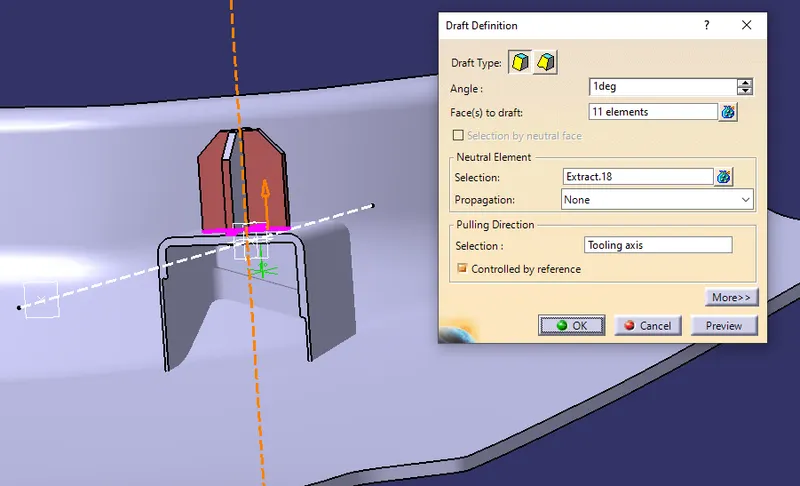

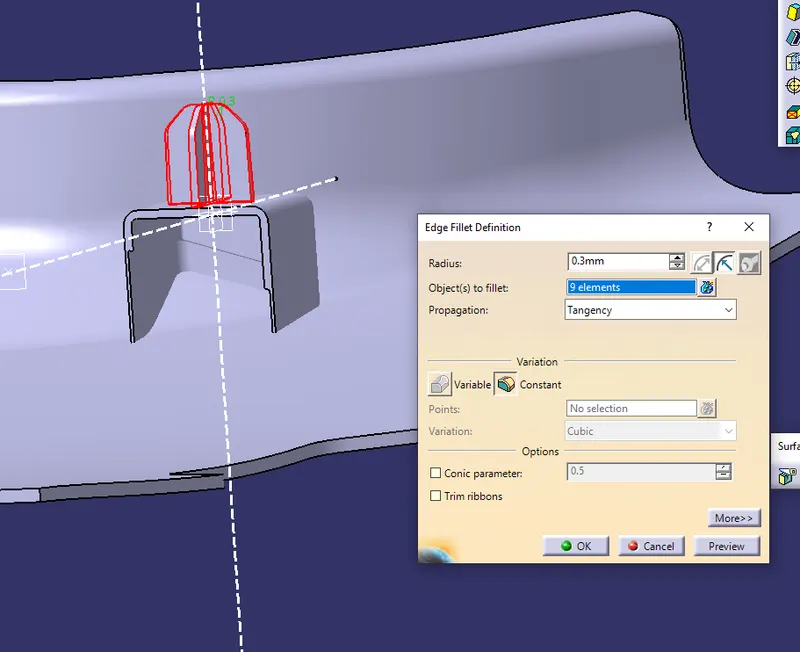

giving draft , chamfer and edgr fillets

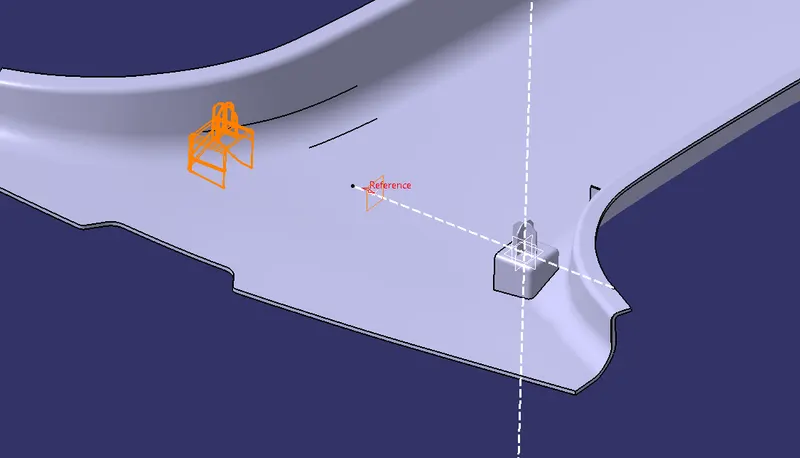

symmetry to other side

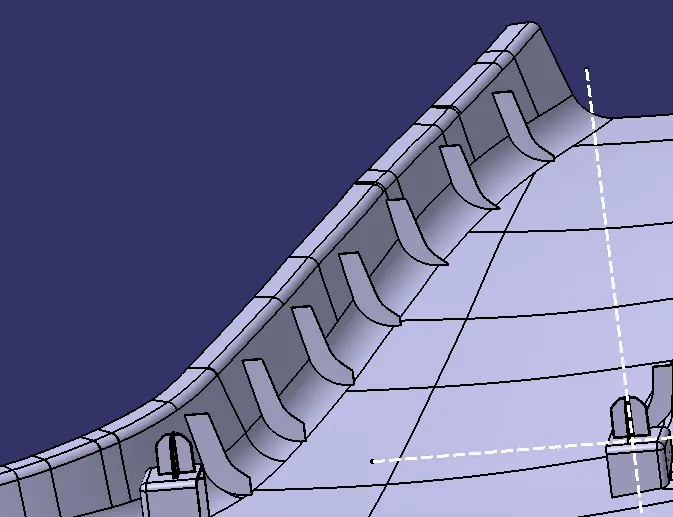

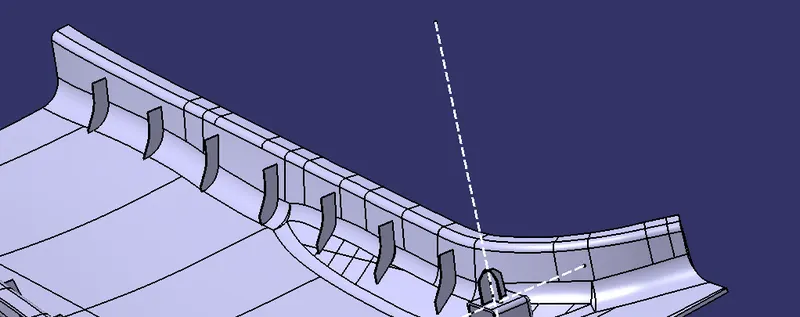

create a rib

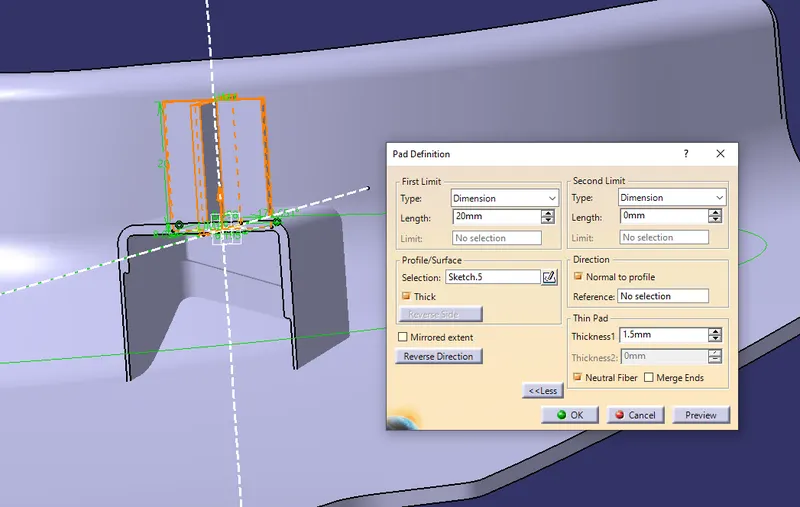

give thick and draft

translate the parent rib

and same way for other side

multi views

Draft analysis for side core is clear

draft analysis
