Calculating The Hill Climbing Force Required By a Truck

TARGET:-

1. Finding the hill-climbing force required by a truck.
2. Calculate the required data for the highway.
3. Prepare an excel sheet of the drive cycle
4. Prepare a WOT of GMEV1 car.

OBJECTIVE:-

1. Calculate and compare the hill-climbing power required for a fully loaded and half loaded of tata ultra truck
2. Assum, Plane and Calculate a construction of an NH, keeping in mind about the gradeability minimum length of the highway and considering the summit height will be about 5.5 meters.
3. Prepare a new drive cycle excel file for the model and also include a hill-climbing angle to it and revise the model file “Driver_Glider.slx”

   • https://in.mathworks.com/matlabcentral/fileexchange/63823-matlab-and-simulink-racing-lounge-vehicle-modeling

4. Model the WOT (Wide Open Throttle) response of GM EV1 car. Compare it with the official figures for the performance of a real vehicle. Prepare a table showing variation in acceleration time with a 5% change in vehicle parameters.

EQUATION REQUIRED:-

1. Diameter of the tire-: Dt=(2⋅Hs)+Dr">Dt=(2⋅Hs)+DrDt=(2⋅Hs)+Dr
2. Angular Velocity-: ω=vr⋅G">ω=vr⋅Gω=vr⋅G
3. Rolling Resistance-: Frr=μrr⋅m⋅g">Frr=μrr⋅m⋅gFrr=μrr⋅m⋅g
4. Aerodyanamic Drag Force:- Fad=0.5⋅ρ⋅A⋅Cd⋅v2">Fad=0.5⋅ρ⋅A⋅Cd⋅v2Fad=0.5⋅ρ⋅A⋅Cd⋅v2
5. Tractive Effort Force:- Fte=Frr+Fad">Fte=Frr+FadFte=Frr+Fad
6. Hill Climbing Force:- `F_(HC) = GSW *g * sin(theta)`
7. `G/r *T = (mu_(rr) *m *g) + (0.625 * A * C_d * v^2) + (m+ I*(G^2/eta_g *r^2)* (dv/dt)`

where-

• Dt">DtDt = Diameter of tire(m).
• Ws">WsWs = Section Width(m).
• AR = Aspect Ration.
• Hs">HsHs = Section Height.
• Dr">DrDr = Rim Diameter(m).
• ω">ωω= Angular Velocity(r/s).
• v = Velocity(m/s).
• r = Radius(m).
• G = gear Ratio.
• μrr">μrrμrr= Rolling Resistance Co-Efficient`
• m = Mass(kg)
• g = Gravity(m/s2">s2s2)
• ρ">ρρ = Air Density(Kg/m3">m3m3)
• A = Area(m2">m2m2)
• `theta`= Inclination Angle
• Cd">CdCd = Co-Efficient of Drag
• Fte">FteFte = Traction Effort Force(N)
• Frr">FrrFrr= Rolling Resistance Force(N)
• Fad">FadFad= Aerodynamic Drag Force(N)
• `F_(HC) =`Hill Climbing Force(N)

THEORY:-

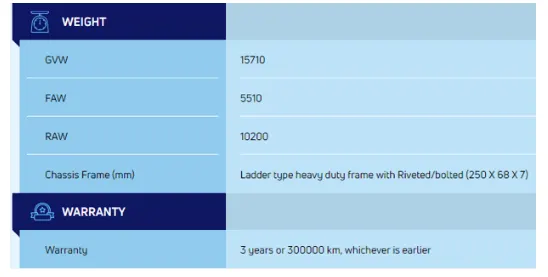

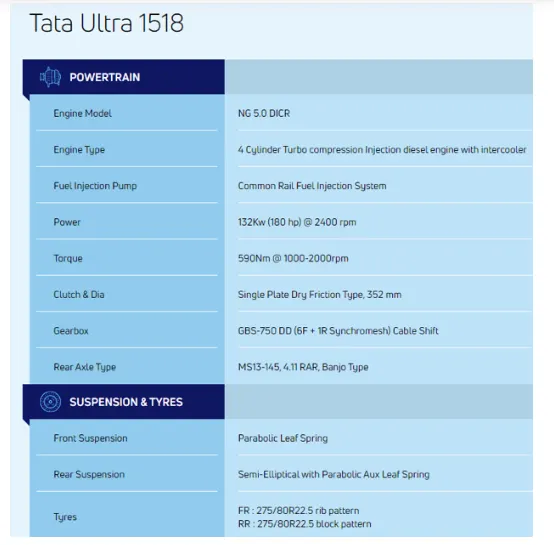

1. For this experiment i am using a TATA Truck Ultra 1518 and the details are
   •

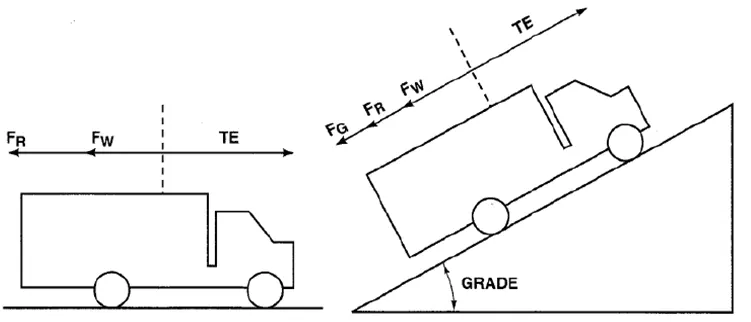

2. Gradebility means the ability to climb the slops of any kind of vehicle. Normally it is been calculated for the trucks, if a truck with a gradability of 8% with a speed of 45kmph i.m., the truck can climb the slope rise of 8% at the speed of 45kmph. this is the logical answer of gradability. Keeping in mind the Civil Engineer works with the rise of the highway the run length and the rise/gradability.

SOLUTION:-

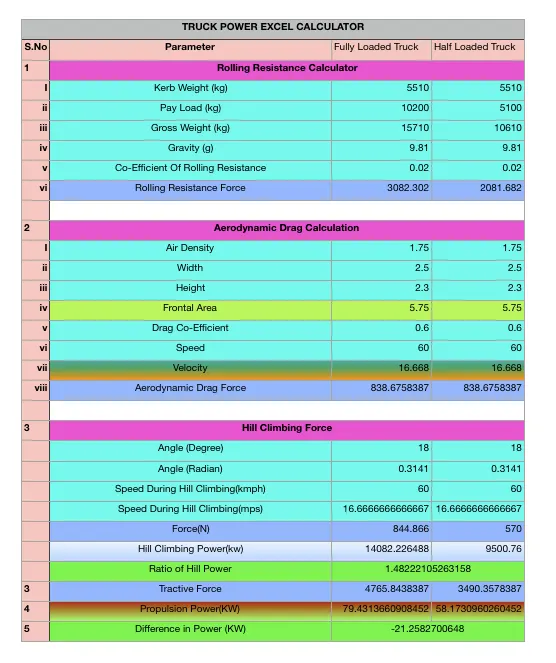

1. The calculation of the half load and the full load truck is
   •

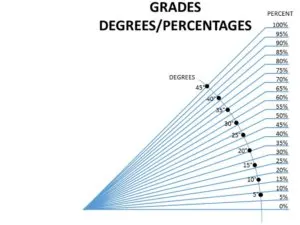

2. The Calculation can be solved using old school technique i.e., Pythagoras theorem. From the above problem we have taken the gradability of that truck which is 20%.

   Gradeability = 20%

   Gradeablity = `tan(alpha)*100`

   Hence, 'alpha' = 15.21 degree

   therefore, `sin(alpha) = h/l`

   minimum length (l) = `5.5/sin(15.21)`= 20.69 mtrs

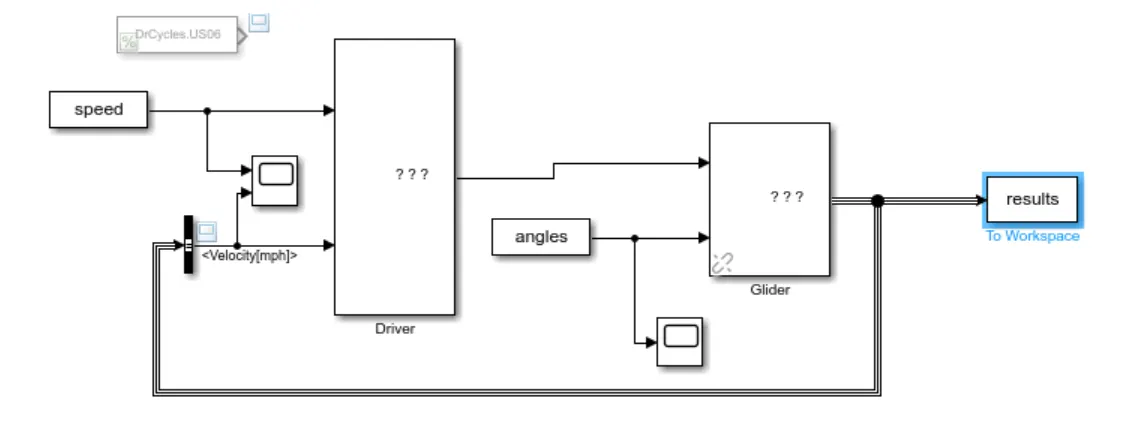

3. from the above link the circuit is given below
   •

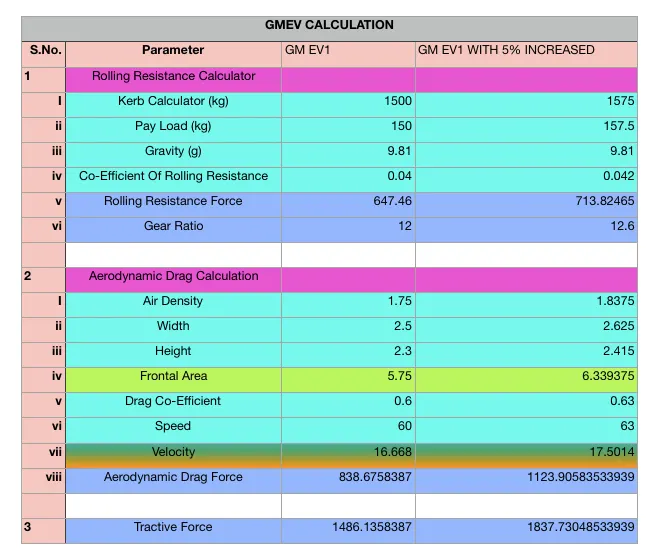

4. The following are the detailes

`G/r *T = (mu_(rr) *m *g) + (0.625 * A * C_d * v^2) + (m+ I*(G^2/eta_g *r^2)* (dv/dt)`

Parameters	GM Ev1 calculation	GM Ev1 with 5% increases
Below Critical Velocity	Torque remains constant but power varies (Constant Trogue Region) `dv =dT*(3.079-0.000137v^2)`	Torque remains constant but power varies (Constant Trogue Region) `dv =dT*(2.928-0.000137v^2)`
Below Critical Velocity and Cut-Off Velocity	Torque varies above critical But power remains constant `dv = dT*((61.512/v)-0.046-(0.000137*v^2))`	Torque varies above critical But power remains constant `dv = dT*((58.608/v)-0.048-(0.000137*v^2))`

CONCLUSION:-

1. The truck hill climb ratio is 1.4822.
2. The minimum length of the highway 20.69mts.

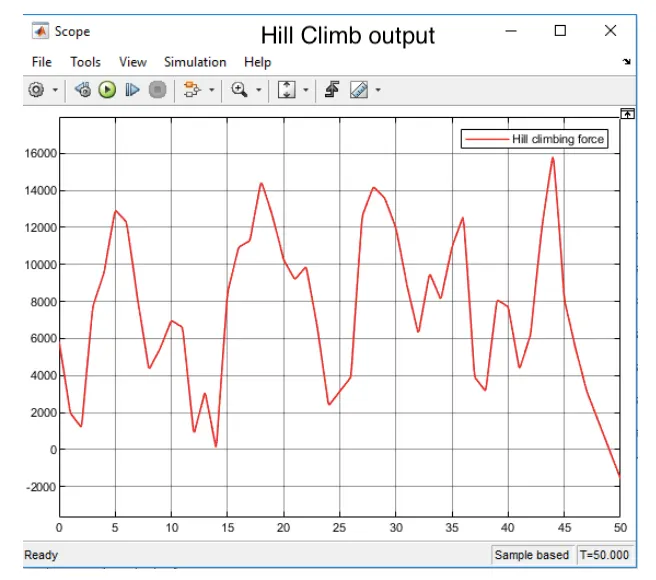

3. The output is already above.
4. The acceleration time is 14.46667.
