Week 8-3D Tetra Meshing Challenge

AIM:-  To develop the car backdoor (Tail gate) with the referance of given skin data as per engineering standard by using NX12 BACK DOOR:- The back door is typically hinged, but sometime attached by the other mechanisms such as tracks, in front of an opening which is used entering and exiting a vehicle. A vehicle…

OBJECTIVE:-  1. To design the automobile roof based on the given styling surface and to analyze the prepared model to check the manufacturability and the feasibility of the design. 2. To design the section modulus study for the master sections and create for the front roof, rear rail, bow roofs and center roof rail.…

AIM:- use the section your design and calculation the section modulus using the formulas s= I/y. from the below image, the steps for calculation the section modulus for the given surface can be seen. In order to see how actually the change the section modulus results in the behaviour of the material is it nessarcry to…

AIM:- The main aim is to design the fender model with the necessary mounts using the class-A surface MOUNTS:- 1. Bumper 2. A-pillar 3. Sill 4. Cowl 5. Drip Theory:- fender;- A fender is a part of an automobile that frame a wheel well(fender underside). its primary purpose is to prevent sand, mud, rocks, liquids, and other…

AIM:-  To decide whether the given design passes the european standard or not. Given Design:- European Regulations Requirement:- 1. Take the outline of the wheel and the fender. 2. make the centre of the wheel circle. 3. Draw2 horizontal and verticle prependicular axes the centre of the wheel circle. 4. Draw lines…

AIM:- To design the hood of a car with the given input panel and its dimensions. Hood introduction:- The hood (north america english) or bonnet (commonwealth english) is the hinged cover the engine of motor vehicle hoods can open to allow access to the engine component or truck (boot in commonwealth english) on rear_engine…

Underbody coating provides long term protection from corrosion to car's underbody. it also protects parts like internal body panels, frame rails and other inner cavities that are not physically accessible but are prone to corrosion underbody coating (if livining in castal region or not) is a must to make sure the unferbody…

1. Mahindra scorpio  2. These are new safety features set a benchmark for other manufactures an benchmark is to compare a recipe to the original chef's way of doing it. A benchmark is define as the standard bt which all others are measured an example of a benchmark is a novel that is the first of its genre. A standard…

AIM:- To apply differet material types to the simulation model and compare the behaviour of the material with differnt element and failure formulations. PROCEDURE: CASE:- Import the provided 0000.rad into the hypermesh workspace and change the properties to the recommanded properties for shell elements. save the model…

The main aim is to perfrom frontal analysis in the neon model with the recommended parameter and output requests. . Check unit system and either follow[mg mm s] or [kg mm ms] . Create opproprite interface, friction 0.2 and recommeneded parameters. . make sure of no penetrations and intersection. . correct rigid bodies…

. OBJECTIVE:- To mesh the given bumper model with mesh size of 6mm.                 TO run the crash tube simulation  with given 6 cases and plot the graph for energies. . Procedure to mesh the bumper.              Import the .hm go to file>import>model.…

IMPORT:- . The given rad file is imported to hyperwork and is displayed as below. . The element view is st to shaded elems view which displays the elements as follows. . Changung run time to 55ms: . In model tree, under CARDS collector, ENG_RUN card have a tstop of 60, ehich is changed to 55. . Changing animation steps…

IMPORTING AND READING RADIOSS STARTER FILE TO ANSWER THE GIVEN QUESTION: Firts, we have to check the material properties of the rail component. there are two multiple way to ceck the material properties. one of the way is to import the file in radioss and check for the material properties. so after opening the hypermesh,…

PROCEDURE Part 1: . IMPORT: . given model is imported to hyperworks using import model option. . part - 1 Topo View: . the given model is viwed in topo model to view the surface edges. Geometriry cleanup of part 1: . Since  the topo model view shows the  surface irregularities in the imported model, it should…

Theroy The lithium ion batteries are widely used as energy source in different hybrid and electric vehicle. the operation characteristic of the batteries in such as vehicle are strongly depended on the operation temperature and there fore, with purpose to improve thsese characteristics a good thermal control system should…

THEORY A battery pack is a st of any number of (preferabley) identical batteries or individul battery cells. they may be configured in a series, parrels or a mixtrure of both to deliver the desired voltage, capacity or power density. the term battery pack is often used in reference to cordelss tolls, radio-controlled hobby…

Downloading and open closedloop BMS hardness dashboard model: In file exchange open the document of designand test li-ion battery management algoriythm' Download the zip file and extract to a folder. the folder consist of thses files as shown below, open matlab software and open the simlink model file of closed loop BMS…

A lithium-ion battery is a types of rechargeable battery lithium-ion batteries are commonly used for portabvle electronices  and electric vehicle and are growing in popularity for military and aerospace application. In the batteries lithium ions moves from the negative electrode through an electrolyte to the positive…

Step 1. the given component has been imported into the hypermesh with optistruct profile. After that any solid from the surface is deleted from the components. The given component has few igeometric errors which are to be fixed manually so that to generate a perfect mid surface of the component. The given problem can be…

Aim : To create the shell (2-D) meshing for the car side door panel by eliminating geometric errors and considering the given elements quality criteria using hypermesh. Introduction: 1. Car side Door panel The side door panel is the palstic part. material used for the door panel are acrylonitrile-butadine-styyrene(ABS),…

DESCRIPTION: 1D ELEMENT : All line element, whether straight or curved, are called 1D element in  which they have translational and rotational displacemnet function, examples 1D element are truss element. 2D elements are typically surface with triangle or quadrilateral as their basic shapes. PROCEDURE  Import…

Procedure: To start with meshing on any component we have to go through several preliminary stages, which includes geometry cleanup, mid surface extraction , mid surface clean up and set up mesh parameters. So, in hyper mesh, we need to first check for solid in the feometry, after import the model and to delete the solied…

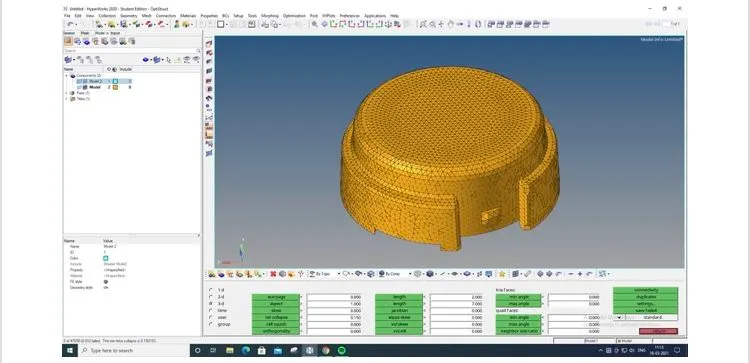

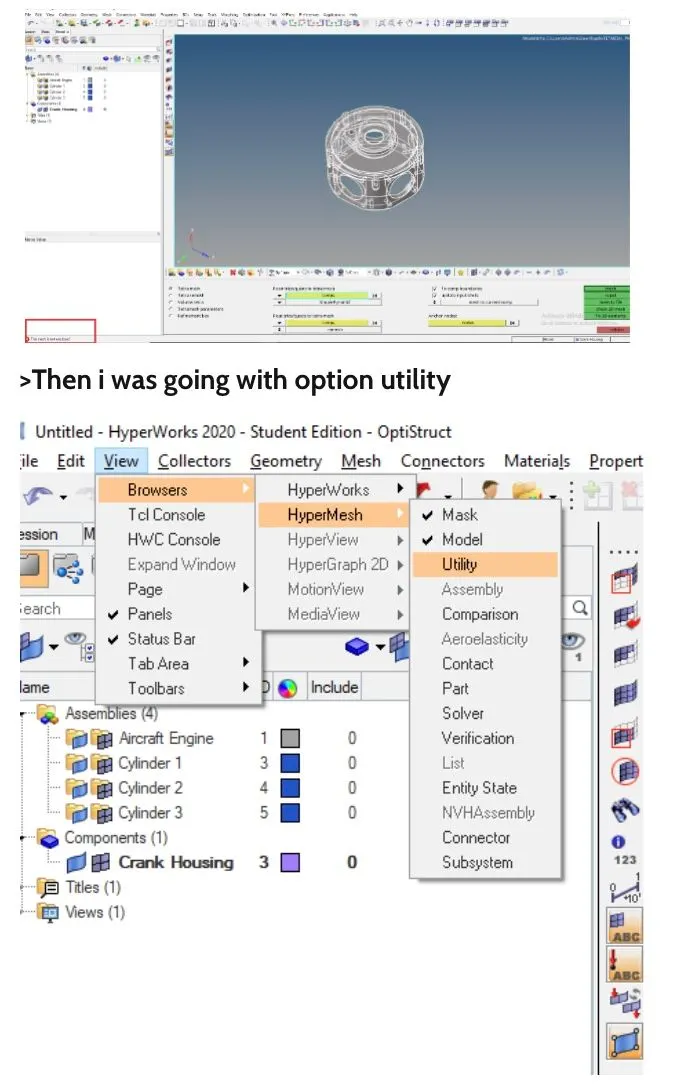

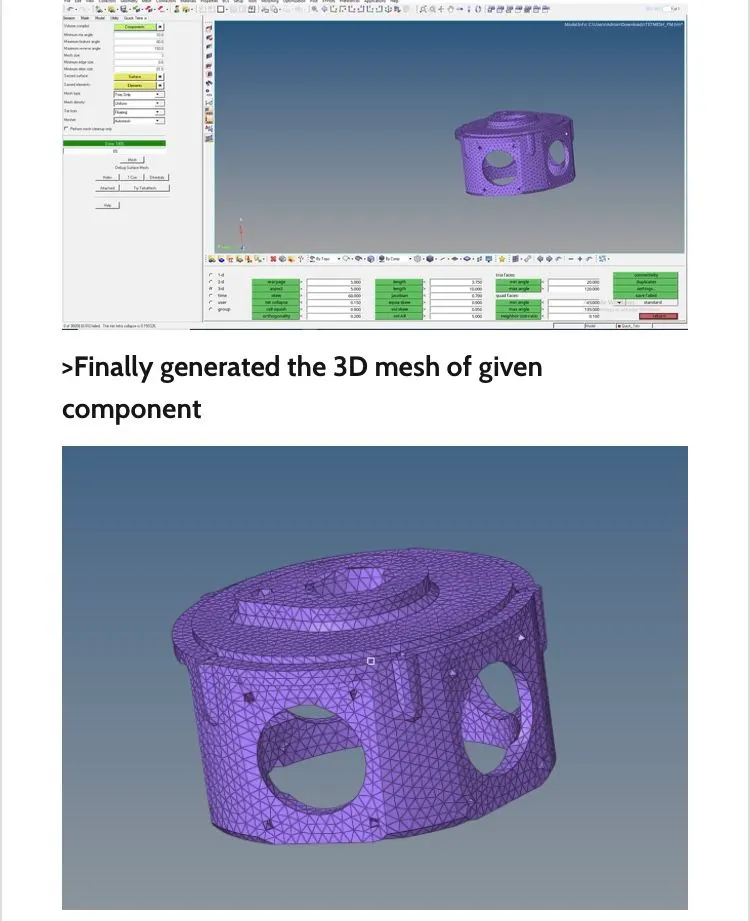

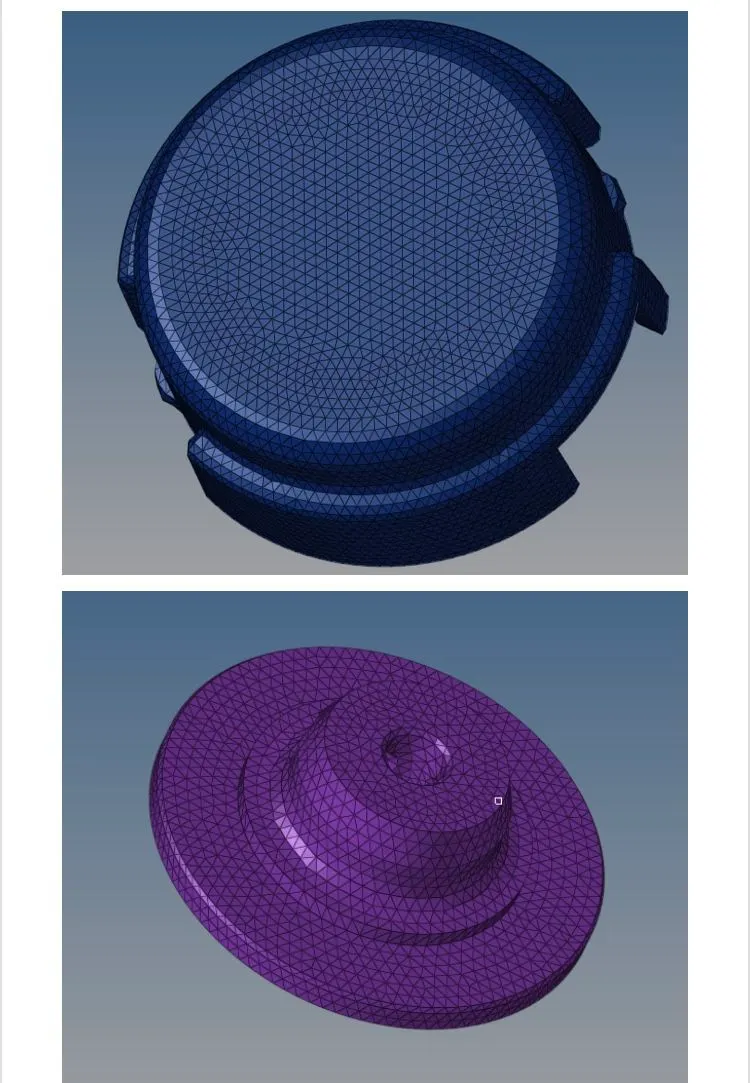

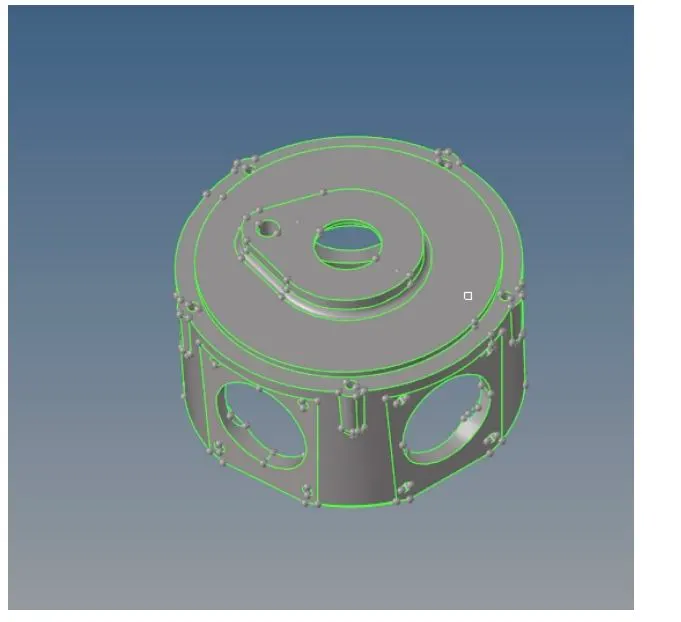

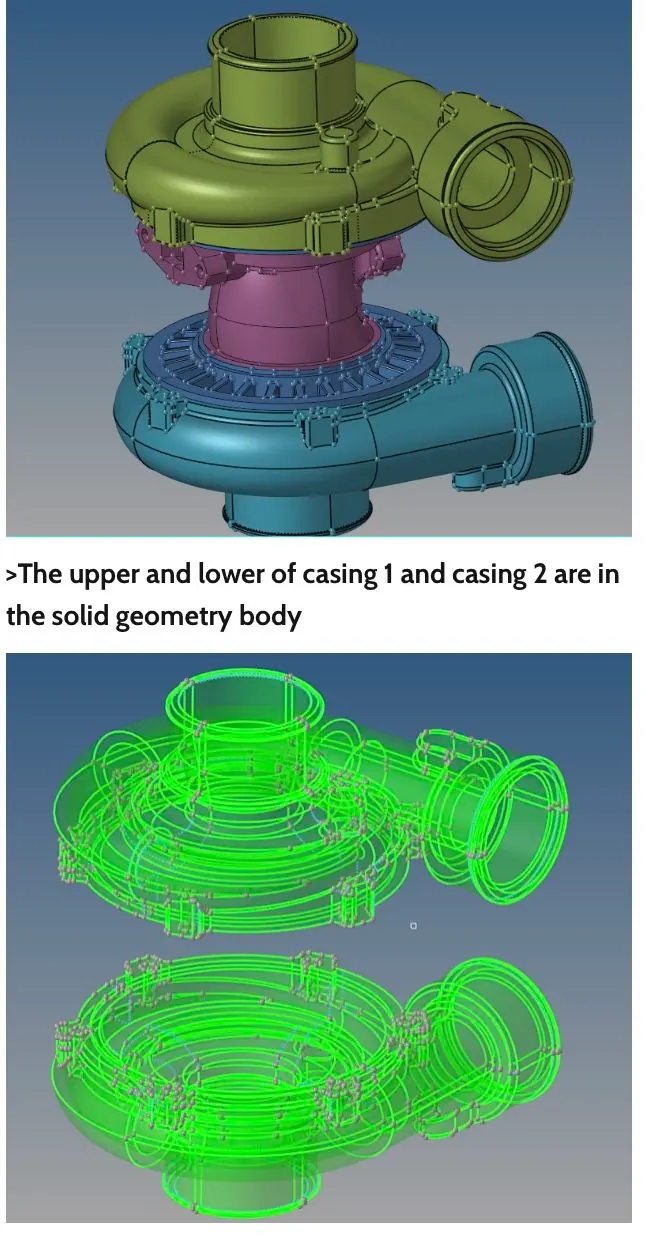

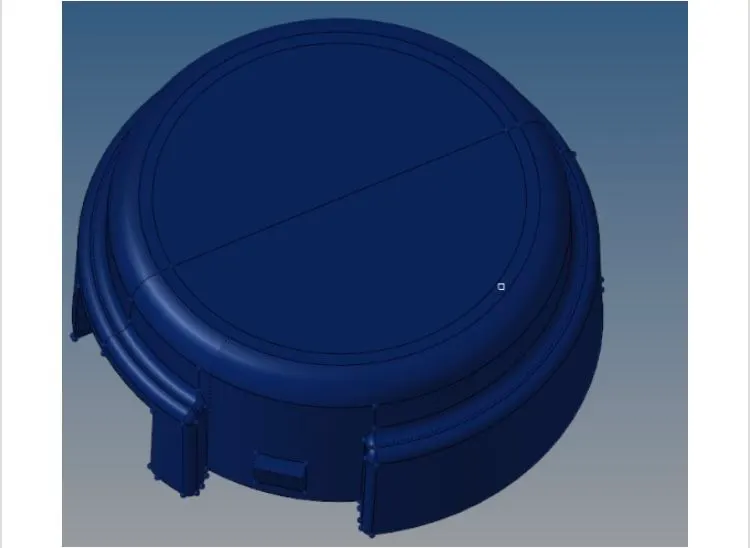

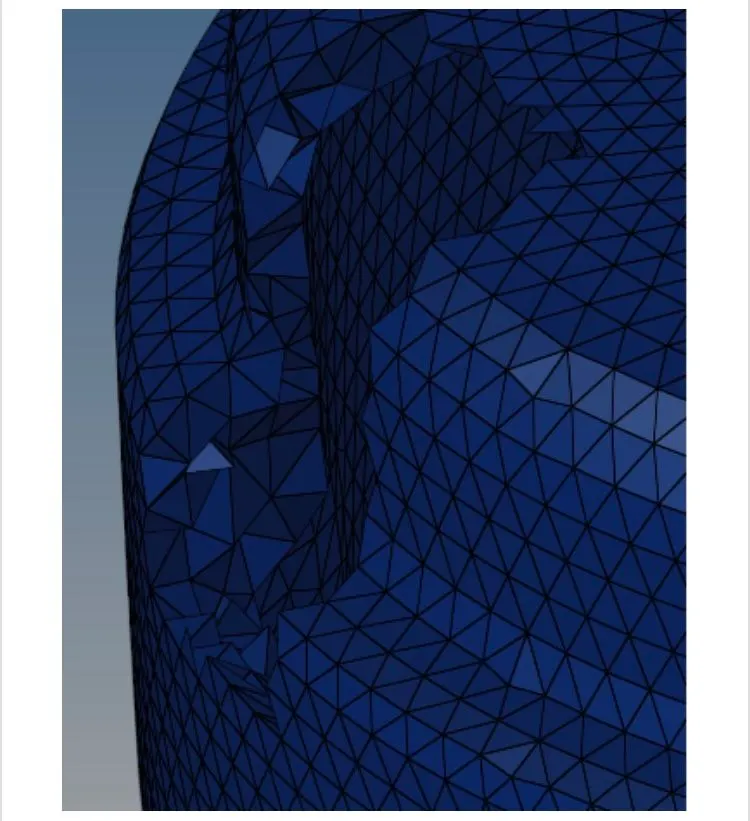

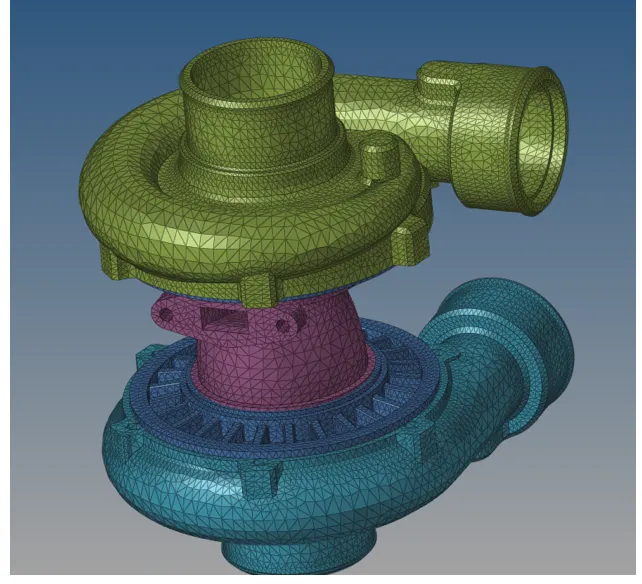

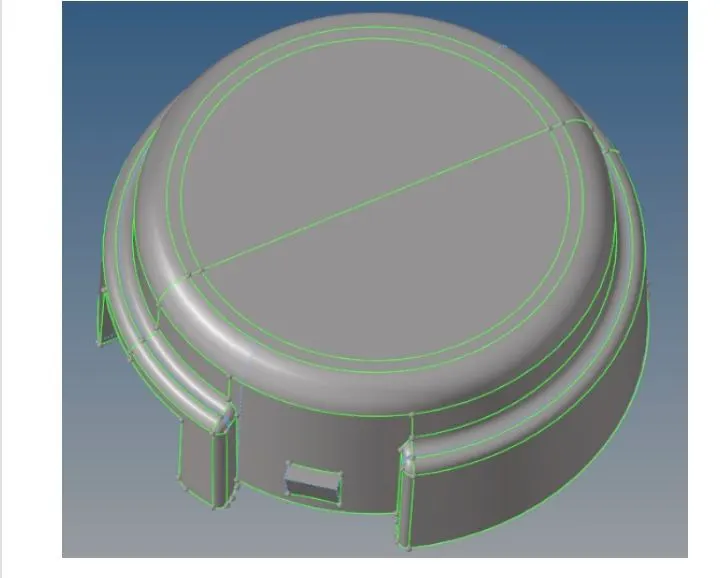

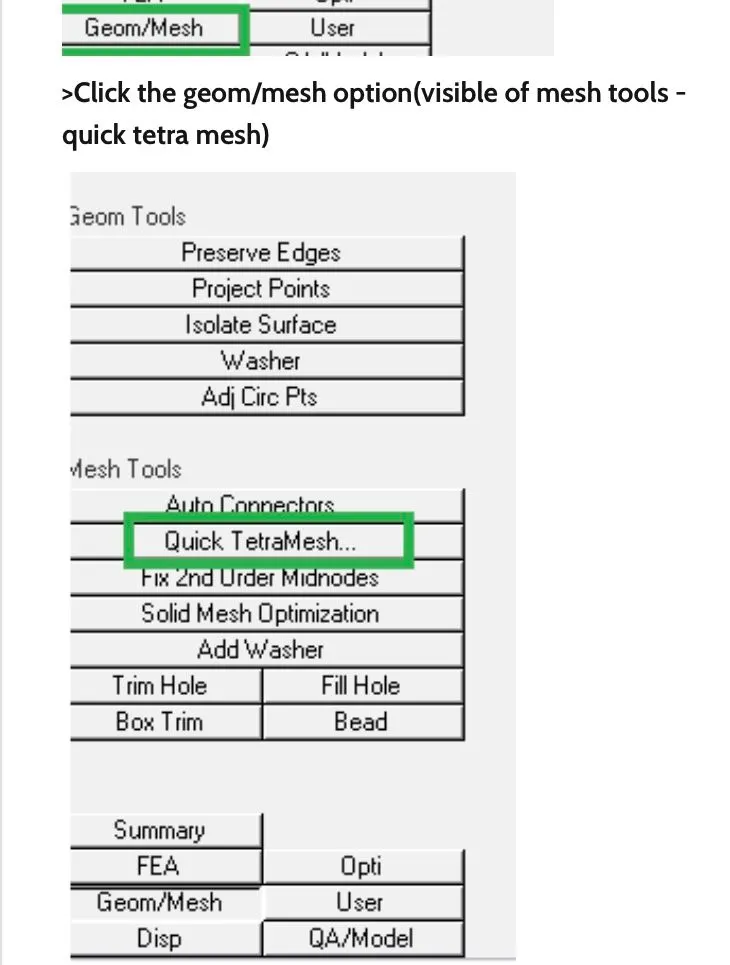

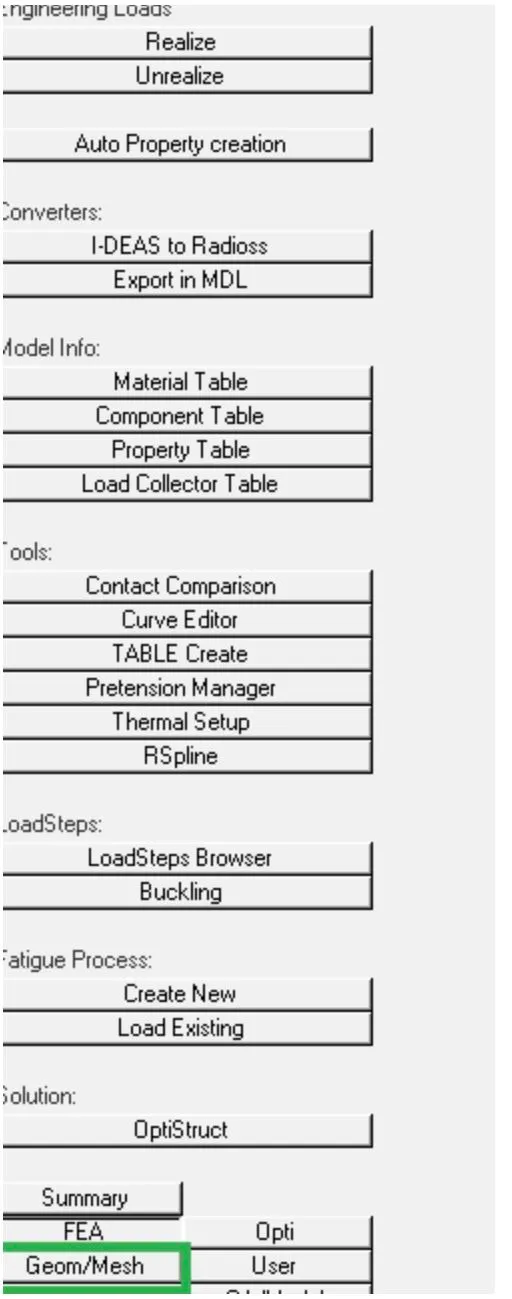

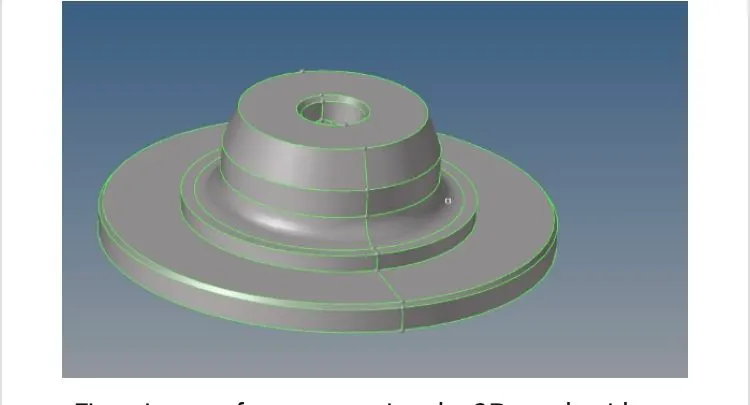

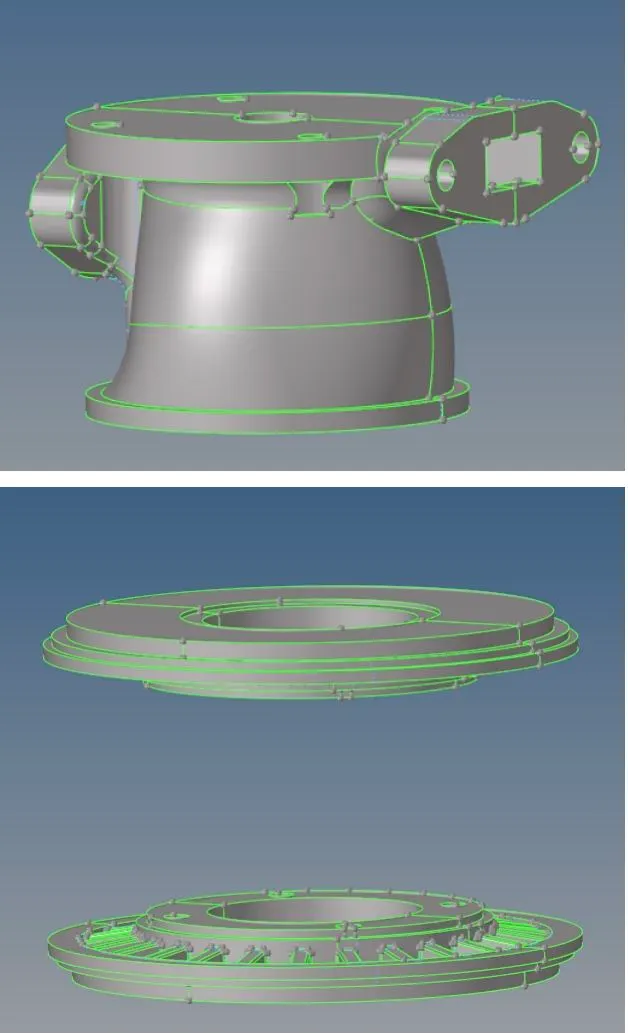

1. procedure  >firstly the given model of three model of different methods. >then , download of models >import the model geometry >question image >1method-conversion of 2D tria elements into tetrahedral element, by using (tetra mesh panel) >import model >given housing component >model 1. >By…

Rankine cycle :- Rankine cycle is an idenlizd thermodynamics cycle or headt engine in which a fuel is used to produce heat within a bolier , converting water into steam which then expands through a bolier turbin peoducing useful work. this processes was developed in 1859 by scottish engineer william j.m rankine. it is…

File parshing: file parsing refers to how nformation can be read form a particluar text file or any types to file and how that iromation can be used in a computer program. step 1-Define the function step 2-create an inputpaser object step 3-add inputs to the scheme step 4-set  properties to adjust parsing step 5-parsing…

proceducre: step1:- Important geometry and cleanup: . To import the geomertry, go to file >>import>>select the file>>import. . after importing the geomertry, the geometry is cheacking for any missing surfaces or triple cons. if there are no errors present in the geometry them the geometry is ready for…

Theroy and introductions the generatic algorithm is inspried by the process that drives biological evaliation. the process of evaluation starts with the selsction fittest individals from the population. they the produce offspring which inherrit the characteristic of the parents and will be added to the next generation.…

Introduction :-A new study to vehicle/automobile engineering say that by coming 2025, there will be major transformation in the auromobile sector. many automaker are working to change the vehicle technology, the major area is to decerase the pollution and use electrification in the upcoming vehicle. the researchers and…

Ans(1).  search and list out the total weigt of various types of aircraft. the answer for this question is prepared in the presentation format. the image snippets are placed for your referance. below is the general classification of thw aircraft.       this is overview of the different tyes of aircraft.…

Ans 3. matlab code % A matlab program for plotting contour plot of motor speed, rorque & efficiency clear all close all clc   % speed array w = linspace(0,1000);   % torque array t = linspace(0,300);   % loss coefficients kc = 0.18;   % copper losses ki = 0.006;   % iron losses kw…

second order differenceal equation to solve the simple pendulum  simulation. d^2theta/dt^2+b/m.dtheta/dt+g/lsin(theta) = 0 create two ODE dtheta1/dt = theta2 and dtheta2/dtheta = -(b/m(theta2)+g/lsin(theta1)) codes for calling a function :-the function which we have define with some parameter are going to use in the…

1.   electric vehicle :-   an electric vehicle (EV) is avehicle that user once or more electric vehicle motors for propulsion an electric vehicle may be powerd through the collectir system by electricity from off vehicle sourse hybrid electric vehicle:-  a hybrid electric vehicle (HEV) is…

Introduction:- kinematics is the relationship between the position , velicity and accelerations of the links of a manipulator. the forward kinematics is when  the kinematical data are known the join coodinates .the variable of the end - effector in a given cartesian space are to computed. robotic arms are machine…

1. MAPPED model :- mapped model are used when the behavior of a particular model is not of not interest and can ba modeled with predefined values in the form od=f lookup tables   madded  motor and drive electronics operating torque control model we have to specific electrical torque range with a torque…

1.   ADVISOR TOOL AND SIMLUATE objective 1.  Cargo mass is 500kg with all other default condition can the vehicle travel of 45km with FTP drive cycle 1.  try changing the battery capacity and repeat the simulation  2.  perform gradeability test with :-  PURIUS_ipn_defaults _in file compare…
