Reinforcement Detailing of Beams from ETABS output

1 Answer Aim:Summarizing the BMD, SFD and deflection of elements Bending moment obtained after the analysis.         Shear Force obtained after the analysis.                     Deflection obtained after the analysis.                     2 Answer. Aim:Design analysis of the members To analyse the model setting up the seismic…

1) Aim: To Apply loading to the structure Load Calculations: a) Dead load of 1.2 Kn/m2  b) Finishes= 50mm * 24Kn/m3 =1.2Kn/m2 c) Brickwall Load= 0.15*20*5.2 = 15.6 Kn/m ( Ground to Intermediate Floor) d) Brickwall load= 0.15*20*6.8 = 20.4 Kn/m2 ( Intermediate to roof Floor) e) Brickwall load= 0.15*20*4.8…

1 ) Aim: To Calculate the wind loads manually The manual wind loads are calculated in the Excel sheet as shown below This load calculation is of Y direction.         Similarly the wind loads are calculated in the X direction as the same procedure followed above         2 ) Aim: To…

  Details of the structure: Support: Fixed-Pinned(Top and Bottom) Concrete Pedestal Size PD1= 600x600mm Steel Column C1= MB 300 Steel Beams: B1= ISMB 300 applied for primary beams at ground floor including staircase landing beam. B2= ISMB 250 applied for primary beams at first floor including staircase landing beam.…

AIM: To create column and beams to the Grid PROCEDURE: 1. Opening the TEKLA file which was saved with grid in last challenge.         2. Defining the different levels such as base level , ground level, intermediate level and roof level appropriately according to the plan.       3. Selecting…

1) . Summarize the user interface in TSD with the for the following items: -   Project Workspace – How to access and usage    Scene Content – Demonstrate the use of scene content    Create two scene views   Loading drop list- How to access    Properties windows –…

Aim:To model, analyse and design the Architectural G+3 RCC building located in Guwahati Assam and producing the result of Etabs model for the two blocks on either side of the expansion gap Foundation details illustrating the pile & pile cap reinforcement Tie beam details connecting the pile caps Column reinforcement…

Aim: To Run a modal response spectrum analysis and check analysis results of the etabs model for inter-storey drift requirements, vertical & planar irregularities, minimum shear wall requirements,maximum axial load ratio for column and shear walls, effective moment of inertia for beams and columns as per the IS…

AIM: To provide reinforcement details of shear walls from base to terrace, as per IS 13920-2016. INTRODUCTION: Shear walls are vertical elements of the horizontal force resisting system. They are constructed to counter the effects of lateral load acting on a structure.  When shear walls are designed and constructed…

AIM: To provide the details of longitudinal reinforcement for the two columns (3A & 3B), from foundation to terrace level. The details of shear reinforcement as per special confining reinforcement provision of clause 8.1 of IS 13920 - 2016.   Procedure: Step1: First Challenge open it in the etabs 2018, as shown…

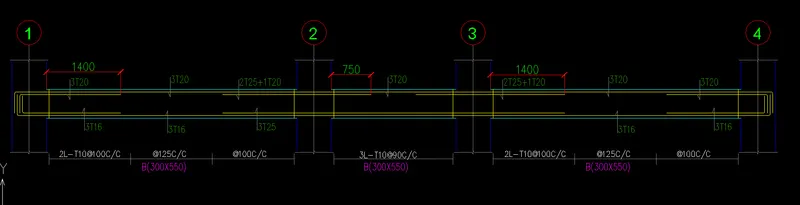

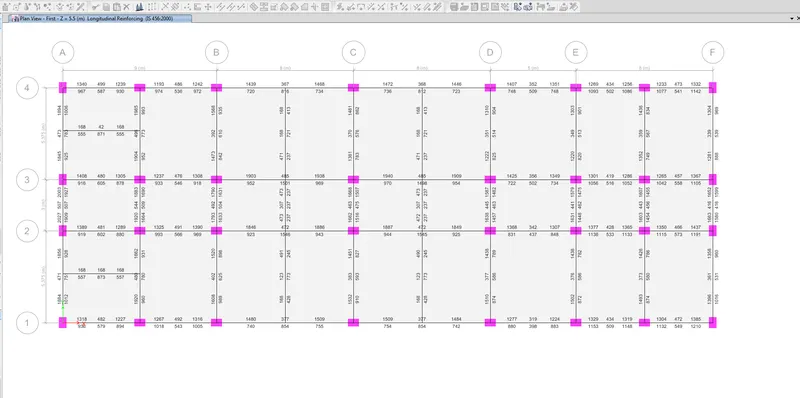

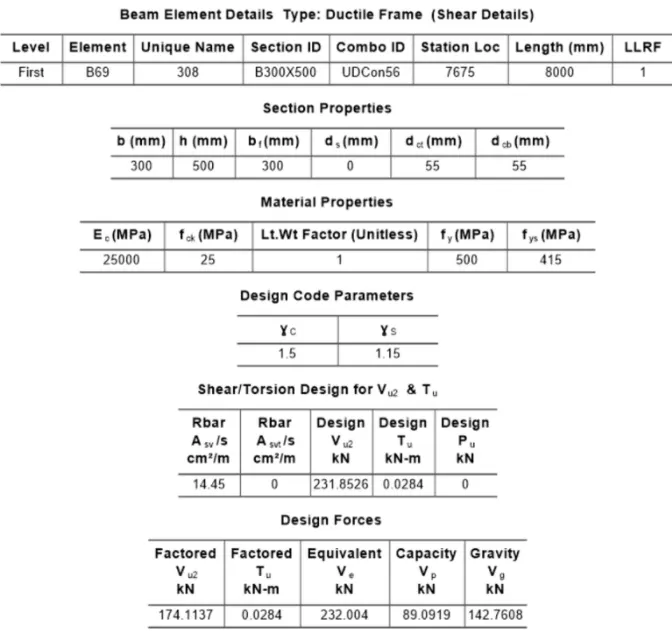

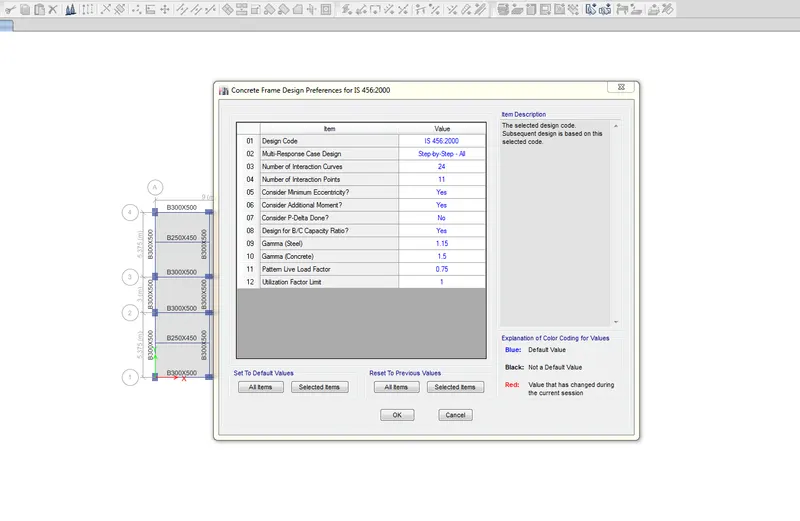

Aim: To provide reinforcement Details of the beams mentioned. Procedure: Step 1: The provided ETABS models is analysed and designed as per IS 456:2000 in ETABS as shown below.     Step 2: Once the analysis is complete the detailing of the beams in grid A and grid 3 is drawn as shown below according to the steel…

Aim: To understand the behaviour of the building when the factors are changed gradually. Procedure: Step 1: 10 different building models as mentioned below are modelled in ETABS for the comparitive study.         Step 2: All the models are pinned joined at the base as mentioned above. 1) For building…

AIM: To model a 25 storey building on ETABS 2018 with structural properties as specified above specifications.   PROCEDURE: Structural Element Sizes.  Material Properties.  Loading cases. Assign. Analysis. Result.   STEP1: Open ETABs software file. Go to the new model, set the model Initialization.…
