3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

1)

AIM:

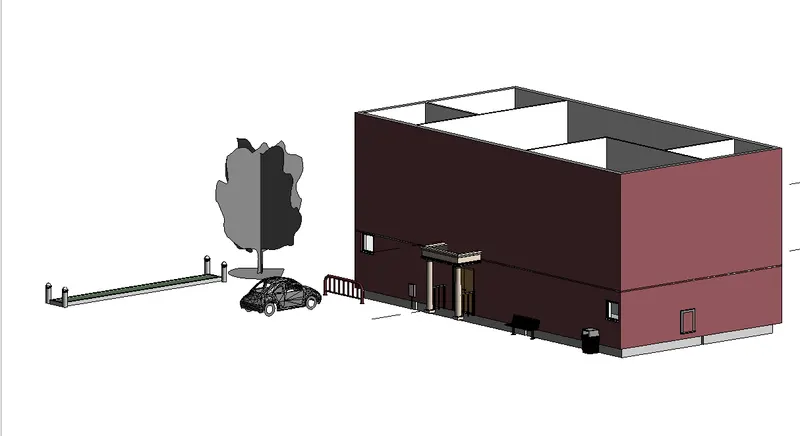

To model a celling from architecture tab above the walls at first floor level

TOOLS:

1. Celling

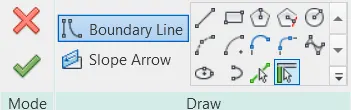

2. boundary lines > rectangle

PROCEDURE :

STEP 1 (Celling for first floor )

• open week 3 project
• go to architectural tab > celling > boundary > rectangle .

Result:

2)

AIM:

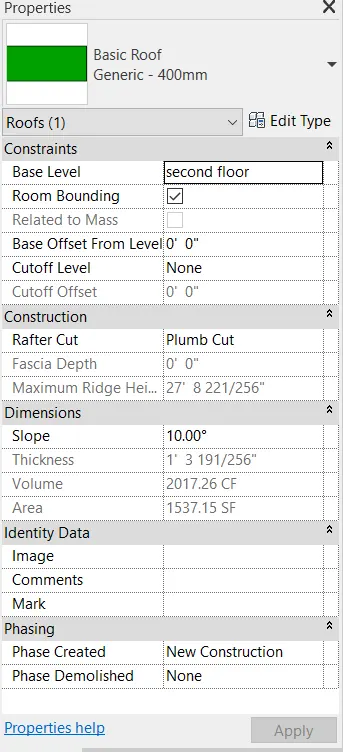

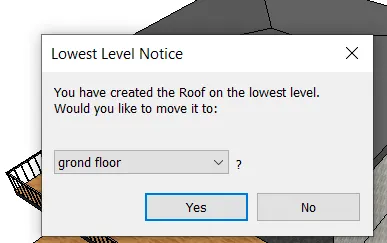

To model a roof

TOOLS :

1. Roof
2. boundary lines > rectangle /pick lines

PROCEDURE :

STEP 1 :

• Go to architecture tab > roof > boundary lines > pick lines >select the desired lines

SELECT THE DESIRED LINE .

Result:

3)

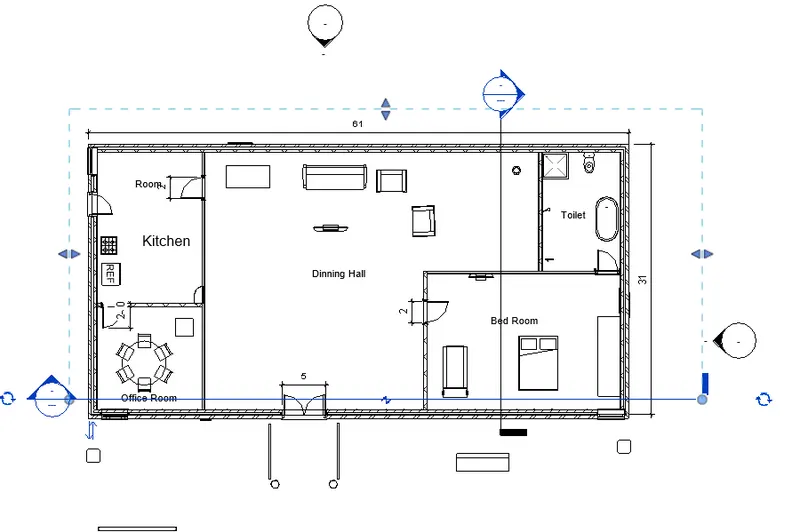

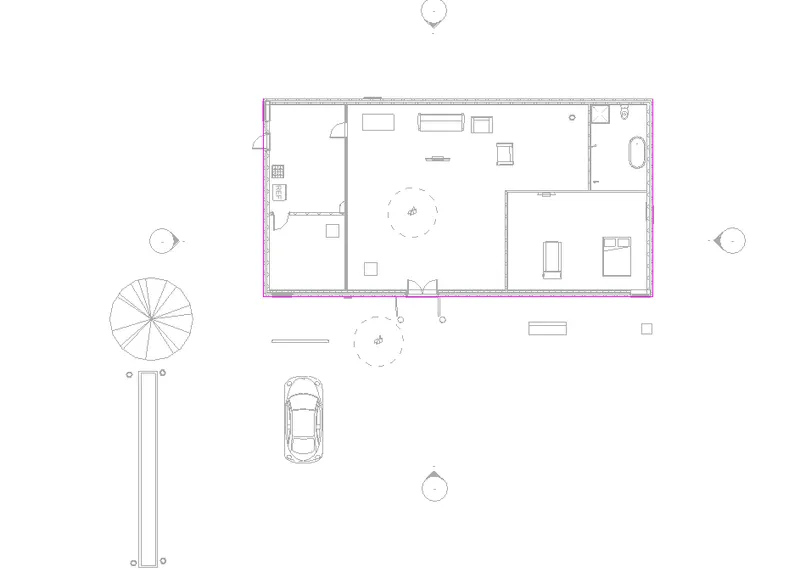

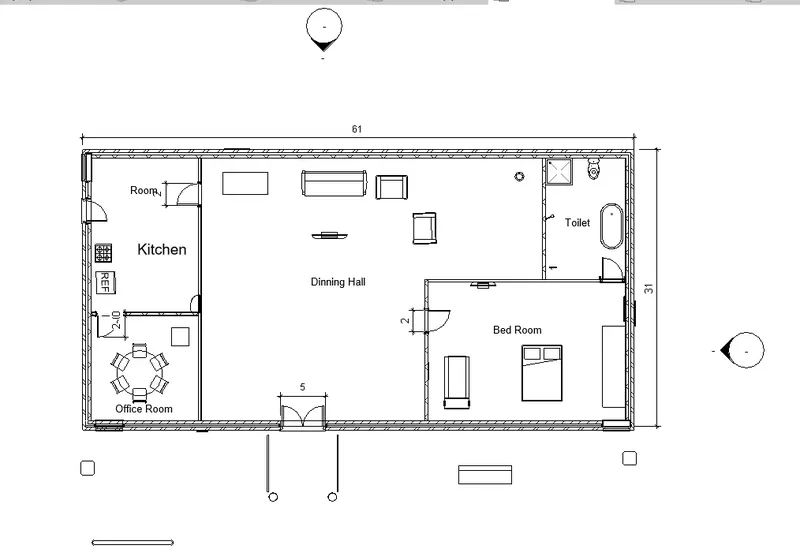

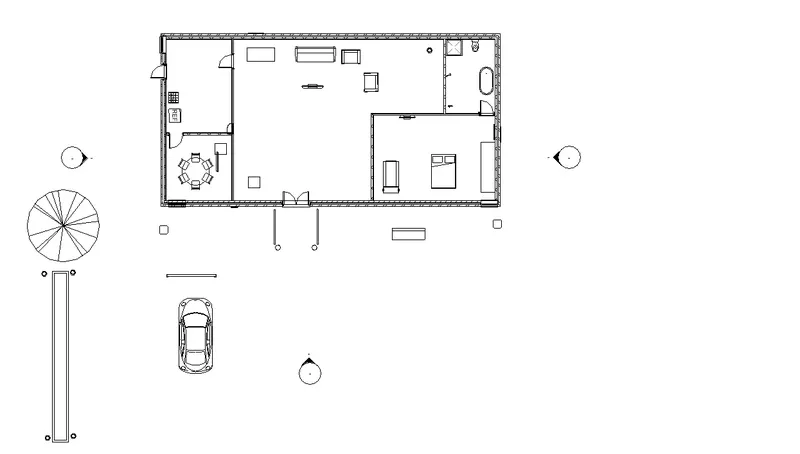

a. Architecture plan must have walls , floors and all the components placed within the building

AIM:

To create architecture plan that has walls ,floors and all the components placed within the building

PROCEDURE :

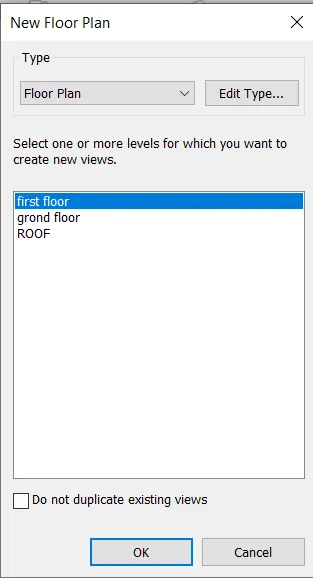

Go to plan views in view tab

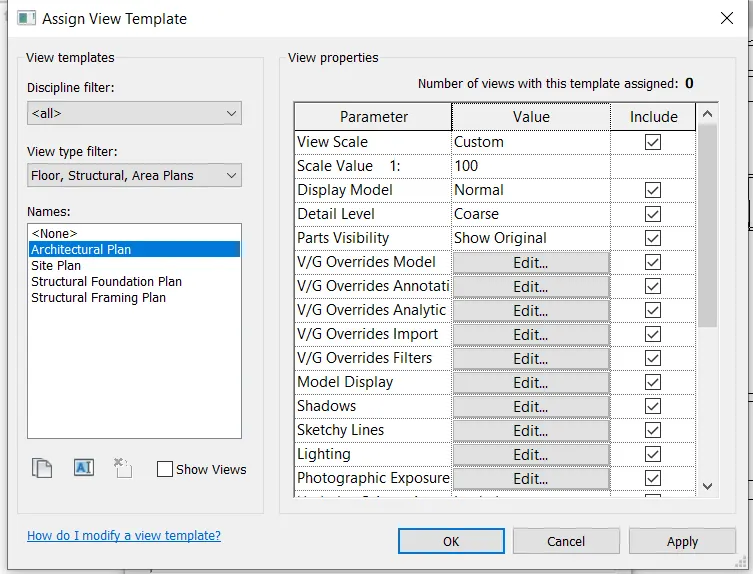

Then go to edit type and click architectural plan

• click apply same for ground floor , first floor and roof

RESULT :

GROUND FLOOR

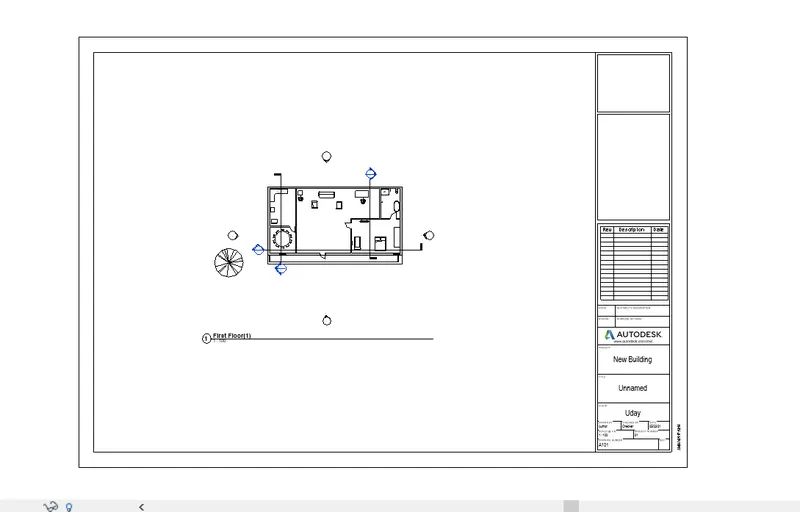

FIRST FLOOR :

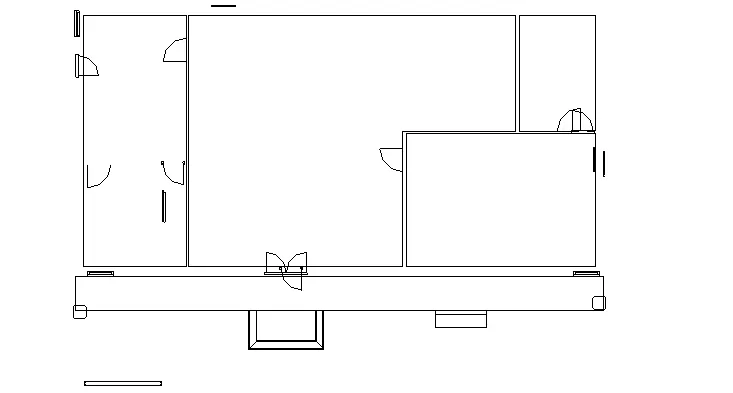

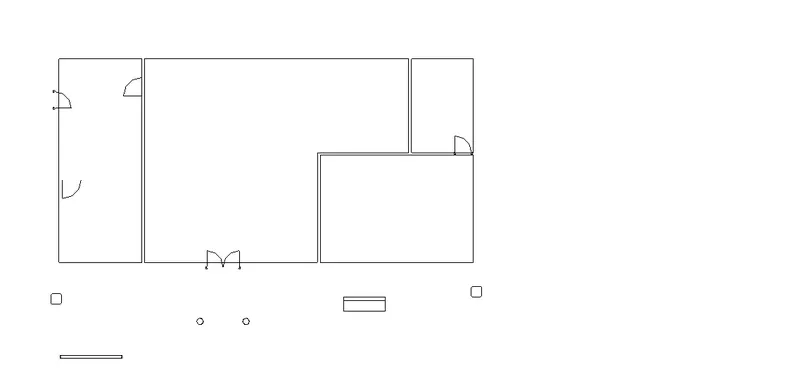

b. Structure plan must have details of only walls, floors and columns

AIM:

To create a structural plan

PROCEDURE:

• Go to view tab > view plan > structural plan
• Same procedure is followed for first floor

RESULTS:

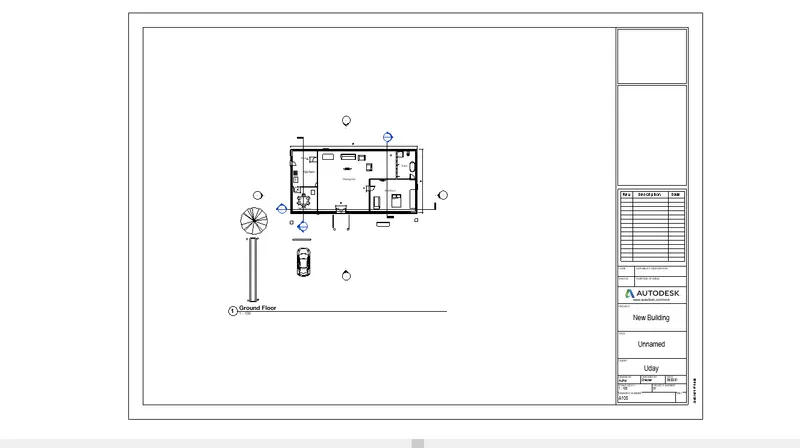

Ground floor:

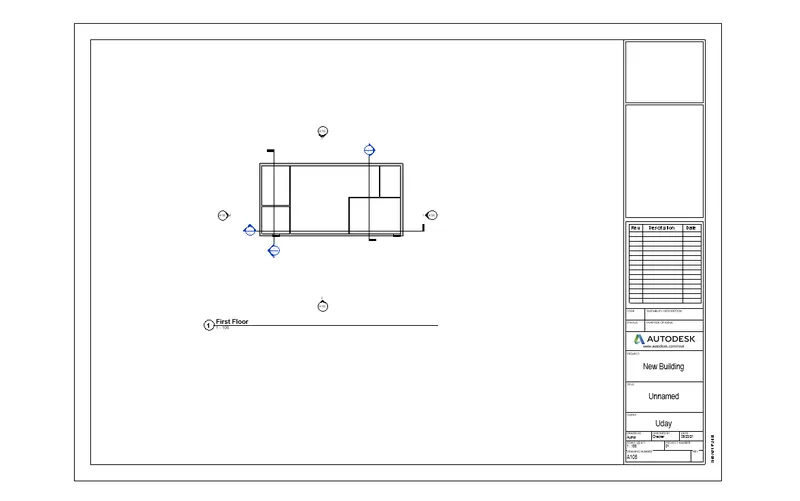

FIRST FLOOR :

4)

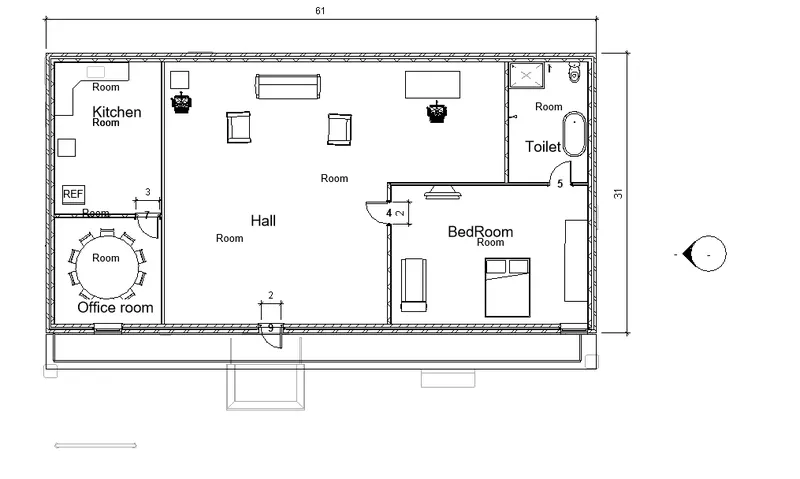

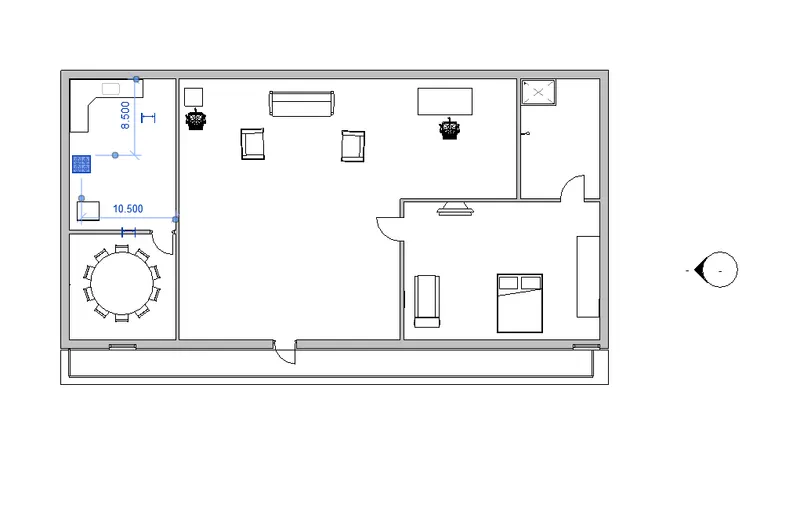

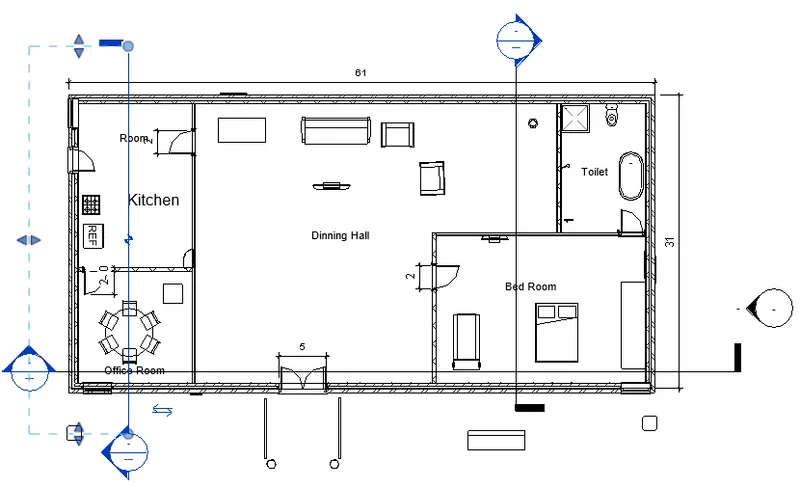

a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans

AIM:

To give dimensions and grid lines to the project

PROCEDURE:

STEP 1 :

• Go to annotate tool bar> linear dimenisions
• Go to architectural tab > tag rooms

RESULT :

GROUND FLOOR :

FIRST FLOOR:

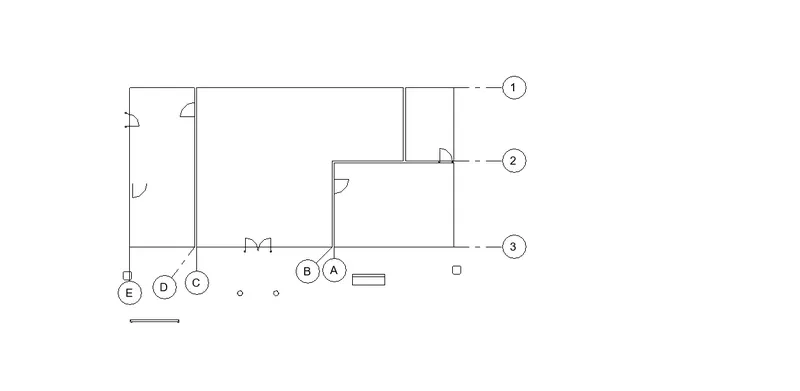

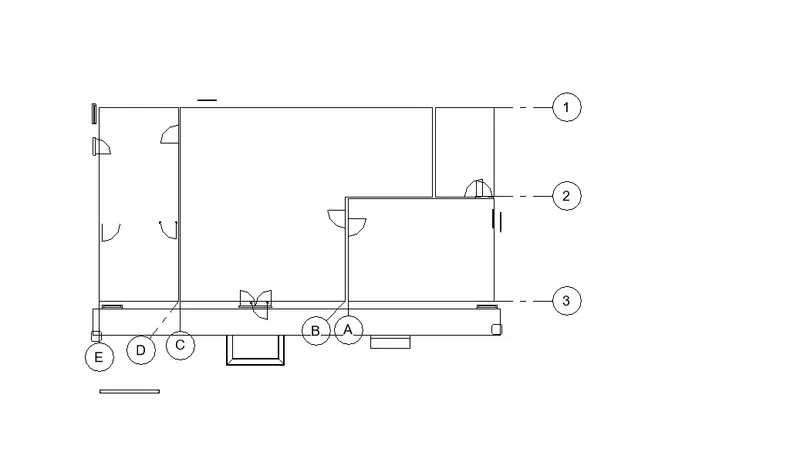

b. The Structure plan dimensions must include details on position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans

AIM:

To give dimensions and grid lines to the project

PROCEDURE:

• Go to structural plan
• Then go to architectural tab > grids > draw grids along the walls

RESULT :

GROUND FLOOR :

FIRST FLOOR :

5)

AIM:

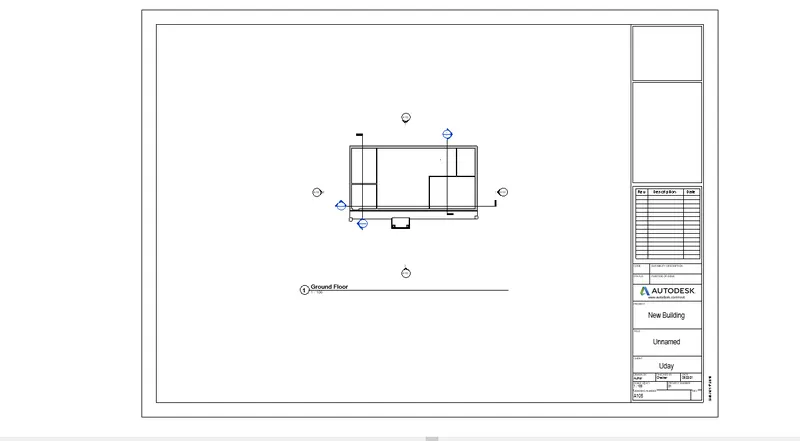

To create a sheet template from the view tab and to adjust the parameters on the sheet to add appropriate views

PROCEDURE :

• go to view tab > sheet template >add view

RESULT :

6)

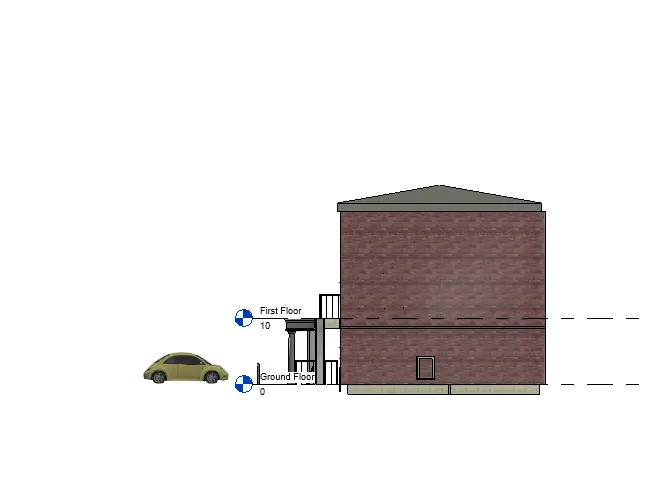

AIM:

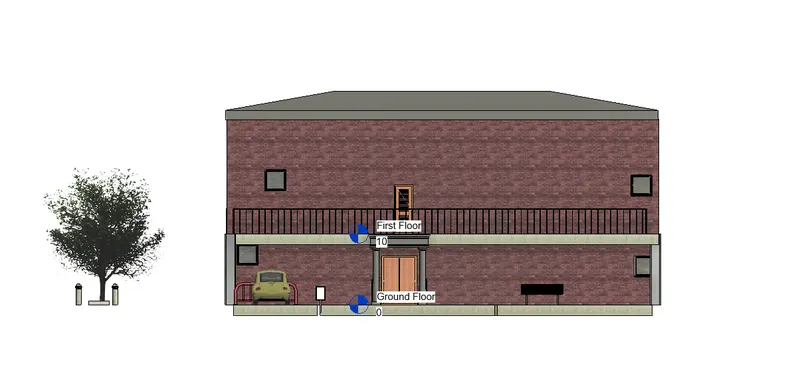

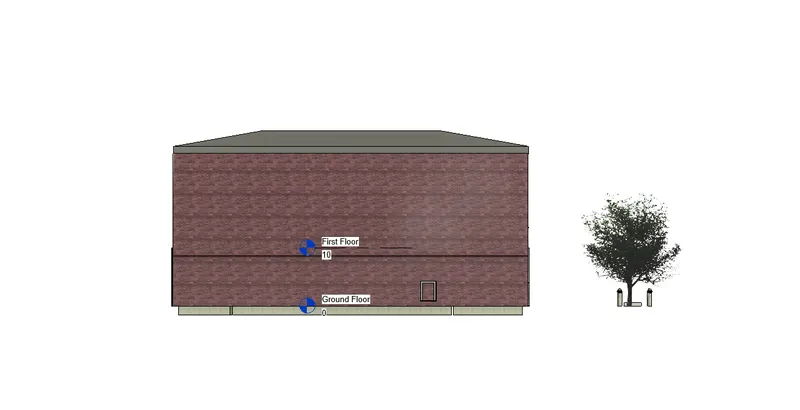

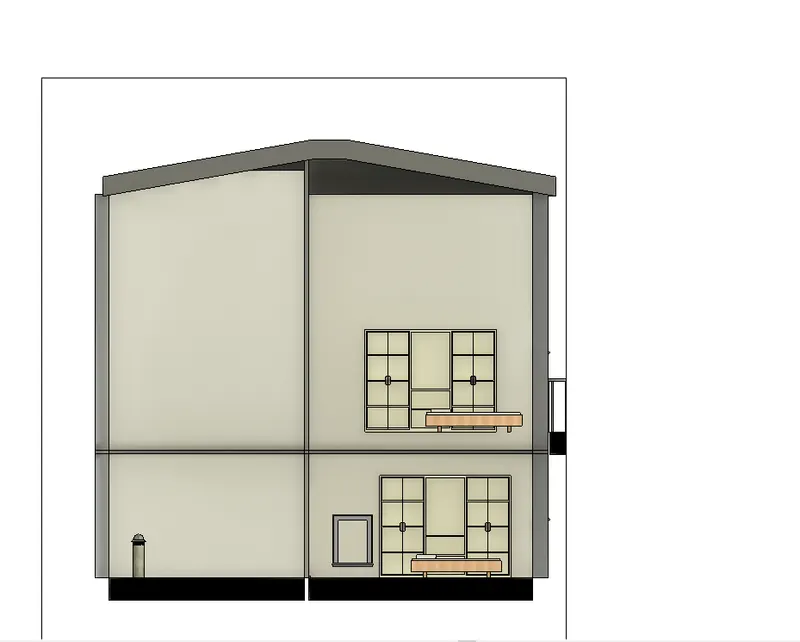

To create elevation tab

PROCEDURE :

• go to elavation view > north> south>east >west

RESULT:

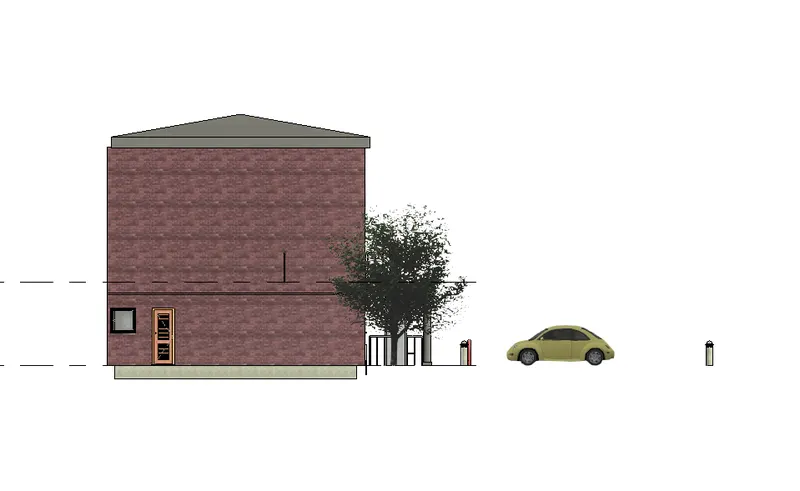

NORTH:

SOUTH:

EAST:

WEST:

7)

AIM:

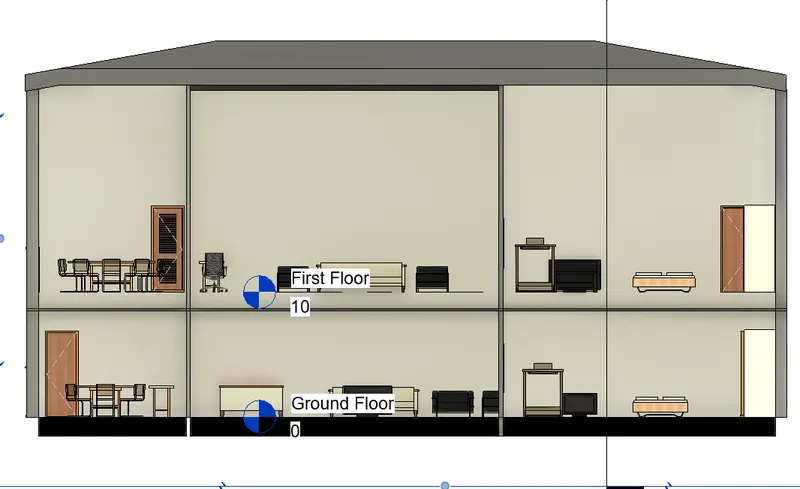

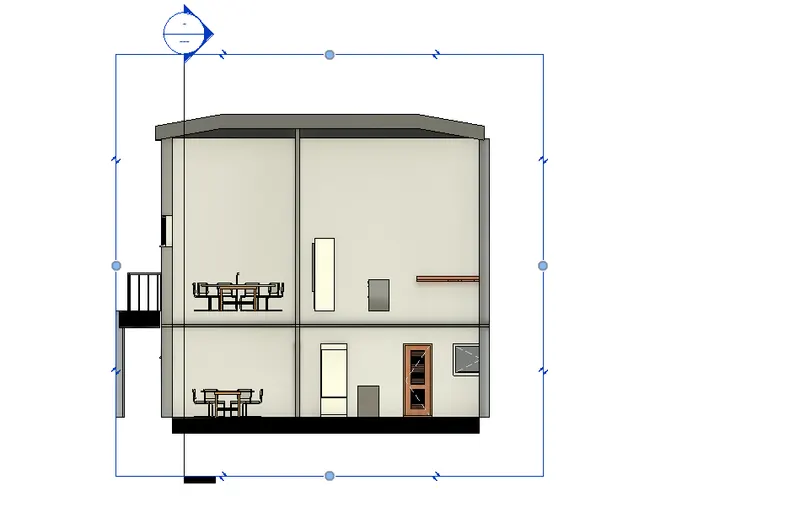

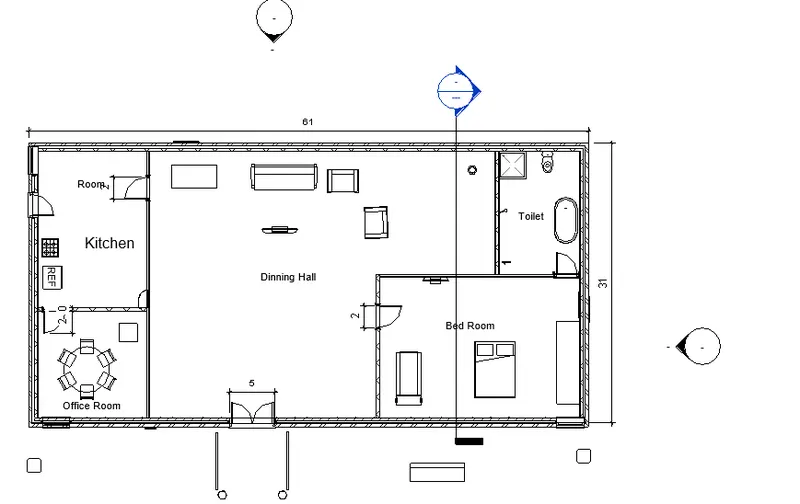

To produce section cut through each room

PROCEDURE:

PROCEDURE:

• Go to view tab > section view> section the required view

RESULT:

SECTION 1:

SECTION 2

8)

AIM:

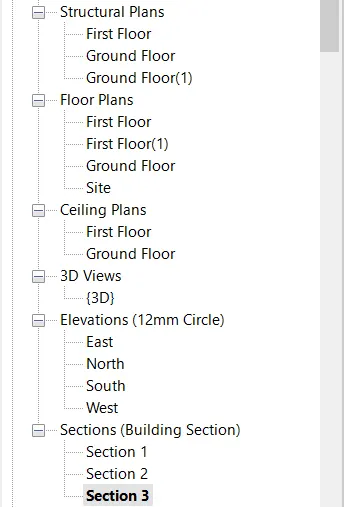

To Classify the views , Plan Views, Section Views and Elevation views

PROCEDURE :

• Go to view tab > property browser .

  RESULT :

  PLAN VIEWS

9)

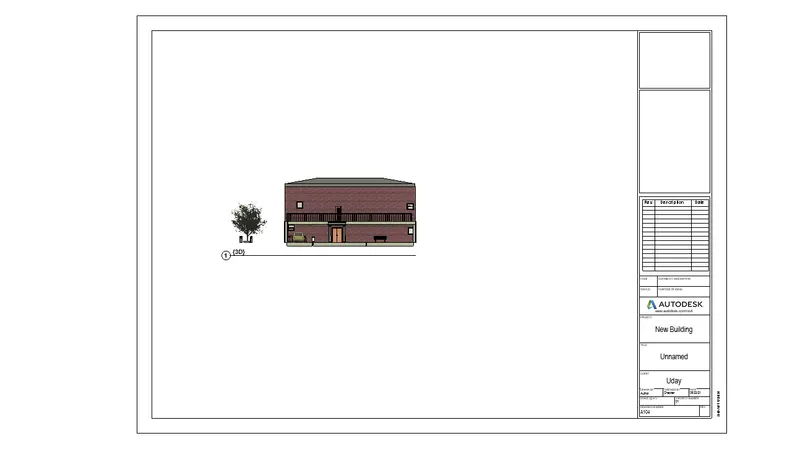

AIM:

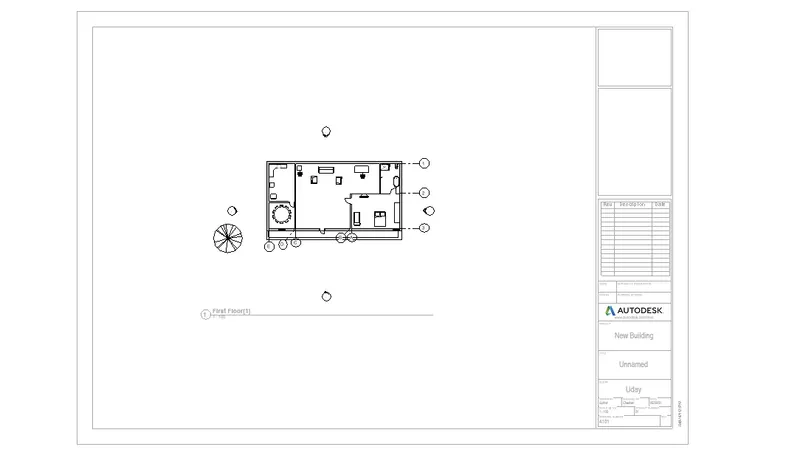

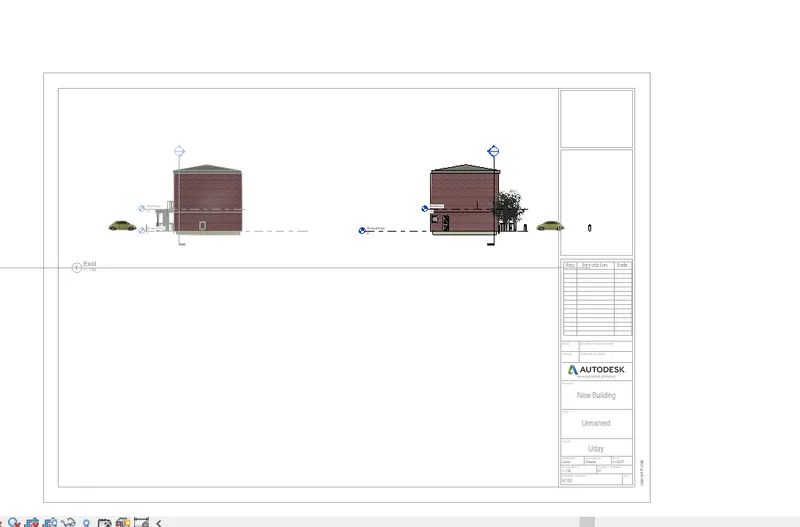

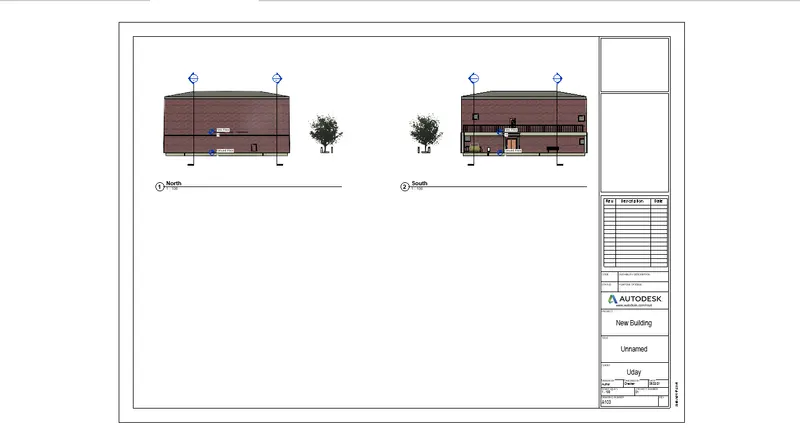

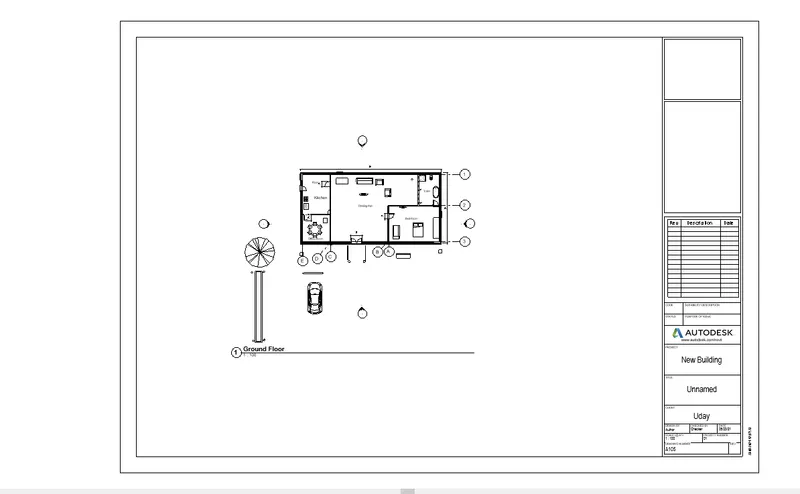

To create sheet template

PROCEDURE :

• Go to view tab > sheet templete > add view

RESULT:

A)

B)

D)

E)

G)

H)

10)

AIM:

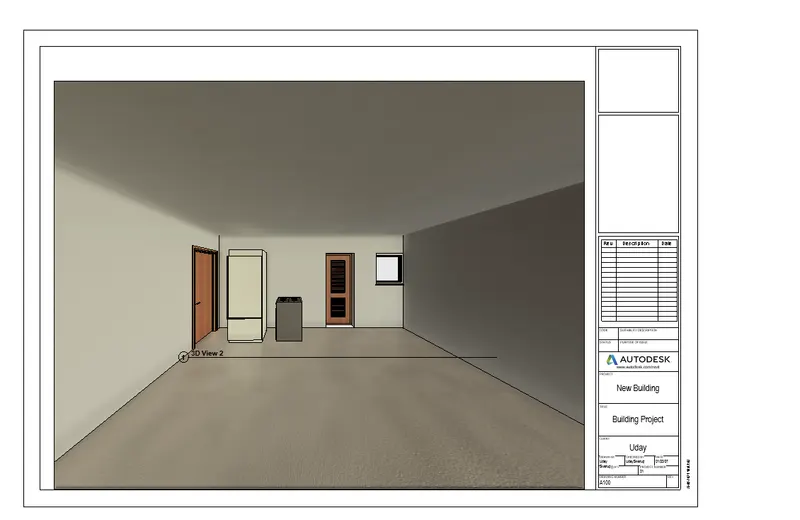

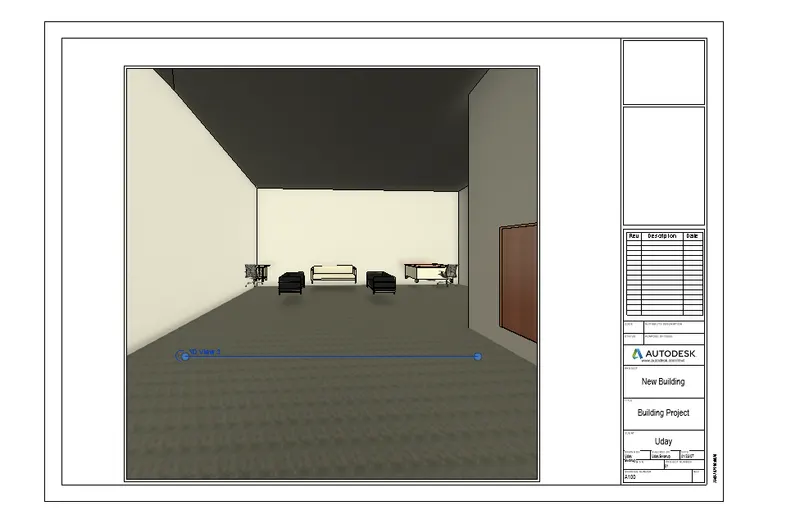

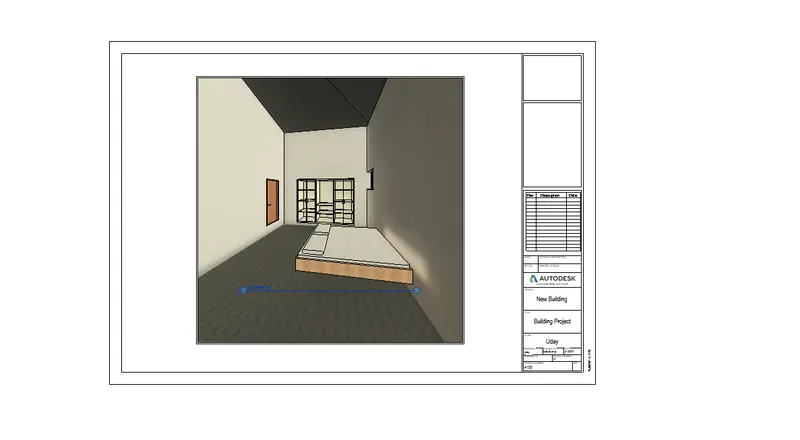

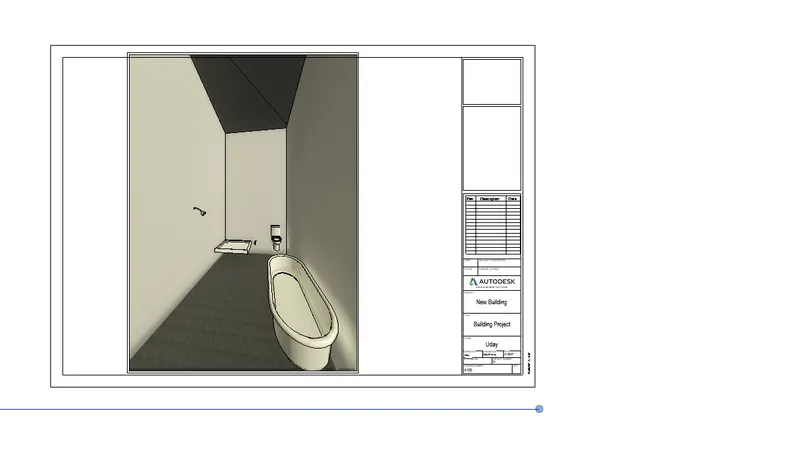

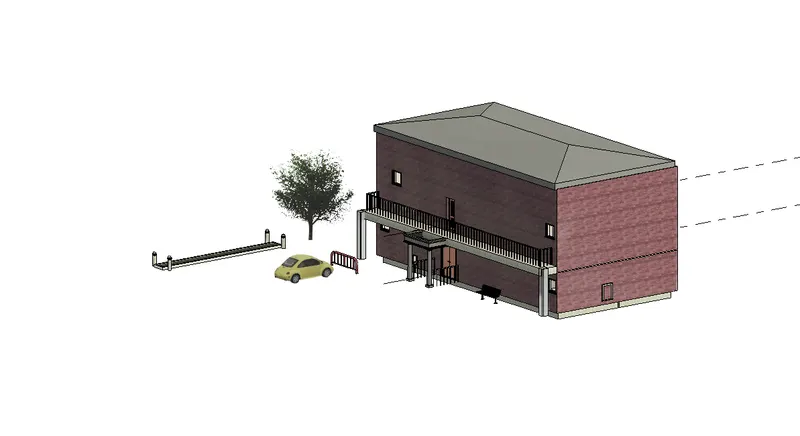

To Create a camera specific view or a 3D view in each room

PROCEDURE:

• go to view tab > camera > place the camera in the desired view

RESULTS:
