  3. Creation of geometries by Coordinate system methods using AutoCad

Creation of geometries by Coordinate system methods using AutoCad

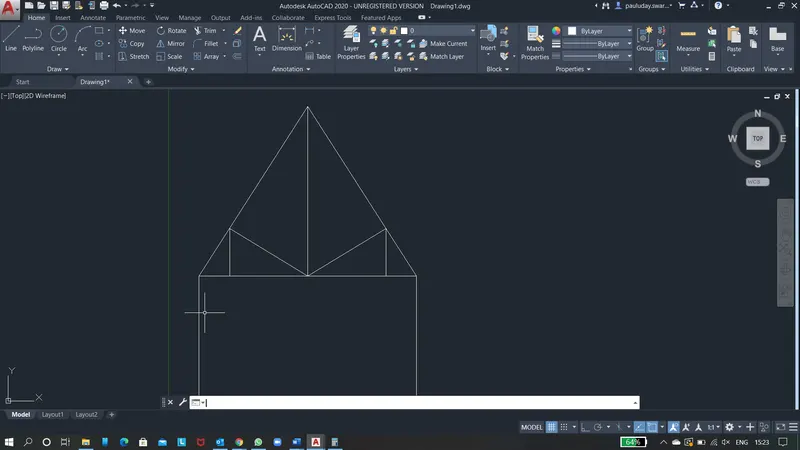

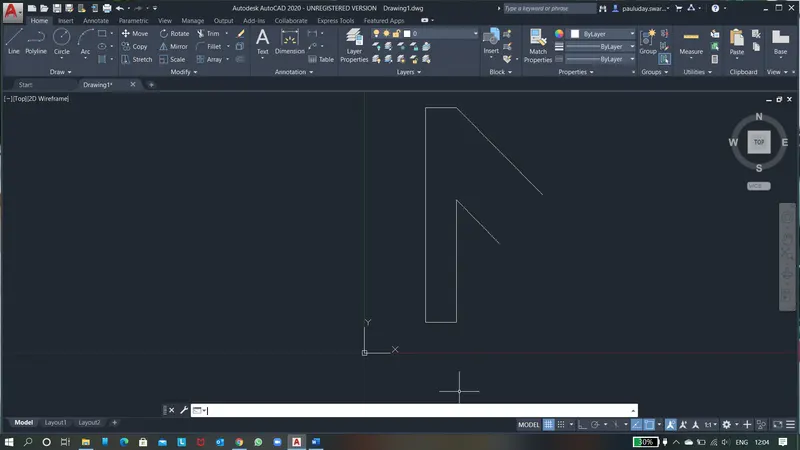

Sketch 1) AIM: To create the geometries from p1 to p2 using all the coordinates system methods. ABSOLUTE COORDINATE SYSTEM. RELATIVE COORDINATE SYSTEM. POLAR COORDINATE SYSTEM First solve this drawing using absolute coordinate systems: step1:  Enter the line command , 1.  Then specify the first point: type 2,1…

    • Devarakonda Paul Uday Swarup

      updated on 01 Mar 2021

    Sketch 1)

    AIM:

    To create the geometries from p1 to p2 using all the coordinates system methods.

    • ABSOLUTE COORDINATE SYSTEM.
    • RELATIVE COORDINATE SYSTEM.
    • POLAR COORDINATE SYSTEM

    First solve this drawing using absolute coordinate systems:

    step1:

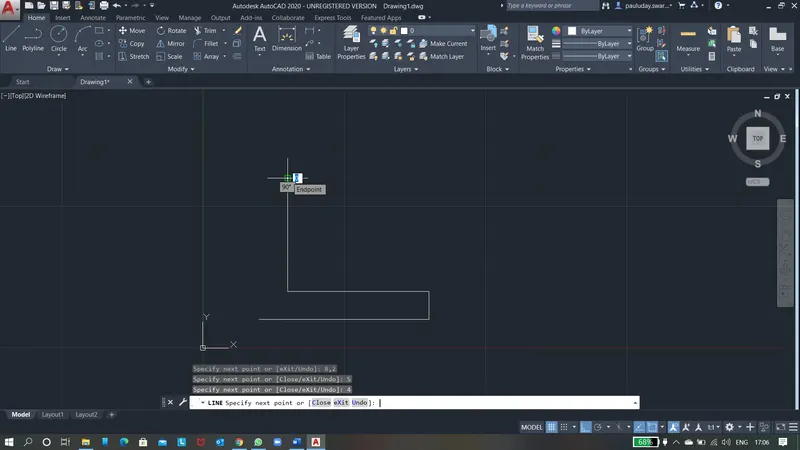

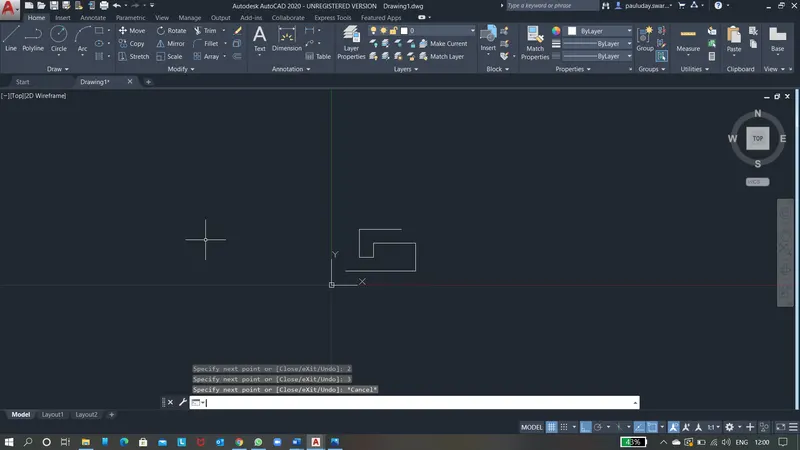

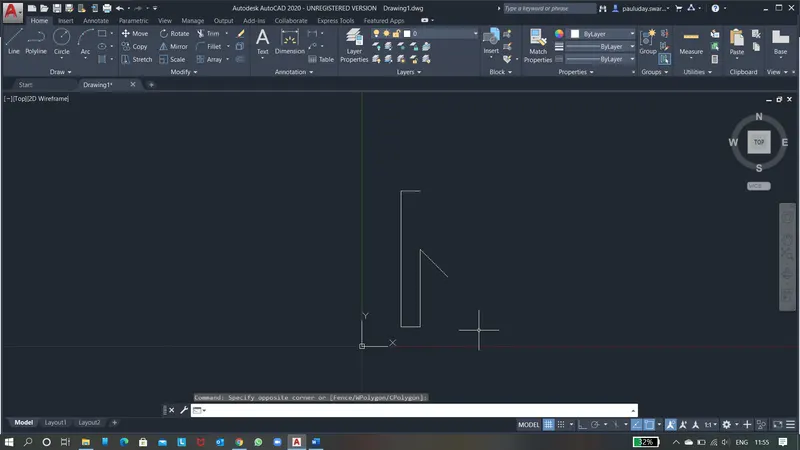

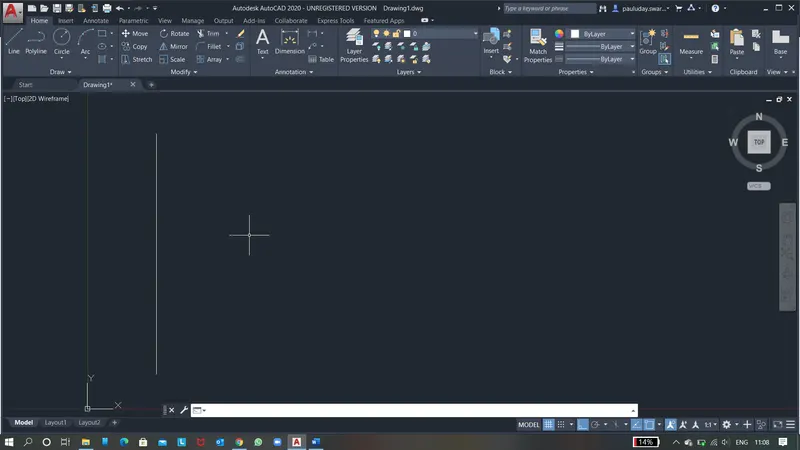

     Enter the line command ,

    1.  Then specify the first point: type 2,1 at command prompt and press enter (as a starting point)

    2.  Specify next point: at 8,1 and press enter

    3.  Specify the next point: at 8,2 and press enter

    step -2

    then specify the next pont as 5,2

    specify next point as 3,6

    step 4

      Specify the next point: at  8,6 and press enter

      Specify the next point: at 8,7 and press enter

    step 5

     Specify the next point: at 8,2 and press enter

     Specify the next point or close: select the close option press enter.

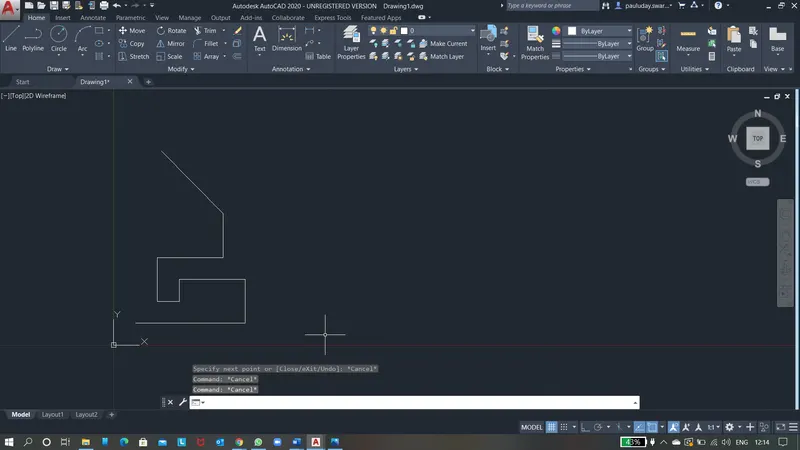

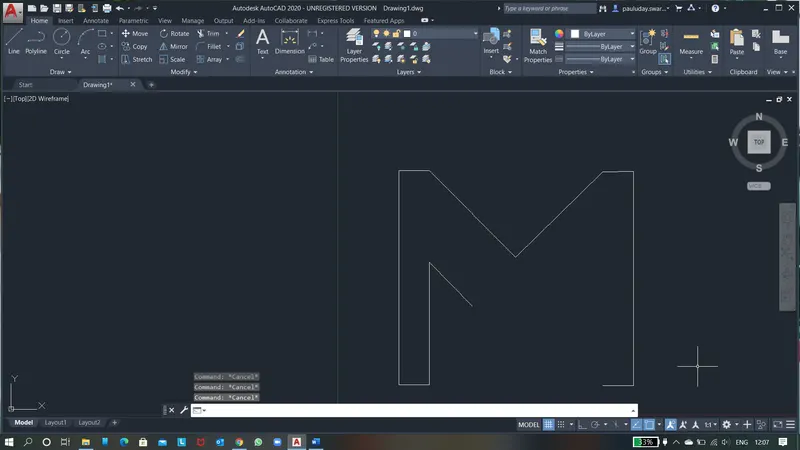

    next we will  do the drawing in  RELATIVE POLAR COORDINATES METHOD :



    now in RELATIVE COORDINATE METHOD:

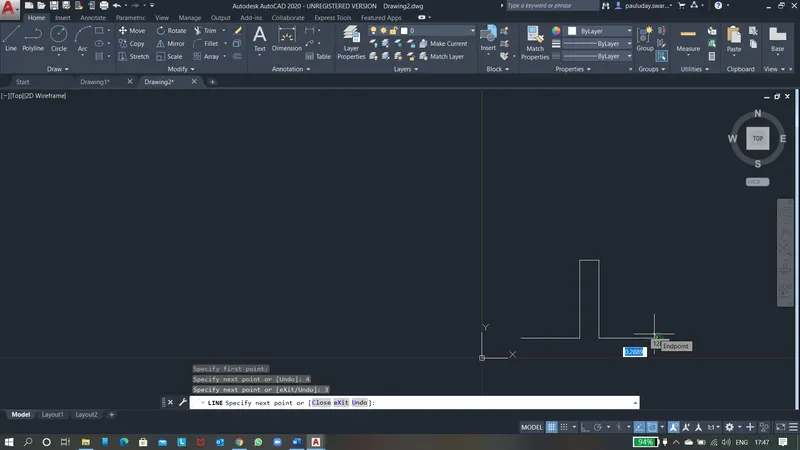

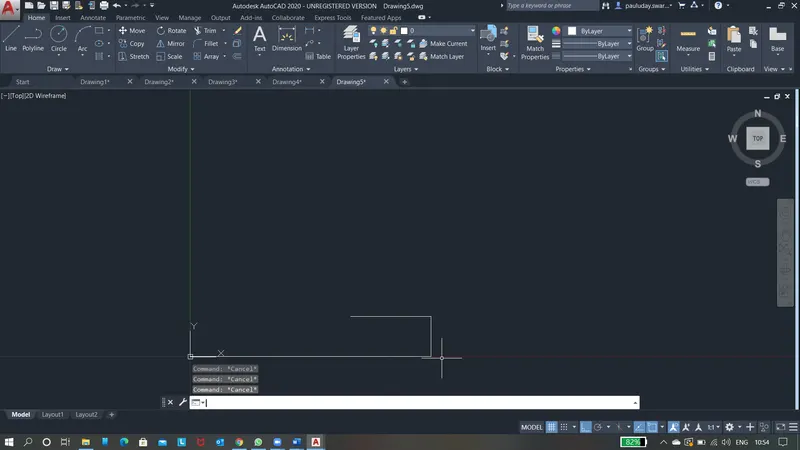

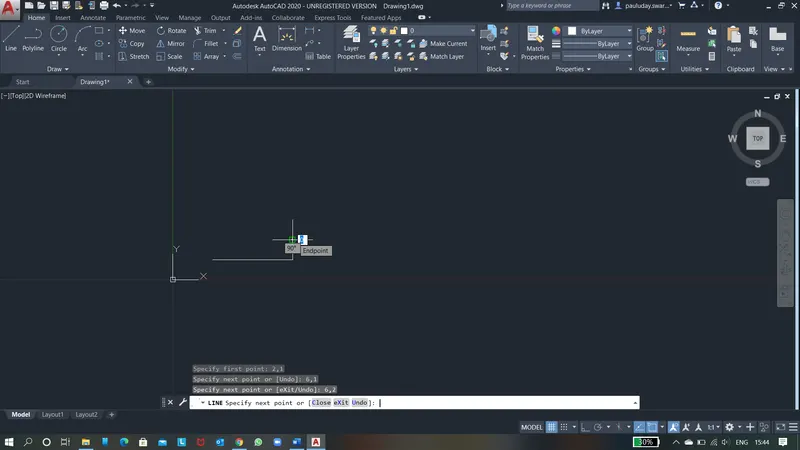

     Enter the line command ,

    1.  Then specify the first point: type 2,1 at command prompt and press enter (as a starting point)

    2.  Specify next point: at @8,0 and press enter

    3.  Specify the next point: at @0,2 and press enter

    4.  Specify the next point: at @-5,0 and press enter

    5.  Specify the next point: at @0,6 and press enter

    6.  Specify the next point: at  @8,0 and press enter

    7.  Specify the next point: at @0,7 and press enter

    8.  Specify the next point: at @0,-2 and press enter

    9.  Specify the next point or close: select the close option press enter.



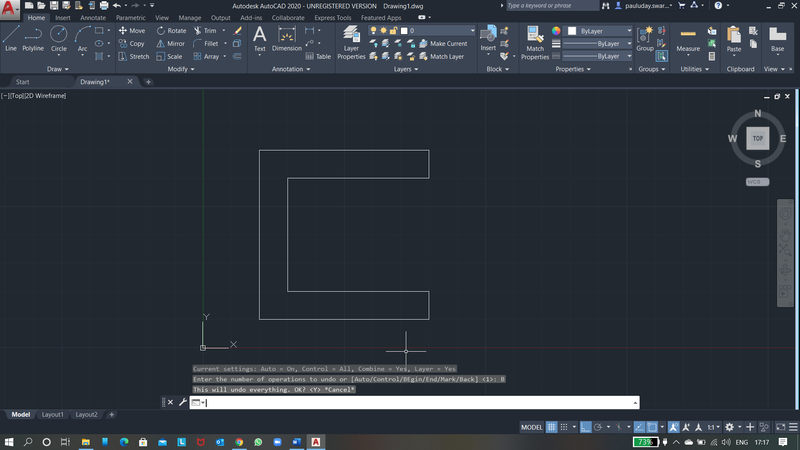

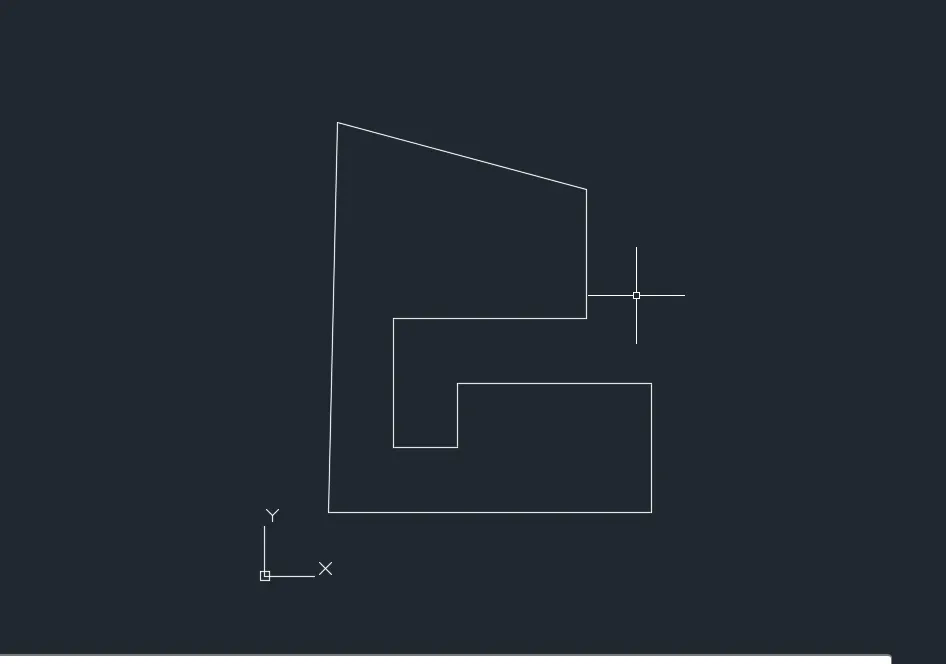

    result :

    Finally the given sketch is drawn using Auto cad

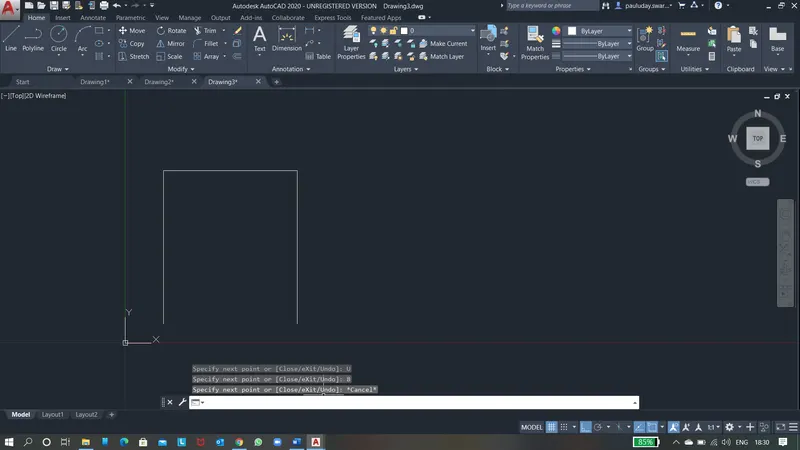

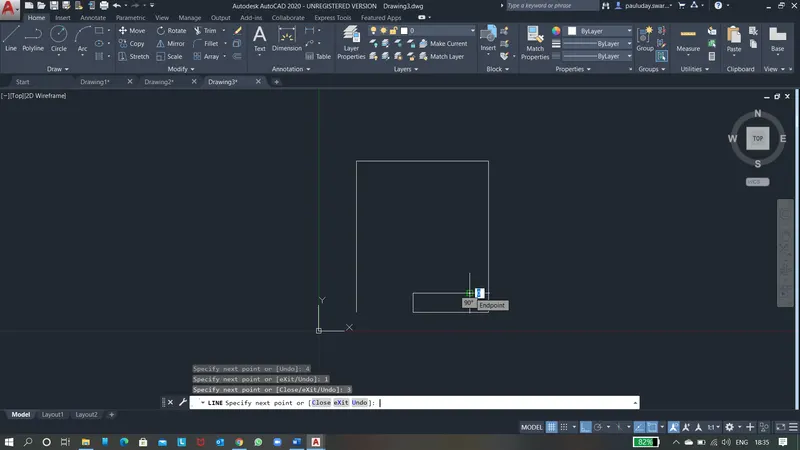

    Sketch 2)

    Aim :

    AIM:

    To create the geometries from p1 to p2 using all the coordinates system methods.

    • ABSOLUTE COORDINATE SYSTEM.
    • RELATIVE COORDINATE SYSTEM.
    • POLAR COORDINATE SYSTEM

    First solve this drawing using absolute coordinate systems:

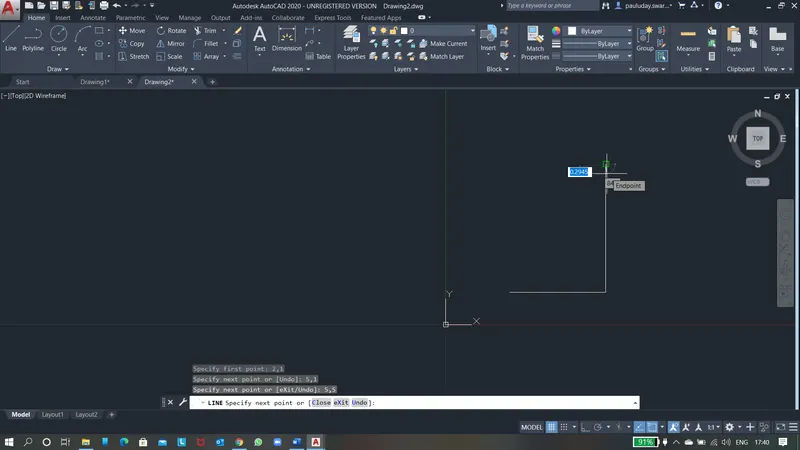

    step1:

     Enter the line command ,

    1.  Then specify the first point: type 2,1 at command prompt and press enter (as a starting point)

    2.  Specify next point: at 5,1and press enter

    3.  Specify the next point: at 5,5 and press enter

    step 2

    Specify the next point: at 6,5 and press enter

    step 3

      Specify the next point: at 6,-5 and press enter

     Specify the next point: at  6,9 and press enter

      Specify the next point: at 9,7 and press enter

      Specify the next point: at 7,-4 and press enter

     Specify the next point or close: select the close option press enter.





    result:

    finally the sketch is drawn using Auto cad



    using relative coordinate system:

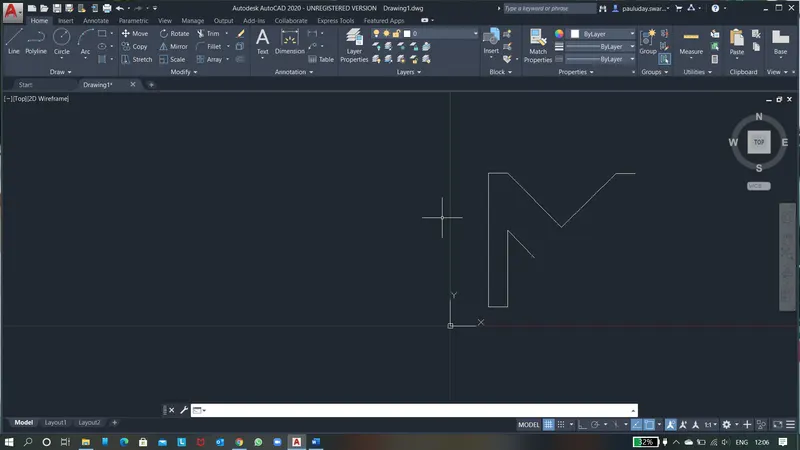

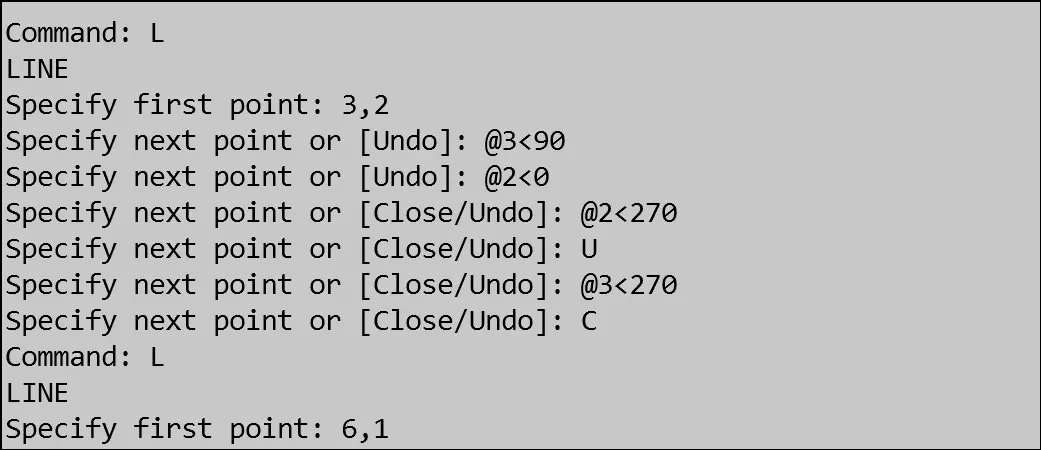

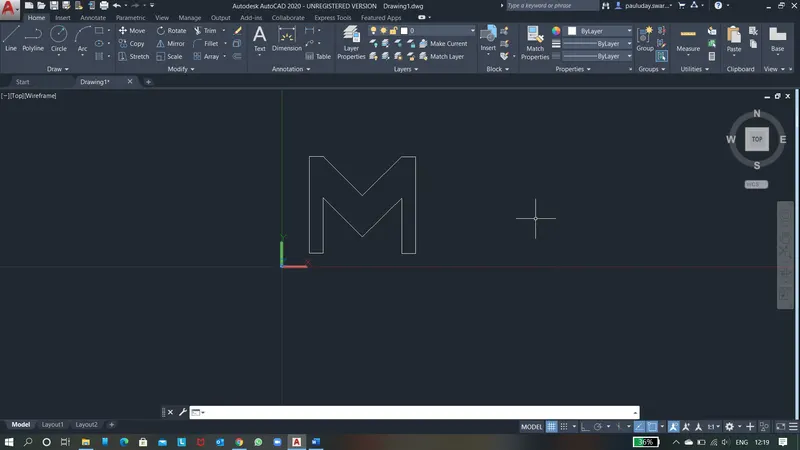

    Using polar coordinate system

    Enter the line command ,

    1.  Then specify the first point: type 2,1 at command prompt and press enter (as a starting point)

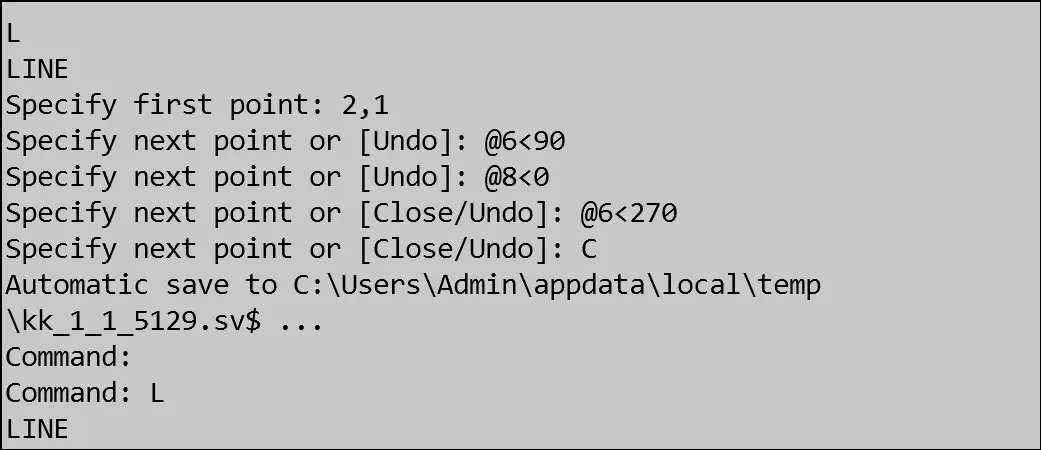

    2.  Specify next point: at @7<45 and press enter

    3.  Specify the next point: at @3<0 and press enter

    4.  Specify the next point: at @7<225 and press enter

    5.  Specify the next point: at @3<180 and press enter

    6.  Specify the next point: at  @4<90 and press enter

    7.  Specify the next point: at @1<180 and press enter

    8.  Specify the next point: at @4<270 and press enter

    9.  Specify the next point or close: select the close option press enter.

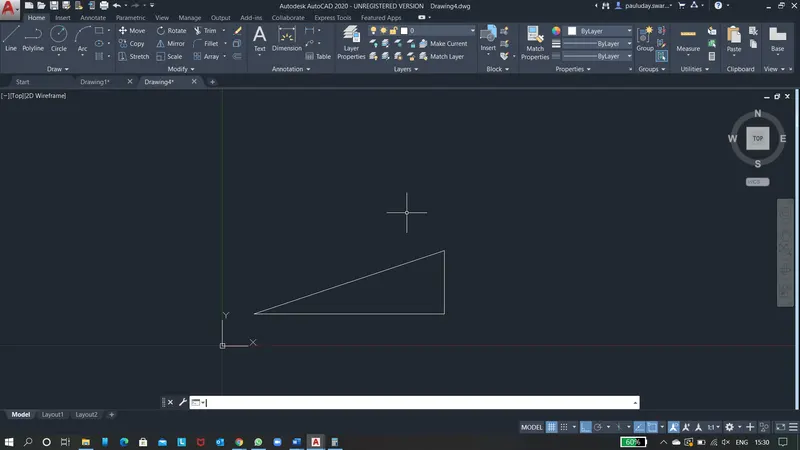

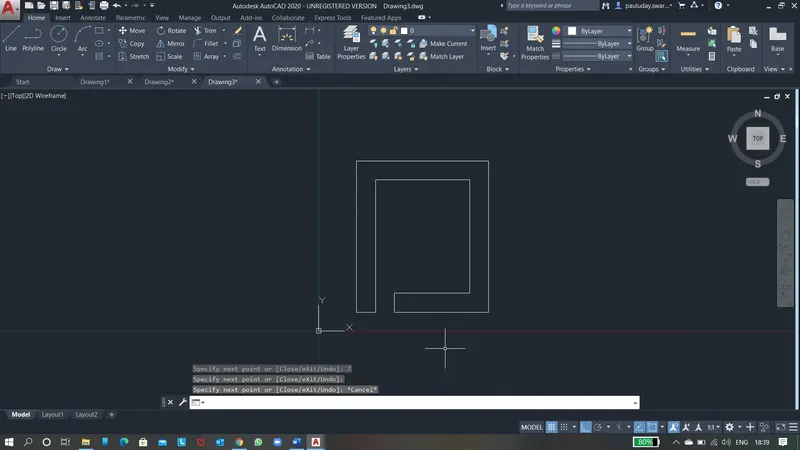

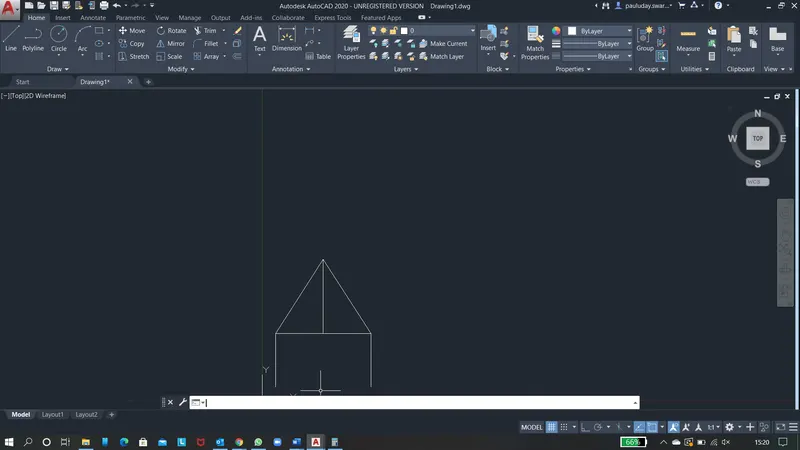

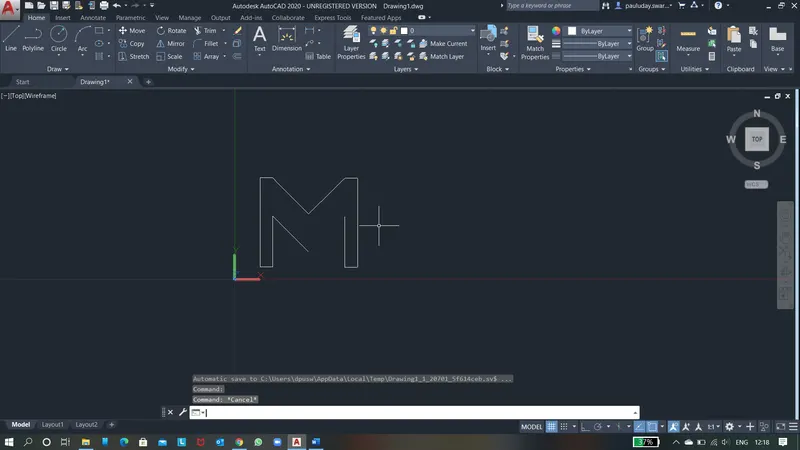

    sketch 3 )



    Aim : To sketch the drawing using Auto cad

    Procedure :

    Step-1

    Using line command (l) plot the point (2,1).And then plot the next point giving the point as (@0,7).





    step-2

    next draw the point as (@1,1),  then again come back to innitial ponit and give the value as (@1,0) and next point as (@0,4).

    step -3

    now again using the line command draw a line length of 4 units with an angle of 45degrees at the top corner and bottom down corner.

    step -4

    now again draw a line using line command ,length of 4 units with an angle of 45 degrees and again draw length of unit 1

    step 5

    now from there drop down 7 units by line command (@-7,0)

    and take next point as (@-1,0)

    step 6

    now move 4 units upwards using line command (@0,4)

    step 7



    susequently using the line command close the figure

    result :

    the given sketch is drawn using autocad .

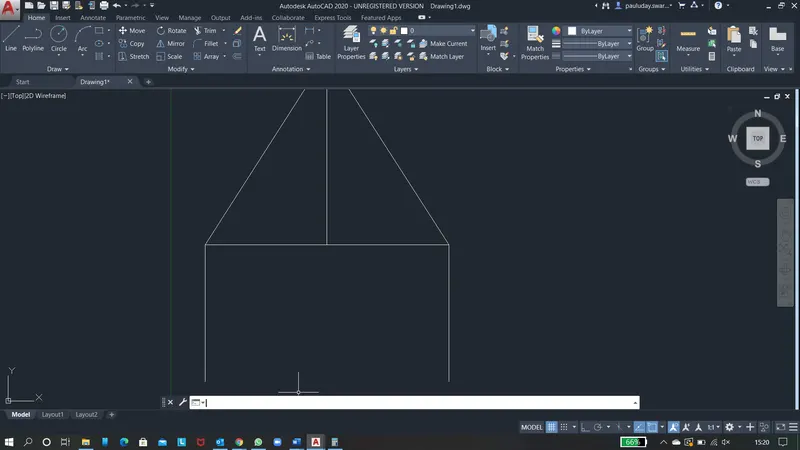

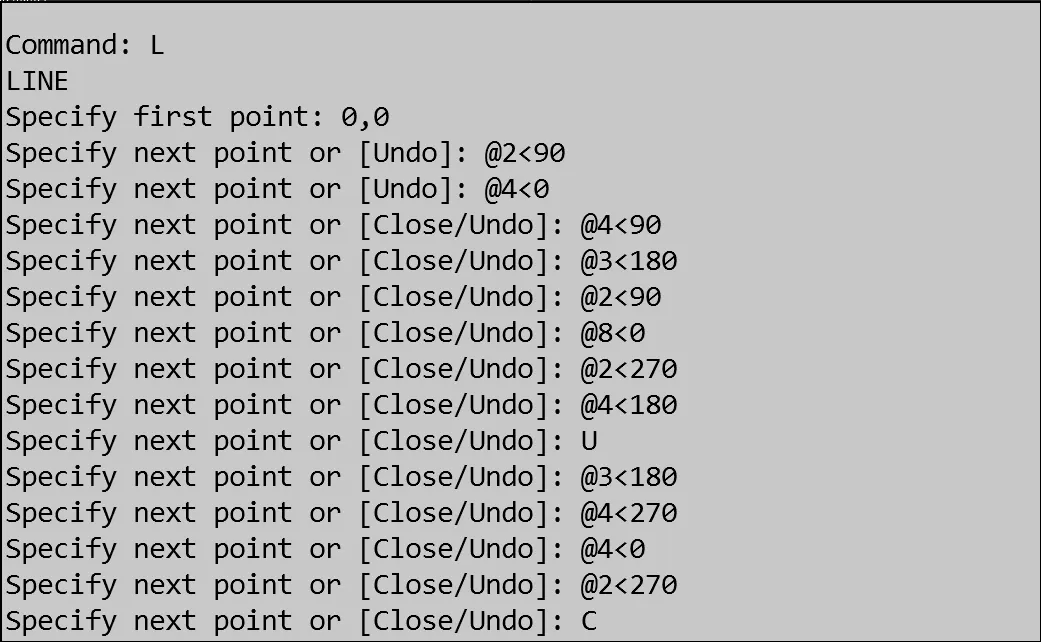

    USING POLAR COORDINATES SYSTEM:



    Then in RELATIVE COORDINATE METHOD:

    Enter the line command ,

    1.  Then specify the first point: type 2,1 at command prompt and press enter (as a starting point)

    2.  Specify next point: at @1,0 and press enter

    3.  Specify the next point: at @0,4and press enter

    4.  Specify the next point: at @2,0 and press enter

    5.  Specify the next point: at @0,2 and press enter

    6.  Specify the next point: at @0,-2 and press enter

    7.  Specify the next point: at @1,0 and press enter

    8.  Specify the next point: at @0,7 and press enter

    9.  Specify the next point: at @1,0 and press enter

    10. Specify the next point: at  @0,-2 and press enter

    11.  Specify the next point: at @0,3 and press enter

    12.  Specify the next point: at @0,7 and press enter

    13.  Specify the next point or close: select the close option press enter.

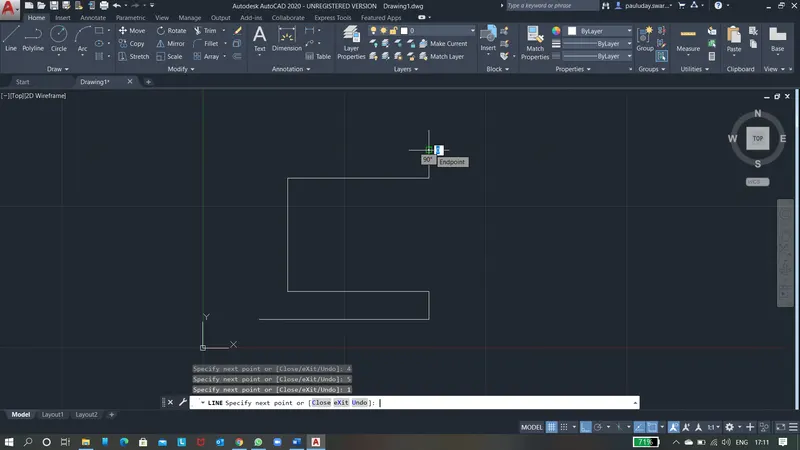

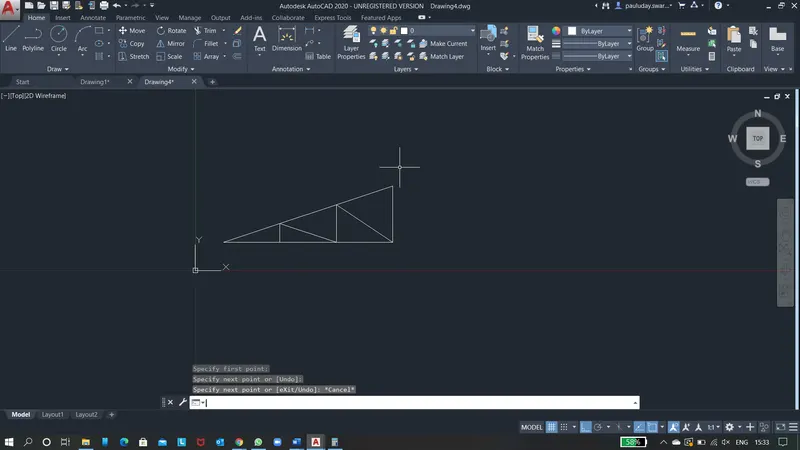

    sketch 4)

    AIM:

    To create the geometries from p1 to p2 using all the coordinates system methods.

    • ABSOLUTE COORDINATE SYSTEM.
    • RELATIVE COORDINATE SYSTEM.
    • POLAR COORDINATE SYSTEM

    First solve this drawing using absolute coordinate systems:

    step1:

     Enter the line command ,

     Then specify the first point: type 2,1 at command prompt and press enter (as a starting point)

     Specify next point: at 2,9 and press enter

    Specify the next point: at 9,9 and press enter

    Specify the next point: at 5,-1 and press enter

    step2

     Specify the next point: at 5,2 and press enter

     Specify the next point: at  8,2 and press enter

     Specify the next point: at 8,8 and press enter

    step 3

     Specify the next point: at -3,8 and press enter

     Specify the next point or close: select the close option press enter.



    Then in RELATIVE COORDINATE METHOD:

    Enter the line command ,

    1.  Then specify the first point: type 2,1 at command prompt and press enter (as a starting point)

    2.  Specify next point: at @1,0 and press enter

    3.  Specify the next point: at @0,4and press enter

    4.  Specify the next point: at @2,0 and press enter

    5.  Specify the next point: at @0,2 and press enter

    6.  Specify the next point: at @0,-2 and press enter

    7.  Specify the next point: at @1,0 and press enter

    8.  Specify the next point: at @0,7 and press enter

    9.  Specify the next point: at @1,0 and press enter

    10. Specify the next point: at  @0,-2 and press enter

    11.  Specify the next point: at @0,3 and press enter

    12.  Specify the next point: at @0,7 and press enter

    13.  Specify the next point or close: select the close option press enter.

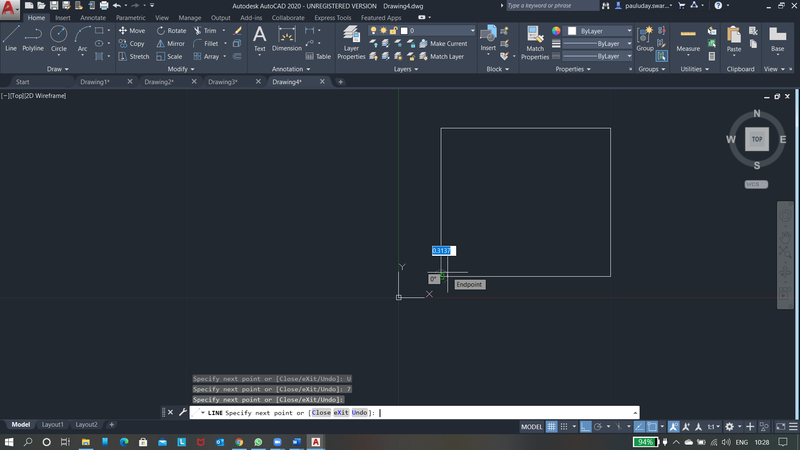

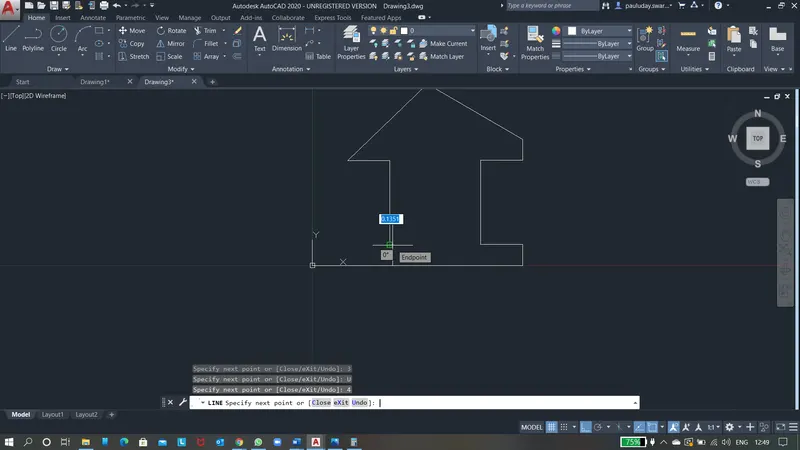

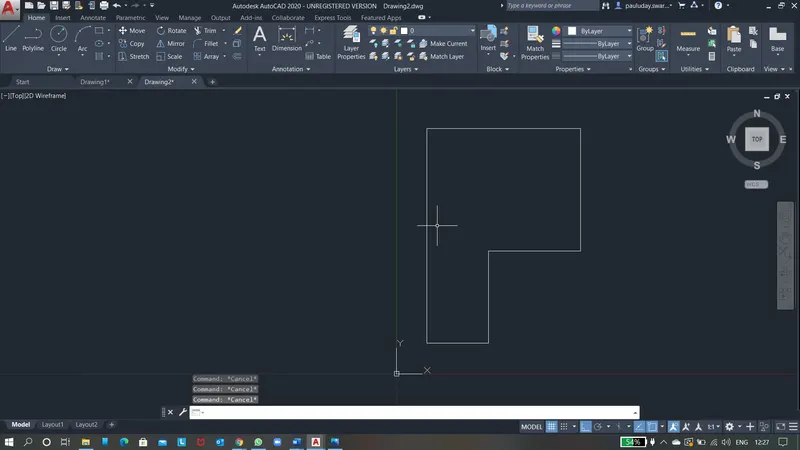

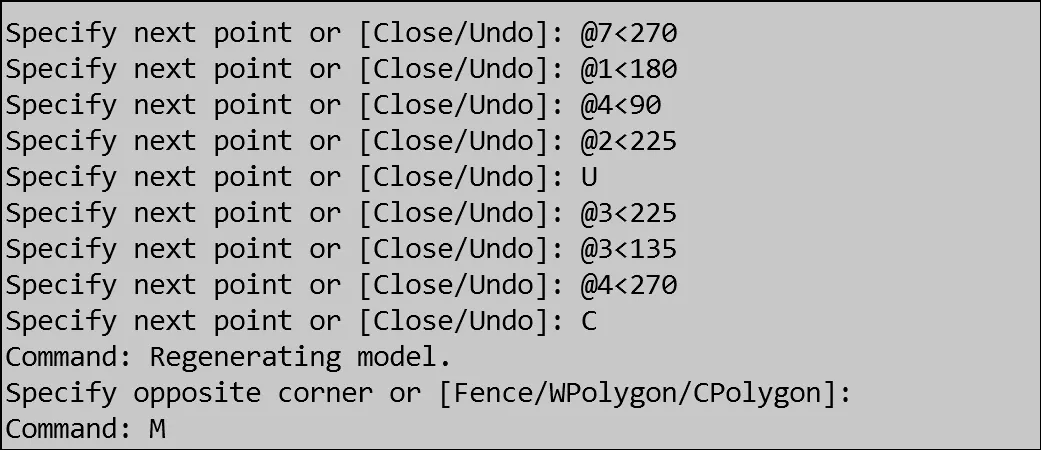

    Using polar coordinate system:

    Enter the line command ,

    1.  Then specify the first point: type 2,1 at command prompt and press enter (as a starting point)

    2.  Specify next point: at @8<90 and press enter

    3.  Specify the next point: at @7<0 and press enter

    4.  Specify the next point: at @8<270 and press enter

    5.  Specify the next point: at @4<180 and press enter

    6.  Specify the next point: at  @1<90 and press enter

    7.  Specify the next point: at @3<0 and press enter

    8.  Specify the next point: at @6<90 and press enter

    9.  Specify the next point: at @5<180 and press enter

    10.  Specify the next point: at @7<270 and press enter

    11.  Specify the next point or close: select the close option press enter.

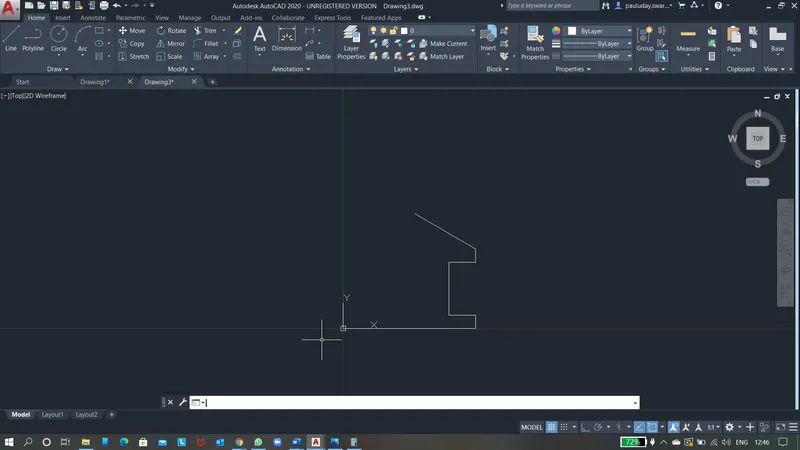

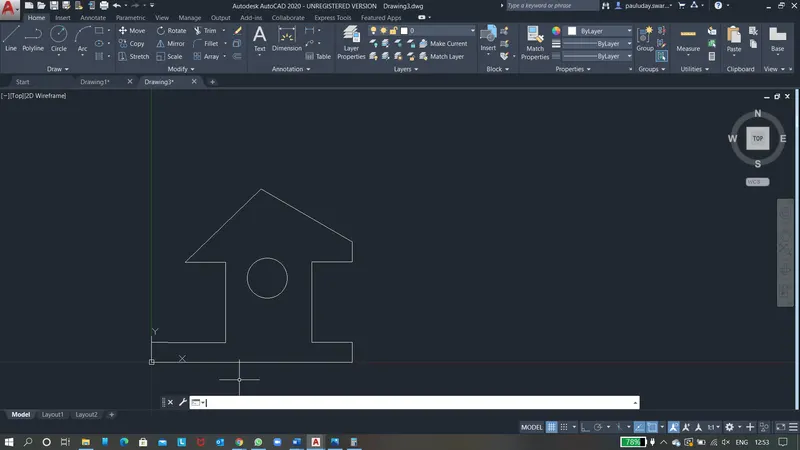

    sketch 5)

    AIM:

    To create the geometries from p1 to p2 using all the coordinates system methods.

    • ABSOLUTE COORDINATE SYSTEM.
    • RELATIVE COORDINATE SYSTEM.
    • POLAR COORDINATE SYSTEM

    First solve this drawing using absolute coordinate systems:







    using absolute coordinate system:

    Enter the line command ,

    1.  Then specify the first point: type 2,1 at command prompt and press enter.

    2.  Specify next point: at 2,6 and press enter

    3.  Specify the next point: at 2,10 and press enter

    4.  Specify the next point: at 10,10 and pressenter

    5.  Specify the next point: at 10,2 and press enter

    again enter line specify first point 3,2 and press enter

    6.  Specify the next point: at  3,3 and press enter

    7.  Specify the next point: at 3,5 and press enter

    8.  Specify the next point: at 5,5 and press enter

    9.  Specify the next point or close: select the close option press enter.

    10. Again enter line command specify first point 6,2

    11. specify the next point :at 6,3 and press enter

    12. Specify the next point : at 6,8 and presws enter

    13. Specify the next point: at 8,1 and press enter

    14. Specify the next point or close: select the close or undooption press enter.



    Then in RELATIVE COORDINATE METHOD:

    Enter the line command ,

    1.  Then specify the first point: type 2,1 at command prompt and press enter (as a starting point)

    2.  Specify next point: at @1,0 and press enter

    3.  Specify the next point: at @0,4and press enter

    4.  Specify the next point: at @8,0 and press enter

    5.  Specify the next point: at @0,10 and press enter

    6.  Specify the next point: at @-8,0 and press enter

    7.  Specify the next point: at 3,1 and press enter

    8.  Specify the next point: at @0,3 and press enter

    9.  Specify the next point: at @2,0 and press enter

    10. Specify the next point: at  @0,2 and press enter

    12.  Specify the next point: at 6,1 and press enter

    13.  Specify the next point: at @0,3 and press enter

    14.  Specify the next point: at @2,0 and press enter

    15. Specify the next point: at  @0,2 and press enter

    13.  Specify the next point or close: select the close option press enter.

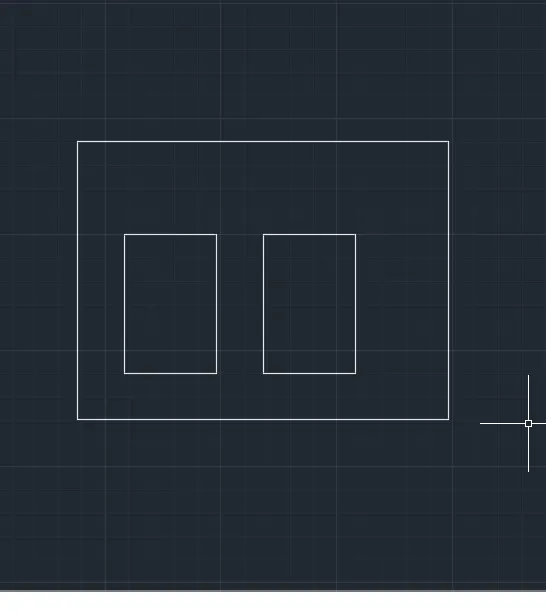

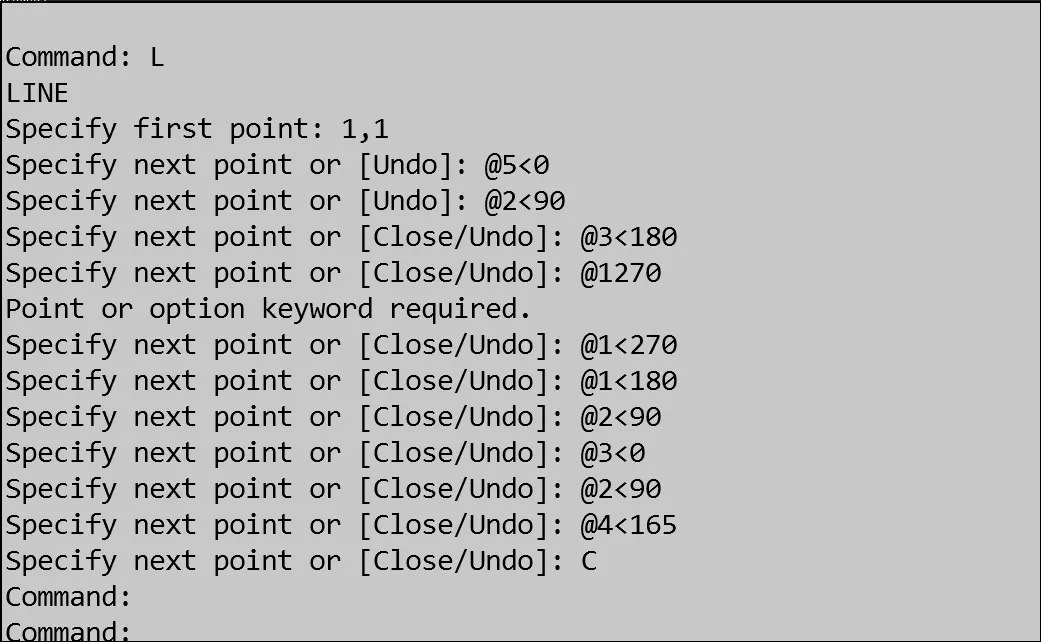

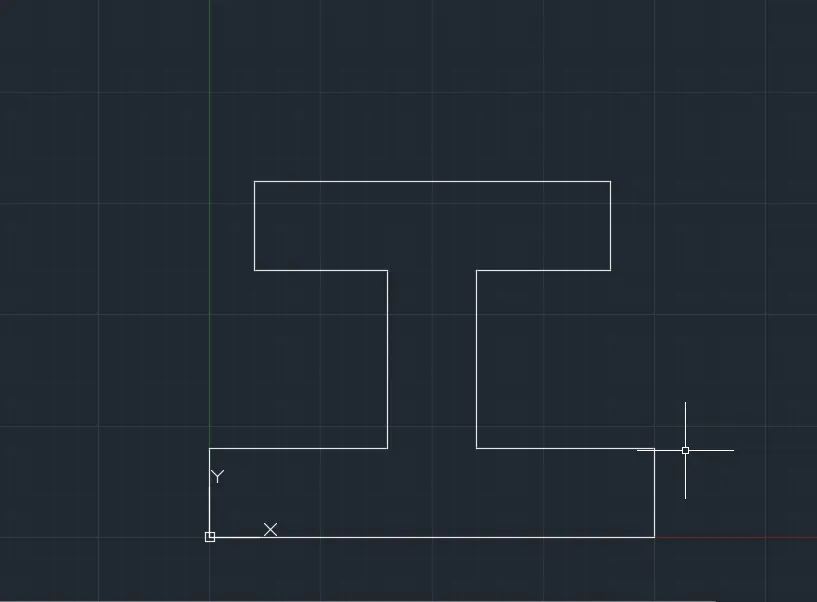

    sketch 6 )

    AIM:

    To create the geometries from p1 to p2 using all the coordinates system methods.

    • ABSOLUTE COORDINATE SYSTEM.
    • RELATIVE COORDINATE SYSTEM.
    • POLAR COORDINATE SYSTEM

    First solve this drawing using absolute coordinate systems:

    using absolute coordinate system:

    Enter the line command ,

    1.  Then specify the first point: type 0,0 at command prompt and press enter (as a starting point)

    2.  Specify the next point: at 10,0 and press enter

    3.  Specify the next point: at 10,2 and press enter

    4.  Specify the next point: at 2,6 and press enter

    5.  Specify the next point: at 6,6 and press enter

    6.  Specify the next point: at  6,10 and press enter

    7.  Specify the next point: at 10,8 and press enter

    8.  Specify the next point: at 8,1 and press enter

    9.  Specify the next point: at 4,4 and press enter

    10. Specify the next point: at 4,1 and press enter









    Then in RELATIVE COORDINATE METHOD:

    Enter the line command ,

    1.  Then specify the first point: type 0,0 at command prompt and press enter (as a starting point)

    2.  Specify the next point: at @10,0 and press enter

    3.  Specify the next point: at @0,2and press enter

    4.  Specify the next point: at @-4,0 and press enter

    5.  Specify the next point: at @0,4 and press enter

    6.  Specify the next point: at @3,0 and press enter

    7.  Specify the next point: at 0,2 and press enter

    8.  Specify the next point: at @-8,0 and press enter

    9.  Specify the next point: at @0,-2 and press enter

    10. Specify the next point: at  @3,0 and press enter

    13.  Specify the next point: at @0,-4 and press enter

    14.  Specify the next point: at @0,-4 and press enter

    15. Specify the next point: at  @4,0 and press enter

    13.  Specify the next point or close: select the close option press enter.



    using polar coordinate system:





    sketch 7 )

    AIM:

    To create the geometries from p1 to p2 using all the coordinates system methods.

    • ABSOLUTE COORDINATE SYSTEM.
    • RELATIVE COORDINATE SYSTEM.
    • POLAR COORDINATE SYSTEM

    First solve this drawing using absolute coordinate systems:







    using absolute coordinate system:

    Enter the line command ,

    1.  Then specify the first point: type 1,1 at command prompt and press enter

    2.  Specify the next point: at 6,1 and press enter

    3.  Specify the next point: at 6,3 and press enter

    4.  Specify the next point: at 3,6 and press enter

    5.  Specify the next point: at 3,2 and press enter

    6.  Specify the next point: at  2,4 and press enter

    7.  Specify the next point: at 5,4 and press enter

    8.  Specify the next point: at 5,6 and press enter

    9.  Specify the next point: at 6,8 and press enter

    10. Specify the next point: at 8,1 and press enter

    11. Specify the next point or close: select the close or undo option press enter.



    Then in RELATIVE COORDINATE METHOD:

    Enter the line command ,

    1.  Then specify the first point: type 1,1 at command prompt and press enter (as a starting point)

    2.  Specify the next point: at @6,0 and press enter

    3.  Specify the next point: at @0,2and press enter

    4.  Specify the next point: at @-3,0 and press enter

    5.  Specify the next point: at @0,1 and press enter

    6.  Specify the next point: at @-1,0 and press enter

    7.  Specify the next point: at 0,2 and press enter

    8.  Specify the next point: at @3,0 and press enter

    9.  Specify the next point: at @0,2 and press enter

    10. Specify the next point: at  @4,0 and press enter

    11.  Specify the next point or close: select the close option press enter.

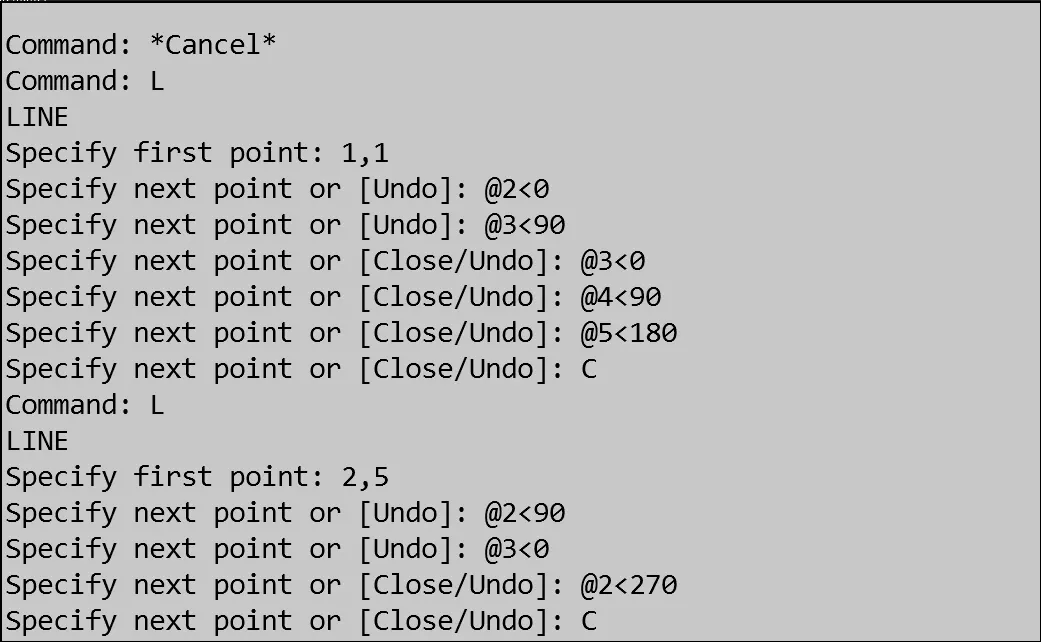

    USING POLAR COORDINATE SYSTEM:





    sketch 8)

    AIM:

    To create the geometries from p1 to p2 using all the coordinates system methods.

    • ABSOLUTE COORDINATE SYSTEM.
    • RELATIVE COORDINATE SYSTEM.
    • POLAR COORDINATE SYSTEM

    First solve this drawing using absolute coordinate systems:



    using absolute coordinate system:

    Enter the line command ,

    1.  Then specify the first point: type 1,1 at command prompt and press enter (as a starting point)

    2.  Specify the next point: at 1,8 and press enter

    3.  Specify the next point: at 6,8 and press enter

    4.  Specify the next point: at 6,4 and press enter

    5.  Specify the next point: at 3,4 and press enter

    6.  Specify the next point: at  3,4 and press enter

    7.  Specify the next point: colse option and press enter

    again line comman specify the first point 2,5 and enter press

    8.  Specify the next point: at 2,7and press enter

    9.  Specify the next point: at 5,7 and press enter

    10. Specify the next point: at 5,5 and press enter

    11. Specify the next point or close: select the close or undo option press enter.



    Then in RELATIVE COORDINATE METHOD:

    Enter the line command ,

    1.  Then specify the first point: type 1,1 at command prompt and press enter (as a starting point)

    2.  Specify the next point: at @2,0 and press enter

    3.  Specify the next point: at @0,3and press enter

    4.  Specify the next point: at @3,0 and press enter

    5.  Specify the next point: at @0,4 and press enter

    6.  Specify the next point: at @-5,0 and press enter

    7.  Specify the next point: at close the current point and

    starts the line command specify first point again and press enter

    8.  Specify the next point: at @0,2 and press enter

    9.  Specify the next point: at @3,0 and press enter

    10. Specify the next point: at  @0,-2 and press enter

    11.  Specify the next point or close: select the close option press enter.



    USING POLAR COORDINATE SYSTEM:

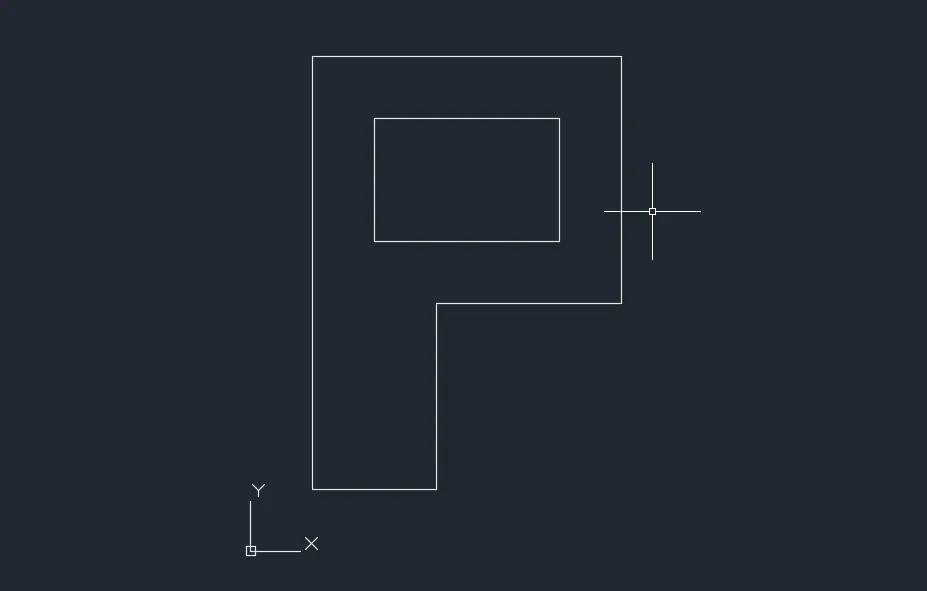

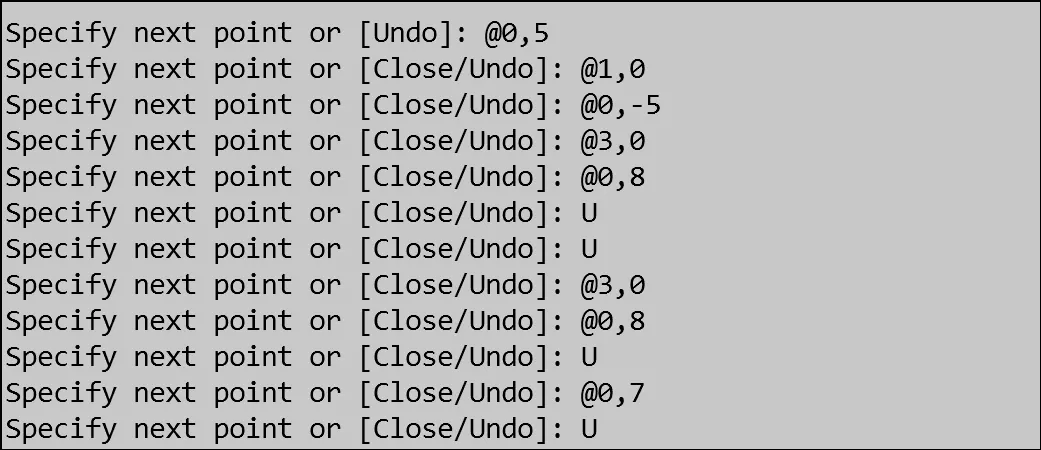

    sketch 9 )



    AIM:

    To create the geometries from p1 to p2 using all the coordinates system methods.

    • ABSOLUTE COORDINATE SYSTEM.
    • RELATIVE COORDINATE SYSTEM.
    • POLAR COORDINATE SYSTEM

    First solve this drawing using absolute coordinate systems:





    using absolute coordinate system:

    Enter the line command ,

    select the point as 0,0 and then specify next point as 10,0

    specify next point as 0,1

    specify next point as -2,1

    specify next point as 2,4

    specify next point as 4,2

    specify next point as 5,9

    specify next point as 0,6

    specify next point  2,6

    specify next point as 2,-4

    specify next point  as -2,1

    specify next point as close

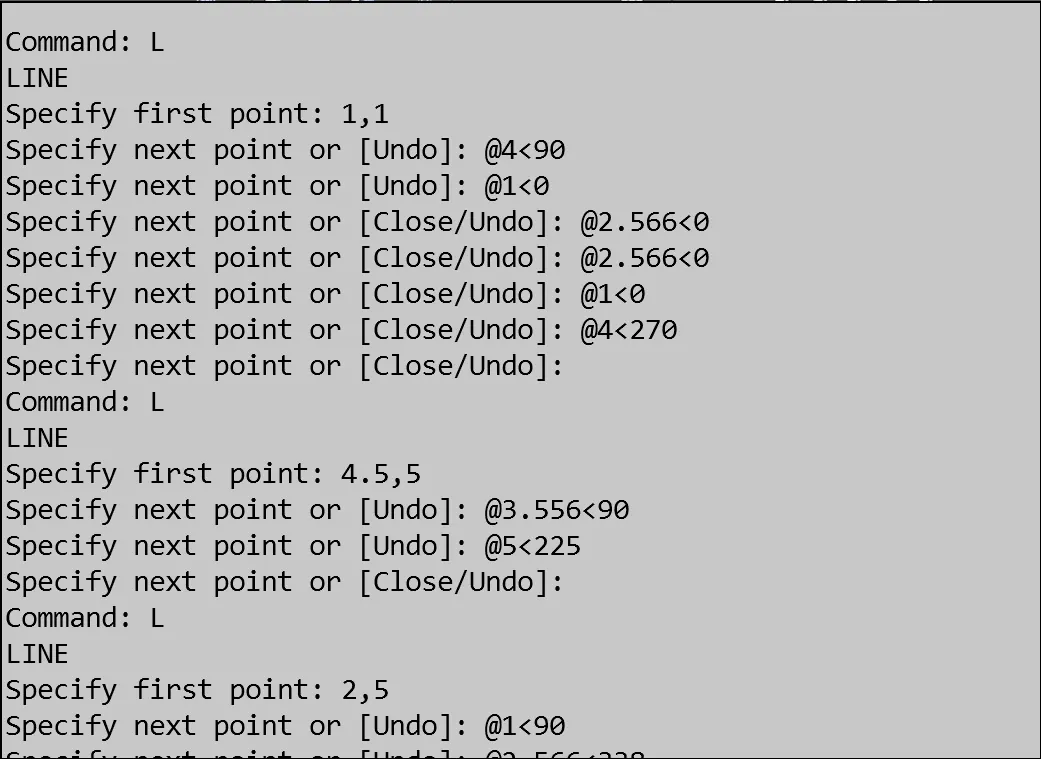

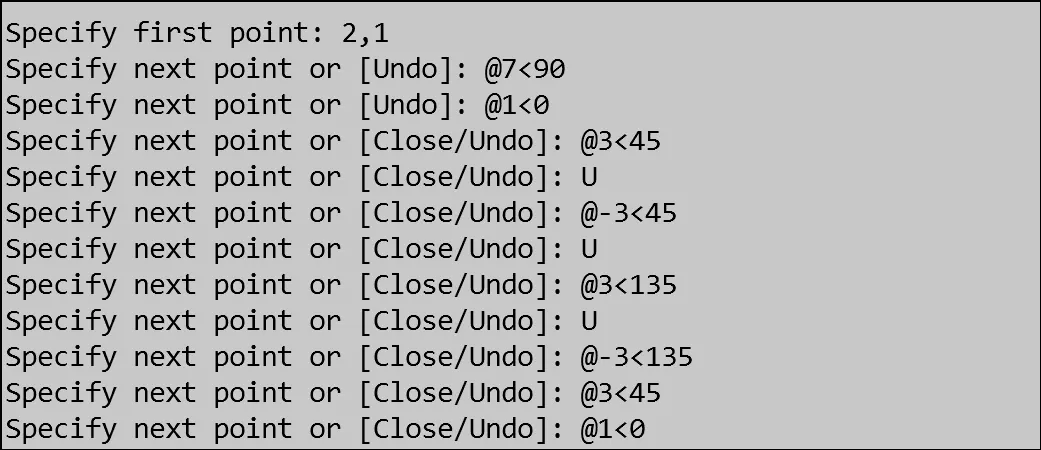

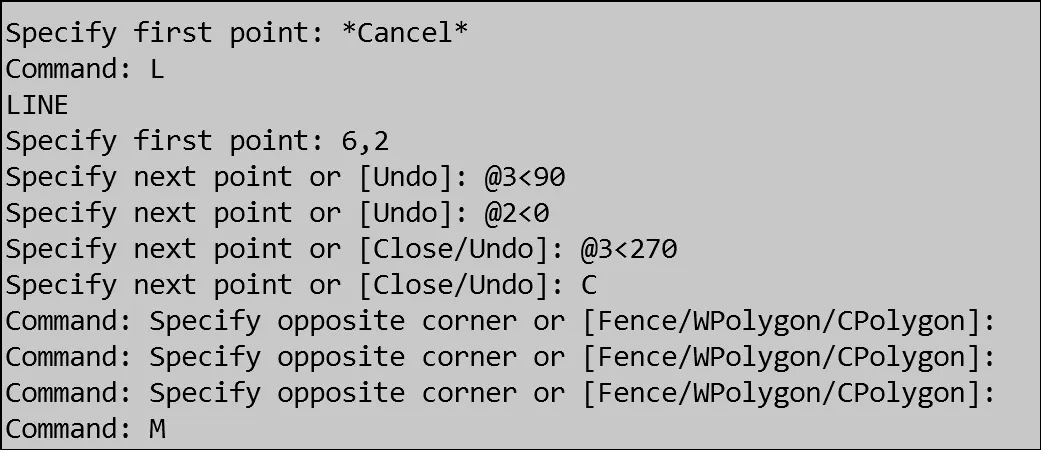

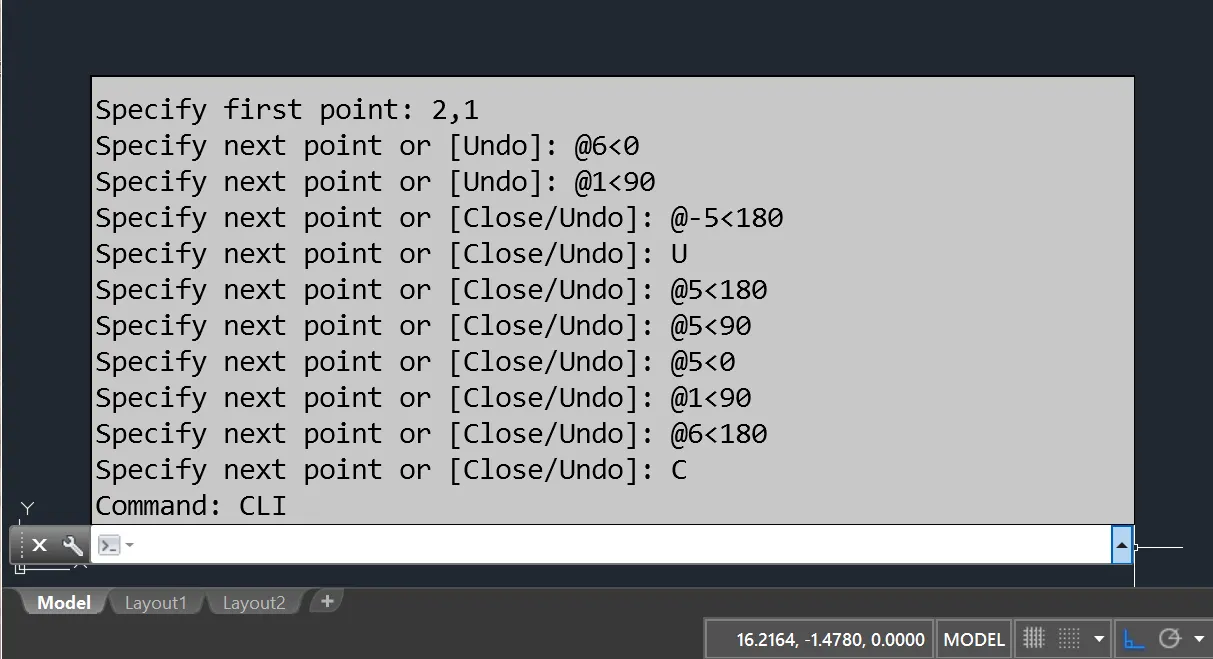

    USING POLAR COORDINATE SYSTEM:

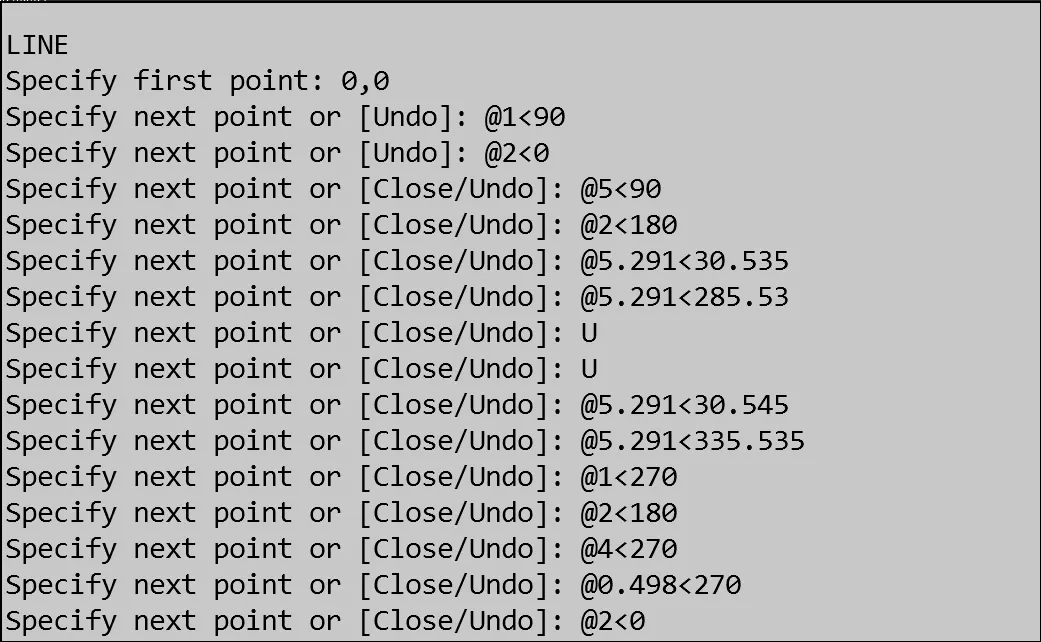

    sketch 10 )



    AIM:

    To create the geometries from p1 to p2 using all the coordinates system methods.

    • ABSOLUTE COORDINATE SYSTEM.
    • RELATIVE COORDINATE SYSTEM.
    • POLAR COORDINATE SYSTEM

    First solve this drawing using absolute coordinate systems:





    using polar coordinates system:

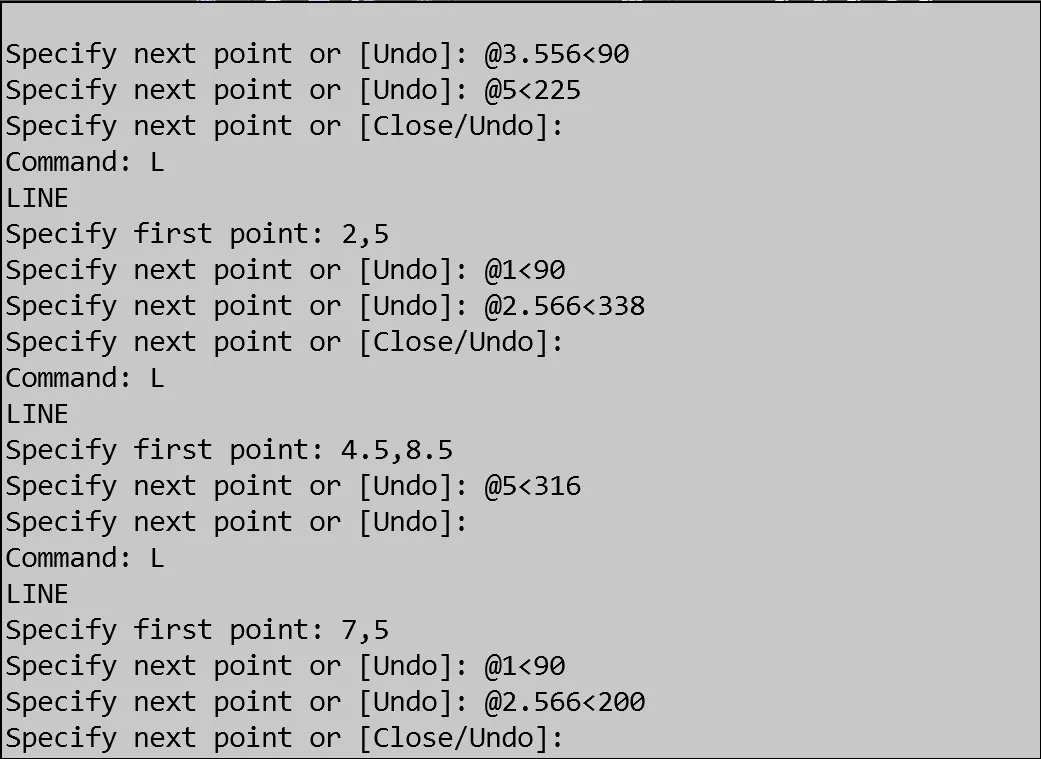

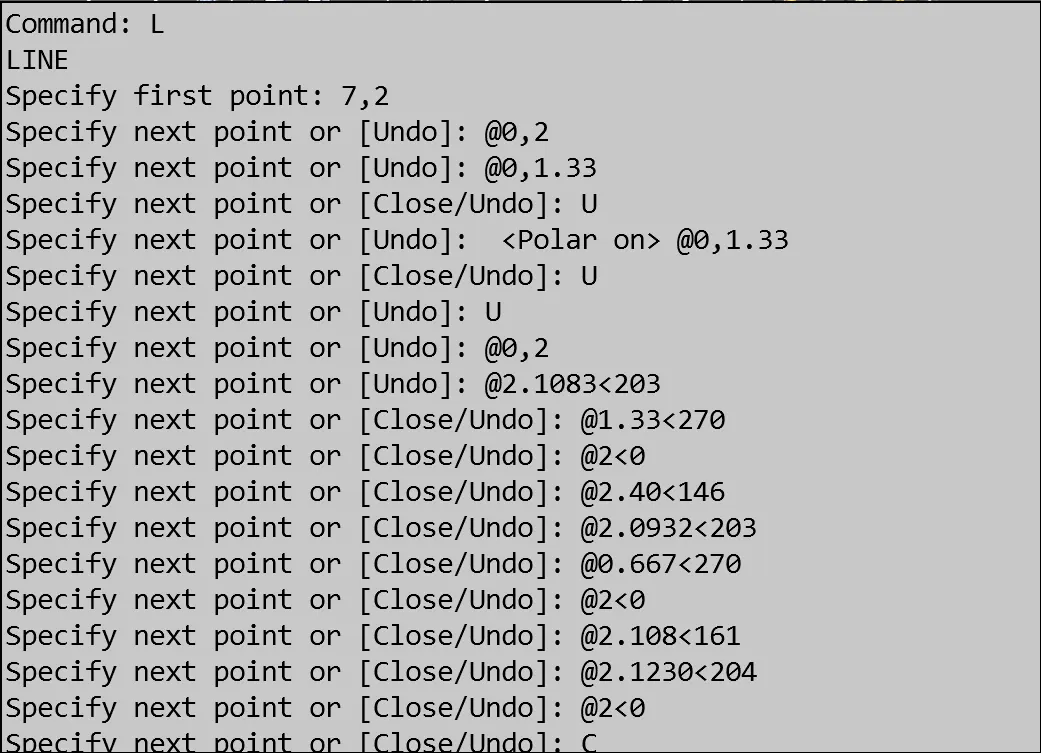

    sketch 11 )



    AIM:

    To create the geometries from p1 to p2 using all the coordinates system methods.

    • ABSOLUTE COORDINATE SYSTEM.
    • RELATIVE COORDINATE SYSTEM.
    • POLAR COORDINATE SYSTEM

    First solve this drawing using absolute coordinate systems:



    USING POLARCOORDINATE SYSTEM:









    RESULT:

    Finally completed the sketches and also p1 to p11 figures with using the all geometric coordinates systems.  And polar coordinate system .

    Leave a comment

    Thanks for choosing to leave a comment. Please keep in mind that all the comments are moderated as per our comment policy, and your email will not be published for privacy reasons. Please leave a personal & meaningful conversation.

    Please  login to add a comment

    Other comments...

    No comments yet!
    Be the first to add a comment

    Read more Projects by Devarakonda Paul Uday Swarup (46)

    To Analysis and Design of Steel Structures using TSD

    Objective:

    1 Answer Aim:Summarizing the BMD, SFD and deflection of elements Bending moment obtained after the analysis.         Shear Force obtained after the analysis.                     Deflection obtained after the analysis.                     2 Answer. Aim:Design analysis of the members To analyse the model setting up the seismic…

    calendar

    02 Dec 2021 01:18 PM IST

      Read more

      Week 4 Challenge

      Objective:

      1) Aim: To Apply loading to the structure Load Calculations: a) Dead load of 1.2 Kn/m2  b) Finishes= 50mm * 24Kn/m3 =1.2Kn/m2 c) Brickwall Load= 0.15*20*5.2 = 15.6 Kn/m ( Ground to Intermediate Floor) d) Brickwall load= 0.15*20*6.8 = 20.4 Kn/m2 ( Intermediate to roof Floor) e) Brickwall load= 0.15*20*4.8…

      calendar

      04 Nov 2021 01:56 PM IST

        Read more

        Week 5 Challenge

        Objective:

        1 ) Aim: To Calculate the wind loads manually The manual wind loads are calculated in the Excel sheet as shown below This load calculation is of Y direction.         Similarly the wind loads are calculated in the X direction as the same procedure followed above         2 ) Aim: To…

        calendar

        23 Oct 2021 07:02 PM IST

          Read more

          Week 3 Challenge

          Objective:

            Details of the structure: Support: Fixed-Pinned(Top and Bottom) Concrete Pedestal Size PD1= 600x600mm Steel Column C1= MB 300 Steel Beams: B1= ISMB 300 applied for primary beams at ground floor including staircase landing beam. B2= ISMB 250 applied for primary beams at first floor including staircase landing beam.…

          calendar

          07 Oct 2021 08:37 PM IST

            Read more

            Schedule a counselling session

            Please enter your name
            Please enter a valid email
            Please enter a valid number

            Related Courses

            coursecard

            Design loads considered on bridges

            Recently launched

            10 Hours of Content

            coursecard

            Design of Steel Superstructure in Bridges

            Recently launched

            16 Hours of Content

            coursecard

            Design for Manufacturability (DFM)

            Recently launched

            11 Hours of Content

            coursecard

            CATIA for Medical Product Design

            Recently launched

            5 Hours of Content

            coursecardcoursetype

            Accelerated Career Program in Embedded Systems (On-Campus) Courseware Partner: IT-ITes SSC nasscom

            Recently launched

            0 Hours of Content

            Schedule a counselling session

            Please enter your name
            Please enter a valid email
            Please enter a valid number

            logo

            Skill-Lync offers industry relevant advanced engineering courses for engineering students by partnering with industry experts.

            https://d27yxarlh48w6q.cloudfront.net/web/v1/images/facebook.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/insta.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/twitter.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/youtube.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/linkedin.svg

            Our Company

            News & EventsBlogCareersGrievance RedressalSkill-Lync ReviewsTermsPrivacy PolicyBecome an Affiliate
            map
            EpowerX Learning Technologies Pvt Ltd.
            4th Floor, BLOCK-B, Velachery - Tambaram Main Rd, Ram Nagar South, Madipakkam, Chennai, Tamil Nadu 600042.
            mail
            info@skill-lync.com
            mail
            ITgrievance@skill-lync.com

            Top Individual Courses

            Computational Combustion Using Python and CanteraIntroduction to Physical Modeling using SimscapeIntroduction to Structural Analysis using ANSYS WorkbenchIntroduction to Structural Analysis using ANSYS Workbench

            Top PG Programs

            Post Graduate Program in Hybrid Electric Vehicle Design and AnalysisPost Graduate Program in Computational Fluid DynamicsPost Graduate Program in CADPost Graduate Program in Electric Vehicle Design & Development

            Skill-Lync Plus

            Executive Program in Electric Vehicle Embedded SoftwareExecutive Program in Electric Vehicle DesignExecutive Program in Cybersecurity

            Trending Blogs

            Heat Transfer Principles in Energy-Efficient Refrigerators and Air Conditioners Advanced Modeling and Result Visualization in Simscape Exploring Simulink and Library Browser in Simscape Advanced Simulink Tools and Libraries in SimscapeExploring Simulink Basics in Simscape

            © 2025 Skill-Lync Inc. All Rights Reserved.

                        Do You Want To Showcase Your Technical Skills?
                        Sign-Up for our projects.
