Creating Architectural and Structural model with 3D rendering using REVIT

1)Select the type of structure you want to build from one of the three below
a. Multi Unit Residential Apartment
b. Office Buildings
c. School

ANSWER:

My model represents a Multi Unit Residential Apartment .

2) Assume reasonable assumptions for geographic and location details for your project modeling. Based on assumptions and type of structure selected identify the modeling requirements from NBC

• My assumed location details are Telagana , Hyderabad -500085,my modeling gives the model requirements from NBC

  1. My project is in residential area (medium populated)

  2. Road width in front of my apartment is 60 feet

  3. My project is in plain area (geographical)

  As per the NBC

  Height Limit as per FAR Calculation and as per NBC Table 5 V-1

  Min length and width of rooms as per NBC V-1

  Fire and safety from NBC part IV.

3)

AIM:

To create foundation , columns , beams connected to columns , roof framing , floor , floor openings for elevators and stairs .

PRCOCEDURE :

• Open the structural model which we created in week 6 "structural project 1"

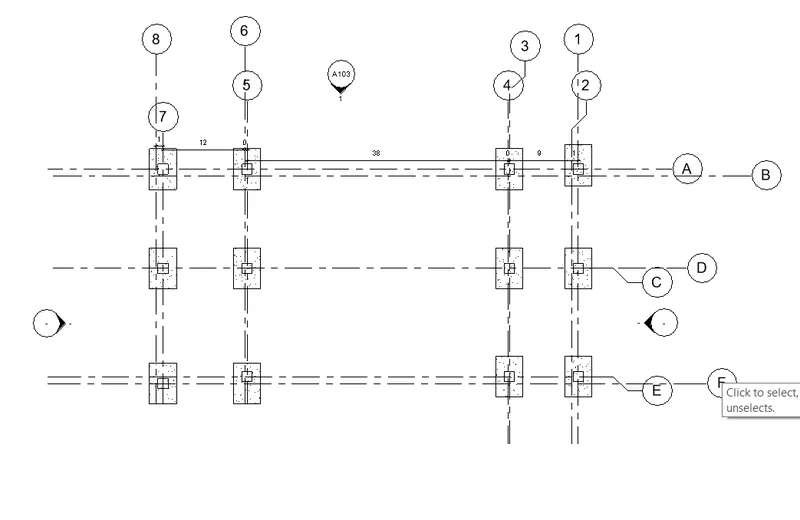

step 1 :(foundation )

• to create a foundation level
• click on levels in datum tab > create levels in elevation view .

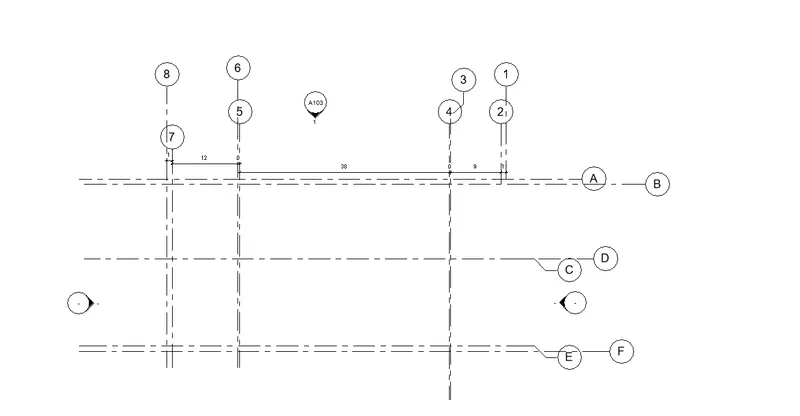

• now go to foundation level and create grids accordingly .

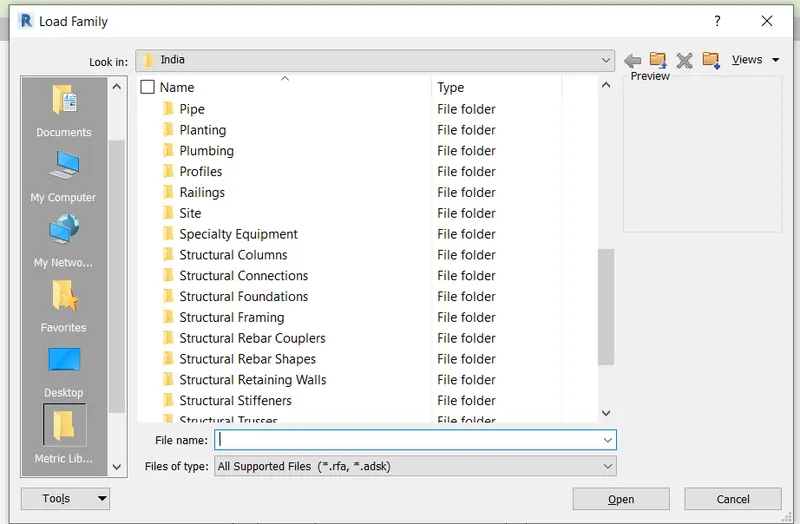

go to load families.

`

• select structural foundations and insert it in the desired locations .

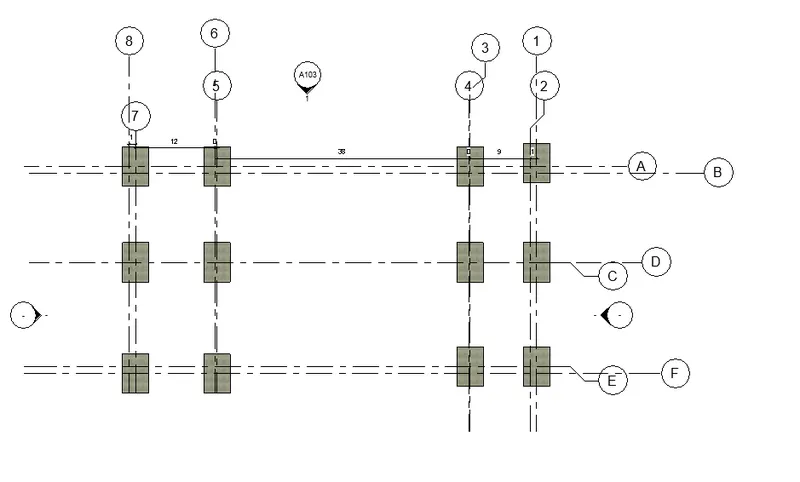

After this the same procedure follows for columns.

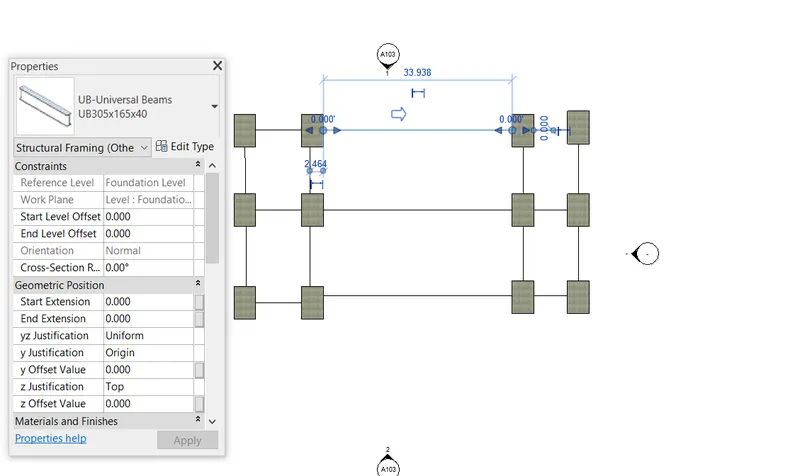

• Beams are connected same as columns

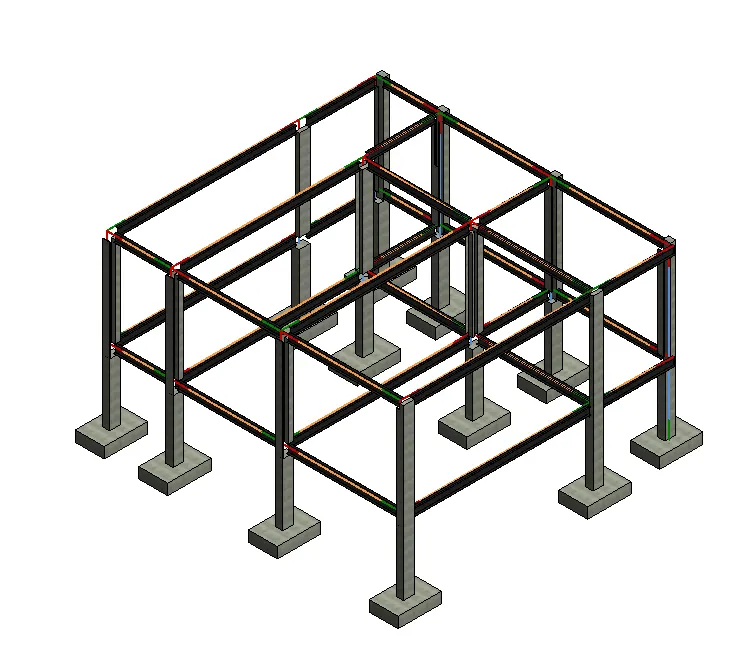

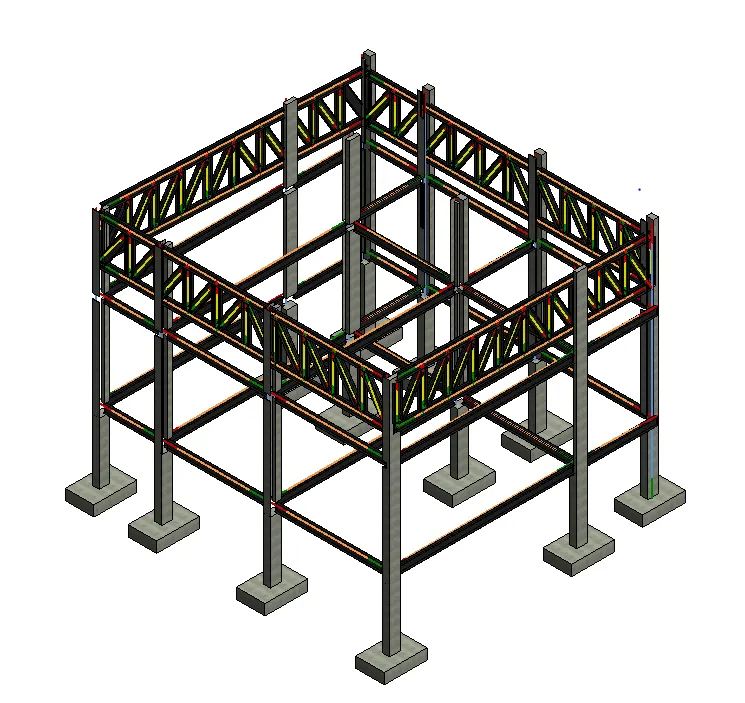

FINAL RESULTS WHEN BEAMS , COLUMNS , FOOTING ARE CREATED.

Go to structural tab > click on truss > place it on the desired location

go to structural model > click on floor >edit the boundary.

4)

AIM:

To the architectural model , include the components based on the type of structure selected .

PROCEDURE :

• Open architectural model which we created in week 6 challenge .
• go to architectural tab > click on place components > load families .
• load the reaquired familes and wall and floor designs

RESULTS :

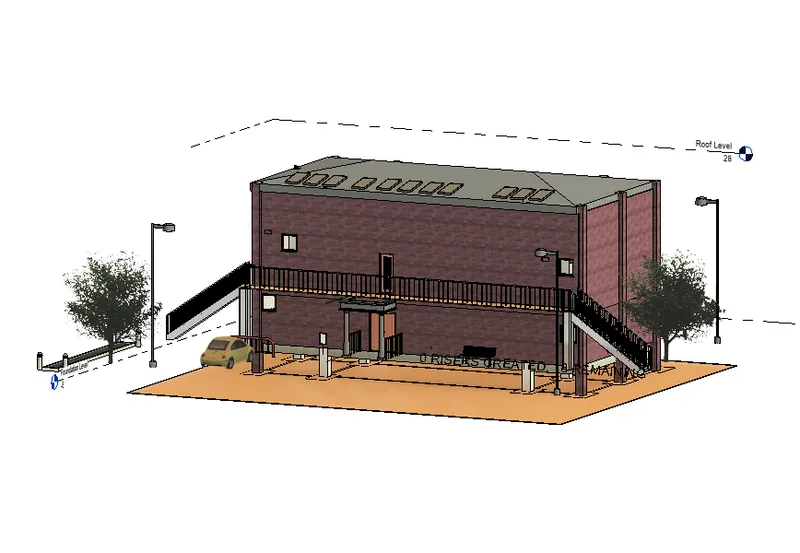

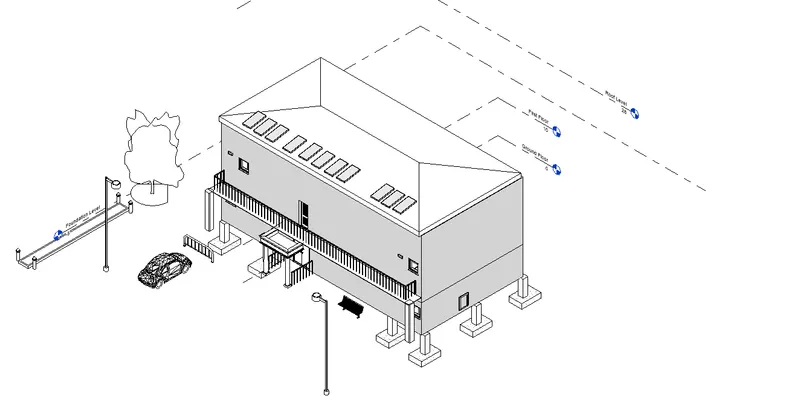

• In this picture plants , exterior lights , railings, stair case are added .

• click on the wall > properties > curtain wals

RESULT :

CURTAIN WALLS ARE ADDED

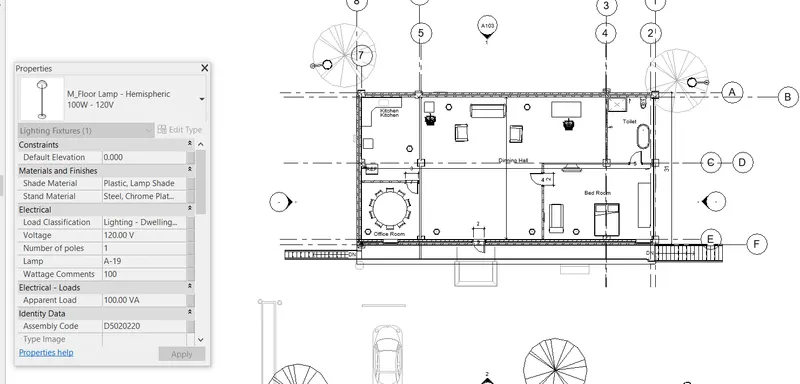

To create or to add components to the room Like (desk , chair , lighting , plumbing fixtures

5)

AIM:

To provide set of drawings in architectural and structural model to list the following details with categories and appropriate sheet templates included .

procedure :

go to view tab > sheets > click on the appropiate sheets > add the views

RESULTS :

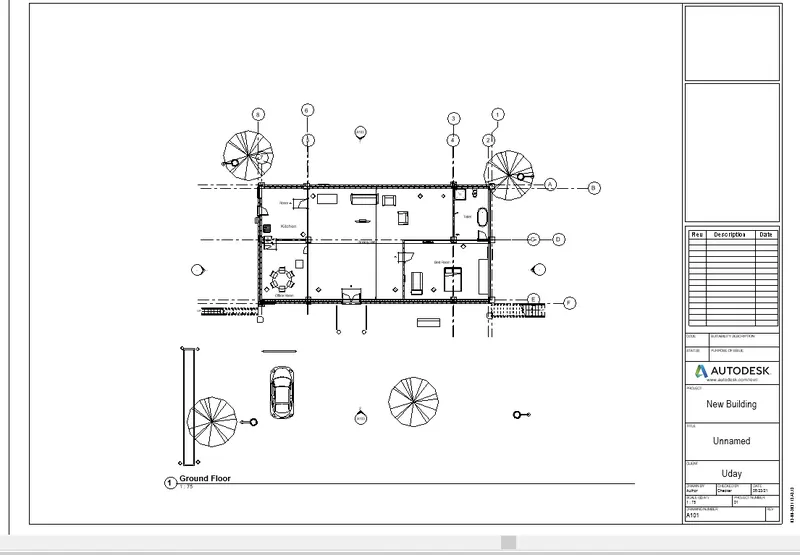

LEVEL 1 FLOOR PLAN

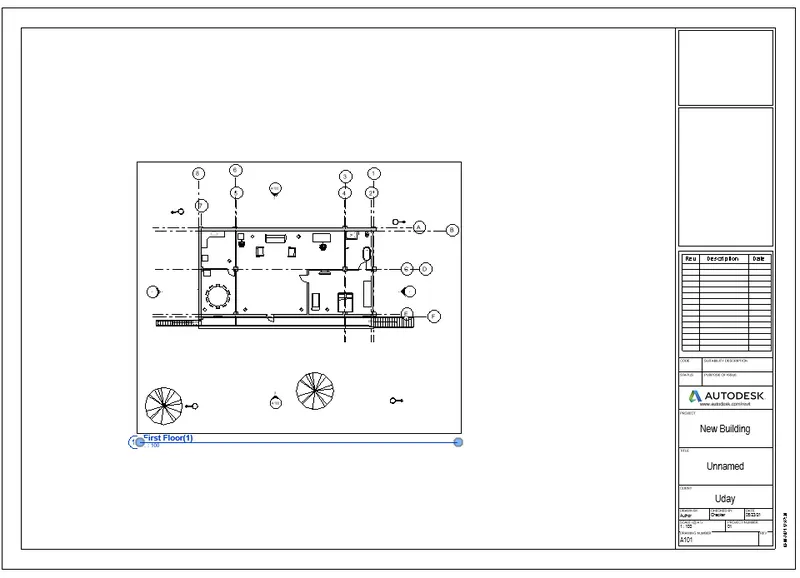

LEVEL 2 FLOOR PLAN :

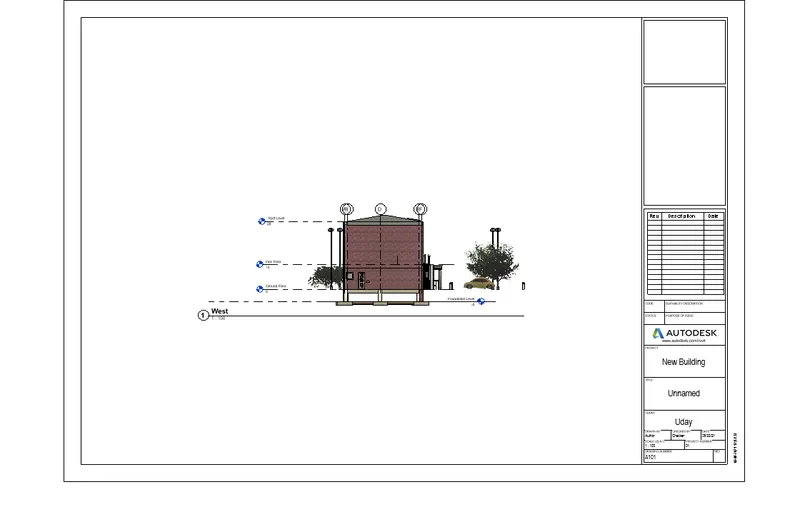

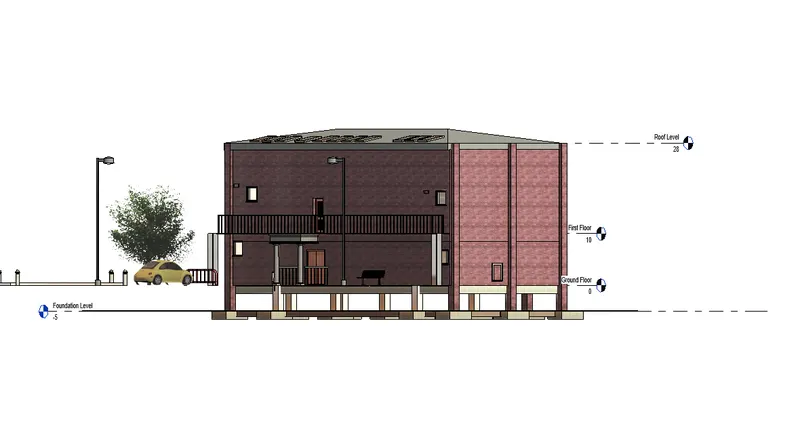

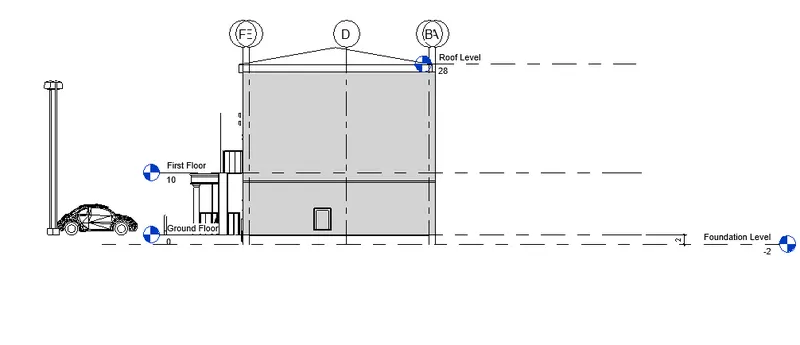

ELEVATIONS

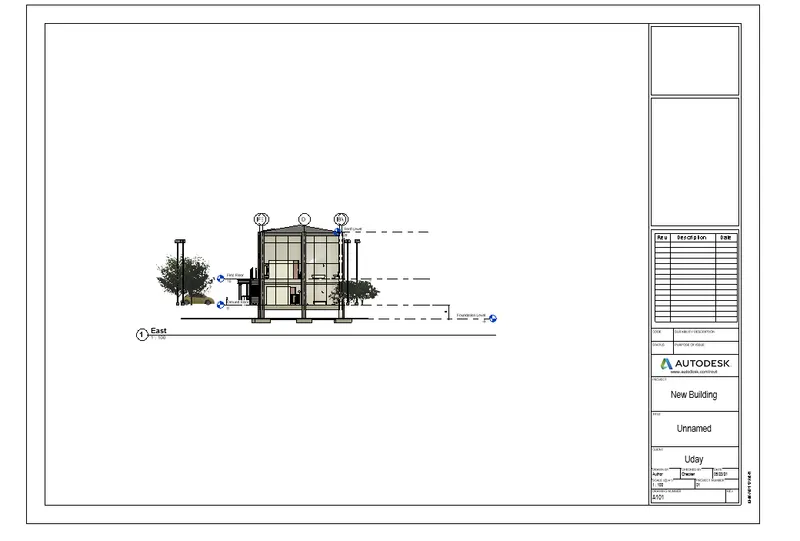

EAST:

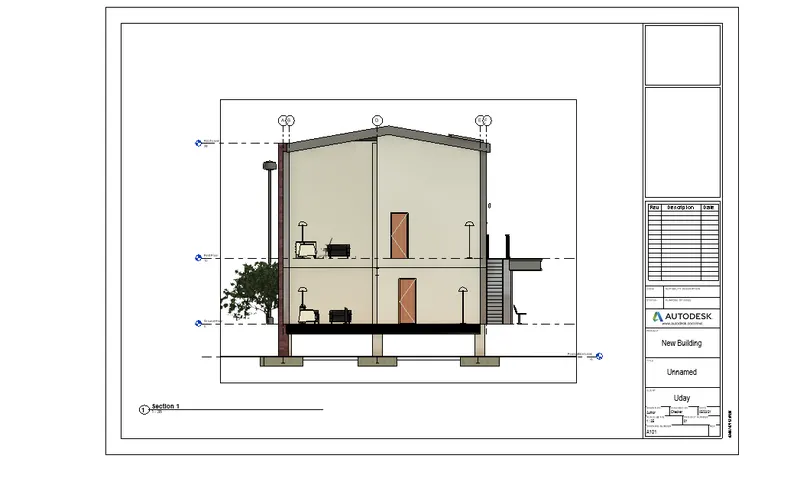

SECTION VIEW:

6)

AIM:

To Use the Rendering settings and transfer it to the drawing sheets

PROCEDURE:

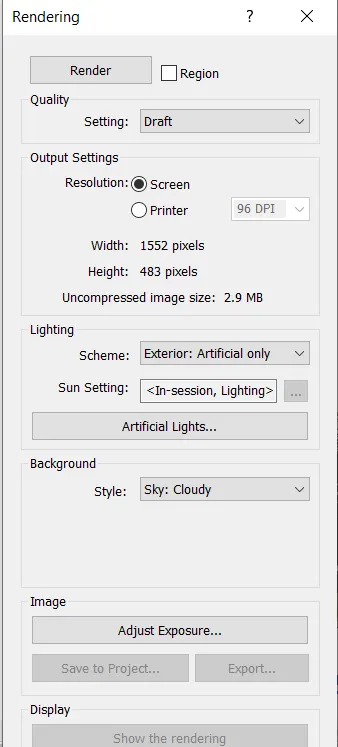

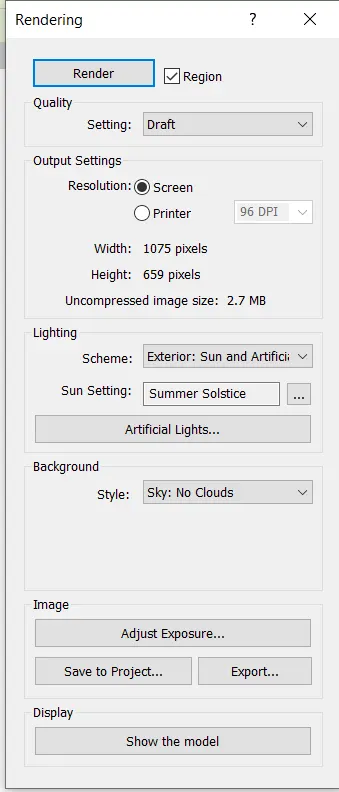

Go to view tab > click on rendiering view .

after adjusting thr required settings click on render .

RESULT :

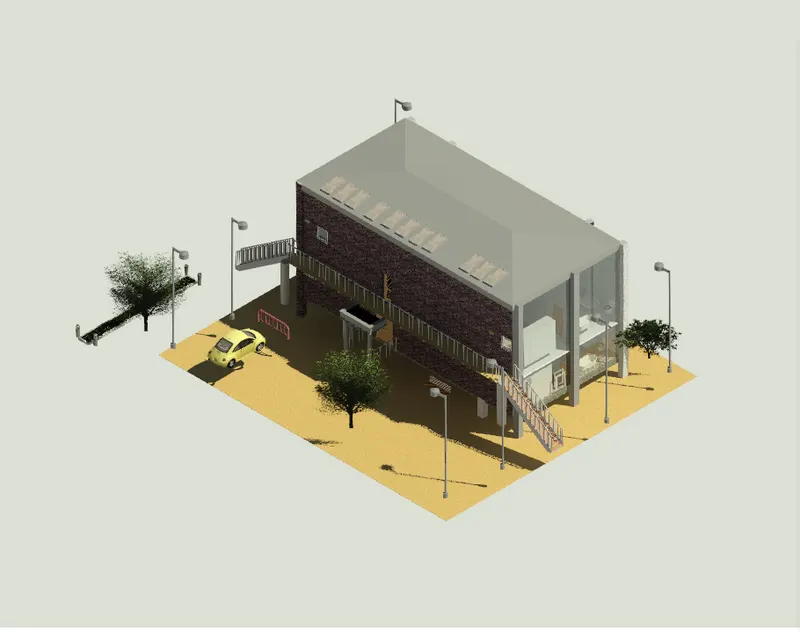

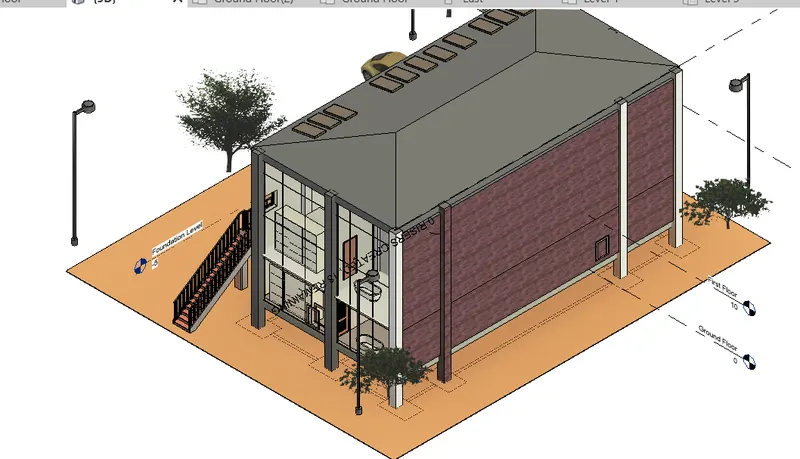

EXTERIOR RENDERING :

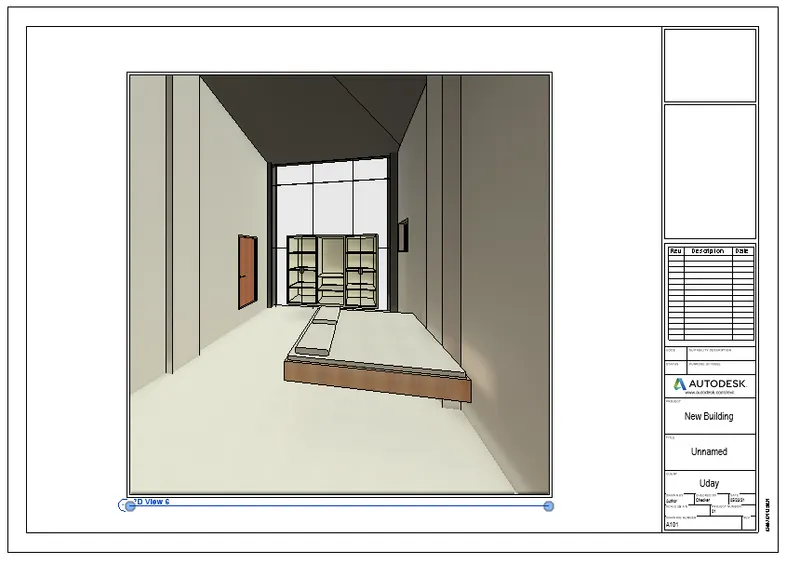

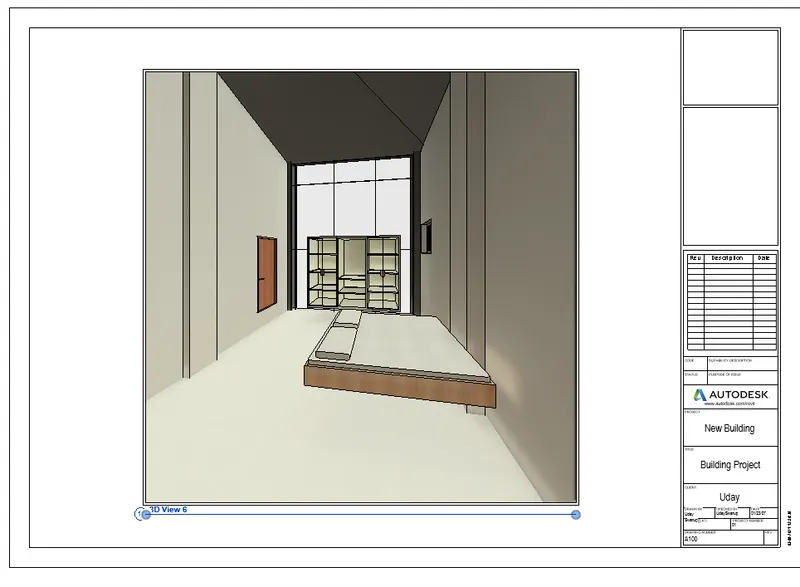

Rendering in the inside rooms .

(KEEPING SCHEME "INTERIOR :SUN AND ARTIFICIAL ")

7)

AIM:

To print the set of drawing sheets created .

PROCEDURE :

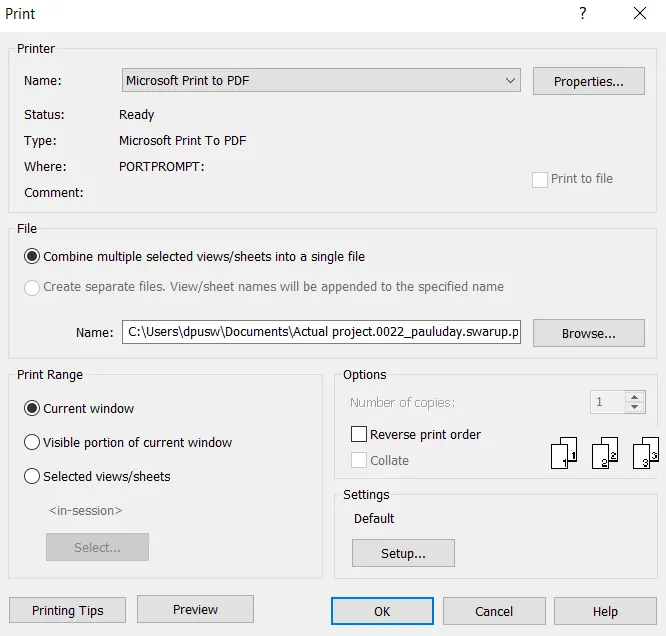

Go to file tab > print .

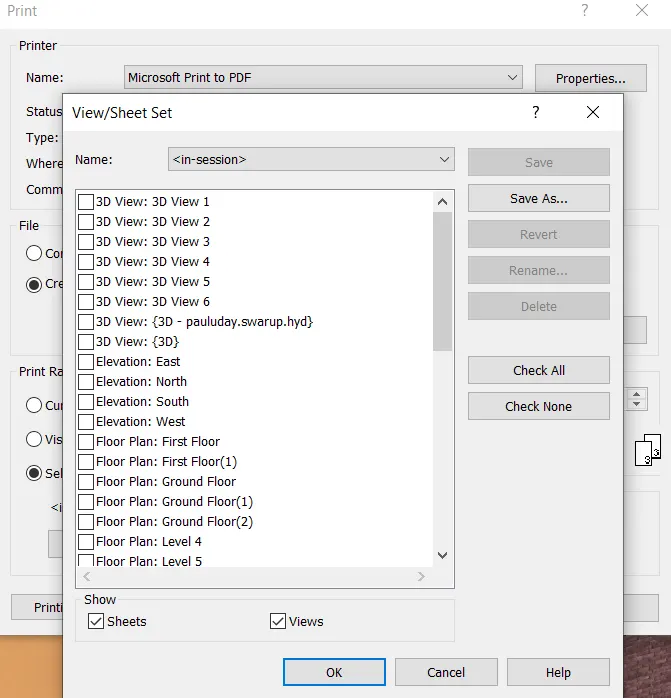

click on selected views/sheets > rendering view i have selected

after this click okay and your sheets shall get printed .

RESULT :
