To Analysis and Design of Steel Structures using TSD

1 Answer

Aim:Summarizing the BMD, SFD and deflection of elements

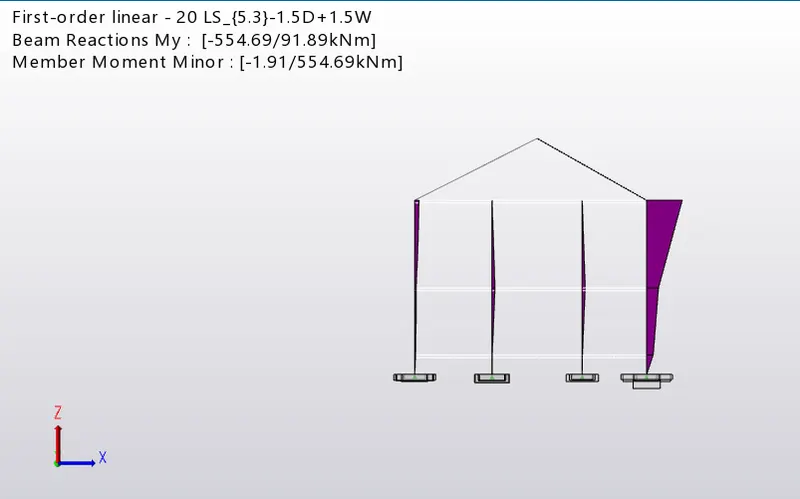

Bending moment obtained after the analysis.

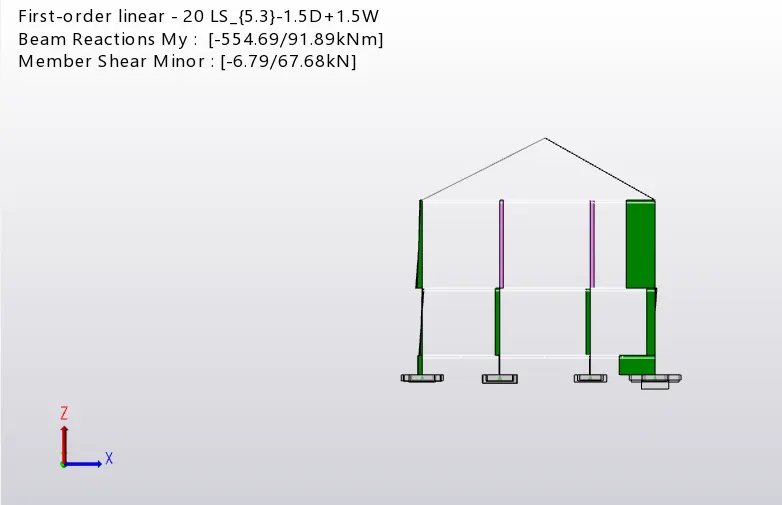

Shear Force obtained after the analysis.

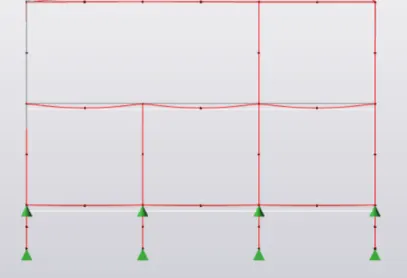

Deflection obtained after the analysis.





















2 Answer.

Aim:Design analysis of the members

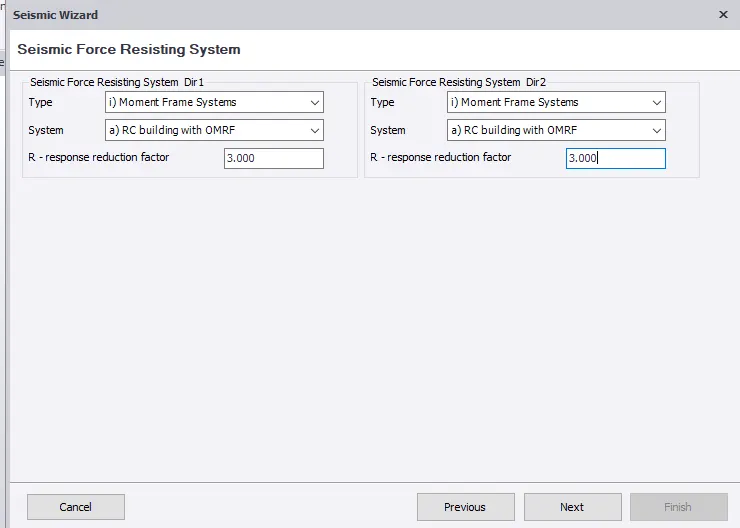

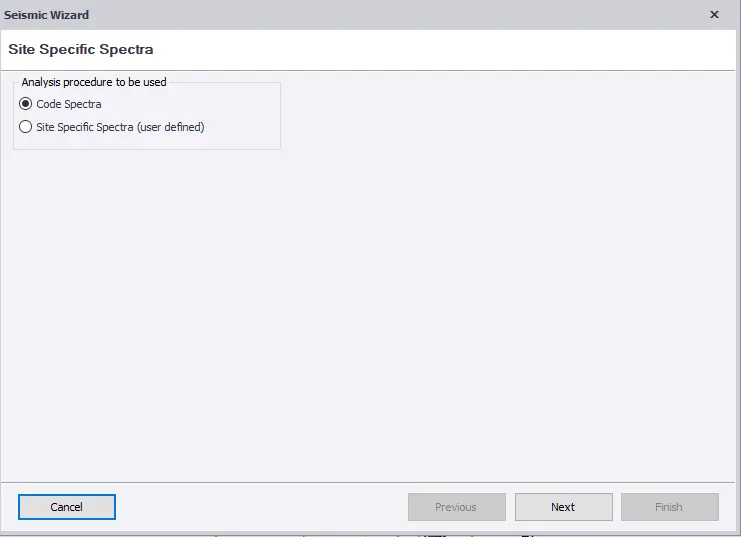

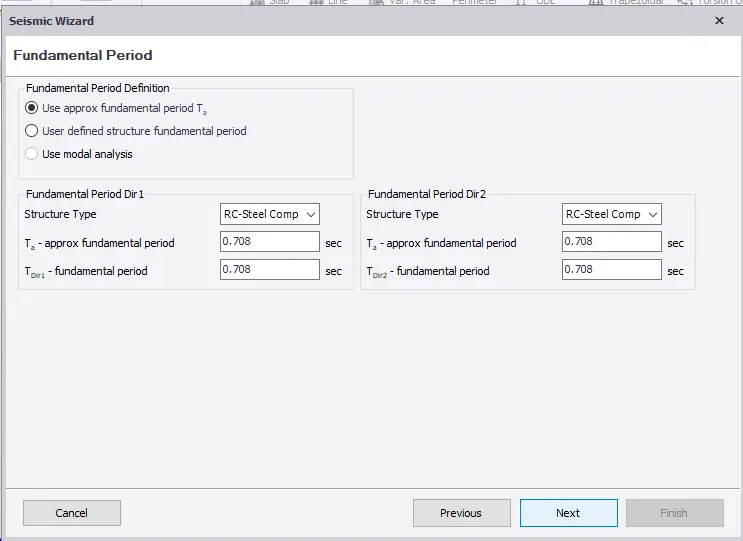

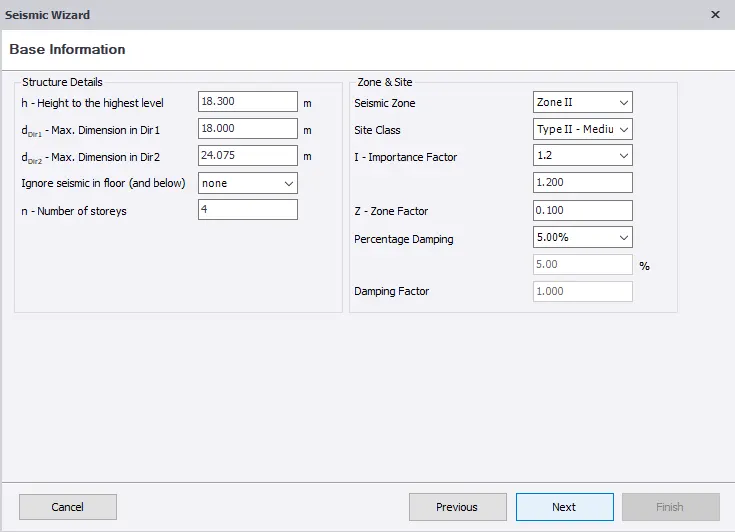

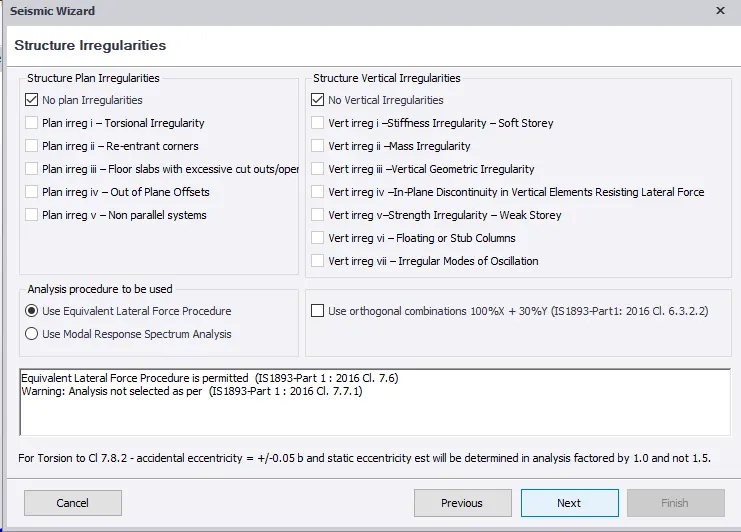

To analyse the model setting up the seismic wizard as follows

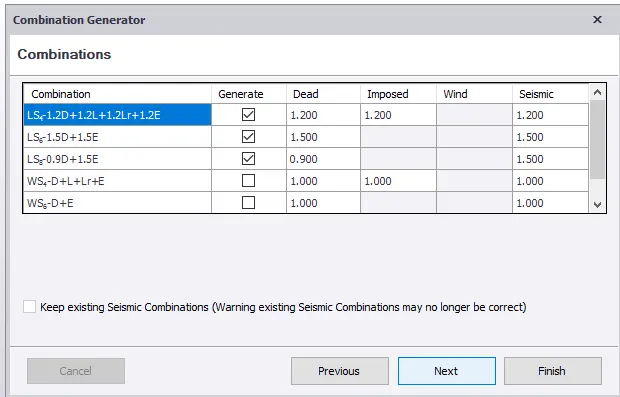

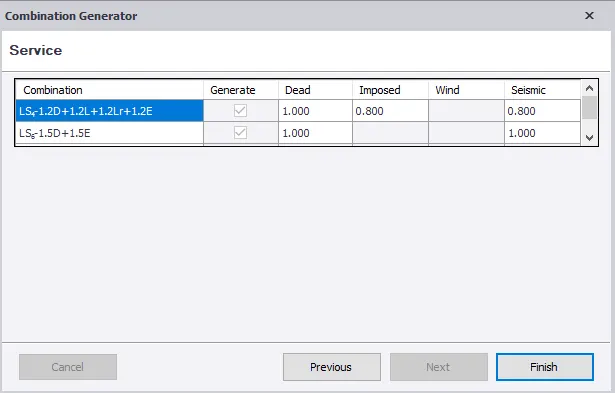

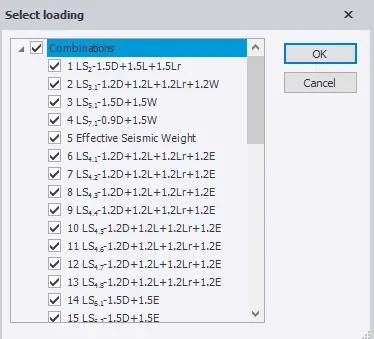

Genarating the load combinations.

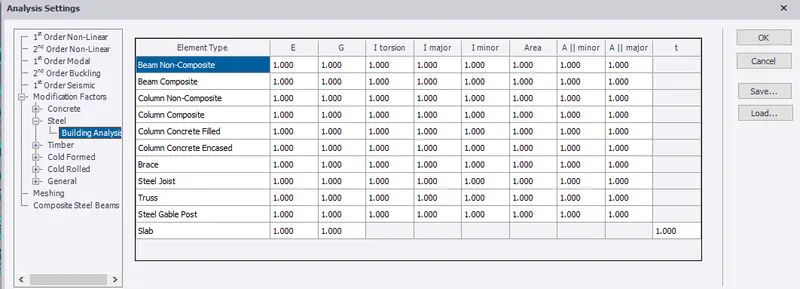

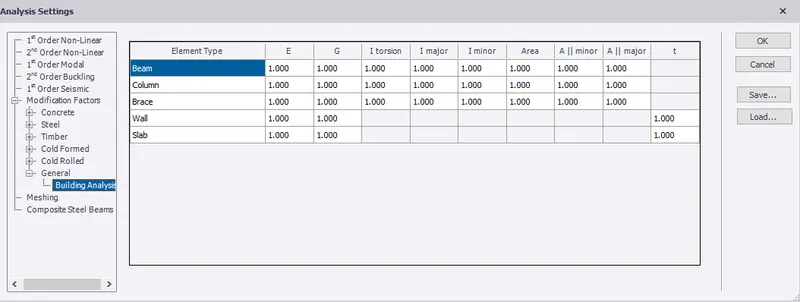

Checking the settings for the analysis.





















Beam Analysis:

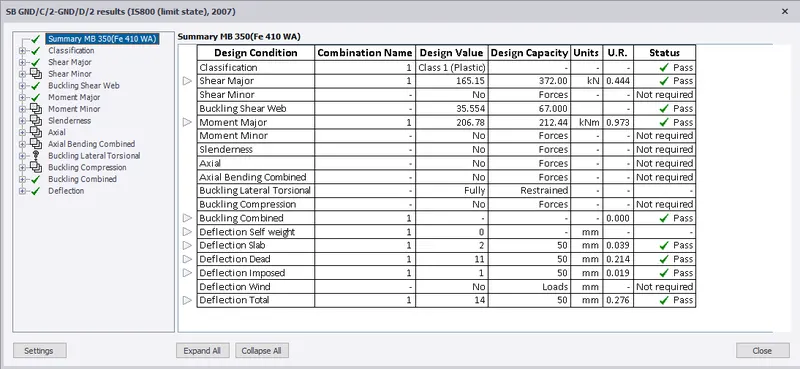

Analysis the first order linear analysis and selecting a beam and checking the beam Initially the ISMB 250 beam is provided the beam failed in shear major then revising it and providing ISMB 350 which satisfy all aspects.

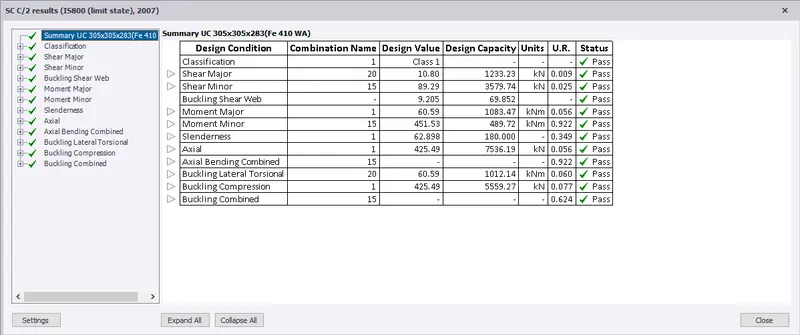

Column Analysis:

Analysis the first order linear analysis and selecting a beam and checking the beam Initially the ISMB 550 beam is provided the beam failed in buckling then revising it and providing UC 305X305X283 which satisfy all aspects.







Rafter Analysis:

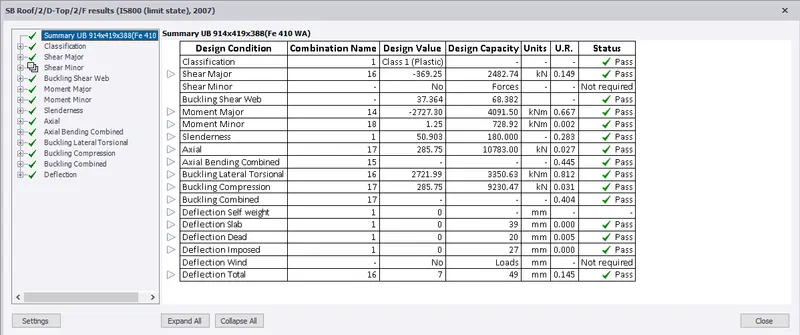

Analysis the first order linear analysis and selecting a beam and checking the beam Initially the ISMB 600 beam is provided the beam failed in deflection then revising it by selecting UK Flange and providing UB 914X419X338 which satisfy all aspects.









.

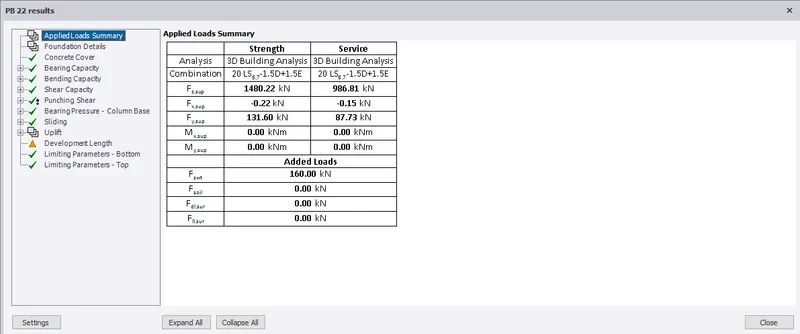

Footing Analysis:

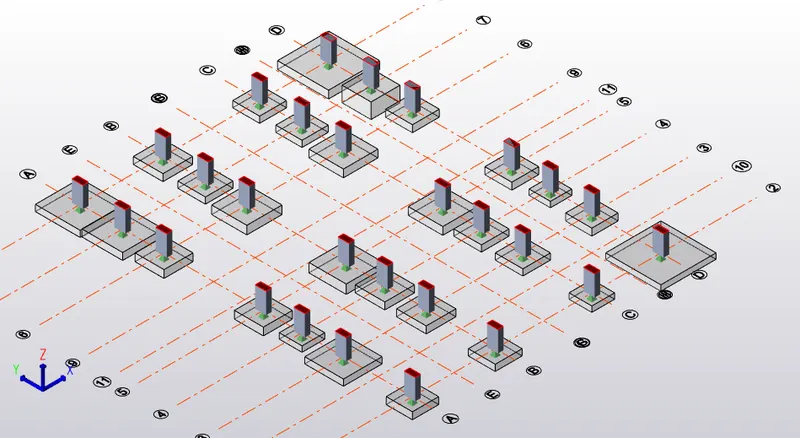

Selecting the base view and in foundation tab selecting a pat founation to all the concrete column and designing the footing and checking the footing and satisfies the criteria.
