Usage of Navigation tool , Timeliner and Clash Detection test using Naviswork
1)
AIM:
Export the Revit architecture and structure model to Navisworks Cache file.
PROCEDURE:
- Open autodesk website >login to my id > download naviswork
- Therefore naviswork is downloaded
- Now open Revit software > file > export> NWC file

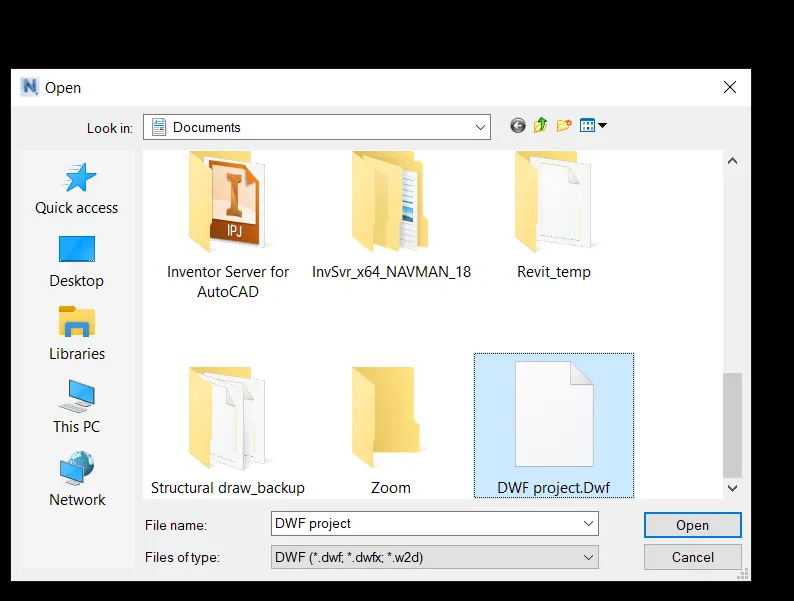

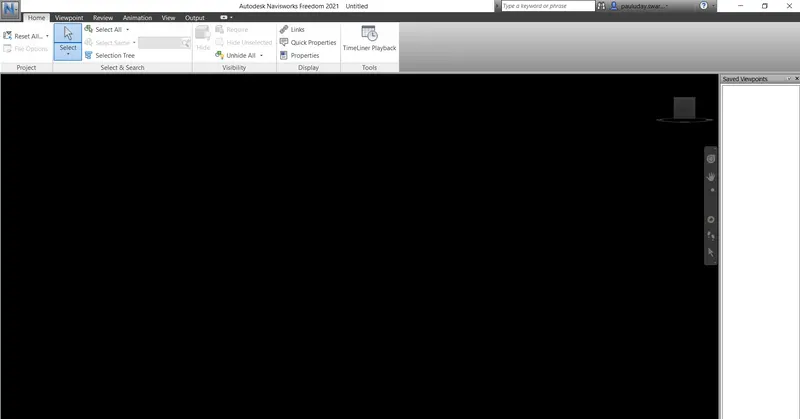

- Now open naviswork manage >file >open > Actual project.
RESULT :
Architectural and structural combined .
2)
AIM:

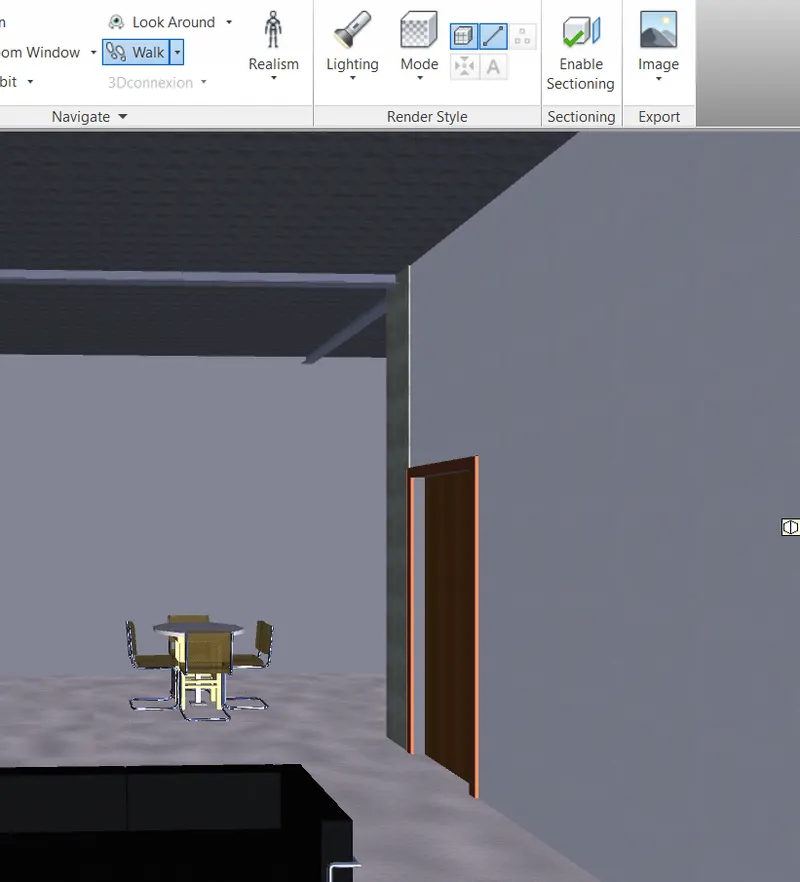

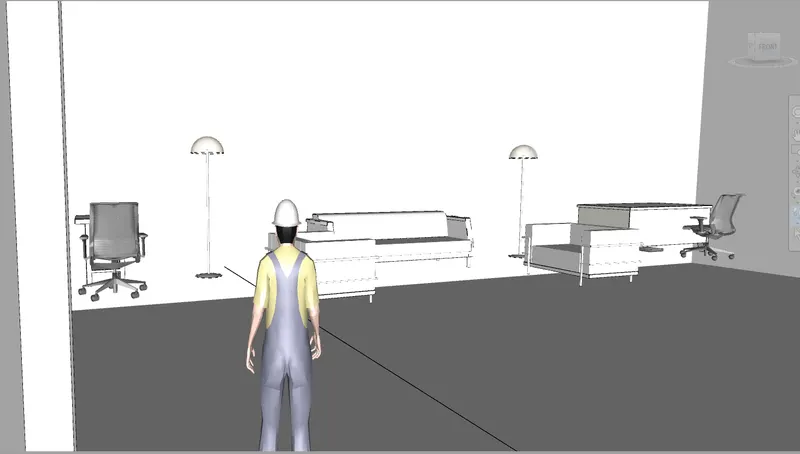

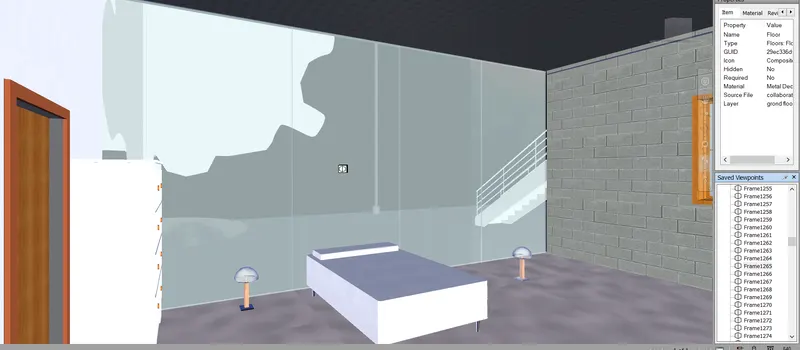

To use the navigate tool to walk around the model and record your moving as animation in your Navisworks .
PROCEDURE :
- Open the file
- click on viewpoint > 3d view
- go to view point > click on walk
RESULT :
- The walk through and video has been created .
3)
AIM:

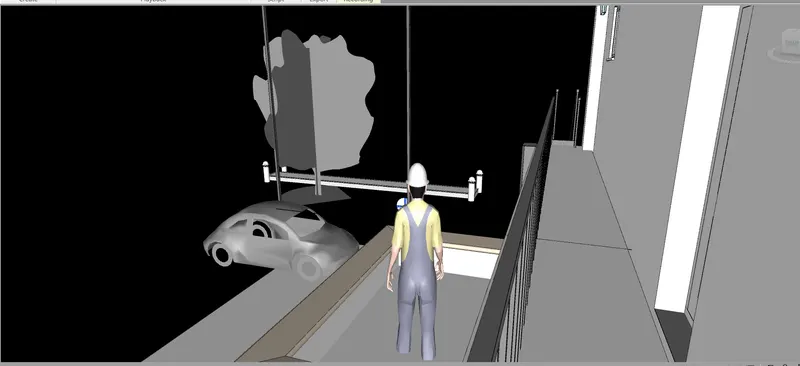

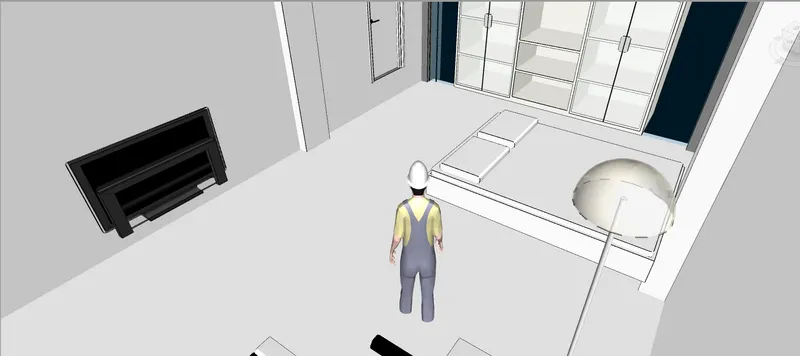

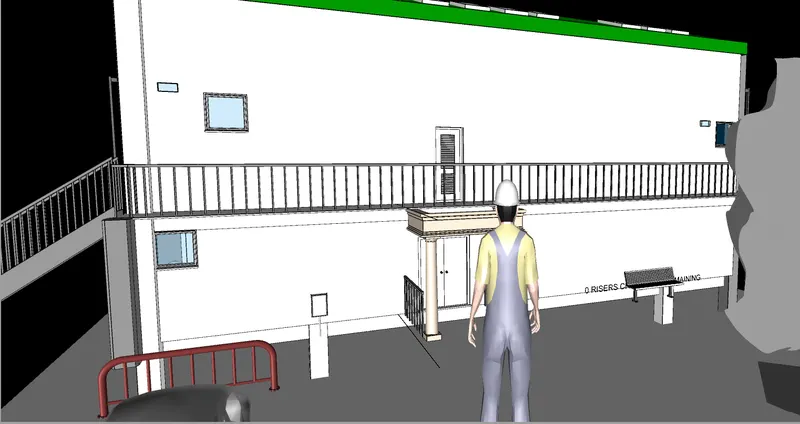

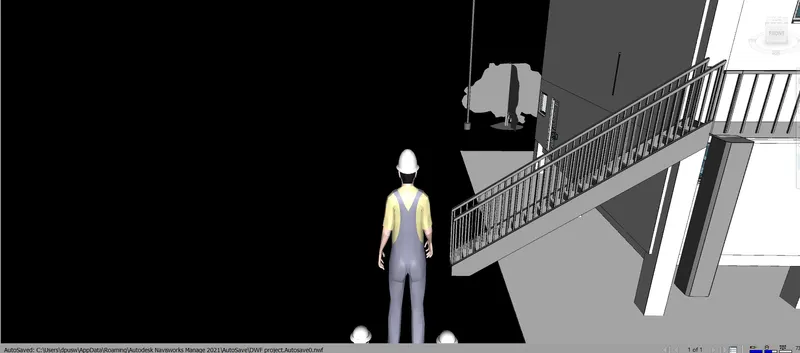

To use realism feature to walk througn the model and record my moving animation
PROCEDURE:
click on viewpoint >
> third person

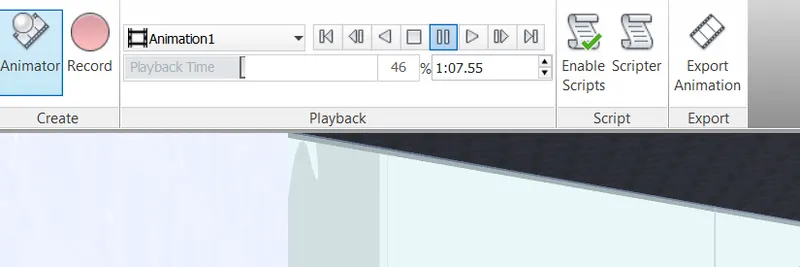

go to animation > record
RESULT :
4)
AIM:

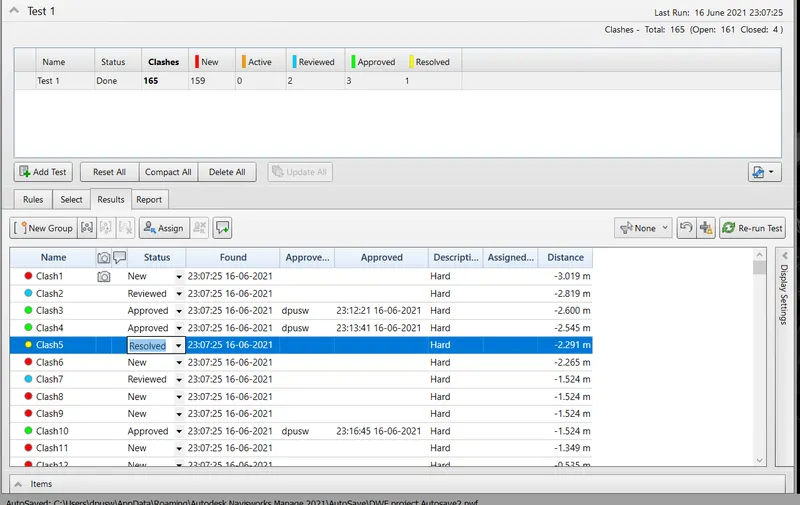

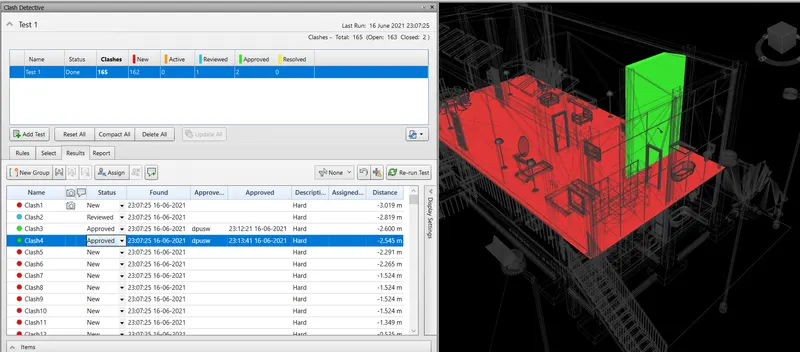

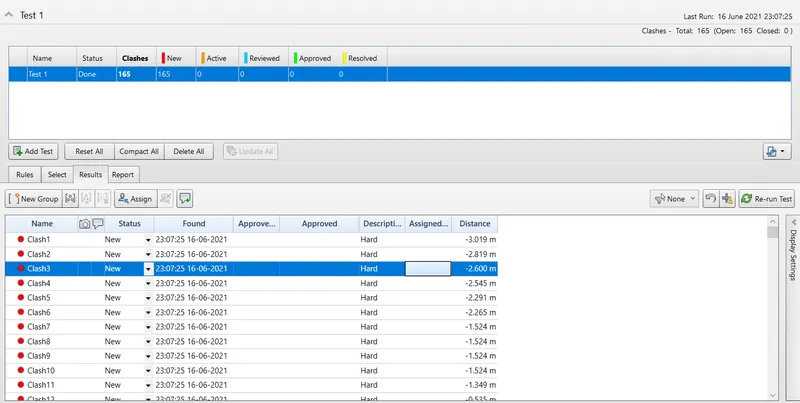

To Create a clash detection test between the two models
PROCEDURE:
- Go to home tab > clash dectective
- run the clash detection.
b.Study the clashes between the two models
c.List which of the clashes could be approved
d. List which of the clashes could be neglected ( will be taken care later)
e. List which of the clashes can be resolved

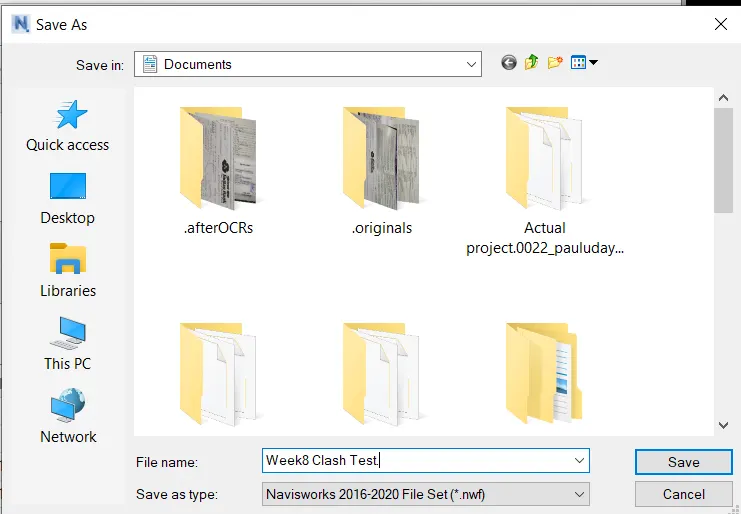

f.save the result after colour clashes to the naviswork file.
RESULT :
The clash dectective is done successfully in this project .
5)
AIM:

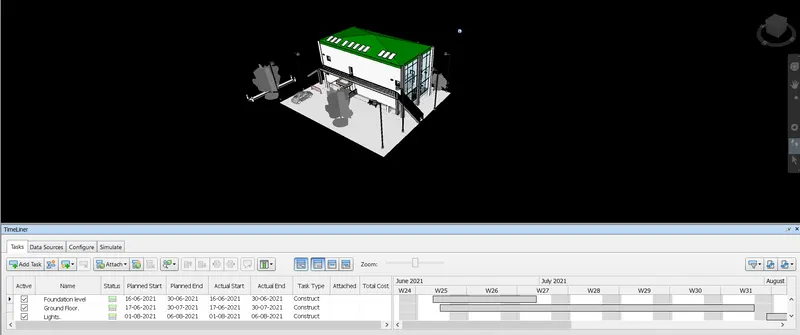

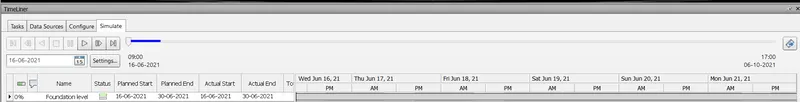

To create timeline feature in Navisworks
PROCEDURE:

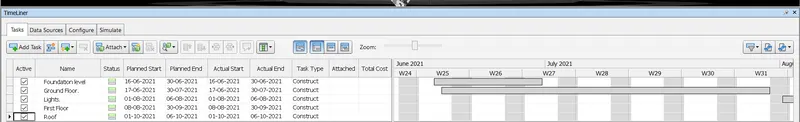

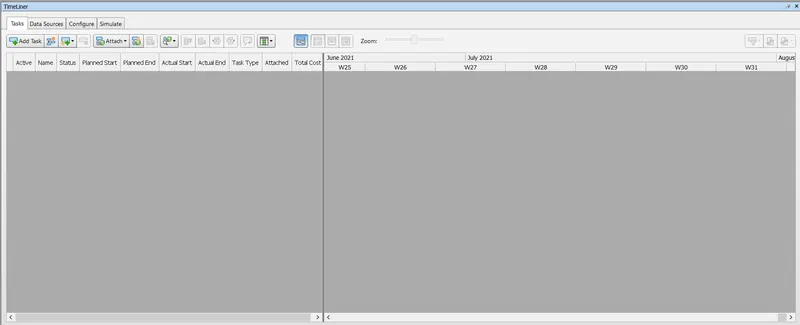

- click on timeliner
- click on attach and select the desired levels and components
- After that we should add the start and end date , type (construction ).
- click on simulate and record it
- save this naviswork file
RESULT:
