Designing of Buck converter

1- A DC/DC converter should be designed for an electric vehicle. The DC/DC converter should convert the voltage from the battery pack at 48 V to supply the 12 V loads (Radio, horn, accessories, etc..). The load needs an output current of 5 A. (Hint: the load can be represented as a resistance).

a) Draw a schematic of the DC/DC converter that you suggest for this application.
b) Specify the duty ratio of the converter.
c) Suggest a switching frequency of the converter.
d) Design the switching inductor such that the current is continuous and the inductor current ripple is less than 30% of the average inductor current.
e) Design the output capacitor such that the output voltage ripple is less than 5%.
f) What are the peak voltage and current values of your switches (Mosfet and Diode)?Comment from your simulation result

Solution:

 given,

Vin = 48V

Vout = 12V

Output Current = 5A

inductor current ripple is less than 30% of the average inductor current

output voltage ripple of the capacitor is less than 5%.

Step of Designing:

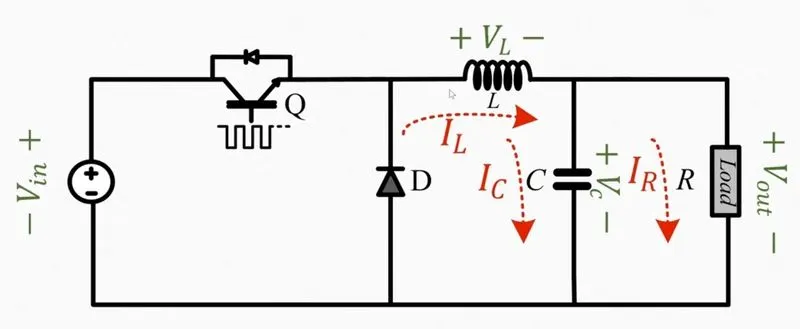

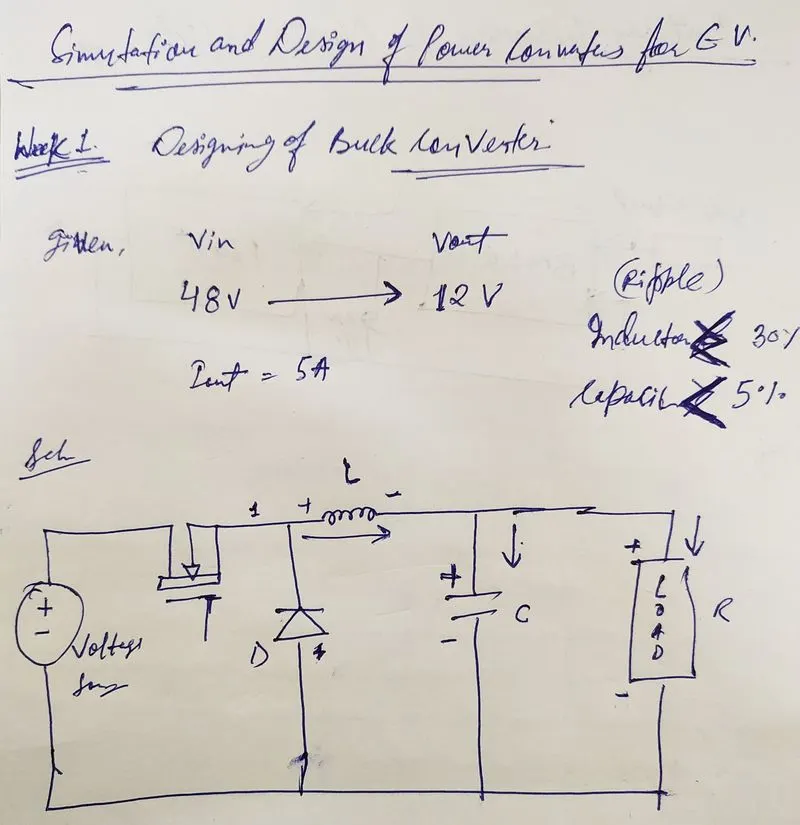

Step 1: Draw a circuit Schematic diagram of the buck converter

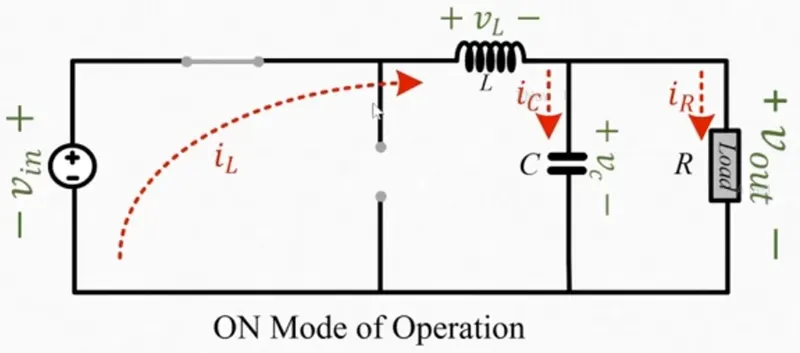

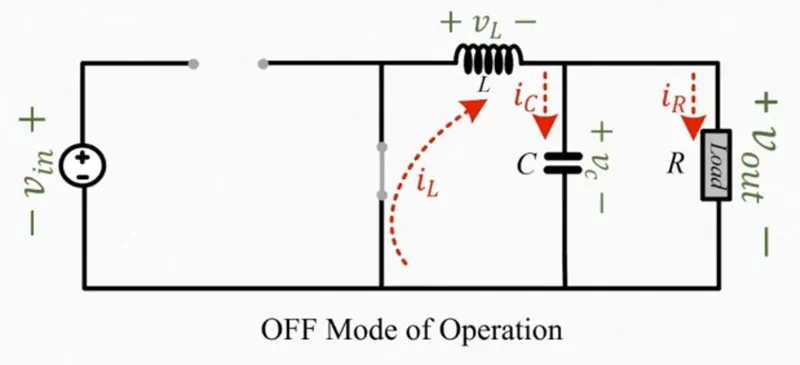

Step 2: Draw the Converter Circuit in ON & OFF mode.

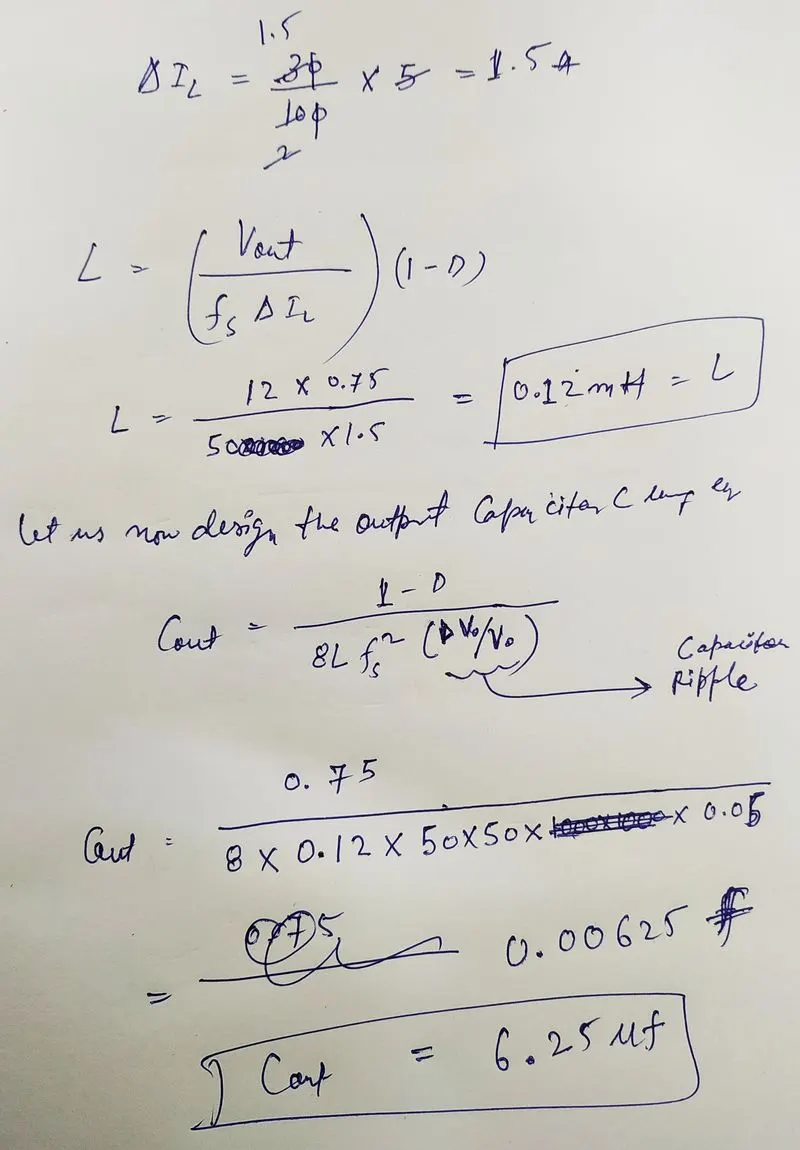

 Step3: Calculation

So, we got the values of,

R = 2.4ohm

L = 0.12mH

C = 6.25uf

D = 25%

Assumption f= 50kHz

Step4: Now we have to design the circuit in MATLAB Simulink software to know the peak voltage and current values of my switches (Mosfet and Diode).

Open MATLAB and click on

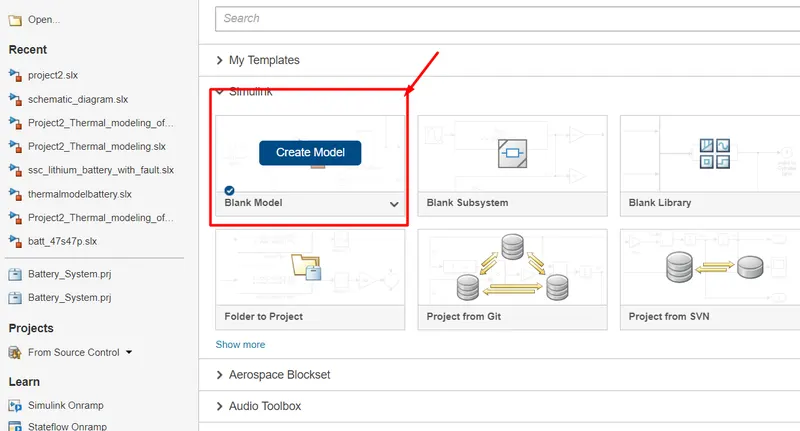

Click on the Create Model.

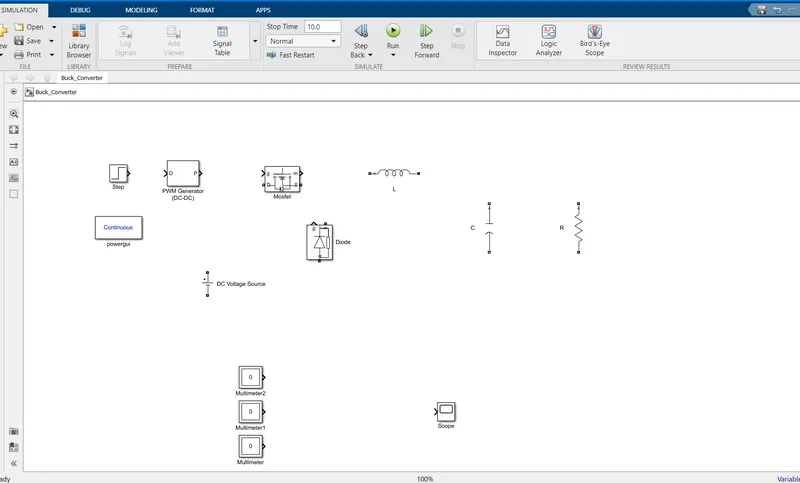

Select all the required components like:

Step signal block, PWM Generator DC-DC, MOSFET, Diode, Voltage source, L, C, R, Scope, etc.

Now Configure each element according to our requirements.

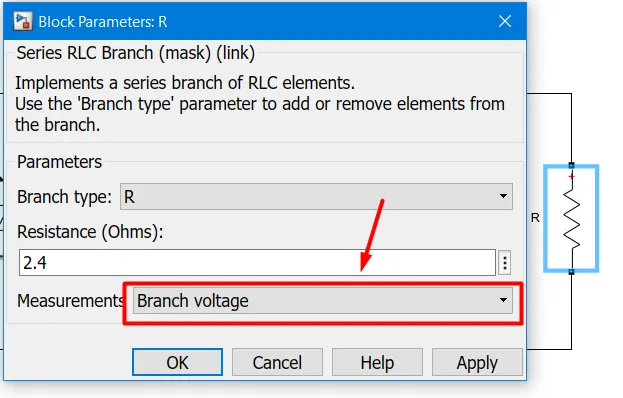

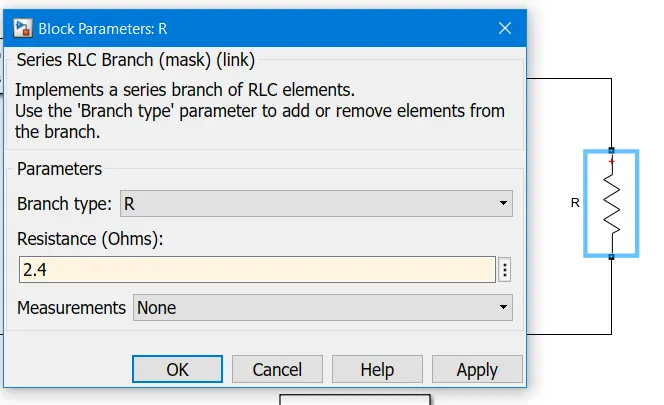

Set R = 2.4ohm

Enable Measurement to measure the Output Voltage.

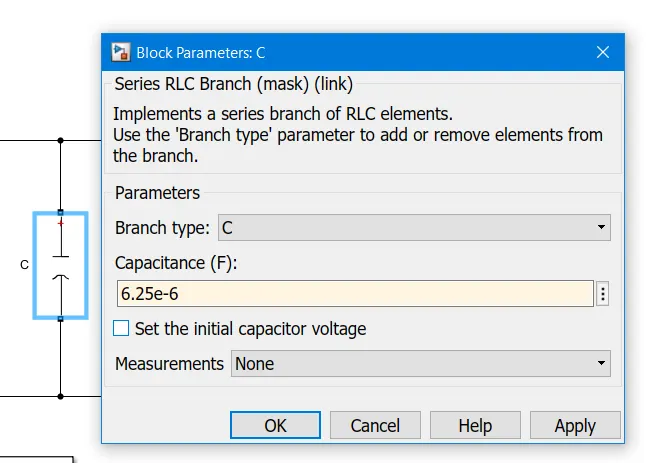

Set Capacitance Value as calculated 6.25uf.

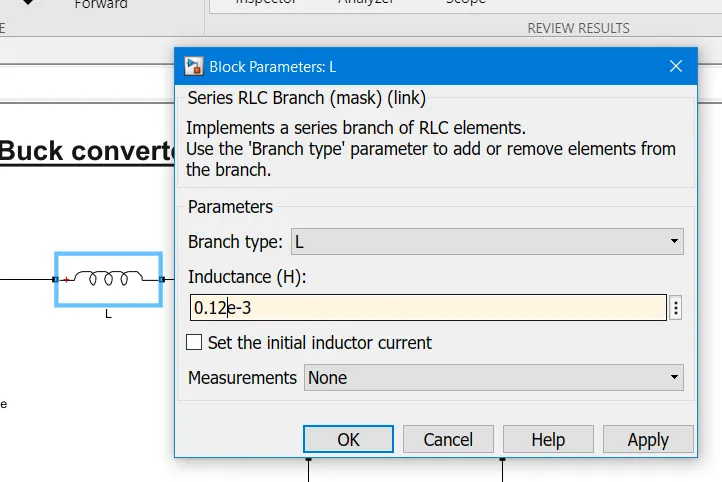

Set Inductance Value as Calculated 0.12mH with Measurement Enable for branch current.

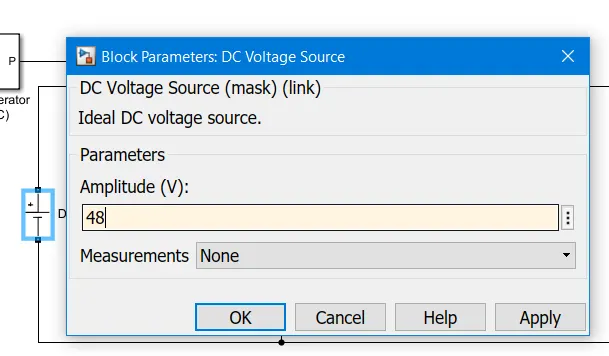

Set Input Voltage 48V

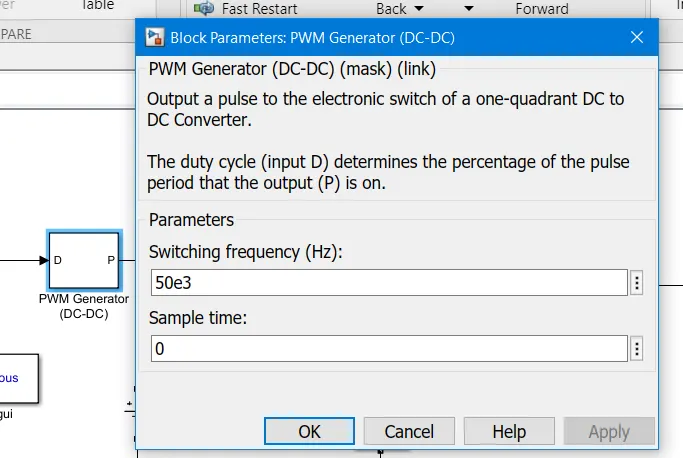

Set Frequency to 50kHz as supply frequency in India is 50kHz.

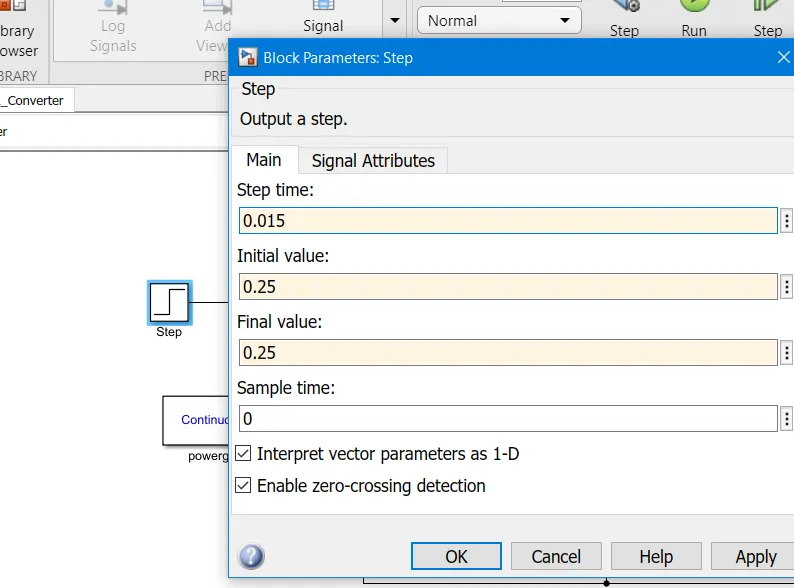

set Step block as the Duty cycle of 0.25.

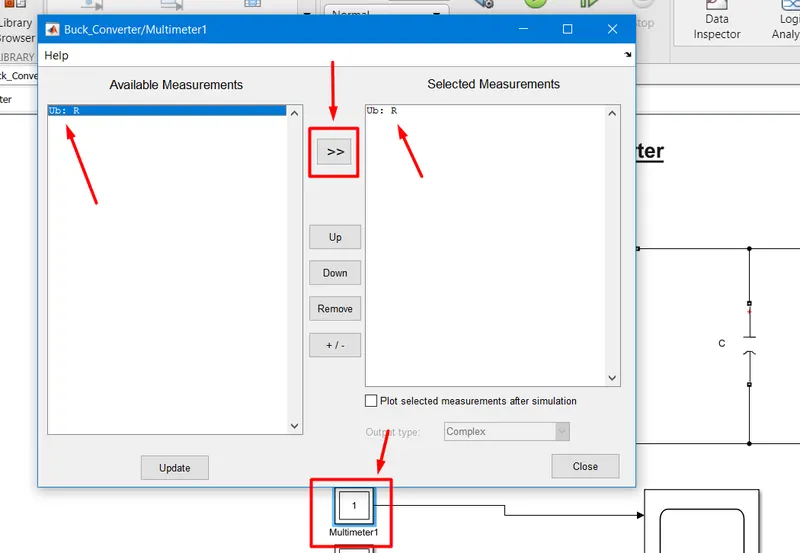

configure the Multimeter block as we already activated the resistor branch voltage measurement and inductor branch current.

double-click on the multimeter block and select the signal accordingly.

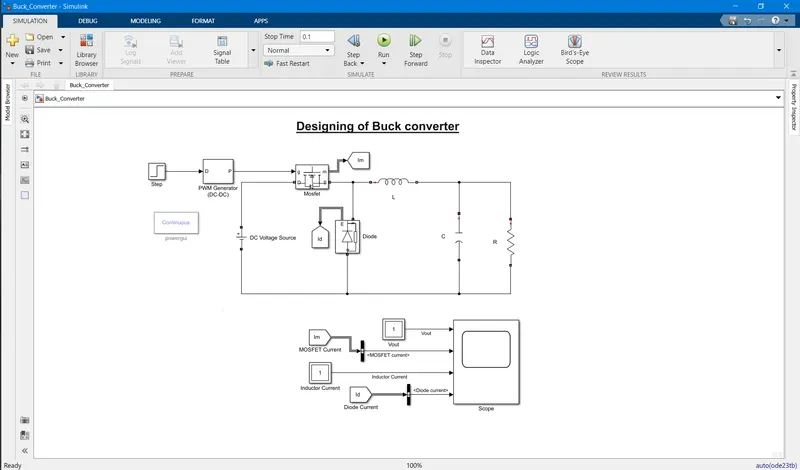

Now Connect everything according to the circuit diagram.

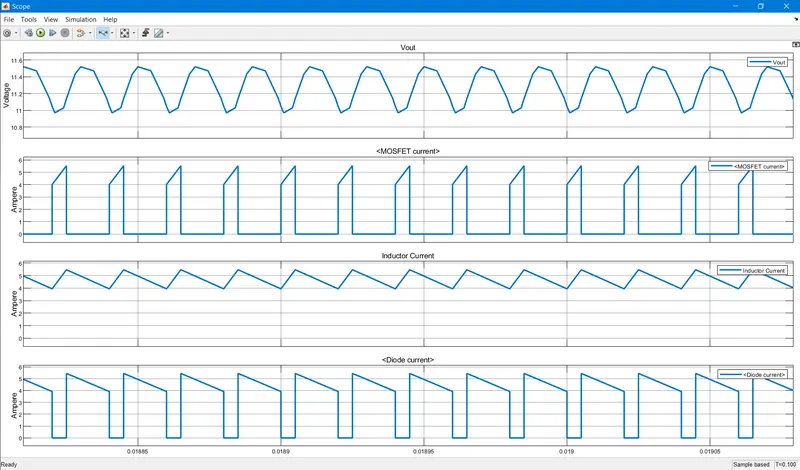

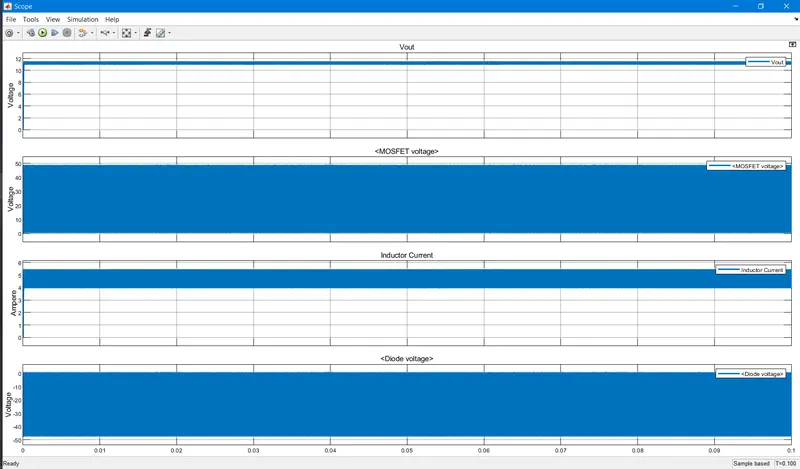

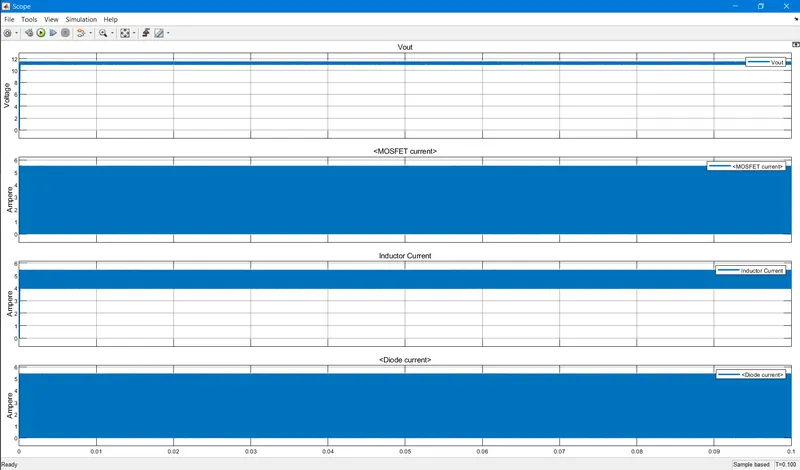

Zoomed Out and Zoomed In output graph.

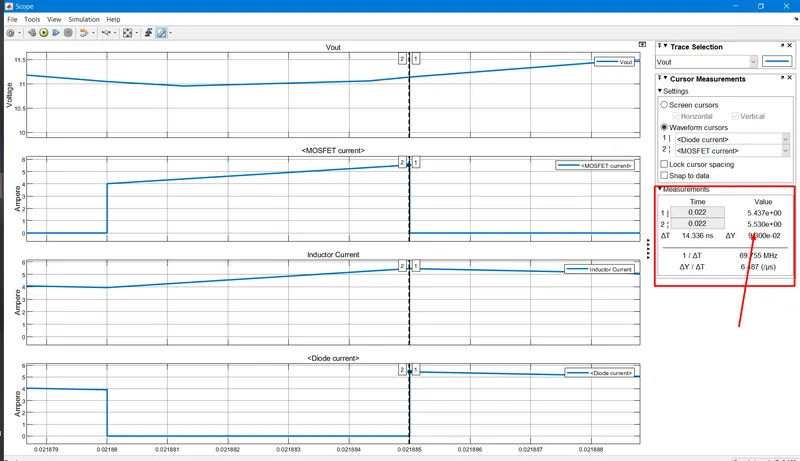

MOSFET Current and Diode Current

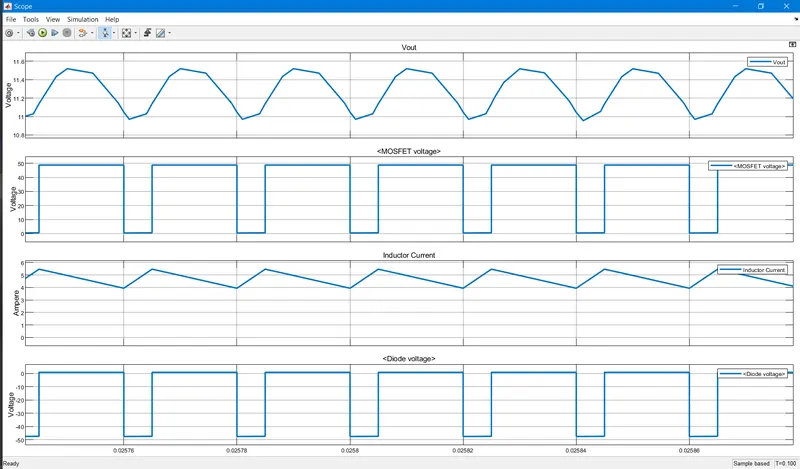

Zoomed Out and Zoomed In output graph.

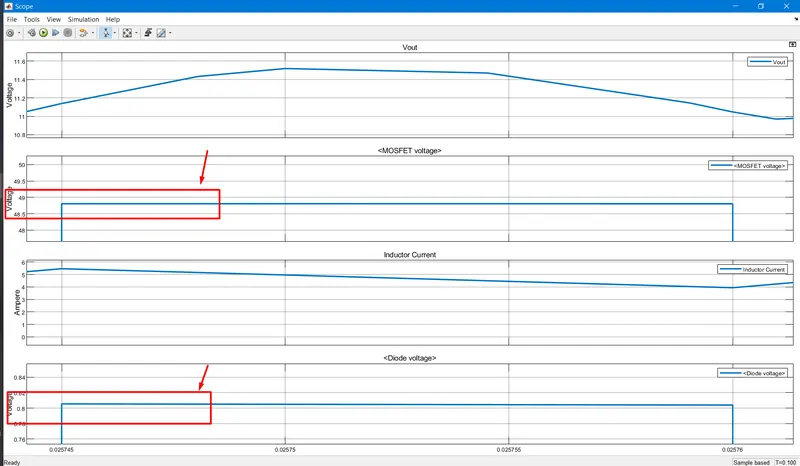

MOSFET Voltage and Diode Voltage

Comments:

What are the peak voltage and current values of your switches (Mosfet and Diode)?

Peak Voltage of Mosfet = ~49V

Peak Voltage of Diode =  ~0.8V

Peak Current of Mosfet = 5.5A

Peak Current of Diode = 5.4A
