Week 9- Unsteady moving zones Approach
Aim - To simulate the motion of the air moving from a centrifugal turbomachine. In this approach the moving mesh approach in transient simulation is used. 1) Then we go to open the general tab and set the transient 2d planar simulation. 2) The turbulencxe model is selected as the k-epsilon realizable model. 3) Then…
Rohit Saha
updated on 27 Feb 2023
Aim - To simulate the motion of the air moving from a centrifugal turbomachine. In this approach the moving mesh approach in transient simulation is used.
1) Then we go to open the general tab and set the transient 2d planar simulation.
2) The turbulencxe model is selected as the k-epsilon realizable model.
3) Then go to the cell zone condition tab we select the body motion as the mesh motion and give the rpm of the mesh motion as the 300 rpm.
4) All the boundary condition as set the same. The dynamic mesh is set off only.
5) iN THE SOLUTION METHODS WE select the scheme as coupled and the flow courant number is set as 10.
6)The residual is made into transient simulation ny checking the mass flow rate report definition with respect to the time .
7) The fixed time step is used for the iteraion it is selected by using the time step size as the deltat = (60/N). Here N is the rpm of the blade.
so delta t = 0.2e-3 seconds and the number of iterations given are 1000 . The maximum number of iteration per time step is set as 100 iterations.

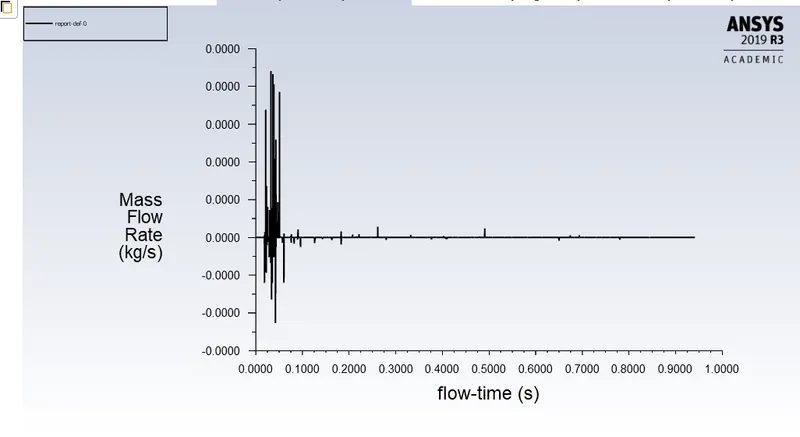

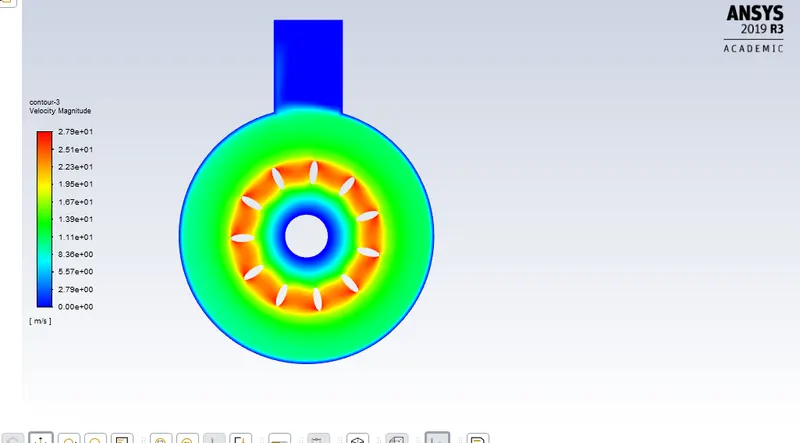

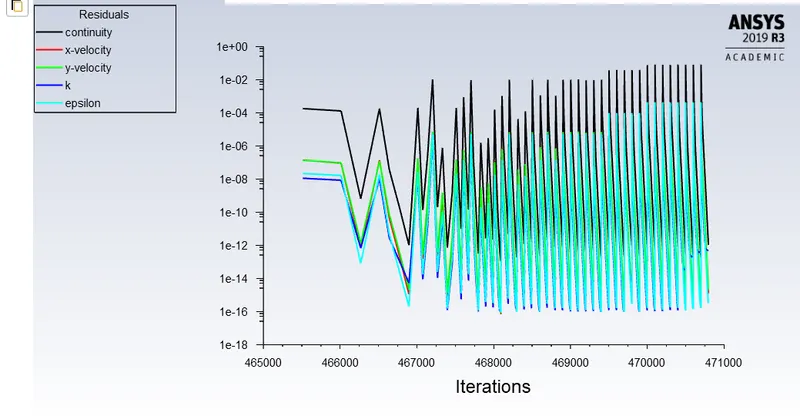

The results and contour plots obtained are-
_1677487409.png)
_1677487427.png)
_1677487443.png)
#) The simulation becomes stable after a certain time and the outlet mass flow rate becomes almost 0.
