Week-3 Challenge: ADVISOR Tool

Question: Description: To design an IGBT or SiC isolated gate driver power stage driving a IGBT module with advanced protection features. The design consists of a single phase power stage from a traction inverter supporting high level of safety features. The IGBT module has integrated thermal diode for temperature monitoring…

Question: Description: To design a non-synchronous boost controller to provide an adjustable output of between 40 V and 80 V capable of delivering a maximum of 100 mA of current to the load. This is an automotive design intended to power various applications such as LiDAR systems, which require an adjustable voltage supply.…

Question: Description: To design a non-synchronous boost controller to provide an adjustable output of between 40 V and 80 V capable of delivering a maximum of 100 mA of current to the load. This is an automotive design intended to power various applications such as LiDAR systems, which require an adjustable voltage supply.…

Answer: In this project, the controlling of Airplane landing gear  (retraction and extension ) will be implemented using  Finite State Machine (FSM). FSM is the most efficient algorithm which is mathematical model of computation. The FSM can change from one state to another in response to some. The…

Question: Overview of the Project: (5 to 6 lines) In this project,  interfaces for mathematical Set Theory are implemented using C programming language. User can give the input like two list of data and this program will give  the output as the union and intersection of these two lists Goals (2 to 3 points) Implementation…

*Project 1 is the choice of simulation. -Expectation. Design an interleaving DC/DC converter system for a data centre application with the following specifications: • Input voltage: 45 – 60 v• Output voltage: 3 V• Output current: 100A• Efficiency > 85%  Simulate the system using a Spice-based software simulation tool such…

1) The first model to be developed is the Buck converter. -it has input voltage ranging from 40 to 50 V, output volage is 30V with a power of 500W. The model is as shown below. -Using the signal builder and control voltage source block, a varing voltage input is given as shown below. The various electrical components were…

Question: Emulate Torque-Speed characteristics of the designed IPM motor in Ansys Maxwell. Change the material types of magnets and stator/rotor. Run simulations again and prepare a detailed report of the results. Objective:    The objective of this simulation is tu observe the effects which different magnects type could…

Question:  Simulate the starting behaviour of a 5 horsepower(3.75kW), 3-phase 3-wire, 230V, 60Hz, 4-pole squirrel cage induction machine with parameters:  rs=0.531Ω,">rs=0.531Ω,rs=0.531Ω,                             …

Question: Carry out a system-level simulation of an all-terrain vehicle.  Download the model from the given link:  https://www.mathworks.com/matlabcentral/fileexchange/70576-baja-all-terrain-vehicle-atv-model Prepare a technical report explaining the model properties & comments on the results. Aim: -Study…

Question: Implement control logic of a “washing machine” using Stateflow as per given sequence:  If the power supply is available, the system gets activated  If the Water supply is not available, stop the process & indicate through LED Soaking time should be 200s followed by Washing time of 100s.…

Question: Make a Simulink model of Doorbell using solenoid block with the following details: Use a thermistor to sense the temperature of a heater & turn on or turn off the fan as per the below conditions:   Aim: -This challenge aims to modeling and simulating a door bell with the use of a solenoid block.…

Question: For a 10 cell series lithium ion battery model, simulate the thermal effects and compare life cycle performance at various temperatures, charge & discharge rates using MATLAB. Aime: The aime of this project is to calculate the thermal effect on a 10 series battery pack, We will be evaluating its life cycle…

Question: Battery pack capacity: 18 kWh Cell: ANR26650M1-B  Prepare a detailed battery pack drawing along with its enclosure. State your assumptions. Answers: The to be modeled battery pack for this project is made up of ANR26650M1B cells. They  are high-performance Nanophosphate lithium iron phosphate (LiFePO4) battery.…

https://in.mathworks.com/matlabcentral/fileexchange/72865-design-and-test-lithium-ion-battery-management-algorithms 1.Simulate the 3 test cases from harness dashboard and write a detailed report on the results 2.What is coulomb counting? Refer to the above model and explain how BMS implements coulomb counting for SOC estimation…

Aim: The aim of this challenge is to familarise with the variouse EV batteries (With lithium iron cell battery being the best at the moment and the foccus of this course.). Its compositon from Cathode to anode. The difference between the different types on Lithium iron cell battery currently on the market and the advantage…

Create a MATLAB model of electric car which uses lithium ion battery and suitable motor. Choose suitable blocks from Simscape or Powertrain block set. Implement the vehicle speed control using PI controller and generate brake and accelerator commands. Avoid using readymade driver block for speed control. Prepare a report…

Create a detailed MATLAB model of an electric rickshaw (three wheel passenger vehicle) as per details below:  Rear wheels driven by PM brushed type motor Assume efficiency points of motor controller and motor Make an excel sheet of all input and assumed data  Results: For any three standard driving cycles show…

Create a MATLAB model of electric car which uses a battery and a DC motor. Choose suitable blocks from Powertrain block set. Prepare a report about your model including following: Objectives:         1. System level configurations        2. Model parameters      …

Part A: 1. Search and list out the total weight of various types of aircrafts.                 Below is the list of some aircraft and thier weight (emptyweight), to this weight will come fuel weight, cargo weight and max flight weight because the weight of an airplane is very…

1) For a defined driving cycle, calculate the energy required for braking. -When it comes to vehicles safety, braking performance is one of the most important aspects. The function of the braking system of a vehicle is to bring it to rest from speed, within a spesific time or distance when ever desired by the drive in…

1. A. Explain a MATLAB demo model named ‘Speed control of a DC motor using BJT H-bridge.              A H-bridge is an electronic circuit that switches the polarity of a voltage applied to a load. These circuits are often used in EV , HEV,  robotic and and other applications…

1.  Which types of power converter circuits are employed in electric and hybrid electric vehicle? -Power converters do not only play a very important  role but are the back-bone in EV and HEV as they make it possible to run electric motors at different speed with very low energy los. power conversion is…

What is the difference between mapped and dynamic model of engine, motor and generator? How can you change model type?                                                         …

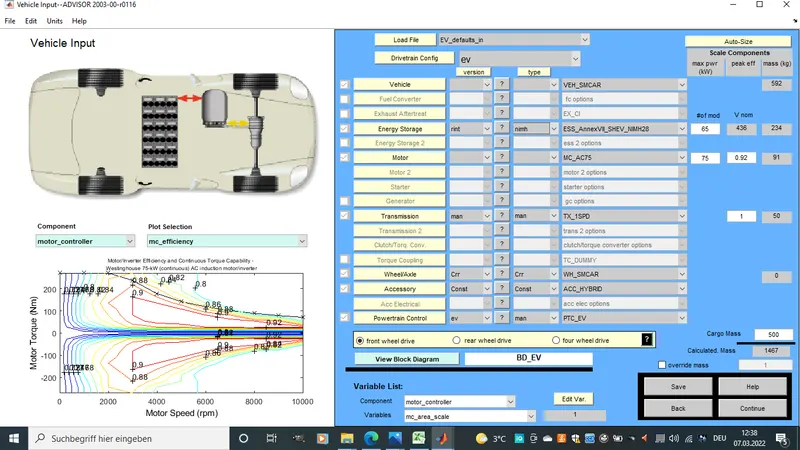

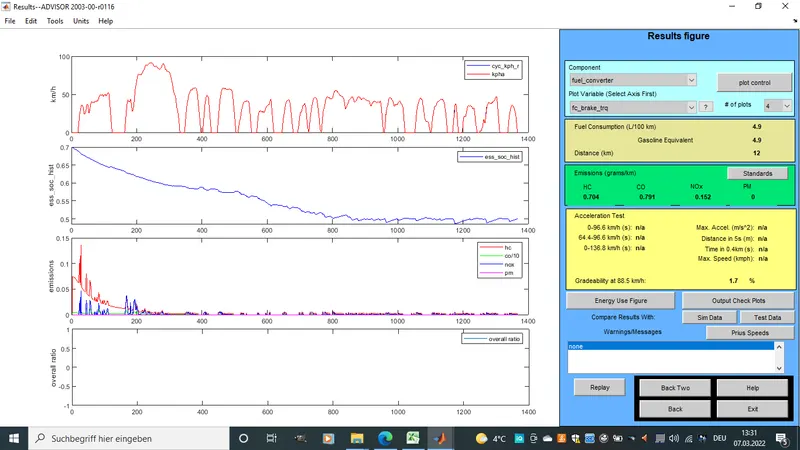

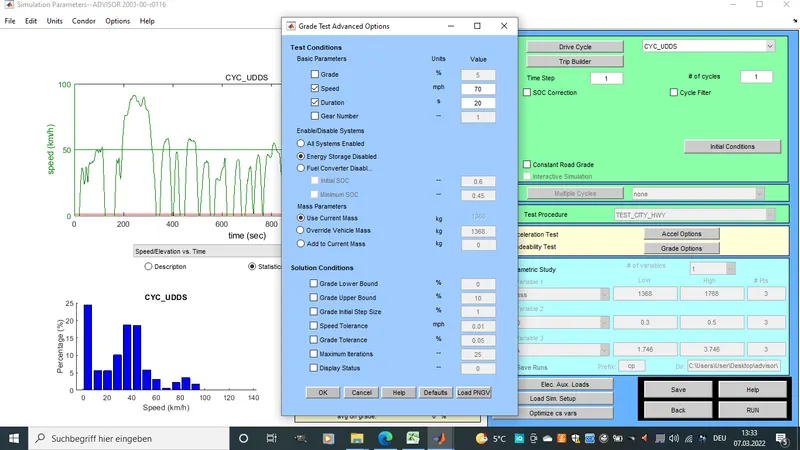

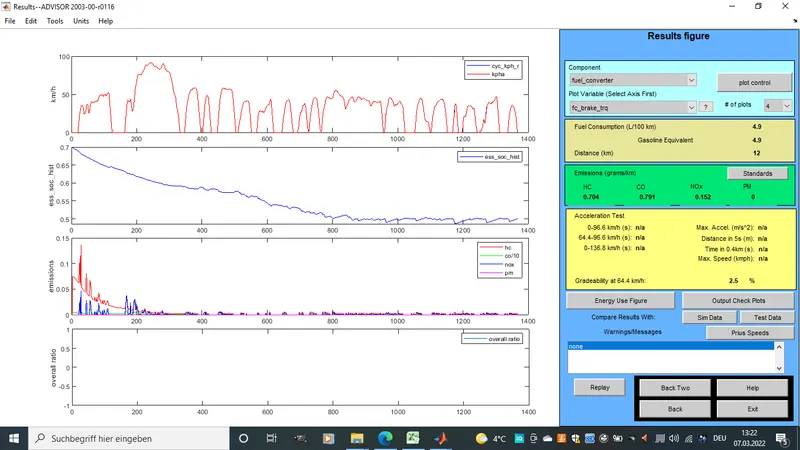

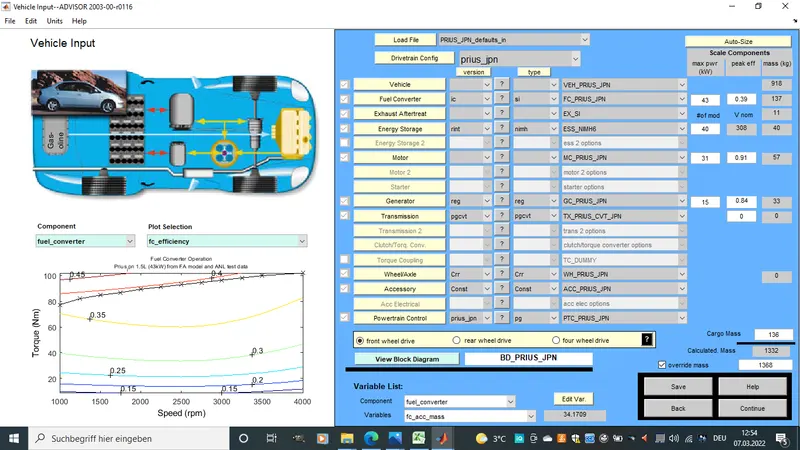

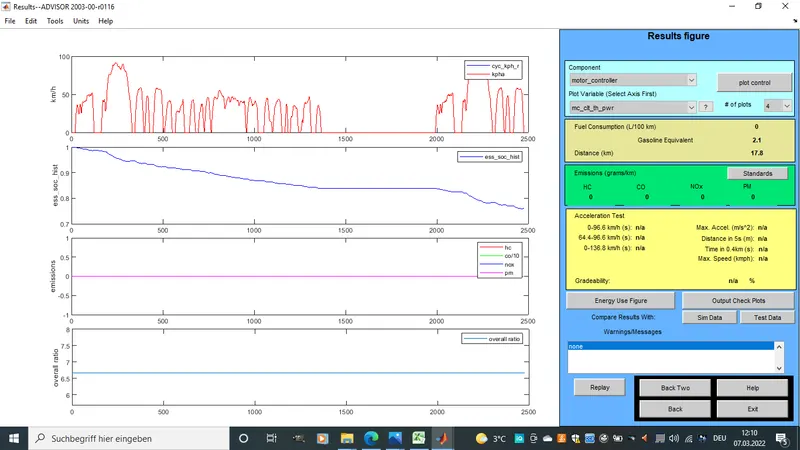

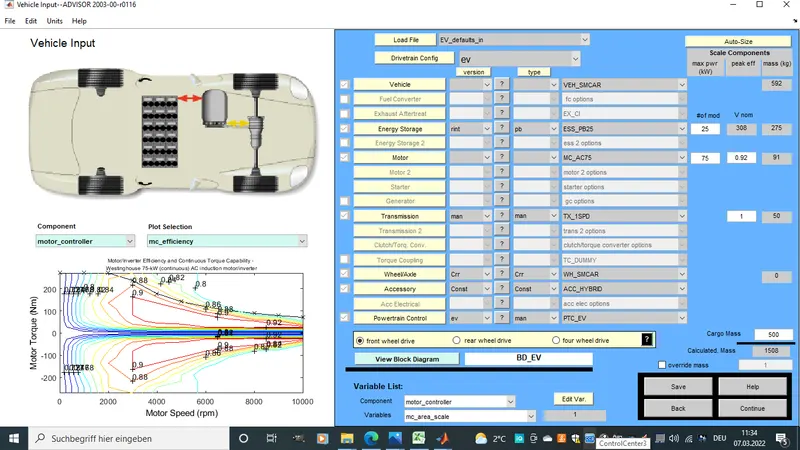

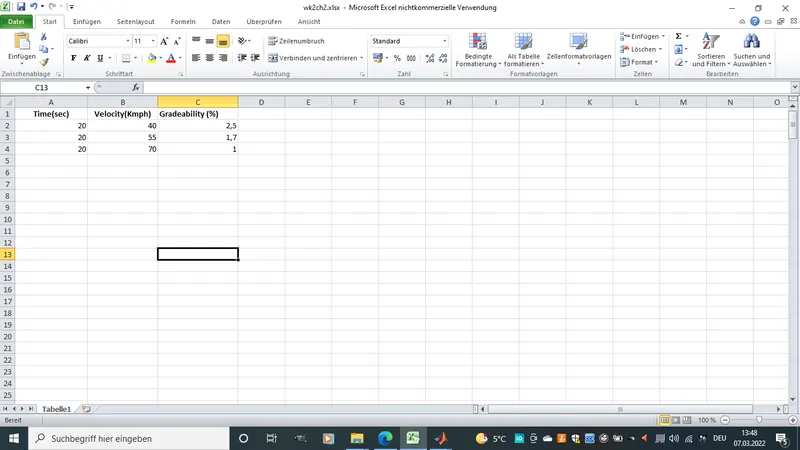

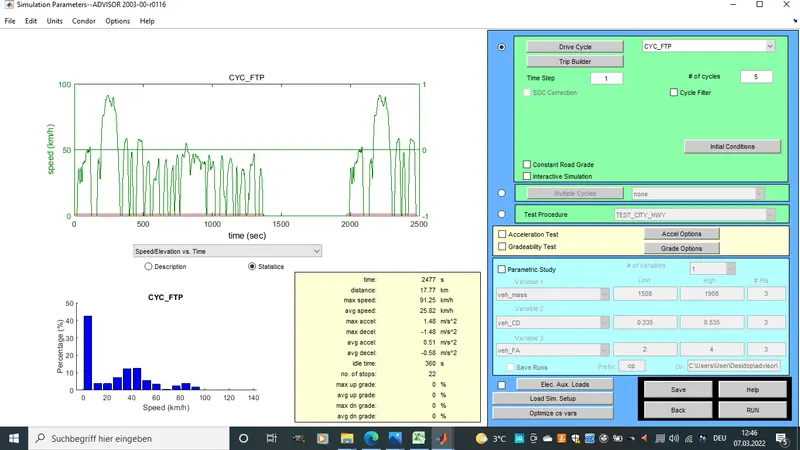

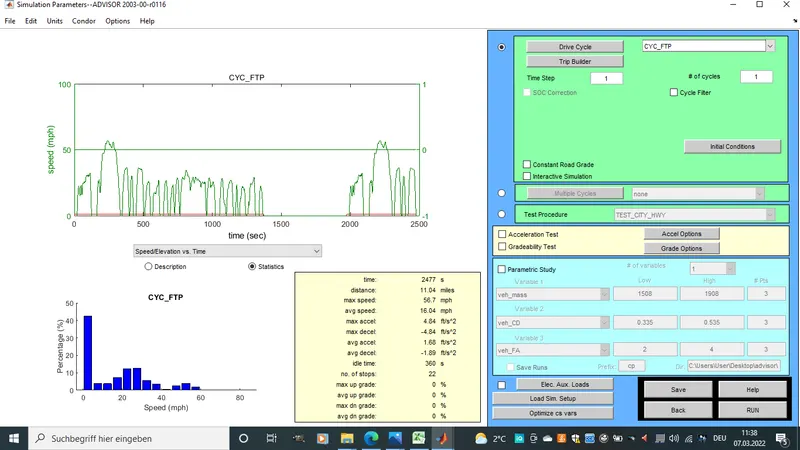

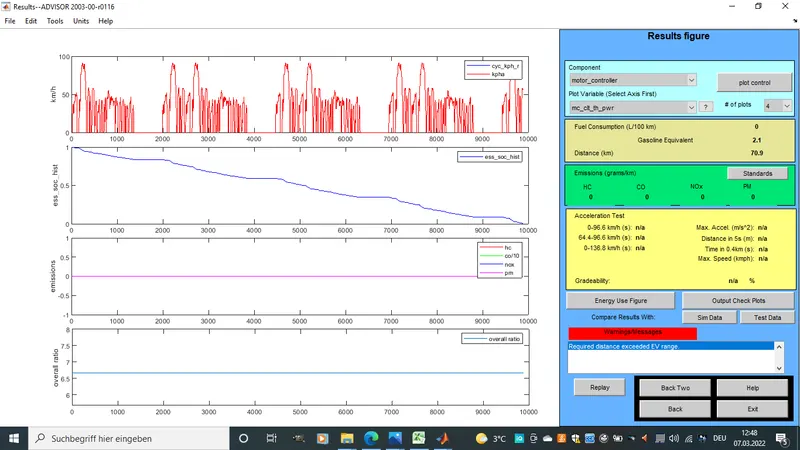

 1)  For EV_defaults_in file, if cargo mass is 500 kg with all other default conditions, can the vehicle travel for 45 km with FTP drive cycle? Conclude your observations. -Adisor is opend in Matlab and EV_defaults_in is choosen as vehicle type. The cargo mass is also changed to 500kgand. -I then continued…

Highway Assistant – Lane Changing Assistant - First i started by creating a simulink model for week12 project (Highway_LaneChange_Assistant). -The model consist of three subsystem for various requirements  -Requirement 1 an 2 both consist of a stateflow logic. -simultaniously a Data Dictionary was created for…

1) Following the requierments above a simnulink model of Traffic Jam A ssistant feature is created. -A data dictionary is for the model is created and eventualy linked to the model. -Input and Output signals are resolved at point of origin. -Requirement 1 and 2 and immplemented separatly in 2 different subsystems -Reqirement…

In this Project we are to Develope Adaptive Cruise Control feature for a Car (Drive_Vehicle)as per the Requirement Document using MATLAB Simulink. Adaptive Cruise Control Feature for passenger cars allows the host vehicle to adapt to the speed in line with the flow of traffic. Driving in heavy traffic or keeping a safe…

1) Here SteeringWheel_YawDegreeInput and CameraInput_RoadSign  is given as input to Vehicle_Direction_Detection. Vehicle_Direction_Indcator is given as Output.     2)In Vehicle_Direction_Detection subsystem i build 2 Different subsystems for  requirement1 and requirement2.   3)In Requirement1…
