Week 12:Project 2-Meshing of Rear Wheel Holder challenge

AIM:

To perform FE modelling of an Automotive Spare wheel holder - Stamped sheet metal component by considering the given element Quality criteria.

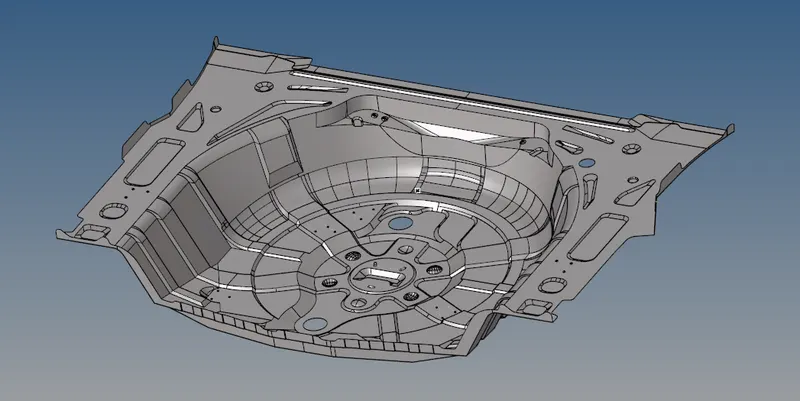

       Figure 1 - Automotive Spare wheel holder panel

GIVEN DATA:

The given data are the inputs to work. Here the given data are,

• CAD model.
• Quality criteria.

• CAD MODEL: Here the given cad model is Automotive Spare wheel holder - Stamped sheet metal component

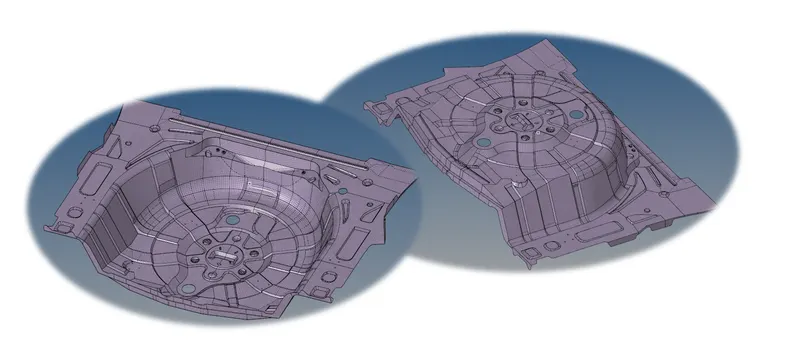

                    Figure 2. CAD model - Given data.

• QUALITY CRITERIA :  Every product which is been produced will go through the set of quality check. If the quality check fails other steps like boundry condition & apllying loads will not be feasible, So for this reason the element quality check is performed. To identify the quality failure the quality criteria will be entered as an input data. The given quality criteria are shown in the below table. The elements should be maintained within the below given value. If the given quality value is not maintained there will be a failing in qulaity.

       Table 1 : Quality criteria.

METHODOLOGY:

1. Import CAD geometry.
2. Geometry cleanup.
3. Mid surface / Skin generation.
4. Shell or solid meshing.
5. Element quality check.
6. Mesh improvement.
7. Apply load & Boundry condition.
8. Export input file.

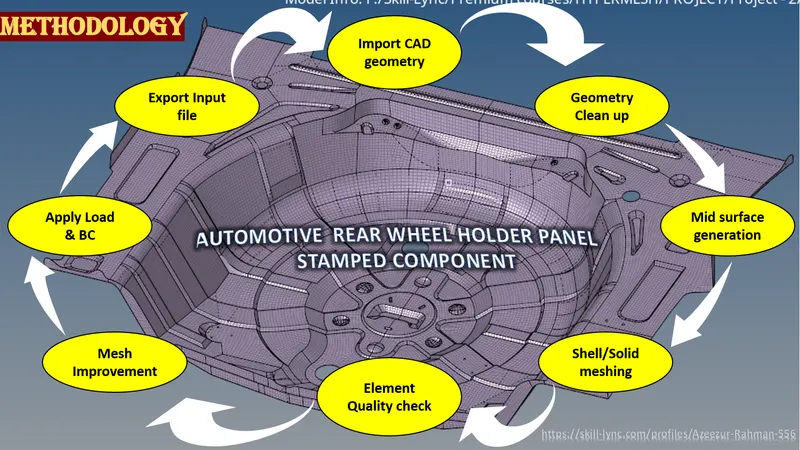

                                                     Figure 3. Methodology.

1. Import CAD geometry:

• Input the given cad model. Here the given cad model is Automotive side door inner panel - Trim component.
• Also enter the input values - The given quality criteria value.

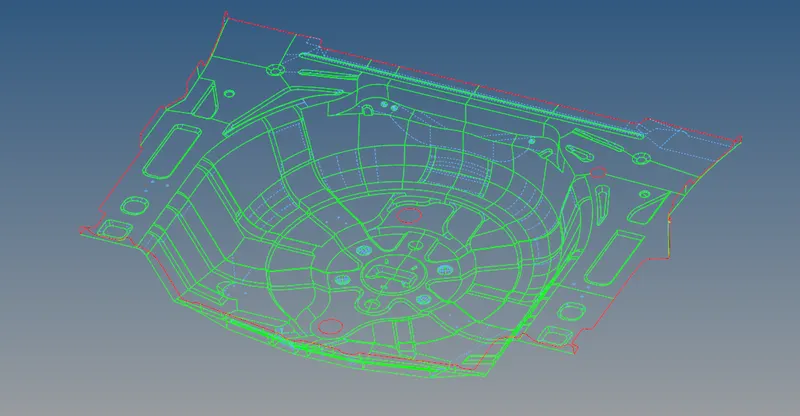

                               Figure 4. Input CAD geometry.

2. Geometry cleanup:

• To generate FEM we clean up the geometry.
• Surface patch up, creating new surfaces, eleminating of triple cons in unwanted area, converting single cons to double cons in necessary area are comes under geometry cleanup phase.

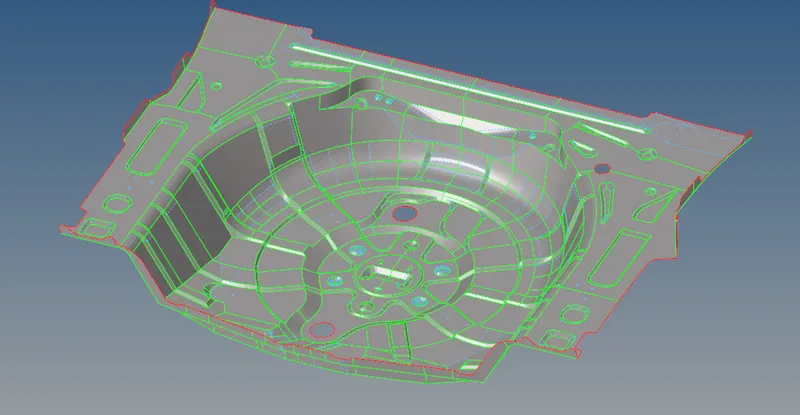

                                                 Figure 5. Cad cleanup

3. Mid surface generation:

• This will be done once after the geometry cleanup & extraction of mid surface is an important step in CAE which has to be followed.
• Mid is the neutral pahse which is been generated from the CAD which is imported or given to us.
• The conversion of 3D cad to 2D cad is happening in mid surface generation.
• The mid surface is generated to reduce the complexity as by simplifying the cad model we get more accurate simulation results in shorter time.
• Once mid surface is extracted feed in the properties of materials & assign thickness for particular model.

                                         Figure 6. Mid surface of given CAD geometry.

4. Shell or solid meshing:

• Shell meshing is achieved after skin extraction but we do not mid surface all components based on requirements we should also be doing volumetric mesh.
• For casting & molding products we generally go with solid meshing.

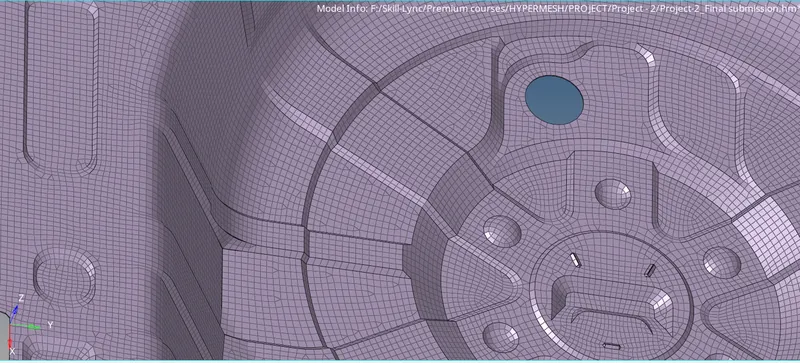

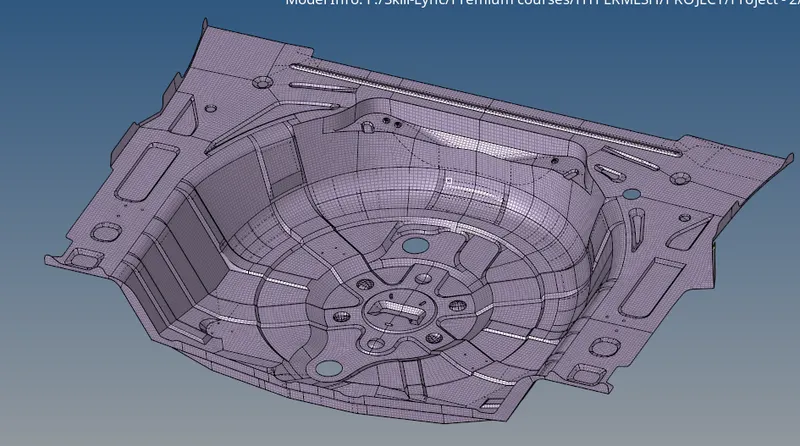

                                           Figure 7. Generation of mesh for given CAD geometry.

• Assign Property, material & Thickness -
  • Since it is a sheet metal part there will be a uniform thickness.

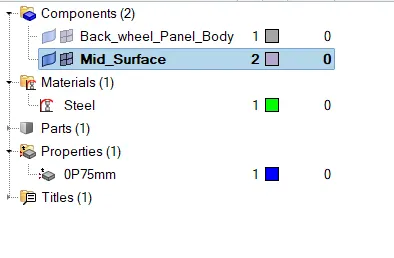

                                                                    Figure 8. Assign Property, material & thickness

5. Element quality check:

• Every product which is been produced will go through the set of quality check. If quality check fails other steps like B/C & applying loads will not be feasible, So element quality check will be performed.

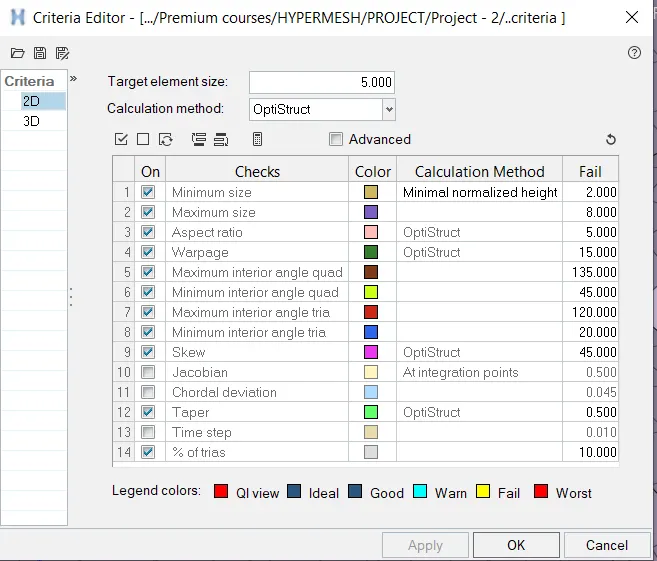

• The given quality criteria values been enterd in quality crieteria settings under prefernces. These colours are customizable and can be seen while meshing if the elements are beign failed. These failed elements should be corrected and the elements should matches the quality criteria.

                                                           Figure 9. Quality checks.

6. Mesh Improvement:

• In this phase, the quality of FEM will be improved.
• After quality check any improvements that is been addressed that will be done in mesh improvement stage.

                                          Figure 10. Mesh improvement

7. Apply load & BC: Loads & boundry conditions will be applied on this phase.

8. Export input file:

• Have to choose which software will read the file. As different solvers follow seperate algorithms & process.
• Decks: NASTRAN - NVH, PAM CRASH - Safety, LS DYNA - safety, ABAQUS - durability.

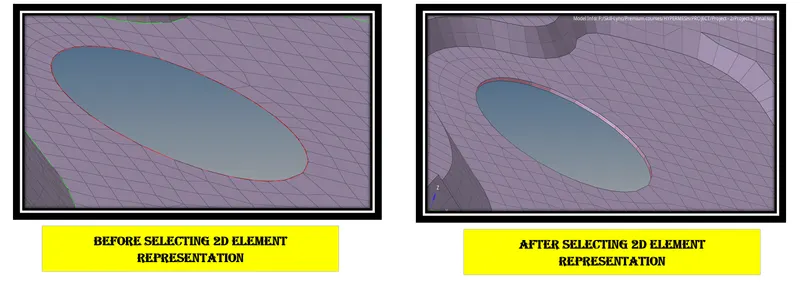

2D detailed element representation - It should be activated after finishing challenge. Since it is a shell elements, After activating 2D detailed element representation the meshed shell elements will convert to solid, by considering the thickness assigned on Property card. This is a final stage in this challenge which has to done before submiting.

                               Figure 11. Details of elements

CHECKS:

The checks for,

• Comparison
• Normal
• Free edges
• Duplicate elements has been done successfully

LEARNING OUTCOMES :

At the end of this challenge, I can able to

• Easily perform FE Model building for any complex automotive components with a good mesh flow.
• Work on HYPERMESH with a flow.

                       Figure 12.  Automotive Spare wheel holder (stamped sheet - meshed component)

CONCLUSION :

Hence, the geometrical errors and 2D mesh, with the given element Quality criteria has been performed successfuly for a given Automotive spare wheel holder stamped component. As per methodology, From import cad, geometry clean up to mesh improvement phases have been performed successfuly. The Applying load & Boundry condition phases will be performed on upcoming challenges.
