Switch Bezel Design Week 8 Challenge

A -                             SWITCH BEZEL

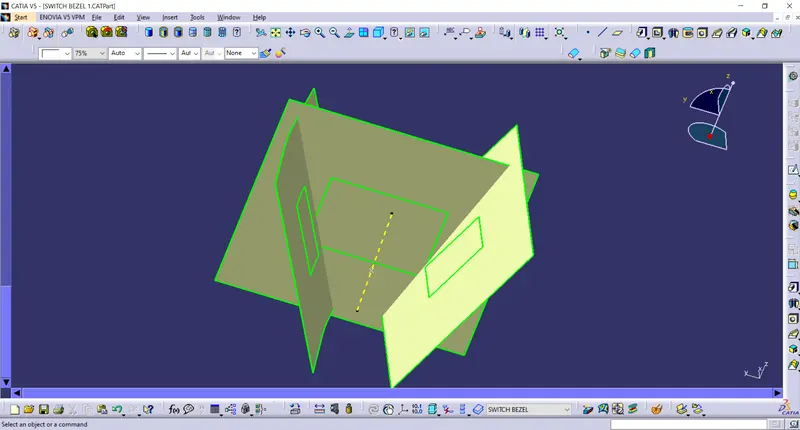

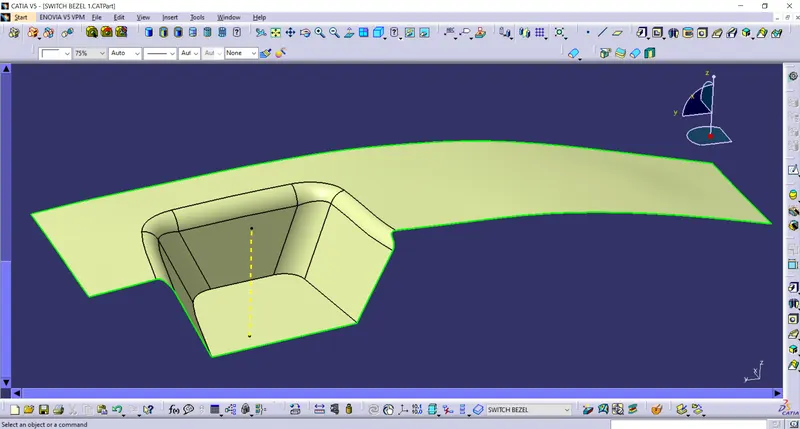

1- Making tooling clearing for the faces by creating a sketch on yz plane and intersecting the class A surface and then using the bisecting line tool to get the required line.

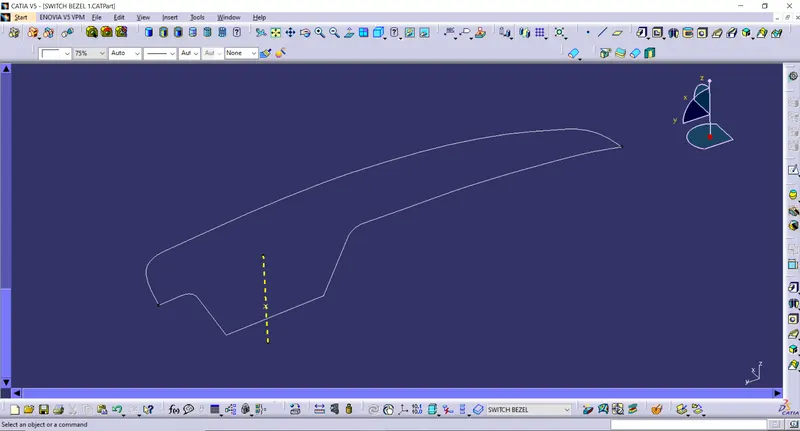

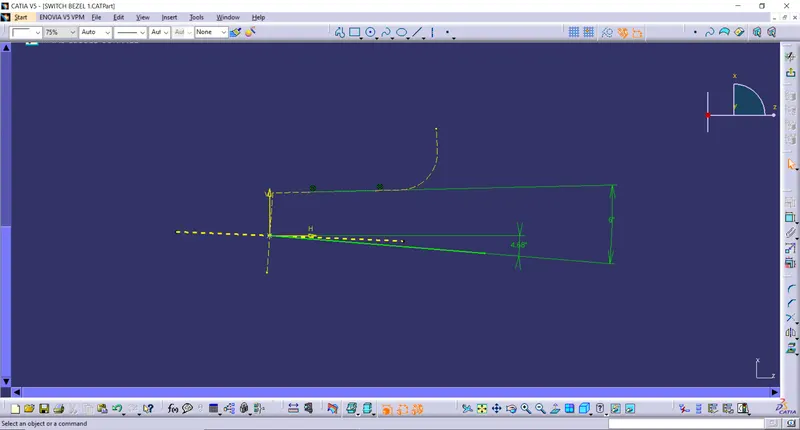

2- Making the tooling clearing for the faces by creating sketch on zx plane and then intersecting the surface A with this plane then creating a line from centre and giving it a certain angle value .

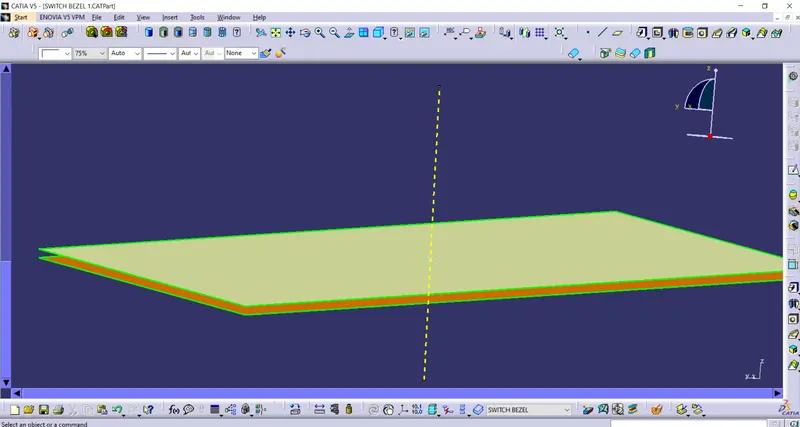

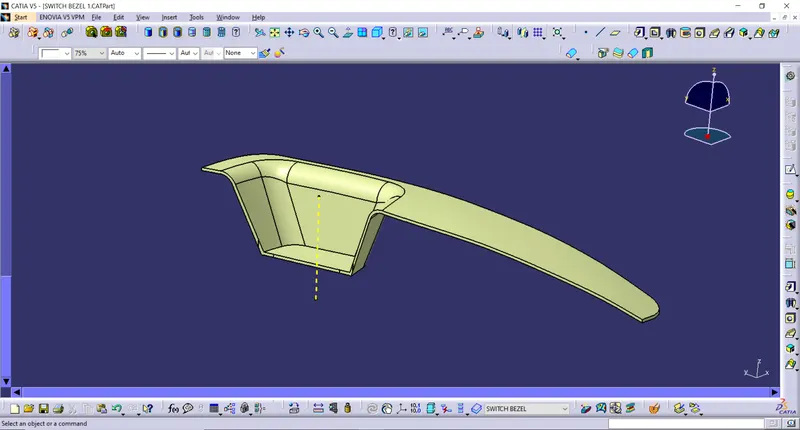

3 - Now , we can bisect the two lines so that we get the Tooling axis for the part.

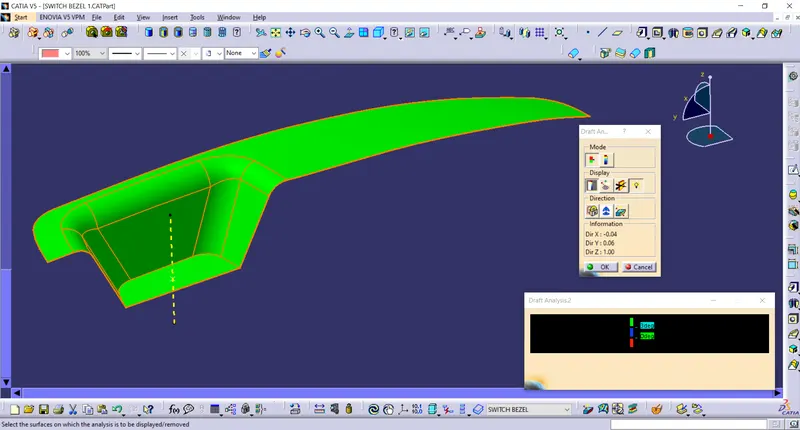

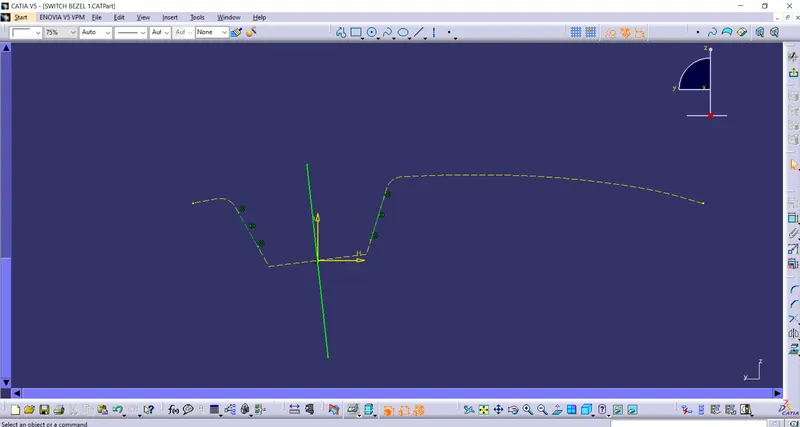

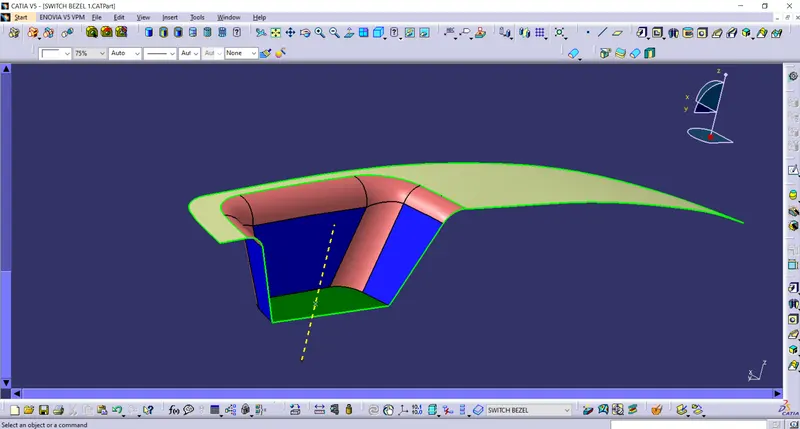

4- Doing draft analysis on the Class A surface.

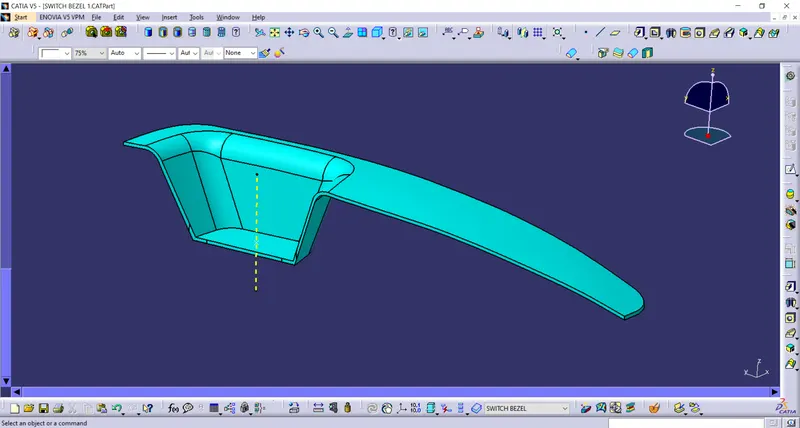

5- extracting the rest face from the class A surface.

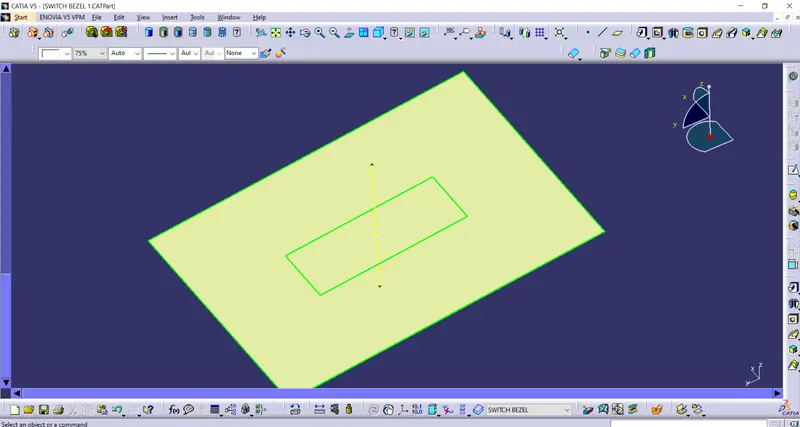

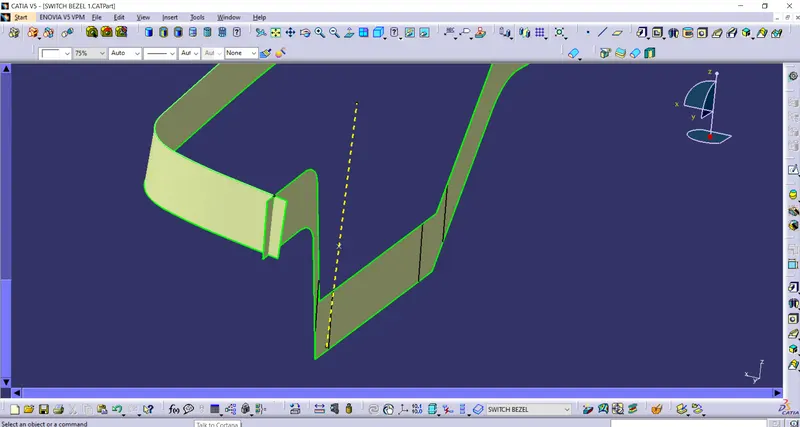

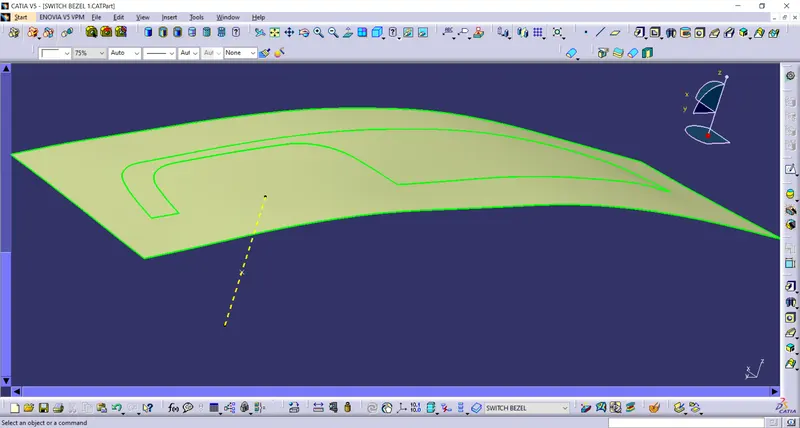

6- By using the untrim and extrapolating we get the below surface.

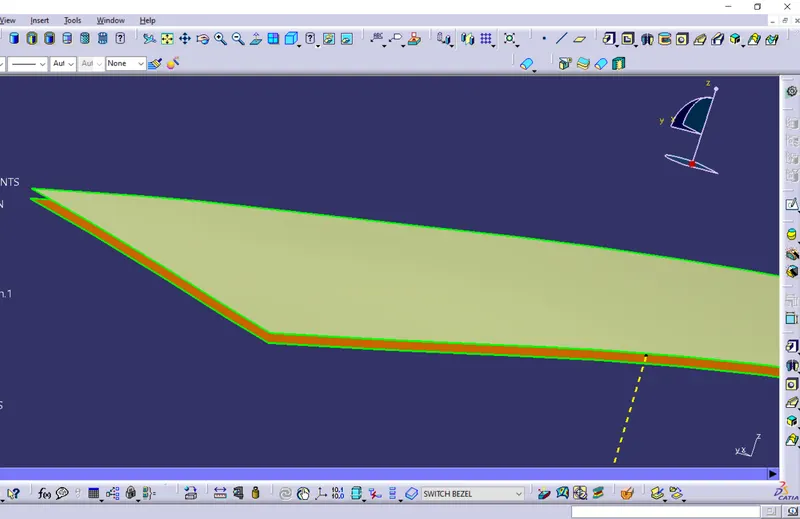

7 - Using the offset tool with a thickness of 2.5mm.

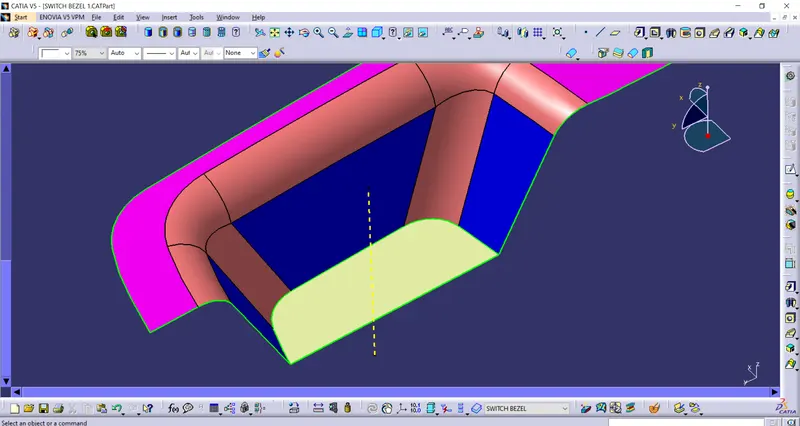

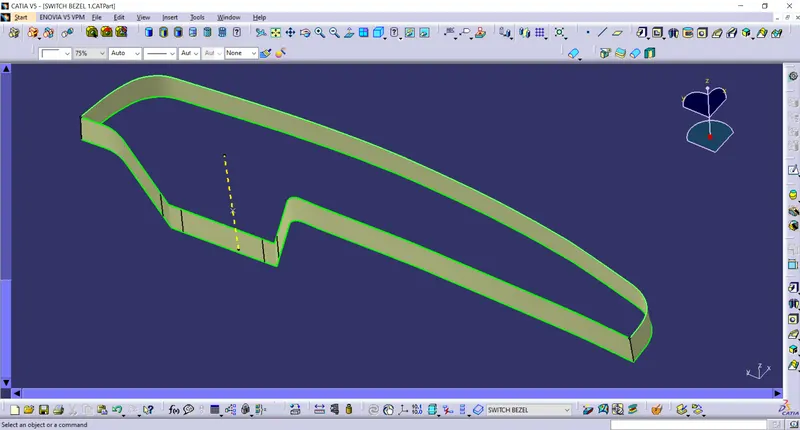

8- Extracting the walls from the class A surface.

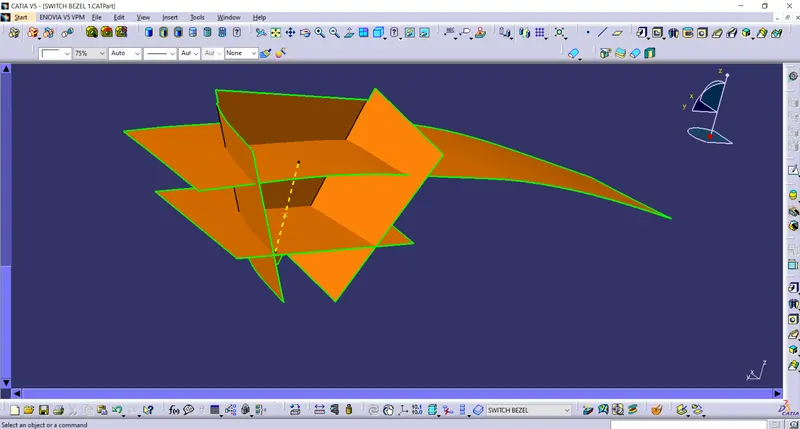

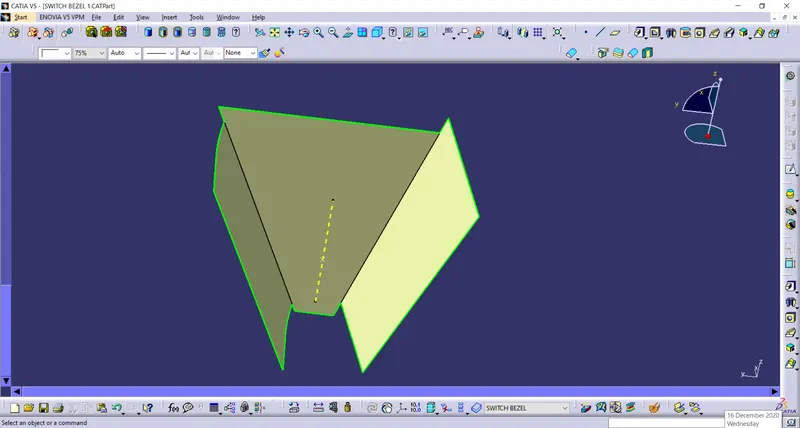

9- using the untrim and extrapolating tool to get the surface shown below.

10 - Using the trim command to fet the surface as required.

11 - Offsetting this surface by a thickness of 2.5mm .

12- Extracting the base face from class A surface.

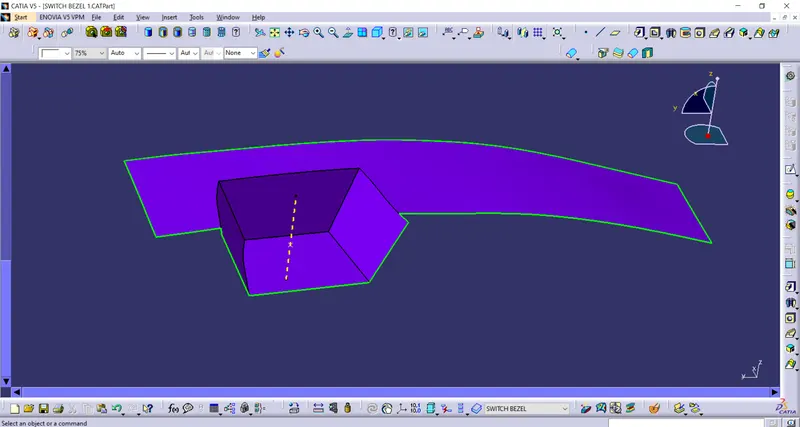

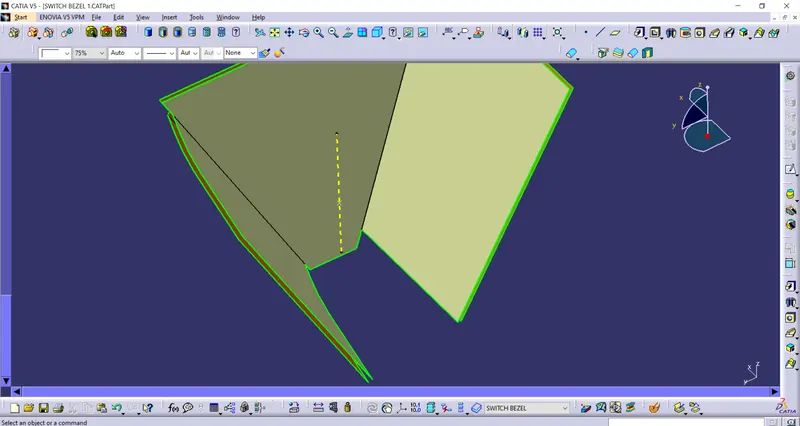

13- Using the untrim and extrapolating tool to get the surface as shown below.

14 - Offsetting this face by 2.5mm

15 - We will get the this surfaces as shown below.

16 - Using the trim tool we wil get the surface as shown below .

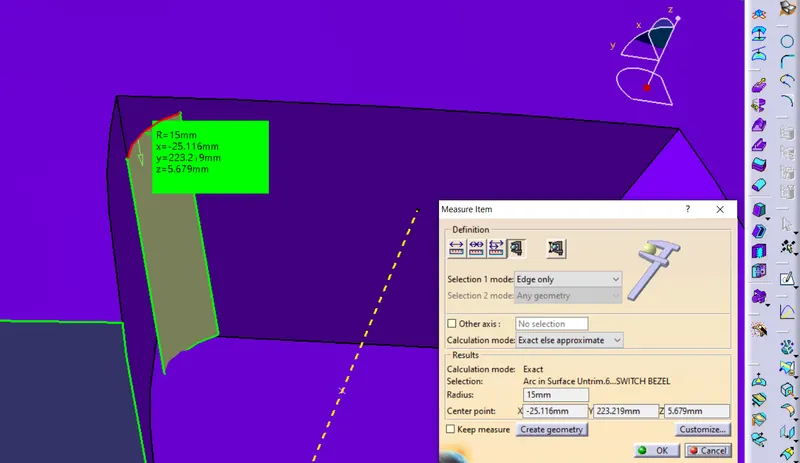

17 - Now we will find the fillet value by extrapolating the fillet surface from class A surface and then using the untrim tool on it and then we will measure its edge.

18 - Now we will give the fillet value by the fillet rule.

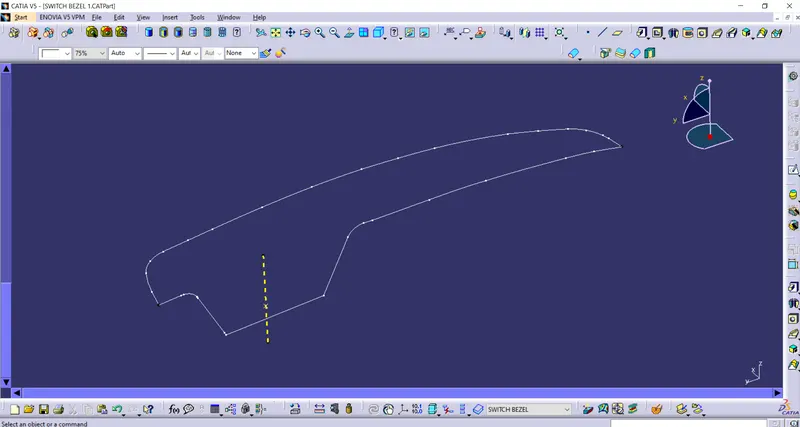

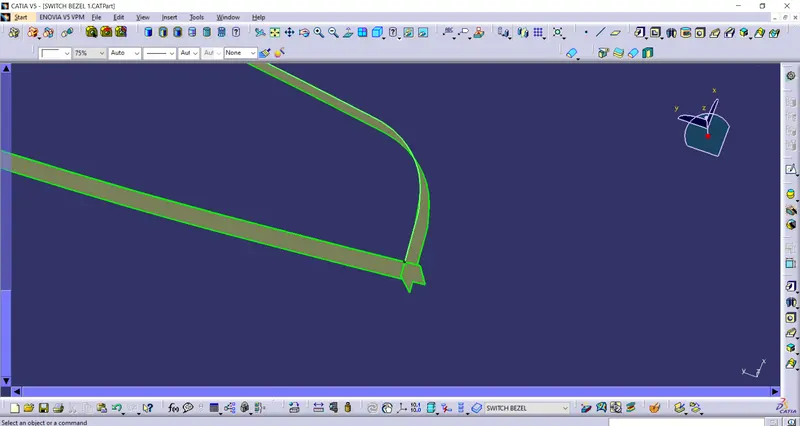

19 - Using the boundary tool on class A surface .

20 - Now we will use the smooth curve option on the boundary surface to get a smooth curve .

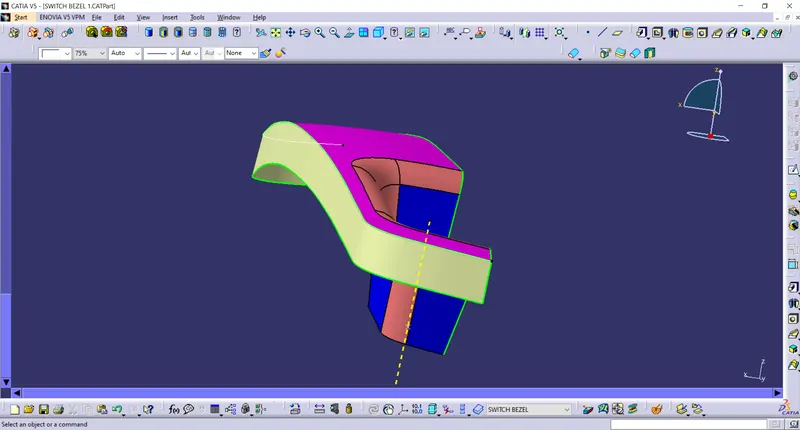

21 - Using the sweep tool with the draft direction option to get the surface as shown below.

22 - Extrapolating the surface so taht they can be easily trimmed .

23 - Trimming these extrapolated surfaces to get the surface as shown belown .

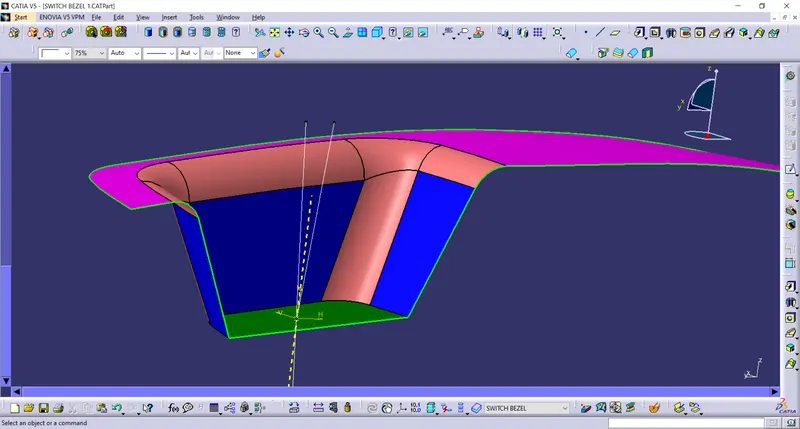

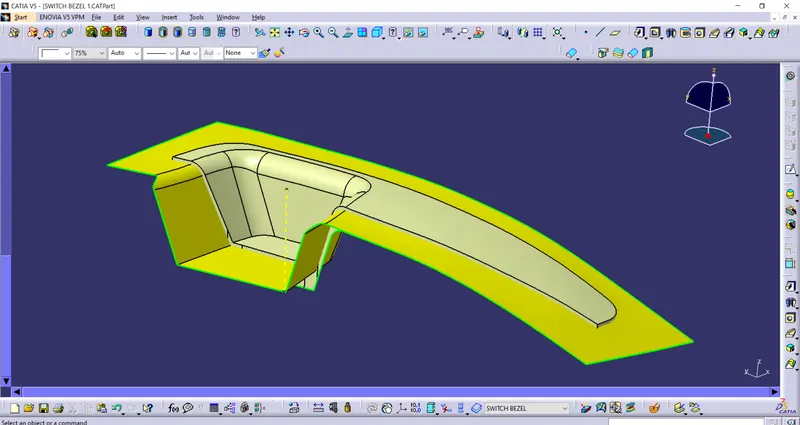

24 - joining this surface with the class A surface , we will get the surface as shown below .

25 - Trimming this surface with the class B surface .

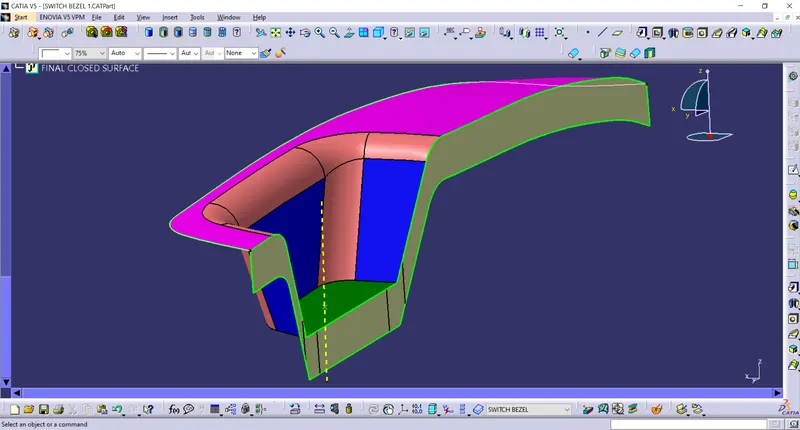

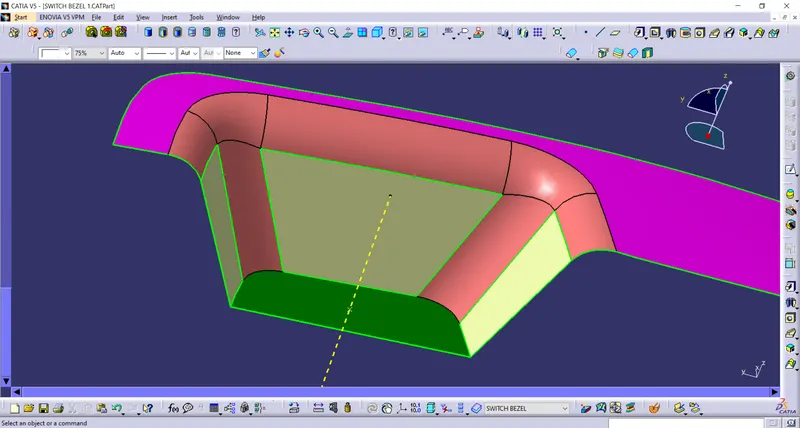

26 -  Now a full closed  surface is obtained .

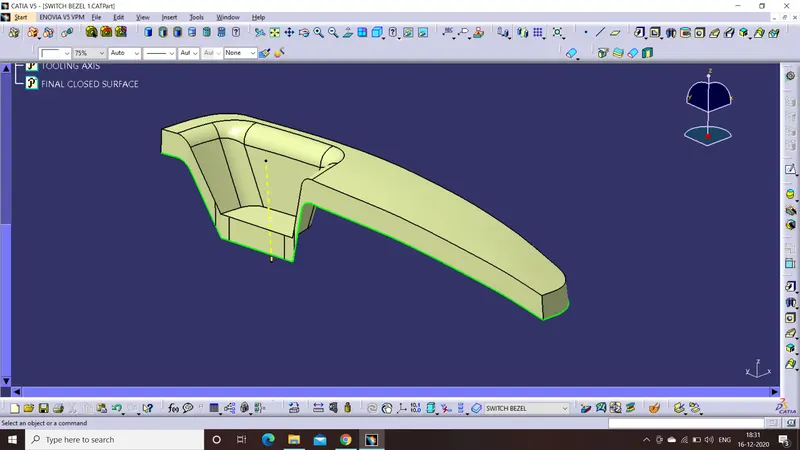

27 - We will then use the closed body toll from part body to generate the required body .

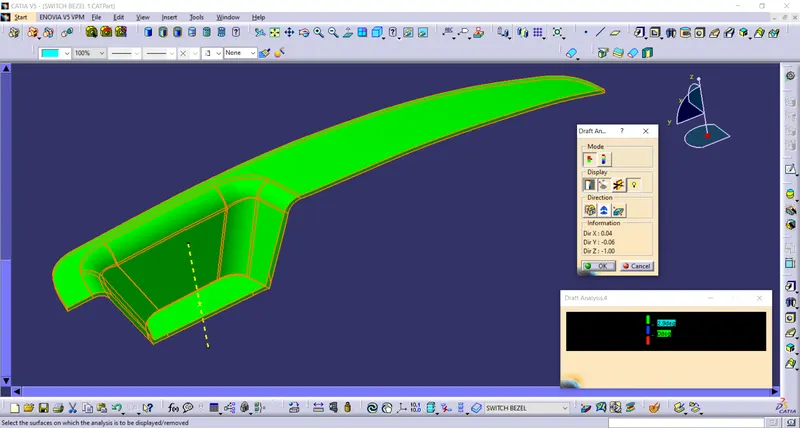

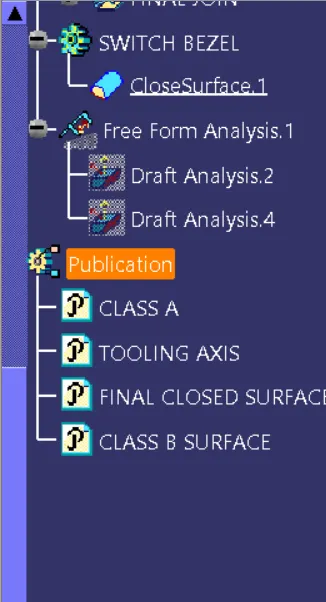

28 - Draft analysis is done on the closed body surface .

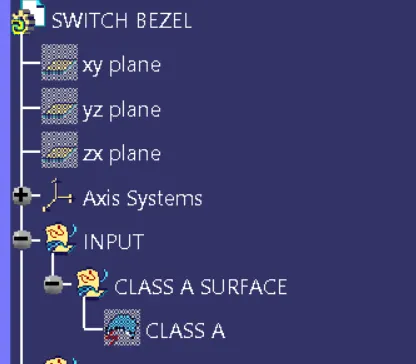

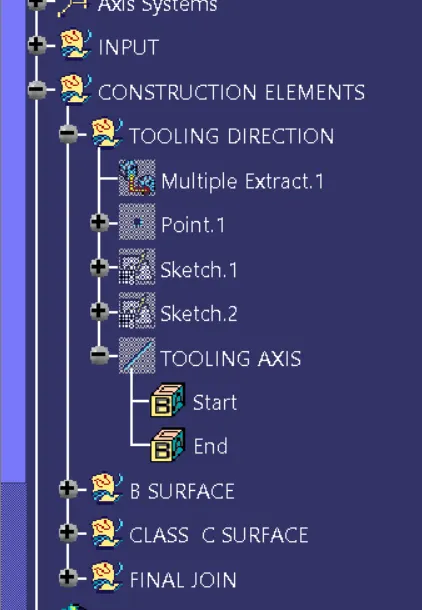

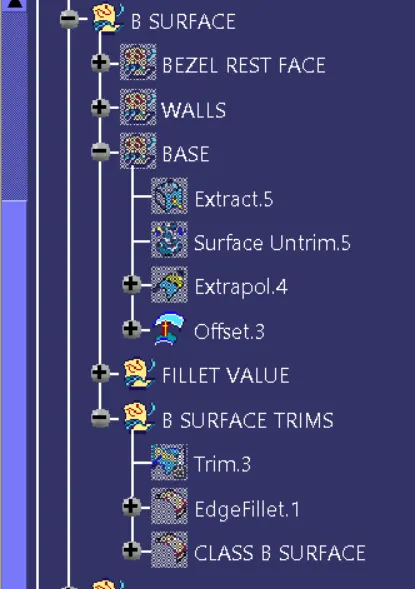

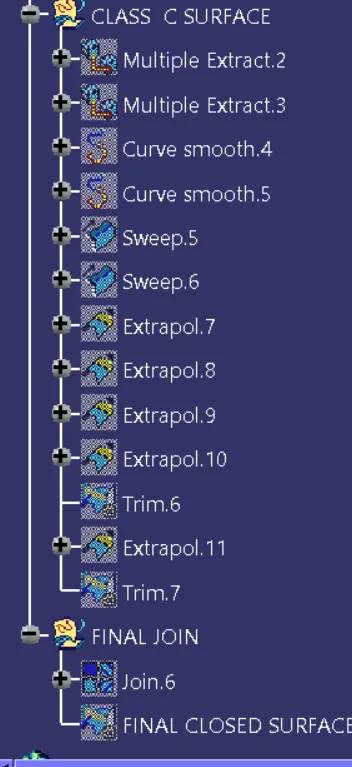

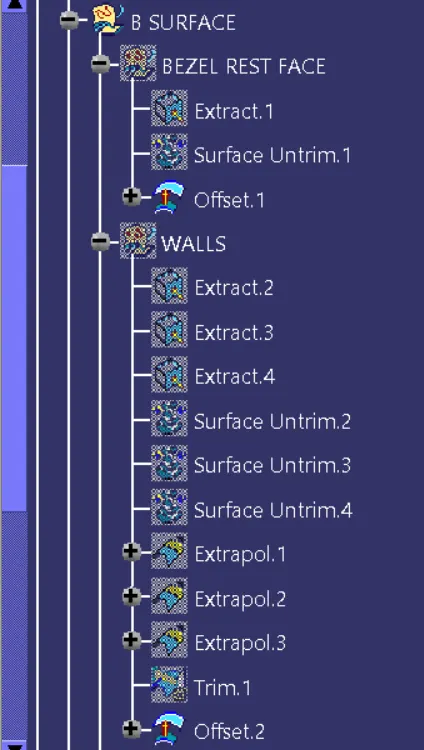

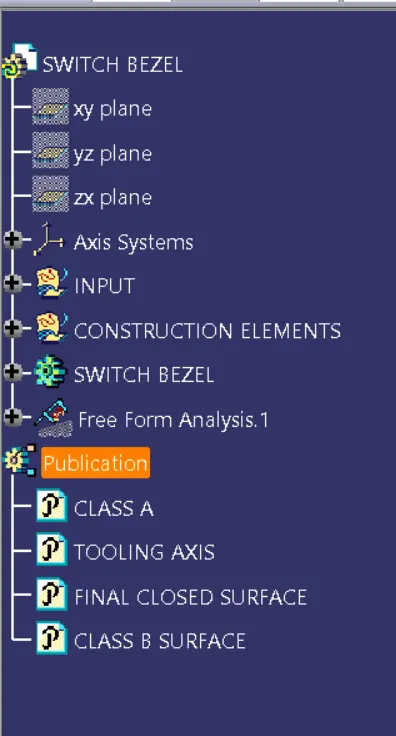

29 - Detail views of the elements of part tree .
