Advanced Sheet Metal Design Using NX Cad Challenge_5_Odd Shaped Enclosure

TITLE - ODD SHAPE ENCLOSURE .

OBJECTIVE - To create odd shape enclosure using the sheet metal workbench of NX cad software .

INTRODUCTION -  Nx cad software is a simple and powerful tool which has wide variety of application in various  industries such as automobile , medical , aircraft etc . using the sheetmetal workbench from nx , we will create the required part

DESIGN METHODOLOGY -

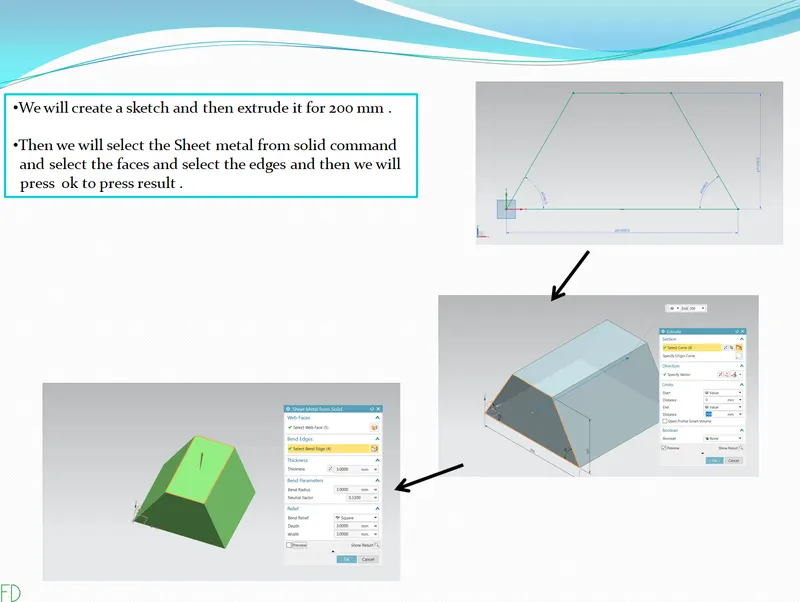

1 - Creating extrude and using sheet metal from body command .

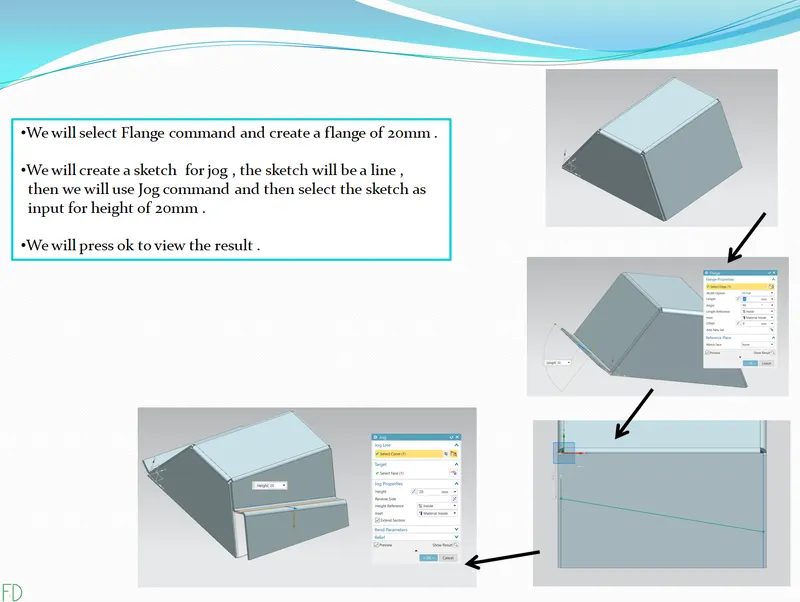

2 - Creating flange and jog .

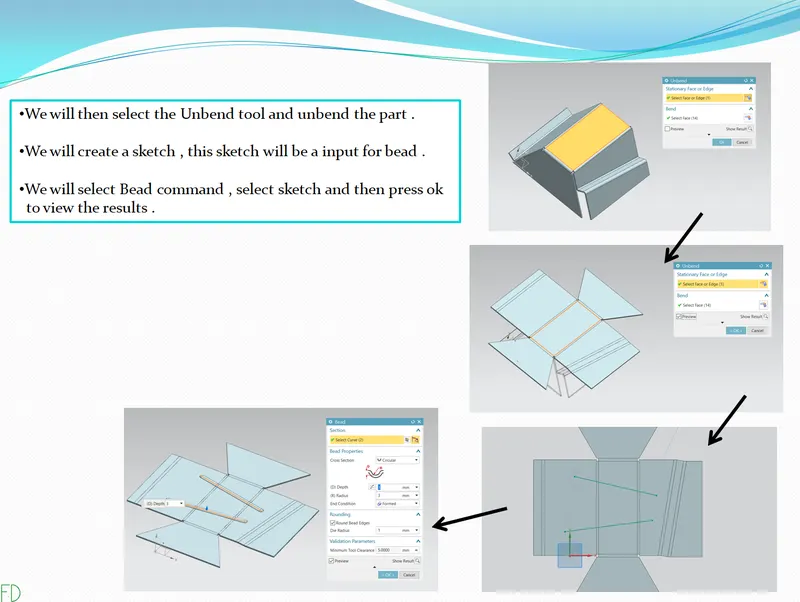

3 - Unbending and creating bead .

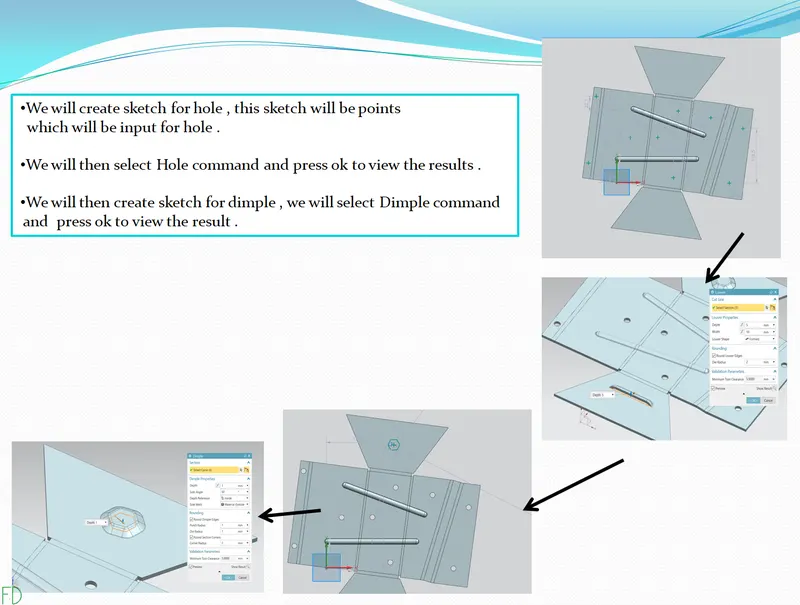

4 - Creating holes and dimple .

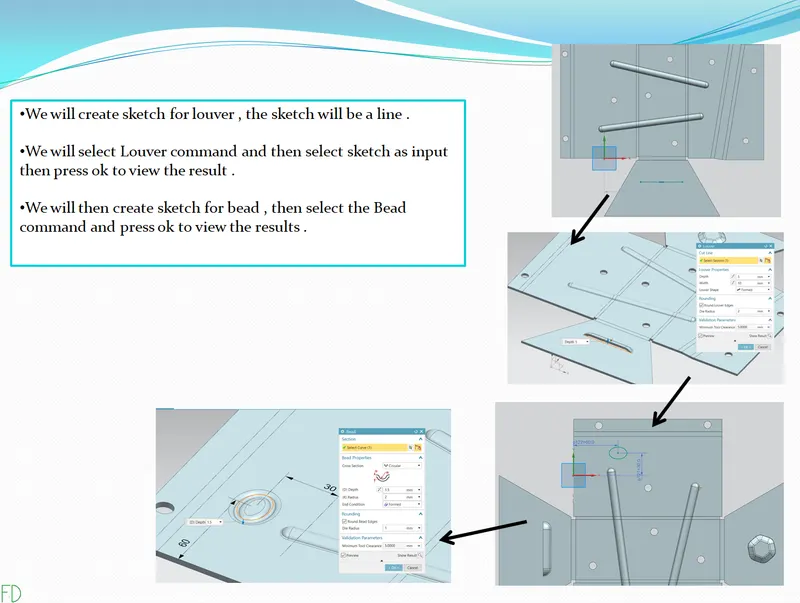

5 - Creating louver and bead .

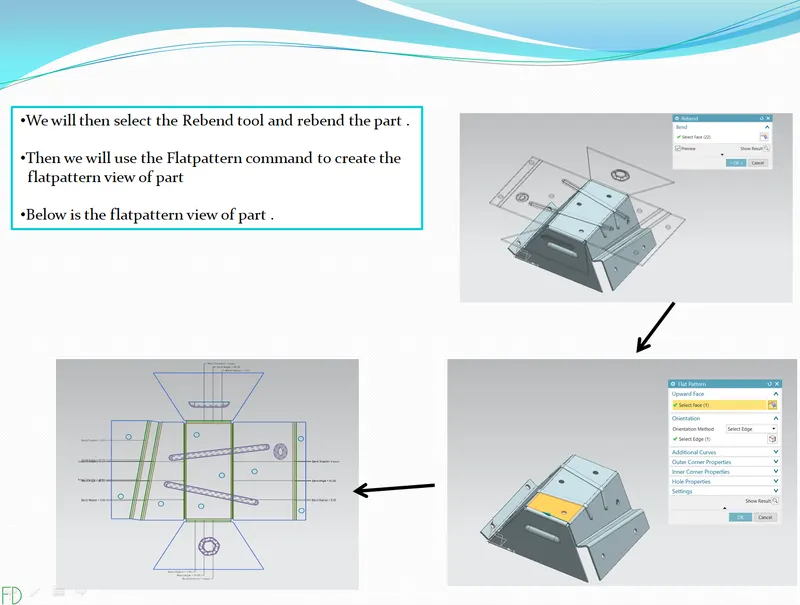

6 - Rebending the part and creating flatpattern view .

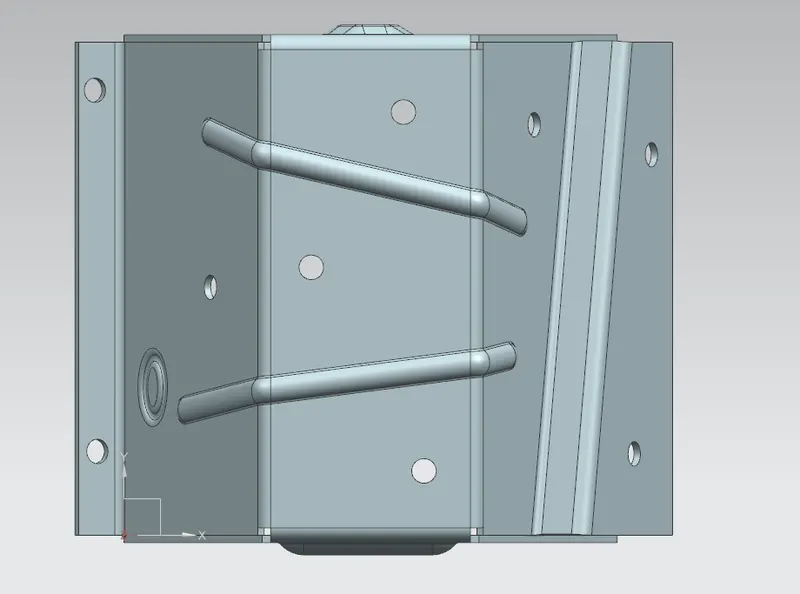

1 - TOP VIEW of part .

2 - FRONT VIEW of part .

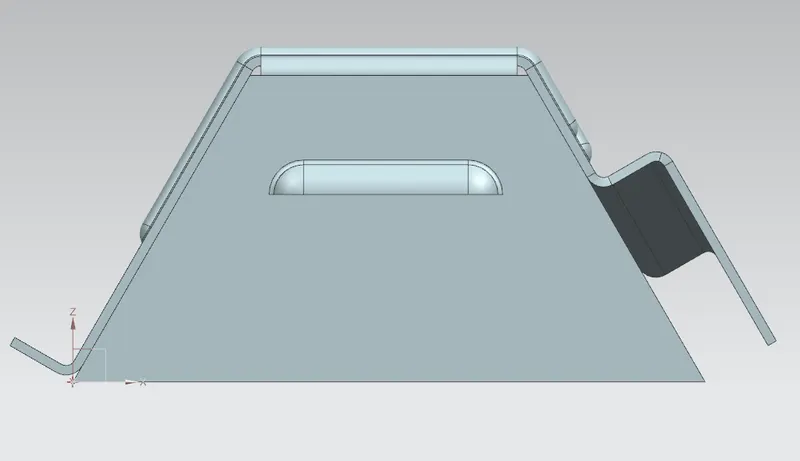

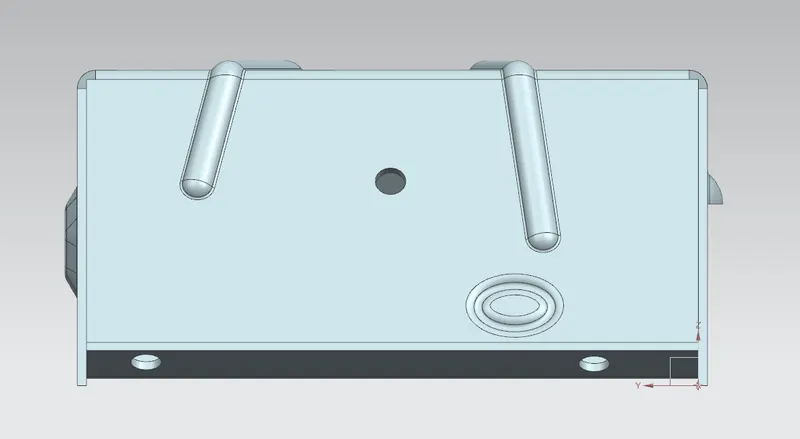

3 - SIDE VIEW of part .

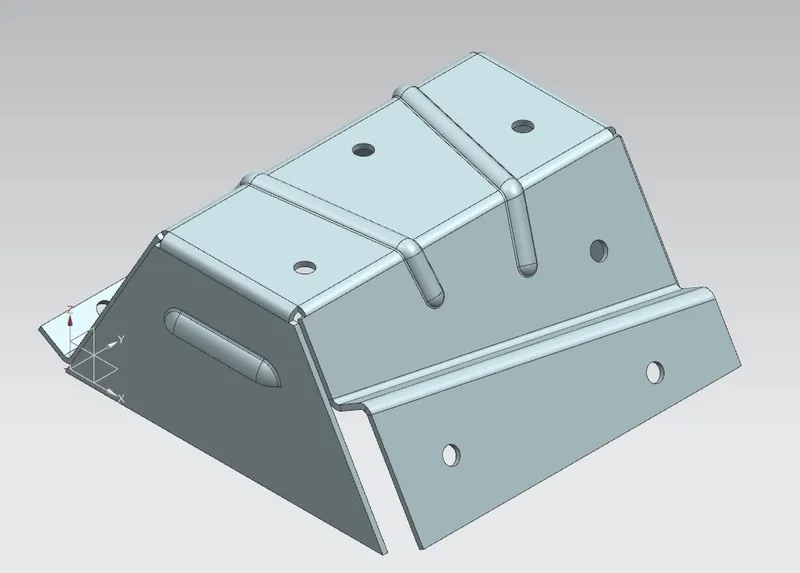

4 - ISOMETRIC VIEW of part .

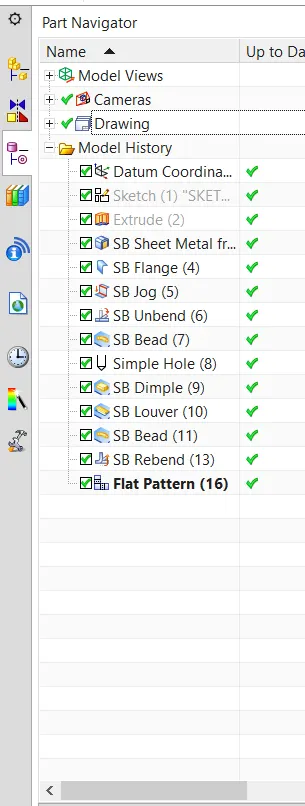

5 - FEATURE TREE of part .

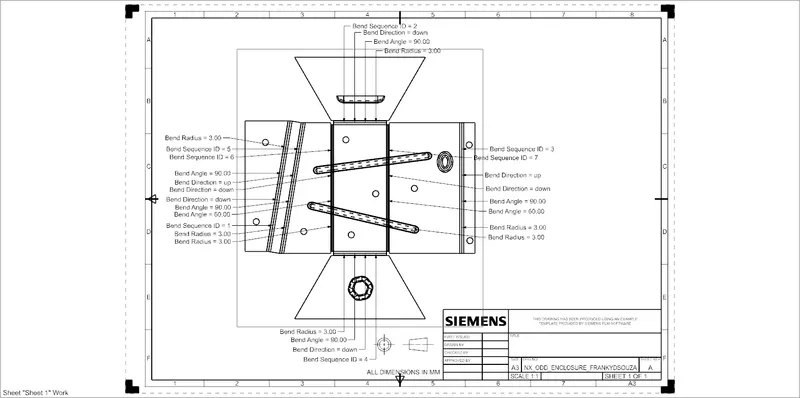

6 - Drafting sheet .

DESCRIPTION -

1 - EXTRUDE -

This command is used to create a solid part from a given sketch in a particular direction .

2 - FLANGE -

This command is used to add a flat flange at an angle to planar face and add a bend between the two .

3- UNBEND -

This command is used to unbend the material to create a flat sheet .

 4 - DIMPLE -

This command is used to create an identation in sheetmetal part using sketched section as input for dimple . it can lift the area of model inside a sketch that simulates a stamping tool .

5 - BEAD -

This command is a stiffening feature . it stiffens the sheetmetal . it is used to lift the material along contour of sketch that simulates stamping tool .

6 - REBEND -

This command is used to bend the sheetmetal part that we had previously bend .

7 - FLATPATTERN -

This command is used to create the 2D drawing  view of the sheet metal part .

8 - DRAFTING -

This command is used to create drafting or detailed drawing of a part.

9 -  SHEETMETAL FROM SOLID -

This command is used to create a sheetmetal part from a solid part . a solid part can be converted into a sheet metal part using this tool .

10 - JOG -

This command is used to create a step or a offset in a part. this command only needs a line as a input .

11 - HOLE -

This command is used to create holes in a part . it needs points as a input .

12 - LOUVER -

This command is used to create a vent in the part by piercing model along sketch line .

CONCLUSION -

We have created odd shape enclosure using the sheetmetal workbench in Nx cad .
