Creation of geometries by Coordinate system methods using AutoCad

    AIM : Create the geometry of given pictures in AutoCAD using all the coordinates system methods.   Introduction to Coordinate System :- There are Four AutoCAD coordinates system :- Absolute Coordinate System Relative Rectangular Coordinate System Relative Polar Coordinate System Direct Distance…

    • Gaurav Pant

      updated on 29 May 2021



      AIM : Create the geometry of given pictures in AutoCAD using all the coordinates system methods.

      Introduction to Coordinate System :-

    • There are Four AutoCAD coordinates system :-
    1. Absolute Coordinate System
    2. Relative Rectangular Coordinate System
    3. Relative Polar Coordinate System
    4. Direct Distance Entry

      Absolute Coordinates :-

    • In Absolute Coordinate System, all input points specify in the drawing are with respect to origin (0,0).

      Relative Coordinates :-

    • In Relative Rectangular Coordinate System, First point is entered with respect to origin (0,0) and all next points can be entered by specifying the next coordinate with respect to the first point.
    • The Relative Coordinate started with symbol “@”. In Relative Rectangular Coordinate System, points entered by typing "@x,y" and press Enter.

      Polar Coordinates :-

    • Polar coordinates used when we need to draw the next points at a specify angle.
    • Polar coordinates system in AutoCAD specifies distance length at an angle.
    • In Relative Polar Coordinate System, points entered by typing "@distance<angle" and press Enter.

      Direct Distance Entry :-

    • It is the simple method of drawing.
    • Direct distance entry enables to draw an object by pointing in a particular direction with the cursor and entering a distance at the Command Box.
    • First points is entered with respect to origin (0,0) and then the cursor is move in the particular direction and distance is entered at Command Box.

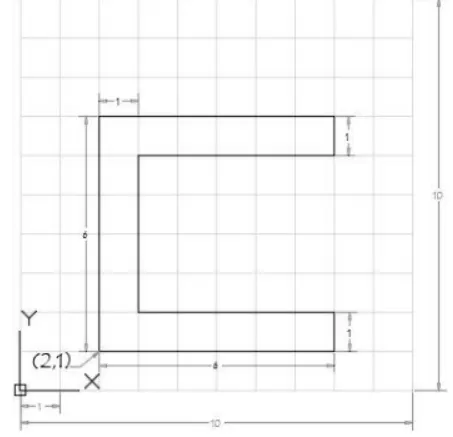

      Aim : Create the geometry of given picture in AutoCAD using all the coordinates system methods.



      PROCEDURE :-

    STEP 1 : On opening the AutoCad software, setup the units to Imperial template and decimal system to 0.000.

    STEP 2 : Set the limits in the command tab using "LIM" before drafting.

    Now,

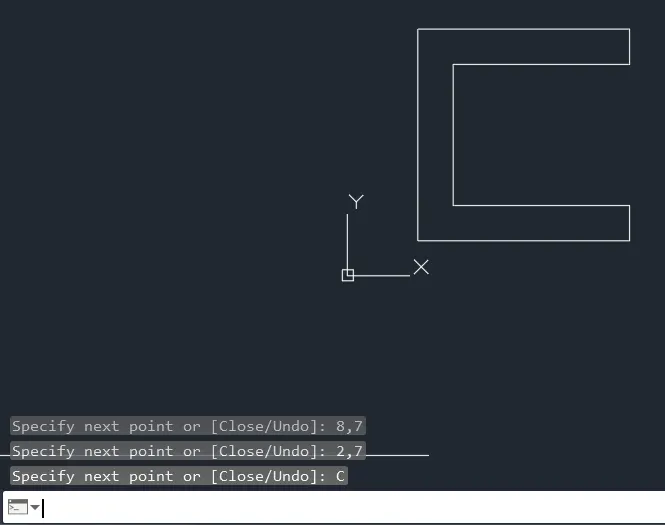

     Steps of creating geometry in AutoCAD Software by Absolute coordinate system :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (2,1).
    2. Type the next coordinate of point 2 (8,1) in the command box.
    3. Type the next coordinate of point 3 (8,2) in the command box.
    4. Type the next coordinate of point 4 (3,2) in the command box.
    5. Type the next coordinate of point 5 (3,6) in the command box.
    6. Type the next coordinate of point 6 (8,6) in the command box.
    7. Type the next coordinate of point 7 (8,7) in the command box.
    8. Type the next coordinate of point 8 (2,7) in the command box.
    9. Click "close" on the command box

      RESULT :-

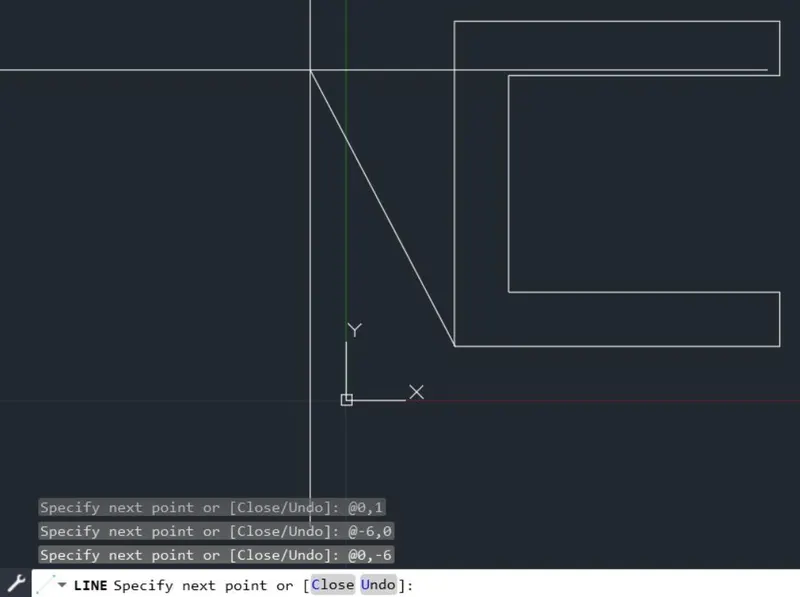

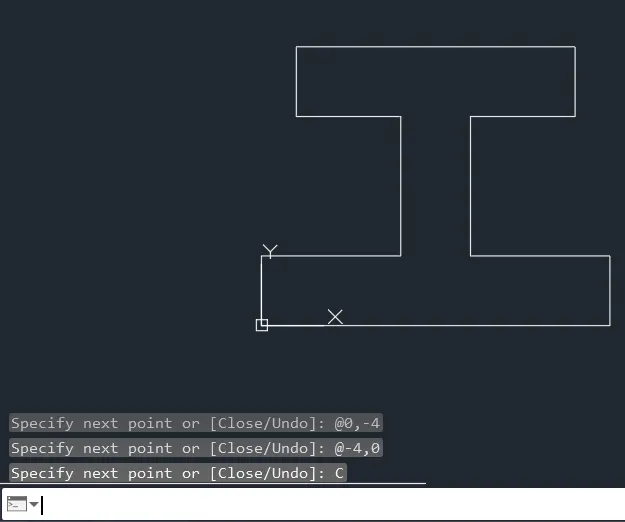

     Steps of creating geometry in AutoCAD Software by Relative Rectangular Coordinate System :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (2,1).
    2. Type the next coordinate of point 2 @6,0 in the command box.
    3. Type the next coordinate of point 3 @0,1 in the command box.
    4. Type the next coordinate of point 4 @-5,0 in the command box.
    5. Type the next coordinate of point 5 @0,4 in the command box.
    6. Type the next coordinate of point 6 @5,0 in the command box.
    7. Type the next coordinate of point 7 @0,1 in the command box.
    8. Type the next coordinate of point 8 @-6,0 in the command box.
    9. Click "close" on the command box

        RESULT :-





       Steps of creating geometry in AutoCAD Software by Relative Polar coordinate :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (2,1).
    2. Type the next coordinate of point 2 @6<0 in the command box.
    3. Type the next coordinate of point 3 @1<90 in the command box.
    4. Type the next coordinate of point 4 @5<180 in the command box.
    5. Type the next coordinate of point 5 @4<90 in the command box.
    6. Type the next coordinate of point 6 @5<0 in the command box.
    7. Type the next coordinate of point 7 @1<90 in the command box.
    8. Type the next coordinate of point 8 @6<180 in the command box.
    9. Click "close" on the command box

       RESULT :-

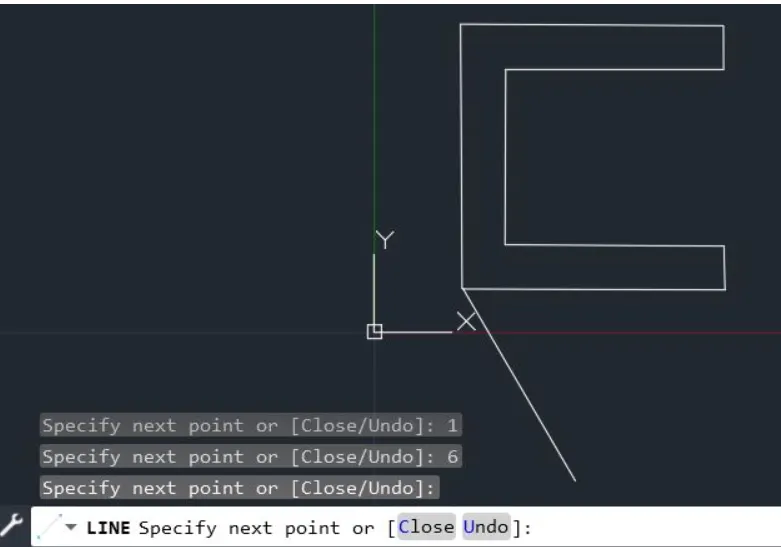

      Steps of creating geometry in AutoCAD Software by Direct Distance Entry :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (2,1).
    2. Type the length 6 in command box to +ve x-axis for point 2.
    3. Type the length 1 in command box to +ve y-axis for point 3.
    4. Type the length 5 in command box to -ve x-axis for point 4.
    5. Type the length 4 in command box to +ve y-axis for point 5.
    6. Type the length 5 in command box to +ve x-axis for point 6.
    7. Type the length 1 in command box to +ve y-axis for point 7.
    8. Type the length 6 in command box to -ve x-axis for point 8.
    9. Click "close" on the command box

        RESULT :-

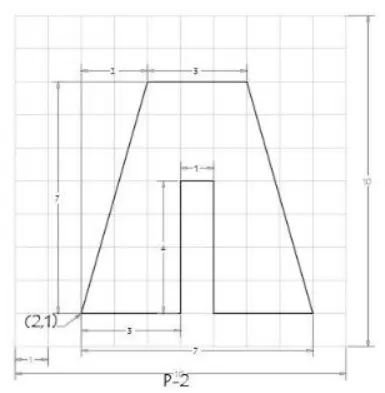

      Aim : Create the geometry of given picture in AutoCAD using all the coordinates system methods.







     PROCEDURE :-

    STEP 1 : On opening the AutoCad software, setup the units to Imperial template and decimal system to 0.000.

    STEP 2 : Set the limits in the command tab using "LIM" before drafting.

    Now,

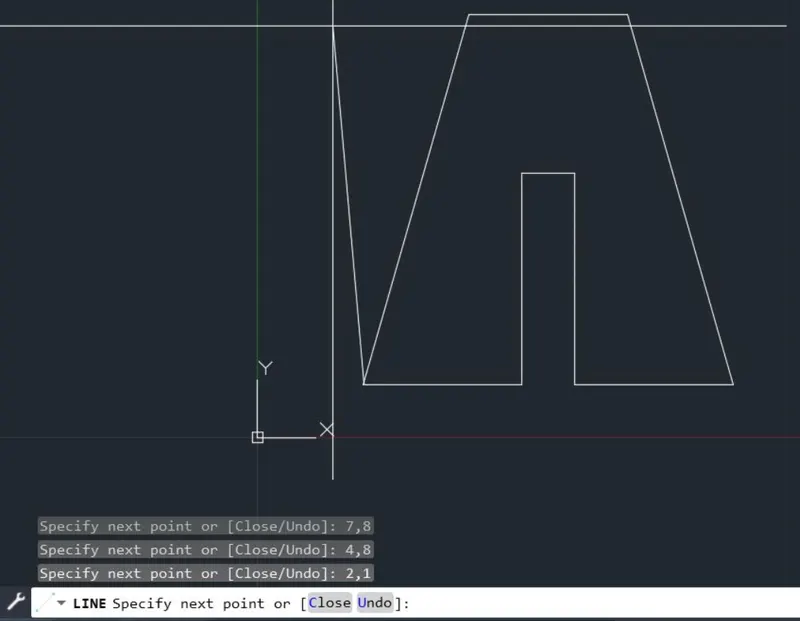

      Steps of creating geometry in AutoCAD Software by Absolute coordinate system :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (2,1).
    2. Type the next coordinate of point 2 (5,1) in the command box.
    3. Type the next coordinate of point 3 (5,5) in the command box.
    4. Type the next coordinate of point 4 (6,5) in the command box.
    5. Type the next coordinate of point 5 (6,1) in the command box.
    6. Type the next coordinate of point 6 (9,1) in the command box.
    7. Type the next coordinate of point 7 (7,8) in the command box.
    8. Type the next coordinate of point 8 (4,8) in the command box.
    9. Click "close" on the command box

        RESULT :-

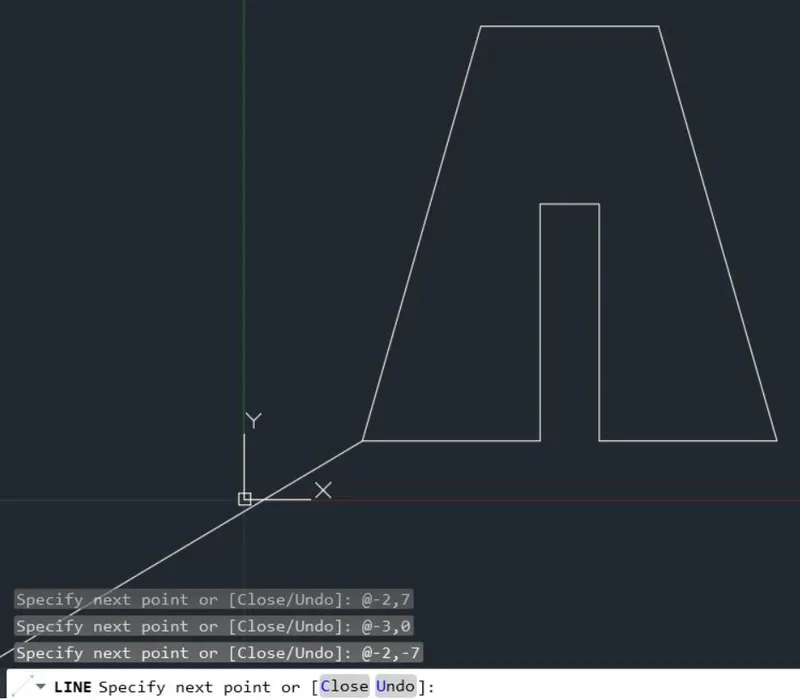

       Steps of creating geometry in AutoCAD Software by Relative Rectangular Coordinate System :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (2,1).
    2. Type the next coordinate of point 2 @3,0 in the command box.
    3. Type the next coordinate of point 3 @0,4 in the command box.
    4. Type the next coordinate of point 4 @1,0 in the command box.
    5. Type the next coordinate of point 5 @0,-4 in the command box.
    6. Type the next coordinate of point 6 @3,0 in the command box.
    7. Type the next coordinate of point 7 @-2,7 in the command box.
    8. Type the next coordinate of point 8 @-3,0 in the command box.
    9. Click "close" on the command box

        RESULT :-





        Steps of creating geometry in AutoCAD Software by Relative Polar coordinate :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (2,1).
    2. Type the next coordinate of point 2 @3<0 in the command box.
    3. Type the next coordinate of point 3 @4<90 in the command box.
    4. Type the next coordinate of point 4 @1<0 in the command box.
    5. Type the next coordinate of point 5 @4<270 in the command box.
    6. Type the next coordinate of point 6 @3<0 in the command box.
    7. Type the next coordinate of point 9 @7<90 in the command box.
    8. Type the next coordinate of point 7 @2<180 in the command box and then cancel the Line command by pressing enter.
    9. Now use line command "L" and join Point 6 and point 7 and then cancel the Line command by pressing enter. And delete lines joining from point 6 to 9 and point 9 to 7.
    10. Type the command "L'' specify the point 7(7,8) and type the next coordinate of point 8 @3<180 in the command box and then cancel the Line command by pressing enter.
    11. Now use line command "L" and join Point 8 and point 1 and then cancel the Line command by pressing enter.

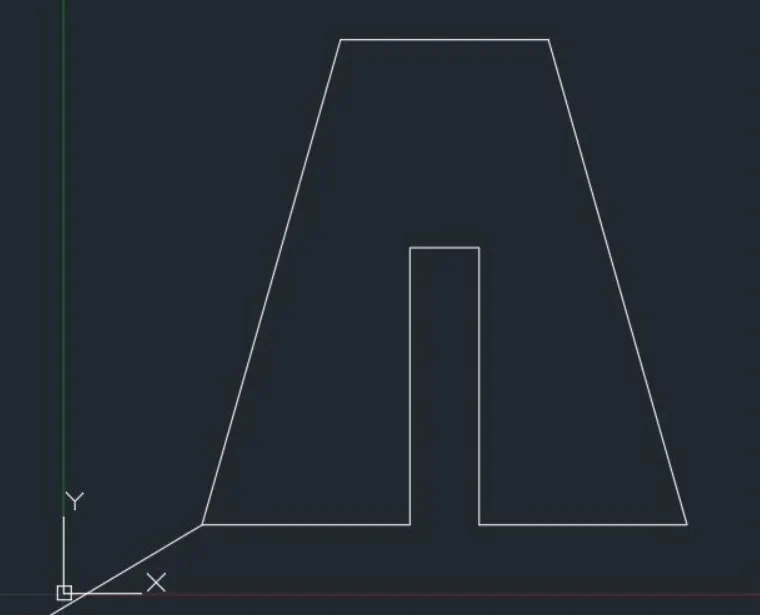

       RESULT :-

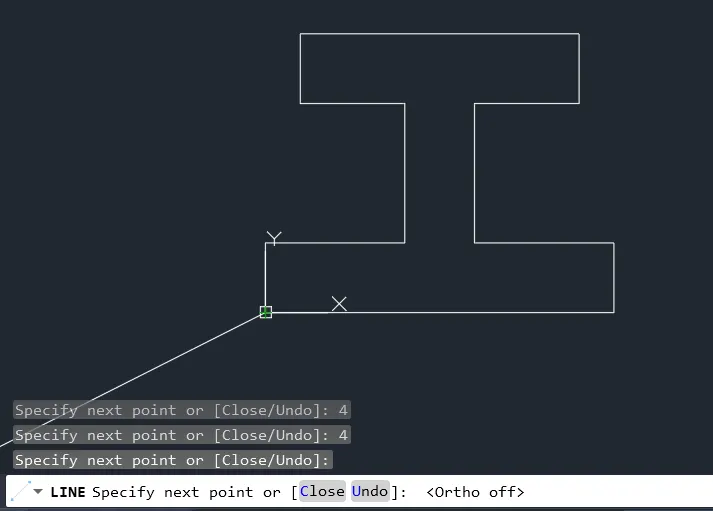

      Steps of creating geometry in AutoCAD Software by Direct Distance Entry :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (2,1).
    2. Type the length 3 in command box to +ve x-axis for point 2.
    3. Type the length 4 in command box to +ve y-axis for point 3.
    4. Type the length 1 in command box to +ve x-axis for point 4.
    5. Type the length 4 in command box to -ve y-axis for point 5.
    6. Type the length 3 in command box to +ve x-axis for point 6.
    7. Type the length 7 in command box to +ve y-axis for point 9.
    8. Type the length 2 in command box to -ve x-axis for point 7 and then cancel the Line command by pressing enter.
    9. Now use line command "L" and join Point 6 and point 7 and then cancel the Line command by pressing enter. And then delete lines joining from point 6 to 9 and point 9 to 7.
    10. Type the command "L'' specify the start point 7(7,8) and type the length 3 in command box to -ve x-axis for point 8 and then cancel the Line command by pressing enter.
    11. Now use line command "L" and join Point 8 and point 1 and then cancel the Line command by pressing enter.

        RESULT :-

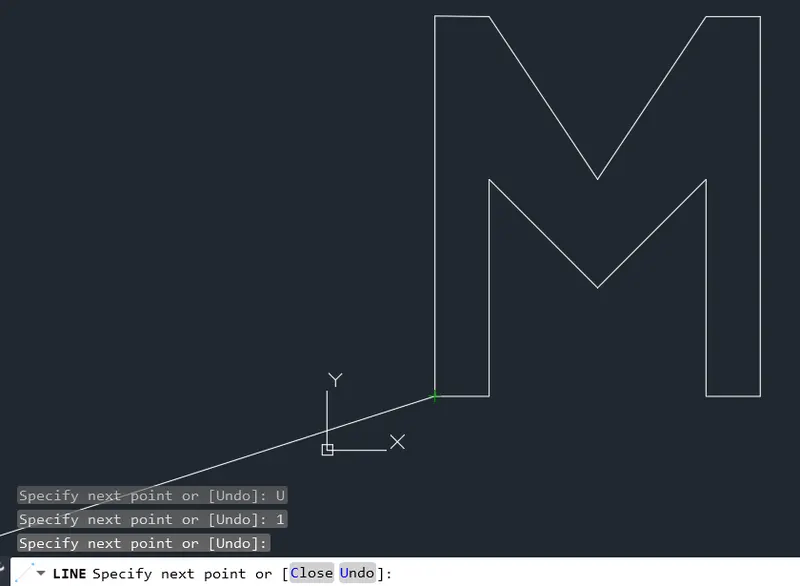

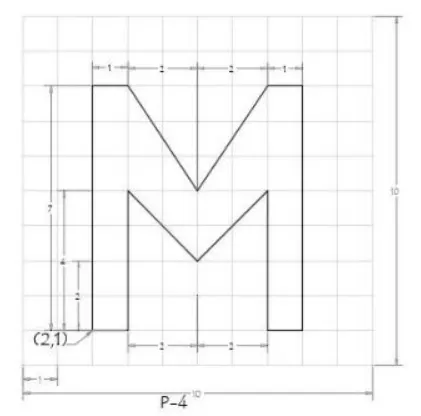

    Aim : Create the geometry of given picture in AutoCAD using all the coordinates system methods.



      PROCEDURE :-

    STEP 1 : On opening the AutoCad software, setup the units to Imperial template and decimal system to 0.000.

    STEP 2 : Set the limits in the command tab using "LIM" before drafting.

    Now,

      Steps of creating geometry in AutoCAD Software by Absolute coordinate system :-

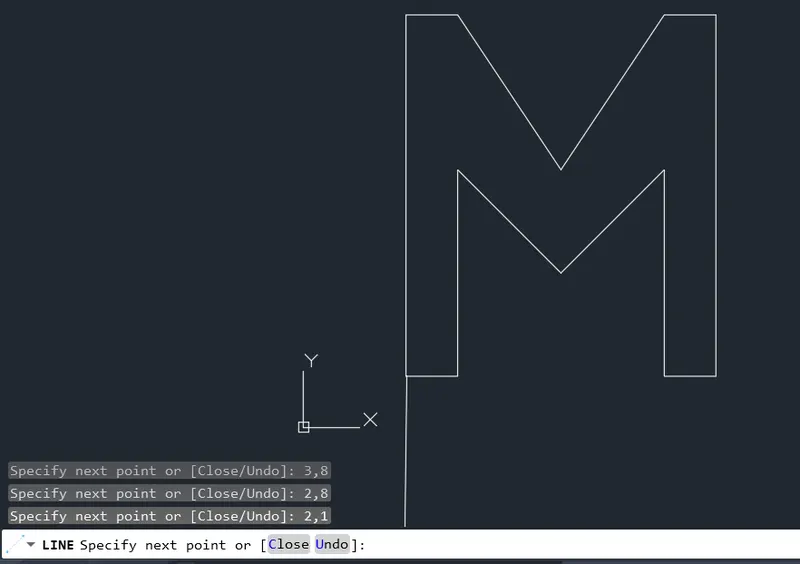

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (2,1).
    2. Type the next coordinate of point 2 (3,1) in the command box.
    3. Type the next coordinate of point 3 (3,5) in the command box.
    4. Type the next coordinate of point 4 (5,3) in the command box.
    5. Type the next coordinate of point 5 (7,5) in the command box.
    6. Type the next coordinate of point 6 (7,1) in the command box.
    7. Type the next coordinate of point 7 (8,1) in the command box.
    8. Type the next coordinate of point 8 (8,8) in the command box.
    9. Type the next coordinate of point 9 (7,8) in the command box.
    10. Type the next coordinate of point 10 (5,5) in the command box.
    11. Type the next coordinate of point 11 (3,8) in the command box.
    12. Type the next coordinate of point 12 (2,8) in the command box.
    13. Click "close" on the command box

        RESULT :-

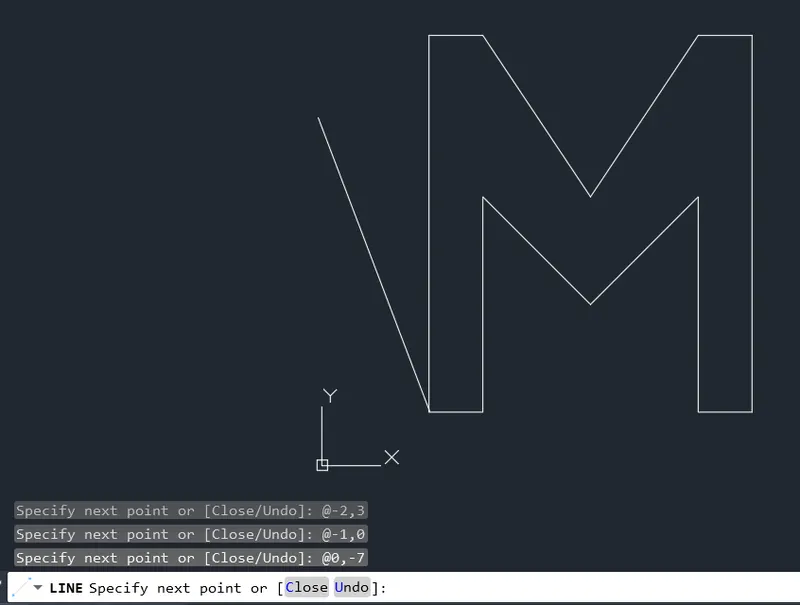

      Steps of creating geometry in AutoCAD Software by Relative Rectangular Coordinate System :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (2,1).
    2. Type the next coordinate of point 2 @1,0 in the command box.
    3. Type the next coordinate of point 3  @0,4 in the command box.
    4. Type the next coordinate of point 4 @2,-2 in the command box.
    5. Type the next coordinate of point 5 @2,2 in the command box.
    6. Type the next coordinate of point 6 @0,-4 in the command box.
    7. Type the next coordinate of point 7 @1,0 in the command box.
    8. Type the next coordinate of point 8 @0,7 in the command box.
    9. Type the next coordinate of point 9 @-1,0 in the command box.
    10. Type the next coordinate of point 10 @-2,-3 in the command box.
    11. Type the next coordinate of point 11 @-2,3 in the command box.
    12. Type the next coordinate of point 12 @-1,0 in the command box.
    13. Click "close" on the command box

        RESULT :-

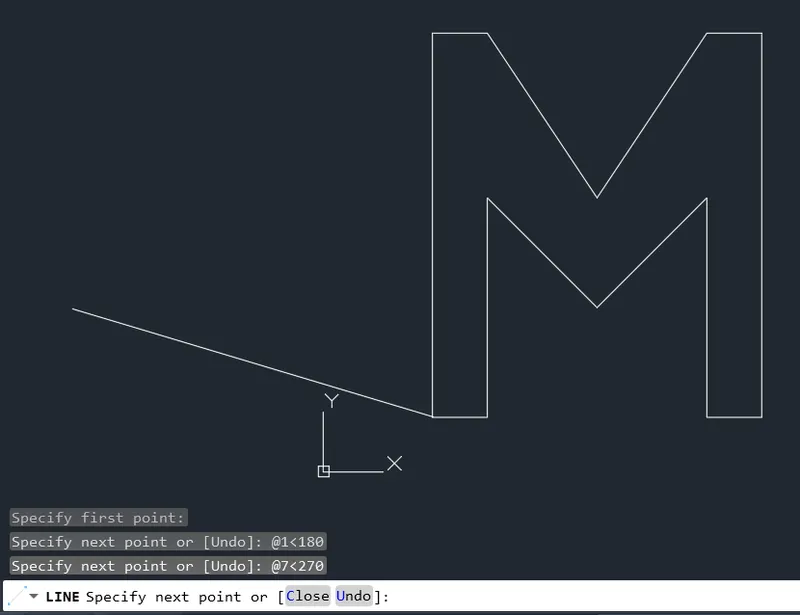

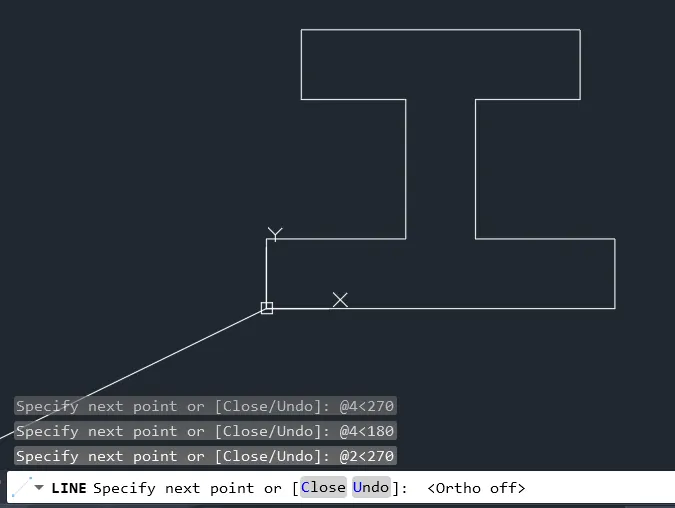

       Steps of creating geometry in AutoCAD Software by Relative Polar coordinate :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (2,1).
    2. Type the next coordinate of point 2 @1<0 in the command box.
    3. Type the next coordinate of point 3 @4<90 in the command box.
    4. Type the next coordinate of point 10 @2<0 in the command box.
    5. Type the next coordinate of point 4 @2<270 in the command box.
    6. Cancel the Line command by pressing enter.
    7. Now use line command "L" and join Point 3 and point 4 and cancel the Line command by pressing enter. And then delete lines joining from point 3 to 10 and point 10 to 4.
    8. Type the command "L'' and specify the start point 4(5,3) and type the next coordinate of point 10 @2<90 in the command box.
    9. Type the next coordinate of point 5 @2<0 in the command box.
    10. Cancel the Line command by pressing enter.
    11. Now use line command "L" and join Point 4 and point 5 and cancel the Line command by pressing enter. And delete lines joining from point 4 to 10 and point 10 to 5.
    12. Type the command "L" and specify the start point 5(7,5) and type the next coordinate of point 6 @4<270 in the command box.
    13. Type the next coordinate of point 7 @1<0 in the command box.
    14. Type the next coordinate of point 8 @7<90 in the command box.
    15. Type the next coordinate of point 9 @1<180 in the command box.
    16. Type the next coordinate of point 5 @3<270 in the command box.
    17. Type the next coordinate of point 10 @2<180 in the command box.
    18. Cancel the Line command by pressing enter.
    19. Now use line command "L" and join Point 9 and point 10 and cancel the Line command by pressing enter. And delete lines joining from point 9 to 5 and point 5 to 10.
    20. Type the command "L" and specify the start point 10(5,5) and type the next coordinate of point 3 @2<180 in the command box.
    21. Type the next coordinate of point 11 @3<90 in the command box.
    22. Cancel the Line command by pressing enter.
    23. Now use line command "L" and join Point 10 and point 11 and cancel the Line command by pressing enter. And delete lines joining from point 10 to 3 and point 3 to 11.
    24. Type the command "L" specify the start point 11(3,8) and type the next coordinate of point 12 @1<180 in the command box.
    25. Type the next coordinate of point 1 @7<270 in the command box and cancel the Line command by pressing enter.

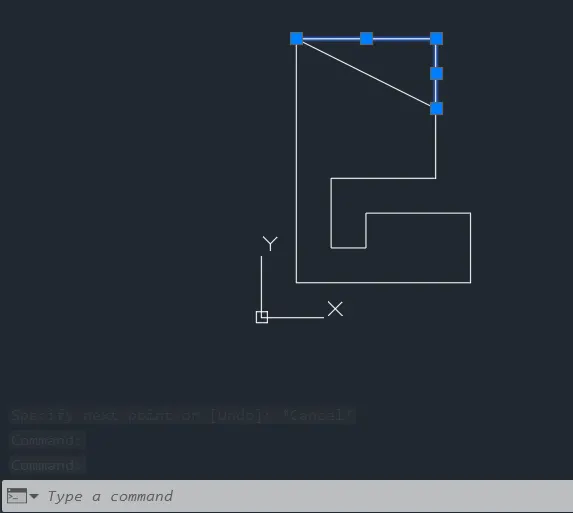

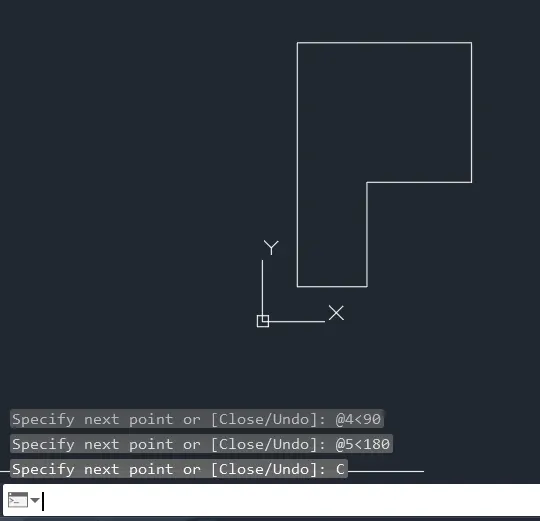

       RESULT :-





      Steps of creating geometry in AutoCAD Software by Direct Distance Entry :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (2,1).
    2. Type the length 1 in command box to +ve x-axis for point 2.
    3. Type the length 4 in command box to +ve y-axis for point 3.
    4. Type the length 2 in command box to +ve x-axis for point 10 and then type the length 2 in command box to -ve y-axis for point 4.
    5. Cancel the command by pressing enter and then type the command "L" and join point 3 and point 4.
    6. Cancel the command by pressing enter and delete the other lines joining from point 3 to 10 and point 10 to 4.
    7. Type the command "L'' specify the start point 4(5,3) and type the length 2 in command box to +ve y-axis for point 10 and type the length 2 in command box to +ve x-axis for point 5.
    8. Cancel the command by pressing enter and then type the command "L" and join point 4 and point 5.
    9. Cancel the Line command by pressing enter. And delete lines joining from point 4 to 10 and point 10 to 5.
    10. Type the command "L'' specify the start point 5(7,5) and type the length 4 in command box to -ve y-axis for point 6.
    11. Type the length 1 in command box to +ve x-axis for point 7.
    12. Type the length 7 in command box to +ve y-axis for point 8.
    13. Type the length 1 in command box to -ve x-axis for point 9.
    14. Type the length 3 in command box to -ve y-axis for point 5 and type the length 2 in command box to -ve x-axis for point 10.
    15. Cancel the Line command by pressing enter.
    16. Now use line command "L" and join Point 9 and point 10 and cancel the Line command by pressing enter. And delete lines joining from point 9 to 5 and point 5 to 10.
    17. Type the command "L'' specify the start point 10(5,5) and type the length 2 in command box to -ve x-axis for point 3 and type the length 3 in command box to +ve y-axis for point 11.
    18. Cancel the Line command by pressing enter.
    19. Now use line command "L" and join Point 10 and point 11 and cancel the Line command by pressing enter. And delete lines joining from point 10 to 3 and point 3 to 11.
    20. Type the command "L" specify the start point 11(3,8) and type the length 1 in command box to -ve x-axis for point 12.
    21. Type the length 7 in command box to -ve y-axis for point 1 and cancel the Line command by pressing enter.

      Click "close" on the command box





        RESULT :-

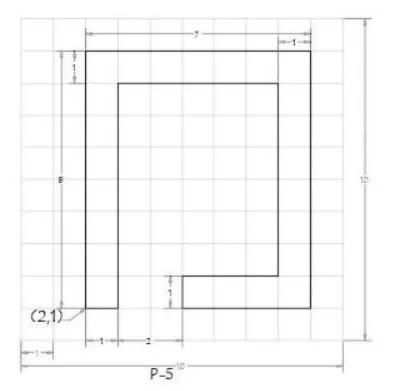

    Aim : Create the geometry of given picture in AutoCAD using all the coordinates system methods.



     PROCEDURE :-

    STEP 1 : On opening the AutoCad software, setup the units to Imperial template and decimal system to 0.000.

    STEP 2 : Set the limits in the command tab using "LIM" before drafting.

    Now,

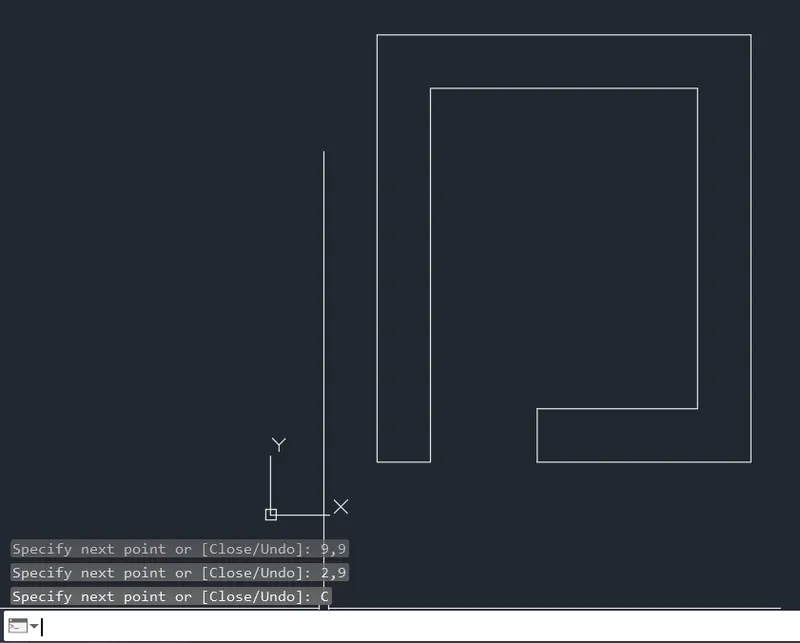

      Steps of creating geometry in AutoCAD Software by Absolute coordinate system :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (2,1).
    2. Type the next coordinate of point 2 (3,1) in the command box.
    3. Type the next coordinate of point 3 (3,8) in the command box.
    4. Type the next coordinate of point 4 (8,8) in the command box.
    5. Type the next coordinate of point 5 (8,2) in the command box.
    6. Type the next coordinate of point 6 (5,2) in the command box.
    7. Type the next coordinate of point 7 (5,1) in the command box.
    8. Type the next coordinate of point 8 (9,1) in the command box.
    9. Type the next coordinate of point 9 (9,9) in the command box.
    10. Type the next coordinate of point 10 (2,9) in the command box.
    11. Click "close" on the command box.

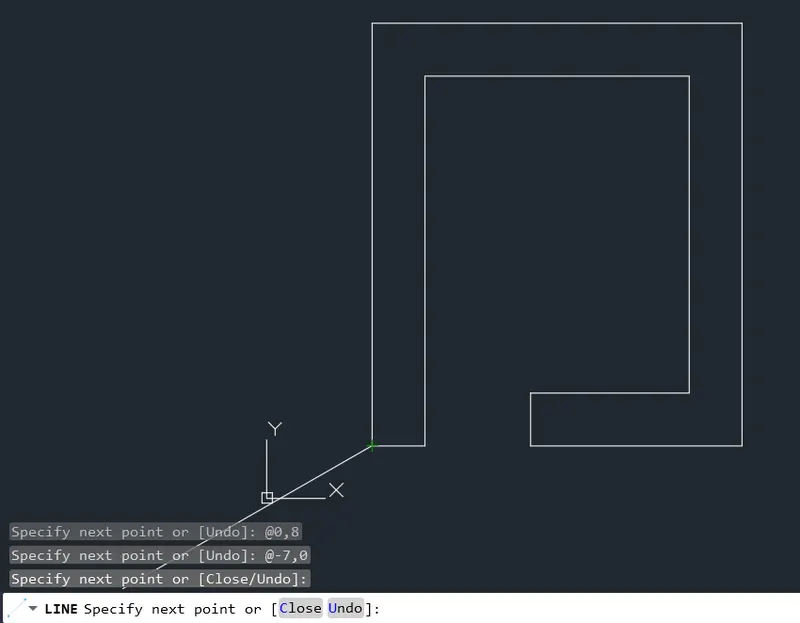

        RESULT :-





      Steps of creating geometry in AutoCAD Software by Relative Rectangular Coordinate System :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (2,1).
    2. Type the next coordinate of point 2 @1,0 in the command box.
    3. Type the next coordinate of point 3 @0,7 in the command box.
    4. Type the next coordinate of point 4 @5,0 in the command box.
    5. Type the next coordinate of point 5 @0,-6 in the command box.
    6. Type the next coordinate of point 6 @-3,0 in the command box.
    7. Type the next coordinate of point 7 @0,-1 in the command box.
    8. Type the next coordinate of point 8 @4,0 in the command box.
    9. Type the next coordinate of point 9 @0,8 in the command box.
    10. Type the next coordinate of point 10 @-7,0 in the command box.
    11. Click "close" on the command box.

        RESULT :-

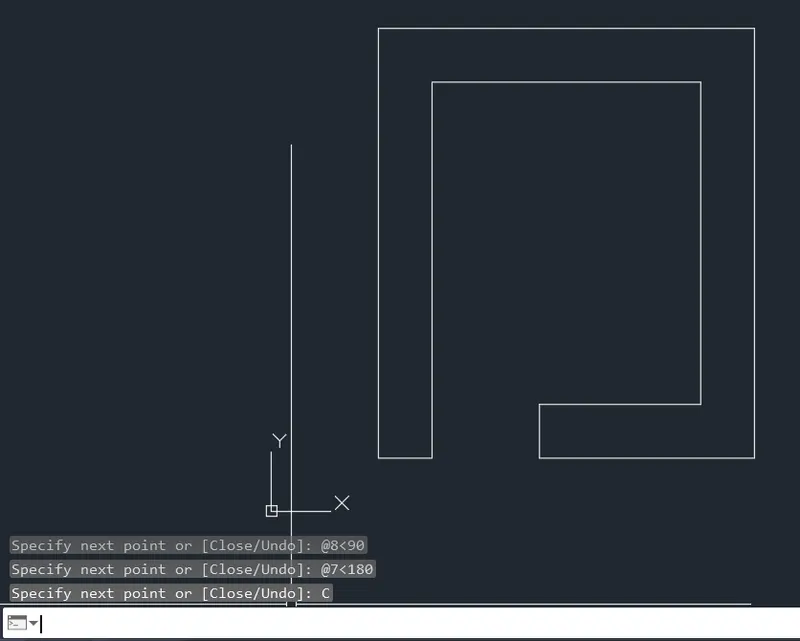

       Steps of creating geometry in AutoCAD Software by Relative Polar coordinate :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (2,1).
    2. Type the next coordinate of point 2 @1<0 in the command box.
    3. Type the next coordinate of point 3 @7<90 in the command box.
    4. Type the next coordinate of point 4 @5<0 in the command box.
    5. Type the next coordinate of point 5 @6<270 in the command box.
    6. Type the next coordinate of point 6 @3<180 in the command box.
    7. Type the next coordinate of point 7 @1<270 in the command box.
    8. Type the next coordinate of point 8 @4<0 in the command box.
    9. Type the next coordinate of point 9 @8<90 in the command box.
    10. Type the next coordinate of point 10 @7<180 in the command box.
    11. Click "close" on the command box.

       RESULT :-

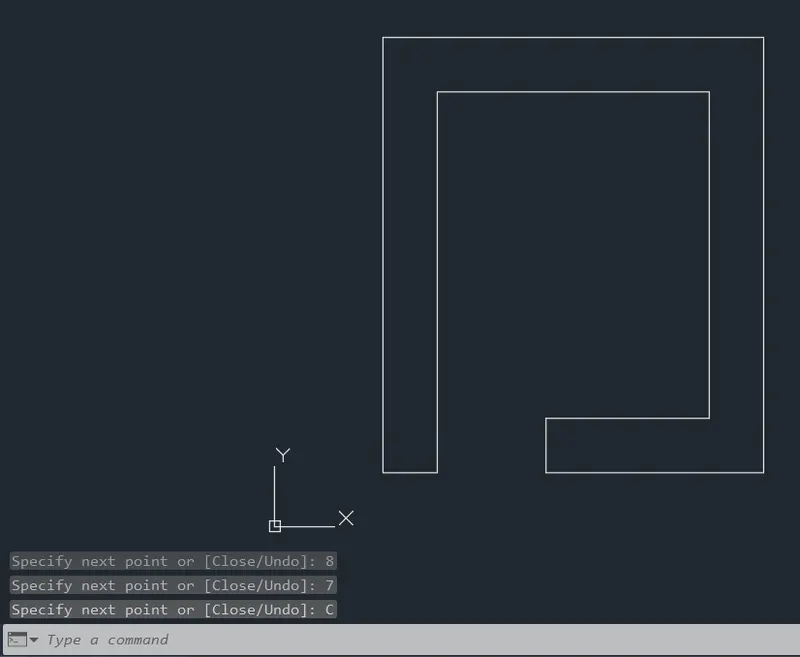

      Steps of creating geometry in AutoCAD Software by Direct Distance Entry :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (2,1).
    2. Type the length 1 in command box to +ve x-axis for point 2.
    3. Type the length 7 in command box to +ve y-axis for point 3.
    4. Type the length 5 in command box to +ve x-axis for point 4.
    5. Type the length 6 in command box to -ve y-axis for point 5.
    6. Type the length 3 in command box to -ve x-axis for point 6.
    7. Type the length 1 in command box to -ve y-axis for point 7.
    8. Type the length 4 in command box to +ve x-axis for point 8.
    9. Type the length 8 in command box to +ve y-axis for point 9.
    10. Type the length 7 in command box to -ve x-axis for point 10.
    11. Click "close" on the command box.

        RESULT :-

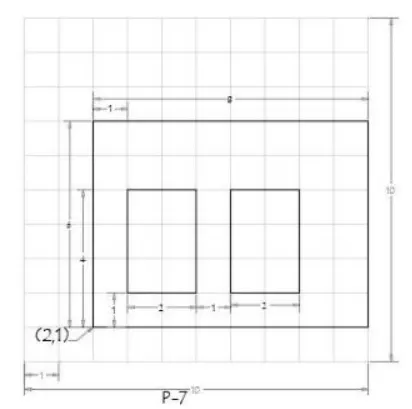

    Aim : Create the geometry of given picture in AutoCAD using all the coordinates system methods.





    PROCEDURE :-

    STEP 1 : On opening the AutoCad software, setup the units to Imperial template and decimal system to 0.000.

    STEP 2 : Set the limits in the command tab using "LIM" before drafting.

    Now,

      Steps of creating geometry in AutoCAD Software by Absolute coordinate system :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (2,1).
    2. Type the next coordinate of point 2 (10,1) in the command box.
    3. Type the next coordinate of point 3 (10,7) in the command box.
    4. Type the next coordinate of point 4 (2,7) in the command box.
    5. Click "close" on the command box.
    6. Type the command "L'' for the line and specify the coordinate for point 5 (3,2).
    7. Type the next coordinate of point 6 (5,2) in the command box.
    8. Type the next coordinate of point 7 (5,5) in the command box.
    9. Type the next coordinate of point 8 (3,5) in the command box.
    10. Click "close" on the command box.
    11. Type the command "L'' for the line and specify the coordinate for point 9 (6,2).
    12. Type the next coordinate of point 10 (8,2) in the command box.
    13. Type the next coordinate of point 11 (8,5) in the command box.
    14. Type the next coordinate of point 12 (6,5) in the command box.
    15. Click "close" on the command box

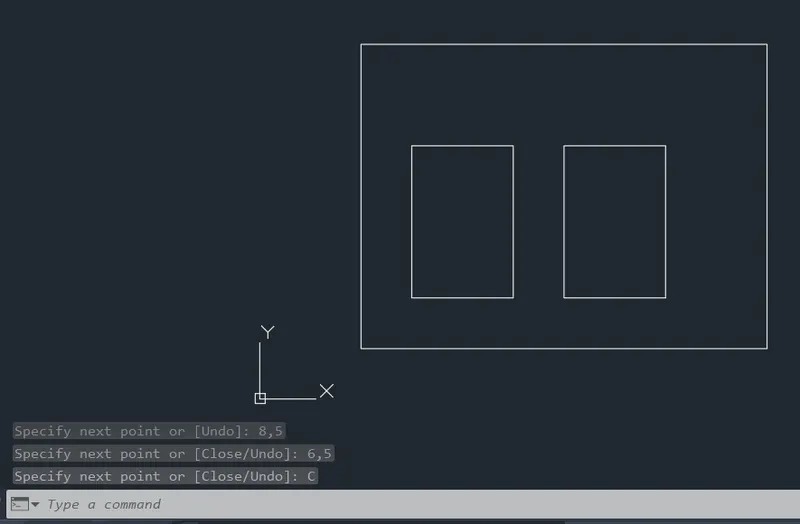

        RESULT :-

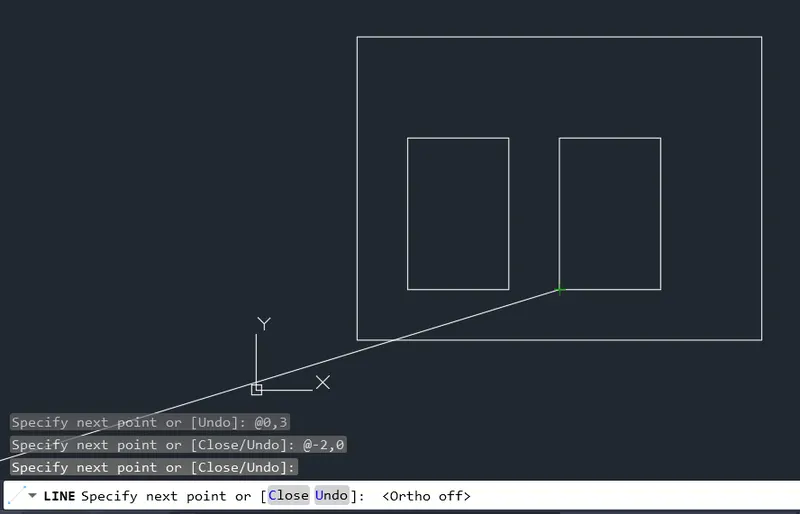

       Steps of creating geometry in AutoCAD Software by Relative Rectangular Coordinate System :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (2,1).
    2. Type the next coordinate of point 2 @8,0 in the command box.
    3. Type the next coordinate of point 3 @0,6 in the command box.
    4. Type the next coordinate of point 4 @-8,0 in the command box.
    5. Click "close" on the command box.
    6. Type the command "L'' for the line and specify the coordinate for point 5 (3,2).
    7. Type the next coordinate of point 6 @2,0 in the command box.
    8. Type the next coordinate of point 7 @0,3 in the command box.
    9. Type the next coordinate of point 8 @-2,0 in the command box.
    10. Click "close" on the command box.
    11. Type the command "L'' for the line and specify the coordinate for point 9 (6,2).
    12. Type the next coordinate of point 10 @2,0 in the command box.
    13. Type the next coordinate of point 11 @0,3 in the command box.
    14. Type the next coordinate of point 12 @-2,0 in the command box.
    15. Click "close" on the command box

        RESULT :-

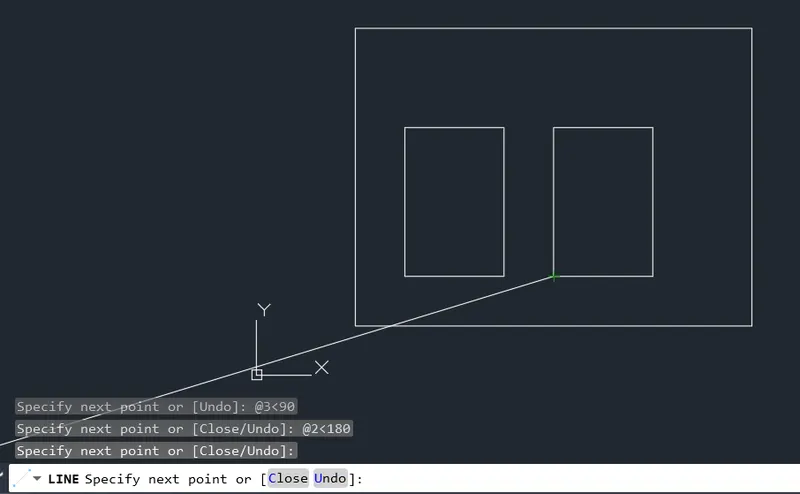

       Steps of creating geometry in AutoCAD Software by Relative Polar coordinate :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (2,1).
    2. Type the next coordinate of point 2 @8<0 in the command box.
    3. Type the next coordinate of point 3 @6<90 in the command box.
    4. Type the next coordinate of point 4 @8<180 in the command box.
    5. Click "close" on the command box.
    6. Type the command "L'' for the line and specify the coordinate for point 5 (3,2).
    7. Type the next coordinate of point 6 @2<0 in the command box.
    8. Type the next coordinate of point 7 @3<90 in the command box.
    9. Type the next coordinate of point 8 @2<180 in the command box.
    10. Click "close" on the command box.
    11. Type the command "L'' for the line and specify the coordinate for point 9 (6,2).
    12. Type the next coordinate of point 10 @2<0 in the command box.
    13. Type the next coordinate of point 11 @3<90 in the command box.
    14. Type the next coordinate of point 12 @2<180 in the command box.
    15. Click "close" on the command box

        RESULT :-

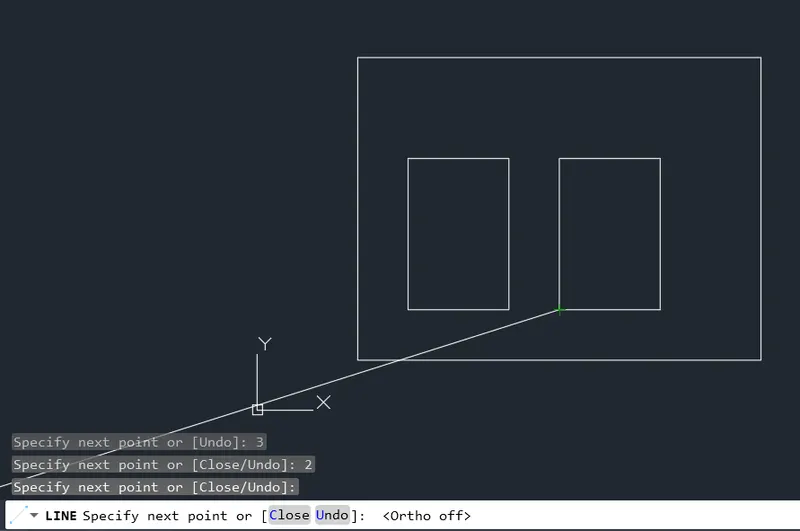

      Steps of creating geometry in AutoCAD Software by Direct Distance Entry :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (2,1).
    2. Type the length 8 in command box to +ve x-axis for point 2.
    3. Type the length 6 in command box to +ve y-axis for point 3.
    4. Type the length 8 in command box to -ve x-axis for point 4.
    5. Click "close" on the command box.
    6. Type the command "L'' for the line and specify the coordinate for point 5 (3,2).
    7. Type the length 2 in command box to +ve x-axis for point 6.
    8. Type the length 3 in command box to +ve y-axis for point 7.
    9. Type the length 2 in command box to -ve x-axis for point 8.
    10. Click "close" on the command box.
    11. Type the command "L'' for the line and specify the coordinate for point 9 (6,2).
    12. Type the length 2 in command box to +ve x-axis for point 10.
    13. Type the length 3 in command box to +ve y-axis for point 11.
    14. Type the length 2 in command box to -ve x-axis for point 12.
    15. Click "close" on the command box

        RESULT :-

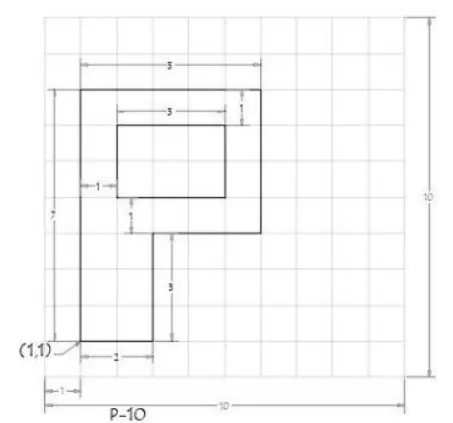

    Aim : Create the geometry of given picture in AutoCAD using all the coordinates system methods.





    PROCEDURE :-

    STEP 1 : On opening the AutoCad software, setup the units to Imperial template and decimal system to 0.000.

    STEP 2 : Set the limits in the command tab using "LIM" before drafting.

    Now,

      Steps of creating geometry in AutoCAD Software by Absolute coordinate system :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (0,0).
    2. Type the next coordinate of point 2 (10,0) in the command box.
    3. Type the next coordinate of point 3 (10,2) in the command box.
    4. Type the next coordinate of point 4 (6,2) in the command box.
    5. Type the next coordinate of point 5 (6,6) in the command box.
    6. Type the next coordinate of point 6 (9,6) in the command box.
    7. Type the next coordinate of point 7 (9,8) in the command box.
    8. Type the next coordinate of point 8 (1,8) in the command box.
    9. Type the next coordinate of point 9 (1,6) in the command box.
    10. Type the next coordinate of point 10 (4,6) in the command box.
    11. Type the next coordinate of point 11 (4,2) in the command box.
    12. Type the next coordinate of point 12 (0,2) in the command box.
    13. Click "close" on the command box

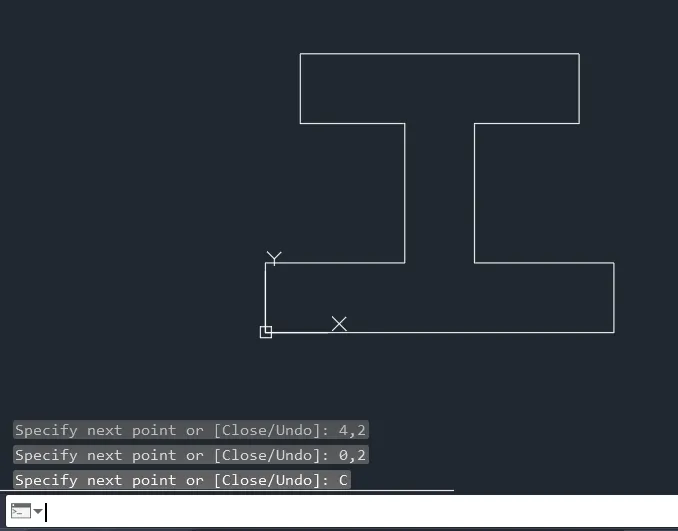

        RESULT :-

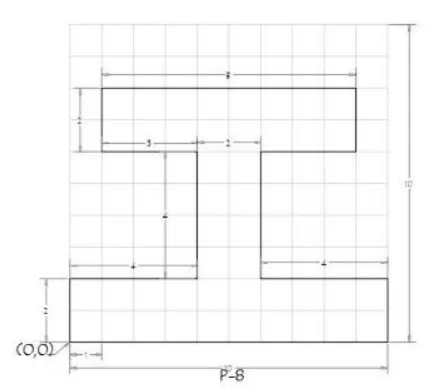

      Steps of creating geometry in AutoCAD Software by Relative Rectangular Coordinate System :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (0,0).
    2. Type the next coordinate of point 2 @10,0 in the command box.
    3. Type the next coordinate of point 3 @0,2 in the command box.
    4. Type the next coordinate of point 4 @-4,0 in the command box.
    5. Type the next coordinate of point 5 @0,4 in the command box.
    6. Type the next coordinate of point 6 @3,0 in the command box.
    7. Type the next coordinate of point 7 @0,2 in the command box.
    8. Type the next coordinate of point 8 @-8,0 in the command box.
    9. Type the next coordinate of point 9 @0,-2 in the command box.
    10. Type the next coordinate of point 10 @3,0 in the command box.
    11. Type the next coordinate of point 11 @0,-4 in the command box.
    12. Type the next coordinate of point 12 @-4,0 in the command box.
    13. Click "close" on the command box

        RESULT :-





       Steps of creating geometry in AutoCAD Software by Relative Polar coordinate :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (0,0).
    2. Type the next coordinate of point 2 @10<0 in the command box.
    3. Type the next coordinate of point 3 @2<90 in the command box.
    4. Type the next coordinate of point 4 @4<180 in the command box.
    5. Type the next coordinate of point 5 @4<90 in the command box.
    6. Type the next coordinate of point 6 @3<0 in the command box.
    7. Type the next coordinate of point 7 @2<90 in the command box.
    8. Type the next coordinate of point 8 @8<180 in the command box.
    9. Type the next coordinate of point 9 @2<270 in the command box.
    10. Type the next coordinate of point 10 @3<0 in the command box.
    11. Type the next coordinate of point 11 @4<270 in the command box.
    12. Type the next coordinate of point 12 @4<180 in the command box.
    13. Click "close" on the command box

        RESULT :-





      Steps of creating geometry in AutoCAD Software by Direct Distance Entry :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (0,0).
    2. Type the length 10 in command box to +ve x-axis for point 2.
    3. Type the length 2 in command box to +ve y-axis for point 3.
    4. Type the length 4 in command box to -ve x-axis for point 4.
    5. Type the length 4 in command box to +ve y-axis for point 5.
    6. Type the length 3 in command box to +ve x-axis for point 6.
    7. Type the length 2 in command box to +ve y-axis for point 7.
    8. Type the length 8 in command box to -ve x-axis for point 8.
    9. Type the length 2 in command box to -ve y-axis for point 9.
    10. Type the length 3 in command box to +ve x-axis for point 10.
    11. Type the length 4 in command box to -ve y-axis for point 11.
    12. Type the length 4 in command box to -ve x-axis for point 12.
    13. Click "close" on the command box

        RESULT :-

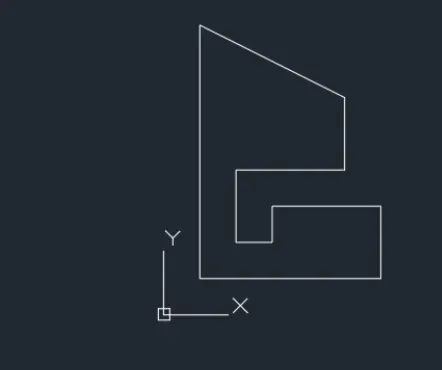

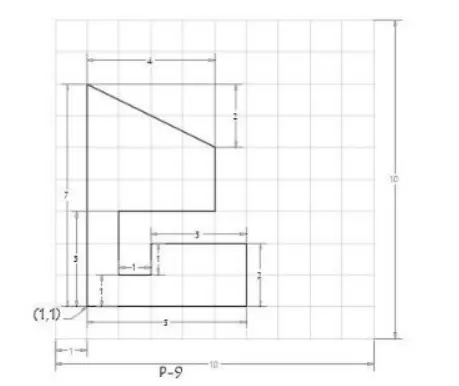

    Aim : Create the geometry of given picture in AutoCAD using all the coordinates system methods.





    PROCEDURE :-

    STEP 1 : On opening the AutoCad software, setup the units to Imperial template and decimal system to 0.000.

    STEP 2 : Set the limits in the command tab using "LIM" before drafting.

    Now,

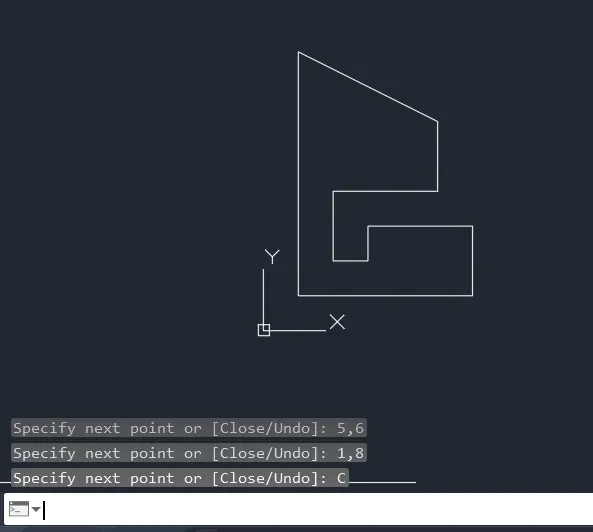

      Steps of creating geometry in AutoCAD Software by Absolute coordinate system :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (1,1).
    2. Type the next coordinate of point 2 (6,1) in the command box.
    3. Type the next coordinate of point 3 (6,3) in the command box.
    4. Type the next coordinate of point 4 (3,3) in the command box.
    5. Type the next coordinate of point 5 (3,2) in the command box.
    6. Type the next coordinate of point 6 (2,2) in the command box.
    7. Type the next coordinate of point 7 (2,4) in the command box.
    8. Type the next coordinate of point 8 (5,4) in the command box.
    9. Type the next coordinate of point 9 (5,6) in the command box.
    10. Type the next coordinate of point 10 (1,8) in the command box.
    11. Click "close" on the command box

        RESULT :-





       Steps of creating geometry in AutoCAD Software by Relative Rectangular Coordinate System :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (1,1).
    2. Type the next coordinate of point 2 @5,0 in the command box.
    3. Type the next coordinate of point 3 @0,2 in the command box.
    4. Type the next coordinate of point 4 @-3,0 in the command box.
    5. Type the next coordinate of point 5 @0,-1 in the command box.
    6. Type the next coordinate of point 6 @-1,0 in the command box.
    7. Type the next coordinate of point 7 @0,2 in the command box.
    8. Type the next coordinate of point 8 @3,0 in the command box.
    9. Type the next coordinate of point 9 @0,2 in the command box.
    10. Type the next coordinate of point 10 @-4,2 in the command box.
    11. Click "close" on the command box

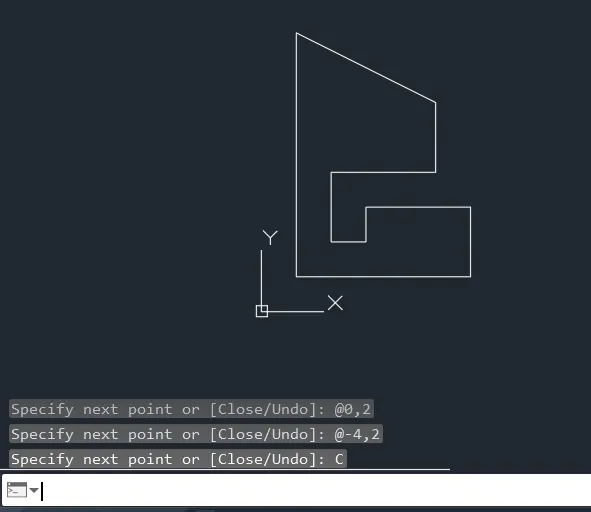

        RESULT :-





       Steps of creating geometry in AutoCAD Software by Relative Polar coordinate :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (1,1).
    2. Type the next coordinate of point 2 @5<0 in the command box.
    3. Type the next coordinate of point 3 @2<90 in the command box.
    4. Type the next coordinate of point 4 @3<180 in the command box.
    5. Type the next coordinate of point 5 @1<270 in the command box.
    6. Type the next coordinate of point 6 @1<180 in the command box.
    7. Type the next coordinate of point 7 @2<90 in the command box.
    8. Type the next coordinate of point 8 @3<0 in the command box.
    9. Type the next coordinate of point 9 @2<90 in the command box.
    10. Type the next coordinate of point 11 @2<90 in the command box.
    11. Type the next coordinate of point 10 @4<180 in the command box.
    12. Cancel the Line command by pressing Enter.
    13. Now use line command "L" and join Point 9 and point 10 and cancel the Line command by pressing Enter. And delete lines joining from point 9 to 11 and point 11 to 10.
    14. Type the command "L'' and specify the start point 10(1,8) and type the next coordinate of point 1 @7<270 in the command box.
    15. Cancel the Line command by pressing Enter.

        RESULT :-







      Steps of creating geometry in AutoCAD Software by Direct Distance Entry :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (1,1).
    2. Type the length 5 in command box to +ve x-axis for point 2.
    3. Type the length 2 in command box to +ve y-axis for point 3.
    4. Type the length 3 in command box to -ve x-axis for point 4.
    5. Type the length 1 in command box to -ve y-axis for point 5.
    6. Type the length 1 in command box to -ve x-axis for point 6.
    7. Type the length 2 in command box to +ve y-axis for point 7.
    8. Type the length 3 in command box to +ve x-axis for point 8.
    9. Type the length 2 in command box to +ve y-axis for point 9.
    10. Type the length 2 in command box to +ve y-axis for point 11 and then type the length 4 in command box to -ve x-axis for point 10.
    11. Cancel the Line command by pressing Enter and again then type Line command "L" and join point 9 and point 10 and then cancel the Line command by pressing Enter.
    12. Delete the lines joining from point 9 to 11 and point 11 to 10.
    13. Type the command "L'' and specify the start point 10(1,8) and type the length 7 in command box to -ve y-axis for point 1.
    14. Cancel the Line command by pressing Enter.

        RESULT :-







    Aim : Create the geometry of given picture in AutoCAD using all the coordinates system methods.





    PROCEDURE :-

    STEP 1 : On opening the AutoCad software, setup the units to Imperial template and decimal system to 0.000.

    STEP 2 : Set the limits in the command tab using "LIM" before drafting.

    Now,

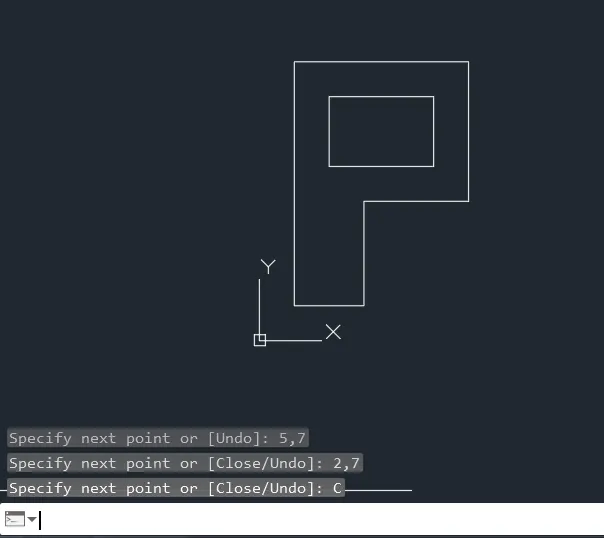

      Steps of creating geometry in AutoCAD Software by Absolute coordinate system :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (1,1).
    2. Type the next coordinate of point 2 (3,1) in the command box.
    3. Type the next coordinate of point 3 (3,4) in the command box.
    4. Type the next coordinate of point 4 (6,4) in the command box.
    5. Type the next coordinate of point 5 (6,8) in the command box.
    6. Type the next coordinate of point 6 (1,8) in the command box.
    7. Click "close" on the command box.
    8. Type the command "L'' for the line and specify the coordinate for point 7 (2,5).
    9. Type the next coordinate of point 8 (5,5) in the command box.
    10. Type the next coordinate of point 9 (5,7) in the command box.
    11. Type the next coordinate of point 10 (2,7) in the command box.
    12. Click "close" on the command box.

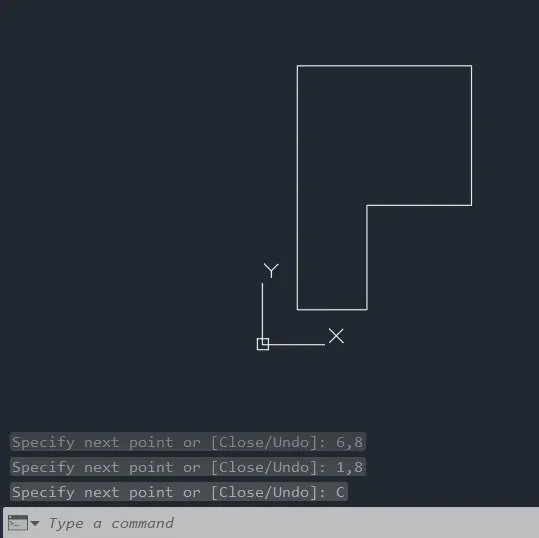

        RESULT :-

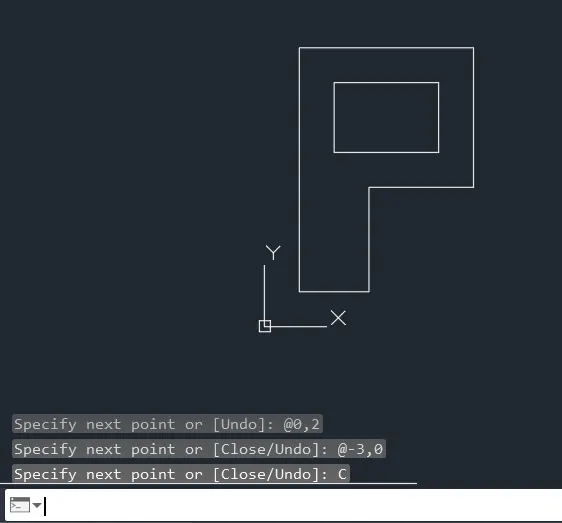

       Steps of creating geometry in AutoCAD Software by Relative Rectangular Coordinate System :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (1,1).
    2. Type the next coordinate of point 2 @2,0 in the command box.
    3. Type the next coordinate of point 3 @0,3 in the command box.
    4. Type the next coordinate of point 4 @3,0 in the command box.
    5. Type the next coordinate of point 5 @0,4 in the command box.
    6. Type the next coordinate of point 6 @-5,0 in the command box.
    7. Click "close" on the command box.
    8. Type the command "L'' for the line and specify the coordinate for point 7 (2,5).
    9. Type the next coordinate of point 8 @3,0 in the command box.
    10. Type the next coordinate of point 9 @0,2 in the command box.
    11. Type the next coordinate of point 10 @-3,0 in the command box.
    12. Click "close" on the command box.

        RESULT :-

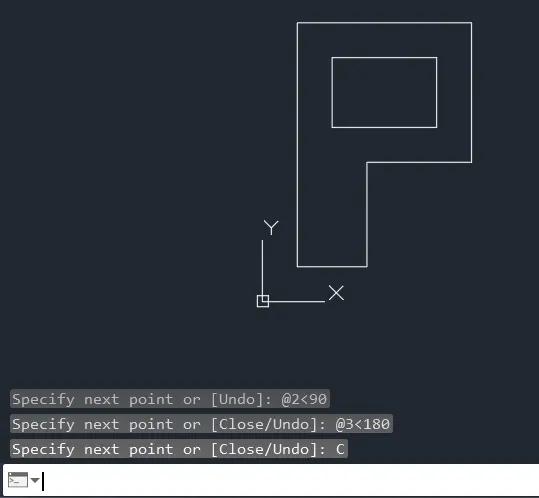

       Steps of creating geometry in AutoCAD Software by Relative Polar coordinate :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (1,1).
    2. Type the next coordinate of point 2 @2<0 in the command box.
    3. Type the next coordinate of point 3 @3<90 in the command box.
    4. Type the next coordinate of point 4 @3<0 in the command box.
    5. Type the next coordinate of point 5 @4<90 in the command box.
    6. Type the next coordinate of point 6 @5<180 in the command box.
    7. Click "close" on the command box.
    8. Type the command "L'' for the line and specify the coordinate for point 7 (2,5).
    9. Type the next coordinate of point 8 @3<0 in the command box.
    10. Type the next coordinate of point 9 @2<90 in the command box.
    11. Type the next coordinate of point 10 @3<180 in the command box.
    12. Click "close" on the command box.

        RESULT :-

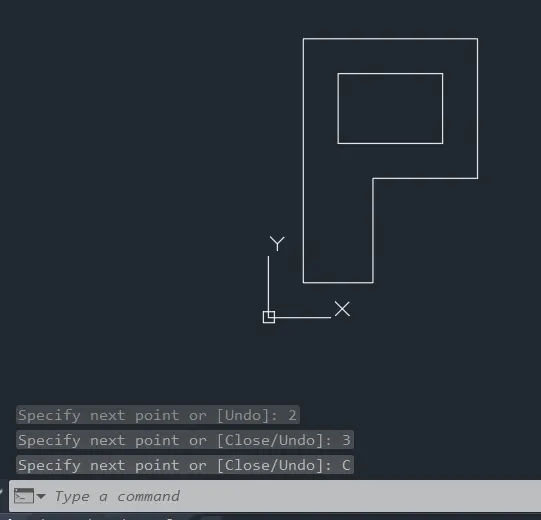

      Steps of creating geometry in AutoCAD Software by Direct Distance Entry :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (1,1).
    2. Type the length 2 in command box to +ve x-axis for point 2.
    3. Type the length 3 in command box to +ve y-axis for point 3.
    4. Type the length 3 in command box to +ve x-axis for point 4.
    5. Type the length 4 in command box to +ve y-axis for point 5.
    6. Type the length 5 in command box to -ve x-axis for point 6.
    7. Click "close" on the command box.
    8. Type the command "L'' for the line and specify the coordinate for point 7 (2,5).
    9. Type the length 3 in command box to +ve x-axis for point 8.
    10. Type the length 2 in command box to +ve y-axis for point 9.
    11. Type the length 3 in command box to -ve x-axis for point 10.
    12. Click "close" on the command box.

        RESULT :-

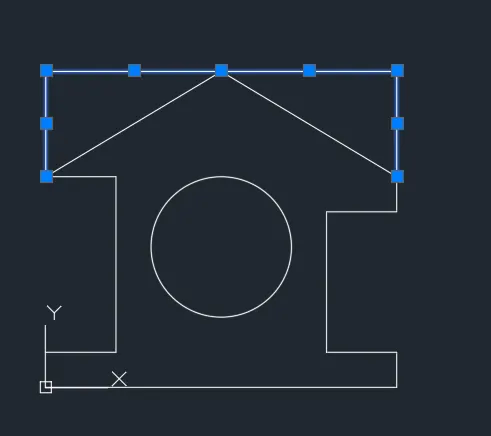

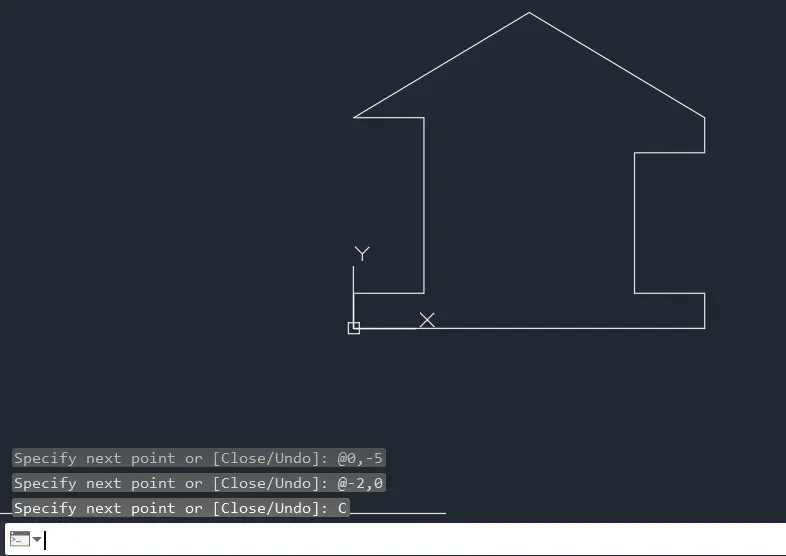

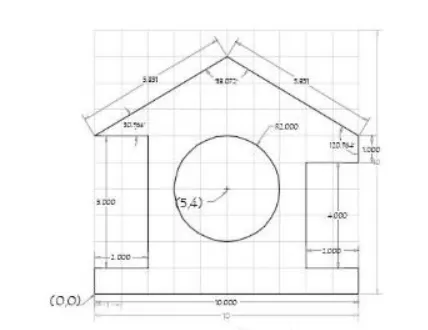

    Aim : Create the geometry of given picture in AutoCAD using all the coordinates system methods.





    PROCEDURE :-

    STEP 1 : On opening the AutoCad software, setup the units to Imperial template and decimal system to 0.000.

    STEP 2 : Set the limits in the command tab using "LIM" before drafting.

    Now,

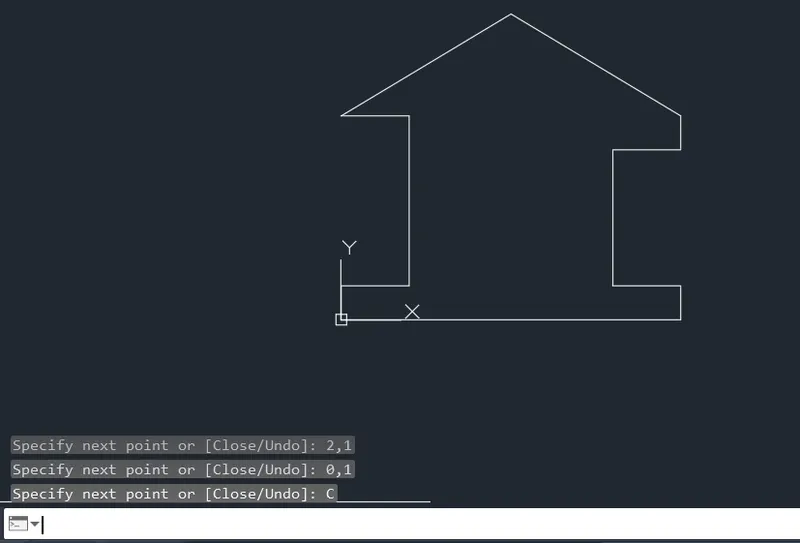

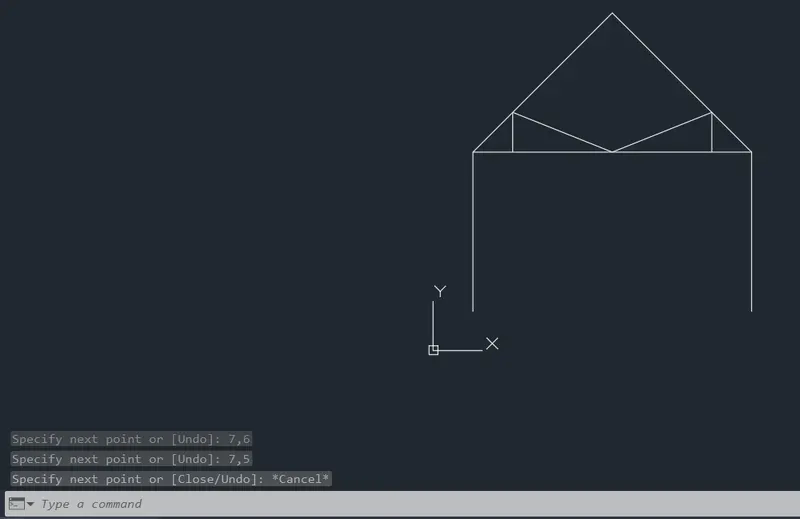

      Steps of creating geometry in AutoCAD Software by Absolute coordinate system :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (0,0).
    2. Type the next coordinate of point 2 (10,0) in the command box.
    3. Type the next coordinate of point 3 (10,1) in the command box.
    4. Type the next coordinate of point 4 (8,1) in the command box.
    5. Type the next coordinate of point 5 (8,5) in the command box.
    6. Type the next coordinate of point 6 (10,5) in the command box.
    7. Type the next coordinate of point 7 (10,6) in the command box.
    8. Type the next coordinate of point 8 (5,9) in the command box.
    9. Type the next coordinate of point 9 (0,6) in the command box.
    10. Type the next coordinate of point 10 (2,6) in the command box.
    11. Type the next coordinate of point 11 (2,1) in the command box.
    12. Type the next coordinate of point 12 (0,1) in the command box.
    13. Click "close" on the command box.
    14. Type the command "C" for the circle and specify the coordinate of center of circle as point 13 (5,4).
    15. Type the Radius 2 in command box and press enter.

        RESULT :-











       Steps of creating geometry in AutoCAD Software by Relative Rectangular Coordinate System :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (0,0).
    2. Type the next coordinate of point 2 @10,0 in the command box.
    3. Type the next coordinate of point 3 @0,1 in the command box.
    4. Type the next coordinate of point 4 @-2,0 in the command box.
    5. Type the next coordinate of point 5 @0,4 in the command box.
    6. Type the next coordinate of point 6 @2,0 in the command box.
    7. Type the next coordinate of point 7 @0,1 in the command box.
    8. Type the next coordinate of point 8 @-5,3 in the command box.
    9. Type the next coordinate of point 9 @-5,-3 in the command box.
    10. Type the next coordinate of point 10 @2,0 in the command box.
    11. Type the next coordinate of point 11 @0,-5 in the command box.
    12. Type the next coordinate of point 12 @-2,0 in the command box.
    13. Click "close" on the command box.
    14. Type the command "C" for the circle and specify the coordinate of center of circle as point 13 (5,4).
    15. Type the Radius 2 in command box and press enter.

        RESULT :-







       Steps of creating geometry in AutoCAD Software by Relative Polar coordinate :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (0,0).
    2. Type the next coordinate of point 2 @10<0 in the command box.
    3. Type the next coordinate of point 3 @1<90 in the command box.
    4. Type the next coordinate of point 4 @2<180 in the command box.
    5. Type the next coordinate of point 5 @4<90 in the command box.
    6. Type the next coordinate of point 6 @2<0 in the command box.
    7. Type the next coordinate of point 7 @1<90 in the command box.
    8. Type the next coordinate of point 14 @3<90 in the command box.
    9. Type the next coordinate of point 8 @5<180 in the command box.
    10. Cancel the command by pressing Enter.
    11. Now use line command "L" and join Point 7 and point 8 and then cancel the commnd by pressing Enter.
    12. Delete lines joining from point 7 to 14 and point 14 to 8.
    13. Type the command "L'' specify the start point 8(5,9) and type the next coordinate of point 15 @5<180 in the command box.
    14. Type the next coordinate of point 9 @3<270 in the command box.
    15. Cancel the command by pressing Enter.
    16. Now use line command "L" and join Point 8 and point 9 and then cancel the commnd by pressing Enter.
    17. Delete lines joining from point 8 to 15 and point 15 to 9.
    18. Type the command "L'' specify the start point 9(0,6) and type the next coordinate of point 10 @2<0 in the command box.
    19. Type the next coordinate of point 11 @5<270 in the command box.
    20. Type the next coordinate of point 12 @2<180 in the command box.
    21. Click "close" on the command box.
    22. Type the command "C" for the circle and specify the coordinate of center of circle as point 13 (5,4).
    23. Type the Radius 2 in command box and press enter.

        RESULT :-







      Steps of creating geometry in AutoCAD Software by Direct Distance Entry :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (0,0).
    2. Type the length 10 in command box to +ve x-axis for point 2.
    3. Type the length 1 in command box to +ve y-axis for point 3.
    4. Type the length 2 in command box to -ve x-axis for point 4.
    5. Type the length 4 in command box to +ve y-axis for point 5.
    6. Type the length 2 in command box to +ve x-axis for point 6.
    7. Type the length 1 in command box to +ve y-axis for point 7.
    8. Type the length 3 in command box to +ve y-axis for point 14 and type the length 5 in command box to -ve x-axis for point 8.
    9. Cancel the command by pressing Enter and again type Line command "L" and then join point 7 and point 8.
    10. Delete the other lines joining point 7 and point 14 and point 14 and point 8.
    11. Type the command "L'' and specify the start point 8(5,9) and type the length 5 in command box to -ve x-axis for point 15 and type the length 3 in command box to -ve y-axis for point 9.
    12. Cancel the command by pressing Enter and again type Line command "L" and then join point 8 and point 9.
    13. Delete the other lines joining point 8 and point 15 and point 15 and point 9.
    14. Type the command "L'' and specify the start point 9(0,6) and then type the length 2 in command box to +ve x-axis for point 10.
    15. Type the length 5 in command box to -ve y-axis for point 11.
    16. Type the length 2 in command box to -ve x-axis for point 12.
    17. Type the length 1 in command box to -ve y-axis for point 1 and cancel the command by pressing Enter.

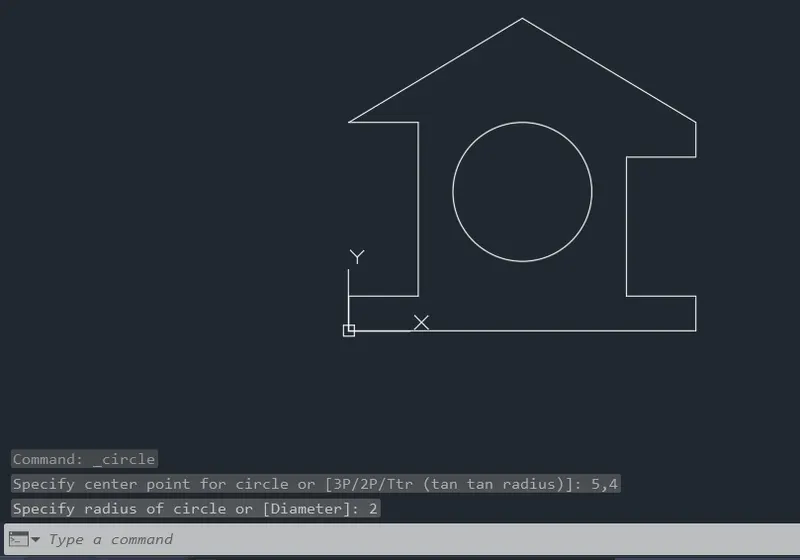

    18. Type the command "C" for the circle and specify the coordinate of center of circle as point 13 (5,4).
    19. Type the Radius 2 in command box and press enter.



        RESULT :-

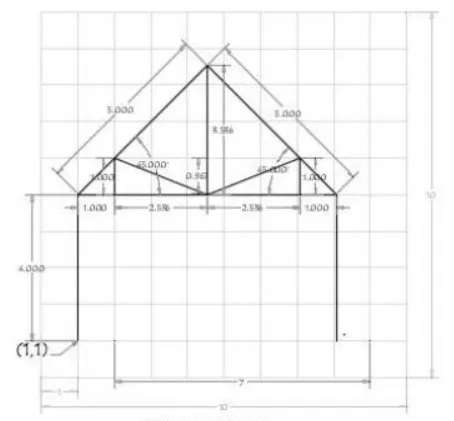

    Aim : Create the geometry of given picture in AutoCAD using all the coordinates system methods.







    PROCEDURE :-

    STEP 1 : On opening the AutoCad software, setup the units to Imperial template and decimal system to 0.000.

    STEP 2 : Set the limits in the command tab using "LIM" before drafting.

    Now,

      Steps of creating geometry in AutoCAD Software by Absolute coordinate system :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (1,1).
    2. Type the next coordinate of point 2 (1,5) in the command box.
    3. Type the next coordinate of point 3 (4.5,8.5) in the command box.
    4. Type the next coordinate of point 4 (8,5) in the command box.
    5. Type the next coordinate of point 5 (8,1) in the command box.
    6. Cancel the command by pressing Enter.
    7. Type the command "L'' for the line and join point 2 and point 4 and then cancel the line command by pressing enter.
    8. Type the command "L'' for the line and type the next coordinate of point 6 (4.5,5) in the command box.
    9. Type the next coordinate of point 7 (2,6) in the command box.
    10. Type the next coordinate of point 8 (2,5) in the command box.
    11. Cancel the command by pressing Enter.
    12. Type the command "L'' for the line and type the next coordinate of point 6 (4.5,5) in the command box.
    13. Type the next coordinate of point 9 (7,6) in the command box.
    14. Type the next coordinate of point 10 (7,5) in the command box.
    15. Cancel the command by pressing Enter.
    16. Type the command "L'' for the line and join point 6 and point 3 and then cancel the line command by pressing enter.



        RESULT :-







       Steps of creating geometry in AutoCAD Software by Relative Rectangular Coordinate System :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (1,1).
    2. Type the next coordinate of point 2 @0,4 in the command box.
    3. Type the next coordinate of point 3 @3.5,3.5 in the command box.
    4. Type the next coordinate of point 4 @3.5,-3.5 in the command box.
    5. Type the next coordinate of point 5 @0,-4 in the command box.
    6. Cancel the Line command by pressing enter.
    7. Type the command "L'' for the line and join point 2 and point 4 and then cancel the line command by pressing enter.
    8. Type the command "L'' for the line and type the next coordinate of point 6@ 4.5,5 in the command box.
    9. Type the next coordinate of point 7 @-2.5,1 in the command box.
    10. Type the next coordinate of point 8 @0,-1 in the command box.
    11. Cancel the Line command by pressing enter.
    12. Type the command "L'' for the line and type the next coordinate of point 6 @4.5,5 in the command box.
    13. Type the next coordinate of point 9 @2.5,1 in the command box.
    14. Type the next coordinate of point 10 @0,-1 in the command box.
    15. Cancel the Line command by pressing enter.
    16. Type the command "L'' for the line and join point 6 and point 3 and then cancel the line command by pressing enter.



        RESULT :-





       Steps of creating geometry in AutoCAD Software by Relative Polar coordinate :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (1,1).
    2. Type the next coordinate of point 2 @4<90 in the command box.
    3. Type the next coordinate of point 3 @5<45 in the command box.
    4. Type the next coordinate of point 4 @5<315 in the command box.
    5. Type the next coordinate of point 5 @4<270 in the command box.
    6. Cancel the Line command by pressing enter.
    7. Type the command "L'' for the line and join point 2 and point 4 and then cancel the line command by pressing enter.
    8. Type the command "L'' for the line and specify the cordinates for point 3 (4.5,8.5).
    9. Type the next coordinate of point 6 @3.5<270 in the command box and then cancel the line command by pressing enter.
    10. Type the command "L'' for the line and specify the cordinates for point 7 (2,6).
    11. Type the next coordinate of point 8 @1<270 in the command box.
    12. Cancel the Line command by pressing enter.
    13. Type the command "L'' for the line and join point 7 and point 6 and then cancel the line command by pressing enter.
    14. Type the command "L'' for the line and specify the cordinates for point 9 (7,6).
    15. Type the next coordinate of point 10 @1<270 in the command box.
    16. Cancel the Line by pressing enter.
    17. Type the command "L'' for the line and join point 9 and point 6 and then cancel the line command by pressing enter.



        RESULT :-

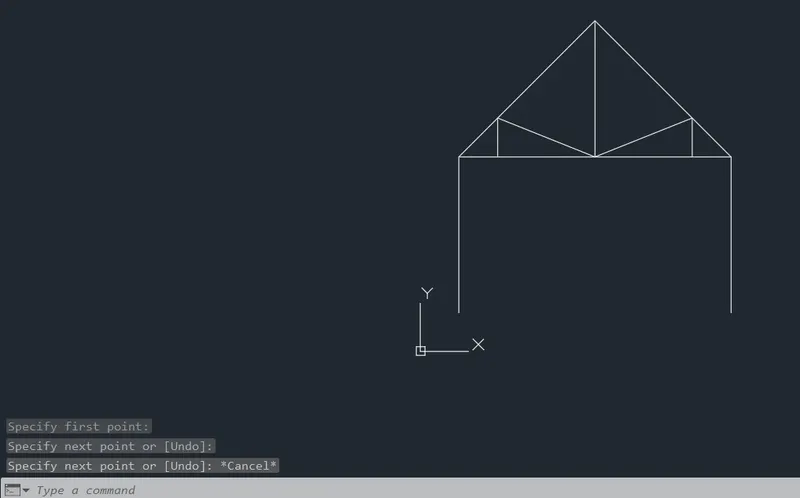

      Steps of creating geometry in AutoCAD Software by Direct Distance Entry :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (1,1).
    2. Type the length 4 in command box to +ve y-axis for point 2.
    3. Type the length 7 in command box to +ve x-axis for point 4.
    4. Type the length 4 in command box to -ve y-axis for point 5.
    5. Cancel the line command by pressing enter.
    6. Type the command "L'' for the line and specify the coordinate for point 6 (4.5,5).
    7. Type the length 3.5 in command box to +ve y-axis for point 3.
    8. Cancel the command by pressing enter and again type Line command "L" and then join point 3 and point 2.
    9. Cancel the command by pressing enter and again type Line command "L" and then join point 3 and point 4 and press enter.
    10. Type the command "L'' for the line and specify the coordinate for point 7 (2,6).
    11. Type the length 1 in command box to -ve y-axis for point 8 and press enter.
    12. Type the command "L'' for the line and specify the coordinate for point 9 (7,6).
    13. Type the length 1 in command box to -ve y-axis for point 10 and press enter.
    14. Type Line command "L" and then join point 6 and point 7 and press enter.
    15. Type Line command "L" and then join point 6 and point 9 and press enter.



        RESULT :-

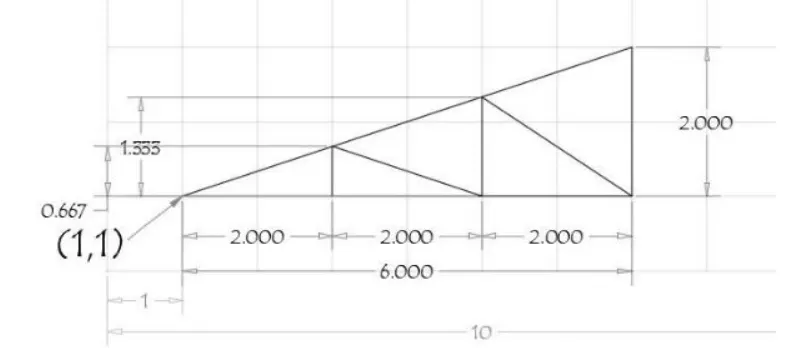

    Aim : Create the geometry of given picture in AutoCAD using all the coordinates system methods.







    PROCEDURE :-

    STEP 1 : On opening the AutoCad software, setup the units to Imperial template and decimal system to 0.000.

    STEP 2 : Set the limits in the command tab using "LIM" before drafting.

    Now,

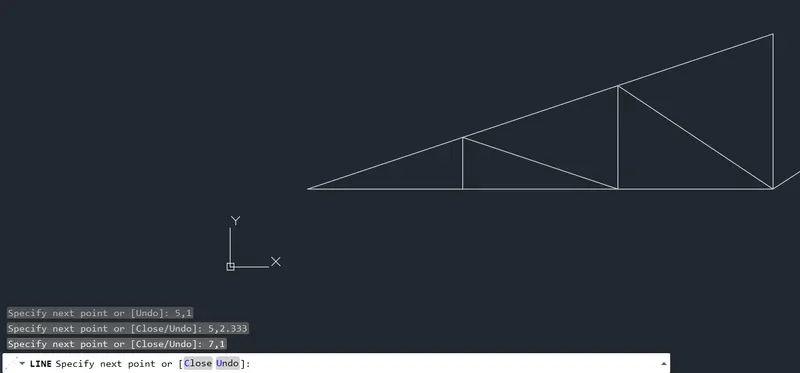

      Steps of creating geometry in AutoCAD Software by Absolute coordinate system :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (1,1).
    2. Type the next coordinate of point 2 (7,1) in the command box.
    3. Type the next coordinate of point 3 (7,3) in the command box and then click "close" on the command box.
    4. Cancel the line command by pressing enter.
    5. Type the command "L'' for the line and specify the coordinate for point 4 (3,1).
    6. Type the next coordinate of point 6 (3,1.667) in the command box.
    7. Type the next coordinate of point 5 (5,1) in the command box.
    8. Type the next coordinate of point 7 (5,2.333) in the command box and cancel the line command by pressing enter.
    9. Type the command "L'' for the line and join point 7 and point 2 and press enter.



      RESULT :-

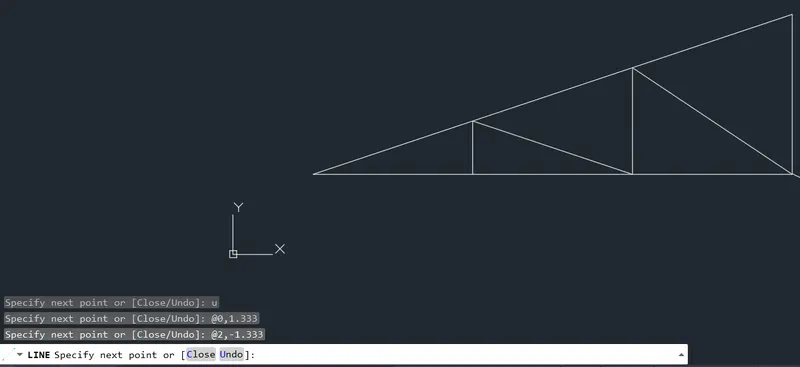

       Steps of creating geometry in AutoCAD Software by Relative Rectangular Coordinate System :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (1,1).
    2. Type the next coordinate of point 2 @6,0 in the command box.
    3. Type the next coordinate of point 3 @0,2 in the command box.
    4. Click "close" on the command box and cancel the line command by pressing enter.
    5. Type the command "L'' for the line and specify the coordinate for point 4 (3,1).
    6. Type the next coordinate of point 6 @0,0.667 in the command box.
    7. Type the next coordinate of point 5 @2,-0.667 in the command box.
    8. Type the next coordinate of point 7 @0,1.333 in the command box and cancel the line command by pressing enter.
    9. Type the command "L'' for the line and join point 7 and point 2 and press enter.

      RESULT :-

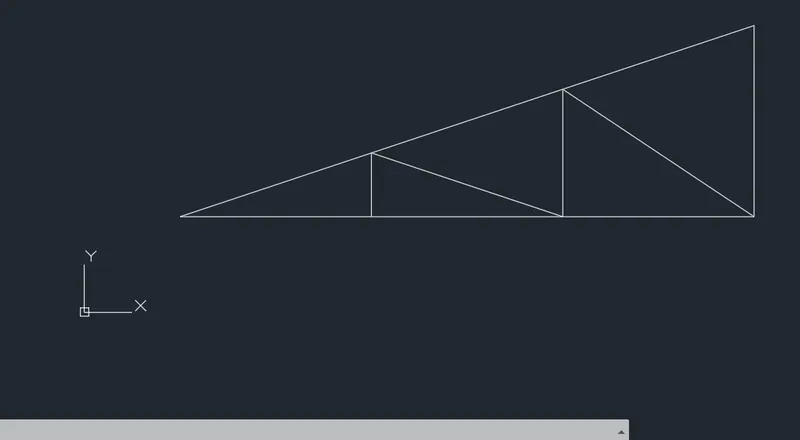

       Steps of creating geometry in AutoCAD Software by Relative Polar coordinate :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (1,1).
    2. Type the next coordinate of point 2 @6<0 in the command box.
    3. Type the next coordinate of point 3 @2<90 in the command box.
    4. Click "close" on the command box and cancel the line command by pressing enter.
    5. Type the command "L'' for the line and specify the coordinate for point 4 (3,1).
    6. Type the next coordinate of point 6 @0.667<90 in the command box and cancel the line command by pressing enter.
    7. Type the command "L'' for the line and specify the coordinate for point 5 (5,1).
    8. Type the next coordinate of point 7 @1.333<90 in the command box and cancel the line command by pressing enter.
    9. Type the command "L'' for the line and join point 6 and point 5 and press enter.
    10. Type the command "L'' for the line and join point 7 and point 2 and press enter.



     RESULT :-





      Steps of creating geometry in AutoCAD Software by Direct Distance Entry :-

    1. Type the command "L'' for the line and specify the coordinate for Starting point 1 (1,1).
    2. Type the length 6 in command box to +ve x-axis for point 2.
    3. Type the length 2 in command box to +ve y-axis for point 3.
    4. Click "close" on the command box and cancel the line command by pressing enter.
    5. Type the command "L'' for the line and specify the coordinate for point 4 (3,1).
    6. Type the length 0.667 in command box to +ve y-axis for point 6 and cancel the line command by pressing enter.
    7. Type the command "L'' for the line and specify the coordinate for point 5 (5,1).
    8. Type the length 1.333 in command box to +ve y-axis for point 7 and cancel the line command by pressing enter.
    9. Type the command "L'' for the line and join point 6 and point 5 and press enter.
    10. Type the command "L'' for the line and join point 7 and point 2 and press enter.

        RESULT :-







    Leave a comment

    Thanks for choosing to leave a comment. Please keep in mind that all the comments are moderated as per our comment policy, and your email will not be published for privacy reasons. Please leave a personal & meaningful conversation.

    Please  login to add a comment

    Other comments...

    No comments yet!
    Be the first to add a comment

    Read more Projects by Gaurav Pant (32)

    Projefct 1_Comparative study of different storey buildings for Seismic forces

    Objective:

        AIM :- To model 10 different buildings on ETABS with given structural properties and names as provided in the below picture.                                        To compare fundamental natural periods…

    calendar

    24 Dec 2021 07:31 AM IST

    • Buildings
    • ETABS
    Read more

    Modelling of 25 storey building with the specified properties using ETABS

    Objective:

        AIM :- To model a 25 storey building on ETABS with given structural properties. To check if the translational fundamental natural period of vibration in both the x and y direction is approximate, Tx1 = 4.4 seconds Ty1 = 4.2 seconds. To check if the provision in Table 5 of IS 1893 (part 1) –…

    calendar

    19 Dec 2021 05:46 AM IST

    • Buildings
    • ETABS
    Read more

    Conceptual design of a building with columns and shear walls

    Objective:

        Answer 1 :-   Given :- The building shown, 20 Ă— 35 m in the plan, has columns on a 5 Ă— 5 m grid and shear walls (with dimensions shown in m, 250 mm in thickness) in three alternative arrangements (A), (B), (C), all with the same total cross-sectional area of the shear walls.     AIM :-…

    calendar

    21 Nov 2021 08:27 PM IST

      Read more

      Concept on positioning of Columns

      Objective:

          Question 1 :- Comment on the layout of the framing plan concerning earthquake resistance in the two horizontal directions X or Y (dots are columns, lines depict beams). Look into aspects of symmetry, redundancy and bi-directional stiffness and ductility.                â€¦

      calendar

      15 Nov 2021 11:09 AM IST

        Read more

        Schedule a counselling session

        Please enter your name
        Please enter a valid email
        Please enter a valid number

        Related Courses

        coursecard

        Design loads considered on bridges

        Recently launched

        10 Hours of Content

        coursecard

        Design of Steel Superstructure in Bridges

        Recently launched

        16 Hours of Content

        coursecard

        Design for Manufacturability (DFM)

        Recently launched

        11 Hours of Content

        coursecard

        CATIA for Medical Product Design

        Recently launched

        5 Hours of Content

        coursecardcoursetype

        Accelerated Career Program in Embedded Systems (On-Campus) Courseware Partner: IT-ITes SSC nasscom

        Recently launched

        0 Hours of Content

        Schedule a counselling session

        Please enter your name
        Please enter a valid email
        Please enter a valid number

        logo

        Skill-Lync offers industry relevant advanced engineering courses for engineering students by partnering with industry experts.

        https://d27yxarlh48w6q.cloudfront.net/web/v1/images/facebook.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/insta.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/twitter.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/youtube.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/linkedin.svg

        Our Company

        News & EventsBlogCareersGrievance RedressalSkill-Lync ReviewsTermsPrivacy PolicyBecome an Affiliate
        map
        EpowerX Learning Technologies Pvt Ltd.
        4th Floor, BLOCK-B, Velachery - Tambaram Main Rd, Ram Nagar South, Madipakkam, Chennai, Tamil Nadu 600042.
        mail
        info@skill-lync.com
        mail
        ITgrievance@skill-lync.com

        Top Individual Courses

        Computational Combustion Using Python and CanteraIntroduction to Physical Modeling using SimscapeIntroduction to Structural Analysis using ANSYS WorkbenchIntroduction to Structural Analysis using ANSYS Workbench

        Top PG Programs

        Post Graduate Program in Hybrid Electric Vehicle Design and AnalysisPost Graduate Program in Computational Fluid DynamicsPost Graduate Program in CADPost Graduate Program in Electric Vehicle Design & Development

        Skill-Lync Plus

        Executive Program in Electric Vehicle Embedded SoftwareExecutive Program in Electric Vehicle DesignExecutive Program in Cybersecurity

        Trending Blogs

        Heat Transfer Principles in Energy-Efficient Refrigerators and Air Conditioners Advanced Modeling and Result Visualization in Simscape Exploring Simulink and Library Browser in Simscape Advanced Simulink Tools and Libraries in SimscapeExploring Simulink Basics in Simscape

        © 2025 Skill-Lync Inc. All Rights Reserved.

                    Do You Want To Showcase Your Technical Skills?
                    Sign-Up for our projects.
