Creation of Column Schedule and Drawing Template using AutoCad

 AIM : To Create some Schedules and Beam section view.

 INTRODUCTION :

 Schedule tables :-

• Schedule tables can contain information from external references and block references, which typically must exist in the same drawing as the schedule table.
• Schedule tables optionally specify an external drawing, which is scheduled as if it were an external reference in the same drawing as the table.
• The advantage to this is that the graphics of the external drawing do not need to be generated in order to fill out the data in the table.

  Annotation :-

• Annotations are basically notes or other types of explanatory objects (or symbols) that are commonly used to add information to a drawing.
• Typically, annotation objects are scaled differently than the views of the drawing and depend on the scale of how they should appear when plotted.
• One can control the method that an annotation object is scaled by defining the object either as non-annotative or annotative.
• Non-annotative objects require a fixed size or scale that is calculated based on the scale used to plot the drawing.
• Annotative objects automatically adjust to display uniformly at the same size or scale regardless of the scale of the view.

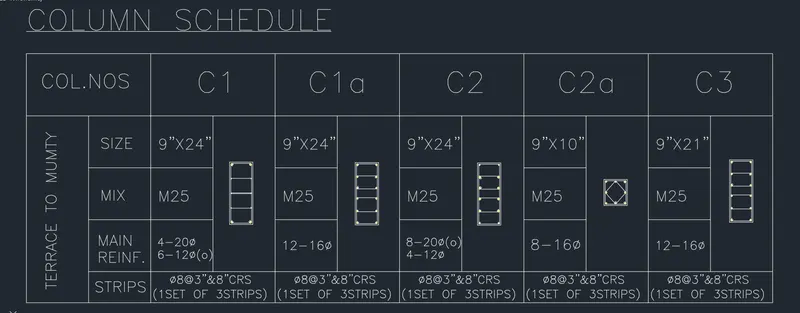

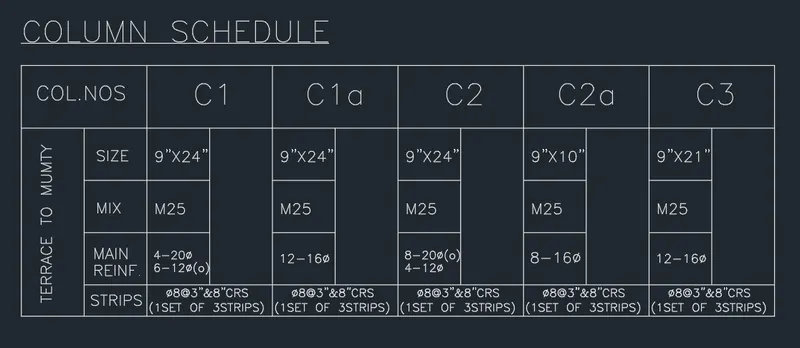

 Aim : To create a column schedule as given in the figure using AutoCAD

 Procedure :-

 Step 1 :- Creating the table

• Type "REC' in command box to create a rectangle and press enter.
• Click on dimensions in command box and specify the length of rectangle as 60' and width of rectangle as 20'.
• Type "EXPLODE" in the command box and press enter.
• Select the rectangle and press enter. Press "esc".
• Type "O" for offset command and press enter.
• Specify the offset distance as 5' and press enter.
• Make the 12 columns inside the rectnagle with the offset of 5' to each.
• Type "O" for offset command and press enter.
• Specify the offset distance as 4'-6" and press enter.
• Select the top horizontal line of rectangle and make the offset inside the rectangle.
• Type "O" for offset command and press enter.
• Specify the offset distance as 3'-6" and press enter.
• Select the bottom horizontal line of rectangle and make the offset inside the rectangle.
• Type "TR" in the command box for trim command trim.
• Now trim the extra and unwanted lines.

 Step 2 :- Entering the text

• Type "ST" for text style and set font style as "roman".
• Now type the command "DT".
• Take the height of the text as 8" and angle of the text as "0".
• Now make the heading as column schedule.
• Now copy the heading by the command "CO".
• Next rotate it by rotate command "RO" at an angle of 90 and edit the heading as "TERRCE TO MUMTY".
• Now to change the text style take the command "ST' select the font name as "shx".
• Then copy the text created and edit the schedule table with required text.

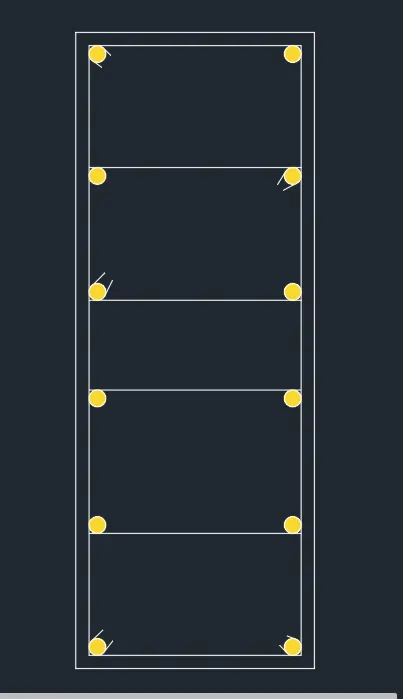

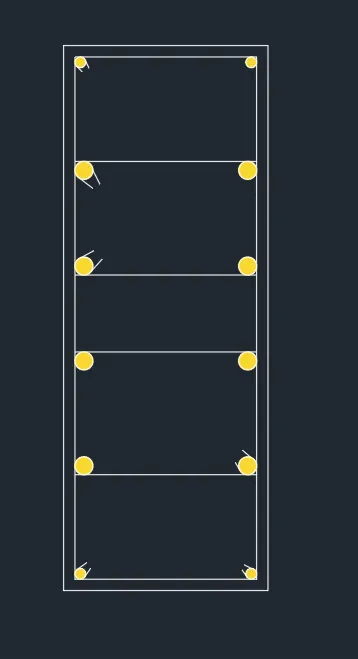

 Step 3 :- Drawing of column section C1

• Type "REC' in command box to create a rectangle and press enter.
• Click on dimensions in command box and specify the length of rectangle as 9" and width of rectangle as 24".
• Type "EXPLODE" in the command box and press enter.
• Select the rectangle and press enter. Press "esc".
• Type "O" for offset command and press enter.
• Specify the offset distance as 40mm or 0.5" and press enter.
• Select rectangle and make the offset inward.
• Type "C" for circle and press enter and select tangent, tangent, radius from command box and mark the first and second tangents as top and side line of column and make a circle of radius 10mm or 0.3937".
• Next use mirror command and make the same circle copy to each corners of rectangle.
• Type "F" for fillet command and give the radius 0.2". And fillet all vertices of inner rectangle.
• Now take the command "div" and give the segment value 4 and select vertical line.
• Type "L" for line command and press enter.
• Make lines at each segment point parallel to the length of rectangle.
• Next type "C" for circle in command box and make bar of 12mm or 0.4724" dia and place at the upper line drawn.
• Use the mirror command and mirror it in all sides as per the question.
• Now type "HATCH" for the hatch command and take the solid hatch and hatch all the reinforcement bars.
• Give hatch colour of choice.
• To make the hooks, mark the line right and left side of the bar and trim it and then place it at by rotating at required angle.

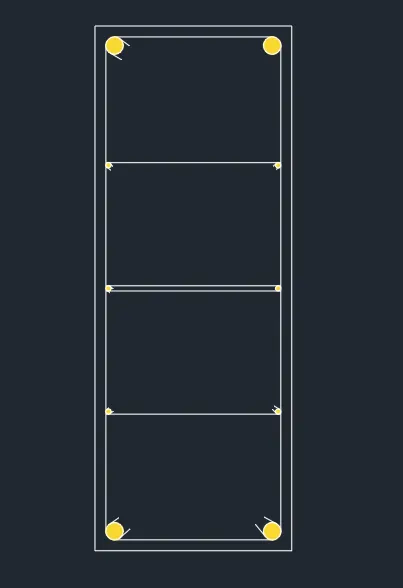

 Step 4 :- Drawing of column section C1a

• Type "REC' in command box to create a rectangle and press enter.
• Click on dimensions in command box and specify the length of rectangle as 9" and width of rectangle as 24".
• Type "EXPLODE" in the command box and press enter.
• Select the rectangle and press enter. Press "esc".
• Type "O" for offset command and press enter.
• Specify the offset distance as 40mm or 0.5" and press enter.
• Select rectangle and make the offset inward.
• Type "C" for circle and press enter and select tangent, tangent, radius from command box and mark the first and second tangents as top and side line of column and make a circle of radius 8mm or 0.315".
• Next use mirror command and make the same circle copy to each corners of rectangle.
• Type "F" for fillet command and give the radius 0.2". And fillet all vertices of inner rectangle.
• Now take the command "div" and give the segment value 5 and select vertical line.
• Type "L" for line command and press enter.
• Make lines at each segment point parallel to the length of rectangle.
• Next type "C" for circle in command box and make bar of 8mm or 0.315" dia and place at the upper line drawn.
• Use the mirror command and mirror it in all sides as per the question.
• Now type "HATCH" for the hatch command and take the solid hatch and hatch all the reinforcement bars.
• Give hatch colour of choice.
• To make the hooks, mark the line right and left side of the bar and trim it and then place it at by rotating at required angle.

 Step 5 :- Drawing of column section C2

• Type "REC' in command box to create a rectangle and press enter.
• Click on dimensions in command box and specify the length of rectangle as 9" and width of rectangle as 24".
• Type "EXPLODE" in the command box and press enter.
• Select the rectangle and press enter. Press "esc".
• Type "O" for offset command and press enter.
• Specify the offset distance as 40mm or 0.5" and press enter.
• Select rectangle and make the offset inward.
• Type "C" for circle and press enter and select tangent, tangent, radius from command box and mark the first and second tangents as top and side line of column and make a circle of radius 6mm or 0.2362".
• Next use mirror command and make the same circle copy to each corners of rectangle.
• Type "F" for fillet command and give the radius 0.2". And fillet all vertices of inner rectangle.
• Now take the command "div" and give the segment value 5 and select vertical line.
• Type "L" for line command and press enter.
• Make lines at each segment point parallel to the length of rectangle.
• Next type "C" for circle in command box and make bar of 20mm or 0.787402" dia and place at the upper line drawn.
• Use the mirror command and mirror it in all sides as per the question.
• Now type "HATCH" for the hatch command and take the solid hatch and hatch all the reinforcement bars.
• Give hatch colour of choice.
• To make the hooks, mark the line right and left side of the bar and trim it and then place it at by rotating at required angle.

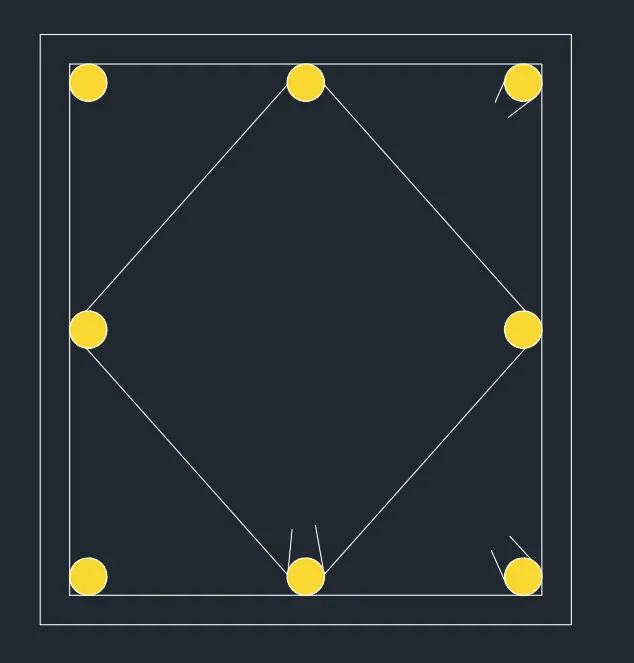

 Step 5 :- Drawing of column section C2a

• Type "REC' in command box to create a rectangle and press enter.
• Click on dimensions in command box and specify the length of rectangle as 9" and width of rectangle as 10".
• Type "EXPLODE" in the command box and press enter.
• Select the rectangle and press enter. Press "esc".
• Type "O" for offset command and press enter.
• Specify the offset distance as 40mm or 0.5" and press enter.
• Select rectangle and make the offset inward.
• Type "C" for circle and press enter and select tangent, tangent, radius from command box and mark the first and second tangents as top and side line of column and make a circle of radius 8mm or 0.315".
• Next use mirror command and make the same circle copy to each corners of rectangle.
• Type "F" for fillet command and give the radius 0.2". And fillet all vertices of inner rectangle.
• Type "L" for line command and press enter.
• Make a rhombus by Joining the center points of egdes of rectangle.
• Next type "C" for circle in command box and make circle of 20mm or 0.787402" at each vertices of rhombus.
• Now type "HATCH" for the hatch command and take the solid hatch and hatch all the reinforcement bars.
• Give hatch colour of choice.
• To make the hooks, mark the line right and left side of the bar and trim it and then place it at by rotating at required angle.

 Step 5 :- Drawing of column section C3

• Type "REC' in command box to create a rectangle and press enter.
• Click on dimensions in command box and specify the length of rectangle as 9" and width of rectangle as 21".
• Type "EXPLODE" in the command box and press enter.
• Select the rectangle and press enter. Press "esc".
• Type "O" for offset command and press enter.
• Specify the offset distance as 40mm or 0.5" and press enter.
• Select rectangle and make the offset inward.
• Type "C" for circle and press enter and select tangent, tangent, radius from command box and mark the first and second tangents as top and side line of column and make a circle of radius 8mm or 0.315".
• Next use mirror command and make the same circle copy to each corners of rectangle.
• Type "F" for fillet command and give the radius 0.2". And fillet all vertices of inner rectangle.
• Now take the command "div" and give the segment value 5 and select vertical line.
• Type "L" for line command and press enter.
• Make lines at each segment point parallel to the length of rectangle.
• Next type "C" for circle in command box and make bar of 8mm or 0.315" dia and place at the upper line drawn.
• Use the mirror command and mirror it in all sides as per the question.
• Now type "HATCH" for the hatch command and take the solid hatch and hatch all the reinforcement bars.
• Give hatch colour of choice.
• To make the hooks, mark the line right and left side of the bar and trim it and then place it at by rotating at required angle.

 Step 6 :-

• Type "MOVE" for move command and press enter.
• Put each section of column in the column schedule table.

 RESULT :-

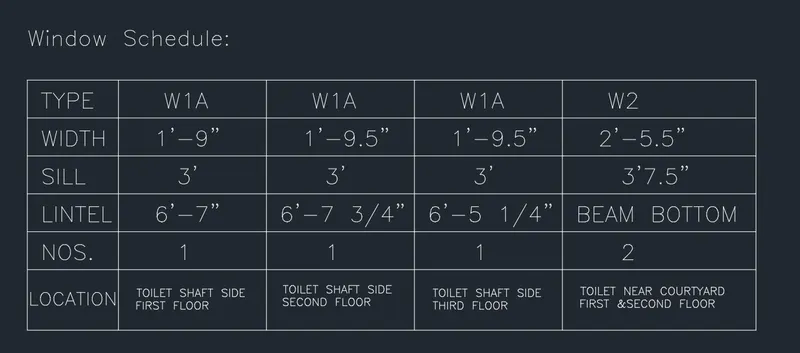

 Aim : To create a window schedule as given in the figure using AutoCAD

 Procedure :-

 Step 1 :- Creating the table

• Type "REC' in command box to create a rectangle and press enter.
• Click on dimensions in command box and specify the length of rectangle as 30' and width of rectangle as 12'.
• Type "EXPLODE" in the command box and press enter.
• Select the rectangle and press enter. Press "esc".
• Type "O" for offset command and press enter.
• Specify the offset distance as 6' and press enter.
• Make the 5 columns inside the rectnagle with the offset of 6' to each.
• Type "O" for offset command and press enter.
• Specify the offset distance as 2' and press enter.
• Select the top horizontal line of rectangle and make 5 row by taking offset inside the rectangle.

 Step 2 :- Entering the text

• Type "ST" for text style and set font style as "roman".
• Now type the command "DT".
• Take the height of the text as 8" and angle of the text as "0".
• Now make the heading as window schedule.
• Copy the text created and edit the schedule table with required text.

 RESULT :-

 Aim : To create a drawing template as given in the figure using AutoCAD

 Procedure :-

 Step 1 :- Creating the table

• Type "REC' in command box to create a rectangle and press enter.
• Click on dimensions in command box and specify the length of rectangle as 80' and width of rectangle as 10'.
• Type "EXPLODE" in the command box and press enter.
• Select the rectangle and press enter. Press "esc".
• Type "O" for offset command and press enter.
• Specify the offset distance as 30' and press enter.
• Make first column inside the rectnagle with the offset of 30' from left vertical edge.
• Type "O" for offset command and press enter.
• Specify the offset distance as 20' and press enter.
• Select the last offseted line and make another column by taking offset inside the rectangle.
• Type "breakpoint" in command box and breake the above horizontal line in two part from first offseted line.
• Type "O" for offset command and press enter.
• Specify the offset distance as 2' and press enter.
• Make two row of 2nd and 3rd column by taking offset.
• Now by using offset command prepare the 3rd column of the table as per the question.

 Step 2 :- Entering the text

• Type "ST" for text style and set font style as "roman".
• Now type the command "DT".
• Take the height of the text as 8" and angle of the text as "0".
• Now make the heading as window schedule.
• Copy the text created and edit the schedule table with required text.

 RESULT :-

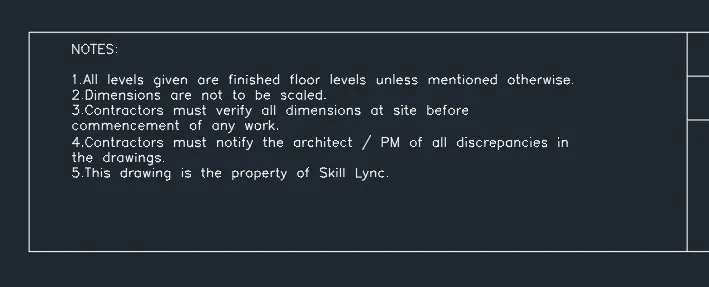

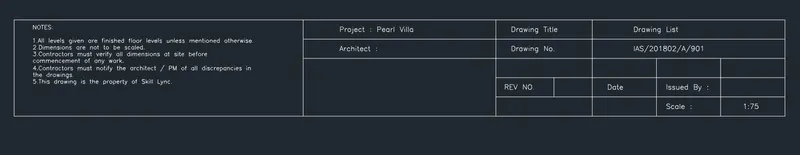

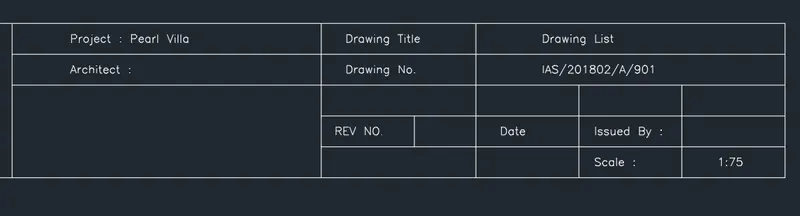

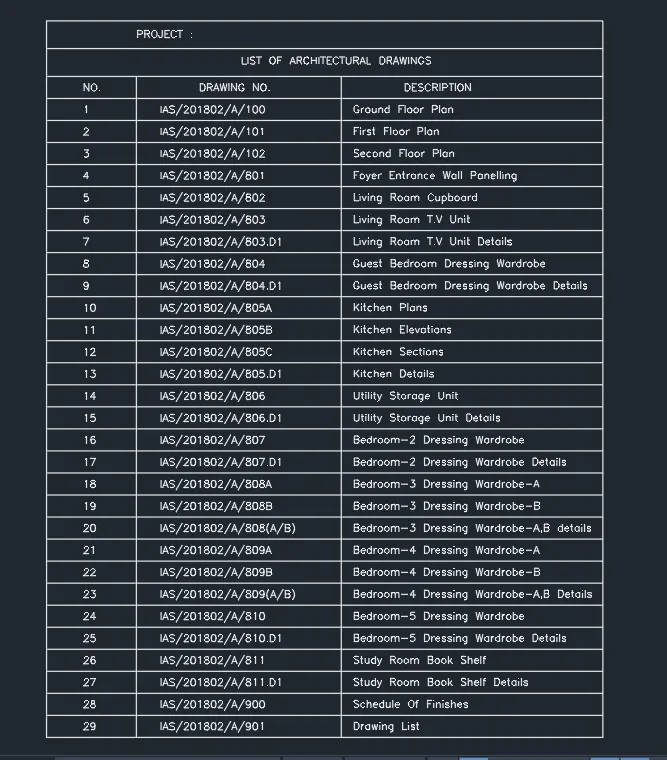

 Aim : To create a drawing template as given in the figure using AutoCAD

 Procedure :-

 Step 1 :- Creating the table

• Type "TABLE" in command box and press enter.
• Specify 29 Rows of table.
• Specify 3 columns of table.
• Specify 2 Rows of for tittle.
• Specify 1 Row of table with data.
• Click OK.
• Now select the table by clicking on it.
• Right click and select properties.
• Change the dimensions of the table as per the requirement.

 Step 2 :- Entering the text

• Type "ST" for text style and set font style as "roman".
• Now type the command "DT".
• Take the height of the text as 8" and angle of the text as "0".
• Now make the heading as window schedule.
• Copy the text created and edit the schedule table with required text.

 RESULT :-

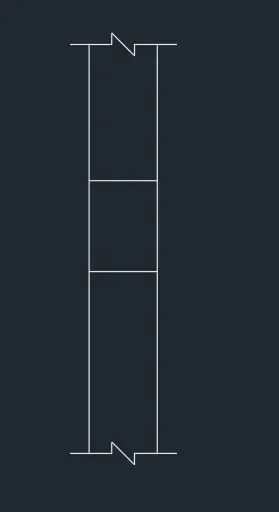

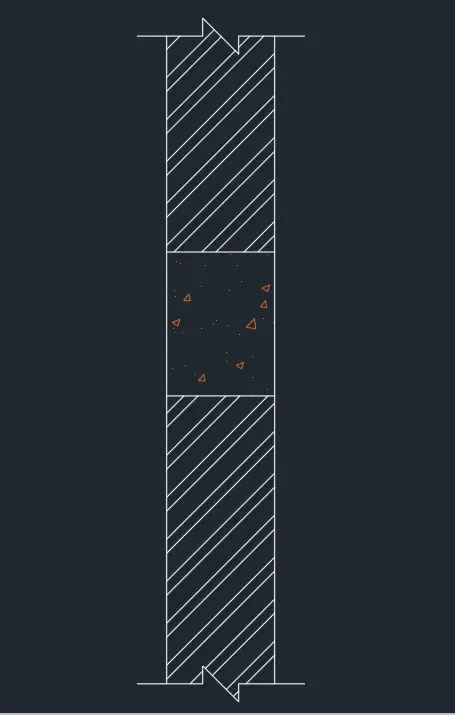

 Aim : To create a beam detail as given in the figure using AutoCAD

 Procedure :-

 Step 1 :-

• Type "REC' in command box to create a rectangle and press enter.
• Click on dimensions in command box and specify the length of rectangle as 9" and width of rectangle as 4".
• Type "EXPLODE" in the command box and press enter.
• Select the rectangle and press enter. Press "esc".
• Type "O" for offset command and press enter.
• Specify the offset distance as 2' and press enter.
• Select the bottom side of the rectangle and make the offset of side inside the rectangle.
• Type "O" for offset command and press enter.
• Specify the offset distance as 1' and press enter.
• Select the offsetted side of the rectangle and make the offset of side inside the rectangle.
• Create the cross-section symbol given in the question and erase the previous line.

 Step 2 :-

• Type "HATCH" in the command box and press enter.
• Select the hatch pattern of AR-CONCRETE and pick the internal point as center box formed.
• Change the Hatch-Scale as per requirement.
• Type "HATCH" in the command box and press enter.
• Select the hatch pattern of ANS132 and pick the internal point as top and bottom box.

 Step 3 :-

• Type "ST" for text style and set font style as "roman".
• Now type the command "DT".
• Take the height of the text as 8" and angle of the text as "0".
• Go to the annotation bar and click on add leader.
• Then type the Text as given in the question.

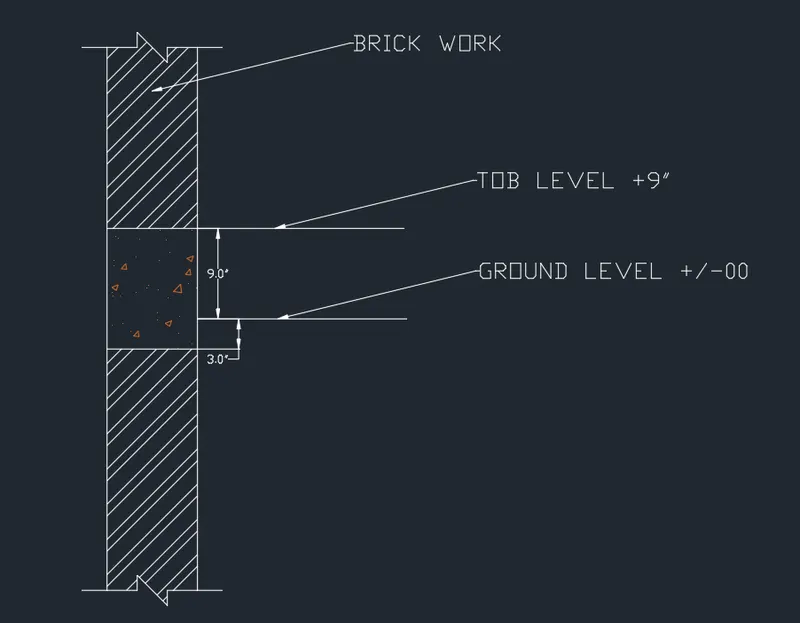

 RESULT :-
