Creating Levels, Grids, Layout and model elements for a residential unit using REVIT



  Question 1 :- What is BIM? Summarize the features of BIM and benefits of using BIM over 2D CAD tools.

  Answer :-

  BIM :-

• BIM is an acronym for Building Information Modeling or Building Information Management.
• It is a highly collaborative process that allows architects, engineers, real estate developers, contractors, manufacturers and other construction professionals to plan, design and construct a structure or building within one 3D model.

  Features of BIM :-

   1) Coordination Feature :-

• The Revit as BIM tool helps in coordination between multiple disciplines.
• The different disciplines can come together and work on a single project as well as they have their independent design unit.
• They can coordinate in achieving progress in a project as a whole unit so the Revit offers this coordination which is a key feature in Building Information Modeling.

   2) Computation Feature :-

• The Revit as BIM tool helps in performing computation such as material schedule or quantity schedule or to evaluate the energy analysis.

  Levels in BIM :-

• Different levels of BIM can be achieved for various types of projects.
• Each level represents a different set of criteria that demonstrates a particular level of 'maturity'.
• BIM levels start with 0 and go to 4D, 5D,and even 6D BIM.
• The purpose of these levels is to gauge how effectively or how much information is being shared and managed throughout the entire process.

1. Level 0 BIM : Paper-based drawings + zero collaboration.
2. Level 1 BIM : 2D construction drawings + some 3D modeling.
3. Level 2 BIM : Teams work in their own 3D models.
4. Level 3 BIM : Teams work with a shared 3D model.
5. Levels 4, 5 and 6 BIM : Adding in scheduling, cost,& sustainability information.

  Difference between 2D CAD and BIM :-

• Basically, while using CAD for building design, user focus on creating drawings. But using BIM, user focus on creating a building model and then the drawings can be generated from the model. This saves time because you really do not have to draw anything twice.
• With CAD, user typically draw floor plans and then sections. But with BIM, you create the elements in one view and they appear in all views in which their visibility is turned on.
• Additionally, when it comes to documenting your design with tags and schedules, the parameters that are programmed into the elements can easily be used. This saves time when it comes to updating building components and it cuts down on errors since a component will not be tagged differently in two views.
• In BIM, the dimensions that comprise an object are interconnected. Therefore, any adjustment that needs to be made in a building design, such as the width of a wall or corridor can be done in a single edit.
• The great efficiency of using a BIM software means that the designer can concentrate more on the creativity aspects of a project without having to constantly worry about updating a multitude of line entities throughout the entire project. This translates into an incredible increase in productivity because each object, chosen from a BIM objects menu, already comes with a set of pre-defined information that can provide useful data for calculating project cost, thermal performance aspects, maintenance, structural,etc. It saves a lot of time.



  Question 2 :- Understand the concept of Categories, Families, Elements, Instances in Revit. Go to Insert Tab, choose a category. Pick a family and element. Understand the instances and insert it to Revit model.

  Answer :-

  Category :-

• A Category controls the organization, visibility, graphical representations, and scheduling options of Families within the Project.

  Family :-

• A Family is a grouping of 20 and/or 30 information that serves to represent a discrete building or documentation element in the Project.
• It defines parametric, graphical and documentation requirements.

• There are three kinds of Revit Families :-

   A) System :-

• These are the families that are pre-defined families specific to a Revit Project.
• Their parametric, graphical and documentation requirements already exist.
• They can not be created in, deleted from,loaded into or saved out of the current project.

   B) Loadable :-

• These are the families that are user-defined families built in an editing mode called the Family Editor using family templates.
• Their parametric, graphical and documentation requirements can be defined from scratch.
• They can be created and loaded into a project as well as deleted or saved from a project.

   C) In-Place :-

• These are the families that are user-defined families created to represent a one-of-a-kind element unique to the project.
• Like System Families, they cannot be loaded into or saved out of a project but, they can be created within the context of the project using familiar Family Editor tools.

  Type :-

• A Type is a specific representation in a Family defined by distinct parametric, graphical and documentation characteristics which makes it unique from other Types in the Family.

  Instance :-

• An Instance is an individual representation of a Type in the Project, defined by unique parametric, graphical and documentation characteristics which makes it unique from other Instances in the Project.

  Creating Family in Revit :-

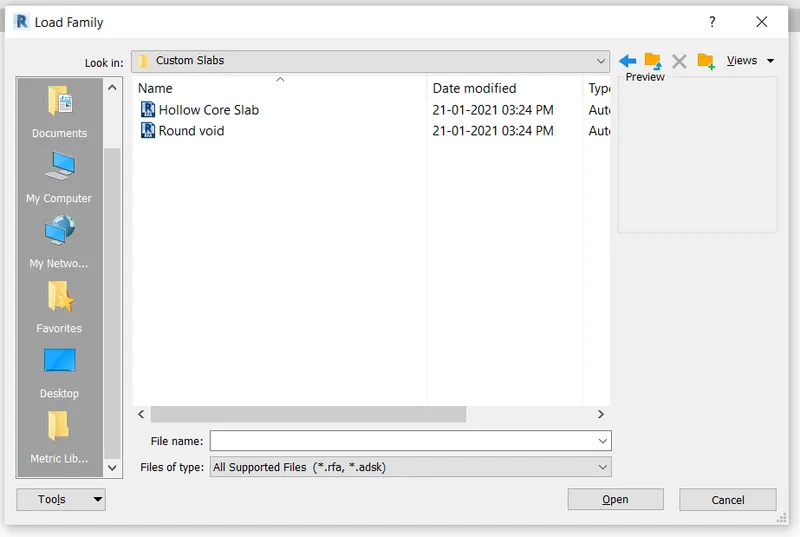

• Go to Insert Tab and click on "Load Family".



• From the pop-up box, Select Libraries.
• Select English > Structure Precast > Custom Slab.



• Select Hollow Core Slab and then click on "OK".
• Families can also be added from the "Project Browser".





  Question 3 :- Setting up a Project :–

• Open a project file with architectural template.
• Save the file with appropriate name.
• Set up the project units to Imperial/Metric based on your convenience of modelling.
• Complete the project information under Manage tab.
• Set up the maximum backups for project file to 3.

  Answer :-

  Procedure :-

• Double click on the Revit application icon and opens the app.

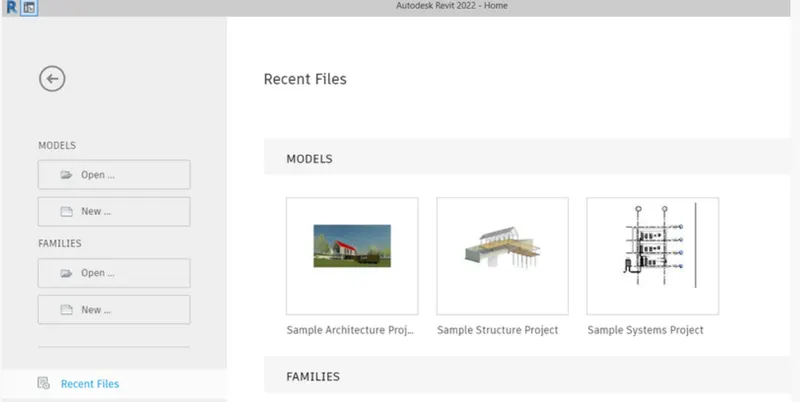

• Click on "New" in the HOme page.

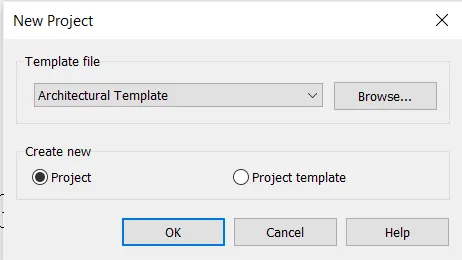

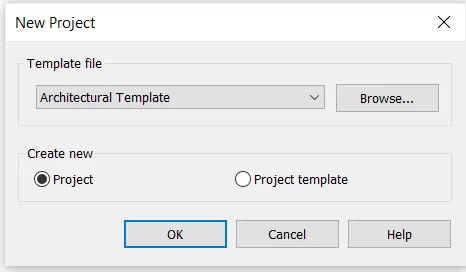

• Select "Architectural Template" from the Dialog Box.
• Select "Project" and then click on "OK".

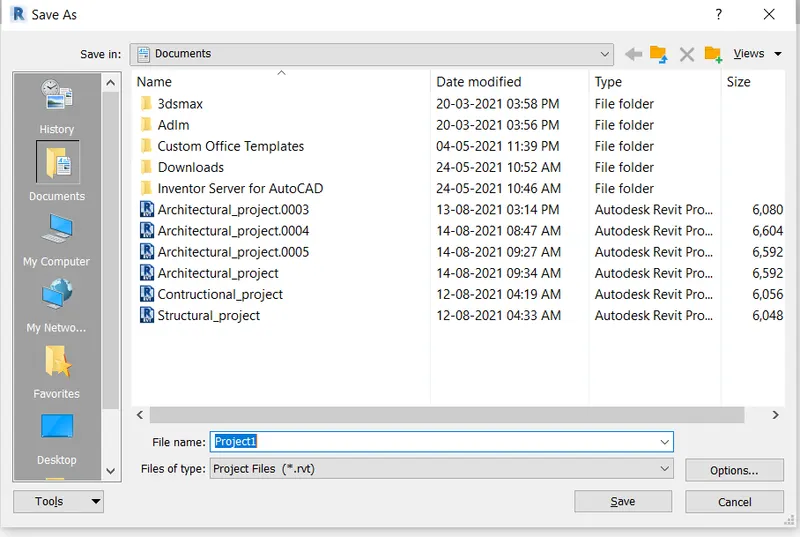

• Go to the "File" tab and click on "Save" button and save the project with any file name of choice.



• Go to the "Manage" Tab and Click on "Project Unit" option.
• In the dialog box of Project Unit, Change the Units accordingly and then click "OK".



• Now go to the manage tab again.
• Click on "Project Information".
• Enters the Project Information in the Dialog Box as per the requirement and then click "OK".



  Result :-

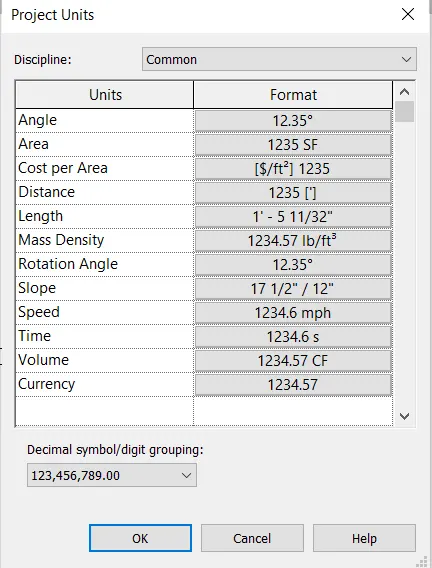

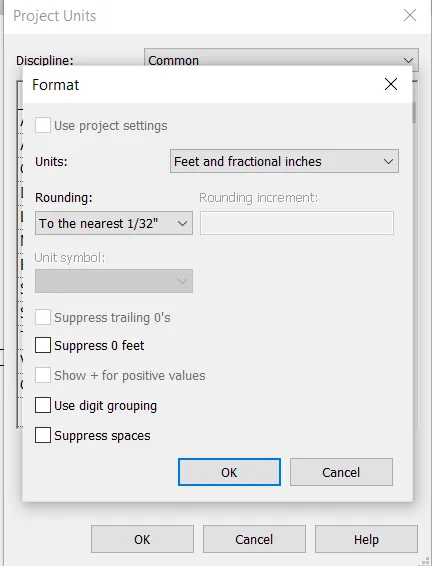

• Project Unit :-

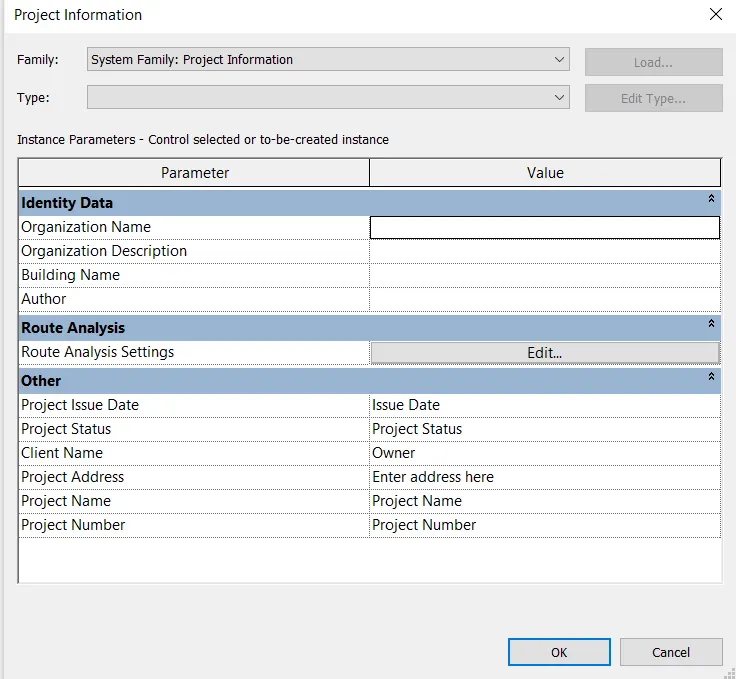

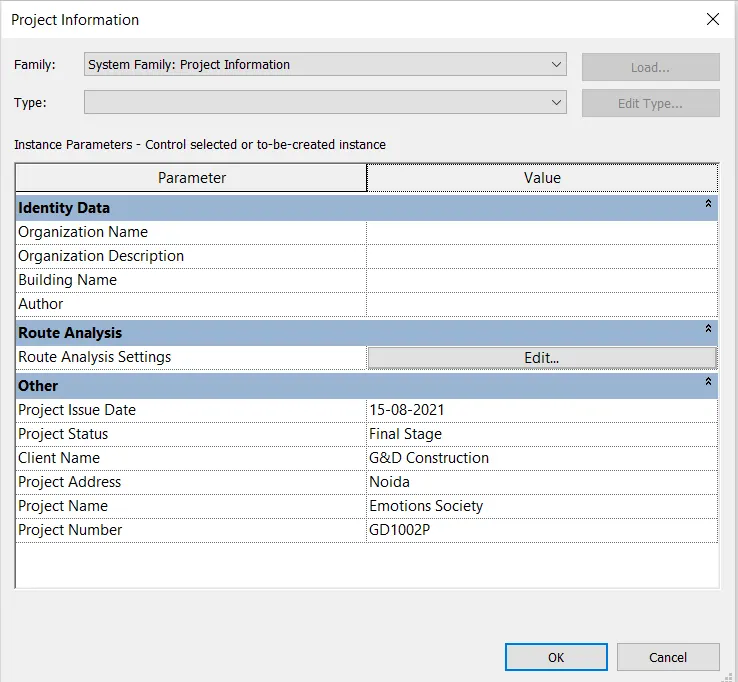

• Project Information :-







  Question 4 :- Understand the concept of Levels and Grids. Follow the naming and conventions. Create the following Levels(Convert to metric equivalents if metric is your units) :-

• Ground Floor @ 0’.
• First Floor @ 10’.
• Second Floor @ 20’.
• Roof @ 30’.
• Grids Transverse Grids A, B,C,D, E @ 10’ spacing.
• Longitudinal Grids from 1 to 10 @ 20’ spacing.

  Answer :-

  Procedure :-

• Double click on the Revit application icon and opens the app.



• Click on "New" in the Home page.

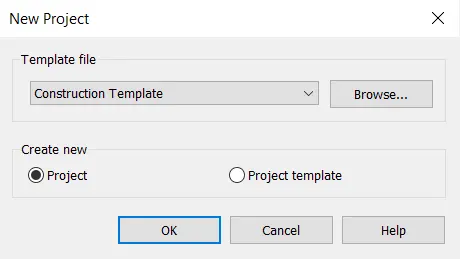

• Select "Construction Template" from the Dialog Box.
• Select "Project" and then click on "OK".



• Go to the Manage Tab and click on "Project Information".
• Enter all the Project Information required and click on "OK".
• Now click on "Project Unit" and Set the units of the Project.
• Go to the "File" tab and click on "Save" button and save the project with any file name of choice.

   Creating Levels and Grids :-

• Go to the any Elevation View i.e., East/North/West/South.
• Now go to the "Level" in "Datum" option of "Architecture" Tab to add new Levels.
• Add the levels at distance specified in question and Rename the levels.
• Now for Grids, go to the any Ground Floor View.
• Now go to the "Grid" in "Datum" option of "Architecture" Tab to add Transverse and Longitudinal Grids at a spacing of required question.



  Result :-

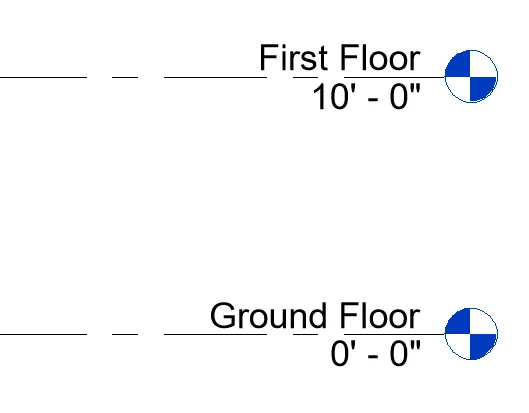

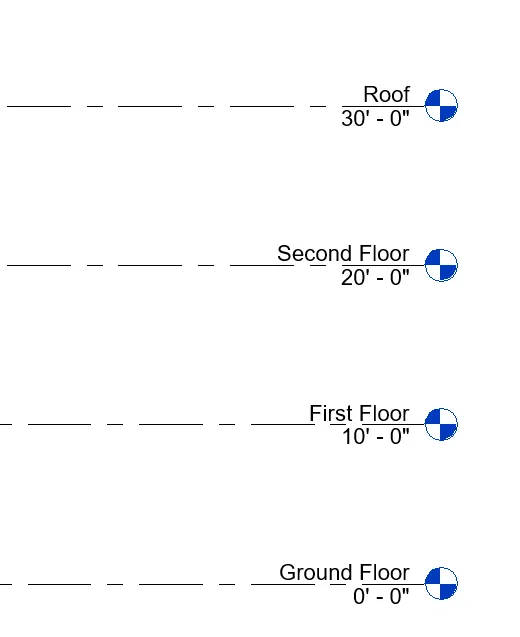

• Levels :-

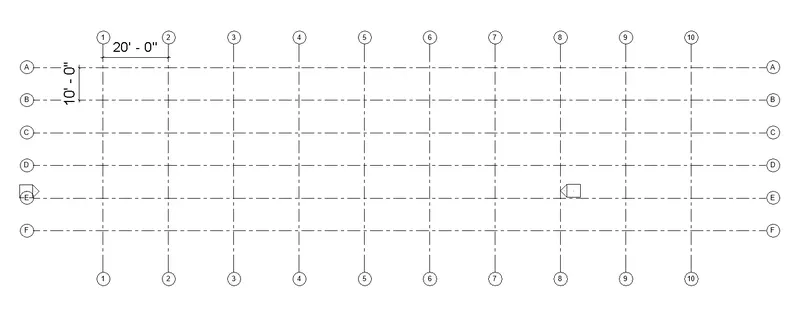

• Longitudinal and Transverse Grids :-





  Question 5 :- 3D modelling of residential unit –

• From looking at your house/or a place you aspire, Create a conceptual layout of the residential unit.
• You can measure using a tape or you can access your residential plan to create a similar layout.

  Answer :-

  Procedure :-

• Double click on the Revit application icon and opens the app.



• Click on "New" in the Home page.
• Select "Construction Template" from the Dialog Box.
• Select "Project" and then click on "OK".



• Go to the Manage Tab and click on "Project Information".
• Enter all the Project Information required and click on "OK".
• Now click on "Project Unit" and Set the units of the Project.
• Go to the "File" tab and click on "Save" button and save the project with any file name of choice.



   Creating Layout :-

• Go to the any Elevation View "East".
• Rename the level 0 as "Ground Floor" and level 1 as "First Floor".



• Click on Floor Plan on "Properties Browser".
• Double click on "Ground Floor".
• Click on "Architectural Wall" from "Wall" option on "Architectural" tab.
• Go to the properties and give "Top Constraint" as "Up to Level : First Floor" or in the modify pan Select Height as "First Floor".
• Select 'Generic 8"' wall and draw a layout of 40' X 40'.



  Result :-

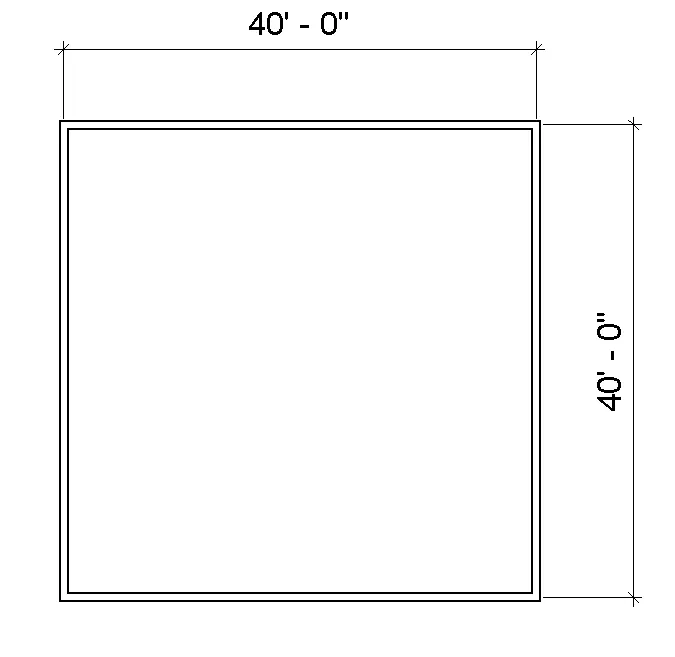

• Layout :-

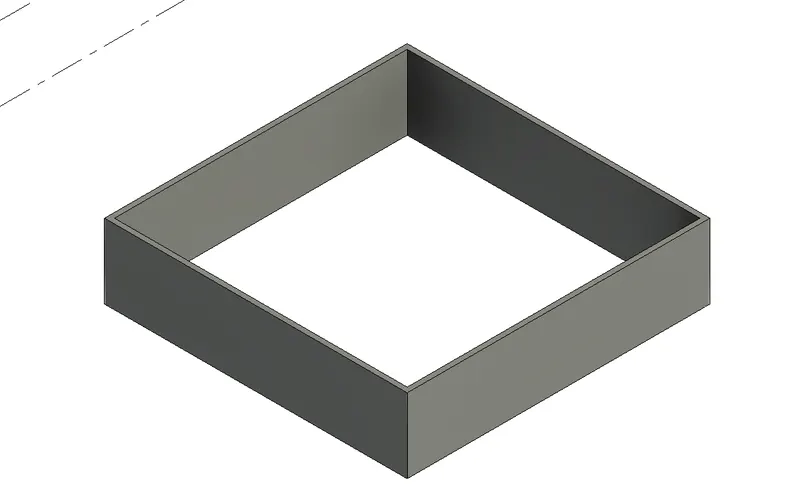

• 3D view :-







  Question 6 :- In the layout created draft the level of details you are planning to include – Dimensions of room, components you plan to add in the residential unit.

  Answer :-

  Procedure :-

• Double click on the Revit application icon and opens the app.



• Click on "Open" in the Home page.
• Open the last question file saved.

   Creating Plan :-

• Go to the Architecture Tab.
• Create the Plan as per user's choice.
• Go to the Annotation Tab.
• Click on Linear Dimension and provide dimension to the Plan.
• Select the appropriate Text type and put required Text to the Plan.
• Click on "Save" icon on the top to save the file.



  Result :-

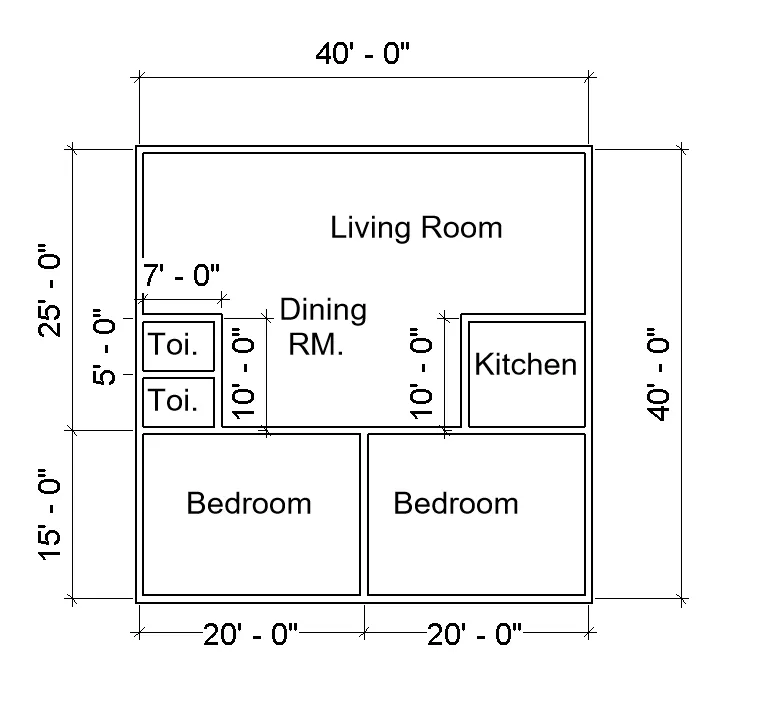

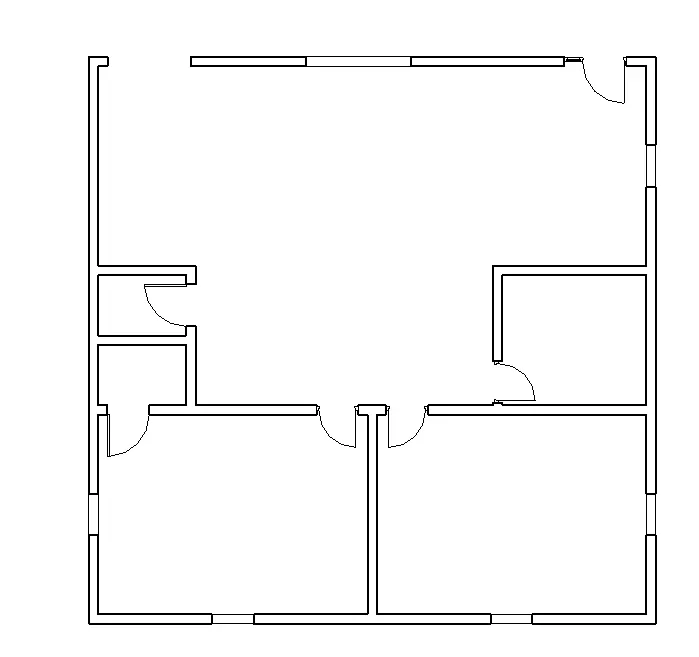

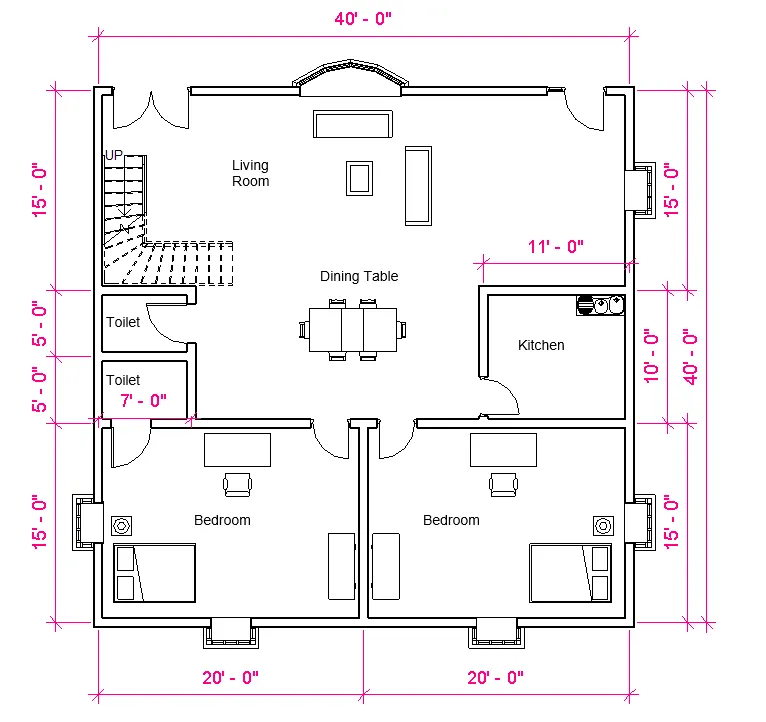

• Plan Created is as follow :-





  Question 7 :- Identify the residential model elements such as Door, Windows, Tables, Chair, Couch, Bed, Lamps from the library and insert them to the model. Save the project for use
for Assignment 3.

  Answer :-

  Procedure :-

• Double click on the Revit application icon and opens the app.



• Click on "Open" in the Home page.
• Open the last question file saved.



   Inserting Model Elements :-

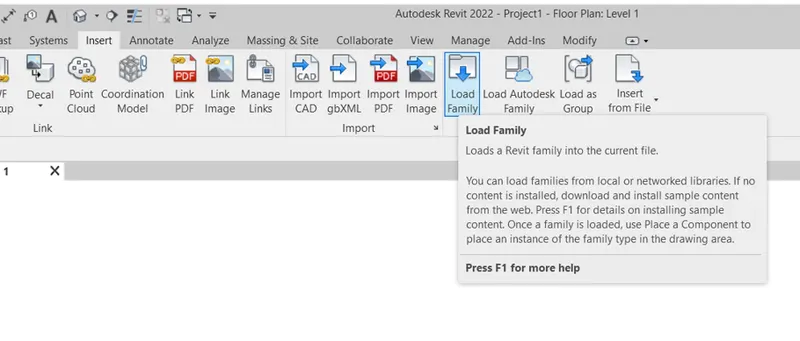

• Go to insert tab and click on "Load Autodesk Family".

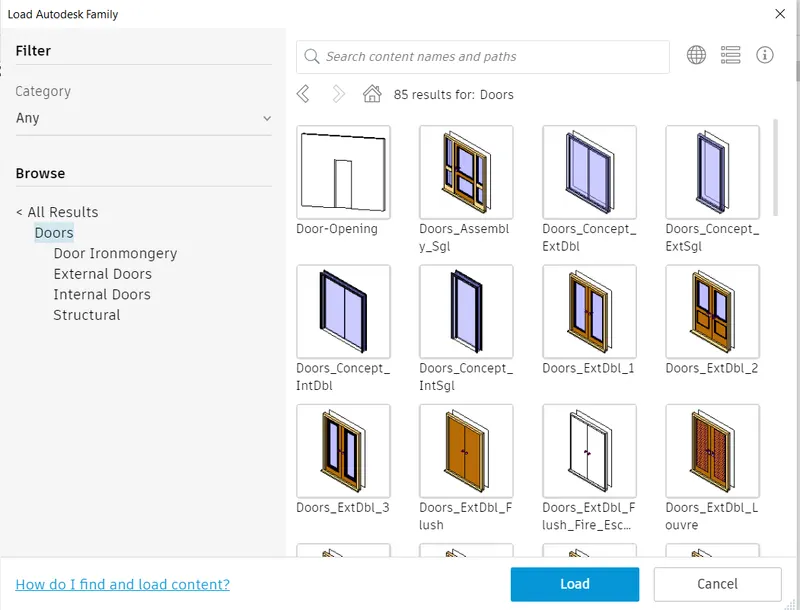

• Click on "Doors" then Select the door as per choice.
• Then click on Load.





• Go to properties browser.

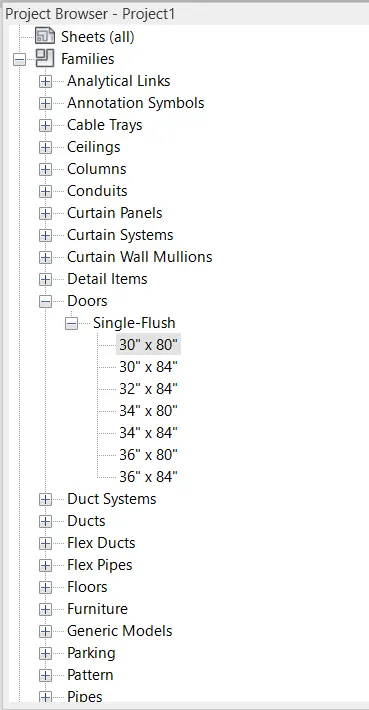

• Click on Family and then Click on Door.
• Click the required door and drag it in the Wall where to put.
• By this same way, provide the single door and double door as per requirement.



• Similarly Provide the Window, Chair, Table, Couch, Bed and other Model elements of choice.
• After loading the Model Elements, Go to Annotation Tab.
• Provide Dimension to the plan.
• After giving dimensions to the plan, provide Text to the plan.
• Click on "Save" icon on the top to save the changes.



  Result :-

• Plan View :-

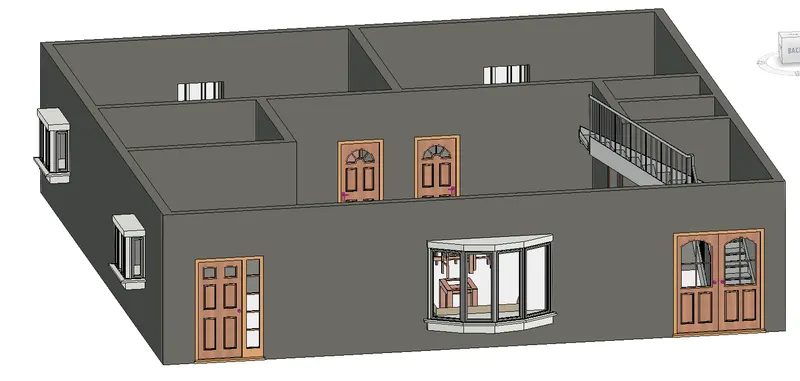

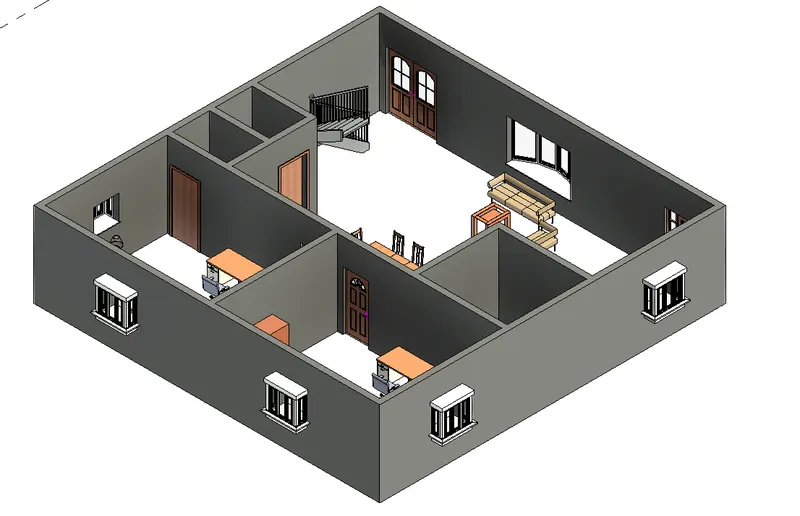

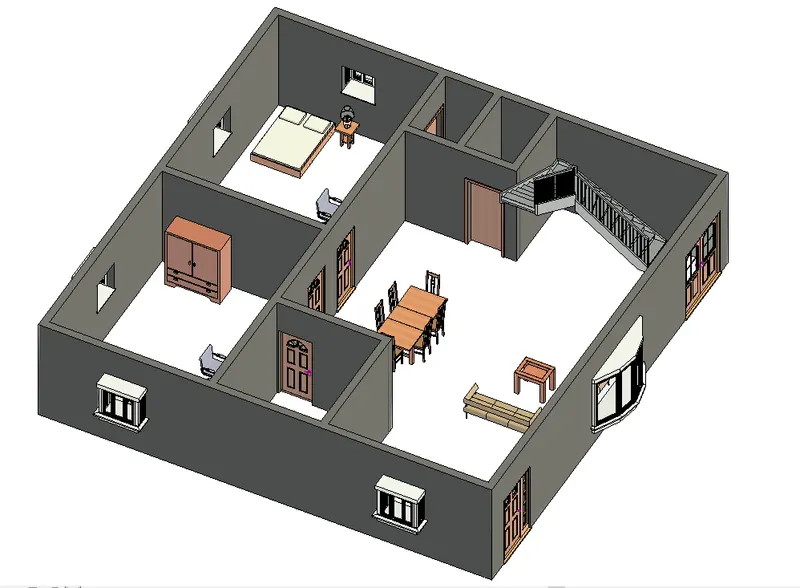

• SE Isometric 3D View :-



• Custom Front Gate View :-



• Custom View :-
