Creating a Floor plan, Footing detail and Isometric view using AutoCad

   AIM : To create Cross-Sectional View and Isometric View of some Engineering Drawing using AutoCAD.  INTRODUCTION :-  Cross-Section :-  It is a typical or representative sample of a larger group. It is a surface or shape exposed by making a straight cut through something, especially at right…

    • Gaurav Pant

      updated on 03 Jun 2021



     AIM : To create Cross-Sectional View and Isometric View of some Engineering Drawing using AutoCAD.

     INTRODUCTION :-

     Cross-Section :-

    • It is a typical or representative sample of a larger group.
    • It is a surface or shape exposed by making a straight cut through something, especially at right angles to an axis.
    • In geometry, a Cross Section is the non-empty intersection of a solid body in three-dimentional space with a plane, or the analog in higher-dimensional spaces.
    • Cutting an object into slices creates many parallel cross-sections.

     Isometric View :-

    • A 2D isometric View is a flat representation of a 3D isometric projection.
    • This method of drawing provides a fast way to create an isometric view of a simple design.
    • Distances measured along an isometric axis are correct to scale, but because we are drawing in 2D, we cannot expect to extract other 3D distances and areas, display objects from different viewpoints, or remove hidden lines automatically.

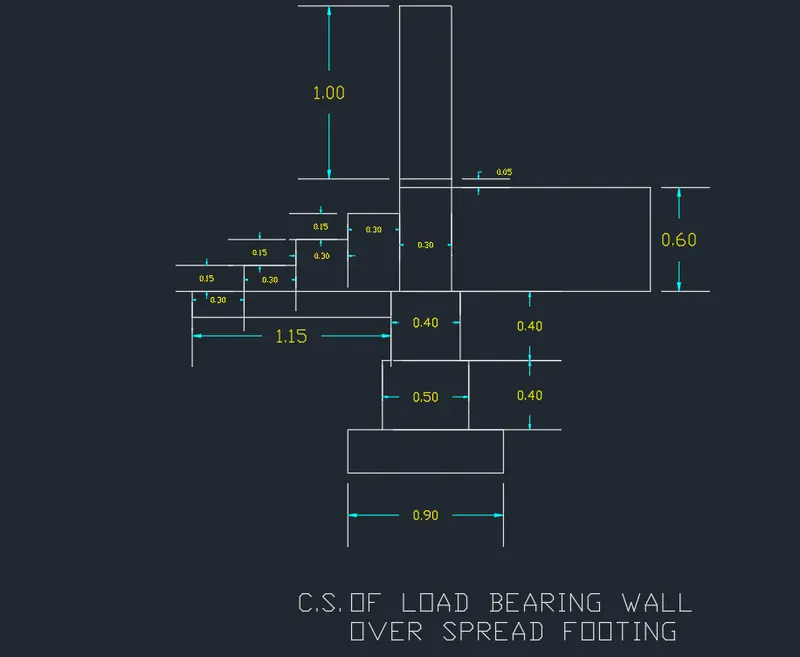

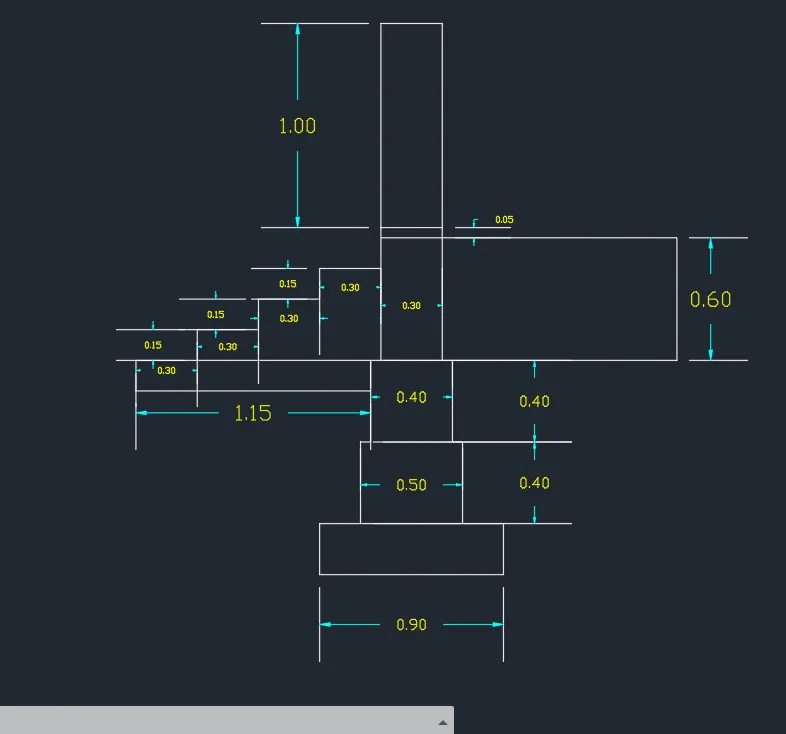

     Aim :- To create cross section of load bearing wall over spread footing using AutoCAD.

     Procedure :-

     Step 1 :-

    1. Select rectangle tool from the ribbon tab.
    2. Specify the first point as (1,1) in the command box and press enter.
    3. Select "dimensions" from the command box and Enter the lenght as 0.9 and press enter. Enter the height as 0.25 and press enter.
    4. Press "esc" to finish.



     Step 2 :-

    1. Use line command and draw a line of lenght 0.4 from top-left corner.
    2. Type "offset" in the command box and select "erase".
    3. Select "yes" to erase the source object after offset. Enter the off set distance as 0.2 in command box.
    4. Keep the cursor in the right side and click so that the line gets offsetted.
    5. Type "L" for line command and press enter and specify the first point of line by keep the pointer on the top end point of line offsetted and draw line for a distance of 0.05 to the +ve x-direction.
    6. Type "offset" in the command box and select "erase".
    7. Select "No" to 'erase the source object after offset'.
    8. Enter the offset distance as 0.5.
    9. Select the 0.4 length line as object to offset.
    10. Keep the pointer in the right side and click so that the line gets offsetted.
    11. Type "L" for line command and press enter and specify the first point of line by keep the pointer on the top end point of line offsetted and draw line for a distance of 0.05 to the -ve x-direction.



     Step 3 :-

    1. Type "L" for line command and press enter and specify the first point of line by keep the pointer on the top-left end point and line draw line for a length of 0.4 in the positive Y-direction.
    2. Specify the next point as @0.4<0.
    3. Specify the next point as @0.4<270.
    4. Press Enter to cancel the line command.



     Step 4 :-

    1. Type "L" for line command and press enter and specify the first point of line by keep the pointer on the top-left end point and draw line for a length of 0.6 in the positive Y-direction.
    2. Use offset command by typing "O" on command box and Select "erase" and then further select "yes" to erase the source object.
    3. Enter the offset distance as "0.05" and and select the previous Line to offset.
    4. Keep the cursor to the right and click.
    5. Type "L" for line command and press enter and specify the first point of line by keep the pointer on the top-left end point of offsetted line and draw line for a length 0.3 in +ve x-direction.
    6. Specify the next point as @0.6<270 and press enter to cancel the line command.
    7. Use "offset" command ,select "erase" and select "No".
    8. Enter the offset distance as 0.05 and select the top 0.3 length line. Keep the cursor in upward direction and click.
    9. Using line command join the these two lines.



     Step 5 :-

    1. After step 3, Type "L" for line command and select the top-right end point and drawn a line of 1.15 in +ve x-direction.
    2. Specify the next point as @0.6<90.
    3. Specify the next point as @1.2<180.
    4. Press Enter to cancel the line command.



     Step 6 :-

    1. Type "L" for line command and press enter and from the top-left end point of line from Step 4, draw a line of length of 1 unit in +ve y-direction.
    2. Specify the next point as @0.3<0.
    3. Specify the next point as @1<270.
    4. Press Enter to cancel the line command.



     Step 7 :-

    1. Type "L" for line command and press enter and from the top-left end point of line from Step 3, draw a line of length of 1.15 unit in -ve x-direction.
    2. Specify the next point as @0.15<90.
    3. Specify the next point as @1.15<0.
    4. Press Enter to cancel the line command.



     Step 8 :-

    1. Type "L" for line command and press enter and from the top-left end point, draw a line of length of 0.15 unit in +ve y-direction.
    2. Use offset command by typing "O" on command box and Select "erase" and then further select "yes" to erase the source object.
    3. Enter the offset distance as "0.3" and and select the previous Line to offset.
    4. Keep the cursor to the right and click.
    5. Type "L" for line command and press enter and specify the first point of line by keep the pointer on the top end point of offsetted line and draw line for a length 0.3 in +ve x-direction.
    6. Specify the next point as @0.15<90.
    7. Specify the next point as @0.3<0.
    8. Specify the next point as @0.15<90.
    9. Specify the next point as @0.3<0.
    10. Press enter to cancel the line command.



     RESULT :-

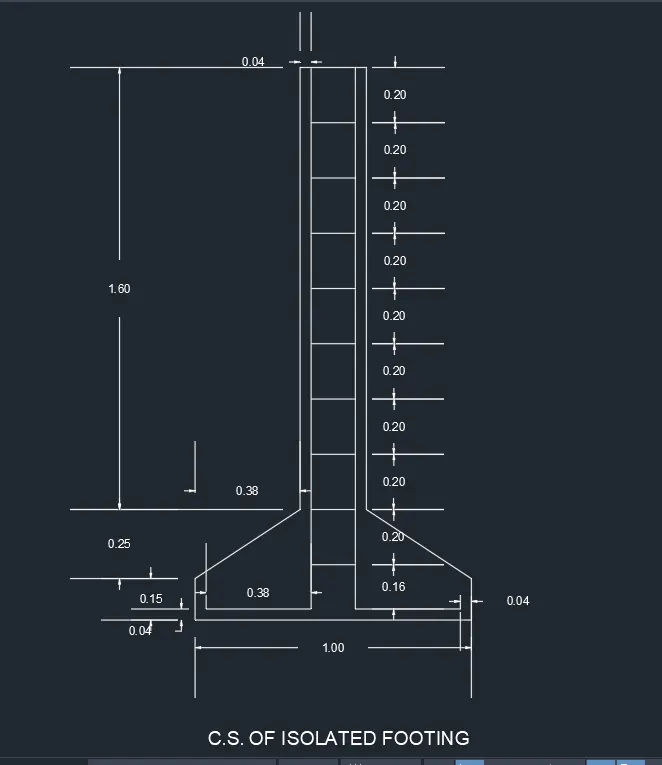

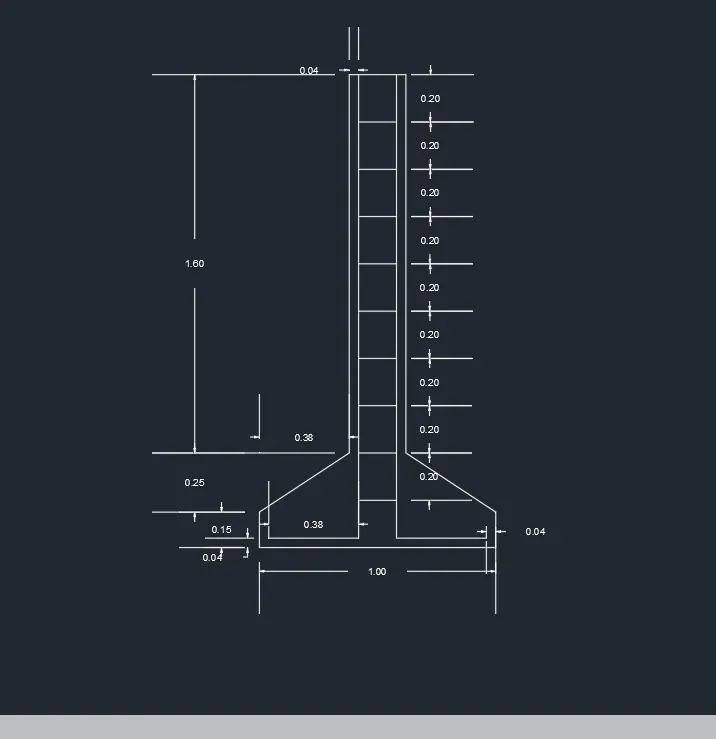

     Aim :- To create cross section of isolated footing using AutoCAD.

     Procedure :-

     Step 1 :-

    1. Type "L" for line command and press enter and specify the starting point as (1,1).
    2. Specify the next point as (@1,0) in the command box and press enter.
    3. Specify the next point as (@0,0.15) in the command box and press enter.
    4. Specify the next point as (@-0.38,0.25) in the command box and press enter.
    5. Specify the next point as (@0,1.6) in the command box and press enter.
    6. Specify the next point as (@-0.24,0) in the command box and press enter.
    7. Specify the next point as (@0,-1.6) in the command box and press enter.
    8. Specify the next point as (@-0.38,-0.25) in the command box and press enter.
    9. Click "close" on the command box and press "esc".



     Step 2 :-

    1. Type "L" for line command and press enter and specify the starting point as (1.04,1.09).
    2. Specify the next point as (@0,-0.05) in the command box and press enter.
    3. Specify the next point as (@0.38,0) in the command box and press enter.
    4. Specify the next point as (@0,1.96) in the command box and press enter and press "esc" to cancel line command.
    5. Use offset command by typing "O" on command box and Select "erase" and then further select "no" to erase the source object.
    6. Enter the offset distance as "0.16" and and select the previous Line of length 1.96 to offset.
    7. Keep the cursor to the right and click and press "esc".
    8. Type "L" for line command and press enter and specify the first point of line by keep the pointer on the bottom end point of offsetted line and draw line for a length 0.38 in +ve x-direction.
    9. Specify the next point as (@0,0.05) in the command box and press enter.
    10. Press "esc".



     Step 3 :-

    1. Type "L" for line command and press enter and specify the starting point as (1.42,1.2).
    2. Specify the next point as (@0.16,0) in the command box and press enter.
    3. Press "esc".
    4. Type "CO" for copy command and select the drawn line of length 0.16 and press enter.
    5. Specify the base point as (1.42,1.2).
    6. Select Array in command box and enter no. of items to array as 9.
    7. Point the cursor in +ve y-direction and Specify the second distance point as 0.2 and press enter.
    8. Press "esc".



     RESULT :-

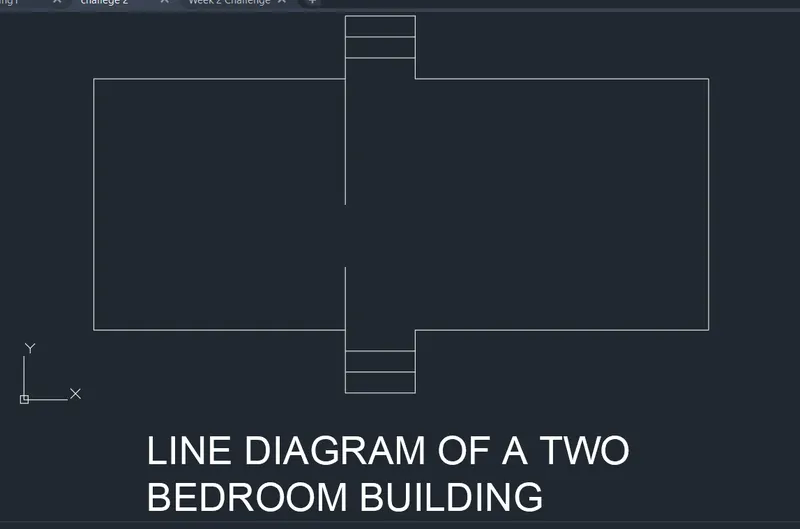

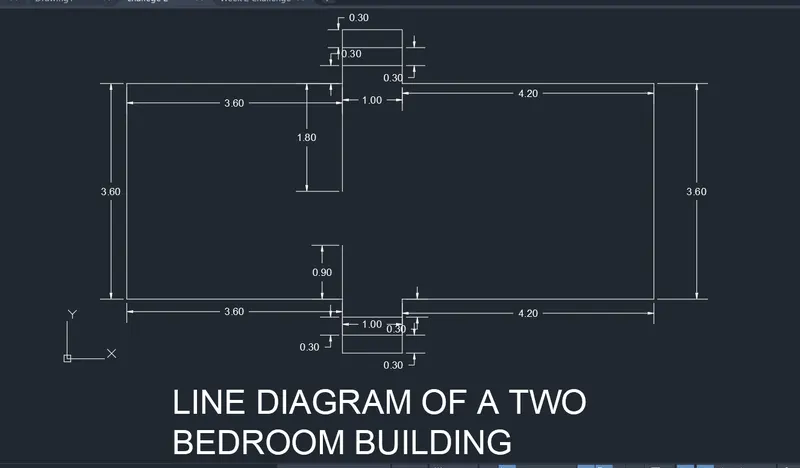

     Aim : To create line diagram for 2 bedroom building using AutoCAD.

     Procedure :

     Step 1 :-

    1. Type "L" for line command and press enter and specify the starting point as (1,1).
    2. Specify the next point as (@3.6,0) in the command box and press enter.
    3. Specify the next point as (@0,-0.9) in the command box and press enter.
    4. Specify the next point as (@1,0) in the command box and press enter.
    5. Specify the next point as (@0,0.9) in the command box and press enter.
    6. Specify the next point as (@4.2,0) in the command box and press enter.
    7. Specify the next point as (@0,3.6) in the command box and press enter.
    8. Specify the next point as (@-4.2,0) in the command box and press enter.
    9. Specify the next point as (@0,0.9) in the command box and press enter.
    10. Specify the next point as (@-1,0) in the command box and press enter.
    11. Specify the next point as (@0,-0.9) in the command box and press enter.
    12. Specify the next point as (@-3.6,0) in the command box and press enter.
    13. Click "close" on the command box and press "esc".



     Step 2 :-

    1. Type "O" and enter to activate offset command. Enter the offset distance as 0.3.
    2. Select the line of 1 unit at the bottom and offset in +ve y-direction.
    3. Repeat the offset distance of 0.3 in same +ve y-direction for another time.
    4. Press "esc".
    5. Type "L" for line command and press enter and specify the starting point as (4.6,1).
    6. Specify the next point as (@0,0.9) in the command box and press enter.
    7. Press "esc".



     Step 3 :-

    1. Type "O" and enter to activate offset command. Enter the offset distance as 0.3.
    2. Select the line of 1 unit from the top and offset in -ve y-direction.
    3. Repeat the offset distance of 0.3 in same -ve y-direction for another time.
    4. Press "esc".
    5. Type "L" for line command and press enter and specify the starting point as (4.6,4.6).
    6. Specify the next point as (@0,-1.8) in the command box and press enter.
    7. Press "esc".



     RESULT :-

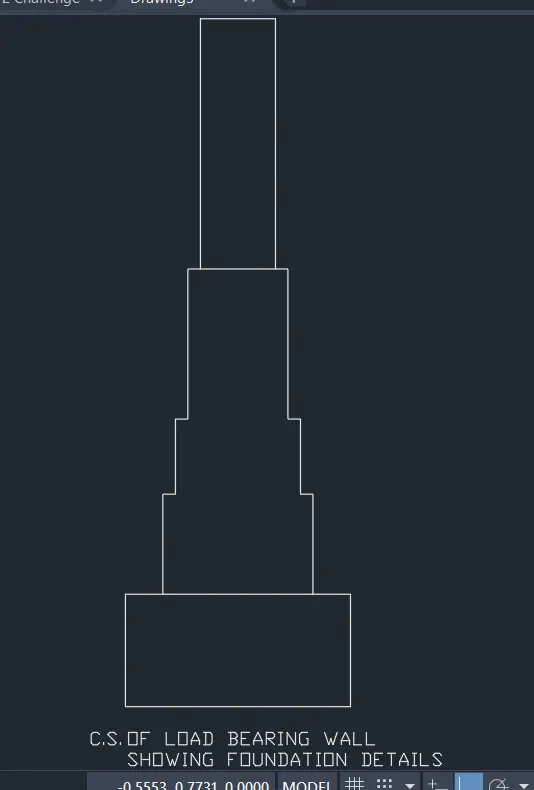

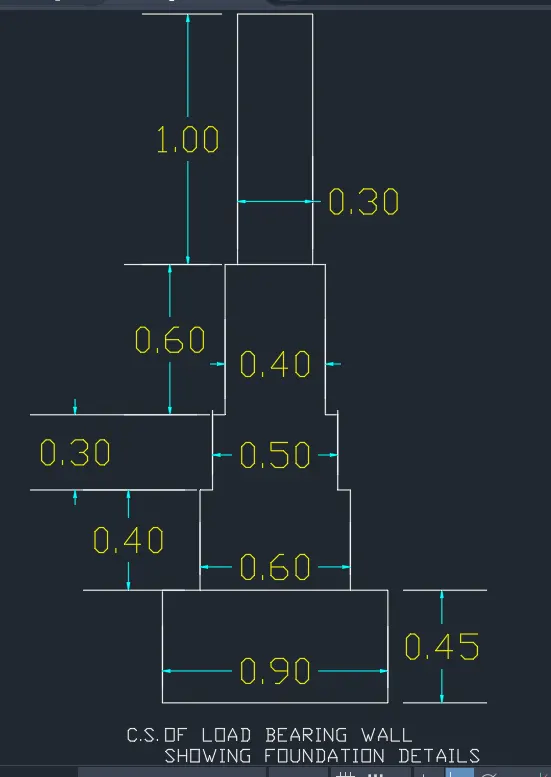

     Aim : To draw the cross section of load bearing wall showing foundation details using AutoCAD.

     Procedure :-

     Step 1 :-

    1. Select "rectangle" tool from ribbon tab.
    2. Specify the starting point as (1,1) in the command box and press enter.
    3. Select "dimension" from the command box.
    4. Enter the length as "0.9" and press enter.
    5. Enter the width as "0.45" and press enter.

     Step 2 :-

    1. Type "L" for line command and press enter and specify the starting point as (1.15,1).
    2. Specify the next point as (@0,0.4) in the command box and press enter.
    3. Specify the next point as (@0.05,0) in the command box and press enter.
    4. Specify the next point as (@0,0.3) in the command box and press enter.
    5. Specify the next point as (@0.05,0) in the command box and press enter.
    6. Specify the next point as (@0,0.6) in the command box and press enter.
    7. Specify the next point as (@0.4,0) in the command box and press enter.
    8. Specify the next point as (@0,-0.6) in the command box and press enter.
    9. Specify the next point as (@0.05,0) in the command box and press enter.
    10. Specify the next point as (@0,-0.3) in the command box and press enter.
    11. Specify the next point as (@0.05,0) in the command box and press enter.
    12. Specify the next point as (@0,-0.4) in the command box and press enter.
    13. Press "esc".



     Step 3 :-

    1. Type "L" for line command and press enter and specify the starting point as (1.3,2.75).
    2. Specify the next point as (@0,1) in the command box and press enter.
    3. Specify the next point as (@0.3,0) in the command box and press enter.
    4. Specify the next point as (@0,-1) in the command box and press enter.
    5. Press "esc".





     RESULT :-

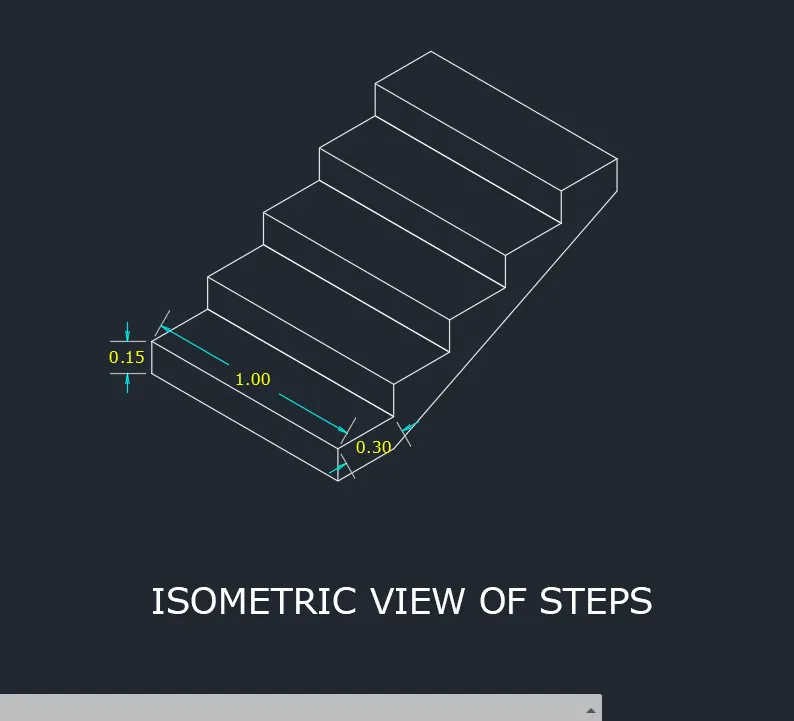

     Aim : To draw the isometric view of steps using AutoCAD.

     Procedure :-

     Step 1 :-

    1. In the workspace, click on view controls icon in the left top corner.
    2. Select "SW isometric" from the view control.
    3. Type "L" for line command and press enter.
    4. Click on any point and enter the length as 1 unit, keep the cursor in -ve y-direction and press enter.
    5. Enter the length as 0.15 and keep the cursor in +ve z-direction and press enter.
    6. Enter the length as 1 and click keeping the cursor in +ve y-direction.
    7. Enter the length as 0.15 and keep the cursor in -ve z-direction.
    8. Press "esc".



     Step 2 :-

    1. Type "L" for line command and press enter.
    2. Click on the end point of 0.15 unit line present in the -ve y-direction.
    3. Enter the length as 0.3 and keep the cursor in +ve x-direction and press enter.
    4. Enter the length as 1 and keep the cursor in +ve y-direction and press enter.
    5. Enter the length as 0.3 and keep the cursor in -ve x-direction and press enter.





     Step 3 :-

    1. Select the objects created in previous steps.
    2. Type "CO" in command box for COPY command and press enter.
    3. Select the base point and copy the object  in corresponding y-direction.
    4. Repeat the copy command until steps are created.





     RESULT :-

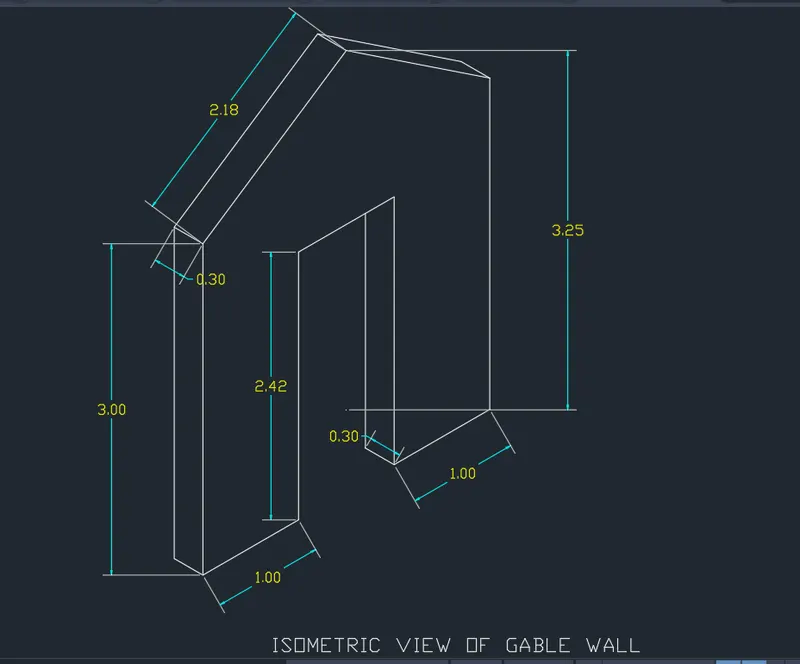

     Aim : To draw the Isometric view of gable wall using AutoCAD.

     Procedure :-

     Step 1 :-

    1. In the workspace, click on view controls icon in the left top corner.
    2. Select "SW isometric" from the view control.
    3. Type "L" for line command and press enter.
    4. Click on any point and enter the length as 1 unit and keep the cursor in +ve x-direction.
    5. Enter the length as 2.42 and keep the cursor in +y-direction and press enter.
    6. Enter the length as 1 and keep the cursor in +ve x-direction and press enter.
    7. Enter the length as 2.42 and keep the cursor in -ve y-direction.
    8. Enter the length as 0.3 and keep the cursor in -ve z-directionand press enter.
    9. Press "esc".



     Step 2 :-

    1. Type "L" for line command and press enter.
    2. Click on second last point of last step and enter the length as 1 and keep the cursor in +ve x-direction.
    3. Enter the length as 3 and keep the cursor in +ve y-direction and press enter.
    4. Draw line of length of 0.83 unit length to the midpoint of door panel connecting previous line.
    5. From the start point draw a line using line command.
    6. Enter the length as 3 and keep the cursor in +ve y-direction.
    7. Draw and join the line to the midpoint using line command.
    8. Press "esc".



     Step 3 :-

    1. Type "L" for line command and press enter.
    2. From the start point, draw a line using line tool.
    3. Click on any point and enter the length as 0.3 and keep the cursor in -ve z-direction.
    4. Enter the length as 3 and keep the cursor in +ve y-direction.
    5. Enter the length as 1.5 and keep the cursor in +ve x-direction and press enter.
    6. Enter the length as 1.5 and keep the cursor in +ve x-direction. Press "esc".
    7. Draw a line of length 0.3 unit joining midpoint of corner points using line command.
    8. Press "esc".



     RESULT :-











    Leave a comment

    Thanks for choosing to leave a comment. Please keep in mind that all the comments are moderated as per our comment policy, and your email will not be published for privacy reasons. Please leave a personal & meaningful conversation.

    Please  login to add a comment

    Other comments...

    No comments yet!
    Be the first to add a comment

    Read more Projects by Gaurav Pant (32)

    Projefct 1_Comparative study of different storey buildings for Seismic forces

    Objective:

        AIM :- To model 10 different buildings on ETABS with given structural properties and names as provided in the below picture.                                        To compare fundamental natural periods…

    calendar

    24 Dec 2021 07:31 AM IST

    • Buildings
    • ETABS
    Read more

    Modelling of 25 storey building with the specified properties using ETABS

    Objective:

        AIM :- To model a 25 storey building on ETABS with given structural properties. To check if the translational fundamental natural period of vibration in both the x and y direction is approximate, Tx1 = 4.4 seconds Ty1 = 4.2 seconds. To check if the provision in Table 5 of IS 1893 (part 1) –…

    calendar

    19 Dec 2021 05:46 AM IST

    • Buildings
    • ETABS
    Read more

    Conceptual design of a building with columns and shear walls

    Objective:

        Answer 1 :-   Given :- The building shown, 20 Ă— 35 m in the plan, has columns on a 5 Ă— 5 m grid and shear walls (with dimensions shown in m, 250 mm in thickness) in three alternative arrangements (A), (B), (C), all with the same total cross-sectional area of the shear walls.     AIM :-…

    calendar

    21 Nov 2021 08:27 PM IST

      Read more

      Concept on positioning of Columns

      Objective:

          Question 1 :- Comment on the layout of the framing plan concerning earthquake resistance in the two horizontal directions X or Y (dots are columns, lines depict beams). Look into aspects of symmetry, redundancy and bi-directional stiffness and ductility.                â€¦

      calendar

      15 Nov 2021 11:09 AM IST

        Read more

        Schedule a counselling session

        Please enter your name
        Please enter a valid email
        Please enter a valid number

        Related Courses

        coursecard

        Design loads considered on bridges

        Recently launched

        10 Hours of Content

        coursecard

        Design of Steel Superstructure in Bridges

        Recently launched

        16 Hours of Content

        coursecard

        Design for Manufacturability (DFM)

        Recently launched

        11 Hours of Content

        coursecard

        CATIA for Medical Product Design

        Recently launched

        5 Hours of Content

        coursecardcoursetype

        Accelerated Career Program in Embedded Systems (On-Campus) Courseware Partner: IT-ITes SSC nasscom

        Recently launched

        0 Hours of Content

        Schedule a counselling session

        Please enter your name
        Please enter a valid email
        Please enter a valid number

        logo

        Skill-Lync offers industry relevant advanced engineering courses for engineering students by partnering with industry experts.

        https://d27yxarlh48w6q.cloudfront.net/web/v1/images/facebook.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/insta.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/twitter.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/youtube.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/linkedin.svg

        Our Company

        News & EventsBlogCareersGrievance RedressalSkill-Lync ReviewsTermsPrivacy PolicyBecome an Affiliate
        map
        EpowerX Learning Technologies Pvt Ltd.
        4th Floor, BLOCK-B, Velachery - Tambaram Main Rd, Ram Nagar South, Madipakkam, Chennai, Tamil Nadu 600042.
        mail
        info@skill-lync.com
        mail
        ITgrievance@skill-lync.com

        Top Individual Courses

        Computational Combustion Using Python and CanteraIntroduction to Physical Modeling using SimscapeIntroduction to Structural Analysis using ANSYS WorkbenchIntroduction to Structural Analysis using ANSYS Workbench

        Top PG Programs

        Post Graduate Program in Hybrid Electric Vehicle Design and AnalysisPost Graduate Program in Computational Fluid DynamicsPost Graduate Program in CADPost Graduate Program in Electric Vehicle Design & Development

        Skill-Lync Plus

        Executive Program in Electric Vehicle Embedded SoftwareExecutive Program in Electric Vehicle DesignExecutive Program in Cybersecurity

        Trending Blogs

        Heat Transfer Principles in Energy-Efficient Refrigerators and Air Conditioners Advanced Modeling and Result Visualization in Simscape Exploring Simulink and Library Browser in Simscape Advanced Simulink Tools and Libraries in SimscapeExploring Simulink Basics in Simscape

        © 2025 Skill-Lync Inc. All Rights Reserved.

                    Do You Want To Showcase Your Technical Skills?
                    Sign-Up for our projects.
