Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric stadium using Dynamo

1^ST ANS:SIN CURVE CREATION:

Step:1

For the creation f an sin curve first we have to create a set of points.

For he creation of the points range option is taken and then for the for the values of start,end,phase code block is used to assain te values for the curve or we can use slider to assin the values.

Step:2

After the set of points are crated then we have to make the points from the stright path to curved path MATH.SIN block is used.

Seq of the points and the angle of the math.sin is connected.

To optain the perfect curve multiply operation is used and slider namely phase and the other ooption of the operation is connected to out put of the math.sin.

 the out put is connected to the addition operation and a slider is connected.

The out put of the operation is connected to the y value of the co-ordenate point

Now the points are arranged in the sin curve model.

Curve is added to the points by joining them with the connect by control points .

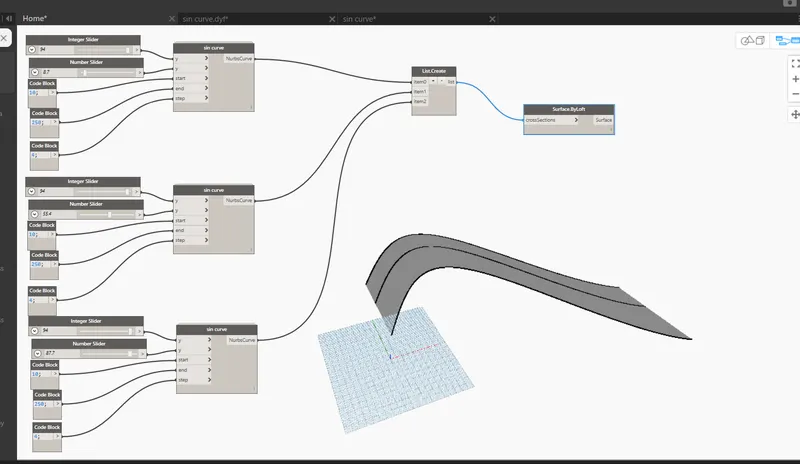

Step:3

Now the the generated curve is copied and then multi curves are generated.

Three curves are listed as one item to create a surface .

Now the surface for the three curves are ganarated.

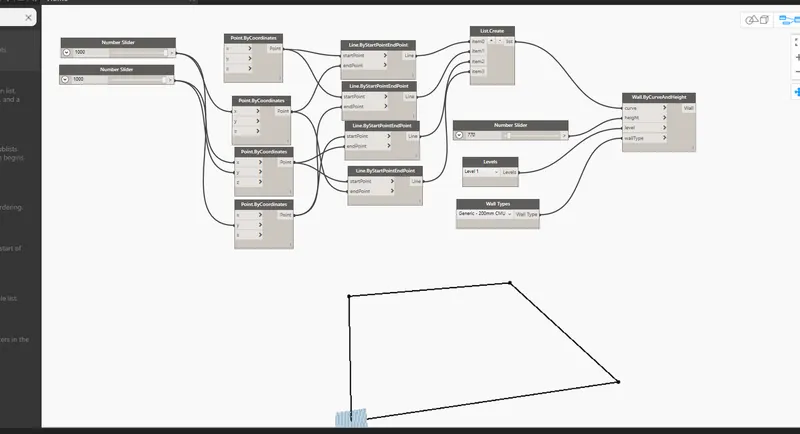

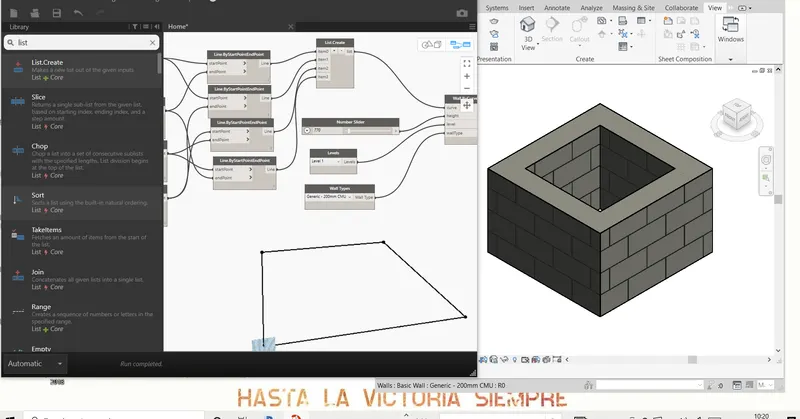

2^ND ANS:CREATING WALL USING DYNAMO:

STEP:1

To create the wall we need to have set of four points in the form of rectangle or square.

By uing the co-ordenate option four blocks are taken and by the use of sliders x,y values of the points are adjusted.

After the points are generated lines are to be created to connect the points.

Using line bystarting and end point  block four lines are created.

Step:2

After the ines are created the wall is to be added to the lines.

First the 4 lines are listed as single item.

Then wall by curve  block is taken.

To create a wall by this opition we need wall type,level,height,curve.

Type is selected as generic ,level1,height is controlled by slider,the set of created lines are connected to curve.

Now the wall is created.

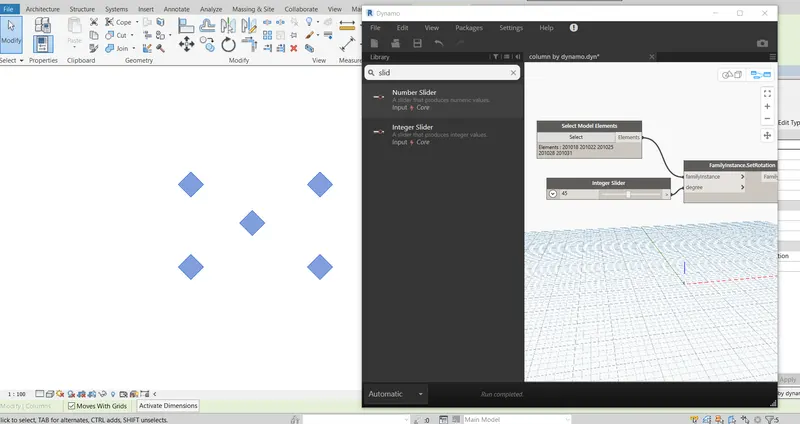

3^RD ANS:ROTATING COLUMN USING DYNAMO.

First the columns are created in the fresh revit architech sheet.

Then open the dynamo window.

By using the block select model option an code will appeare on the dynamo sheet.

By selecting select option of the block go to the reveit sheet and select the columns.

Now the columns are enabled to modify using dynamo.

Now come to the dynamo take set rotate option and connect the out put of the selectmodel block to the setrotate block and set a slider to control the angle.

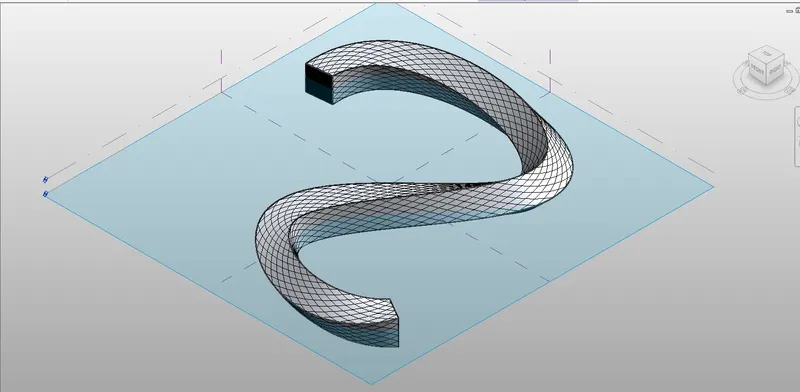

4^TH :CREATING CONCEPTUAL MASS:

An conceptual mass is created in revit by using the family sheet,metric mass sheet option.

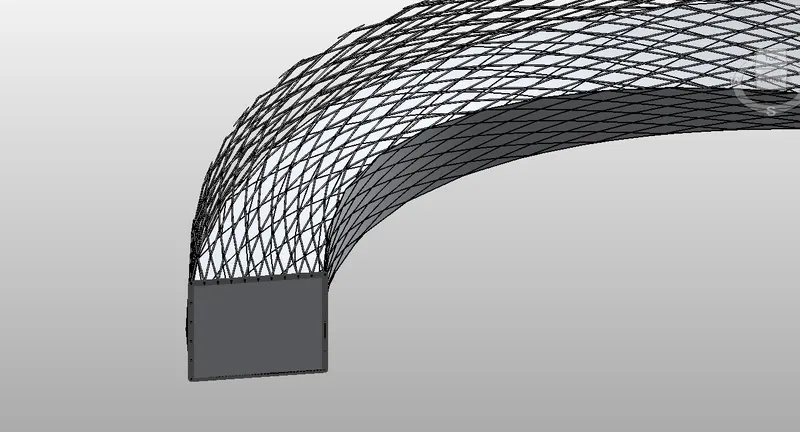

To create an cncpt mass like an walkway first spline is used to creat the required shape of the walk way.

Set a sheet at the control point of the created line and then draw a circle or square as per the requirements.

Repeat the process for all the control points.

After creating circle at the control points use sweep option by selecting the circles.

An walkway model then created now add type of  frame to the mass before that make shore that the only divide option in the filter is enabled.

Now adjust the model from the properties browser according to your requirement.

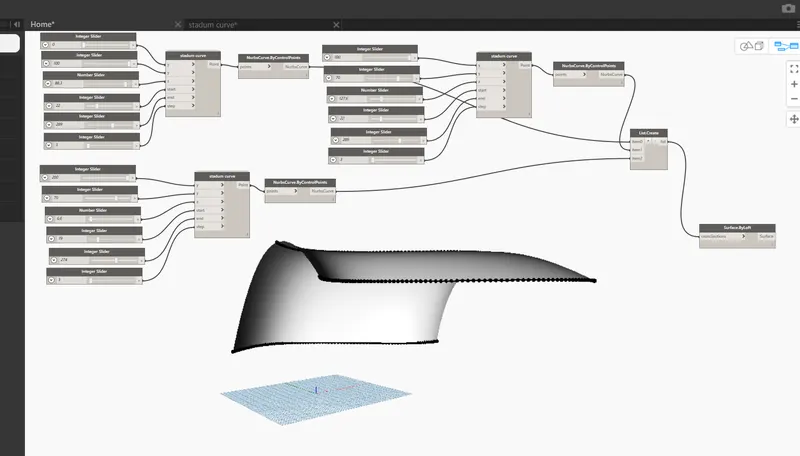

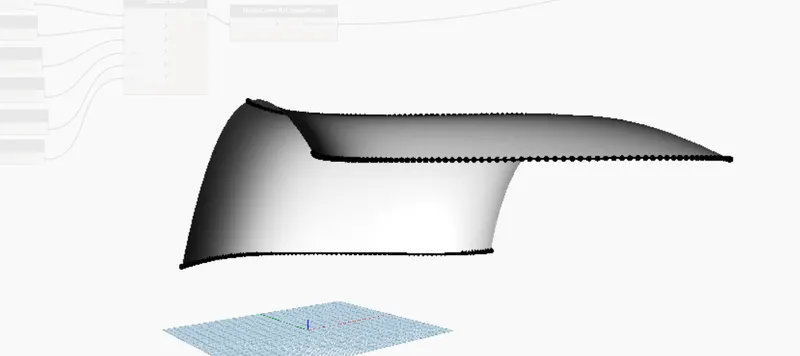

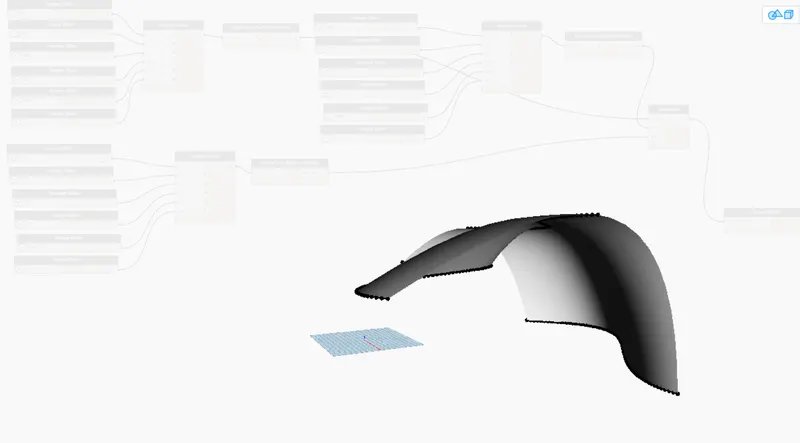

5^TH ANS:CREATING A STADIUM USING DYNAMO

By using the concepts of the previous classes a model of stadum is created with sin curves with the surface and supportin blocks are used.
