Project 2_Creating a 3D rendered model for a Residential Building in AutoCad

AIM:
DRAWING THE 3D PLANS OF RESIDENTIAL BUILDING AND RENDERING USING 3D AUTOCAD SOFTWARE.

DETAILS OF PROJECT:

THE GIVEN 3D PLANS ARE DRAWN ACCORDING TO THE DIMENTIONS AND THE STEP BY STEP PROCESS IS GIVEN BELOW.

PROCDURE:

A basic residential building is drawn and the rendering is done.

For the given drawings the units are set according to the requirements.

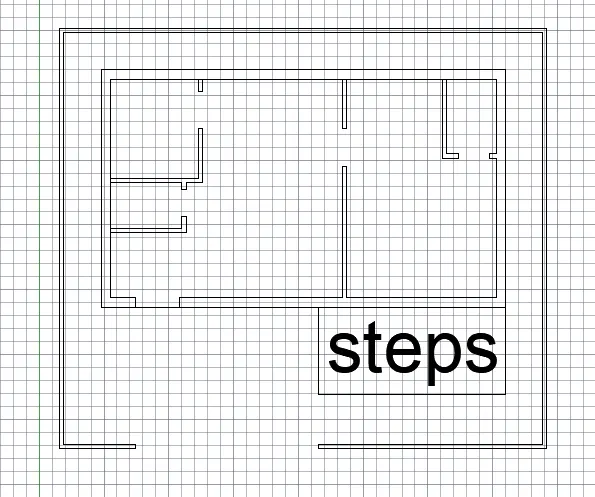

The the front viw of the given drawings are first drawn in the 2d plane of the cad.

Then the drawings of the face of the figure is rotated in the 3d plane in the z axis.

For drawing the 3d figues the plane is conveted in to the 3d plane and the system type is converted from architech to 3d modeling.

Using the 3d rotate command the object is rotated along the z axis in 90 degrees and the back portion of the object extuded bu using the extrude option in the ribbon.

STEP:2

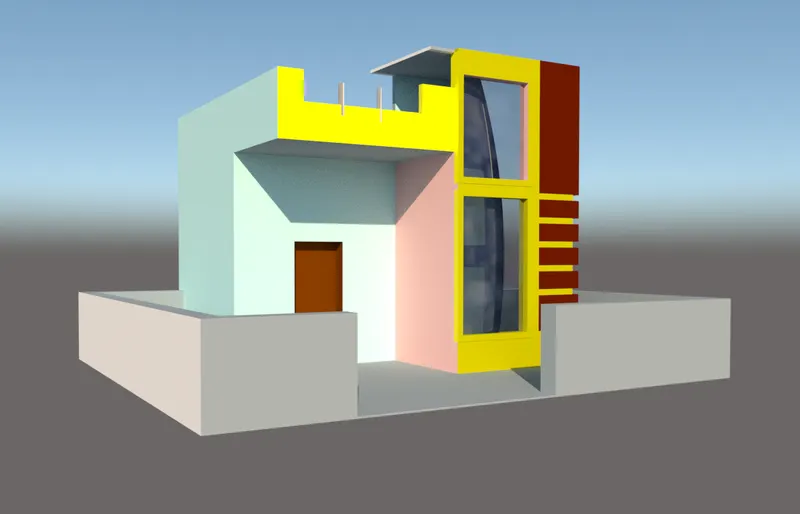

After the 3d drawing is done the colouring of the walls are done.

Using the light option proper lighting is set for the building.

v-ray extention is used for more realistic view.
