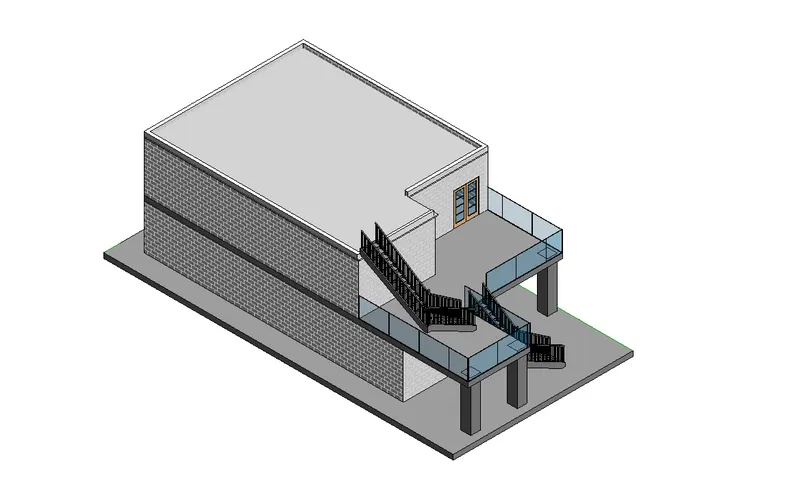

3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

 PROCEDURE FOR THE PROJECT:

After the revit is open we can see the sample project options like archetech,structural etc the apropreate file is taken but for now as for our requirement,new option is selected a window is displayed showing the project templet type for my convience imperial templet Is taken by using the option browes.

The view is converted into east elevation.using the structure option level option is taken and the levels are incerted on the sheet in the given dimentions.

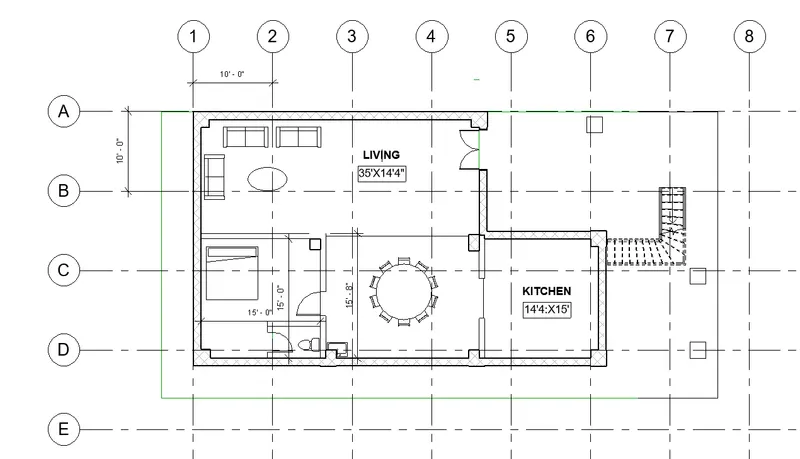

 And again the view is changed to level one of groundfloor and grid option is used to form the grids with the given offsets.

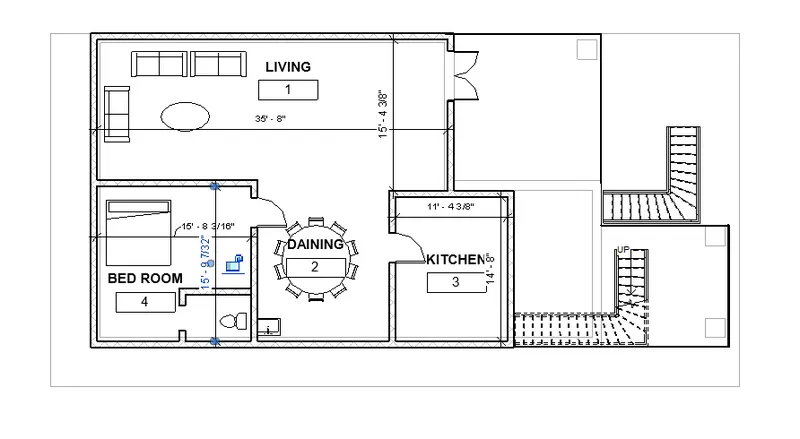

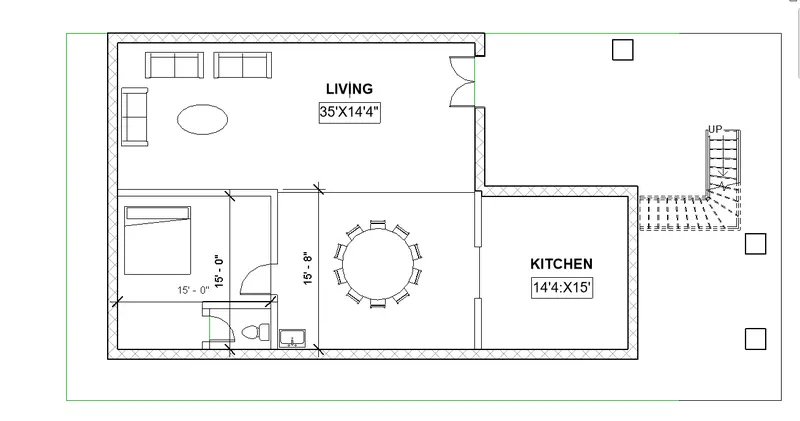

A layout is created in the new sheet and the the walls are rised to the height of 10’.

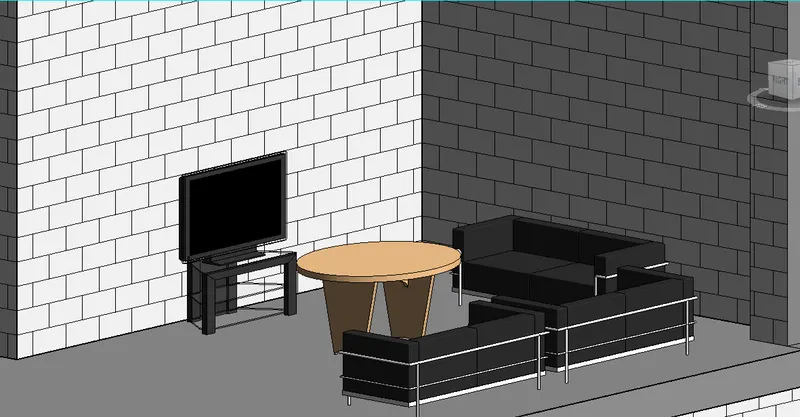

Using the insert ,load option different type of familes like doors,windows,beds,chairs ect are incerted.

After the completion of first floor the second slab is created and the walls and ferneture are copied and are pasted on the 1^st floor .

In the front portion of the 1^st floor left corner the slab is prolongated upto the requirement.

Steps are inserted with the required numbers.

The height of the walls are unconstrained  at a height of 4’ for the better view .

In the front portion of the 1^st floor the curten glass walls are inserted for better view.

3 columns are insertes at the bottom of the salb that is extanded.

From the project 3 the project 4 is extended by creating a celling and the floor at the top of the first floor.

The dimentions are slightely changed from the first floor to second floor due to the changes in the rooms.

The required  furniture are taken from ground floor.

Celling and the slab is set to the boundires.

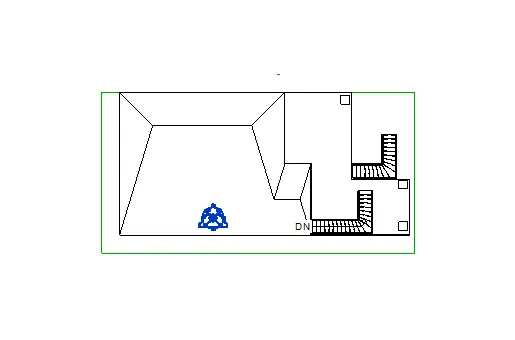

Roof of the building are taken from the ribbon arechitech option and the boundry option is used to make the boundries.

Sloop of the roof is adjusted to 10dig.

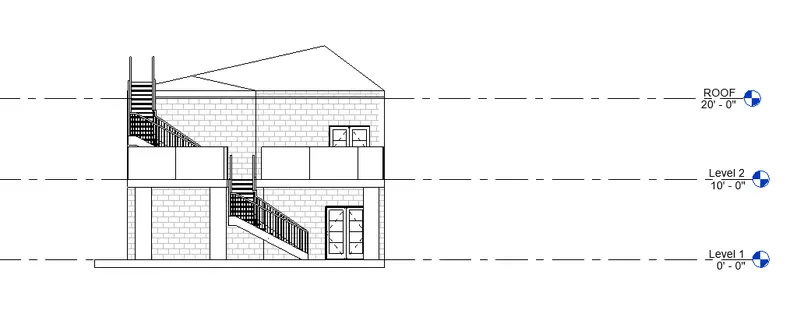

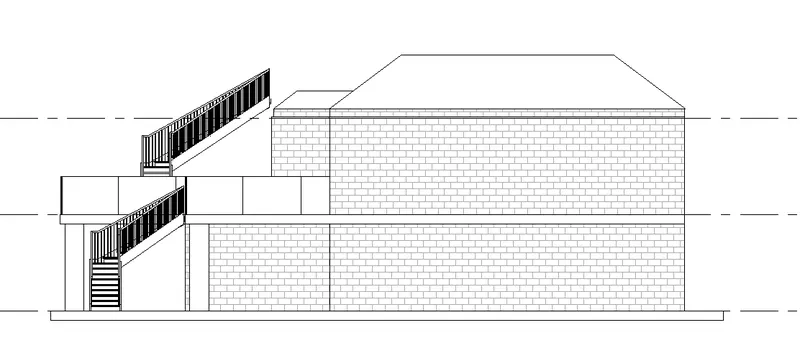

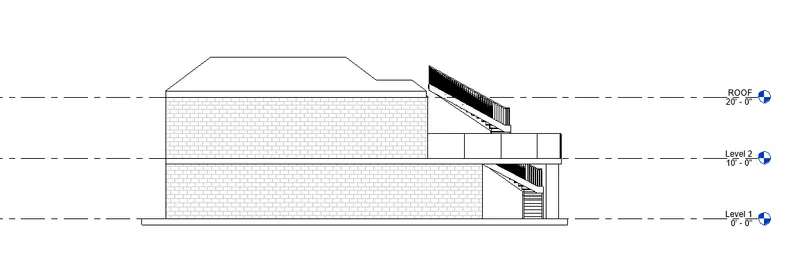

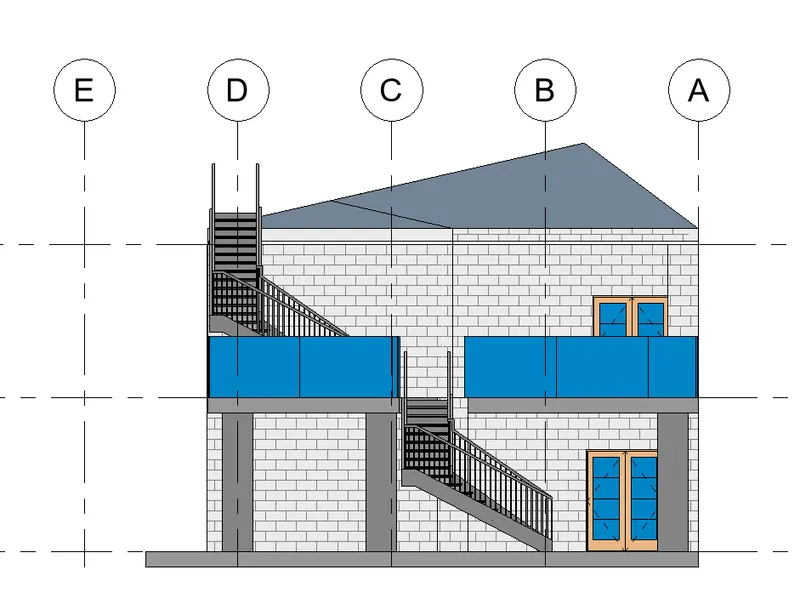

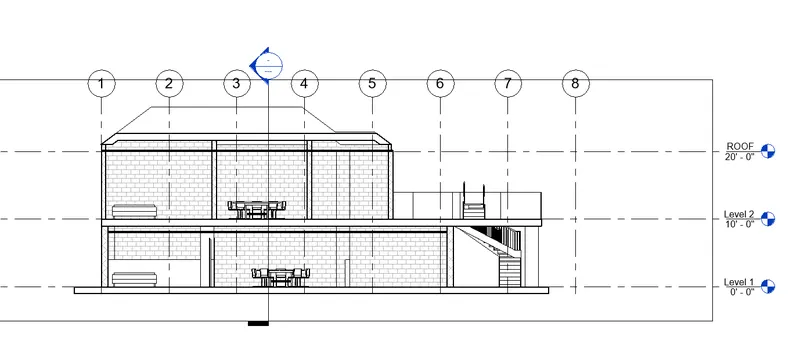

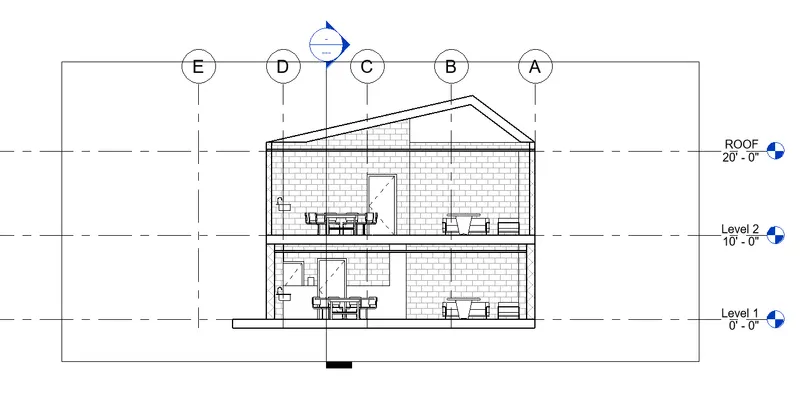

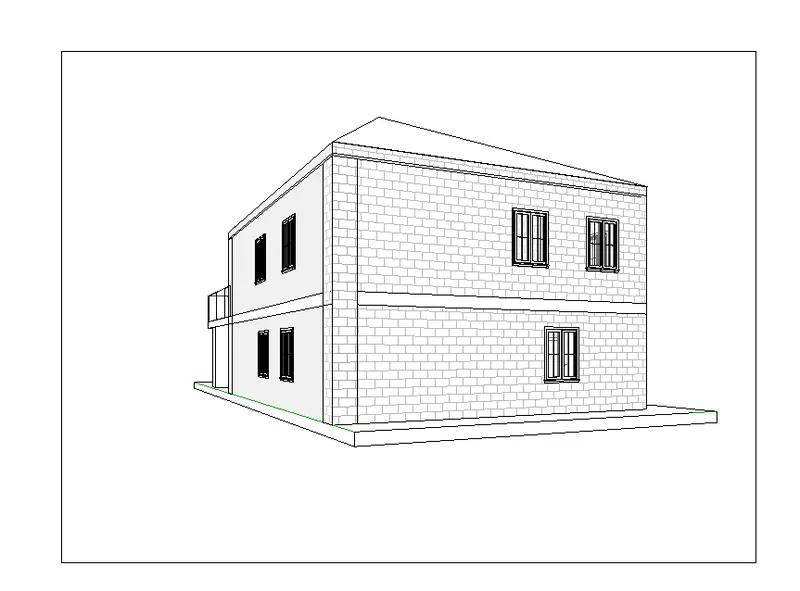

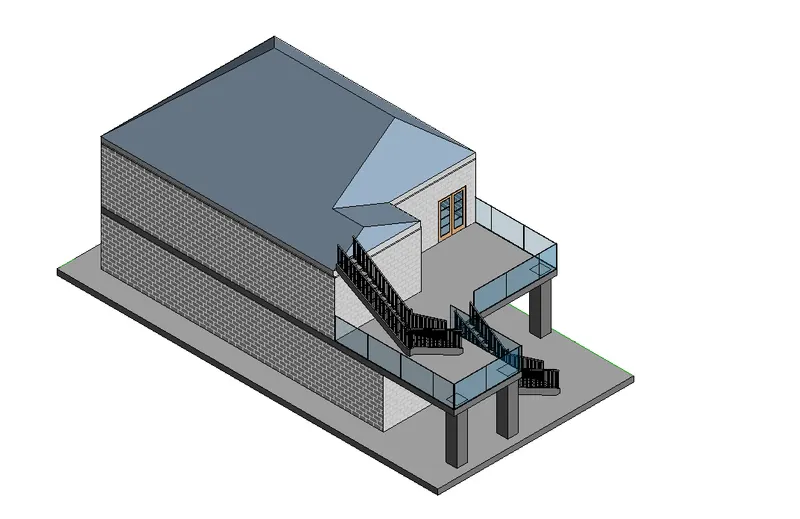

Using view option different type of views in different elevations   pics are taken.

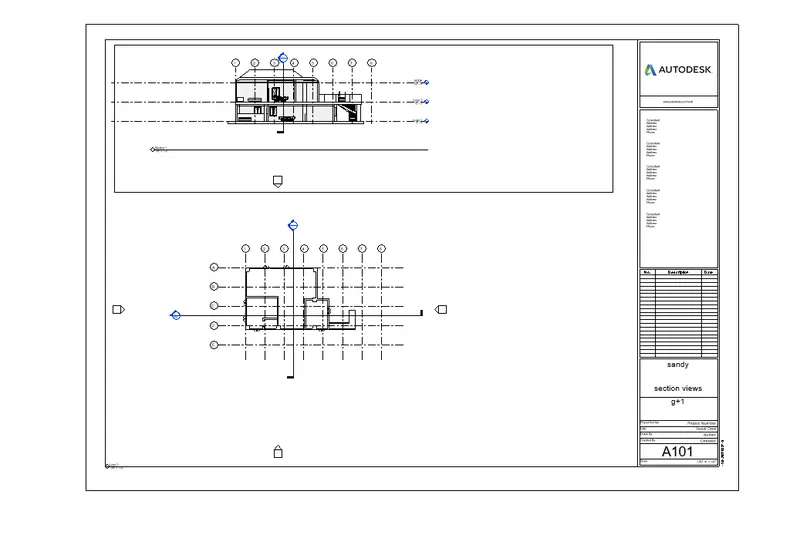

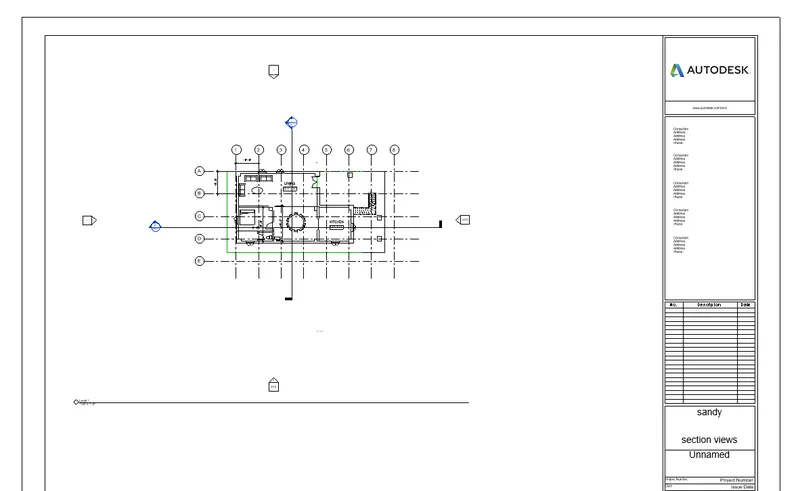

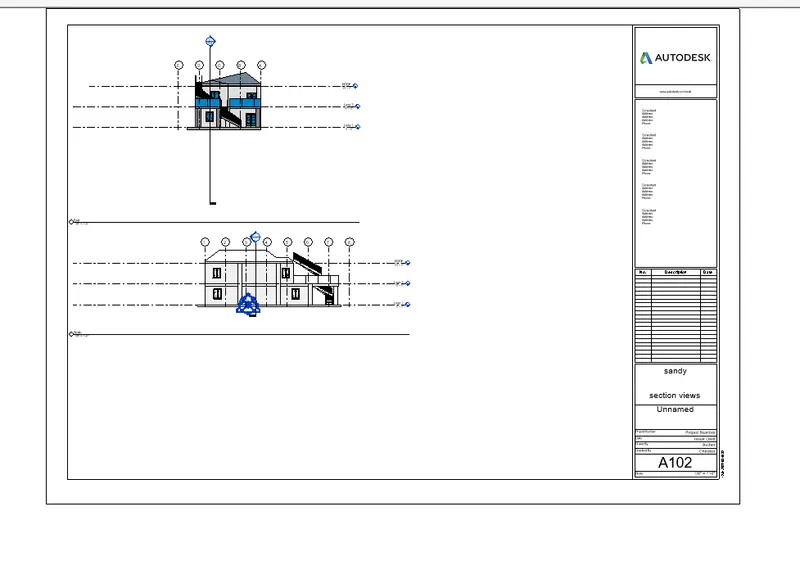

By using sheet option different sheets are created.
