Structural analysis of a buidling using Robot Structural Analysis

1ST ANS:HVAC SYSTEMS

HVAC system is defined as heating ventilation and air conditioning.

HVAC system is used to manage the temperature of the building.

It is used to optimize the room temperature like when it is summer it reduces the heat and makes the room cool and in the winter it will be adjusted to heat.

2^ND ANS:CREATING AN HVAC SYSTEM USING REVIT.

Step 1:first air diffeusers are arranged in the room according to the requirement and the height is kept in between slab and the celling.

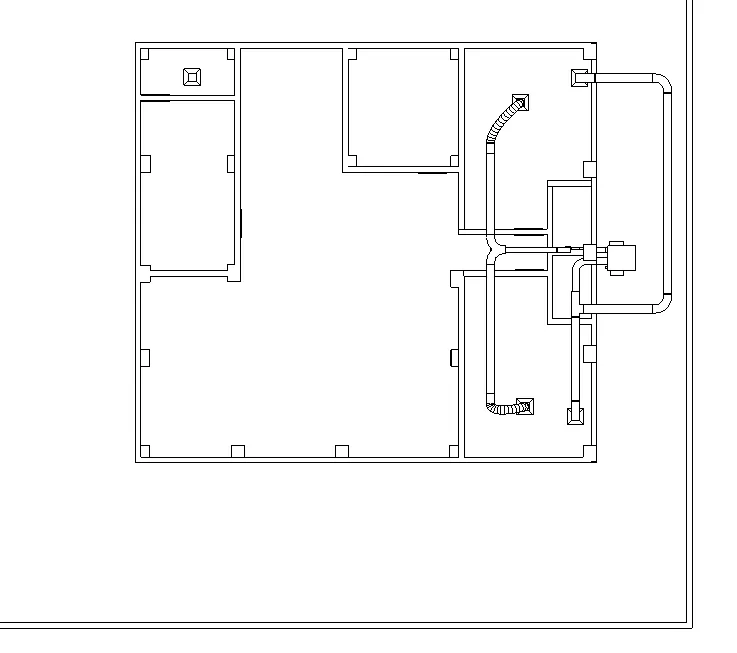

Step:2 now the air handeling unit is loaded from the appropriate family and incerted at the out side of the building and but selecting diffeusers and the handeling unit layout is created and network is generated.

ROBO STRUCTURAL ANALYSIS:

Robo structural analysis is the tool that is used to determine the load combination effects and the maximum reactions of the building.

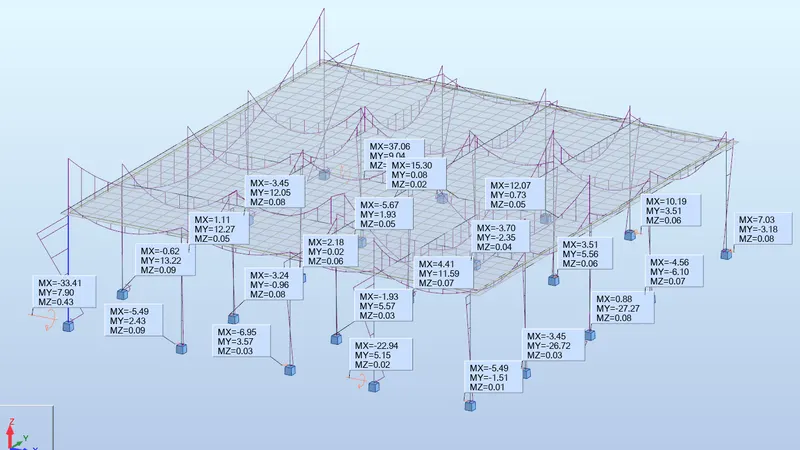

The bending moment and shear force diagram are optained form this tool.

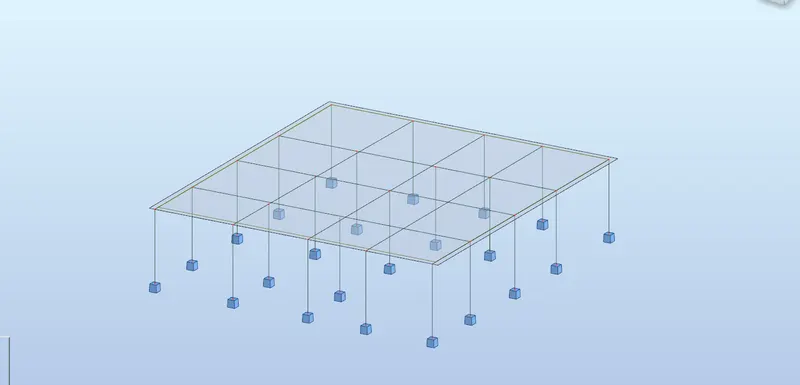

After the model is loded with the loads and boundry conditions the model is teansported to robo analysis for the analysis of reactions.

ENERGY ANALYSIS:

Energy analysis is used to dertmine the energy levels of the building by comparing the levels with the limits that have been set manualy by the user.

Natural light energy and the energy that have been evaluated by the bulb.

This energy analysis is used to determine the need of light that required are to be reduced.
