Creating 3D Isometric view of various structural elements in AutoCAD

AIM:
        DRAWING THE GIVEN 3D PLANS  USING 3D AUTOCAD SOFTWARE.

DETAILS OF PROJECT:

THE GIVEN 3D PLANS ARE DRAWN ACCORDING TO THE GIVEN DIMENTIONS AND THE STEP BY STEP  PROCESS IS GIVEN BELOW.

PROCDURE:

        For the given drawings the units are set according to the requirements.

The the front viw of the given drawings are first drawn in the 2d plane of the cad.

Then the drawings of the face of the figure is rotated in the 3d plane in the z axis.

For drawing the 3d figues the plane is conveted in to the 3d plane and the system type is converted from architech to 3d modeling.

Using the 3d rotate command the object is rotated along the z axis in 90 degrees and the back portion of the object   extuded bu using the extrude option in the ribbon.

Surftab1 commont is used to smoth the surface of the object.

And line commond is more frequently used.

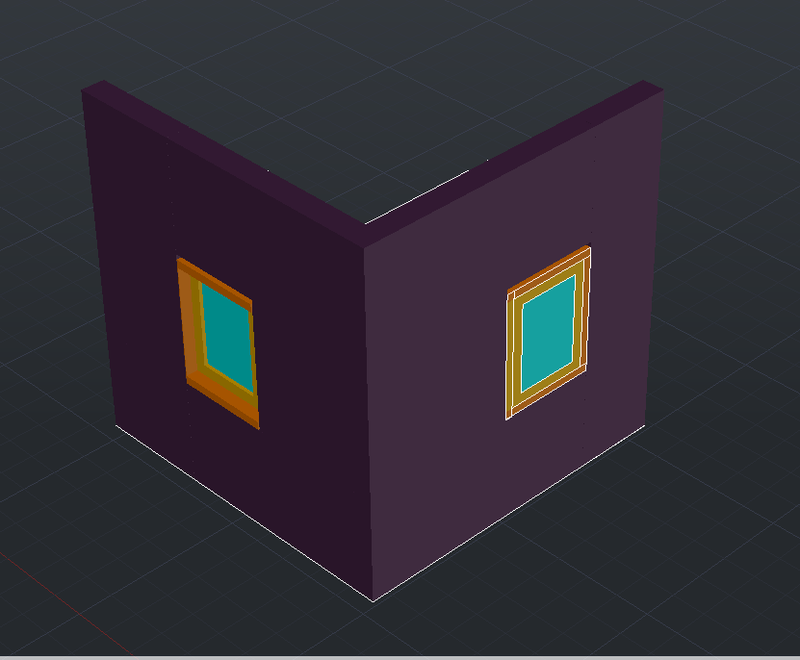

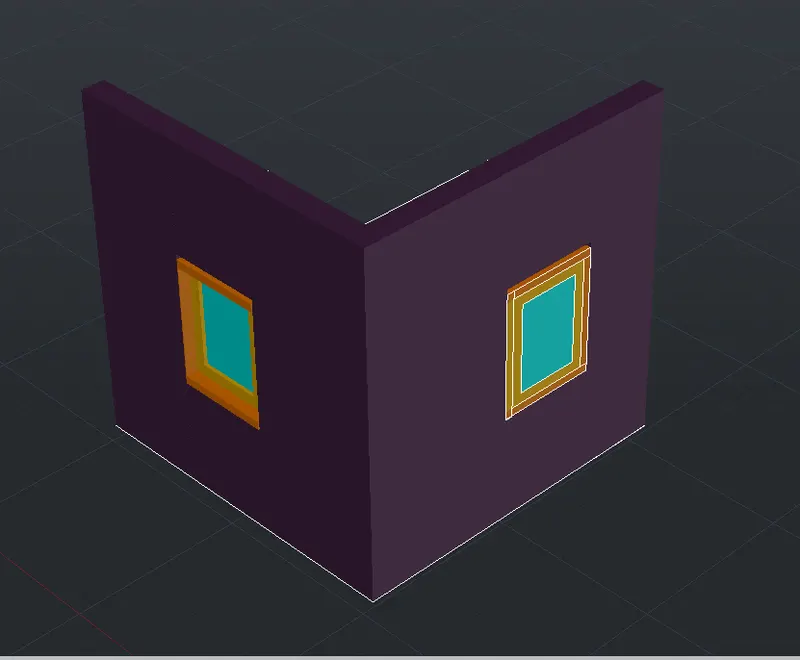

FIRST FIGURE:

A plan of two walls are given first the plan is drawn in the 2d plane and the view is converted in to 3d and then the plan is rotated in the vertical axis and presspull tool is used to pull the wals at the given height.for the window the gap is created using subtract option.

By the given details the of the window 3d model is created and it is movied and fixed in the walls.

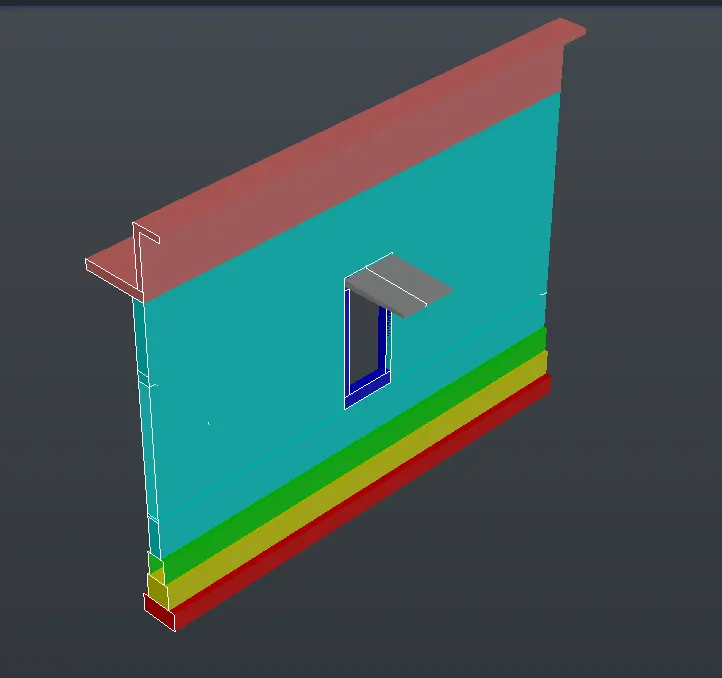

SECOND FIGURE:

A section that is  given first  drawn in the 2d plane and the view is converted in to 3d and then the plan is rotated in the vertical axis and presspull tool is used to pull the wals at the given length.for the door gap is created using subtract option.for the footings diferet colours are taken for clear view.Door frame is created and fixed in the door opning.

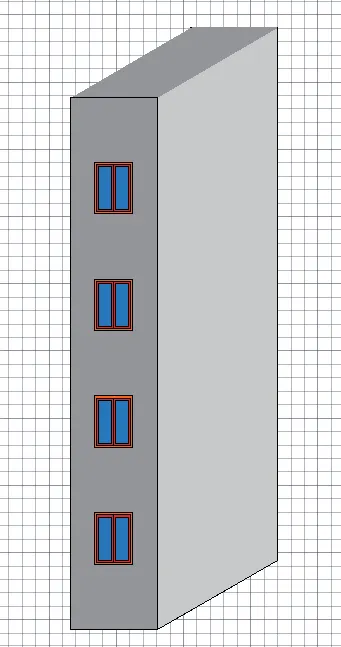

THIRD FIGURE:

A plan of walls are given, first the plan is drawn in the 2d plane and the view is converted in to 3d and then the plan is rotated in the vertical axis and presspull tool is used to pull the wals at the given height.for the window the gap is created using subtract option.

By the given details the of the window 3d model is created and it is movied and fixed in the walls.

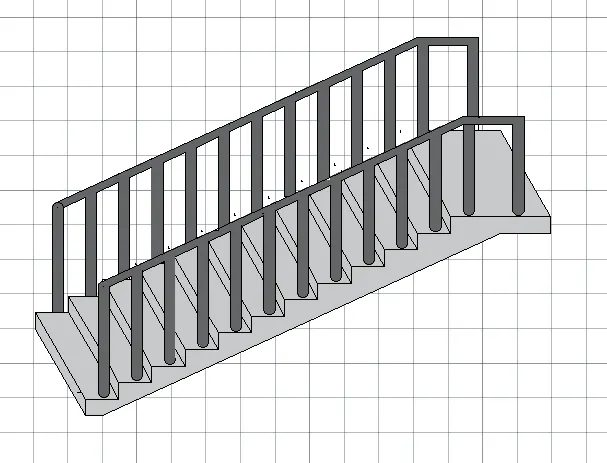

STEPS:

For the steps te gien details of rise ande tread is drawn in the

2D plane and the plane is converted into the 3d view and the plan is rotated in the vertical axis.Using presspull option the steps are created.circles are created on the steps and extruded for ralling. Using sweep option and path is created.
