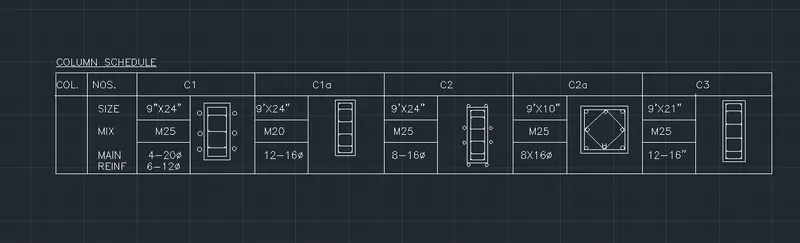

Creation of Column Schedule and Drawing Template using AutoCad

AIM:
DRAWING THE GIVEN TEXT AND TABLES USING AUTOCAD SOFTWARE.

PROCDURE:

For the given drawings the units are set according to the requirements.

The limits of the page are set to 1000,1000 in x y directions respectively.

Dimention style commond is used to set the height of the text,arrow size an the primary units.ROMAN.SHY(STYLE)

Line commont(direct line system ) is used more frequently to draw the given lines as per the dimentions.

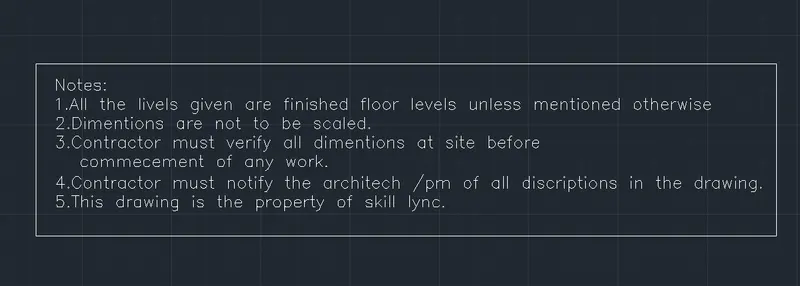

Mtext is used to write the text on the sheet to specify the details of the drawings.

F8 option is used for ortho,F9 is for snap

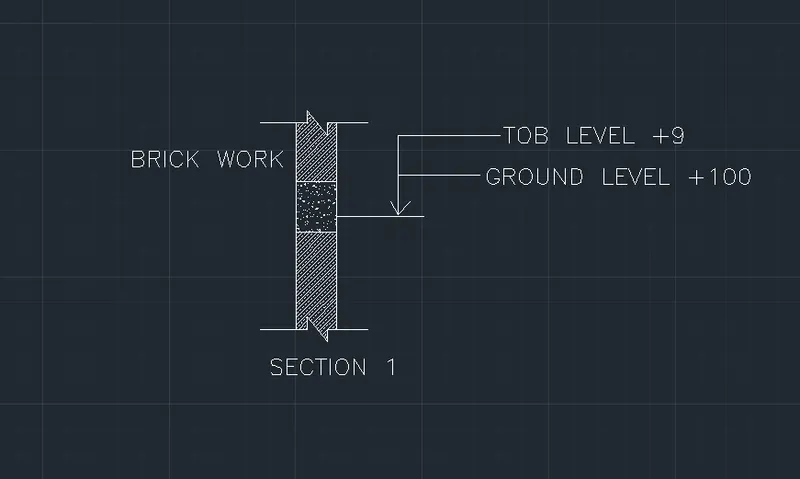

Hatch commond is used to fill the blocks with pattens and with colours to hilightg the things.

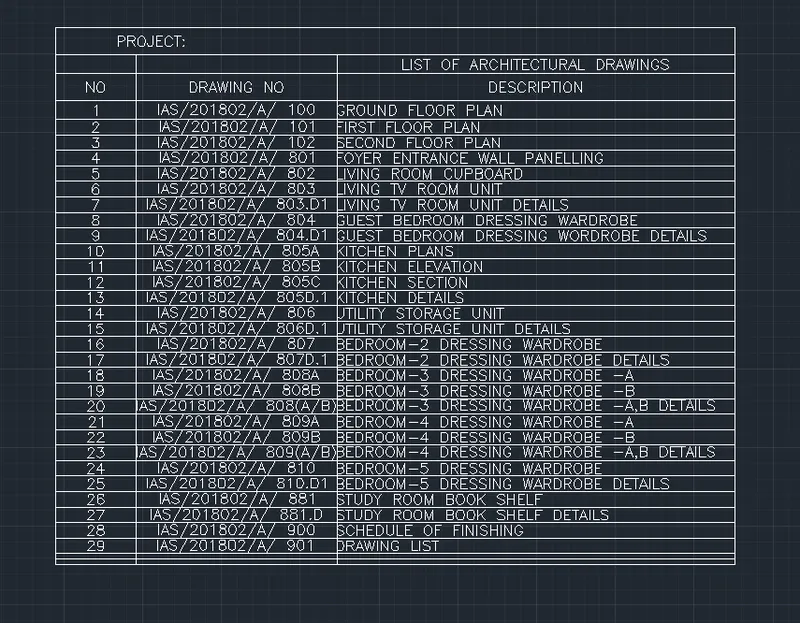

Table commond is used to draw the tables.

RESULT:

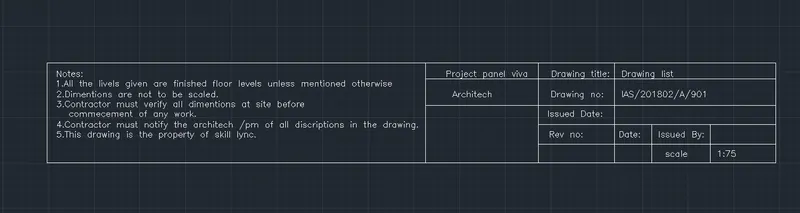

The resulted drawings are pinned below.
