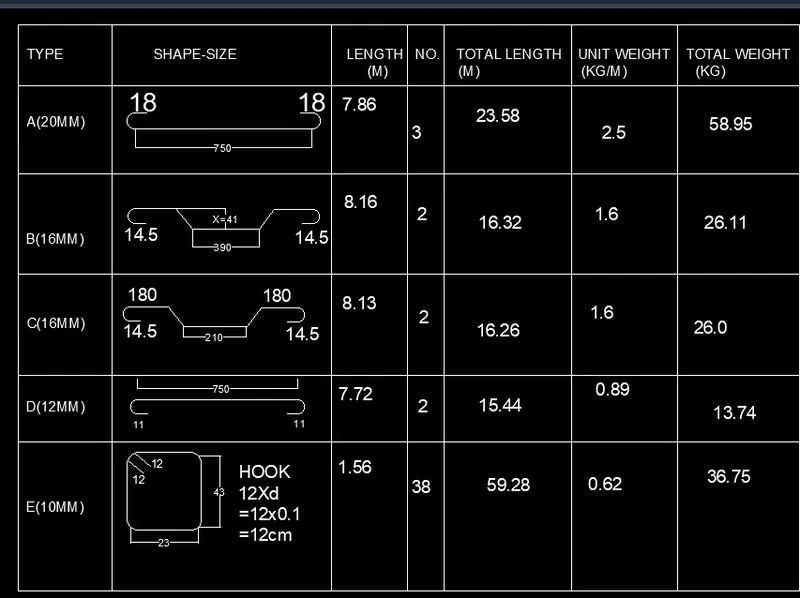

Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

AIM:
DRAWING THE GIVEN DESIGNS USING AUTOCAD SOFTWARE.

DETAILS OF PROJECT:

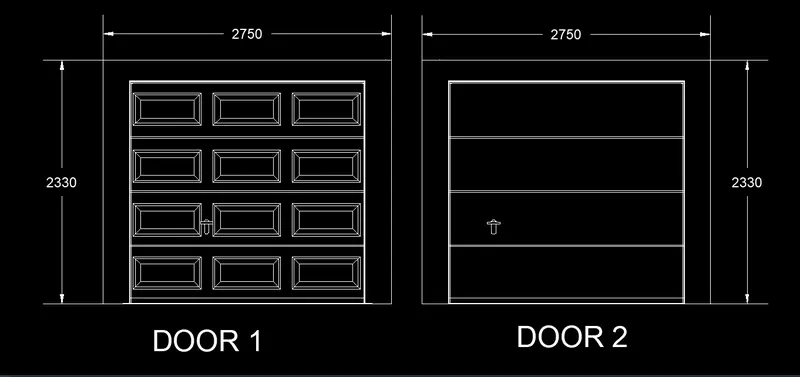

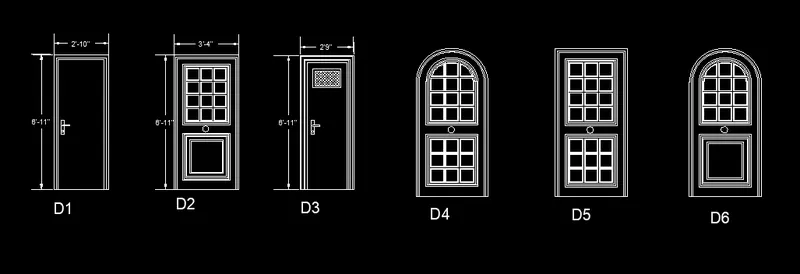

THE GIVEN PLAN CONSIST OF A DOOR DESIGNS AND BBS DETAILS AND THE STEP BY STEP PROCESS IS GIVEN BELOW.

PROCDURE:

For the given drawings the units are set according to the requirements.

The limits of the page are set to 1000,1000 in x y directions respectively.

Dimention style commond is used to set the height of the text,arrow size an the primary units.units are set to engineering.

Line commont(direct line system ) is used more frequently to draw the given lines as per the dimentions.

Circle with radius,circle with 2p method is used to draw the circles where it is required.

Tangent to with the point are used to draw the tangent for the figures.

Tream option is used to tream the excess patrt of the figures some times erase.

Dim tool is used to determine the dimentions of the lnes that are to be mentioned.

Mtext is used to write the text on the sheet to specify the details of the drawings.

Fillet is used to fill the corners where there are not joined corectely or disconnected.

Chamfer used to fill the corners with curved edges where they are to be joined with curved part.

F8 option is used for ortho,F9 is for snaP.
