Wiring harness design in CATIA V5 - 3D modeling Week 2 Challlenge

Aim - To define given part as electrical connectors and defining all necessary properties. To define all parts as electrical connector, Electrical Part Design Workbench was used.   Connector- 174357-2   To Define Connectors: Download the Connectors From Tyco Website. Created an Axis System on the mating face.…

    • Gaurav Sharma

      updated on 03 Jan 2022

    Aim - To define given part as electrical connectors and defining all necessary properties.

    To define all parts as electrical connector, Electrical Part Design Workbench was used.

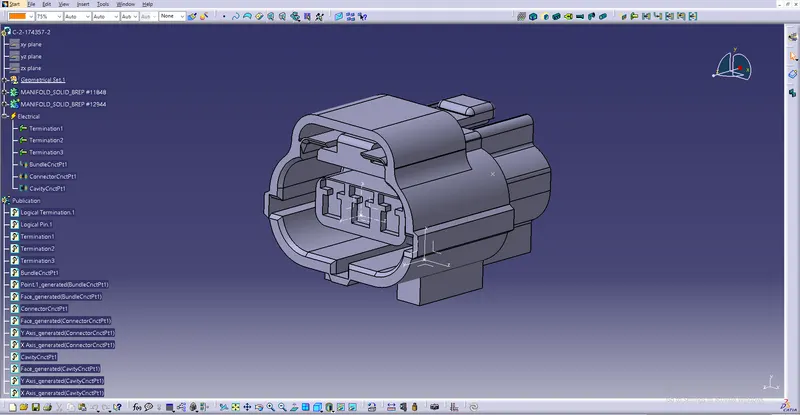

    Connector- 174357-2



    To Define Connectors:

    1. Download the Connectors From Tyco Website.
    2. Created an Axis System on the mating face.

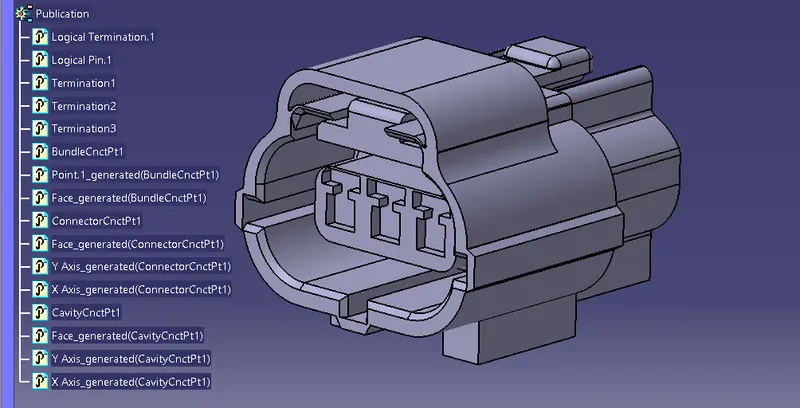

    3.  To define its electrical Properties use Define Connector Command > Electrical Device Definition > Electrical Part Design Workbench.

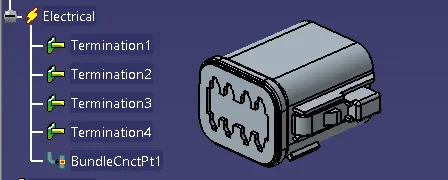

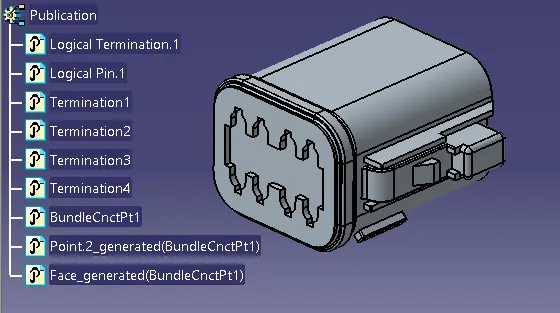

    4. 8 termination Points are Defined.

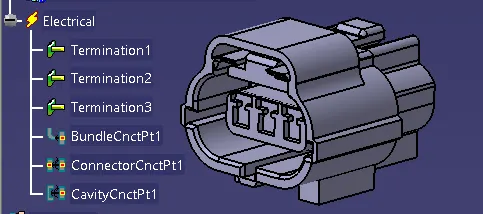

    Defined as Electrical Connector



    Connector Connection point is Defined using Define Connector Connection point Command









    Connector Cavity/Mounting Clip- 85229-1

    To Define Cavity:

    1.  Created an Axis System on the mating face.

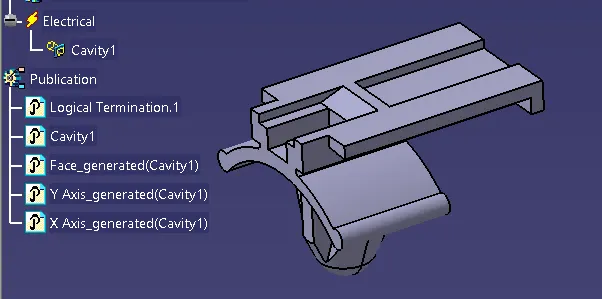

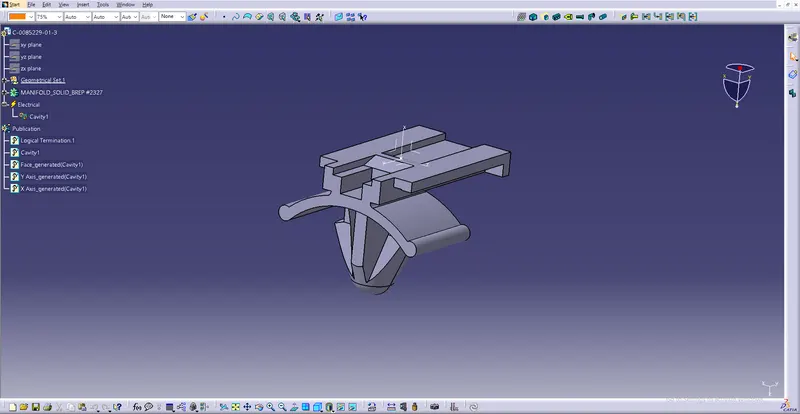

    2. To define it as cavity, use Define Cavity Command > Electrical Connection Point Definition > Electrical Part Design Workbench.











    Connector- DT06 – 08SA

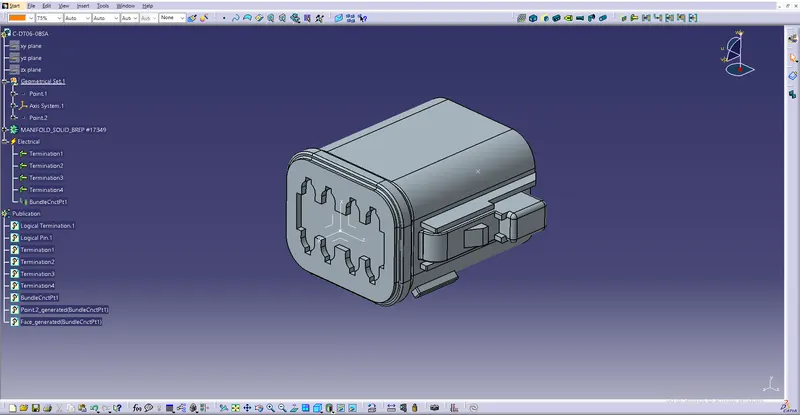

    Defined as Electrical Connector
