Tooling direction- The Tooling Direction is basically the direction that the mold pulls apart. The mold is built in two separate pieces, basically. You have a Cavity side and you have the Core side. The Core pulls apart from the Cavity and that's the Dyeline or the Tooling Direction.

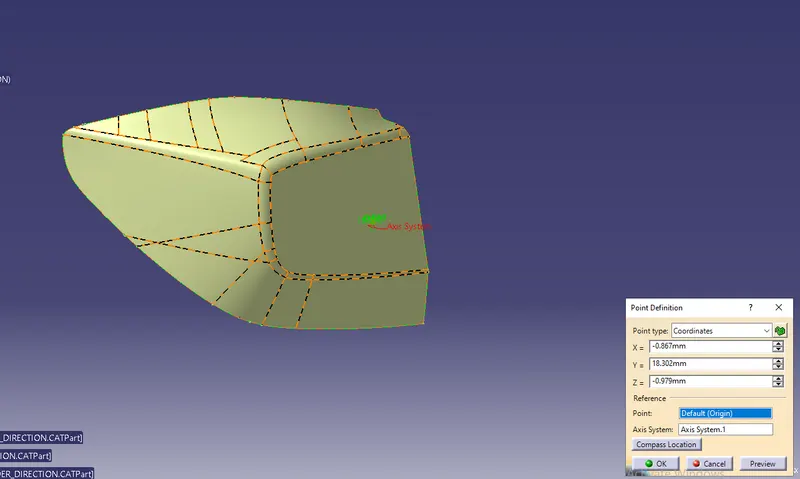

Approach to Create Tooling Axis - Take a Point on the surface

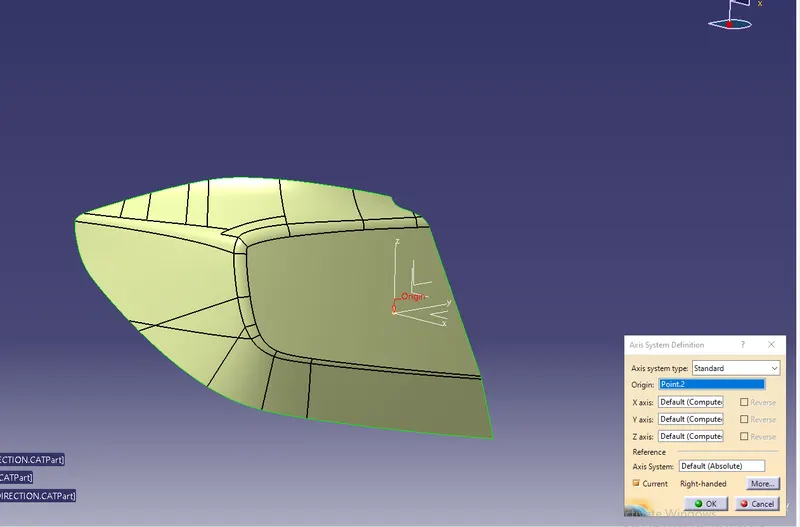

Create an Axis System

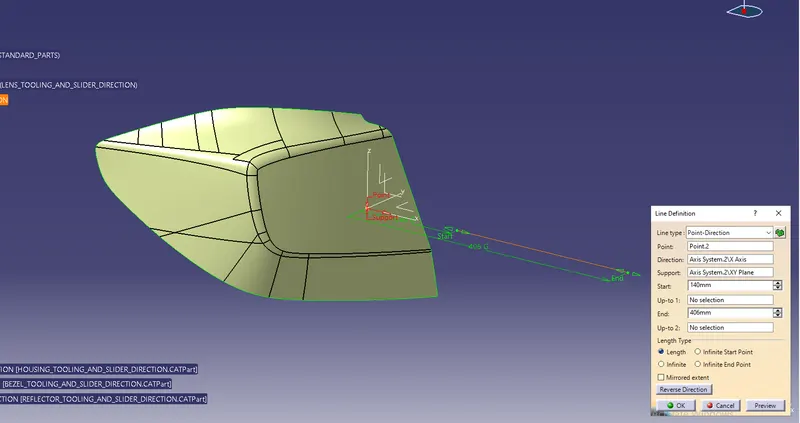

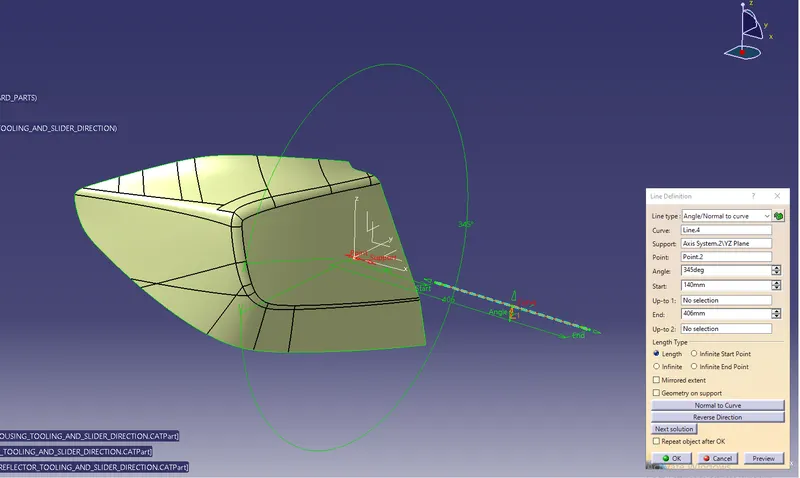

Create a Line using Point and Direction method.

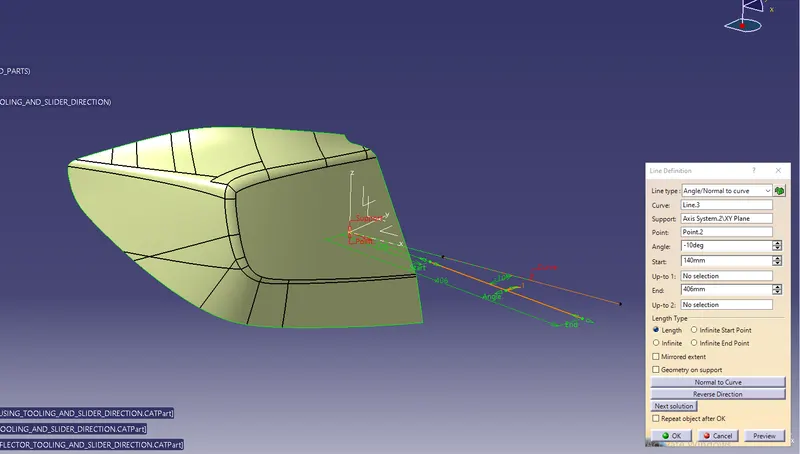

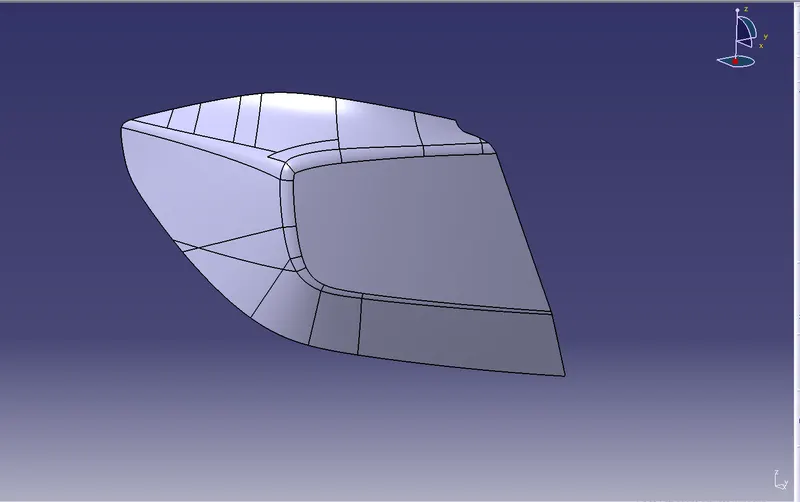

Tooling direction for Class A with 10 deg draft
Adjusted the tooling direction

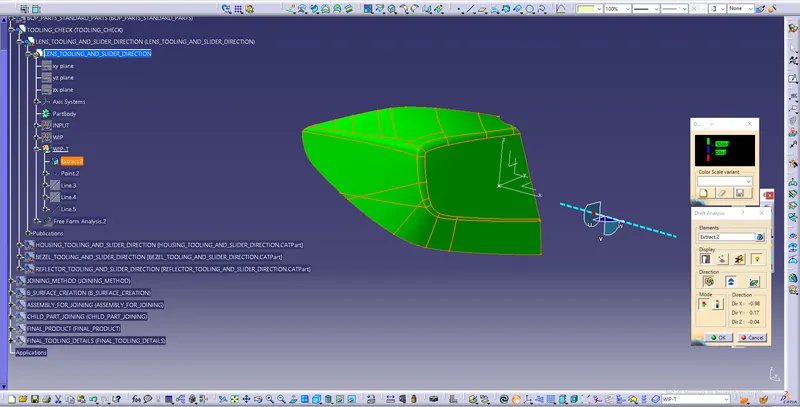

Draft Analysis of Lens Class A surface
with 10 degree draft
Parting line-
A parting line, in industrial casting of molds, is the border line in which draft angles change direction. One can check the parting line in the mould or product which divides the two half, i.e; the core and the cavity of a molded part. It is sometimes a starting point for the mold parting surface.
Approach to Create B surface

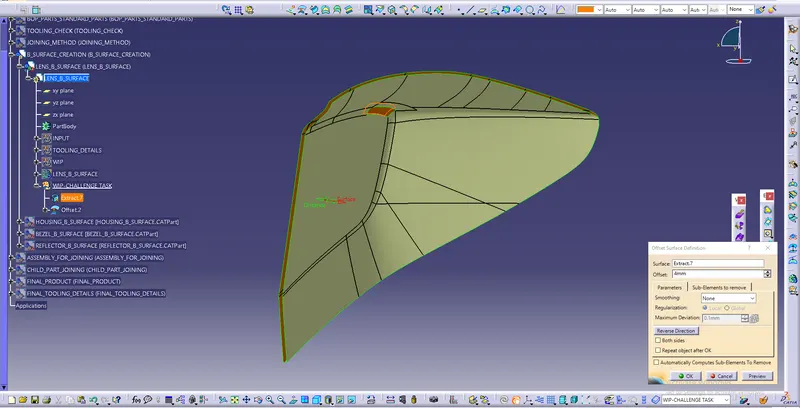

Take an offset of B-surface with 4mm offset value.

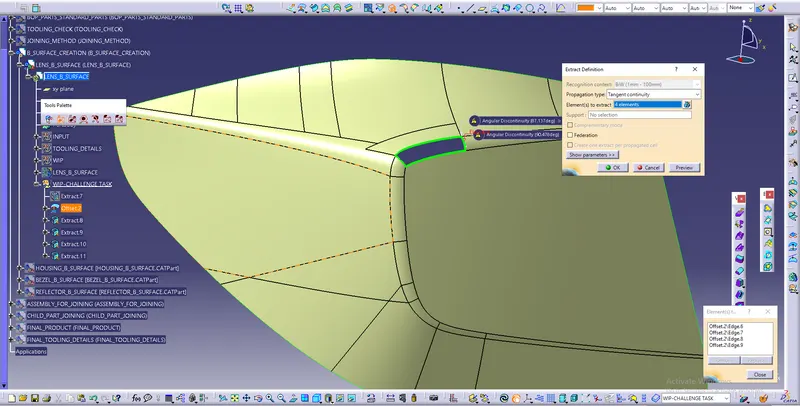

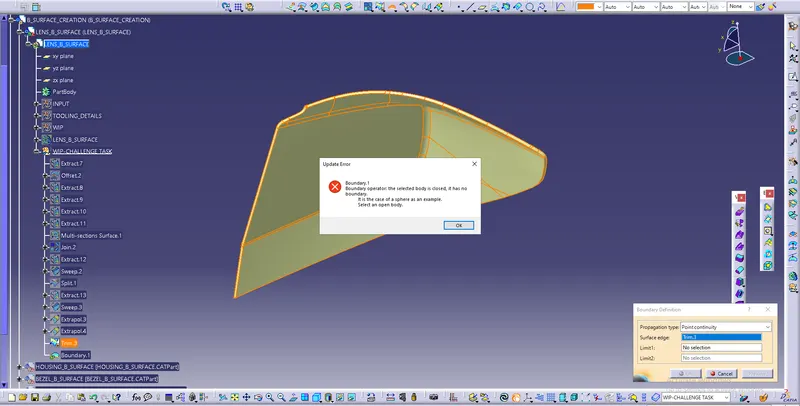

Check surface quality and to repair, Extract the boundry

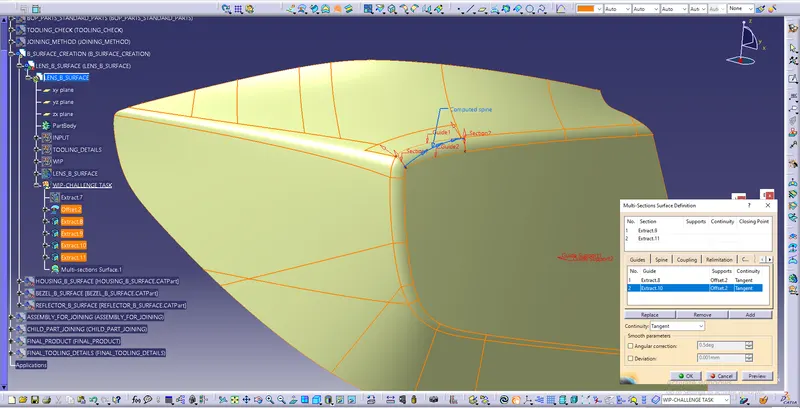

Create Mutisection surface

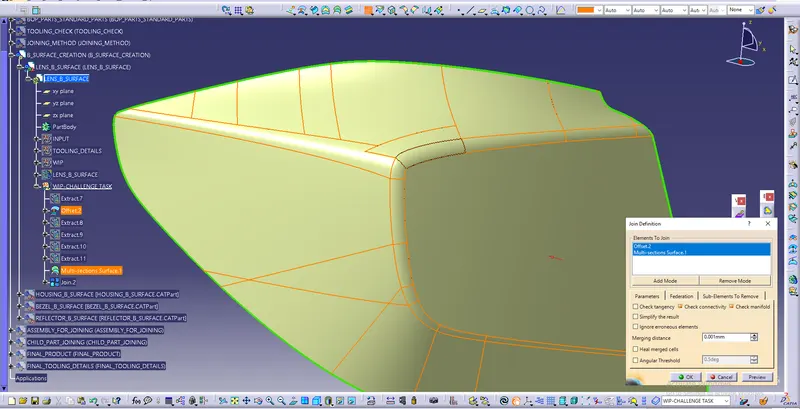

B surface Join

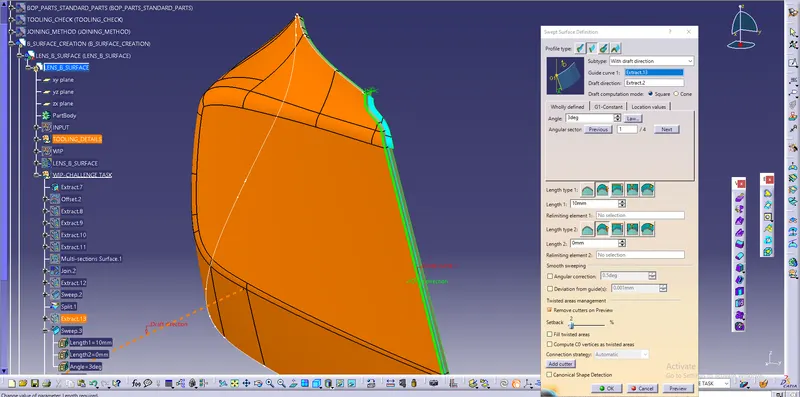

Approach to Create C Surface
Join of A, B and C surface
Closed Body of lens

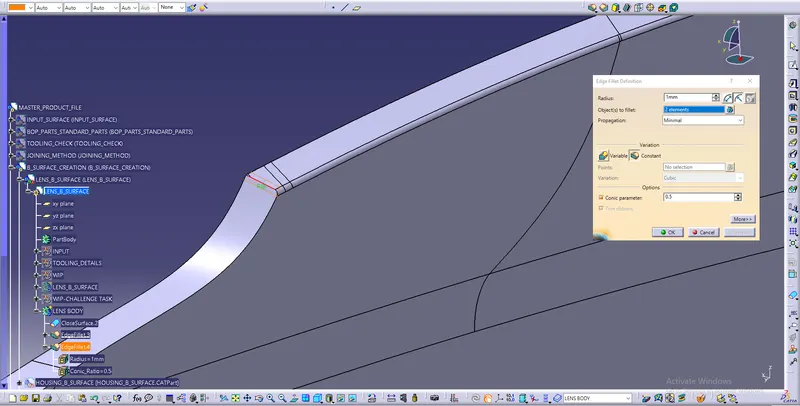

Applying Fillets

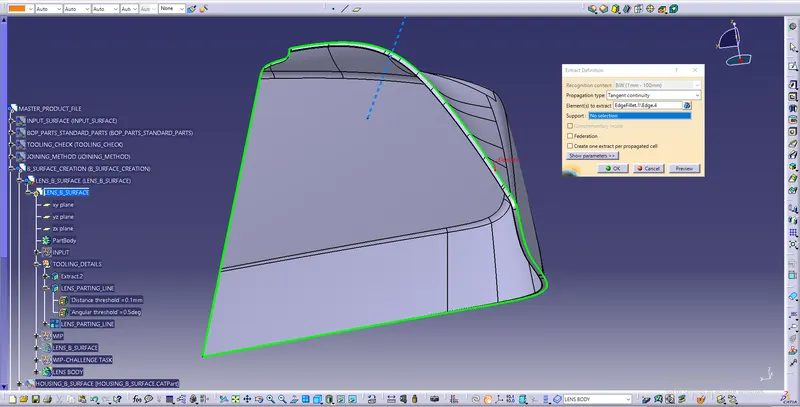

Approach to Create Parting Line

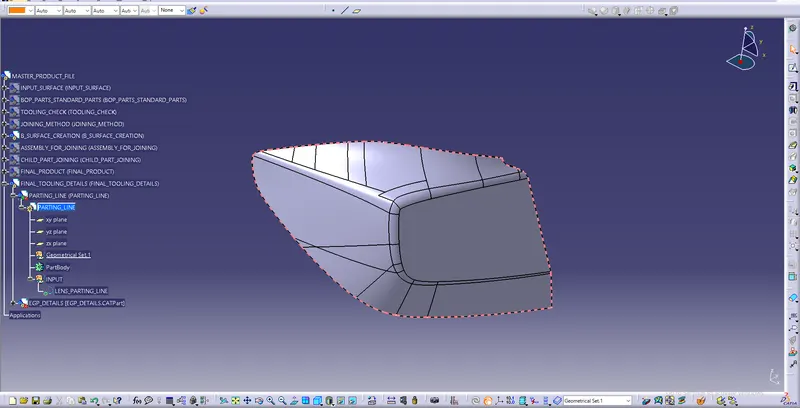

Parting Line
