Week 10:- 2D Detailing Challenge

AIM- TO Draft a Key Sheet for the Complete Fixture assembly created in challenge 8.

To Draft a Base Unit and the Fix Pin Unit drawings with all child parts for the complete Fixture assembly from challenge 8

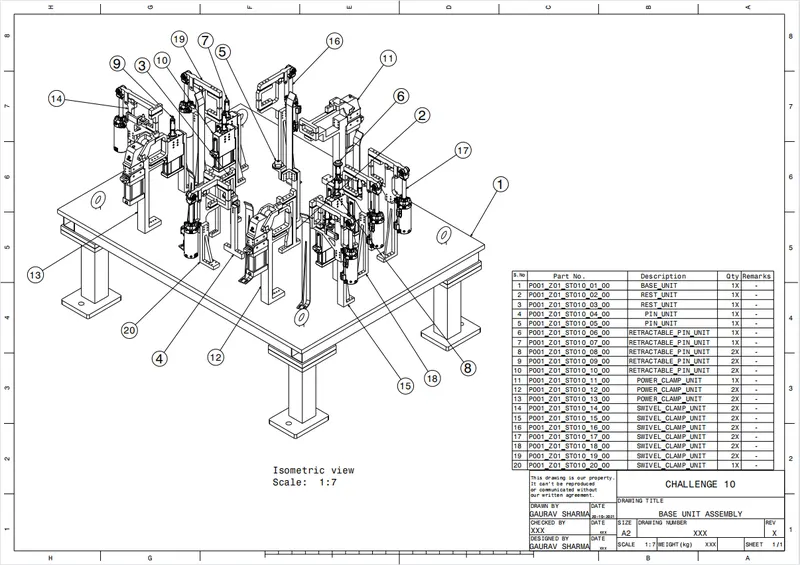

Key Sheet for the Complete Fixture assembly

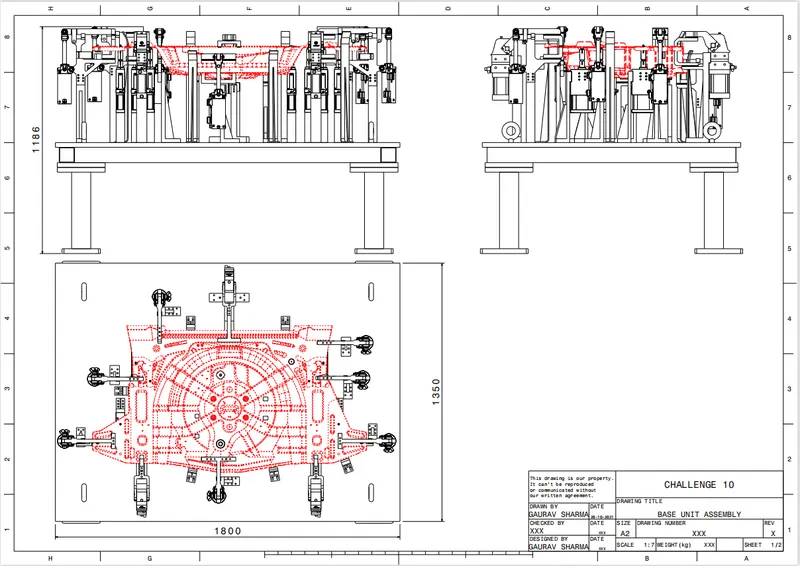

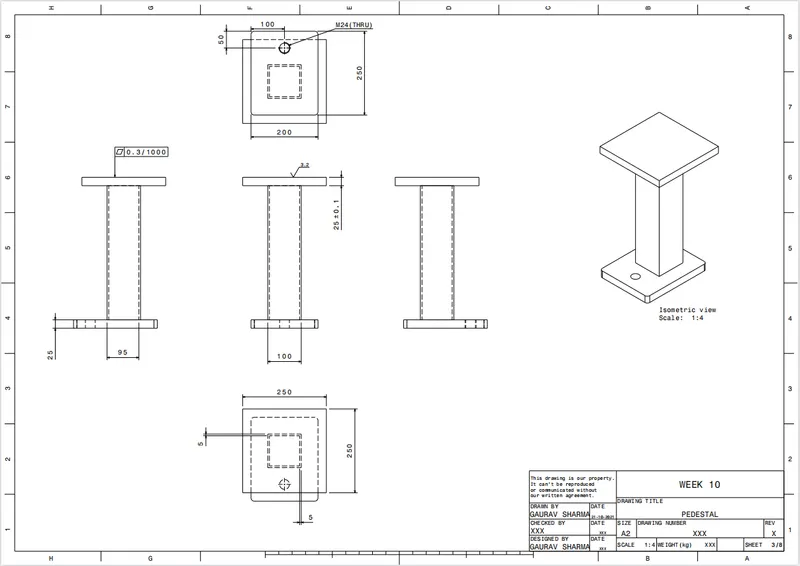

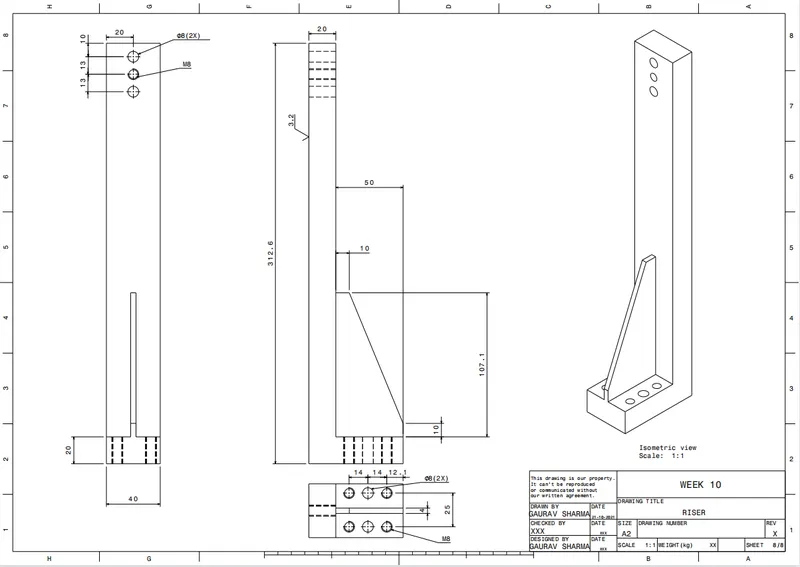

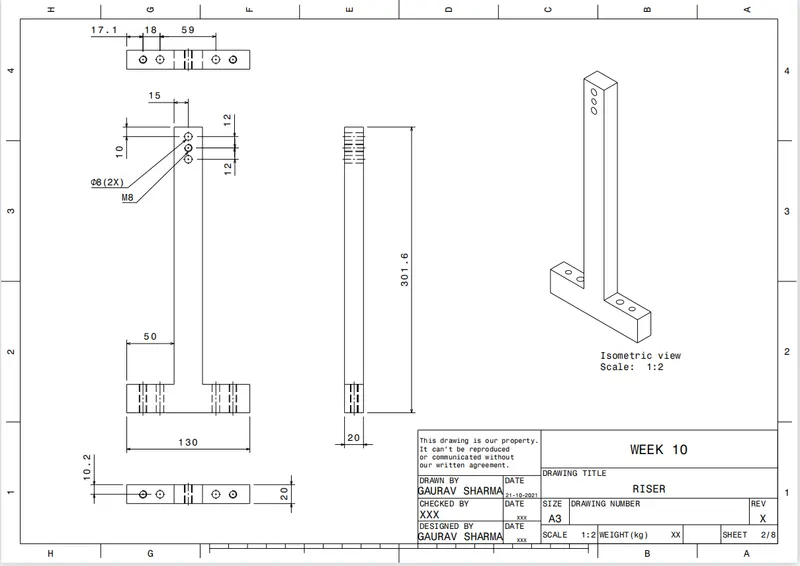

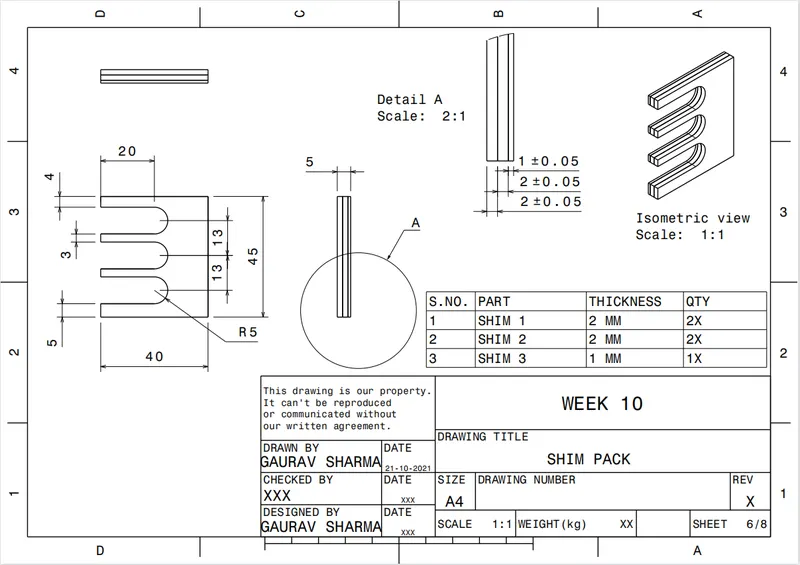

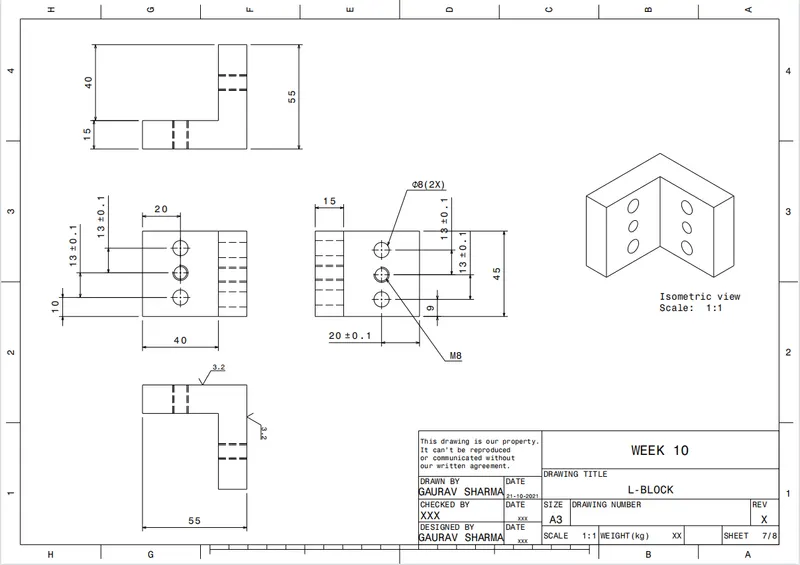

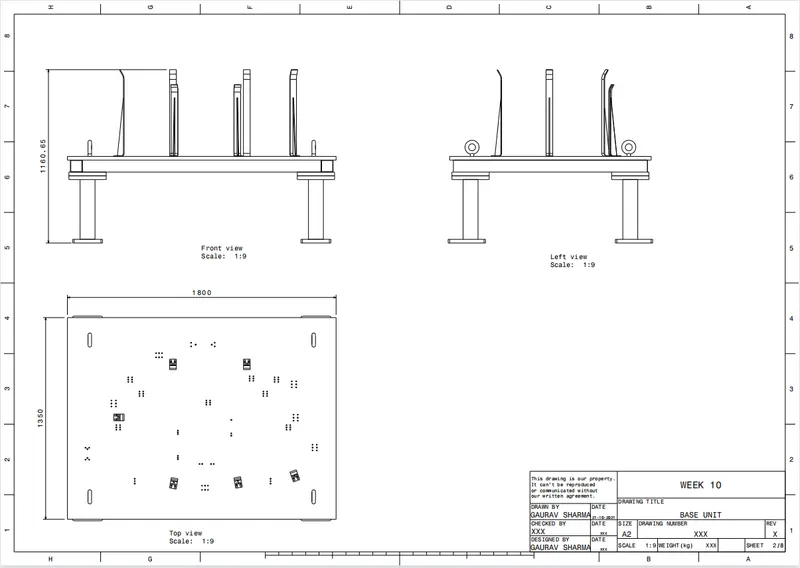

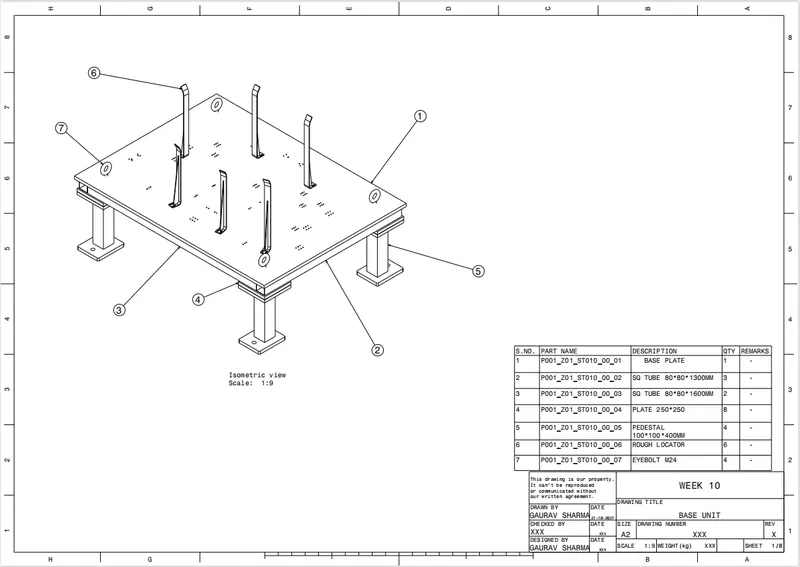

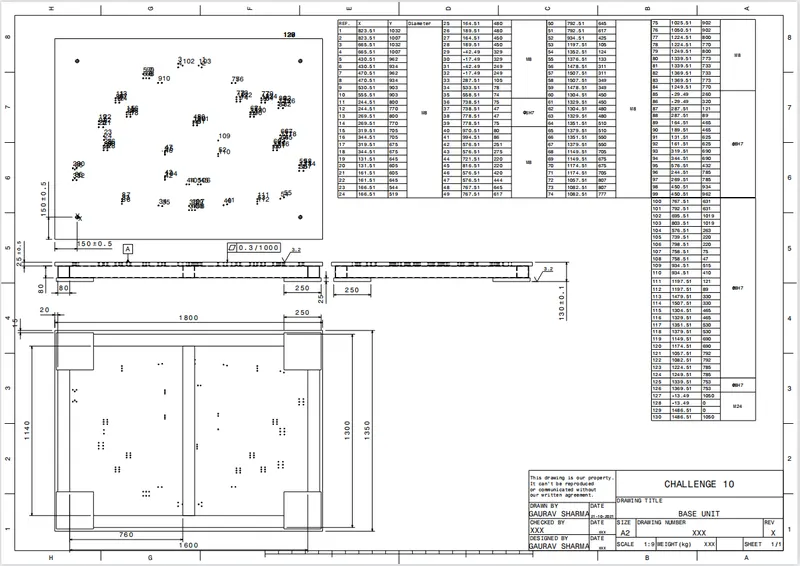

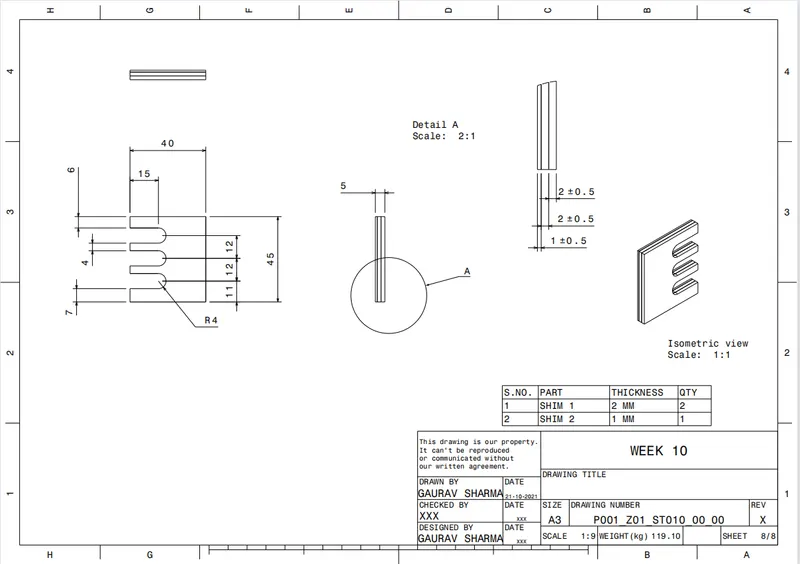

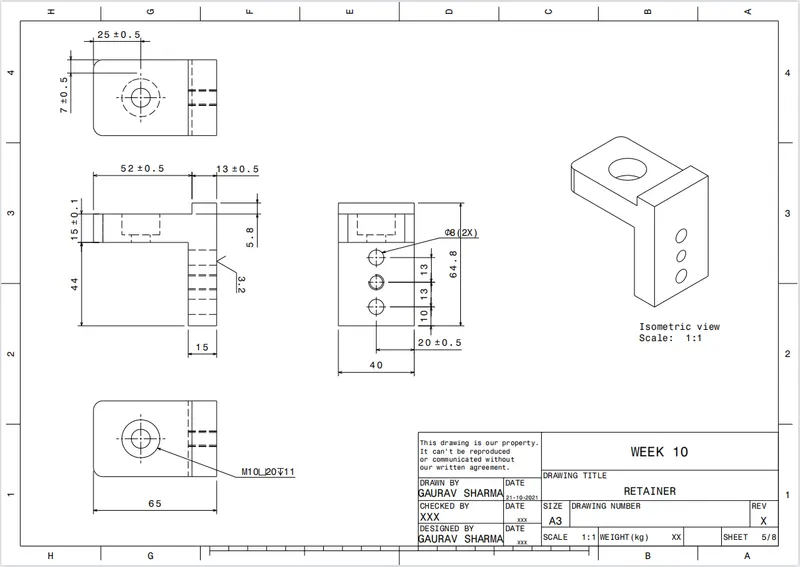

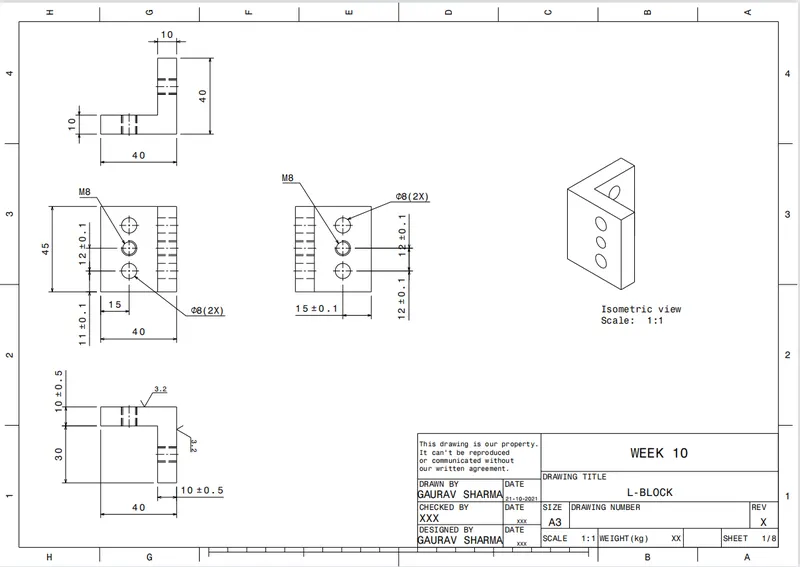

BASE UNIT DRAWINGS

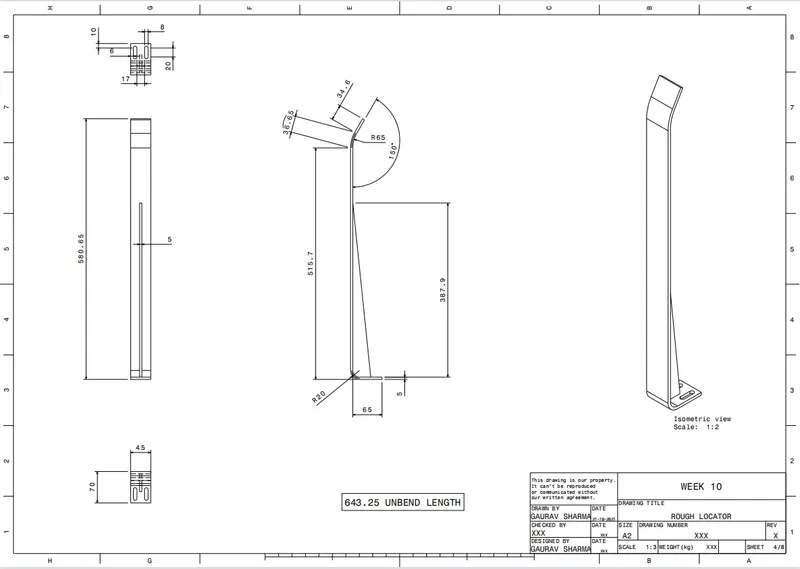

ROUGH LOCATOR DRAWING

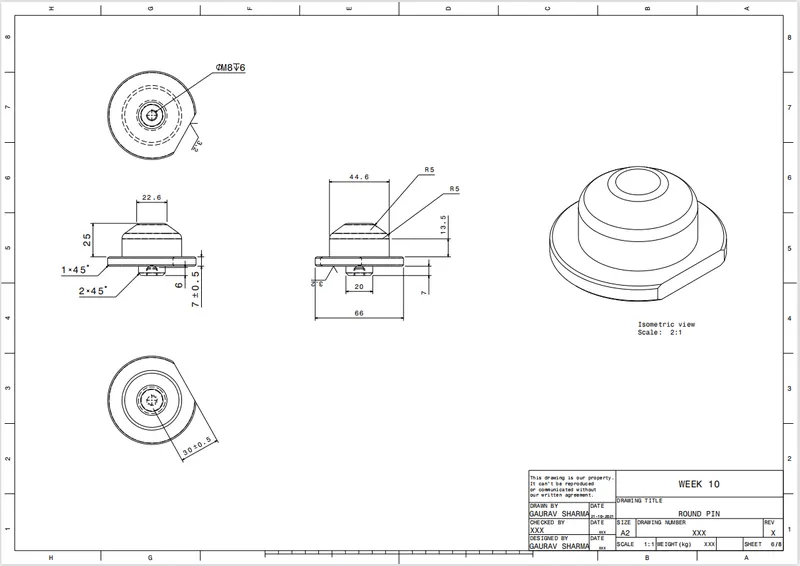

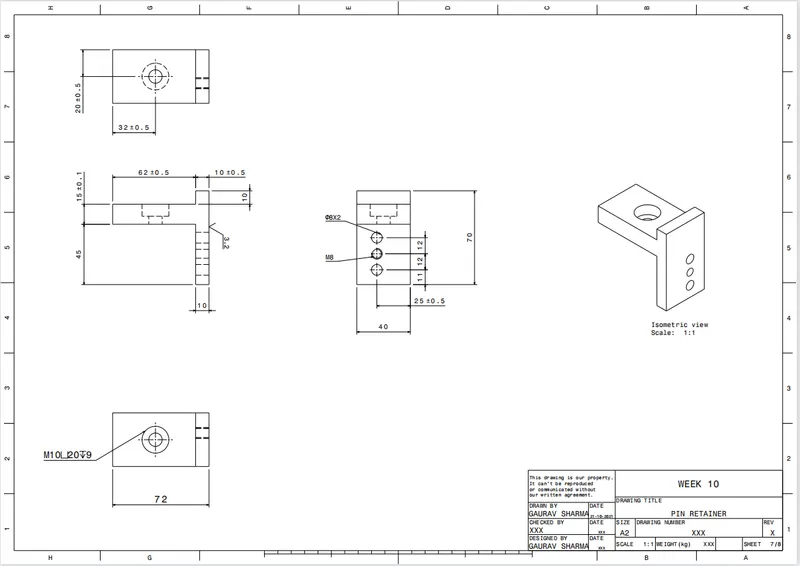

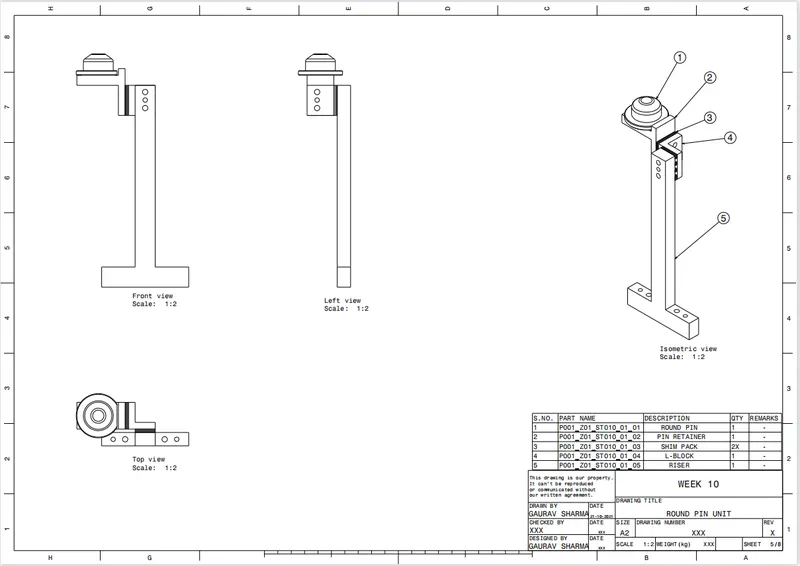

PIN UNIT DRAWINGS

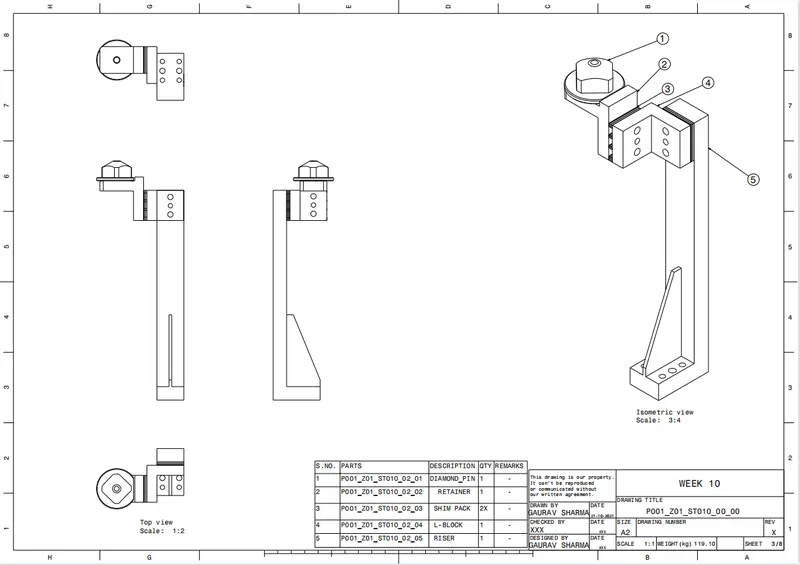

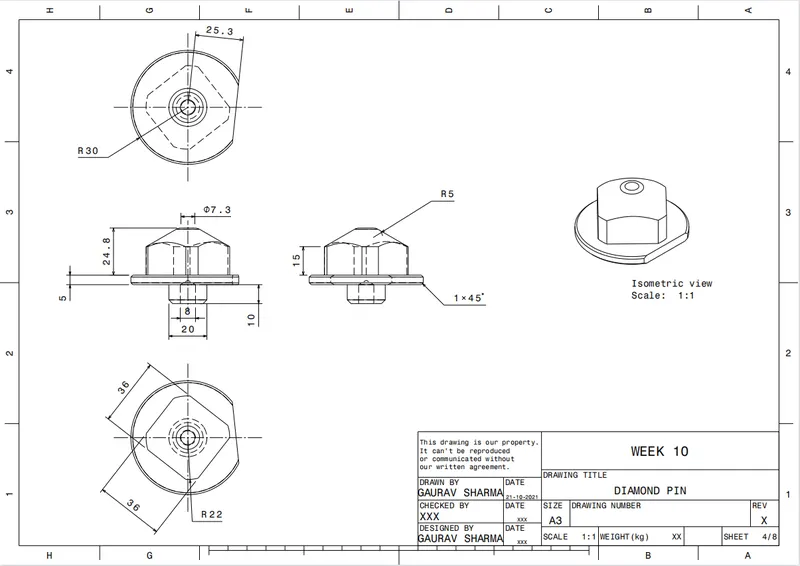

DIAMOND PIN UNIT DRAWINGS
