Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

To Define Connectors:

1. Download the Connectors From Tyco Website.
2. Created an Axis System on the mating face.
3. To define its electrical Properties use Define Connector Command > Electrical Device Definition > Electrical Part Design Workbench.
4. 8 termination Points are Defined.
5. Defined Connector Connection Point.
6. Defined Bundle Conection Point.

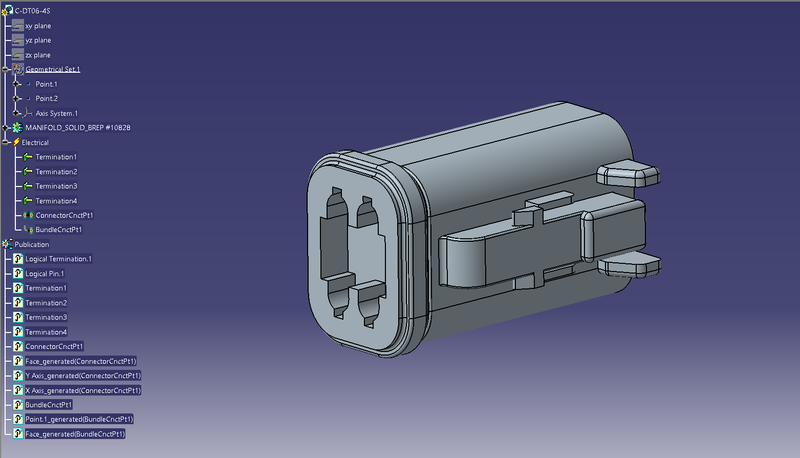

• DT06-4S

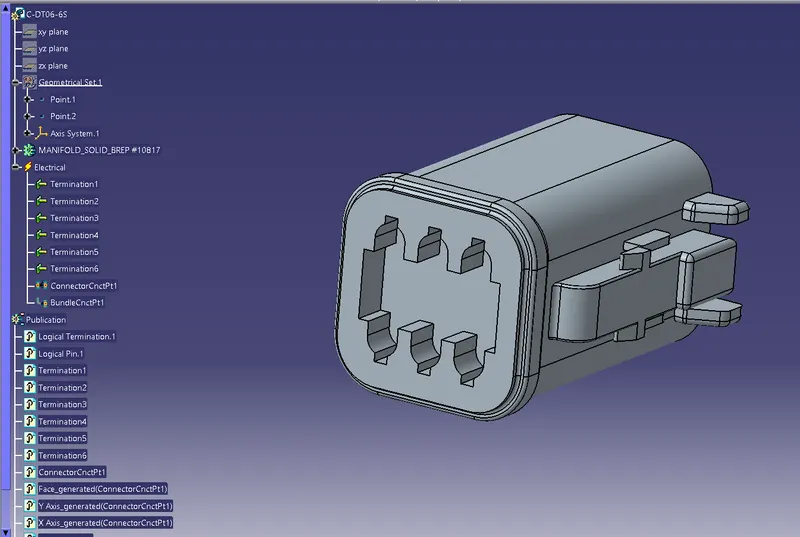

• DT06-6S

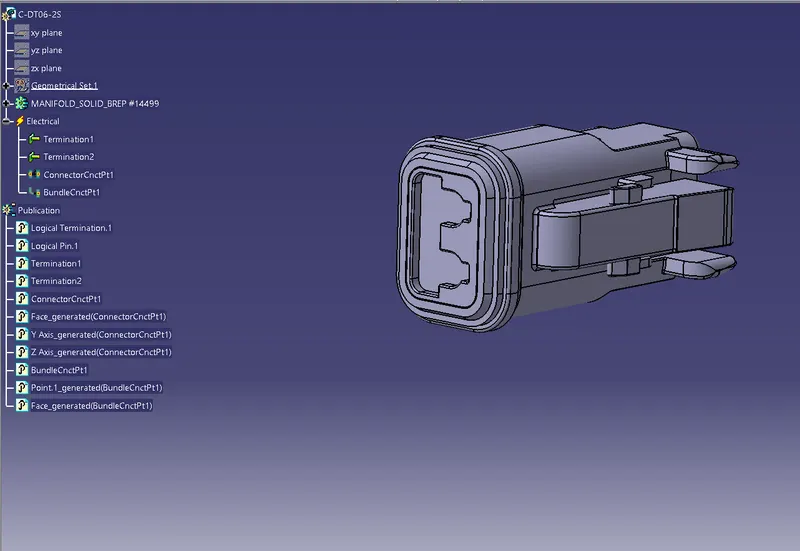

• DT06-2S

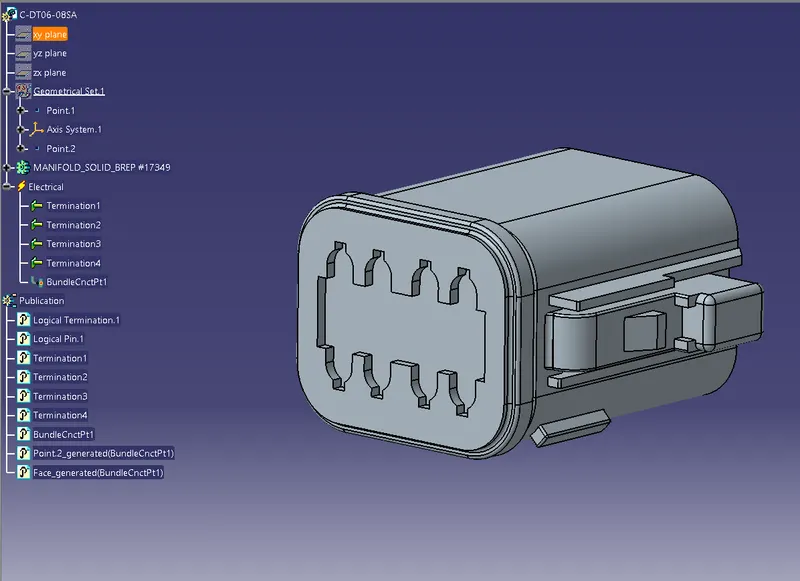

• DT06-08SA

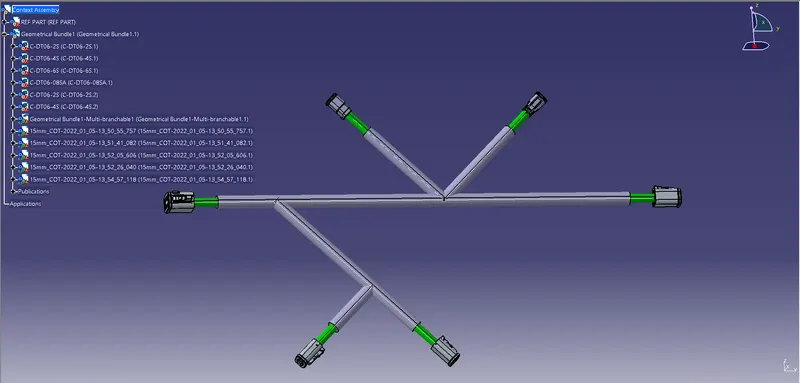

To Route the harness

• Created Context asssembly.
• Reference Sketch is created in reference part.
• Added the pre-defined connectors into the assembly.
• Defined the assembly product as Geometrical Bundle.
• Routed the harness in the Geometrical Bundle<Multi Branchable.
• Protection Coverings were added to the harness routing at end extremity of 30mm from the connectors.
